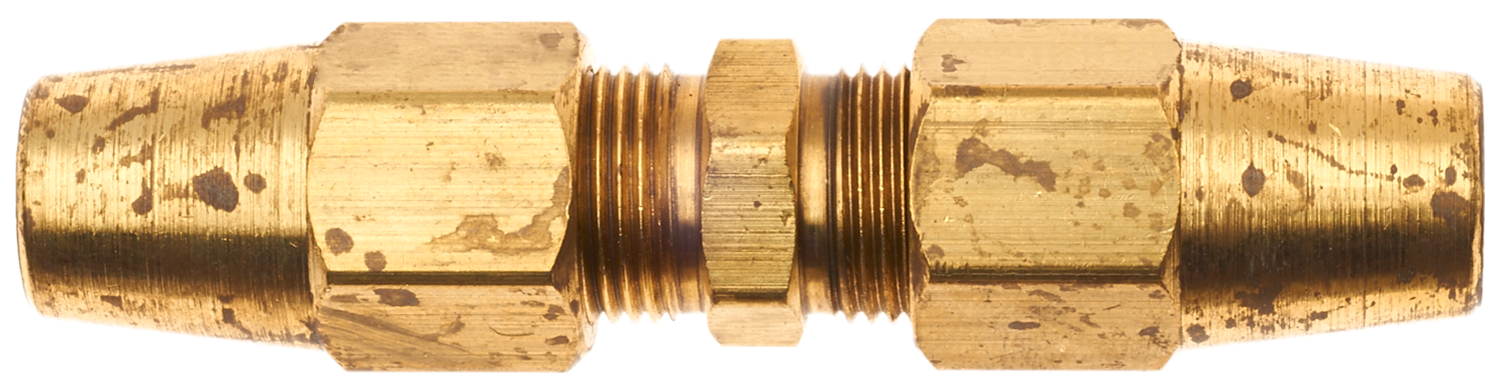

# Air Brake Copper Tubing Compression Union
Recommended for air brake systems - compressed air connectors or suspension, steering, engine transmission or on auxiliary components.
- Used with copper tubing in air brake systems.
- Easy to assemble - no flaring tools required.
- Versatile - can be used with nylon tubing by replacing the long nut and sleeve with an insert, rigid sleeve and nut.
- Meets DOT FMVSS 571.106, SAE J246 and SAE J1131 requirements.
- Temperature Range: -65 Deg. F to +250 Deg. F (-53 Deg. C to +121 Deg. C).
Variations (5)
10ABCT-10ABCT / G30400-1010
| End 2 Diameter (mm) | 10 |
|---|---|

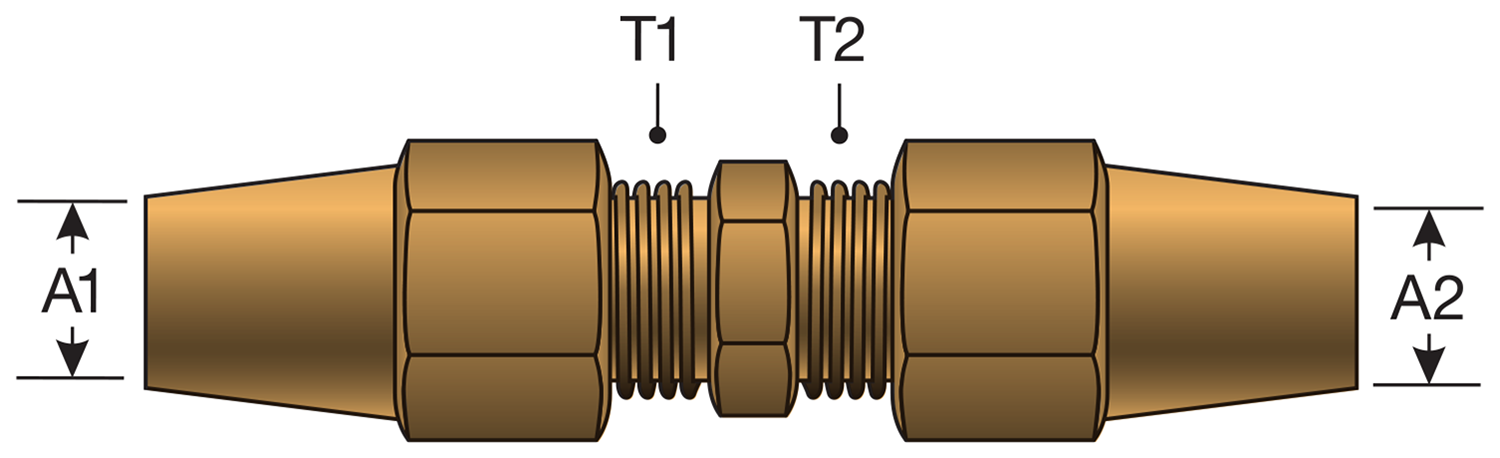

| A1 Outside Diameter (in) | 0.625 |
| A1 Outside Diameter (mm) | 15.9 |
| A2 Outside Diameter (in) | 15.9 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 10 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.32 |
12ABCT-12ABCT / G30400-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| A1 Outside Diameter (in) | 0.75 |
| A1 Outside Diameter (mm) | 19.1 |
| A2 Outside Diameter (in) | 19.1 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.52 |
4ABCT-4ABCT / G30400-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| A1 Outside Diameter (in) | 0.25 |
| A1 Outside Diameter (mm) | 6.4 |
| A2 Outside Diameter (in) | 6.4 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
6ABCT-6ABCT / G30400-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| A1 Outside Diameter (in) | 0.375 |
| A1 Outside Diameter (mm) | 9.5 |
| A2 Outside Diameter (in) | 9.5 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.14 |
8ABCT-8ABCT / G30400-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| A1 Outside Diameter (in) | 0.5 |
| A1 Outside Diameter (mm) | 12.7 |
| A2 Outside Diameter (in) | 12.7 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.25 |
Specifications
| End 2 Diameter (mm) | 4 – 12 |
|---|---|
| A1 Outside Diameter (in) | 0.25 – 0.75 |
| A1 Outside Diameter (mm) | 6.4 – 19.1 |
| A2 Outside Diameter (in) | 6.4 – 19.1 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 4 – 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 – 0.52 |
