Attributes
| Part Number | 8550-000000-000000 |
|---|
Description

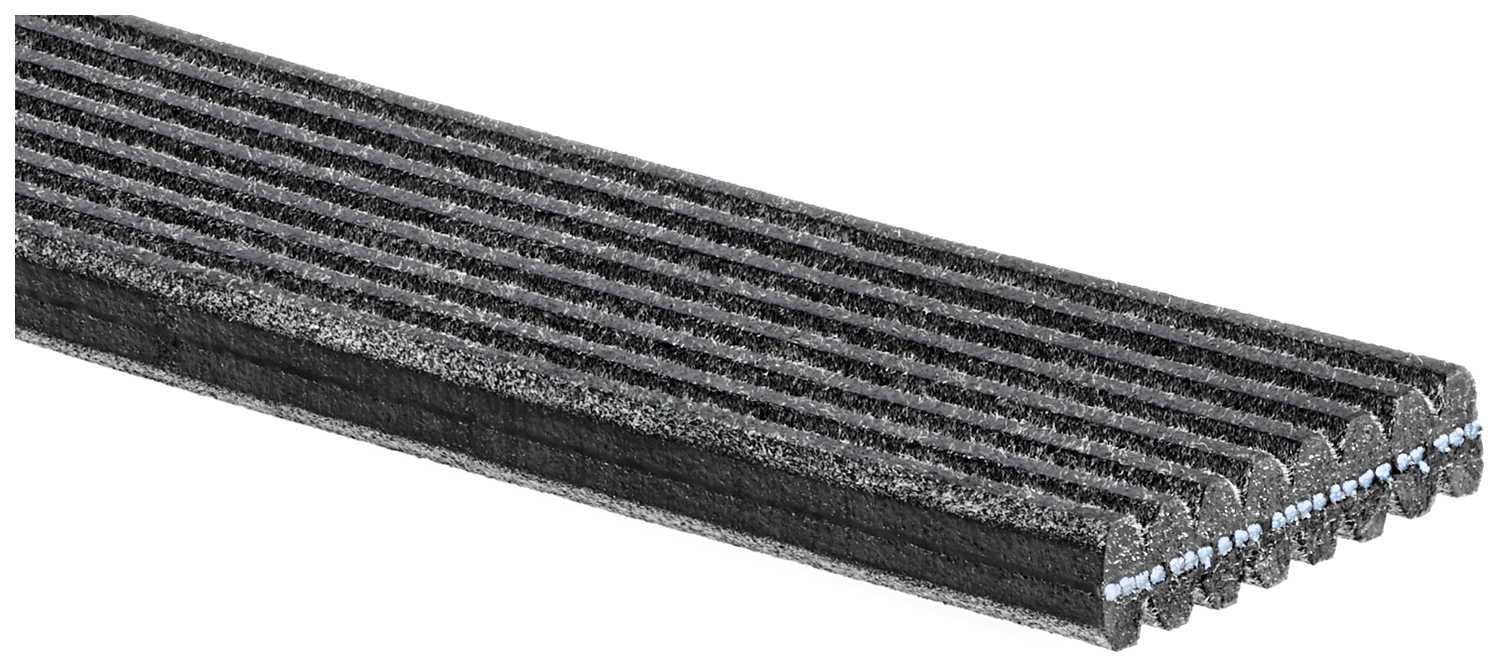

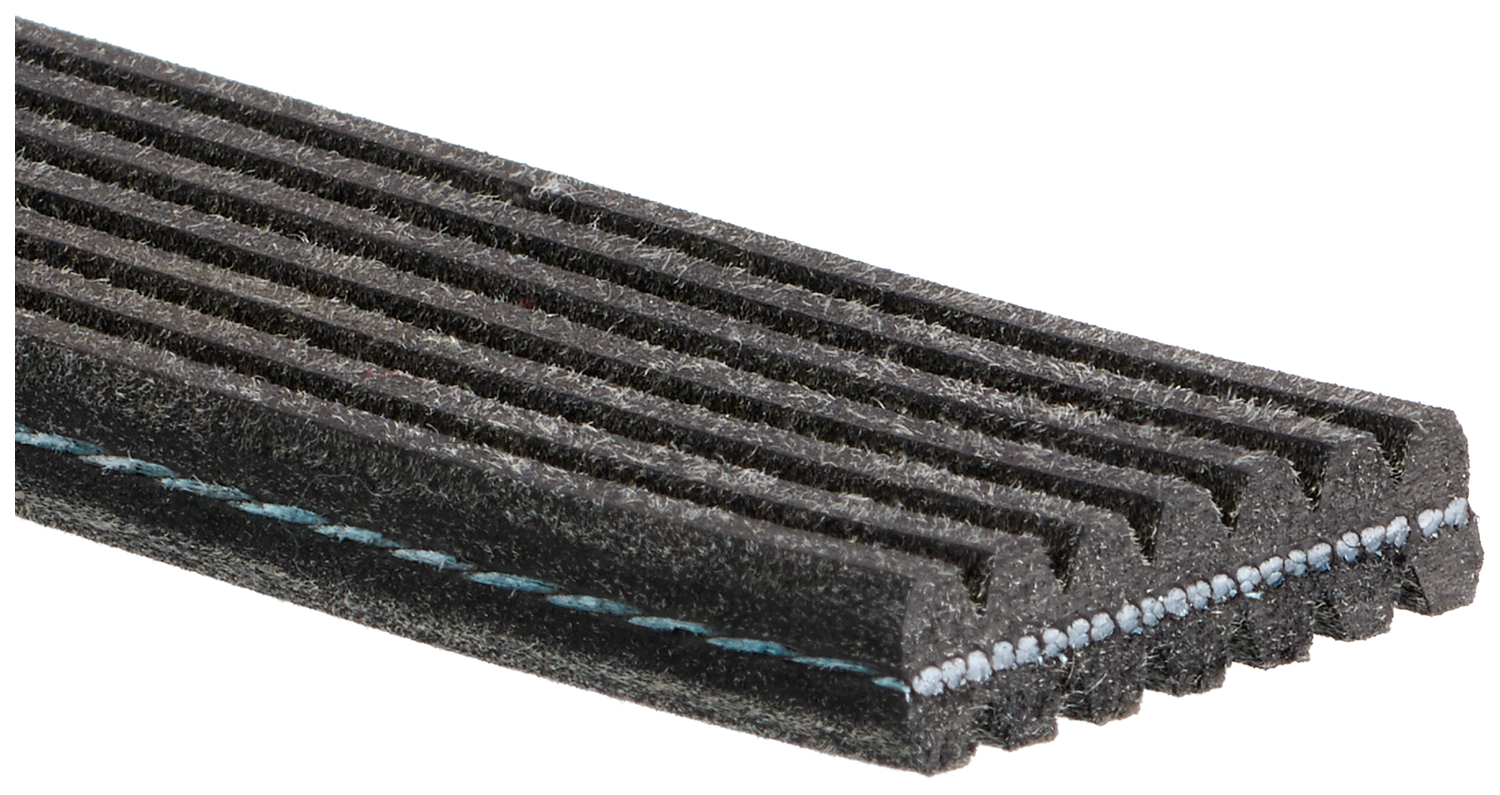

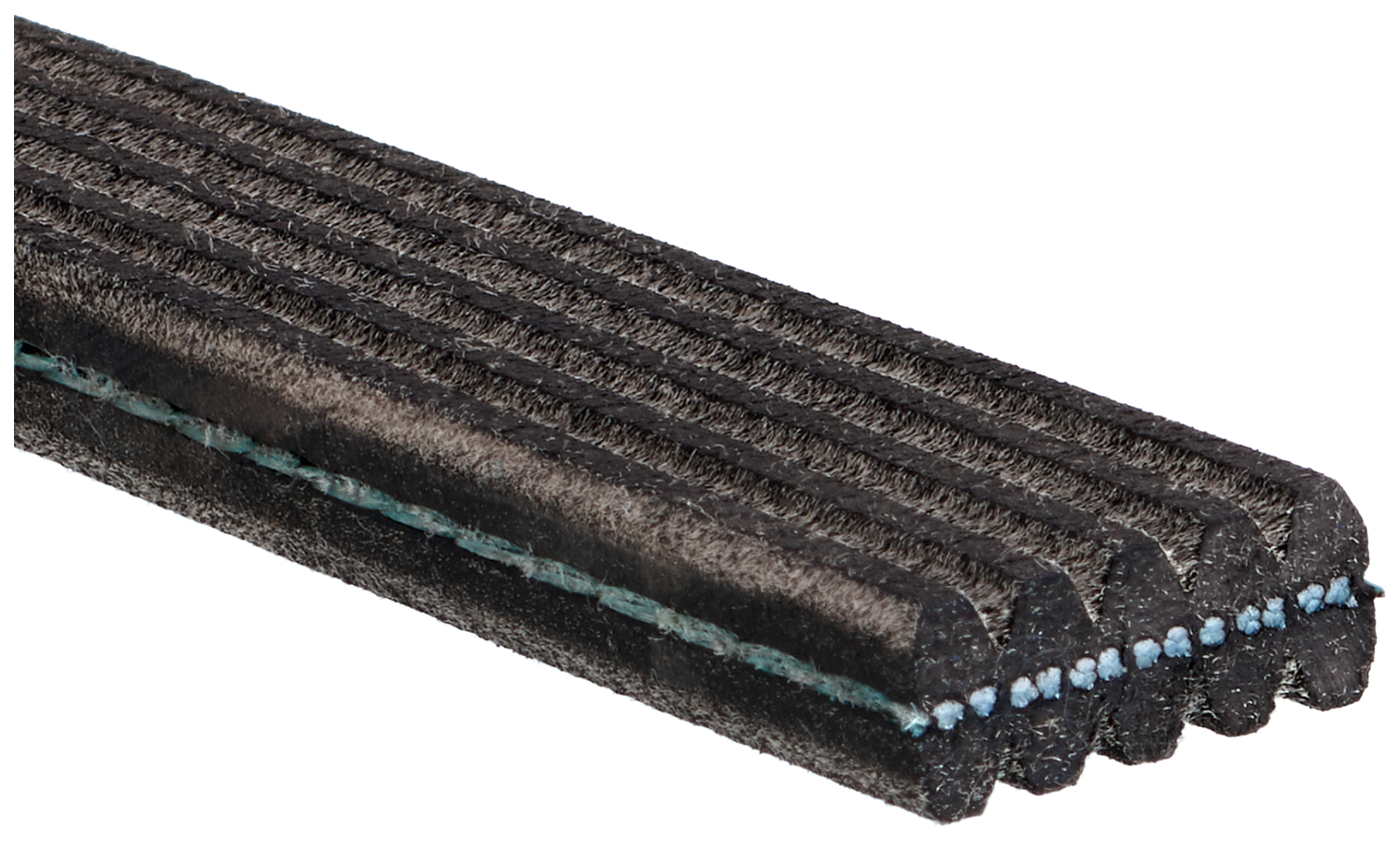

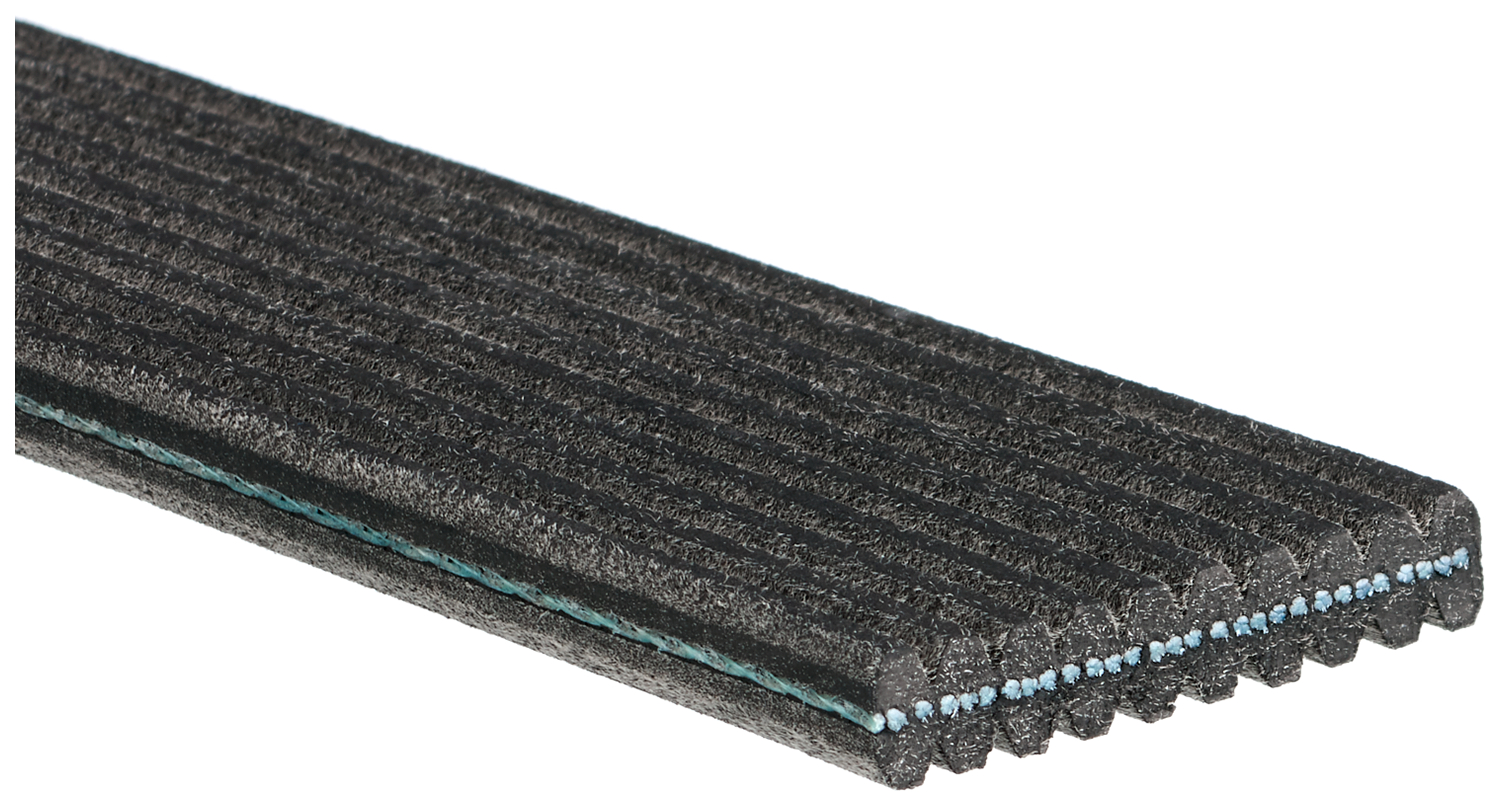

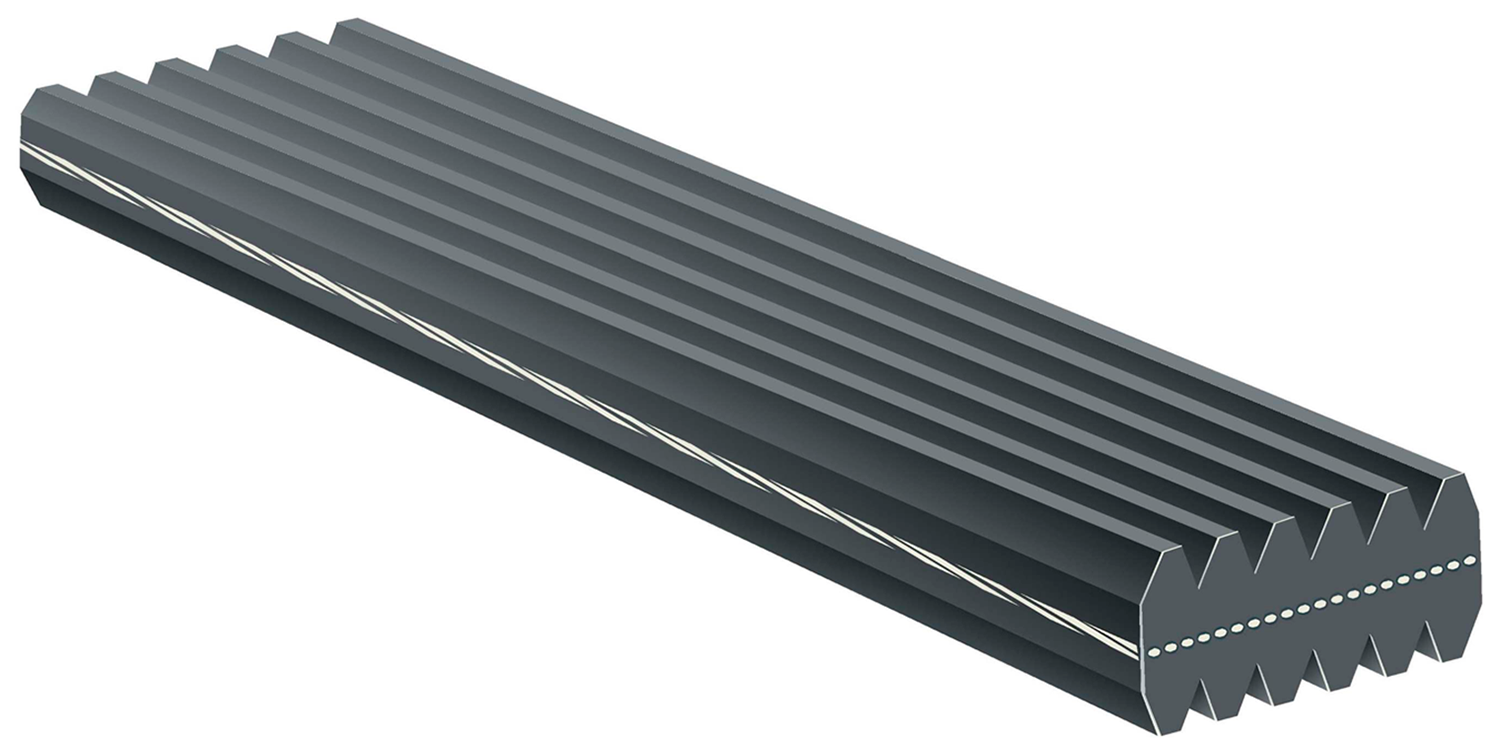

Gates® Micro-V® Dual-Sided Belts For replacing original equipment belts on serpentine drives that require a higher degree of efficiency when transmitting power. Designed for small diameter pulleys and for use with or without automatic tensioners. Specially designed to resist wear and cracking due to overall reduced thickness in construction Broad coverage on unique applications. Custom setup for Gates specialized solution kits for Serpentine drives that cause problems from the OEM. Broad coverage on unique applications. V-ribbed on both sides of the belt.
Variations (36)
DK060470
No variation attributes.
DK060721
No variation attributes.
DK060791BIN
No variation attributes.
DK060814
No variation attributes.
DK060898
No variation attributes.
DK080522
No variation attributes.
DK080562
No variation attributes.
DK080566
No variation attributes.
DK081396
No variation attributes.
DK050565
| Effective Length (in) | 56.63 |
|---|---|
| Effective Length (mm) | 1438 |
| Outside Circumference (in) | 57.75 |
| Outside Circumference (mm) | 1468 |
| Number of Ribs | 5 |
| Section | K |
| Top Width (in) | 0.667 |
| Top Width (mm) | 17 |
| Length (in) | 56.63 |
| Length (mm) | 1438 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.35 |
DK050610
| Effective Length (in) | 61.01 |
|---|---|
| Effective Length (mm) | 1550 |
| Outside Circumference (in) | 62.125 |
| Outside Circumference (mm) | 1579 |
| Number of Ribs | 5 |
| Section | K |
| Top Width (in) | 0.667 |
| Top Width (mm) | 17 |
| Length (in) | 61.01 |
| Length (mm) | 1550 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.4 |
DK060504
| Effective Length (in) | 50.4 |
|---|---|
| Effective Length (mm) | 1280 |
| Outside Circumference (in) | 51 |
| Outside Circumference (mm) | 1295 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 20 |
| Length (in) | 50.4 |
| Length (mm) | 1280 |
| Customer Pack | 80 |
| Weight (lbs.) | 0.37 |
DK060519
| Effective Length (in) | 51.9 |
|---|---|
| Effective Length (mm) | 1318 |
| Outside Circumference (in) | 53 |
| Outside Circumference (mm) | 1348 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 20 |
| Length (in) | 51.9 |
| Length (mm) | 1318 |
| Customer Pack | 80 |
| Weight (lbs.) | 0.35 |
DK060650
| Effective Length (in) | 65 |
|---|---|
| Effective Length (mm) | 1651 |
| Outside Circumference (in) | 66.125 |
| Outside Circumference (mm) | 1680 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 20 |
| Length (in) | 65 |
| Length (mm) | 1651 |
| Customer Pack | 49 |
| Weight (lbs.) | 0.47 |
DK060674
| Effective Length (in) | 67.37 |
|---|---|
| Effective Length (mm) | 1711 |
| Outside Circumference (in) | 68.5 |
| Outside Circumference (mm) | 1741 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 20 |
| Length (in) | 67.37 |
| Length (mm) | 1711 |
| Customer Pack | 49 |
| Weight (lbs.) | 0.5 |
DK060702
| Effective Length (in) | 70.15 |
|---|---|
| Effective Length (mm) | 1782 |
| Outside Circumference (in) | 71.25 |
| Outside Circumference (mm) | 1811 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 20 |
| Length (in) | 70.15 |
| Length (mm) | 1782 |
| Customer Pack | 20 |
| Weight (lbs.) | 0.55 |
DK060718
| Effective Length (in) | 71.8 |
|---|---|
| Effective Length (mm) | 1824 |
| Outside Circumference (in) | 73 |
| Outside Circumference (mm) | 1853 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 20 |
| Length (in) | 71.8 |
| Length (mm) | 1824 |
| Customer Pack | 49 |
| Weight (lbs.) | 0.55 |
DK060725
| Effective Length (in) | 72.54 |
|---|---|
| Effective Length (mm) | 1843 |
| Outside Circumference (in) | 73.75 |
| Outside Circumference (mm) | 1872 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 20 |
| Length (in) | 72.54 |
| Length (mm) | 1843 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.55 |
DK060729
| Effective Length (in) | 73.04 |
|---|---|
| Effective Length (mm) | 1855 |
| Outside Circumference (in) | 74.25 |
| Outside Circumference (mm) | 1885 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 20 |
| Length (in) | 73.04 |
| Length (mm) | 1855 |
| Customer Pack | 20 |
| Weight (lbs.) | 0.55 |
DK060791
| Effective Length (in) | 79.14 |
|---|---|
| Effective Length (mm) | 2010 |
| Outside Circumference (in) | 80.375 |
| Outside Circumference (mm) | 2043 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 20 |
| Length (in) | 79.14 |
| Length (mm) | 2010 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.6 |
DK060809
| Effective Length (in) | 80.94 |
|---|---|
| Effective Length (mm) | 2056 |
| Outside Circumference (in) | 82 |
| Outside Circumference (mm) | 2083 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 20 |
| Length (in) | 80.94 |
| Length (mm) | 2056 |
| Customer Pack | 49 |
| Weight (lbs.) | 0.59 |
DK060859
| Effective Length (in) | 85.984 |
|---|---|
| Effective Length (mm) | 2184 |
| Outside Circumference (in) | 87.125 |
| Outside Circumference (mm) | 2213 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 20 |
| Length (in) | 85.984 |
| Length (mm) | 2184 |
| Customer Pack | 49 |
| Weight (lbs.) | 0.63 |
DK060867
| Effective Length (in) | 86.76 |
|---|---|
| Effective Length (mm) | 2204 |
| Outside Circumference (in) | 87.875 |
| Outside Circumference (mm) | 2232 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 20 |
| Length (in) | 86.76 |
| Length (mm) | 2204 |
| Customer Pack | 49 |
| Weight (lbs.) | 0.63 |
DK060901
| Effective Length (in) | 90.11 |
|---|---|
| Effective Length (mm) | 2289 |
| Outside Circumference (in) | 90.625 |
| Outside Circumference (mm) | 2302 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 20 |
| Length (in) | 90.11 |
| Length (mm) | 2289 |
| Customer Pack | 49 |
| Weight (lbs.) | 0.66 |
DK060956
| Effective Length (in) | 95.56 |
|---|---|
| Effective Length (mm) | 2427 |
| Outside Circumference (in) | 95.75 |
| Outside Circumference (mm) | 2432 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 20 |
| Length (in) | 95.56 |
| Length (mm) | 2427 |
| Customer Pack | 270 |
| Weight (lbs.) | 0.12 |
DK060973
| Effective Length (in) | 97.29 |
|---|---|
| Effective Length (mm) | 2471 |
| Outside Circumference (in) | 98.625 |
| Outside Circumference (mm) | 2504 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 20 |
| Length (in) | 97.29 |
| Length (mm) | 2471 |
| Customer Pack | 50 |
| Weight (lbs.) | 0.68 |
DK070536
| Effective Length (in) | 53.65 |
|---|---|
| Effective Length (mm) | 1363 |
| Outside Circumference (in) | 54.875 |
| Outside Circumference (mm) | 1394 |
| Number of Ribs | 7 |
| Section | K |
| Top Width (in) | 0.947 |
| Top Width (mm) | 24 |
| Length (in) | 53.65 |
| Length (mm) | 1363 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.45 |
DK070551
| Effective Length (in) | 55.18 |
|---|---|
| Effective Length (mm) | 1402 |
| Outside Circumference (in) | 56.375 |
| Outside Circumference (mm) | 1432 |
| Number of Ribs | 7 |
| Section | K |
| Top Width (in) | 0.947 |
| Top Width (mm) | 24 |
| Length (in) | 55.18 |
| Length (mm) | 1402 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.47 |
DK070817
| Effective Length (in) | 81.72 |
|---|---|
| Effective Length (mm) | 2076 |
| Outside Circumference (in) | 82.875 |
| Outside Circumference (mm) | 2105 |
| Number of Ribs | 7 |
| Section | K |
| Top Width (in) | 0.947 |
| Top Width (mm) | 24 |
| Length (in) | 81.72 |
| Length (mm) | 2076 |
| Customer Pack | 41 |
| Weight (lbs.) | 0.7 |
DK071135
| Effective Length (in) | 113.54 |
|---|---|
| Effective Length (mm) | 2884 |
| Outside Circumference (in) | 114.125 |
| Number of Ribs | 7 |
| Section | K |
| Top Width (in) | 0.94 |
| Top Width (mm) | 2.884 |
| Length (in) | 113.56 |
| Length (mm) | 2884 |
| Color | BLACK |
| Material | EPDM |
| Customer Pack | 41 |
| Weight (lbs.) | 0.93 |
DK080534
| Effective Length (in) | 53.4 |
|---|---|
| Effective Length (mm) | 1356 |
| Outside Circumference (in) | 54 |
| Outside Circumference (mm) | 1370 |
| Number of Ribs | 8 |
| Section | K |
| Top Width (in) | 1.087 |
| Top Width (mm) | 28 |
| Length (in) | 53.4 |
| Length (mm) | 1356 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.55 |
DK080555
| Effective Length (in) | 55.55 |
|---|---|
| Effective Length (mm) | 1411 |
| Outside Circumference (in) | 56.63 |
| Outside Circumference (mm) | 1438 |
| Number of Ribs | 8 |
| Section | K |
| Top Width (in) | 1.087 |
| Top Width (mm) | 28 |
| Length (in) | 55.55 |
| Length (mm) | 1411 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.54 |
DK080568
| Effective Length (in) | 56.85 |
|---|---|
| Effective Length (mm) | 1444 |
| Outside Circumference (in) | 57.375 |
| Outside Circumference (mm) | 1457 |
| Number of Ribs | 8 |
| Section | K |
| Top Width (in) | 1.087 |
| Top Width (mm) | 28 |
| Length (in) | 56.85 |
| Length (mm) | 1444 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.56 |
DK081254
| Effective Length (in) | 125.44 |
|---|---|
| Effective Length (mm) | 3186 |
| Outside Circumference (in) | 126 |
| Outside Circumference (mm) | 3200 |
| Number of Ribs | 8 |
| Section | K |
| Top Width (in) | 1.087 |
| Top Width (mm) | 28 |
| Length (in) | 125.44 |
| Length (mm) | 3186 |
| Customer Pack | 30 |
| Weight (lbs.) | 1.2 |
DK081403
| Effective Length (in) | 140.37 |
|---|---|
| Effective Length (mm) | 3565 |
| Outside Circumference (in) | 140.875 |
| Outside Circumference (mm) | 3579 |
| Number of Ribs | 8 |
| Section | K |
| Top Width (in) | 1.087 |
| Top Width (mm) | 28 |
| Length (in) | 140.37 |
| Length (mm) | 3565 |
| Customer Pack | 25 |
| Weight (lbs.) | 1.4 |
DK100672
| Effective Length (in) | 67.24 |
|---|---|
| Effective Length (mm) | 1708 |
| Outside Circumference (in) | 68.375 |
| Outside Circumference (mm) | 1737 |
| Number of Ribs | 10 |
| Section | K |
| Top Width (in) | 1.367 |
| Top Width (mm) | 35 |
| Length (in) | 67.24 |
| Length (mm) | 1708 |
| Customer Pack | 29 |
| Weight (lbs.) | 0.83 |
Specifications
| Effective Length (in) | 50.4 – 140.37 |
|---|---|
| Effective Length (mm) | 1280 – 3565 |
| Outside Circumference (in) | 51 – 140.875 |
| Outside Circumference (mm) | 1295 – 3579 |
| Number of Ribs | 5 – 10 |
| Section | K |
| Top Width (in) | 0.667 – 1.367 |
| Top Width (mm) | 2.884 – 35 |
| Length (in) | 50.4 – 140.37 |
| Length (mm) | 1280 – 3565 |
| Customer Pack | 20 – 300 |
| Weight (lbs.) | 0.12 – 1.4 |
| Color | BLACK |
| Material | EPDM |
