Attributes
| Part Number | 7259-000000-000001 |
|---|
Description

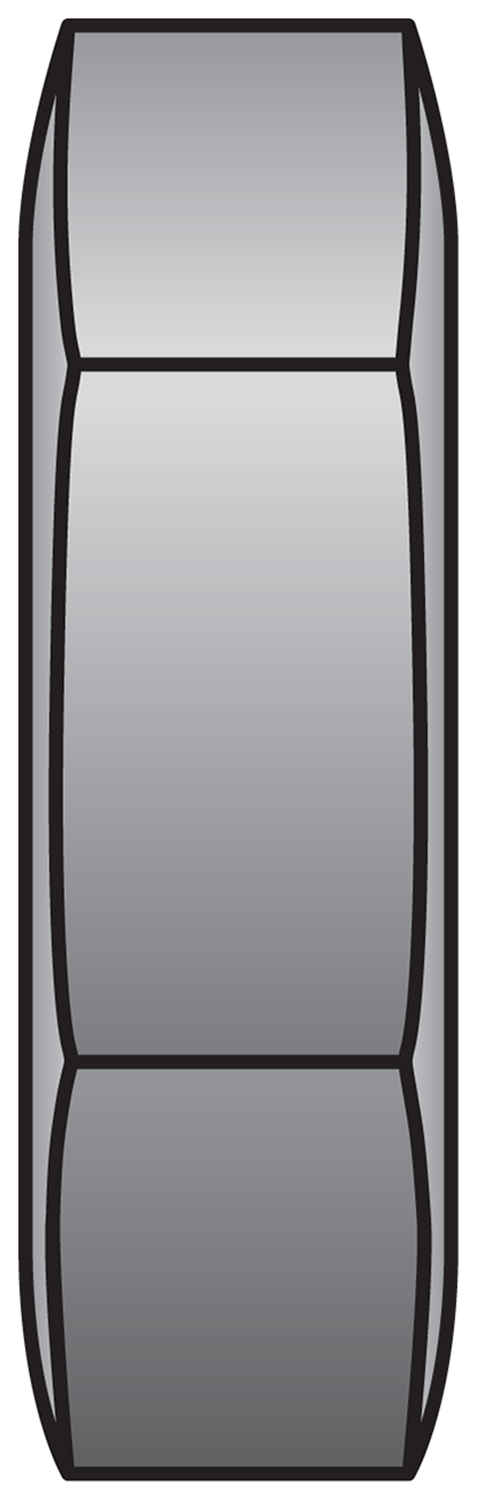

Locknuts for Bulkhead Fittings Engineered for high‑pressure performance, these precision‑machined tube nuts and sleeves deliver durable, vibration‑resistant fittings that ensure reliable, leak‑proof hydraulic and pneumatic lines. Provides strong, reliable hose-to-fitting connections. Resists vibration for long-lasting seal integrity. Precision-machined for consistent, leak-free performance.
Variations (5)
10LN-SH / G60399-0010
| H1 Stem Hex (in) | 1.13 |
|---|---|
| H1 Stem Hex (mm) | 28.6 |
| End 1 Diameter (mm) | 10 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
16LN-SH / G60399-0016
| H1 Stem Hex (in) | 1.63 |
|---|---|
| H1 Stem Hex (mm) | 41.3 |
| End 1 Diameter (mm) | 16 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
4LN-SH / G60399-0004
| Material | Steel |
|---|---|
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 5 |
| Weight (lbs.) | 0.1 |
5LN / G60399-0005
| H1 Stem Hex (in) | 0.75 |
|---|---|
| H1 Stem Hex (mm) | 19.1 |
| End 1 Diameter (mm) | 5 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 5 |
| Weight (lbs.) | 0.1 |
8LN-SH / G60399-0008
| H1 Stem Hex (in) | 1 |
|---|---|
| H1 Stem Hex (mm) | 25.4 |
| End 1 Diameter (mm) | 8 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 5 |
| Weight (lbs.) | 0.1 |
Specifications
| H1 Stem Hex (in) | 0.75 – 1.63 |
|---|---|
| H1 Stem Hex (mm) | 19.1 – 41.3 |
| End 1 Diameter (mm) | 5 – 16 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 – 5 |
| Weight (lbs.) | 0.1 |
