Attributes
| Part Number | 8519-000000-000000 |
|---|
Description

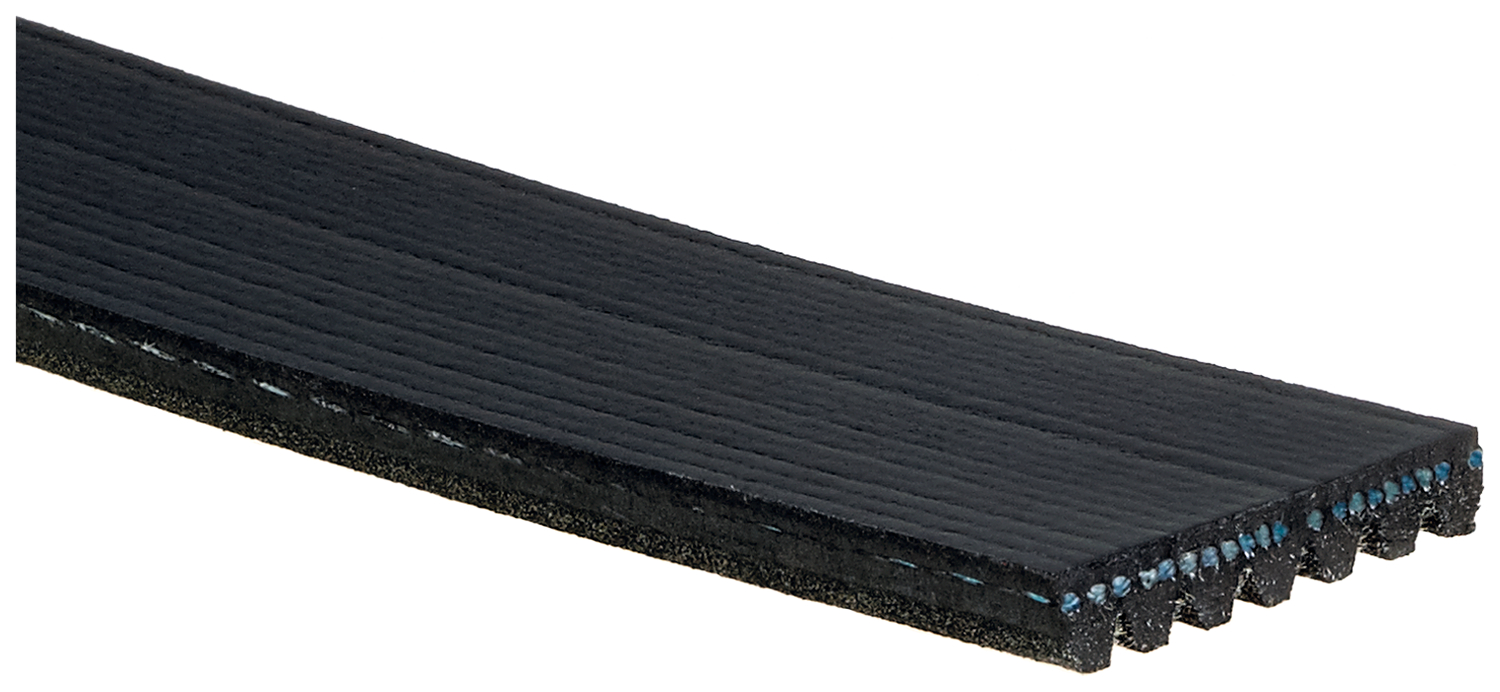

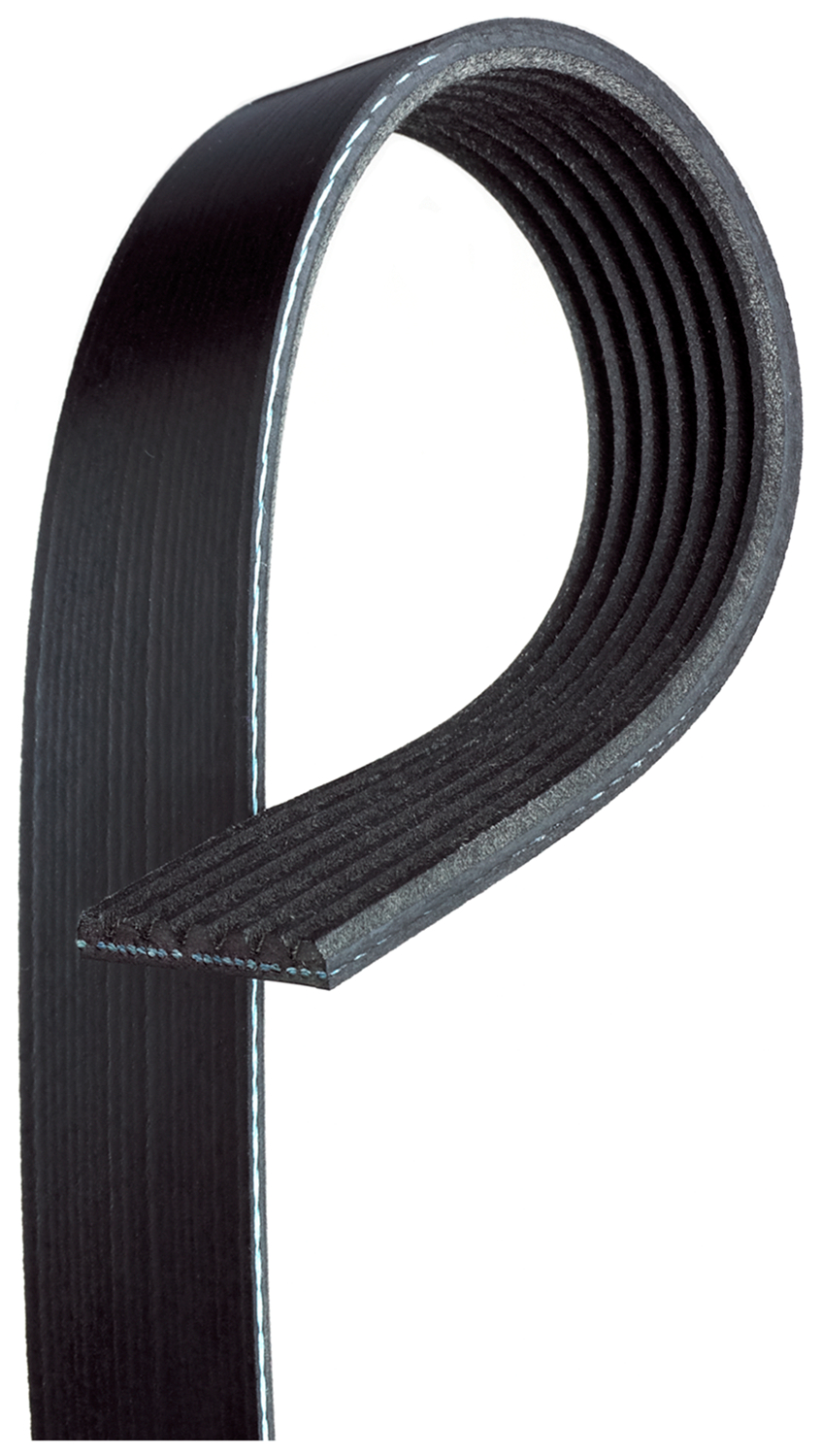

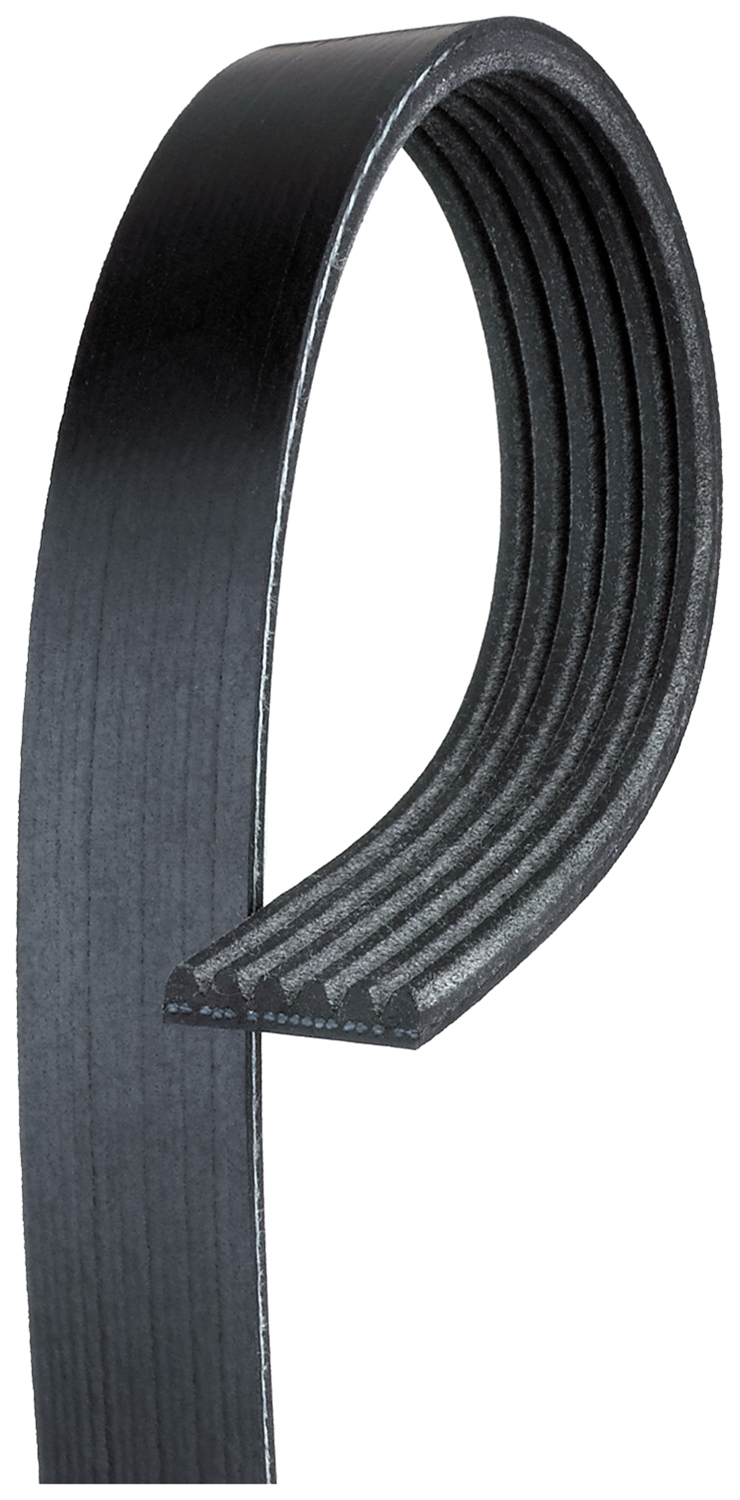

Gates Metric Micro-V® Belts Gates Metric Micro-V® Belts are specially designed to meet the needs of unique applications or problematic drives. Designed for small diameter pulleys, backside idlers, and for use with (or without) automatic tensioners. Meets or exceeds all specifications from the Original Equipment Manufacturer. Meets or exceeds SAE J1459, SAE J2432, and SAE J1596 specifications. Special belt constructions eliminate belt noise, reduce tension loss, and solve problem drive applications. Unique form grinding of each individual belt assures precise dimensional control. Utilizes advanced materials like Aramid Fiber found in bullet-proof vests and crack and heat-resistant EPDM materials.
Variations (8)
6PK1190
| Effective Length (in) | 46.85 |
|---|---|
| Effective Length (mm) | 1190 |
| Outside Circumference (in) | 46.85 |
| Outside Circumference (mm) | 1190 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.813 |
| Top Width (mm) | 21 |
| Length (in) | 46.85 |
| Length (mm) | 1190 |
| Material | EPDM |
| Customer Pack | 50 |
| Weight (lbs.) | 0.2 |
6PK1660
| Effective Length (in) | 65.52 |
|---|---|
| Effective Length (mm) | 1660 |
| Outside Circumference (in) | 65.52 |
| Outside Circumference (mm) | 1660 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 21 |
| Length (in) | 65.52 |
| Length (mm) | 1660 |
| Material | EPDM |
| Customer Pack | 50 |
| Weight (lbs.) | 0.34 |
6PK1880
| Effective Length (in) | 73.9 |
|---|---|
| Effective Length (mm) | 1877 |
| Outside Circumference (in) | 74.53 |
| Outside Circumference (mm) | 1893 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.84 |
| Top Width (mm) | 21 |
| Length (in) | 73.9 |
| Length (mm) | 1877 |
| Material | EPDM |
| Customer Pack | 50 |
| Weight (lbs.) | 0.5 |
6PK1890
| Effective Length (in) | 74.41 |
|---|---|
| Effective Length (mm) | 1890 |
| Outside Circumference (in) | 74.41 |
| Outside Circumference (mm) | 1890 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.807 |
| Top Width (mm) | 21 |
| Length (in) | 74.41 |
| Length (mm) | 1890 |
| Material | EPDM |
| Customer Pack | 50 |
| Weight (lbs.) | 0.38 |
6PK2090
| Effective Length (in) | 82.283 |
|---|---|
| Effective Length (mm) | 2090 |
| Outside Circumference (in) | 82.33 |
| Outside Circumference (mm) | 2090 |
| Number of Ribs | 6 |
| Section | K |
| Top Width (in) | 0.813 |
| Top Width (mm) | 21 |
| Length (in) | 82.283 |
| Length (mm) | 2090 |
| Material | EPDM |
| Customer Pack | 50 |
| Weight (lbs.) | 0.4 |
7PK1930
| Effective Length (in) | 75.98 |
|---|---|
| Effective Length (mm) | 1930 |
| Outside Circumference (in) | 75.98 |
| Outside Circumference (mm) | 1930 |
| Number of Ribs | 7 |
| Section | K |
| Top Width (in) | 0.947 |
| Top Width (mm) | 24 |
| Length (in) | 75.98 |
| Length (mm) | 1930 |
| Material | EPDM |
| Customer Pack | 42 |
| Weight (lbs.) | 0.45 |
7PK2164
| Effective Length (in) | 85.13 |
|---|---|
| Effective Length (mm) | 2164 |
| Outside Circumference (in) | 85.78 |
| Outside Circumference (mm) | 2179 |
| Number of Ribs | 7 |
| Section | K |
| Top Width (in) | 0.98 |
| Top Width (mm) | 25 |
| Length (in) | 85.13 |
| Length (mm) | 2164 |
| Material | EPDM |
| Customer Pack | 42 |
| Weight (lbs.) | 0.5 |
7PK2217
| Effective Length (in) | 87.28 |
|---|---|
| Effective Length (mm) | 2217 |
| Outside Circumference (in) | 87.28 |
| Outside Circumference (mm) | 2217 |
| Number of Ribs | 7 |
| Section | K |
| Top Width (in) | 0.947 |
| Top Width (mm) | 24 |
| Length (in) | 87.28 |
| Length (mm) | 2217 |
| Material | EPDM |
| Customer Pack | 42 |
| Weight (lbs.) | 0.5 |
Specifications
| Effective Length (in) | 46.85 – 87.28 |
|---|---|
| Effective Length (mm) | 1190 – 2217 |
| Outside Circumference (in) | 46.85 – 87.28 |
| Outside Circumference (mm) | 1190 – 2217 |
| Number of Ribs | 6 – 7 |
| Section | K |
| Top Width (in) | 0.807 – 0.98 |
| Top Width (mm) | 21 – 25 |
| Length (in) | 46.85 – 87.28 |
| Length (mm) | 1190 – 2217 |
| Material | EPDM |
| Customer Pack | 42 – 50 |
| Weight (lbs.) | 0.2 – 0.5 |
