Attributes
| Part Number | 7410-000000-000016 |
|---|
Description

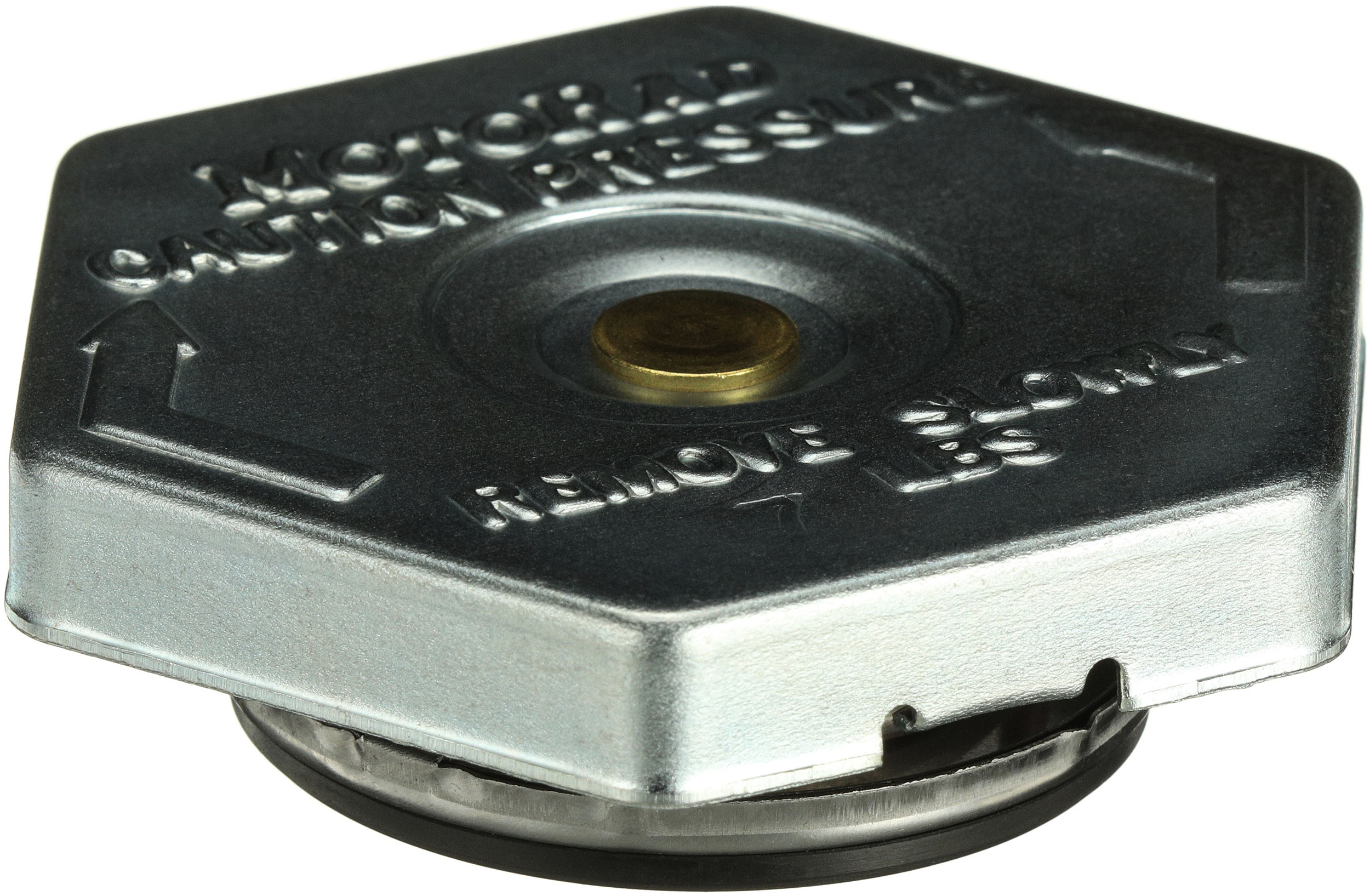

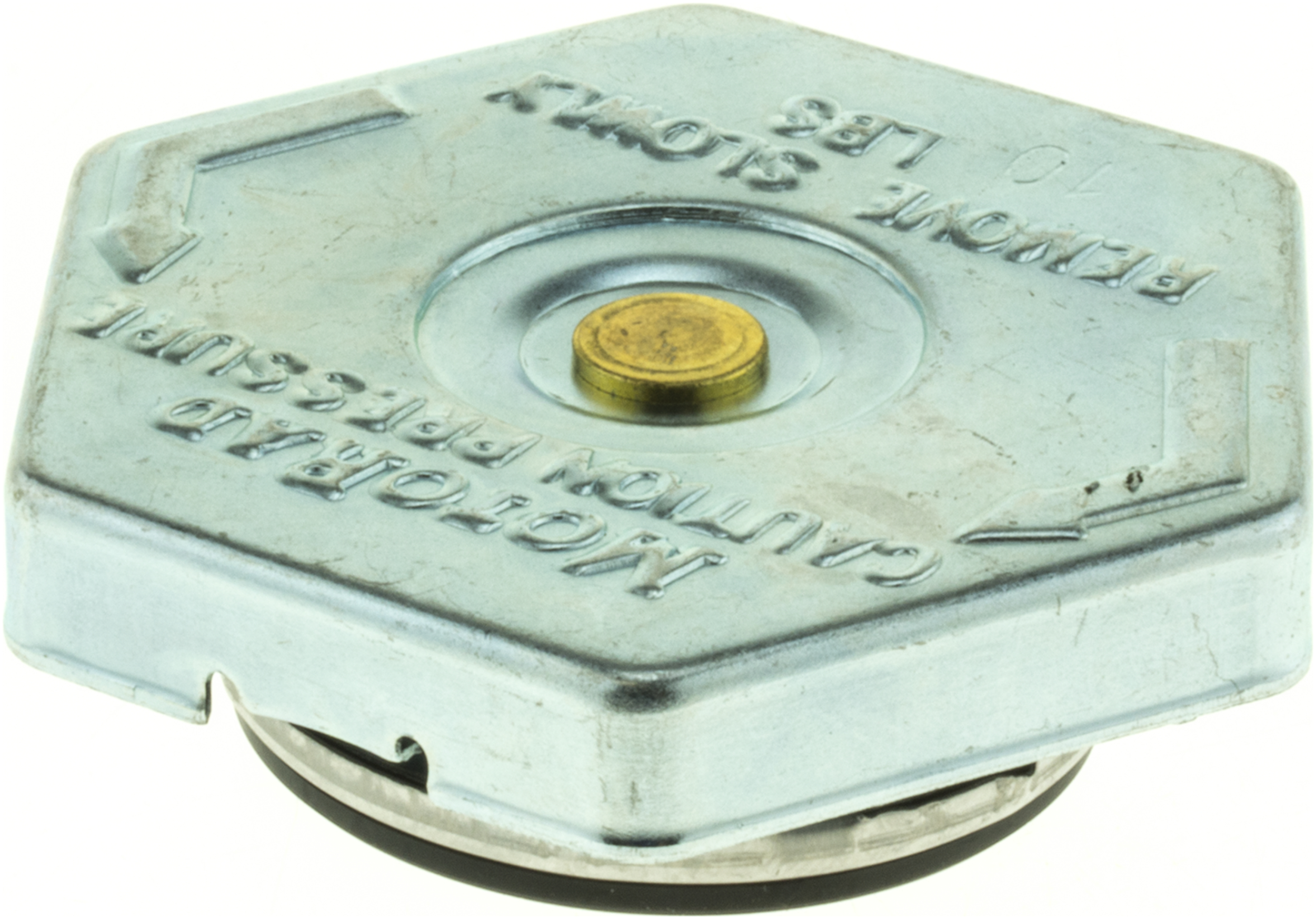

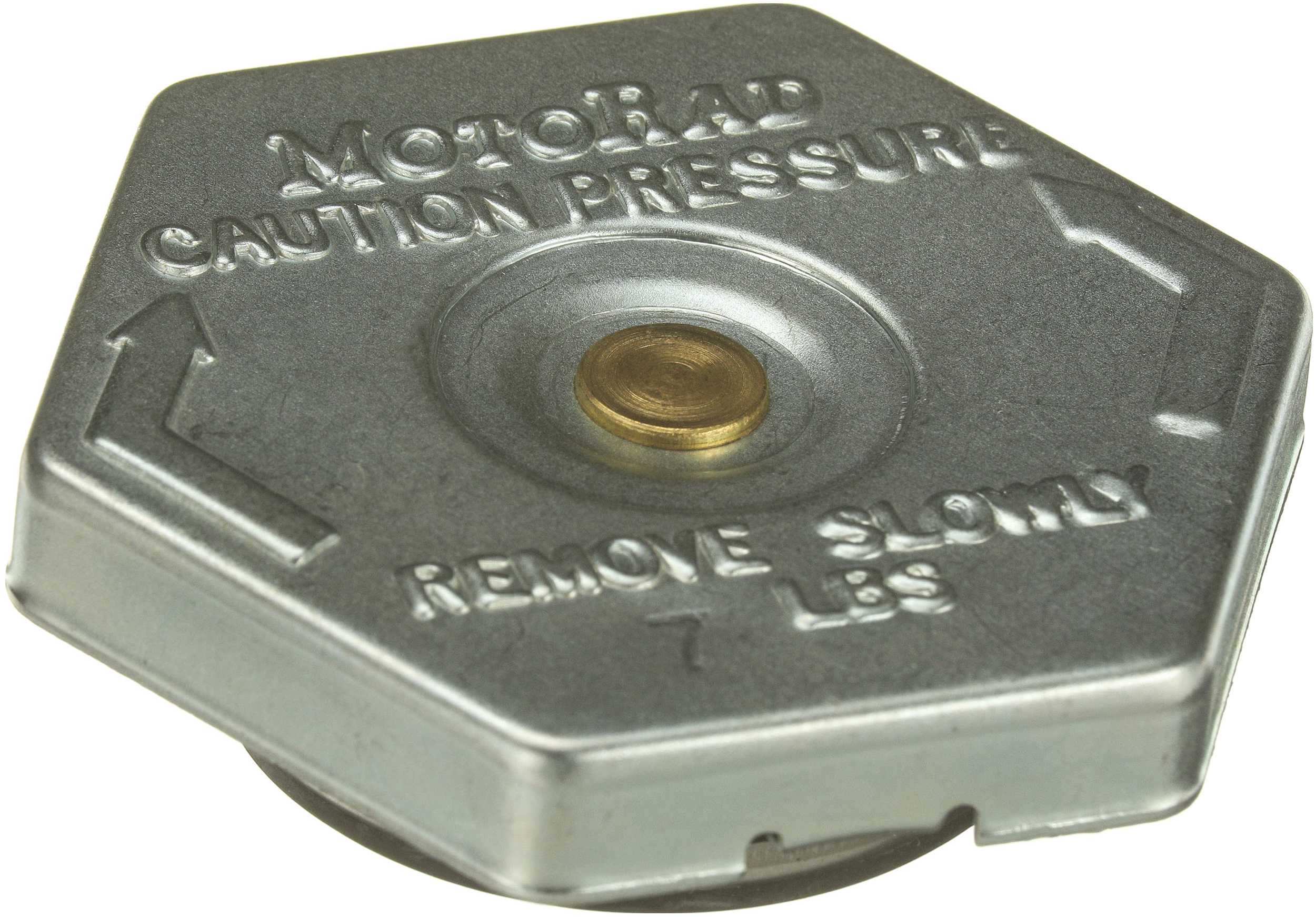

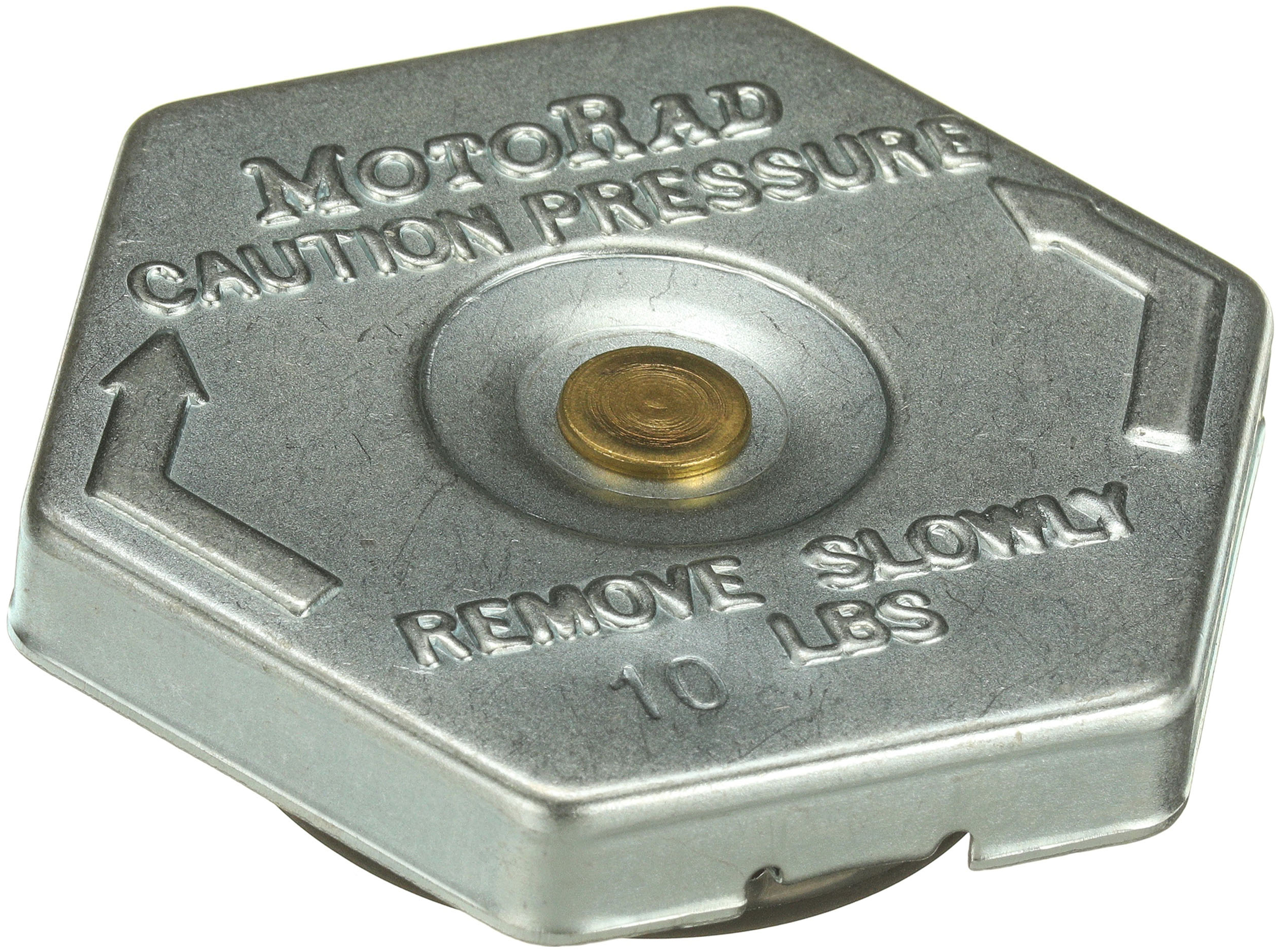

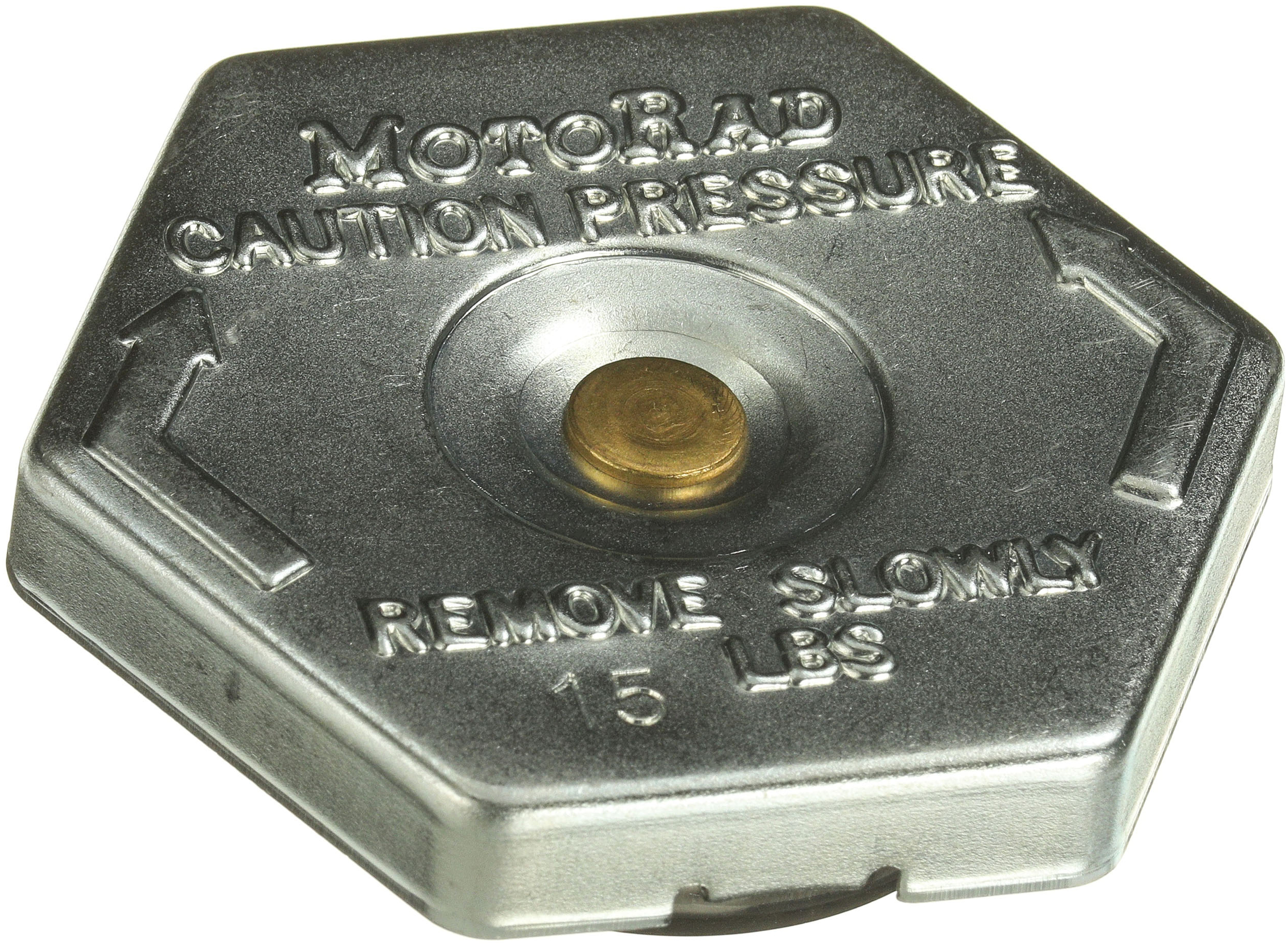

Heavy Duty Radiator Caps For use on heavy-duty trucks, buses and tractors. Fits applications with 3/4" deep filler necks. All Gates radiator pressure caps are constructed of corrosion-resistant, heavy-gauge metal to assure long service life and accurate pressure control. Covers a wide range of pressures. Designed and manufactured to OE standards. No adjustment required for installation. Precise pressure control.
Variations (6)
31307
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 2.13 |
| Filler Neck Inside Diameter (mm) | 54 |
| Filler Neck Outside Diameter (in) | 2 |
| Filler Neck Outside Diameter (mm) | 51 |
| Pressure Rating (psi) | 4 |
| Shell Diameter (mm) | 71 |
| Height (in) | 1.14 |
| Width (in) | 2.71 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.29 |
31308
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 2.13 |
| Filler Neck Inside Diameter (mm) | 54 |
| Filler Neck Outside Diameter (in) | 2 |
| Filler Neck Outside Diameter (mm) | 51 |
| Pressure Rating (psi) | 7 |
| Shell Diameter (mm) | 71 |
| Height (in) | 1.14 |
| Width (in) | 2.71 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.3 |
31309
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 2.13 |
| Filler Neck Inside Diameter (mm) | 54 |
| Filler Neck Outside Diameter (in) | 2 |
| Filler Neck Outside Diameter (mm) | 51 |
| Pressure Rating (psi) | 10 |
| Shell Diameter (mm) | 71 |
| Height (in) | 1.14 |
| Width (in) | 2.71 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.3 |
31348
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 2.13 |
| Filler Neck Inside Diameter (mm) | 54 |
| Filler Neck Outside Diameter (in) | 2 |
| Filler Neck Outside Diameter (mm) | 51 |
| Pressure Rating (psi) | 7 |
| Shell Diameter (mm) | 71 |
| Height (in) | 1.14 |
| Width (in) | 2.71 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.31 |
31349
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 2.13 |
| Filler Neck Inside Diameter (mm) | 54 |
| Filler Neck Outside Diameter (in) | 2 |
| Filler Neck Outside Diameter (mm) | 51 |
| Pressure Rating (psi) | 10 |
| Shell Diameter (mm) | 71 |
| Height (in) | 1.14 |
| Width (in) | 2.71 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.31 |
31350
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 2.13 |
| Filler Neck Inside Diameter (mm) | 54 |
| Filler Neck Outside Diameter (in) | 2 |
| Filler Neck Outside Diameter (mm) | 51 |
| Pressure Rating (psi) | 15 |
| Shell Diameter (mm) | 71 |
| Height (in) | 1.14 |
| Width (in) | 2.71 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.34 |
Specifications
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 2.13 |
| Filler Neck Inside Diameter (mm) | 54 |
| Filler Neck Outside Diameter (in) | 2 |
| Filler Neck Outside Diameter (mm) | 51 |
| Pressure Rating (psi) | 4 – 15 |
| Shell Diameter (mm) | 71 |
| Height (in) | 1.14 |
| Width (in) | 2.71 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.29 – 0.34 |
