Attributes
| Part Number | 7410-000000-000012 |
|---|
Description

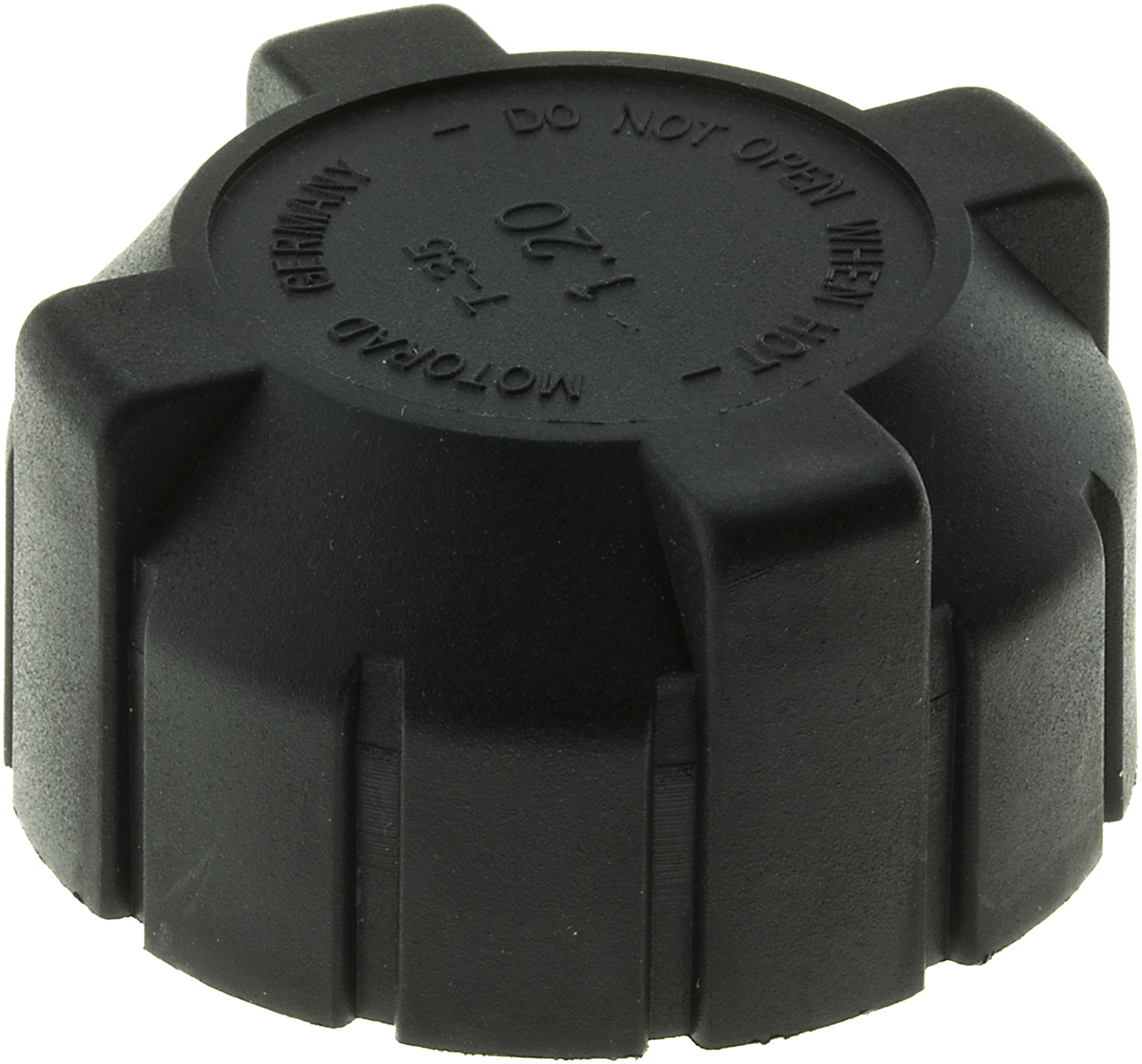

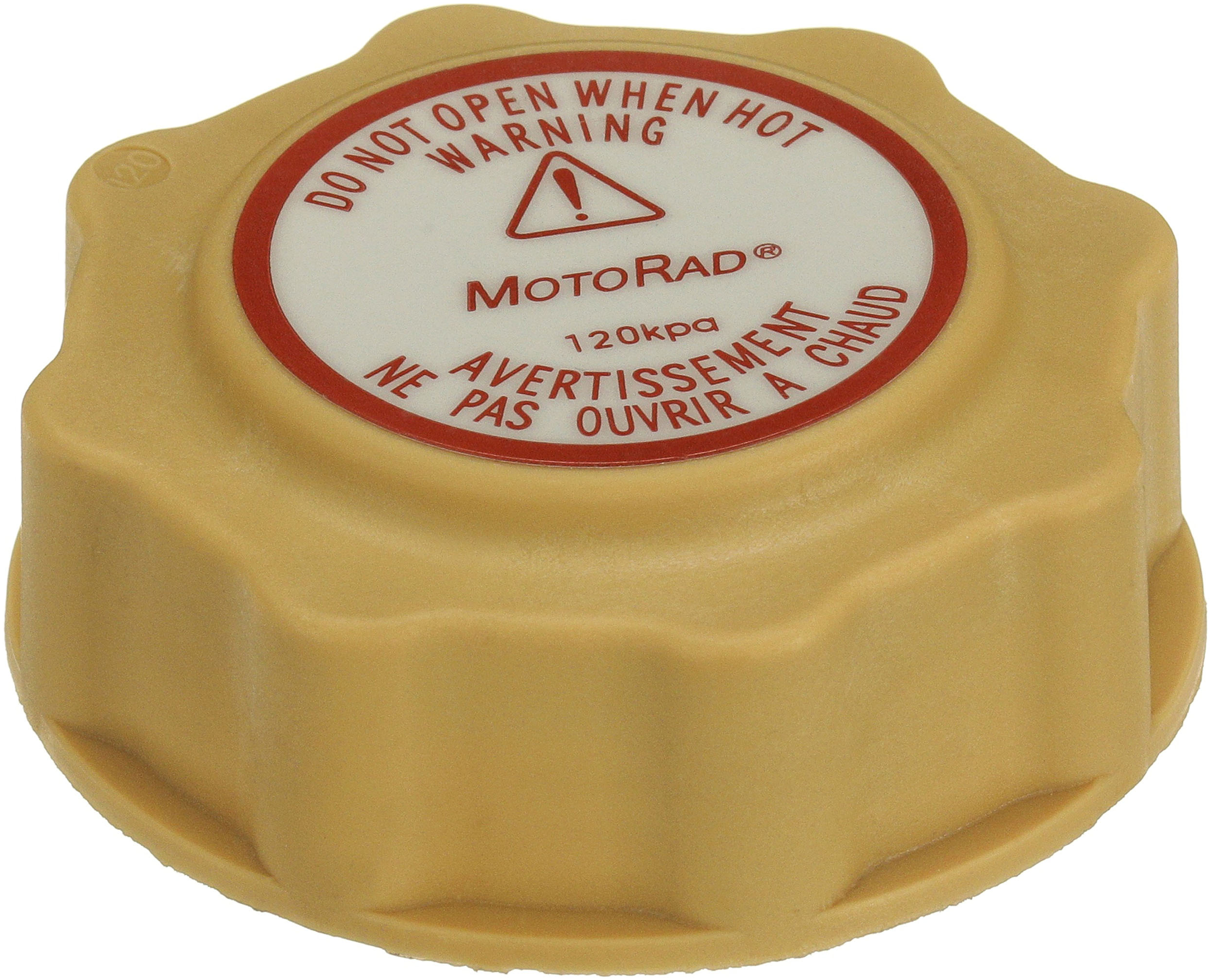

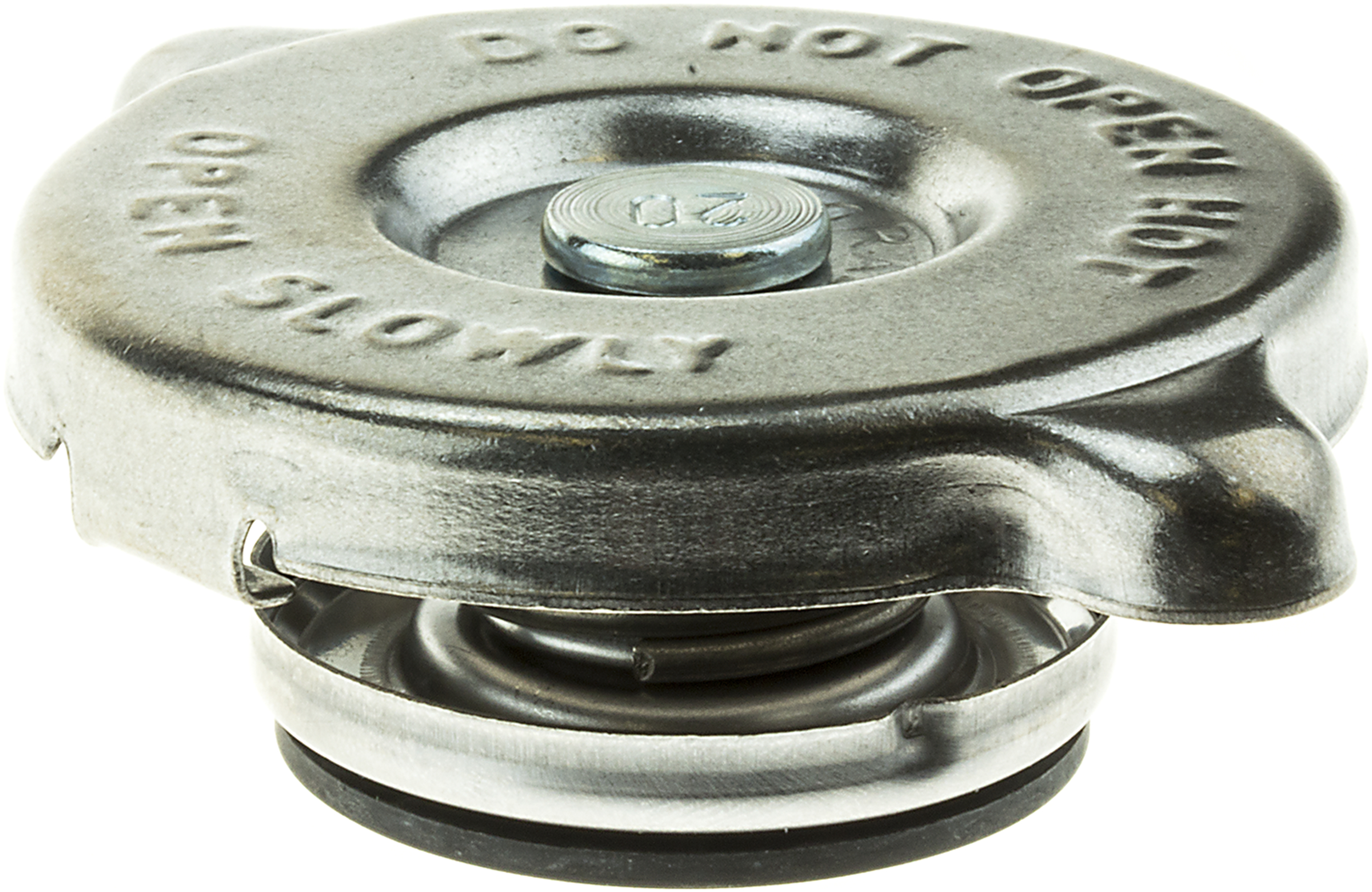

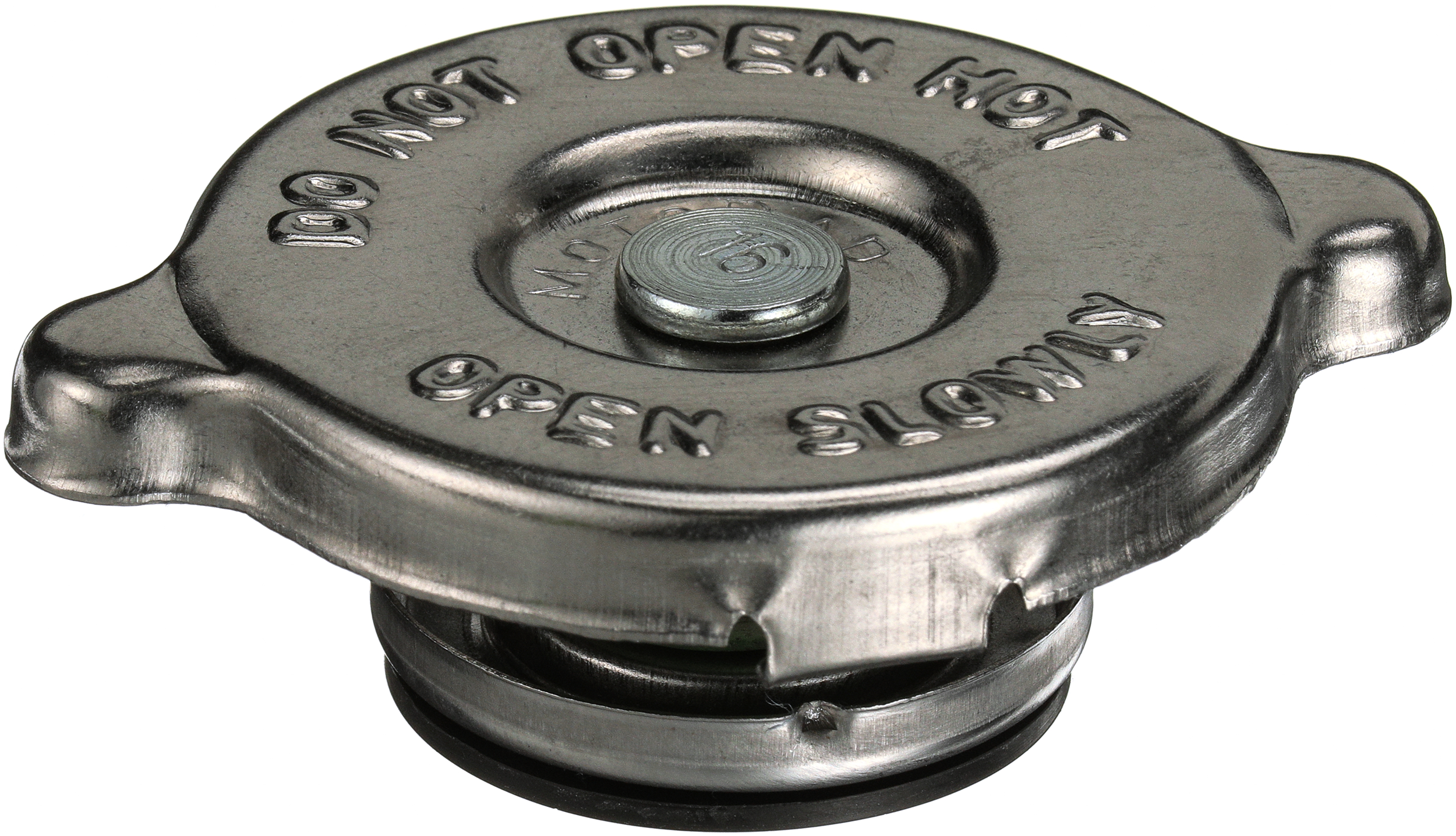

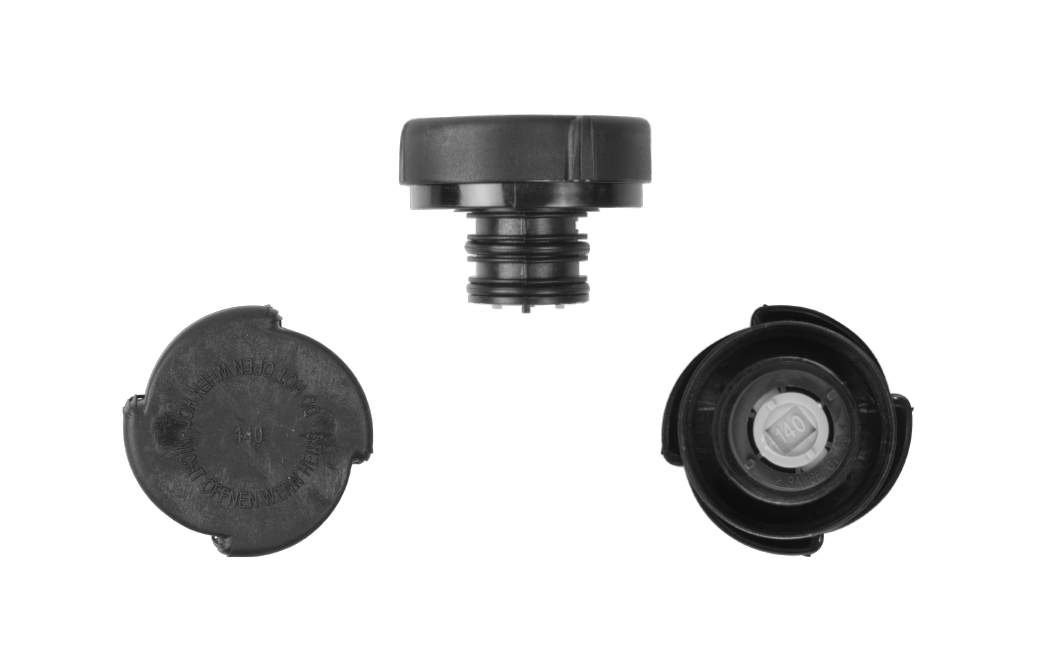

Radiator and Expansion Tank Caps All Gates radiator pressure caps are constructed of corrosion-resistant, heavy-gauge metal. This ensures long service life and accurate control of pressure. Meets or exceeds environmental regulatory standards to reduce air pollution. Manufactured to meet or exceed OEM specifications in function, form and fit. Wide range of applications covering all makes and models. Engineered for precise pressure control. Requires no adjustment for installation.
Variations (30)
31306
| Filler Neck Depth (in) | 1 |
|---|---|
| Filler Neck Depth (mm) | 25 |
| Filler Neck Inside Diameter (in) | 1.61 |
| Filler Neck Inside Diameter (mm) | 41 |
| Filler Neck Outside Diameter (in) | 2.13 |
| Filler Neck Outside Diameter (mm) | 54 |
| Pressure Rating (psi) | 7 |
| Shell Diameter (mm) | 59 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.17 |
31329
| Filler Neck Depth (in) | 0.4 |
|---|---|
| Filler Neck Depth (mm) | 10 |
| Filler Neck Inside Diameter (in) | 1.31 |
| Filler Neck Inside Diameter (mm) | 33 |
| Filler Neck Outside Diameter (in) | 1.78 |
| Filler Neck Outside Diameter (mm) | 45 |
| Pressure Rating (psi) | 22 |
| Shell Diameter (mm) | 76 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
31332
| Filler Neck Depth (in) | 1.62 |
|---|---|
| Filler Neck Depth (mm) | 41 |
| Filler Neck Inside Diameter (in) | 1.16 |
| Filler Neck Inside Diameter (mm) | 29 |
| Filler Neck Outside Diameter (in) | 2.14 |
| Filler Neck Outside Diameter (mm) | 54 |
| Pressure Rating (psi) | 30 |
| Shell Diameter (mm) | 66 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
31333
| Filler Neck Depth (in) | 0.63 |
|---|---|
| Filler Neck Depth (mm) | 16 |
| Filler Neck Inside Diameter (in) | 1.26 |
| Filler Neck Inside Diameter (mm) | 32 |
| Filler Neck Outside Diameter (in) | 1.69 |
| Filler Neck Outside Diameter (mm) | 43 |
| Pressure Rating (psi) | 13 |
| Shell Diameter (mm) | 66 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.14 |
31336
| Filler Neck Depth (in) | 0.63 |
|---|---|
| Filler Neck Depth (mm) | 16 |
| Filler Neck Inside Diameter (in) | 1.26 |
| Filler Neck Inside Diameter (mm) | 32 |
| Filler Neck Outside Diameter (in) | 1.69 |
| Filler Neck Outside Diameter (mm) | 43 |
| Pressure Rating (psi) | 16 |
| Shell Diameter (mm) | 66 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
31405
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 1.31 |
| Filler Neck Inside Diameter (mm) | 33 |
| Filler Neck Outside Diameter (in) | 1.99 |
| Filler Neck Outside Diameter (mm) | 51 |
| Pressure Rating (psi) | 15 |
| Shell Diameter (mm) | 84 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
31406
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 1.31 |
| Filler Neck Inside Diameter (mm) | 33 |
| Filler Neck Outside Diameter (in) | 1.99 |
| Filler Neck Outside Diameter (mm) | 51 |
| Pressure Rating (psi) | 16 |
| Shell Diameter (mm) | 84 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
31411
| Filler Neck Depth (in) | 0.394 |
|---|---|
| Filler Neck Depth (mm) | 10 |
| Filler Neck Inside Diameter (in) | 1.26 |
| Filler Neck Inside Diameter (mm) | 32 |
| Filler Neck Outside Diameter (in) | 1.69 |
| Filler Neck Outside Diameter (mm) | 43 |
| Pressure Rating (psi) | 13 |
| Shell Diameter (mm) | 64 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
31412
| Filler Neck Depth (in) | 0.4 |
|---|---|
| Filler Neck Depth (mm) | 10 |
| Filler Neck Inside Diameter (in) | 1.26 |
| Filler Neck Inside Diameter (mm) | 32 |
| Filler Neck Outside Diameter (in) | 1.69 |
| Filler Neck Outside Diameter (mm) | 43 |
| Pressure Rating (psi) | 16 |
| Shell Diameter (mm) | 64 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
31521
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 1.61 |
| Filler Neck Inside Diameter (mm) | 41 |
| Filler Neck Outside Diameter (in) | 2.13 |
| Filler Neck Outside Diameter (mm) | 54 |
| Pressure Rating (psi) | 10 |
| Shell Diameter (mm) | 59 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.17 |
31522
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 1.61 |
| Filler Neck Inside Diameter (mm) | 41 |
| Filler Neck Outside Diameter (in) | 2.13 |
| Filler Neck Outside Diameter (mm) | 54 |
| Pressure Rating (psi) | 20 |
| Shell Diameter (mm) | 59 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.18 |
31523
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 1.61 |
| Filler Neck Inside Diameter (mm) | 41 |
| Filler Neck Outside Diameter (in) | 2.13 |
| Filler Neck Outside Diameter (mm) | 54 |
| Pressure Rating (psi) | 16 |
| Shell Diameter (mm) | 59 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.18 |
31524
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 1.61 |
| Filler Neck Inside Diameter (mm) | 41 |
| Filler Neck Outside Diameter (in) | 2.13 |
| Filler Neck Outside Diameter (mm) | 54 |
| Pressure Rating (psi) | 4 |
| Shell Diameter (mm) | 80 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.16 |
31525
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 1.61 |
| Filler Neck Inside Diameter (mm) | 41 |
| Filler Neck Outside Diameter (in) | 2.13 |
| Filler Neck Outside Diameter (mm) | 54 |
| Pressure Rating (psi) | 18 |
| Shell Diameter (mm) | 59 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
31526
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 1.61 |
| Filler Neck Inside Diameter (mm) | 41 |
| Filler Neck Outside Diameter (in) | 2.13 |
| Filler Neck Outside Diameter (mm) | 54 |
| Pressure Rating (psi) | 7 |
| Shell Diameter (mm) | 59 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.17 |
31527
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 1.61 |
| Filler Neck Inside Diameter (mm) | 41 |
| Filler Neck Outside Diameter (in) | 2.13 |
| Filler Neck Outside Diameter (mm) | 54 |
| Pressure Rating (psi) | 13 |
| Shell Diameter (mm) | 59 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.19 |
31528
| Filler Neck Depth (in) | 0.75 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 1.61 |
| Filler Neck Inside Diameter (mm) | 41 |
| Filler Neck Outside Diameter (in) | 2.13 |
| Filler Neck Outside Diameter (mm) | 54 |
| Pressure Rating (psi) | 16 |
| Shell Diameter (mm) | 59 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
31529
| Filler Neck Depth (in) | 0.66 |
|---|---|
| Filler Neck Depth (mm) | 17 |
| Filler Neck Inside Diameter (in) | 2.18 |
| Filler Neck Inside Diameter (mm) | 55 |
| Filler Neck Outside Diameter (in) | 2.47 |
| Filler Neck Outside Diameter (mm) | 63 |
| Pressure Rating (psi) | 22 |
| Shell Diameter (mm) | 80 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
31532
| Filler Neck Depth (in) | 1.1 |
|---|---|
| Filler Neck Depth (mm) | 28 |
| Filler Neck Inside Diameter (in) | 1.15 |
| Filler Neck Inside Diameter (mm) | 29 |
| Filler Neck Outside Diameter (in) | 1.81 |
| Filler Neck Outside Diameter (mm) | 46 |
| Pressure Rating (psi) | 15 |
| Shell Diameter (mm) | 65 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
31539
| Filler Neck Depth (in) | 1.41 |
|---|---|
| Filler Neck Depth (mm) | 36 |
| Filler Neck Inside Diameter (in) | 1.53 |
| Filler Neck Inside Diameter (mm) | 39 |
| Filler Neck Outside Diameter (in) | 1.97 |
| Filler Neck Outside Diameter (mm) | 50 |
| Pressure Rating (psi) | 17 |
| Shell Diameter (mm) | 63 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
31540
| Filler Neck Depth (in) | 1.18 |
|---|---|
| Filler Neck Depth (mm) | 30 |
| Filler Neck Inside Diameter (in) | 1.64 |
| Filler Neck Inside Diameter (mm) | 42 |
| Filler Neck Outside Diameter (in) | 2.75 |
| Filler Neck Outside Diameter (mm) | 70 |
| Pressure Rating (psi) | 21 |
| Shell Diameter (mm) | 70 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
31541
| Filler Neck Depth (in) | 1.18 |
|---|---|
| Filler Neck Depth (mm) | 30 |
| Filler Neck Inside Diameter (in) | 1.32 |
| Filler Neck Inside Diameter (mm) | 34 |
| Filler Neck Outside Diameter (in) | 1.96 |
| Filler Neck Outside Diameter (mm) | 50 |
| Pressure Rating (psi) | 16 |
| Shell Diameter (mm) | 50 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
31546
| Filler Neck Depth (in) | 0.73 |
|---|---|
| Filler Neck Depth (mm) | 19 |
| Filler Neck Inside Diameter (in) | 2.28 |
| Filler Neck Inside Diameter (mm) | 58 |
| Filler Neck Outside Diameter (in) | 2.4 |
| Filler Neck Outside Diameter (mm) | 61 |
| Pressure Rating (psi) | 20 |
| Shell Diameter (mm) | 84 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
31549
| Filler Neck Depth (in) | 1.29 |
|---|---|
| Filler Neck Depth (mm) | 33 |
| Filler Neck Inside Diameter (in) | 1.49 |
| Filler Neck Inside Diameter (mm) | 38 |
| Filler Neck Outside Diameter (in) | 1.98 |
| Filler Neck Outside Diameter (mm) | 50 |
| Pressure Rating (psi) | 21 |
| Shell Diameter (mm) | 62 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
31550
| Filler Neck Depth (in) | 1.25 |
|---|---|
| Filler Neck Depth (mm) | 32 |
| Filler Neck Inside Diameter (in) | 1.5 |
| Filler Neck Inside Diameter (mm) | 38 |
| Filler Neck Outside Diameter (in) | 2.07 |
| Filler Neck Outside Diameter (mm) | 53 |
| Pressure Rating (psi) | 15 |
| Shell Diameter (mm) | 62 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.5 |
31561
| Filler Neck Depth (in) | 0.39 |
|---|---|
| Filler Neck Depth (mm) | 10 |
| Filler Neck Inside Diameter (in) | 1.55 |
| Filler Neck Inside Diameter (mm) | 39 |
| Filler Neck Outside Diameter (in) | 1.7 |
| Filler Neck Outside Diameter (mm) | 43 |
| Pressure Rating (psi) | 42 |
| Shell Diameter (mm) | 45 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
31564
| Filler Neck Depth (in) | 0.63 |
|---|---|
| Filler Neck Depth (mm) | 16 |
| Filler Neck Inside Diameter (in) | 1.26 |
| Filler Neck Inside Diameter (mm) | 32 |
| Filler Neck Outside Diameter (in) | 1.69 |
| Filler Neck Outside Diameter (mm) | 43 |
| Pressure Rating (psi) | 20 |
| Shell Diameter (mm) | 66 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
31566
| Filler Neck Depth (in) | 1.25 |
|---|---|
| Filler Neck Depth (mm) | 32 |
| Filler Neck Inside Diameter (in) | 1.15 |
| Filler Neck Inside Diameter (mm) | 29 |
| Filler Neck Outside Diameter (in) | 1.81 |
| Filler Neck Outside Diameter (mm) | 46 |
| Pressure Rating (psi) | 18 |
| Shell Diameter (mm) | 65 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
31567
| Filler Neck Depth (in) | 0.89 |
|---|---|
| Filler Neck Depth (mm) | 23 |
| Filler Neck Inside Diameter (in) | 1.31 |
| Filler Neck Inside Diameter (mm) | 33 |
| Filler Neck Outside Diameter (in) | 1.92 |
| Filler Neck Outside Diameter (mm) | 49 |
| Pressure Rating (psi) | 10 |
| Shell Diameter (mm) | 84 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
31569
| Filler Neck Depth (in) | 1.25 |
|---|---|
| Filler Neck Depth (mm) | 32 |
| Filler Neck Inside Diameter (in) | 1.15 |
| Filler Neck Inside Diameter (mm) | 29 |
| Filler Neck Outside Diameter (in) | 1.81 |
| Filler Neck Outside Diameter (mm) | 46 |
| Pressure Rating (psi) | 20 |
| Shell Diameter (mm) | 65 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
Specifications
| Filler Neck Depth (in) | 0.39 – 1.62 |
|---|---|
| Filler Neck Depth (mm) | 10 – 41 |
| Filler Neck Inside Diameter (in) | 1.15 – 2.28 |
| Filler Neck Inside Diameter (mm) | 29 – 58 |
| Filler Neck Outside Diameter (in) | 1.69 – 2.75 |
| Filler Neck Outside Diameter (mm) | 43 – 70 |
| Pressure Rating (psi) | 4 – 42 |
| Shell Diameter (mm) | 45 – 84 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 – 0.5 |
PDF Documents
Thermostats and Caps
Open PDF
