Attributes
| Part Number | 7410-000000-000010 |
|---|
Description

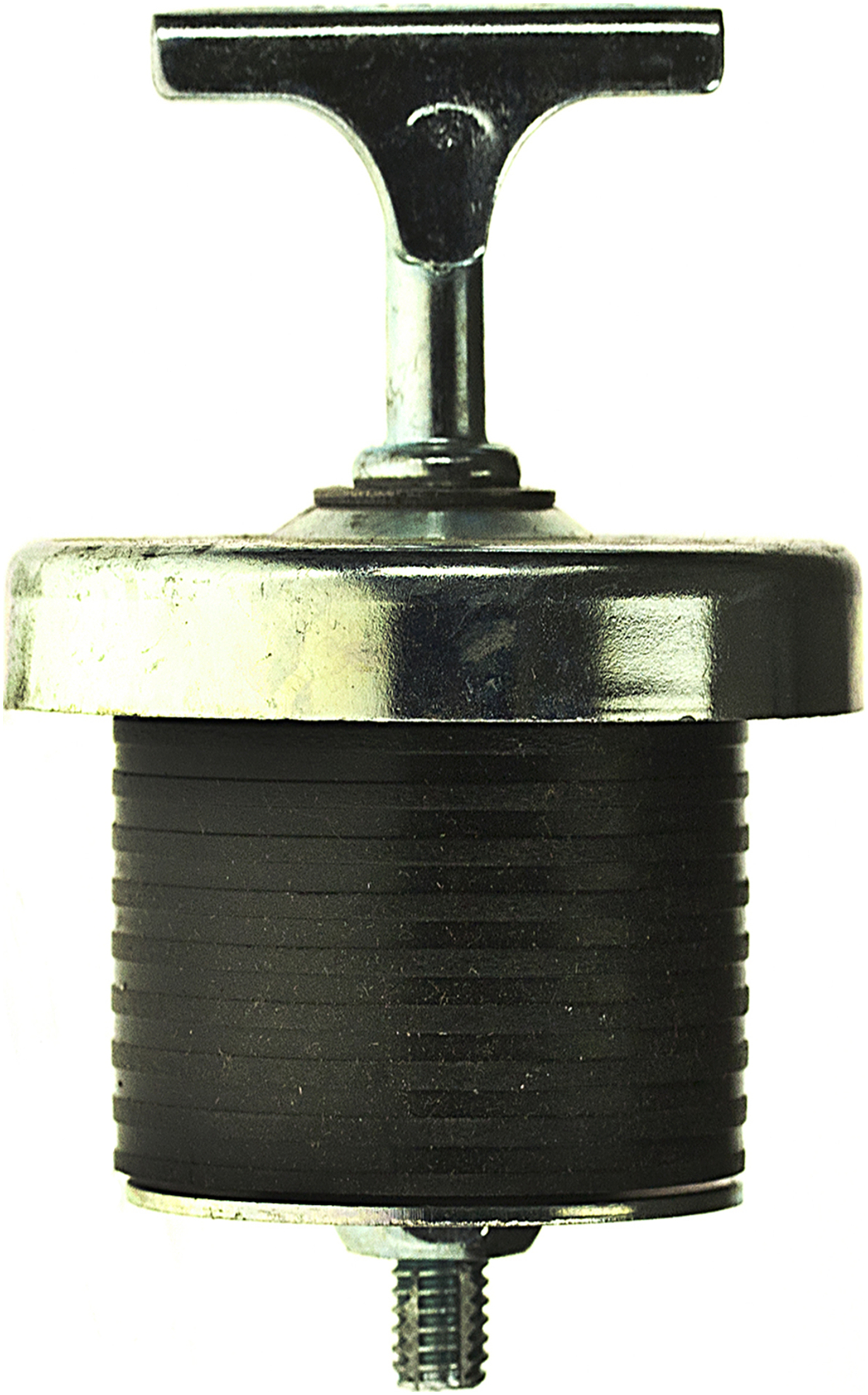

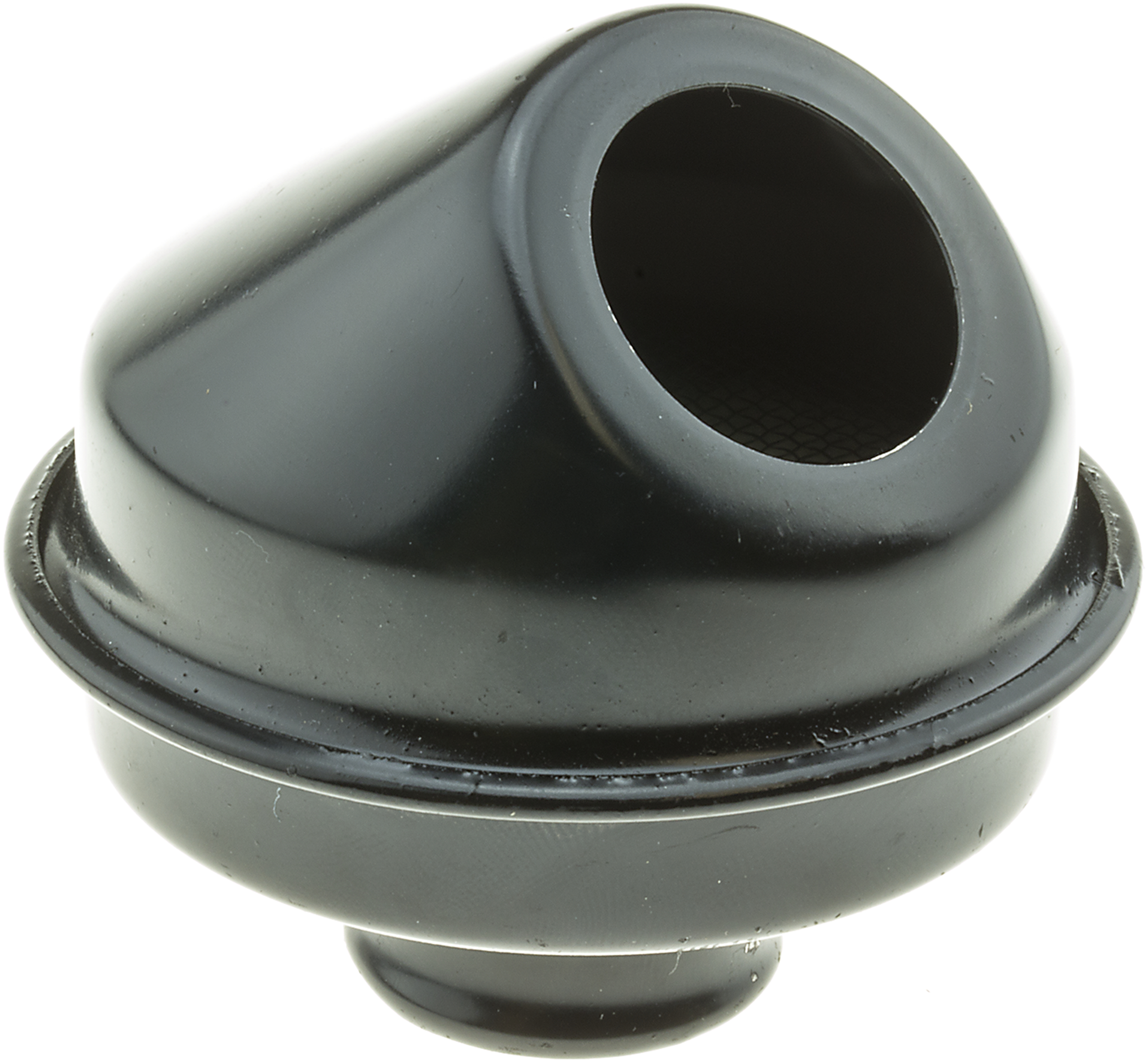

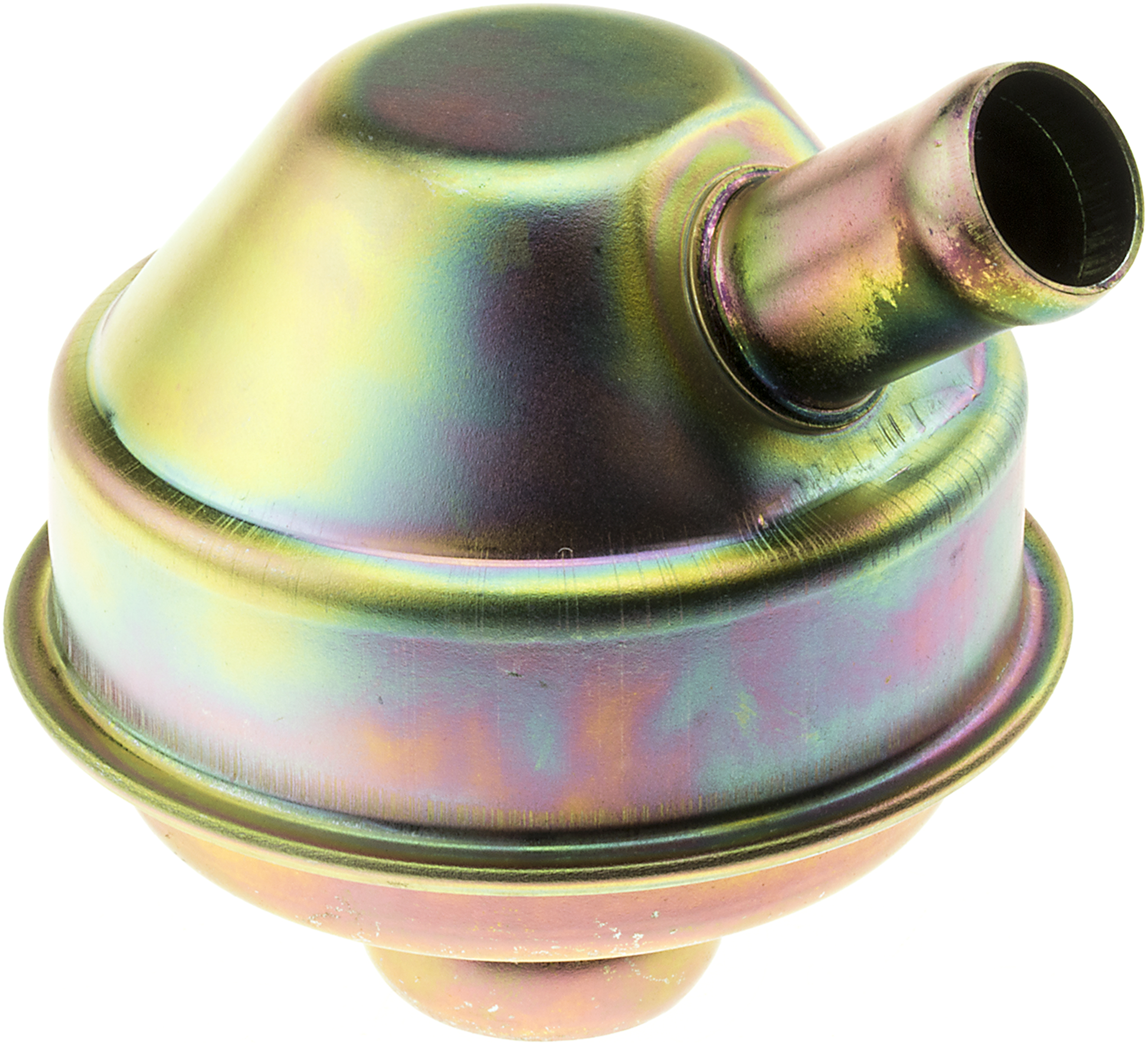

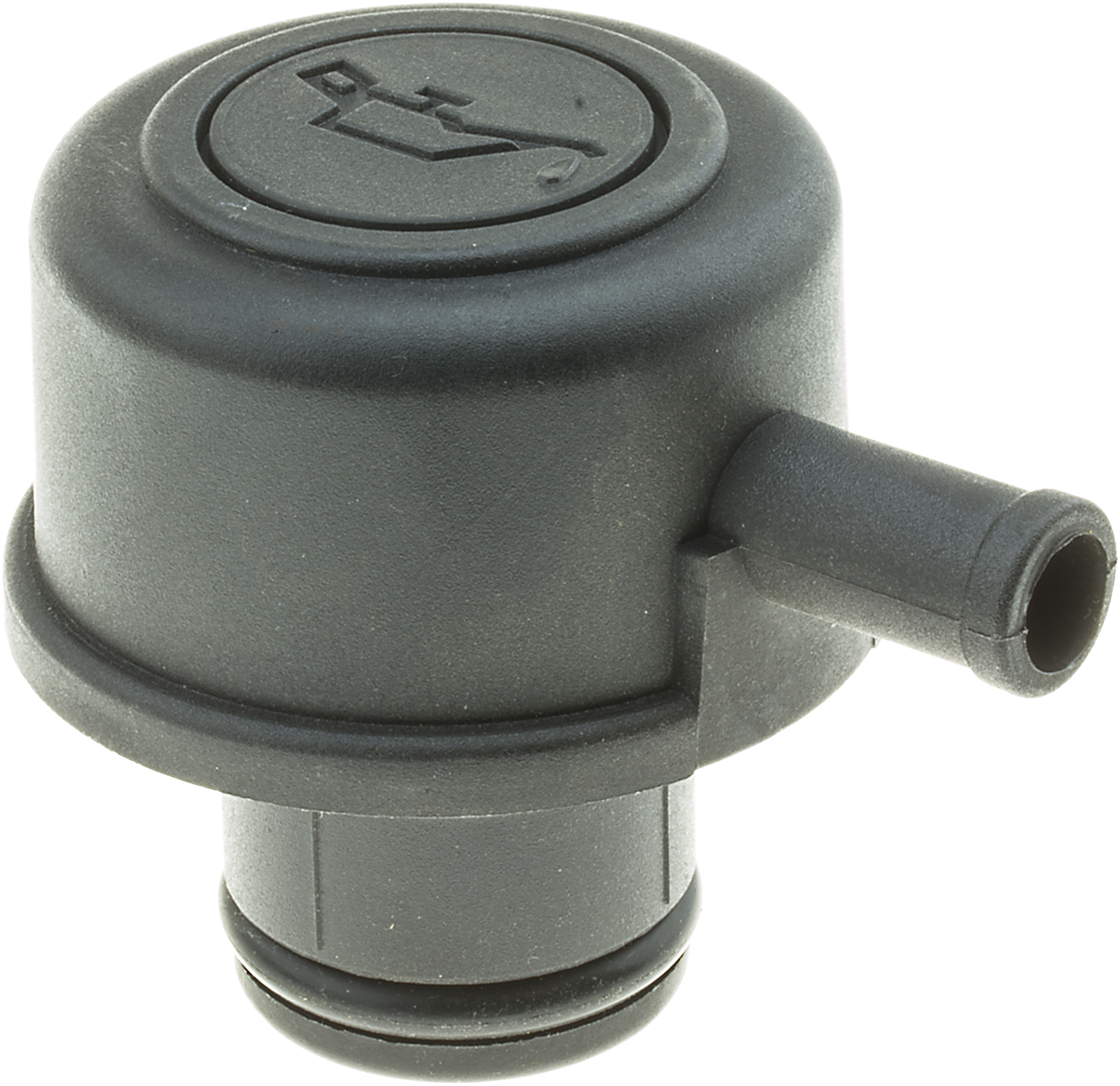

Oil Filler Caps Gates Oil Caps are top quality, constructed of impact resistant plastic and heavy-gauge metal to assure long service life. Wide range of application covering all makes and models. Manufactured to meet or exceed OEM specifications in function, form & fit. Special finish resists rust and provides excellent protection against underhood heat. Filler caps are individually boxed.
Variations (21)
31061
| Neck Depth (in) | 1.62 |
|---|---|
| Neck Diameter (in) | 1.5 |
| Height (in) | 2.11 |
| Width (in) | 2.41 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.24 |
31064
| Neck Depth (in) | 1.18 |
|---|---|
| Neck Diameter (in) | 1.16 |
| Height (in) | 2.07 |
| Width (in) | 2.41 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.19 |
31066
| Neck Depth (in) | 1.18 |
|---|---|
| Neck Diameter (in) | 1.19 |
| Height (in) | 1 |
| Width (in) | 2.25 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.13 |
31072
| Neck Depth (in) | 1.19 |
|---|---|
| Neck Diameter (in) | 1.16 |
| Height (in) | 2 |
| Width (in) | 2.82 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
31081
| Neck Depth (in) | 1.46 |
|---|---|
| Neck Diameter (in) | 1.47 |
| Height (in) | 1.25 |
| Width (in) | 2.44 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.12 |
31083
| Neck Depth (in) | 1.34 |
|---|---|
| Neck Diameter (in) | 1.25 |
| Height (in) | 1.2 |
| Width (in) | 2.45 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.13 |
31098
| Neck Depth (in) | 1.22 |
|---|---|
| Neck Diameter (in) | 1.28 |
| Height (in) | 1.76 |
| Width (in) | 2.38 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
31103
| Neck Depth (in) | 1.38 |
|---|---|
| Neck Diameter (in) | 1.53 |
| Height (in) | 1.29 |
| Width (in) | 2.32 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.12 |
31109
| Neck Depth (in) | 1.25 |
|---|---|
| Neck Diameter (in) | 1.25 |
| Height (in) | 1.27 |
| Width (in) | 2.43 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.17 |
31115
| Neck Depth (in) | 1.27 |
|---|---|
| Neck Diameter (in) | 1.25 |
| Height (in) | 1.5 |
| Width (in) | 2.43 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
31118
| Neck Depth (in) | 1.31 |
|---|---|
| Neck Diameter (in) | 1.22 |
| Height (in) | 1.36 |
| Width (in) | 2.72 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
31119
| Neck Depth (in) | 1.58 |
|---|---|
| Neck Diameter (in) | 1.66 |
| Height (in) | 1.23 |
| Width (in) | 2.6 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
31279
| Neck Depth (in) | 1.19 |
|---|---|
| Neck Diameter (in) | 1.2 |
| Height (in) | 1.27 |
| Width (in) | 2.44 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
31280
| Neck Depth (in) | 1.61 |
|---|---|
| Neck Diameter (in) | 1.65 |
| Height (in) | 1.28 |
| Width (in) | 2.82 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
31281
| Neck Depth (in) | 1.51 |
|---|---|
| Neck Diameter (in) | 1.5 |
| Height (in) | 1.28 |
| Width (in) | 2.5 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
31284
| Neck Depth (in) | 1.24 |
|---|---|
| Neck Diameter (in) | 1.25 |
| Height (in) | 1.32 |
| Width (in) | 2.15 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
31285
| Neck Depth (in) | 1.45 |
|---|---|
| Neck Diameter (in) | 1.47 |
| Height (in) | 1.22 |
| Width (in) | 2.15 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
31291
| Neck Depth (in) | 1.79 |
|---|---|
| Neck Diameter (in) | 1.5 |
| Height (in) | 1.16 |
| Width (in) | 2.32 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
31295
| Neck Depth (in) | 1.32 |
|---|---|
| Neck Diameter (in) | 1.32 |
| Height (in) | 1.43 |
| Width (in) | 2.15 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.25 |
31297
| Neck Depth (in) | 1.87 |
|---|---|
| Neck Diameter (in) | 1.87 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.55 |
31299
| Neck Depth (in) | 1.1875 |
|---|---|
| Neck Diameter (in) | 1.1875 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
Specifications
| Neck Depth (in) | 1.18 – 1.87 |
|---|---|
| Neck Diameter (in) | 1.16 – 1.87 |
| Height (in) | 1 – 2.11 |
| Width (in) | 2.15 – 2.82 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 – 0.55 |
