Attributes
| Part Number | 4217-110000-000004 |
|---|
Description

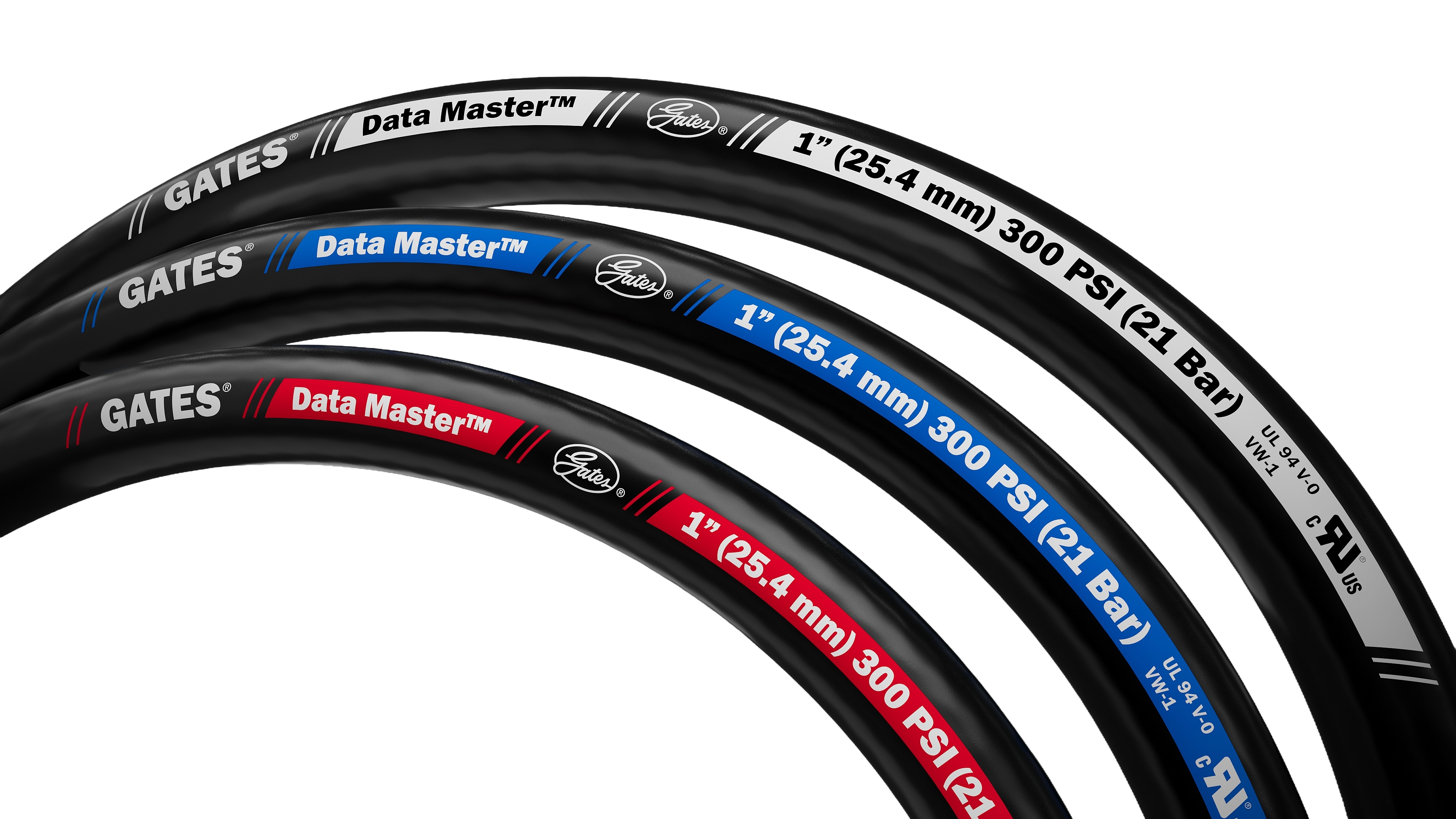

Data Master™ Data Center Cooling Hose In the complex world of data centers, reputations are built on reliability. The Data Master™ Cooling Hose is engineered with this type of quality in mind; offering a cutting-edge design to support the cleanliness, flexibility, and performance needs of your 24/7 operation. Whether you're upgrading your existing liquid cooling setup or installing a new one, the Data Master Cooling Hose adapts easily, making it the go-to choice for data centers that demand the best. When high demands and fluctuating temperatures are the norm, trust Gates. RECOMMENDED FOR : Densely-packed liquid cooling environments where hard piping isn't possible or desirable, like chilled water systems or emergency cooling systems found in data centers with high-density server racks. Product Samples Available Upon Request Zinc-free, peroxide-cured EPDM tube designed to handle the heat and withstand a wide range of coolant mixes, including PG25. Narrow outer diameter and increased flexibility for installation when space is constrained. Meets UL224 VW-1 and UL94V-0 flame-resistance standards. Explore More Data Center Cooling Solutions
Variations (18)
1/2X500 DATA MASTER BLUE
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 1.98 |
| Minimum Bend Radius (mm) | 50.2 |
| Min. Burst Pressure (psi) | 1200 |
| Inside Diameter (in) | 0.50 |
| Inside Diameter (mm) | 12.7 |
| Outside Diameter (in) | 0.74 |
| Outside Diameter (mm) | 18.7 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
1/2X500 DATA MASTER RED
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 1.98 |
| Minimum Bend Radius (mm) | 50.2 |
| Min. Burst Pressure (psi) | 1200 |
| Inside Diameter (in) | 0.50 |
| Inside Diameter (mm) | 12.7 |
| Outside Diameter (in) | 0.74 |
| Outside Diameter (mm) | 18.7 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
4DM1000
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 0.63 |
| Minimum Bend Radius (mm) | 15.9 |
| Min. Burst Pressure (psi) | 1200 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Outside Diameter (in) | 0.49 |
| Outside Diameter (mm) | 12.4 |
| Specifications | VW-1 Flame Resistance |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
1/4X500 DATA MASTER BLUE
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 0.63 |
| Minimum Bend Radius (mm) | 15.9 |
| Min. Burst Pressure (psi) | 1200 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Outside Diameter (in) | 0.49 |
| Outside Diameter (mm) | 12.4 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
1/4X500 DATA MASTER RED
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 0.63 |
| Minimum Bend Radius (mm) | 15.9 |
| Min. Burst Pressure (psi) | 1200 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Outside Diameter (in) | 0.49 |
| Outside Diameter (mm) | 12.4 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
3/4" X 250FT DATA MASTER
| Vacuum (In. Hg) | 15 |
|---|---|
| Minimum Bend Radius (in) | 2.9 |
| Minimum Bend Radius (mm) | 73.8 |
| Min. Burst Pressure (psi) | 1200 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Outside Diameter (in) | 1.03 |
| Outside Diameter (mm) | 26.1 |
| Specifications | VW-1 Flame Resistance |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
3/8X500 DATA MASTER RED
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 1.25 |
| Minimum Bend Radius (mm) | 31.6 |
| Min. Burst Pressure (psi) | 1200 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Outside Diameter (in) | 0.61 |
| Outside Diameter (mm) | 15.6 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
3/8" X 500FT DATA MASTER
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 1.25 |
| Minimum Bend Radius (mm) | 31.6 |
| Min. Burst Pressure (psi) | 1200 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Outside Diameter (in) | 0.61 |
| Outside Diameter (mm) | 15.6 |
| Specifications | VW-1 Flame Resistance |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
1/2" X 500FT DATA MASTER
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 1.98 |
| Minimum Bend Radius (mm) | 50.2 |
| Min. Burst Pressure (psi) | 1200 |
| Inside Diameter (in) | 0.50 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Outside Diameter (in) | 0.74 |
| Outside Diameter (mm) | 18.7 |
| Specifications | VW-1 Flame Resistance |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
12DM1001
| Vacuum (In. Hg) | 15 |
|---|---|
| Minimum Bend Radius (in) | 2.9 |
| Minimum Bend Radius (mm) | 73.8 |
| Min. Burst Pressure (psi) | 1200 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.100000000000001 |
| Outside Diameter (in) | 1.03 |
| Outside Diameter (mm) | 26.1 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
12DM1002
| Vacuum (In. Hg) | 15 |
|---|---|
| Minimum Bend Radius (in) | 2.9 |
| Minimum Bend Radius (mm) | 73.8 |
| Min. Burst Pressure (psi) | 1200 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.100000000000001 |
| Outside Diameter (in) | 1.03 |
| Outside Diameter (mm) | 26.1 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
16DM1000
| Vacuum (In. Hg) | 15 |
|---|---|
| Minimum Bend Radius (in) | 3.5 |
| Minimum Bend Radius (mm) | 89 |
| Min. Burst Pressure (psi) | 1200 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Outside Diameter (in) | 1.34 |
| Outside Diameter (mm) | 33.9 |
| Specifications | VW-1 Flame Resistance |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
16DM1001
| Vacuum (In. Hg) | 15 |
|---|---|
| Minimum Bend Radius (in) | 3.5 |
| Minimum Bend Radius (mm) | 89 |
| Min. Burst Pressure (psi) | 1200 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Outside Diameter (in) | 1.34 |
| Outside Diameter (mm) | 33.9 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
16DM1002
| Vacuum (In. Hg) | 15 |
|---|---|
| Minimum Bend Radius (in) | 3.5 |
| Minimum Bend Radius (mm) | 89 |
| Min. Burst Pressure (psi) | 1200 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Outside Diameter (in) | 1.34 |
| Outside Diameter (mm) | 33.9 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
7/32DM1005
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 0.59 |
| Minimum Bend Radius (mm) | 15 |
| Min. Burst Pressure (psi) | 2000 |
| Inside Diameter (in) | 0.22 |
| Inside Diameter (mm) | 5.6 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Outside Diameter (in) | 0.40 |
| Outside Diameter (mm) | 10.4 |
| Specifications | VW-1 Flame Resistance |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
42170082
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 0.59 |
| Minimum Bend Radius (mm) | 15 |
| Min. Burst Pressure (psi) | 2000 |
| Inside Diameter (in) | 0.22 |
| Inside Diameter (mm) | 5.6 |
| Outside Diameter (in) | 0.4 |
| Outside Diameter (mm) | 10.4 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
42170071
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 0.59 |
| Minimum Bend Radius (mm) | 15 |
| Min. Burst Pressure (psi) | 2000 |
| Inside Diameter (in) | 0.22 |
| Inside Diameter (mm) | 5.6 |
| Outside Diameter (in) | 0.4 |
| Outside Diameter (mm) | 10.4 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
42170084
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 1.25 |
| Minimum Bend Radius (mm) | 31.6 |
| Min. Burst Pressure (psi) | 1200 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Outside Diameter (in) | 0.61 |
| Outside Diameter (mm) | 15.6 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
Specifications
| Vacuum (In. Hg) | 15 – 28 |
|---|---|
| Minimum Bend Radius (in) | 0.59 – 3.5 |
| Minimum Bend Radius (mm) | 15 – 89 |
| Min. Burst Pressure (psi) | 1200 – 2000 |
| Inside Diameter (in) | 0.22 – 1 |
| Inside Diameter (mm) | 5.6 – 25.4 |
| Outside Diameter (in) | 0.40 – 1.34 |
| Outside Diameter (mm) | 10.4 – 33.9 |
| Coupling Recommendation | Field Attachable LOC Couplings [G36 Series], GLX® Couplings [G44 Series], Stainless Steel Braid Couplings [G17 Series], Hose Bead with Clamp |
| Cover | Standard Cover, EPDM, Smooth, Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Zinc-Free, Peroxide-Cured EPDM, Heat Resistant, Black |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Specifications | VW-1 Flame Resistance |
