Attributes
| Part Number | 4217-110000-000005 |
|---|
Description

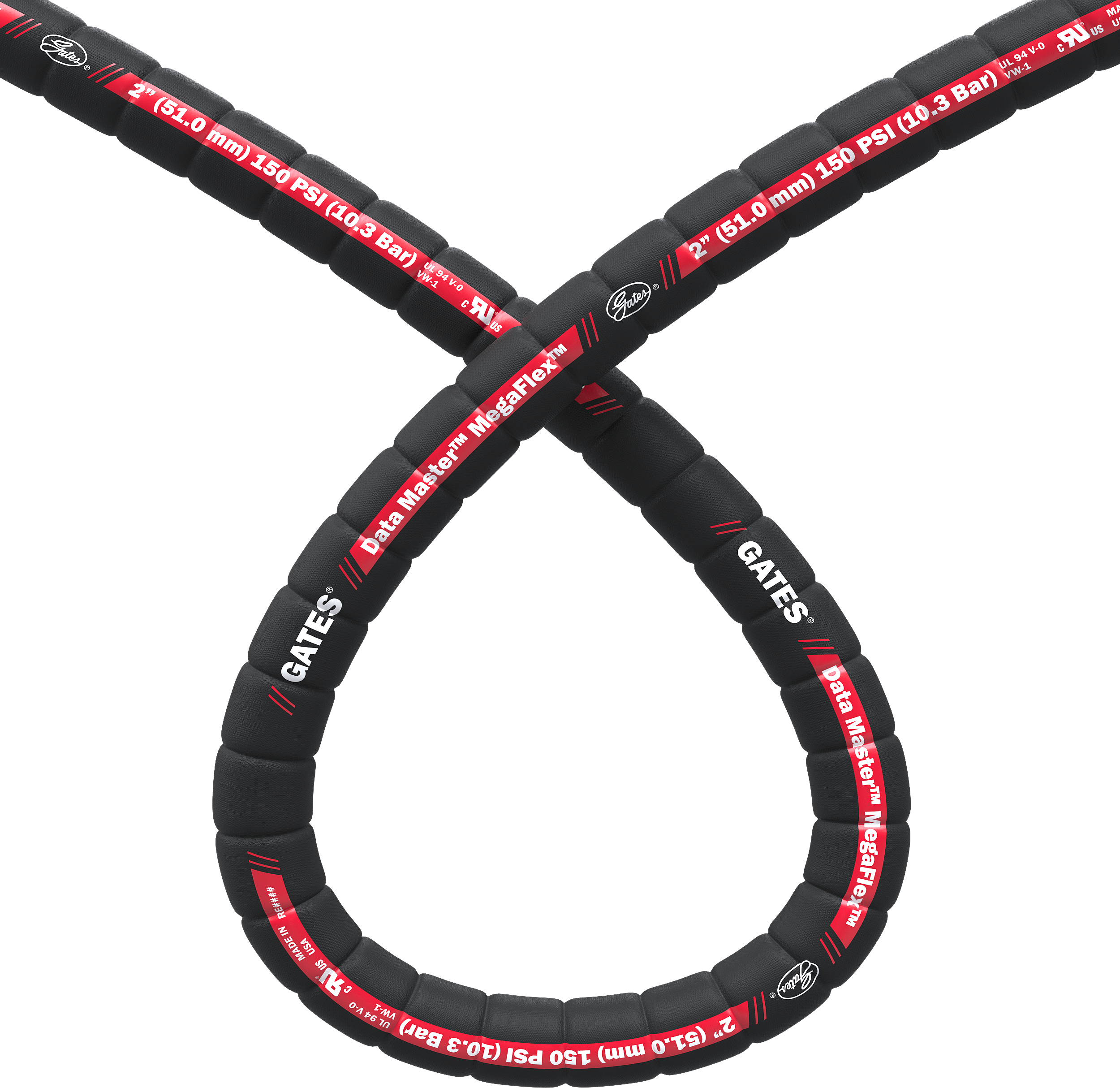

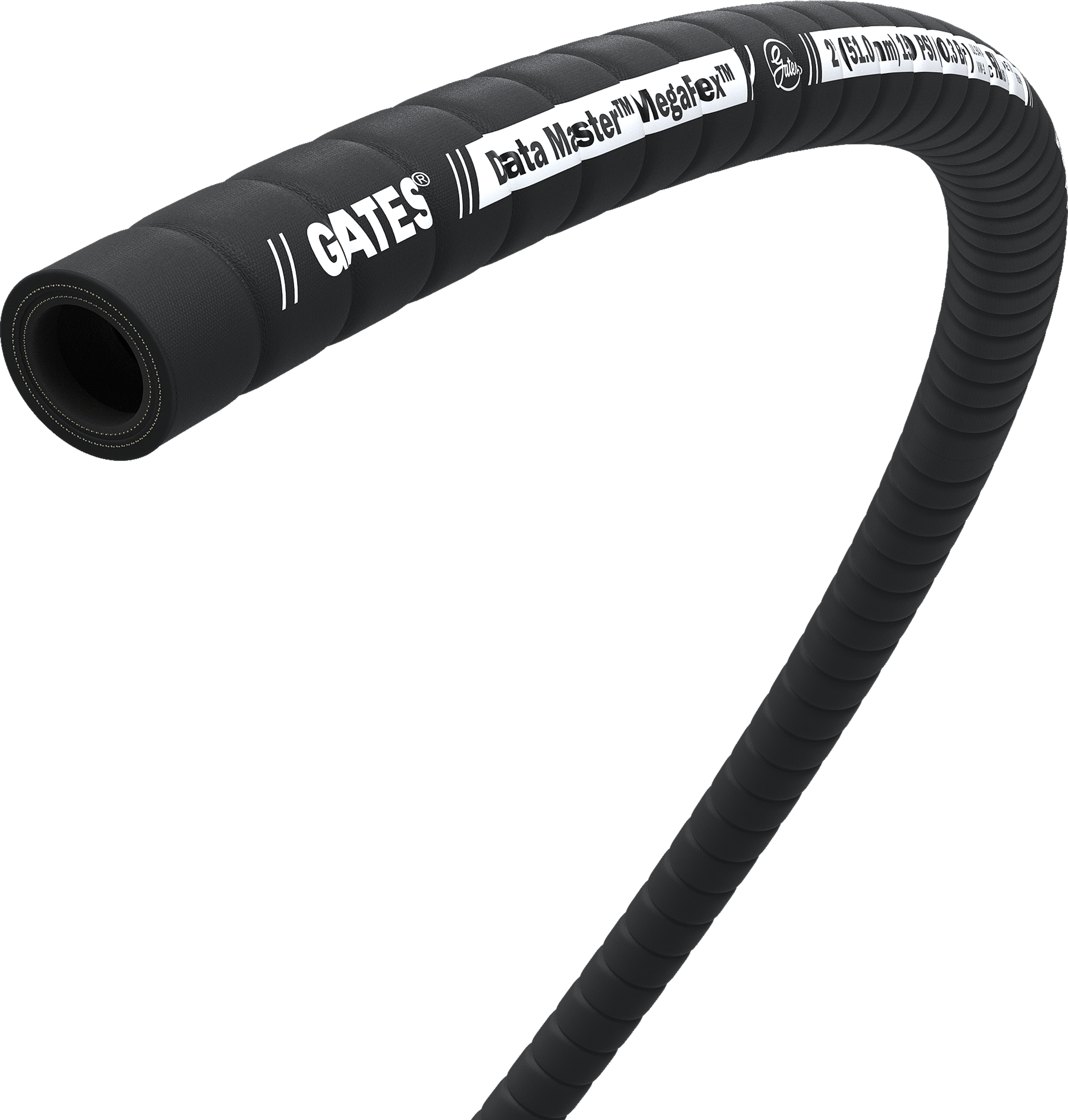

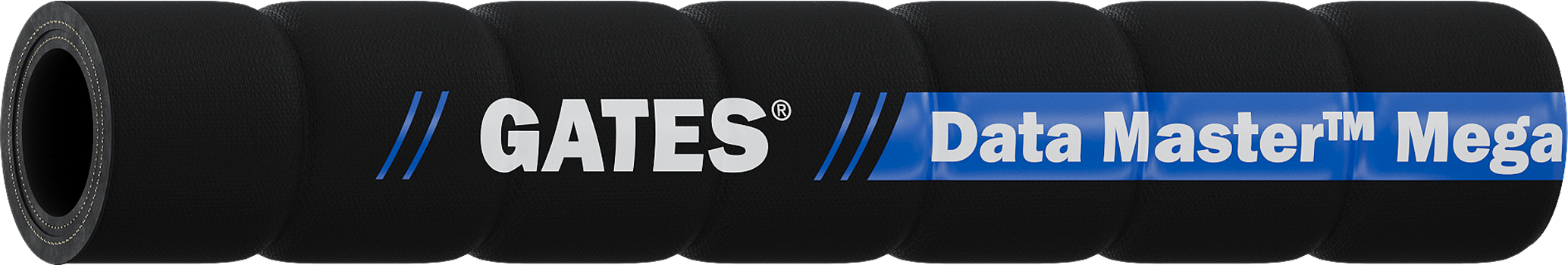

Data Master™ MegaFlex™ Cooling Hose In high-demand environments, our Data Master MegaFlex cooling hose rises to the challenge. Whether it’s running more liquid through high-volumetric systems, maintaining cleaner coolant over time, preventing kinks, or resisting flame and ozone degradation, our hose is built to keep your systems running smoothly. Product Samples Available Upon Request Proprietary Tube Materials include zinc-free, peroxide-cured EPDM to support your facility water and technology cooling system (TCS) loops with high-flow, flexible hose options. Gates MegaFlex design technology provides up to 1.5:1 MBR to hose ID ratio (across size range), allowing tighter bends and easier routing for ever-changing configurations in growing data centers. Flame-Resistant Cover: UL94V-0 certified and tested to UL224VW-1 standards for increased safety in high-risk environments. FOR USE WITH: CDU to rack manifolds, CDU internal circulation, redundant loop plumbing, and portable chillers and pump carts. Explore More Data Master Cooling Hose Solutions
Variations (15)
20DM1090
| Hose Inside Diameter (in). | 1.25 |
|---|---|
| Hose Inside Diameter (mm) | 31.8 |
| Hose Outside Diameter (in) | 1.65 |
| Hose Outside Diameter (mm) | 41.9 |
20DM1091
| Hose Inside Diameter (in). | 1.25 |
|---|---|
| Hose Inside Diameter (mm) | 31.8 |
| Hose Outside Diameter (in) | 1.65 |
| Hose Outside Diameter (mm) | 41.9 |
20DM1092
| Hose Inside Diameter (in). | 1.25 |
|---|---|
| Hose Inside Diameter (mm) | 31.8 |
| Hose Outside Diameter (in) | 1.65 |
| Hose Outside Diameter (mm) | 41.9 |
24DM1090
| Hose Inside Diameter (in). | 1.5 |
|---|---|
| Hose Inside Diameter (mm) | 38.1 |
| Hose Outside Diameter (in) | 1.95 |
| Hose Outside Diameter (mm) | 49.5 |
24DM1091
| Hose Inside Diameter (in). | 1.5 |
|---|---|
| Hose Inside Diameter (mm) | 38.1 |
| Hose Outside Diameter (in) | 1.95 |
| Hose Outside Diameter (mm) | 49.5 |
24DM1092
| Hose Inside Diameter (in). | 1.5 |
|---|---|
| Hose Inside Diameter (mm) | 38.1 |
| Hose Outside Diameter (in) | 1.95 |
| Hose Outside Diameter (mm) | 49.5 |
32DM1090
| Hose Inside Diameter (in). | 2 |
|---|---|
| Hose Inside Diameter (mm) | 50.8 |
| Hose Outside Diameter (in) | 2.4 |
| Hose Outside Diameter (mm) | 61.2 |
32DM1091
| Hose Inside Diameter (in). | 2 |
|---|---|
| Hose Inside Diameter (mm) | 50.8 |
| Hose Outside Diameter (in) | 2.4 |
| Hose Outside Diameter (mm) | 61.2 |
32DM1092
| Hose Inside Diameter (in). | 2 |
|---|---|
| Hose Inside Diameter (mm) | 50.8 |
| Hose Outside Diameter (in) | 2.4 |
| Hose Outside Diameter (mm) | 61.2 |
48DM1090
| Minimum Bend Radius (in) | 3 |
|---|---|
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 3 |
| Hose Inside Diameter (mm) | 76.2 |
| Hose Outside Diameter (in) | 3.5 |
| Hose Outside Diameter (mm) | 87.6 |
48DM1091
| Minimum Bend Radius (in) | 3 |
|---|---|
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 3 |
| Hose Inside Diameter (mm) | 76.2 |
| Hose Outside Diameter (in) | 3.5 |
| Hose Outside Diameter (mm) | 87.6 |
48DM1092
| Minimum Bend Radius (in) | 3 |
|---|---|
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 3 |
| Hose Inside Diameter (mm) | 76.2 |
| Hose Outside Diameter (in) | 3.5 |
| Hose Outside Diameter (mm) | 87.6 |
64DM1090
| Minimum Bend Radius (in) | 4 |
|---|---|
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 4 |
| Hose Inside Diameter (mm) | 101.6 |
| Hose Outside Diameter (in) | 4.5 |
| Hose Outside Diameter (mm) | 113 |
64DM1091
| Minimum Bend Radius (in) | 4 |
|---|---|
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 4 |
| Hose Inside Diameter (mm) | 101.6 |
| Hose Outside Diameter (in) | 4.5 |
| Hose Outside Diameter (mm) | 113 |
64DM1092
| Minimum Bend Radius (in) | 4 |
|---|---|
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 4 |
| Hose Inside Diameter (mm) | 101.6 |
| Hose Outside Diameter (in) | 4.5 |
| Hose Outside Diameter (mm) | 113 |
Specifications
| Hose Inside Diameter (in). | 1.25 – 4 |
|---|---|
| Hose Inside Diameter (mm) | 31.8 – 101.6 |
| Hose Outside Diameter (in) | 1.65 – 4.5 |
| Hose Outside Diameter (mm) | 41.9 – 113 |
| Minimum Bend Radius (in) | 3 – 4 |
| Minimum Bend Radius (mm) | 76.2 – 101.6 |
| Min. Burst Pressure (psi) | 600 |
