Attributes
| Part Number | 7245-110000-000000 |
|---|
Description

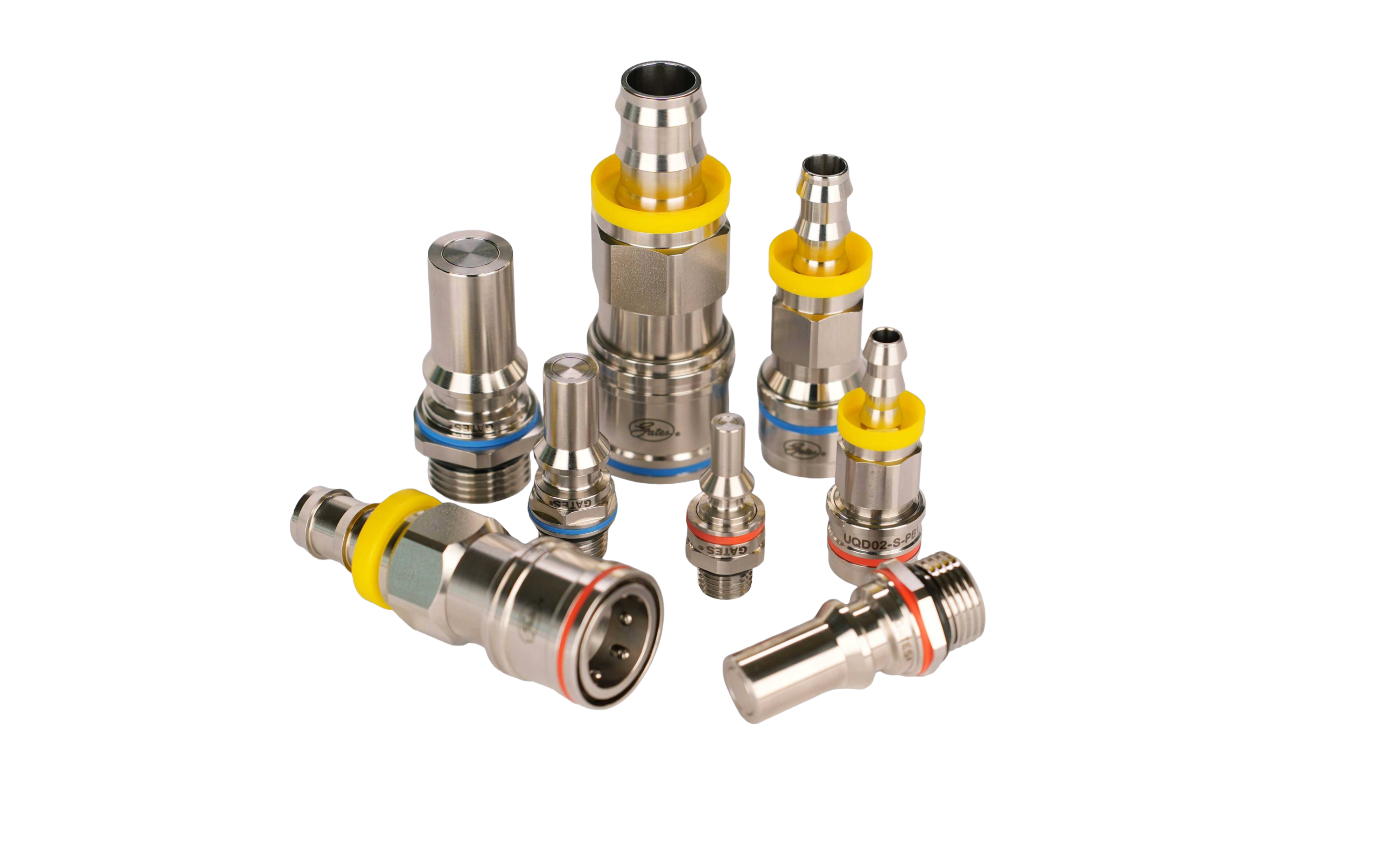

Universal Quick Disconnect (UCD) Couplings for Data Centers Gates UQD Couplings cut through the complexity of liquid cooling with smart engineering. They deliver fast, tool-free connections that save time during installation and routine maintenance. Designed for high-density racks, their compact footprint maximizes space without compromising flow to and from manifolds. And with true dry-break disconnection capabilities, your teams can service equipment without scheduling system downtime. This is the future of liquid cooling. Product Samples Available Upon Request Secure, leak-proof installation in seconds, no tools needed. OCP-compliant for maximum compatibility. FOR USE WITH: Data Master Cooling Hose line. Explore More Data Center Cooling Solutions
Variations (24)
UQD02-P-ORB1-B
| H1 Stem Hex (in) | 0.63 |
|---|---|
| H1 Stem Hex (mm) | 16 |
| T1 Thread (in) | 7/16-20 |
| C Cutoff (in) | 0.36 |
| C Cutoff (mm) | 9.1 |
| L Length (in) | 1.58 |
| L Length (mm) | 40.1 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Plug |
| Outside Diameter (in) | 0.67 |
| Outside Diameter (mm) | 17 |
| Color | Blue |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD02-P-ORB1-R
| H1 Stem Hex (in) | 0.63 |
|---|---|
| H1 Stem Hex (mm) | 16 |
| T1 Thread (in) | 7/16-20 |
| C Cutoff (in) | 0.36 |
| C Cutoff (mm) | 9.1 |
| L Length (in) | 1.58 |
| L Length (mm) | 40.1 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Plug |
| Outside Diameter (in) | 0.67 |
| Outside Diameter (mm) | 17 |
| Color | Red |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD02-S-ORB1-B
| H1 Stem Hex (in) | 0.63 |
|---|---|
| H1 Stem Hex (mm) | 16 |
| T1 Thread (in) | 7/16-20 |
| C Cutoff (in) | 0.36 |
| C Cutoff (mm) | 9.1 |
| L Length (in) | 1.67 |
| L Length (mm) | 42.4 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Socket |
| Outside Diameter (in) | 0.79 |
| Outside Diameter (mm) | 20 |
| Color | Blue |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD02-S-ORB1-R
| H1 Stem Hex (in) | 0.63 |
|---|---|
| H1 Stem Hex (mm) | 16 |
| T1 Thread (in) | 7/16-20 |
| C Cutoff (in) | 0.36 |
| C Cutoff (mm) | 9.1 |
| L Length (in) | 1.67 |
| L Length (mm) | 42.4 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Socket |
| Outside Diameter (in) | 0.79 |
| Outside Diameter (mm) | 20 |
| Color | Red |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD02-S-PB1-B
| H1 Stem Hex (in) | 0.63 |
|---|---|
| H1 Stem Hex (mm) | 16 |
| T1 Thread (in) | 1/4 |
| C Cutoff (in) | 0.85 |
| C Cutoff (mm) | 21.5 |
| L Length (in) | 2.16 |
| L Length (mm) | 54.8 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Socket |
| Outside Diameter (in) | 0.79 |
| Outside Diameter (mm) | 20 |
| Color | Blue |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD02-S-PB1-R
| H1 Stem Hex (in) | 0.63 |
|---|---|
| H1 Stem Hex (mm) | 16 |
| T1 Thread (in) | 1/4 |
| C Cutoff (in) | 0.85 |
| C Cutoff (mm) | 21.5 |
| L Length (in) | 2.16 |
| L Length (mm) | 54.8 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Socket |
| Outside Diameter (in) | 0.79 |
| Outside Diameter (mm) | 20 |
| Color | Red |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD04-P-ORB1-B
| H1 Stem Hex (in) | 0.75 |
|---|---|
| H1 Stem Hex (mm) | 19 |
| T1 Thread (in) | 9/16-18 |
| C Cutoff (in) | 0.39 |
| C Cutoff (mm) | 10 |
| L Length (in) | 1.77 |
| L Length (mm) | 45 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Plug |
| Outside Diameter (in) | 0.82 |
| Outside Diameter (mm) | 20.9 |
| Color | Blue |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD04-P-ORB1-R
| H1 Stem Hex (in) | 0.75 |
|---|---|
| H1 Stem Hex (mm) | 19 |
| T1 Thread (in) | 9/16-18 |
| C Cutoff (in) | 0.39 |
| C Cutoff (mm) | 10 |
| L Length (in) | 1.77 |
| L Length (mm) | 45 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Plug |
| Outside Diameter (in) | 0.82 |
| Outside Diameter (mm) | 20.9 |
| Color | Red |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD04-S-ORB1-B
| H1 Stem Hex (in) | 0.75 |
|---|---|
| H1 Stem Hex (mm) | 19 |
| T1 Thread (in) | 9/16-18 |
| C Cutoff (in) | 0.39 |
| C Cutoff (mm) | 10 |
| L Length (in) | 2.20 |
| L Length (mm) | 56 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Socket |
| Outside Diameter (in) | 0.99 |
| Outside Diameter (mm) | 25.2 |
| Color | Blue |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD04-S-ORB1-R
| H1 Stem Hex (in) | 0.75 |
|---|---|
| H1 Stem Hex (mm) | 19 |
| T1 Thread (in) | 9/16-18 |
| C Cutoff (in) | 0.39 |
| C Cutoff (mm) | 10 |
| L Length (in) | 2.20 |
| L Length (mm) | 56 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Socket |
| Outside Diameter (in) | 0.99 |
| Outside Diameter (mm) | 25.2 |
| Color | Red |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD04-S-PB1-B
| H1 Stem Hex (in) | 0.75 |
|---|---|
| H1 Stem Hex (mm) | 19 |
| T1 Thread (in) | 3/8 |
| C Cutoff (in) | 0.96 |
| C Cutoff (mm) | 24.5 |
| L Length (in) | 2.76 |
| L Length (mm) | 70.1 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Socket |
| Outside Diameter (in) | 0.99 |
| Outside Diameter (mm) | 25.2 |
| Color | Blue |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD04-S-PB1-R
| H1 Stem Hex (in) | 0.75 |
|---|---|
| H1 Stem Hex (mm) | 19 |
| T1 Thread (in) | 3/8 |
| C Cutoff (in) | 0.96 |
| C Cutoff (mm) | 24.5 |
| L Length (in) | 2.76 |
| L Length (mm) | 70.1 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Socket |
| Outside Diameter (in) | 0.99 |
| Outside Diameter (mm) | 25.2 |
| Color | Red |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD06-P-ORB1-B
| H1 Stem Hex (in) | 0.87 |
|---|---|
| H1 Stem Hex (mm) | 22 |
| T1 Thread (in) | 3/4-16 |
| C Cutoff (in) | 0.44 |
| C Cutoff (mm) | 11.1 |
| L Length (in) | 2.21 |
| L Length (mm) | 56.2 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Plug |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 24 |
| Color | Blue |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD06-P-ORB1-R
| H1 Stem Hex (in) | 0.87 |
|---|---|
| H1 Stem Hex (mm) | 22 |
| T1 Thread (in) | 3/4-16 |
| C Cutoff (in) | 0.44 |
| C Cutoff (mm) | 11.1 |
| L Length (in) | 2.21 |
| L Length (mm) | 56.2 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Plug |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 24 |
| Color | Red |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD06-S-ORB1-B
| H1 Stem Hex (in) | 0.94 |
|---|---|
| H1 Stem Hex (mm) | 24 |
| T1 Thread (in) | 3/4-16 |
| C Cutoff (in) | 0.43 |
| C Cutoff (mm) | 11 |
| L Length (in) | 2.44 |
| L Length (mm) | 61.9 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Socket |
| Outside Diameter (in) | 1.12 |
| Outside Diameter (mm) | 28.4 |
| Color | Blue |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD06-S-ORB1-R
| H1 Stem Hex (in) | 0.94 |
|---|---|
| H1 Stem Hex (mm) | 24 |
| T1 Thread (in) | 3/4-16 |
| C Cutoff (in) | 0.43 |
| C Cutoff (mm) | 11 |
| L Length (in) | 2.44 |
| L Length (mm) | 61.9 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Socket |
| Outside Diameter (in) | 1.12 |
| Outside Diameter (mm) | 28.4 |
| Color | Red |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD06-S-PB1-B
| H1 Stem Hex (in) | 0.94 |
|---|---|
| H1 Stem Hex (mm) | 24 |
| T1 Thread (in) | 1/2 |
| C Cutoff (in) | 1.06 |
| C Cutoff (mm) | 27 |
| L Length (in) | 3.11 |
| L Length (mm) | 79 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Socket |
| Outside Diameter (in) | 1.12 |
| Outside Diameter (mm) | 28.4 |
| Color | Blue |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD06-S-PB1-R
| H1 Stem Hex (in) | 0.94 |
|---|---|
| H1 Stem Hex (mm) | 24 |
| T1 Thread (in) | 1/2 |
| C Cutoff (in) | 1.06 |
| C Cutoff (mm) | 27 |
| L Length (in) | 3.11 |
| L Length (mm) | 79 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Socket |
| Outside Diameter (in) | 1.12 |
| Outside Diameter (mm) | 28.4 |
| Color | Red |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD08-P-ORB1-B
| H1 Stem Hex (in) | 1.06 |
|---|---|
| H1 Stem Hex (mm) | 27 |
| T1 Thread (in) | 7/8-14 |
| C Cutoff (in) | 0.5 |
| C Cutoff (mm) | 12.7 |
| L Length (in) | 2.39 |
| L Length (mm) | 60.6 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Plug |
| Outside Diameter (in) | 1.16 |
| Outside Diameter (mm) | 29.5 |
| Color | Blue |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD08-P-ORB1-R
| H1 Stem Hex (in) | 1.06 |
|---|---|
| H1 Stem Hex (mm) | 27 |
| T1 Thread (in) | 7/8-14 |
| C Cutoff (in) | 0.5 |
| C Cutoff (mm) | 12.7 |
| L Length (in) | 2.39 |
| L Length (mm) | 60.6 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Plug |
| Outside Diameter (in) | 1.16 |
| Outside Diameter (mm) | 29.5 |
| Color | Red |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD08-S-ORB1-B
| H1 Stem Hex (in) | 1.06 |
|---|---|
| H1 Stem Hex (mm) | 27 |
| T1 Thread (in) | 7/8-14 |
| C Cutoff (in) | 0.5 |
| C Cutoff (mm) | 12.7 |
| L Length (in) | 2.86 |
| L Length (mm) | 72.7 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Socket |
| Outside Diameter (in) | 1.26 |
| Outside Diameter (mm) | 32 |
| Color | Blue |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD08-S-ORB1-R
| H1 Stem Hex (in) | 1.06 |
|---|---|
| H1 Stem Hex (mm) | 27 |
| T1 Thread (in) | 7/8-14 |
| C Cutoff (in) | 0.5 |
| C Cutoff (mm) | 12.7 |
| L Length (in) | 2.86 |
| L Length (mm) | 72.7 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Socket |
| Outside Diameter (in) | 1.26 |
| Outside Diameter (mm) | 32 |
| Color | Red |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD08-S-PB1-B
| H1 Stem Hex (in) | 1.06 |
|---|---|
| H1 Stem Hex (mm) | 27 |
| T1 Thread (in) | 5/8 |
| C Cutoff (in) | 1.06 |
| C Cutoff (mm) | 27 |
| L Length (in) | 3.43 |
| L Length (mm) | 87.2 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Socket |
| Outside Diameter (in) | 1.26 |
| Outside Diameter (mm) | 32 |
| Color | Blue |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
UQD08-S-PB1-R
| H1 Stem Hex (in) | 1.06 |
|---|---|
| H1 Stem Hex (mm) | 27 |
| T1 Thread (in) | 5/8 |
| C Cutoff (in) | 1.06 |
| C Cutoff (mm) | 27 |
| L Length (in) | 3.43 |
| L Length (mm) | 87.2 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |
| type | Socket |
| Outside Diameter (in) | 1.26 |
| Outside Diameter (mm) | 32 |
| Color | Red |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
Specifications
| H1 Stem Hex (in) | 0.63 – 1.06 |
|---|---|
| H1 Stem Hex (mm) | 16 – 27 |
| T1 Thread (in) | 7/16-20, 1/4, 9/16-18, 3/8, 3/4-16, 1/2, +2 more |
| C Cutoff (in) | 0.36 – 1.06 |
| C Cutoff (mm) | 9.1 – 27 |
| L Length (in) | 1.58 – 3.43 |
| L Length (mm) | 40.1 – 87.2 |
| Temperature Range | -40°F to +248 (-40°C to +120°C) |

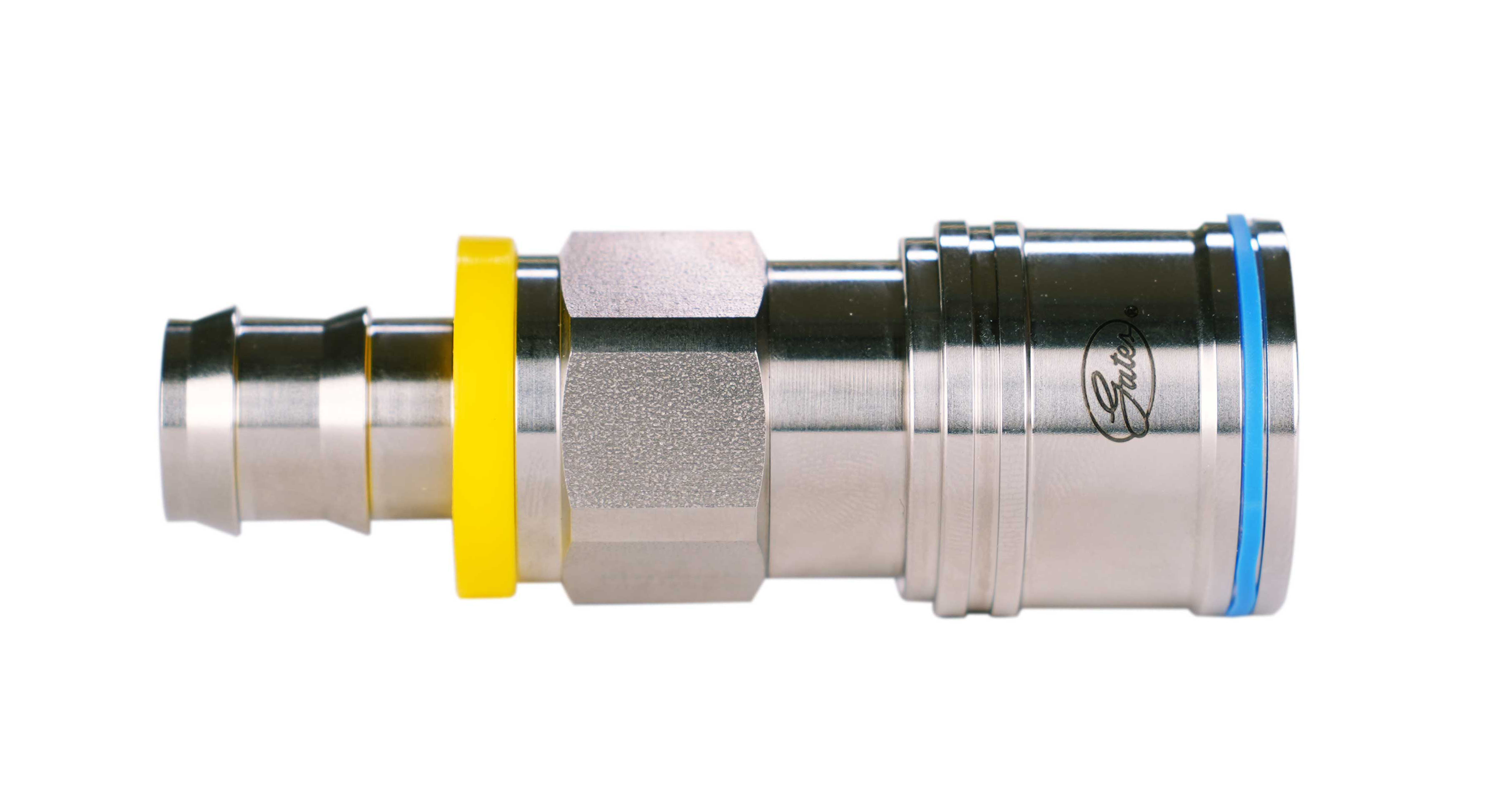

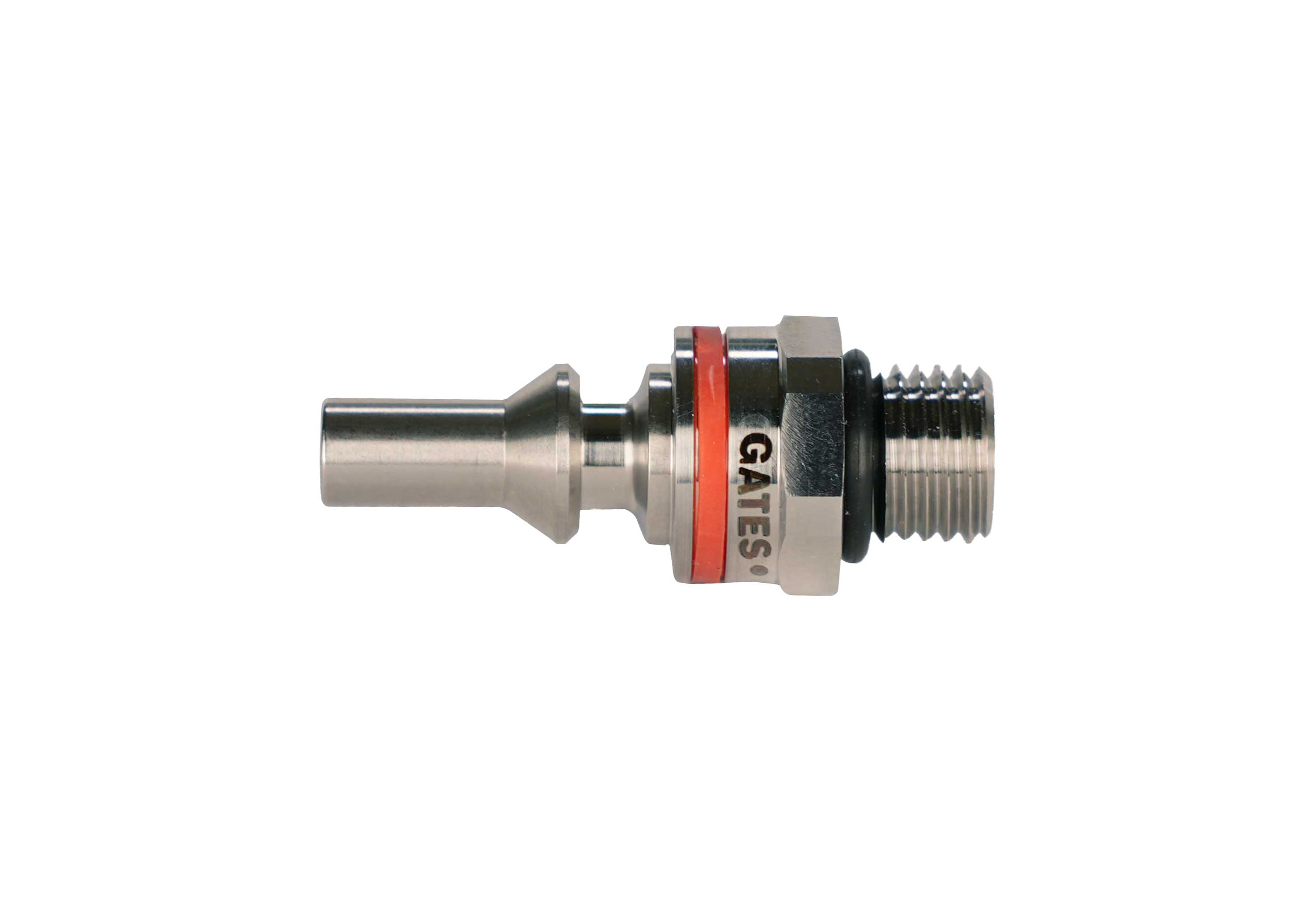

| type | Plug, Socket |
| Outside Diameter (in) | 0.67 – 1.26 |
| Outside Diameter (mm) | 17 – 32 |
| Color | Blue, Red |
| Material | Stainless Steel - Type 316 |
| Recommended For | All Data Master Hoses |
PDF Documents
Download the Gates Data Center Coupling Brochure
Open PDF
