Attributes
| Part Number | 3133-000000-000000 |
|---|
Description

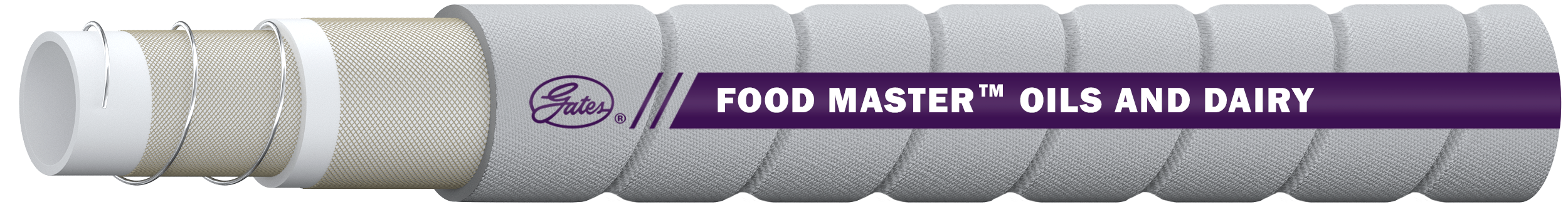

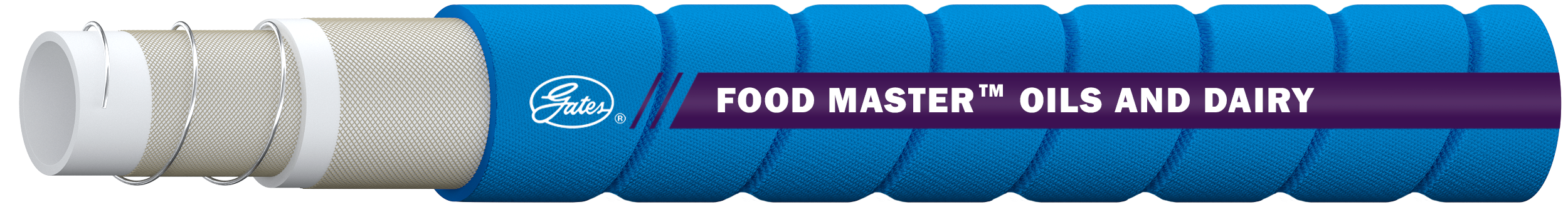

Food Master™ Oils and Dairy 150SD RECOMMENDED FOR: Tank truck, barge, ship, or storage tank transfer of a variety of food products such as animal fat, vegetable oil and other edible oils at temperatures up to +230°F requiring FDA sanitary hose. Also suitable for ice cream and other dairy products requiring 3A–Class 3 standards. Special white FDA food grade nitrile tube and cover compound capable of maintaining a very high degree of flexibility in both low and high temperature extreme applications (-40°F to 230°F continuous service). Lightweight and much more flexible and easier to handle than other food hose on the market. Tube meets FDA requirements, 3A–Class 3 and USDA. Phthalate free. Monofilament helix is crush and kink-resistant; built on polished stainless stell mandrels to prevent rust. Excellent resistance to oil-based media. Meets Sanitary FDA and 3A-Class 3 requirements.
Variations (33)
24FD6003
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 4.5 |
| Minimum Bend Radius (mm) | 114 |
| Inside Diameter (in) | 1.50 |
| Inside Diameter (mm) | 38.1 |
| Temperature Range | -40°F to +230°F (-40°C to +110°C) |
| Working Pressure (psi) | 150 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 2.05 |
| Outside Diameter (mm) | 38.1 |
| Coupling Recommendation | 1 Long Shank. 8 Tri-Lokt. 34 Stainless Steel Nipples. 71 Permanent Swaged or Crimped. |
| Color | Gray |
| Cover | Modified Nitrile - Type C2. Corrugated. |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Construction: Tube | Modified Nitrile - Type C2. White. High oil resistance |
24FD6001
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 4.5 |
| Minimum Bend Radius (mm) | 114 |
| Inside Diameter (in) | 1.50 |
| Inside Diameter (mm) | 38.1 |
| Temperature Range | -40°F to +230°F (-40°C to +110°C) |
| Working Pressure (psi) | 150 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 2.05 |
| Outside Diameter (mm) | 38.1 |
| Coupling Recommendation | 1 Long Shank. 8 Tri-Lokt. 34 Stainless Steel Nipples. 71 Permanent Swaged or Crimped. |
| Color | Blue |
| Cover | Modified Nitrile - Type C2. Corrugated. |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Construction: Tube | Modified Nitrile - Type C2. White. High oil resistance |
1 1/2X100FT FOOD MASTER OILS & DAIRY 150SD TL
No variation attributes.
12FD6001
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +230°F |
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.29 |
| Hose Outside Diameter (mm) | 32.8 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 150 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.29 |
| Outside Diameter (mm) | 19.1 |
| Color | White |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Tube meets FDA requirements, 3A-Class 3 and USDA. Phthalate free. |
| Standards: Tube | Meets FDA requirements, 3A-Class 3 and USDA |
| Recommended For | Tank truck, barge, ship, or storage tank transfer of a variety of food products such as animal fat, vegetable oil and other edible oils at temperatures up to +230°F requiring FDA sanitary hose. Also suitable for ice cream and other dairy products requiring 3A-Class 3 standards. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.64 |
2X100 FM LITE GRY
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Inside Diameter (in) | 2 |
| Inside Diameter (mm) | 50.8 |
| Temperature Range | -40°F to +230°F (-40°C to +110°C) |
| Working Pressure (psi) | 150 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 2.55 |
| Outside Diameter (mm) | 50.8 |
| Coupling Recommendation | 1 Long Shank. 8 Tri-Lokt. 34 Stainless Steel Nipples. 71 Permanent Swaged or Crimped. |
| Color | Gray |
| Cover | Modified Nitrile - Type C2. Corrugated. |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Construction: Tube | Modified Nitrile - Type C2. White. High oil resistance |
3X100 FM LITE GRY
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 18 |
| Minimum Bend Radius (mm) | 457 |
| Inside Diameter (in) | 3 |
| Inside Diameter (mm) | 76.2 |
| Temperature Range | -40°F to +230°F (-40°C to +110°C) |
| Working Pressure (psi) | 150 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 3.58 |
| Outside Diameter (mm) | 76.2 |
| Coupling Recommendation | 1 Long Shank. 8 Tri-Lokt. 34 Stainless Steel Nipples. 71 Permanent Swaged or Crimped. |
| Color | Gray |
| Cover | Modified Nitrile - Type C2. Corrugated. |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Construction: Tube | Modified Nitrile - Type C2. White. High oil resistance |
4X100 FM LITE GRY
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 24 |
| Minimum Bend Radius (mm) | 610 |
| Inside Diameter (in) | 4 |
| Inside Diameter (mm) | 101.6 |
| Temperature Range | -40°F to +230°F (-40°C to +110°C) |
| Working Pressure (psi) | 150 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 4.60 |
| Outside Diameter (mm) | 101.6 |
| Coupling Recommendation | 1 Long Shank. 8 Tri-Lokt. 34 Stainless Steel Nipples. 71 Permanent Swaged or Crimped. |
| Color | Gray |
| Cover | Modified Nitrile - Type C2. Corrugated. |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Construction: Tube | Modified Nitrile - Type C2. White. High oil resistance |
96FD6000
| Continuous Operating Temperature Range | -40°F to +230°F |
|---|---|
| Minimum Bend Radius (in) | 72 |
| Minimum Bend Radius (mm) | 1829 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 6 |
| Hose Inside Diameter (mm) | 152.4 |
| Hose Outside Diameter (in) | 6.6 |
| Hose Outside Diameter (mm) | 167.6 |
| Inside Diameter (in) | 6 |
| Inside Diameter (mm) | 152.4 |
| Working Pressure (psi) | 150 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 6.6 |
| Outside Diameter (mm) | 152.4 |
| Color | White |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Tube meets FDA requirements, 3A-Class 3 and USDA. Phthalate free. |
| Standards: Tube | Meets FDA requirements, 3A-Class 3 and USDA |
| Recommended For | Tank truck, barge, ship, or storage tank transfer (discharge only) of a variety of food products such as animal fat, vegetable oil and other edible oils at temperatures up to +230°F requiring FDA sanitary hose. Also suitable for ice cream and other dairy products requiring 3A-Class 3 standards. |
| Customer Pack | 50 |
| Weight (lbs.) | 4.1 |
16FD6001
No variation attributes.
16FD6002
No variation attributes.
24FD6002
No variation attributes.
24FD6004
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 4.5 |
| Minimum Bend Radius (mm) | 114 |
| Inside Diameter (in) | 1.50 |
| Inside Diameter (mm) | 38.1 |
| Temperature Range | -40°F to +230°F (-40°C to +110°C) |
| Working Pressure (psi) | 150 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 2.05 |
| Outside Diameter (mm) | 38.1 |
| Coupling Recommendation | 1 Long Shank. 8 Tri-Lokt. 34 Stainless Steel Nipples. 71 Permanent Swaged or Crimped. |
| Color | Gray |
| Cover | Modified Nitrile - Type C2. Smooth. |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Construction: Tube | Modified Nitrile - Type C2. White. High oil resistance |
24FD6005
No variation attributes.
32FD6001
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Inside Diameter (in) | 2 |
| Inside Diameter (mm) | 50.8 |
| Temperature Range | -40°F to +230°F (-40°C to +110°C) |
| Working Pressure (psi) | 150 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 2.55 |
| Outside Diameter (mm) | 50.8 |
| Coupling Recommendation | 1 Long Shank. 8 Tri-Lokt. 34 Stainless Steel Nipples. 71 Permanent Swaged or Crimped. |
| Color | Blue |
| Cover | Modified Nitrile - Type C2. Corrugated. |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Construction: Tube | Modified Nitrile - Type C2. White. High oil resistance |
32FD6004
No variation attributes.
32FD6005
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Inside Diameter (in) | 2 |
| Inside Diameter (mm) | 50.8 |
| Temperature Range | -40°F to +230°F (-40°C to +110°C) |
| Working Pressure (psi) | 150 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 2.55 |
| Outside Diameter (mm) | 50.8 |
| Coupling Recommendation | 1 Long Shank. 8 Tri-Lokt. 34 Stainless Steel Nipples. 71 Permanent Swaged or Crimped. |
| Color | Gray |
| Cover | Modified Nitrile - Type C2. Smooth. |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Construction: Tube | Modified Nitrile - Type C2. White. High oil resistance |
32FD6006
No variation attributes.
40FD6001
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 12 |
| Minimum Bend Radius (mm) | 305 |
| Inside Diameter (in) | 2.50 |
| Inside Diameter (mm) | 63.5 |
| Temperature Range | -40°F to +230°F (-40°C to +110°C) |
| Working Pressure (psi) | 150 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 3.08 |
| Outside Diameter (mm) | 63.5 |
| Coupling Recommendation | 1 Long Shank. 8 Tri-Lokt. 34 Stainless Steel Nipples. 71 Permanent Swaged or Crimped. |
| Color | Blue |
| Cover | Modified Nitrile - Type C2. Corrugated. |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Construction: Tube | Modified Nitrile - Type C2. White. High oil resistance |
40FD6002
No variation attributes.
40FD6003
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 12 |
| Minimum Bend Radius (mm) | 305 |
| Inside Diameter (in) | 2.50 |
| Inside Diameter (mm) | 63.5 |
| Temperature Range | -40°F to +230°F (-40°C to +110°C) |
| Working Pressure (psi) | 150 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 3.08 |
| Outside Diameter (mm) | 63.5 |
| Coupling Recommendation | 1 Long Shank. 8 Tri-Lokt. 34 Stainless Steel Nipples. 71 Permanent Swaged or Crimped. |
| Color | Gray |
| Cover | Modified Nitrile - Type C2. Corrugated. |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Construction: Tube | Modified Nitrile - Type C2. White. High oil resistance |
40FD6006
No variation attributes.
48FD6001
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 18 |
| Minimum Bend Radius (mm) | 457 |
| Inside Diameter (in) | 3 |
| Inside Diameter (mm) | 76.2 |
| Temperature Range | -40°F to +230°F (-40°C to +110°C) |
| Working Pressure (psi) | 150 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 3.58 |
| Outside Diameter (mm) | 76.2 |
| Coupling Recommendation | 1 Long Shank. 8 Tri-Lokt. 34 Stainless Steel Nipples. 71 Permanent Swaged or Crimped. |
| Color | Blue |
| Cover | Modified Nitrile - Type C2. Corrugated. |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Construction: Tube | Modified Nitrile - Type C2. White. High oil resistance |
48FD6003
No variation attributes.
48FD6005
No variation attributes.
48FD6006
No variation attributes.
64FD6004
No variation attributes.
64FD6005
No variation attributes.
96FD6002
No variation attributes.
96FD6003
No variation attributes.
31330086
No variation attributes.
31330091
No variation attributes.
31330052
No variation attributes.
313300066
No variation attributes.
Specifications
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2 – 72 |
| Minimum Bend Radius (mm) | 51 – 1829 |
| Inside Diameter (in) | 0.75 – 6 |
| Inside Diameter (mm) | 19.1 – 152.4 |
| Temperature Range | -40°F to +230°F (-40°C to +110°C) |
| Working Pressure (psi) | 150 |
| Length (m) | 15.2 – 61 |
| Outside Diameter (in) | 1.29 – 6.6 |
| Outside Diameter (mm) | 19.1 – 152.4 |
| Coupling Recommendation | 1 Long Shank. 8 Tri-Lokt. 34 Stainless Steel Nipples. 71 Permanent Swaged or Crimped. |
| Color | Gray, Blue, White |
| Cover | Modified Nitrile - Type C2. Corrugated., Modified Nitrile - Type C2. Smooth. |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Construction: Tube | Modified Nitrile - Type C2. White. High oil resistance |
| Continuous Operating Temperature Range | -40°F to +230°F |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.75 – 6 |
| Hose Inside Diameter (mm) | 19.1 – 152.4 |
| Hose Outside Diameter (in) | 1.29 – 6.6 |
| Hose Outside Diameter (mm) | 32.8 – 167.6 |
| Standards | Tube meets FDA requirements, 3A-Class 3 and USDA. Phthalate free. |
| Standards: Tube | Meets FDA requirements, 3A-Class 3 and USDA |
| Recommended For | Tank truck, barge, ship, or storage tank transfer of a variety of food products such as animal fat, vegetable oil and other edible oils at temperatures up to +230°F requiring FDA sanitary hose. Also suitable for ice cream and other dairy products requiring 3A-Class 3 standards., Tank truck, barge, ship, or storage tank transfer (discharge only) of a variety of food products such as animal fat, vegetable oil and other edible oils at temperatures up to +230°F requiring FDA sanitary hose. Also suitable for ice cream and other dairy products requiring 3A-Class 3 standards. |
| Customer Pack | 50 – 200 |
| Weight (lbs.) | 0.64 – 4.1 |
PDF Documents
No PDF documents.
