Attributes
| Part Number | 7250-000000-000027 |
|---|
Description

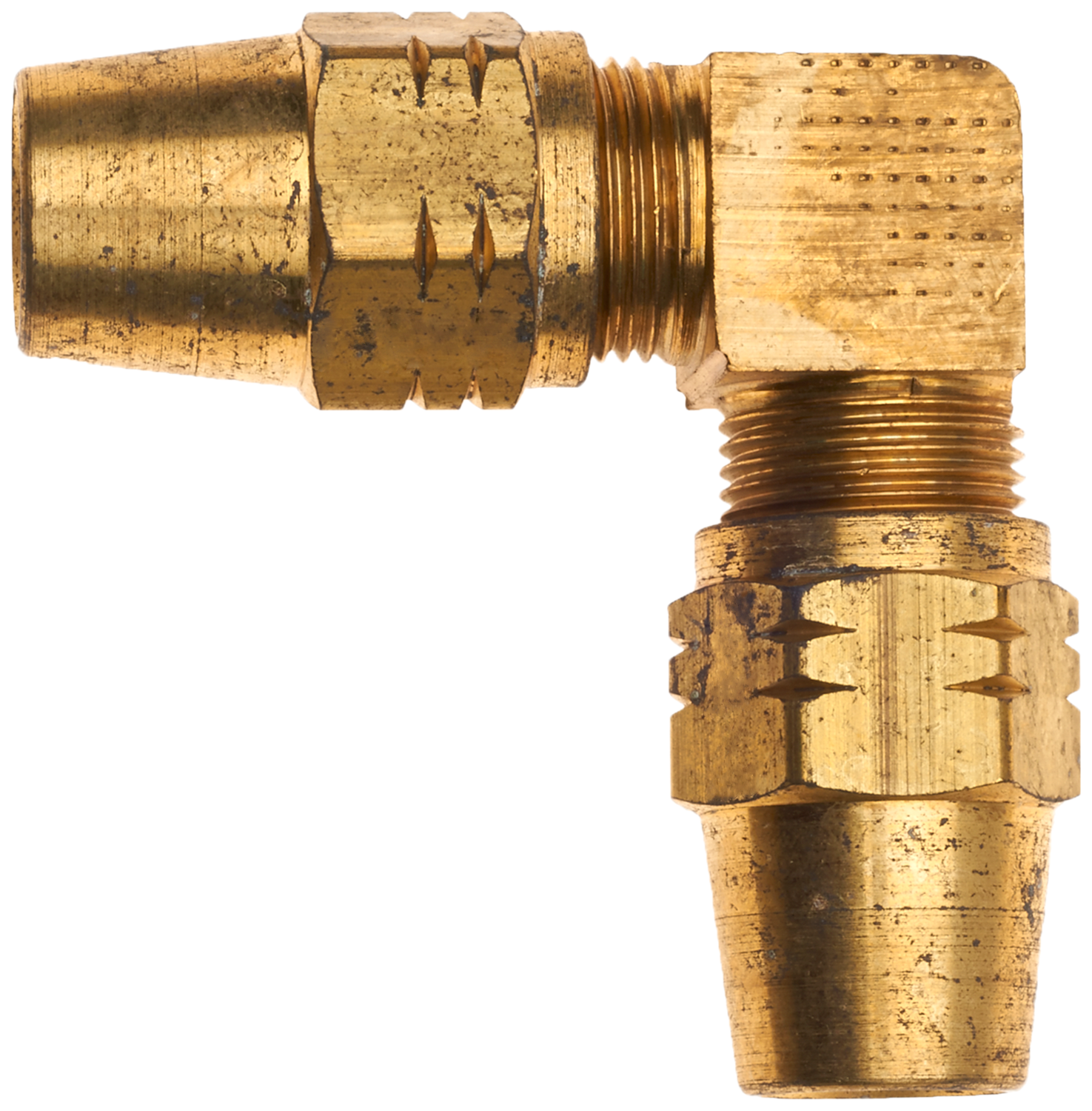

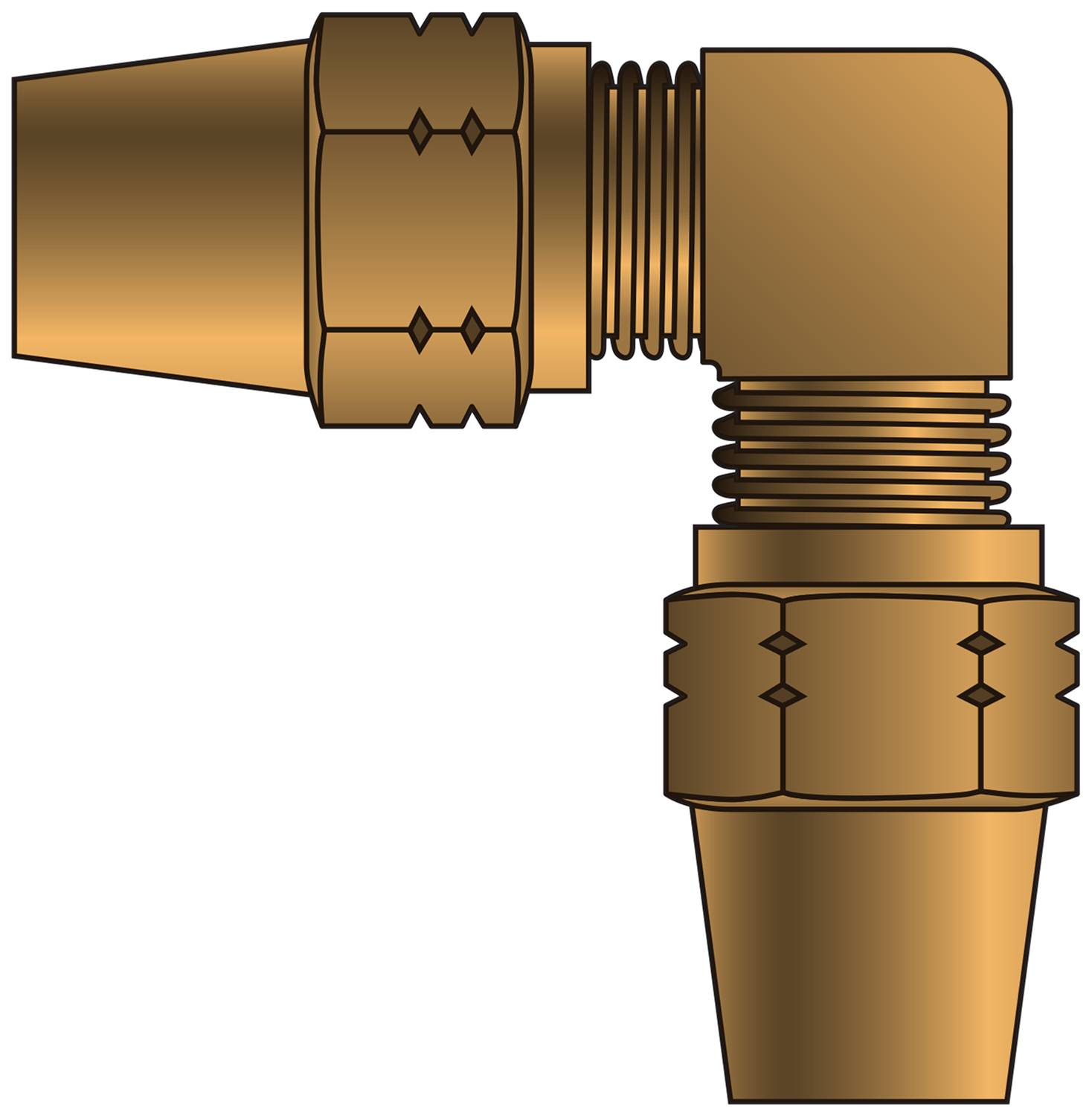

Air Brake Copper Tubing Compression Union - 90° Recommended for air brake systems - compressed air connectors or suspension, steering, engine transmission or on auxiliary components. Used with copper tubing in air brake systems. Easy to assemble - no flaring tools required. Versatile - can be used with nylon tubing by replacing the long nut and sleeve with an insert, rigid sleeve and nut. Meets DOT FMVSS 571.106, SAE J246 and SAE J1131 requirements. Temperature Range: -65 Deg. F to +250 Deg. F (-53 Deg. C to +121 Deg. C).
Variations (2)
10ABCT-10ABCT90 / G30404-1010
| End 2 Diameter (mm) | 10 |
|---|---|

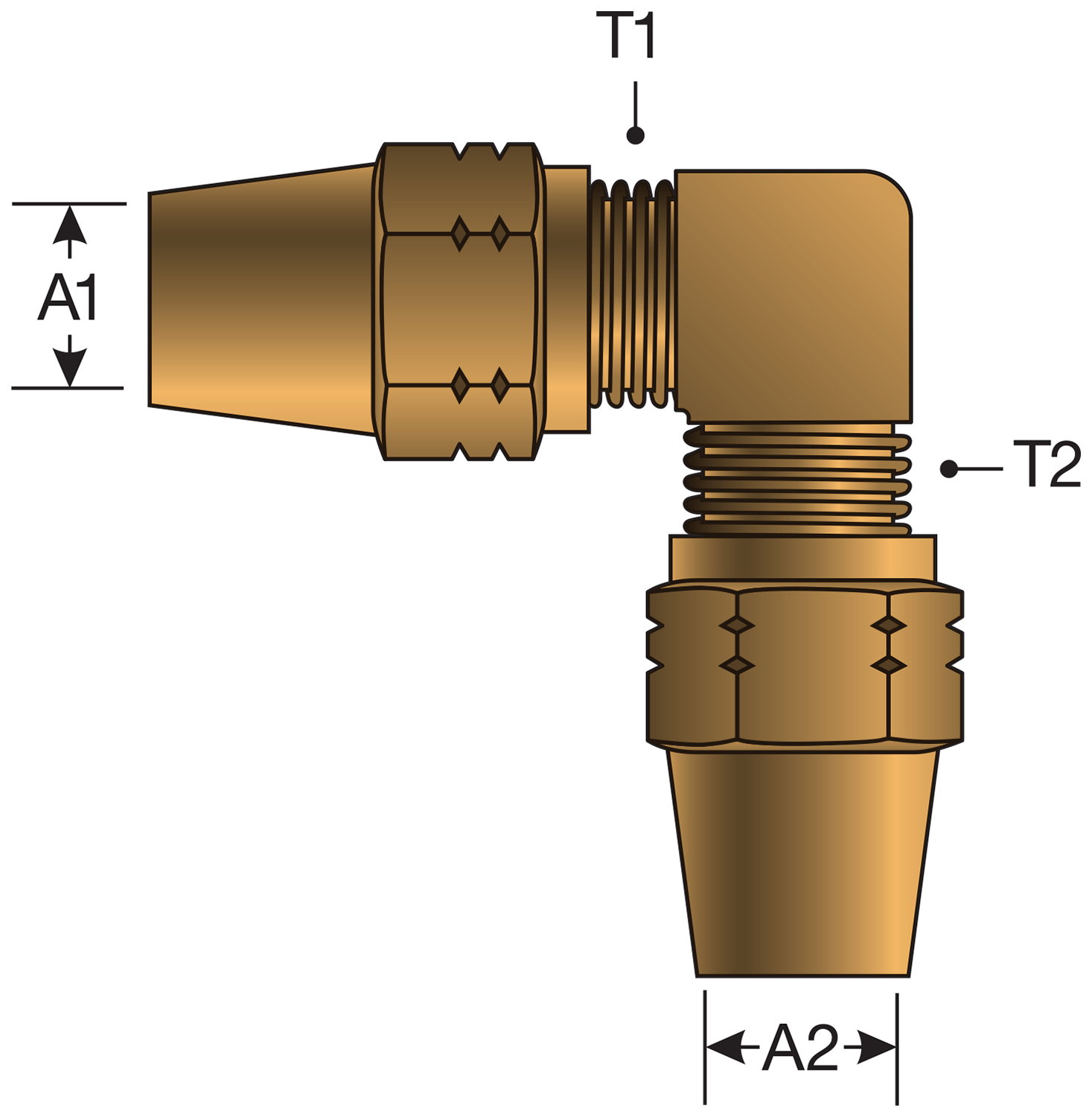

| A1 Outside Diameter (in) | 0.625 |
| A1 Outside Diameter (mm) | 15.9 |
| A2 Outside Diameter (in) | 15.9 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| Angle. | 90 |
| End 1 Diameter (mm) | 10 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.3 |
6ABCT-6ABCT90 / G30404-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| A1 Outside Diameter (in) | 0.375 |
| A1 Outside Diameter (mm) | 9.5 |
| A2 Outside Diameter (in) | 9.5 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| Angle. | 90 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.16 |
Specifications
| End 2 Diameter (mm) | 6 – 10 |
|---|---|
| A1 Outside Diameter (in) | 0.375 – 0.625 |
| A1 Outside Diameter (mm) | 9.5 – 15.9 |
| A2 Outside Diameter (in) | 9.5 – 15.9 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| Angle. | 90 |
| End 1 Diameter (mm) | 6 – 10 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.16 – 0.3 |
