Attributes
| Part Number | 7250-000000-000005 |
|---|
Description

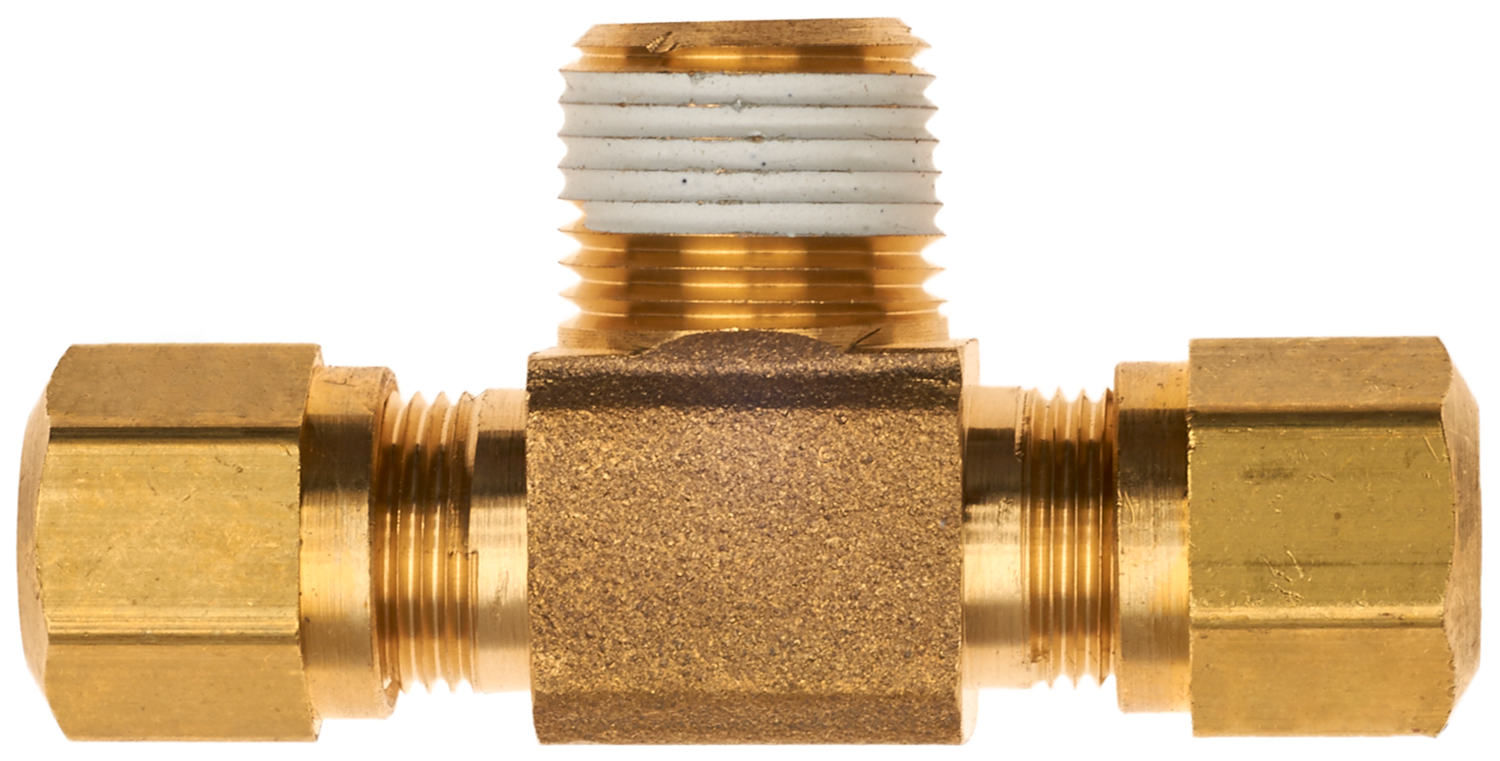

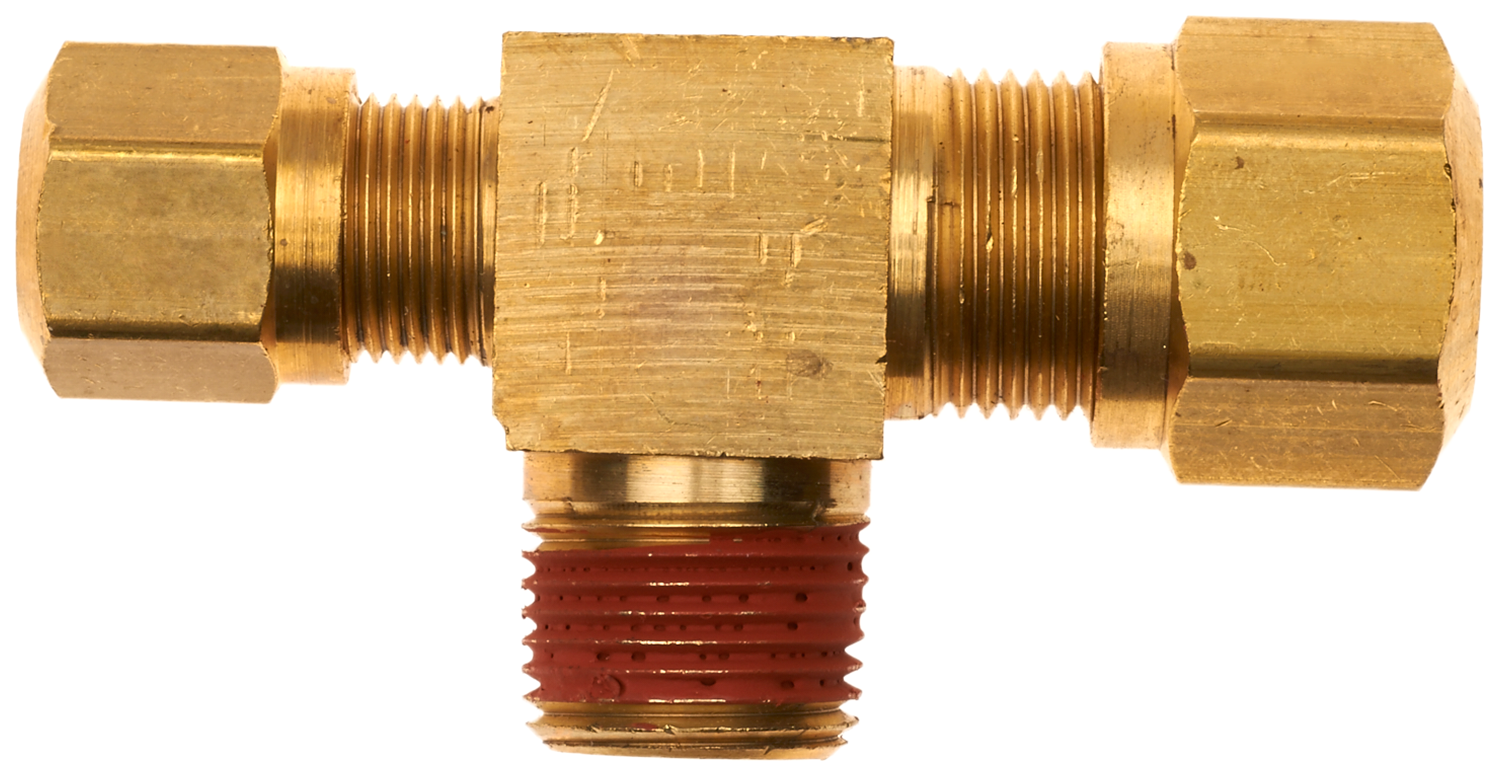

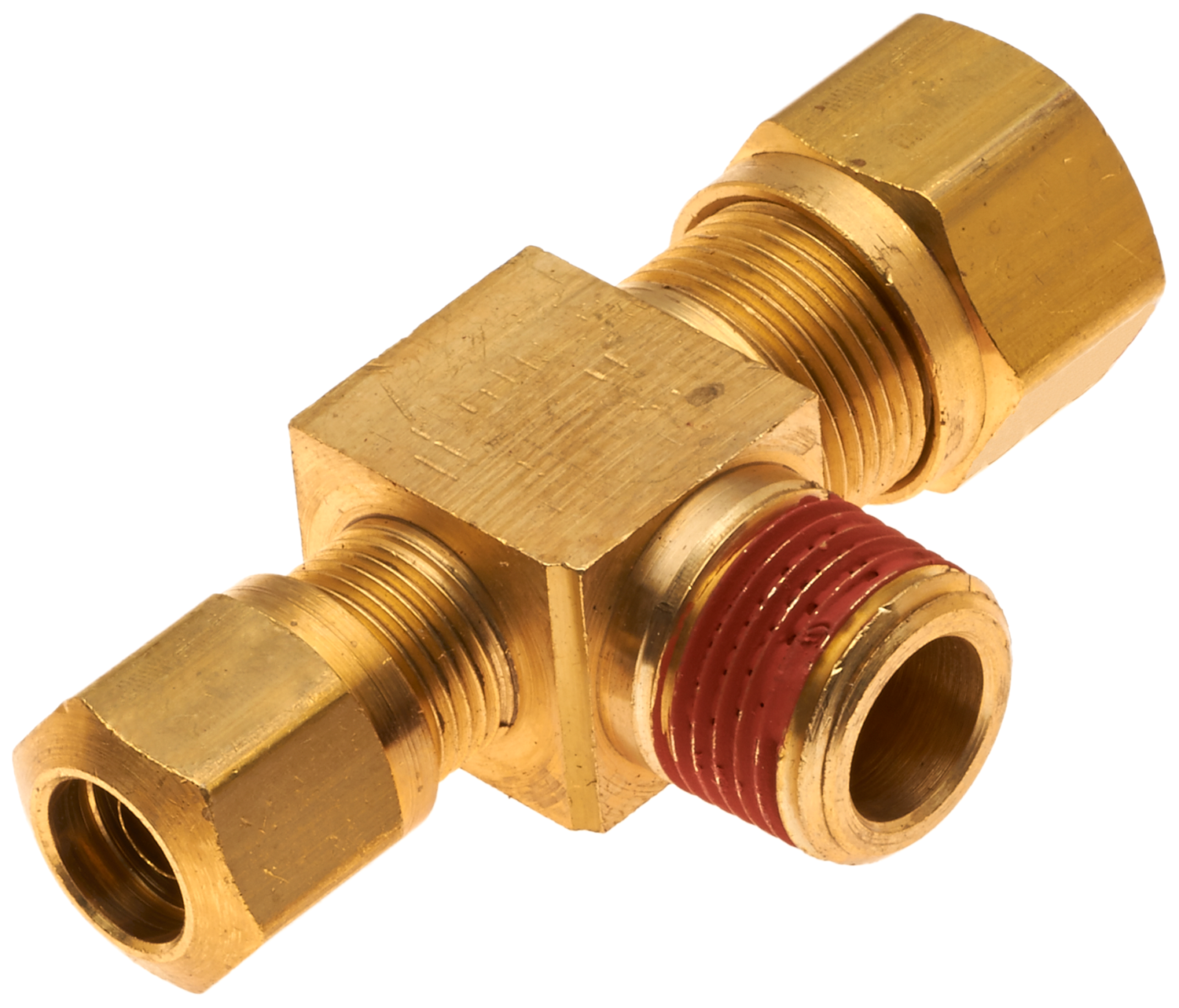

Air Brake Compression Branch Tee to Male Pipe Recommended for use in air brake systems - compressed air for suspension, steering, engine transmission or other onboard vehicle applications. For use as a connector on all air brake systems at locations other than between chassis frame and axle or between towed and towing vehicle. Easy to assemble - field serviceable fitting consists of four component parts. Meets DOT FMVSS 571.106, SAE J246, SAE J1131, DIN 74324 and German TUV requirements. For use with SAE J844 and DIN 74324 nylon tubing. Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C).
Variations (9)
10ABC-10ABC-8MP / G32134-1008

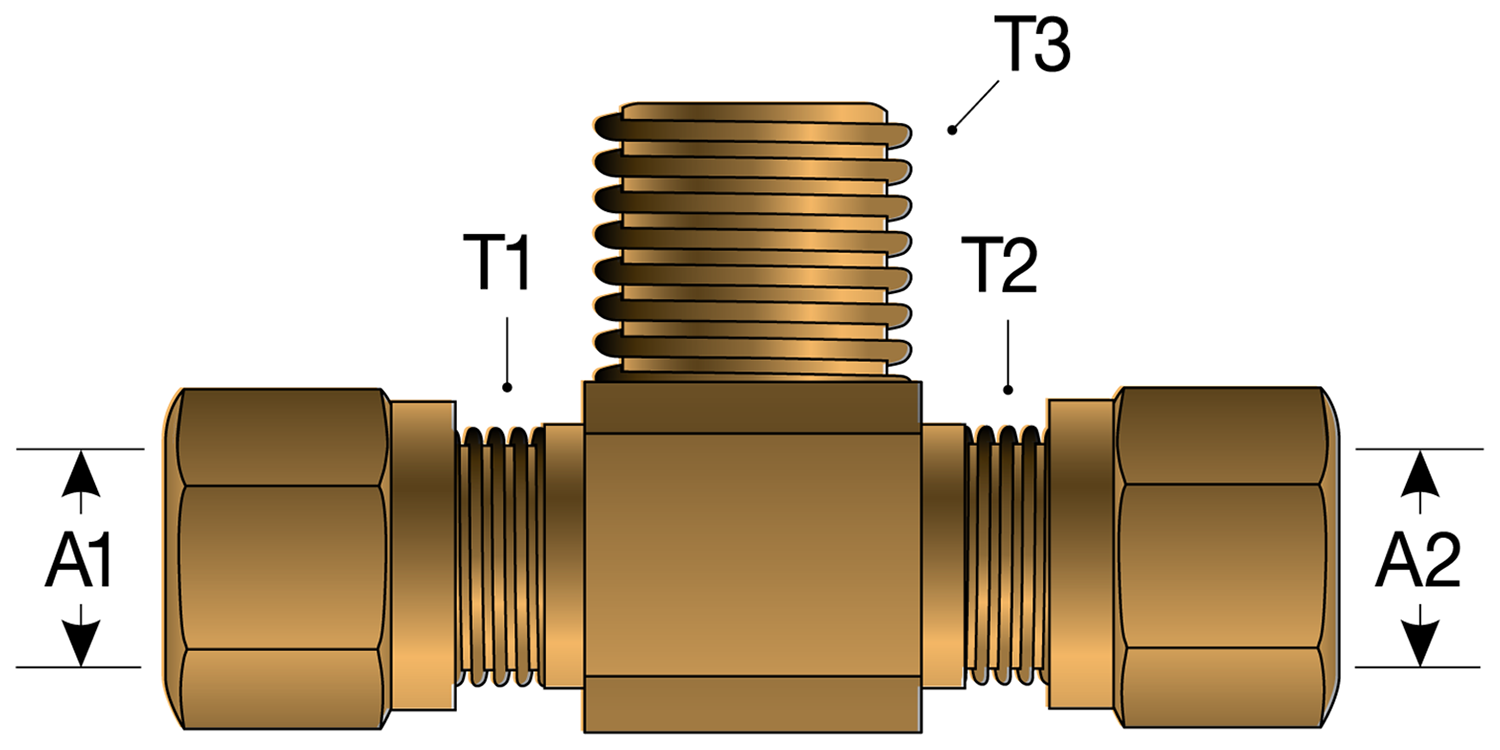

| End 2 Diameter (mm) | 10 |
|---|---|
| A1 Outside Diameter (in) | 0.625 |
| A1 Outside Diameter (mm) | 15.9 |
| A2 Outside Diameter (in) | 15.9 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 10 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.42 |
4ABC-4ABC-2MP / G32134-0402
| End 2 Diameter (mm) | 4 |
|---|---|
| A1 Outside Diameter (in) | 0.25 |
| A1 Outside Diameter (mm) | 6.4 |
| A2 Outside Diameter (in) | 6.4 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
4ABC-4ABC-4MP / G32134-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| A1 Outside Diameter (in) | 0.25 |
| A1 Outside Diameter (mm) | 6.4 |
| A2 Outside Diameter (in) | 6.4 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.13 |
6ABC-4ABC-4MP / G32136-0604
| End 2 Diameter (mm) | 4 |
|---|---|
| A1 Outside Diameter (in) | 0.375 |
| A1 Outside Diameter (mm) | 9.5 |
| A2 Outside Diameter (in) | 6.4 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.14 |
6ABC-6ABC-2MP / G32134-0602
| End 2 Diameter (mm) | 6 |
|---|---|
| A1 Outside Diameter (in) | 0.375 |
| A1 Outside Diameter (mm) | 9.5 |
| A2 Outside Diameter (in) | 9.5 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.14 |
6ABC-6ABC-4MP / G32134-0604
| End 2 Diameter (mm) | 6 |
|---|---|
| A1 Outside Diameter (in) | 0.375 |
| A1 Outside Diameter (mm) | 9.5 |
| A2 Outside Diameter (in) | 9.5 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.16 |
6ABC-6ABC-6MP / G32134-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| A1 Outside Diameter (in) | 0.375 |
| A1 Outside Diameter (mm) | 9.5 |
| A2 Outside Diameter (in) | 9.5 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
8ABC-8ABC-6MP / G32134-0806
| End 2 Diameter (mm) | 8 |
|---|---|
| A1 Outside Diameter (in) | 0.5 |
| A1 Outside Diameter (mm) | 12.7 |
| A2 Outside Diameter (in) | 12.7 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.3 |
8ABC-8ABC-8MP / G32134-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| A1 Outside Diameter (in) | 0.5 |
| A1 Outside Diameter (mm) | 12.7 |
| A2 Outside Diameter (in) | 12.7 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.38 |
Specifications
| End 2 Diameter (mm) | 4 – 10 |
|---|---|
| A1 Outside Diameter (in) | 0.25 – 0.625 |
| A1 Outside Diameter (mm) | 6.4 – 15.9 |
| A2 Outside Diameter (in) | 6.4 – 15.9 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 4 – 10 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 – 0.42 |
