Attributes
| Part Number | 7317-000000-000000 |
|---|
Description

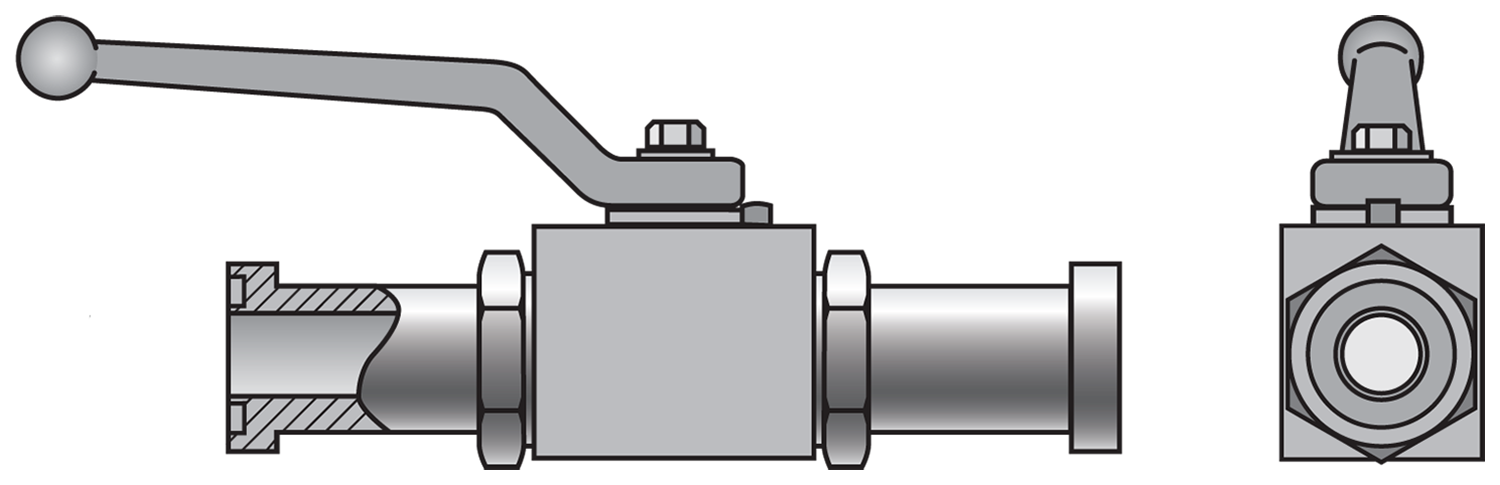

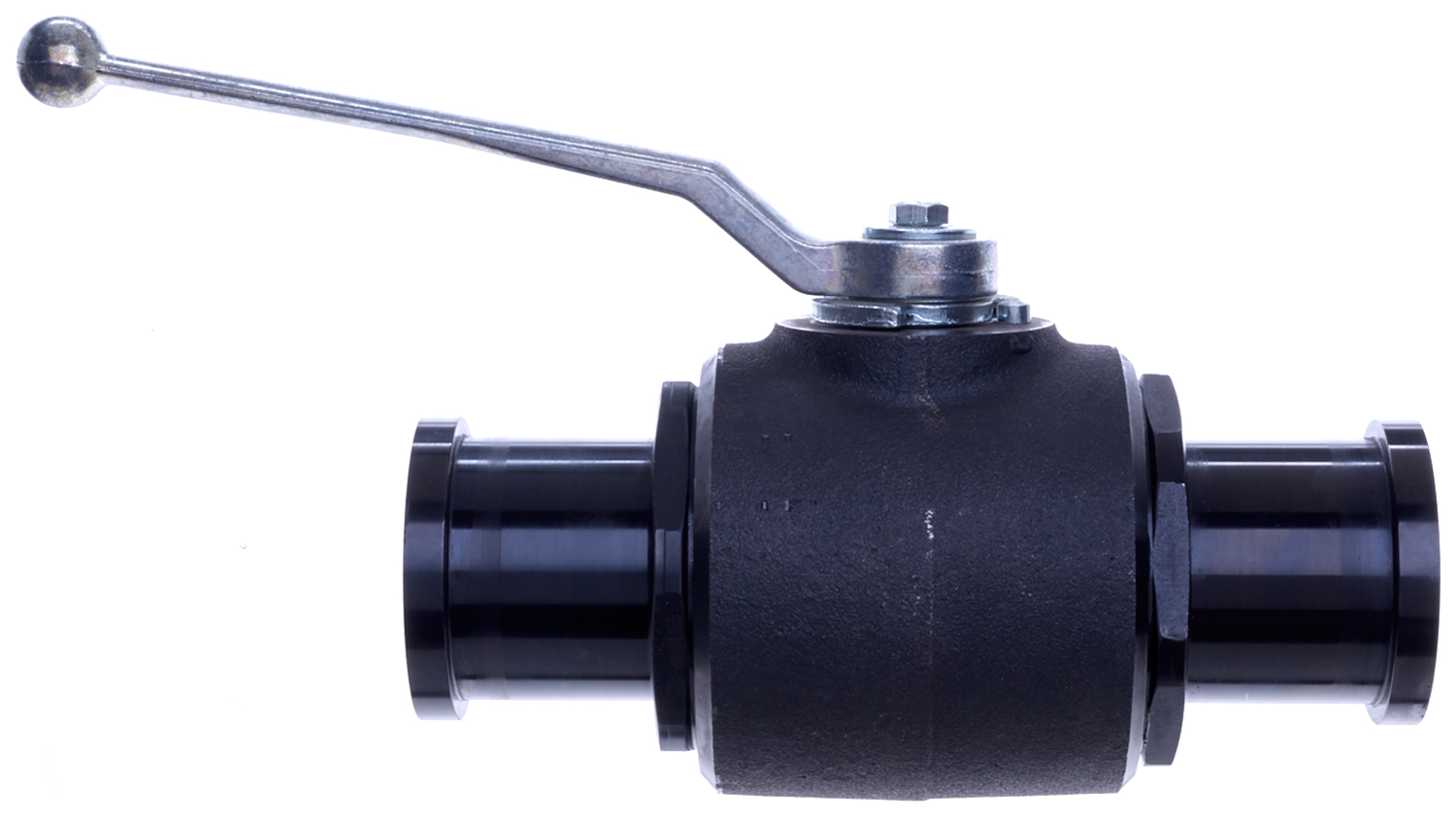

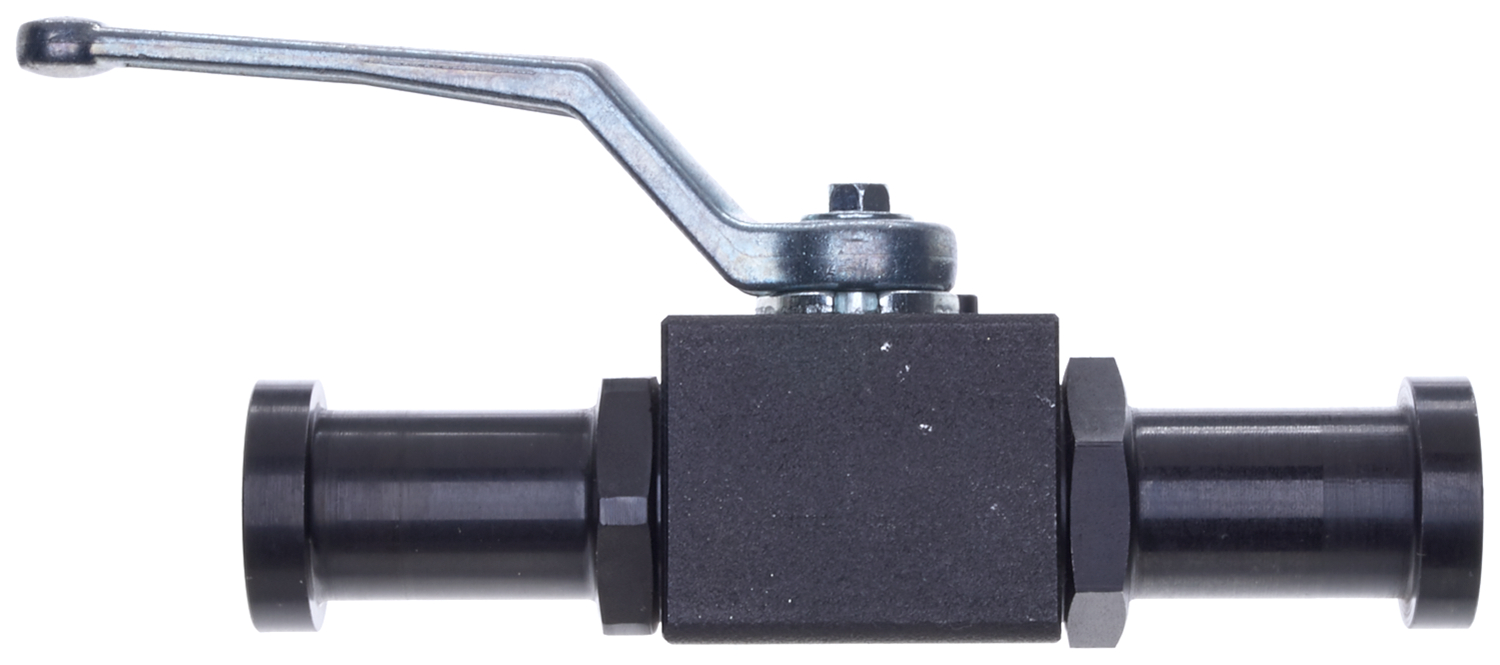

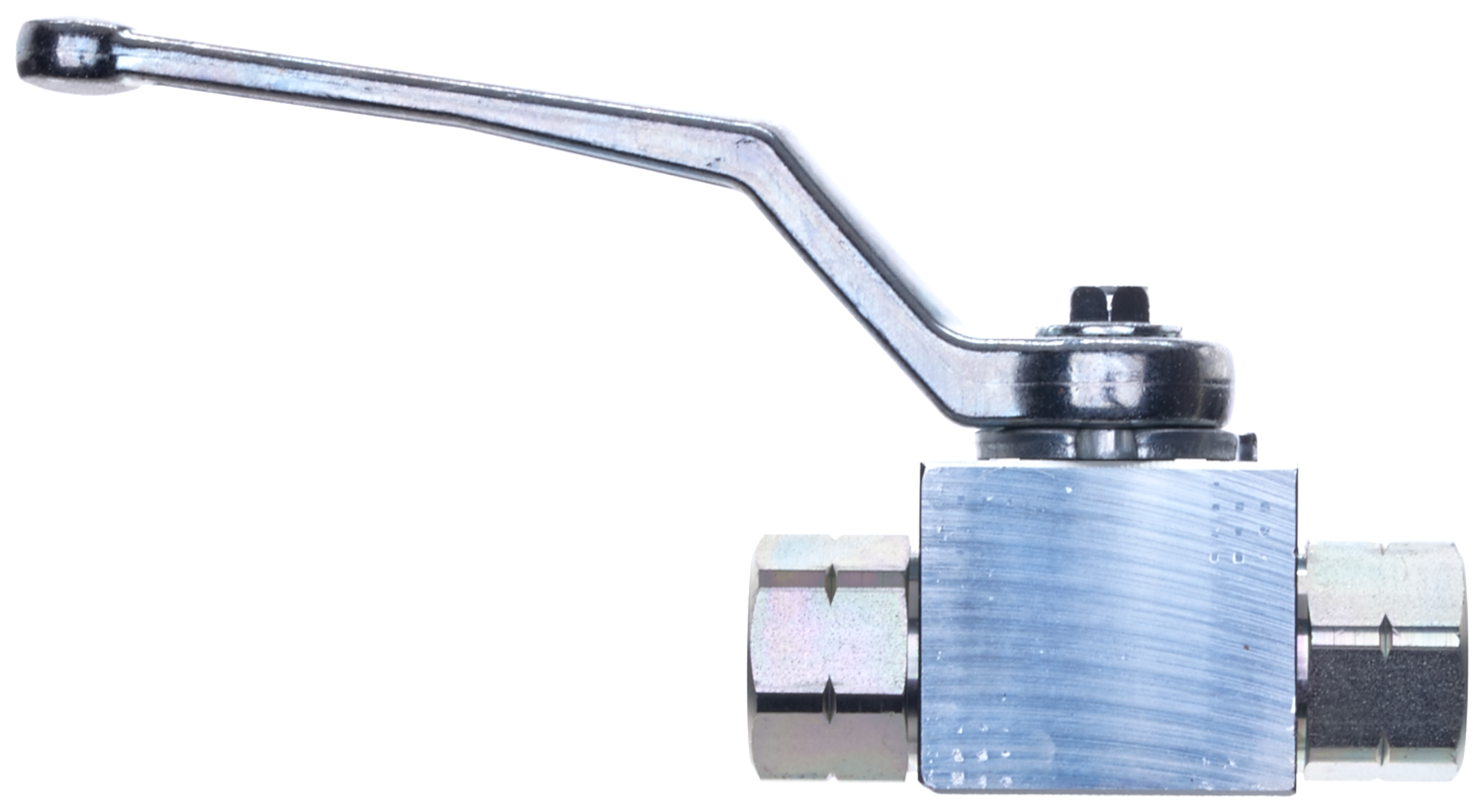

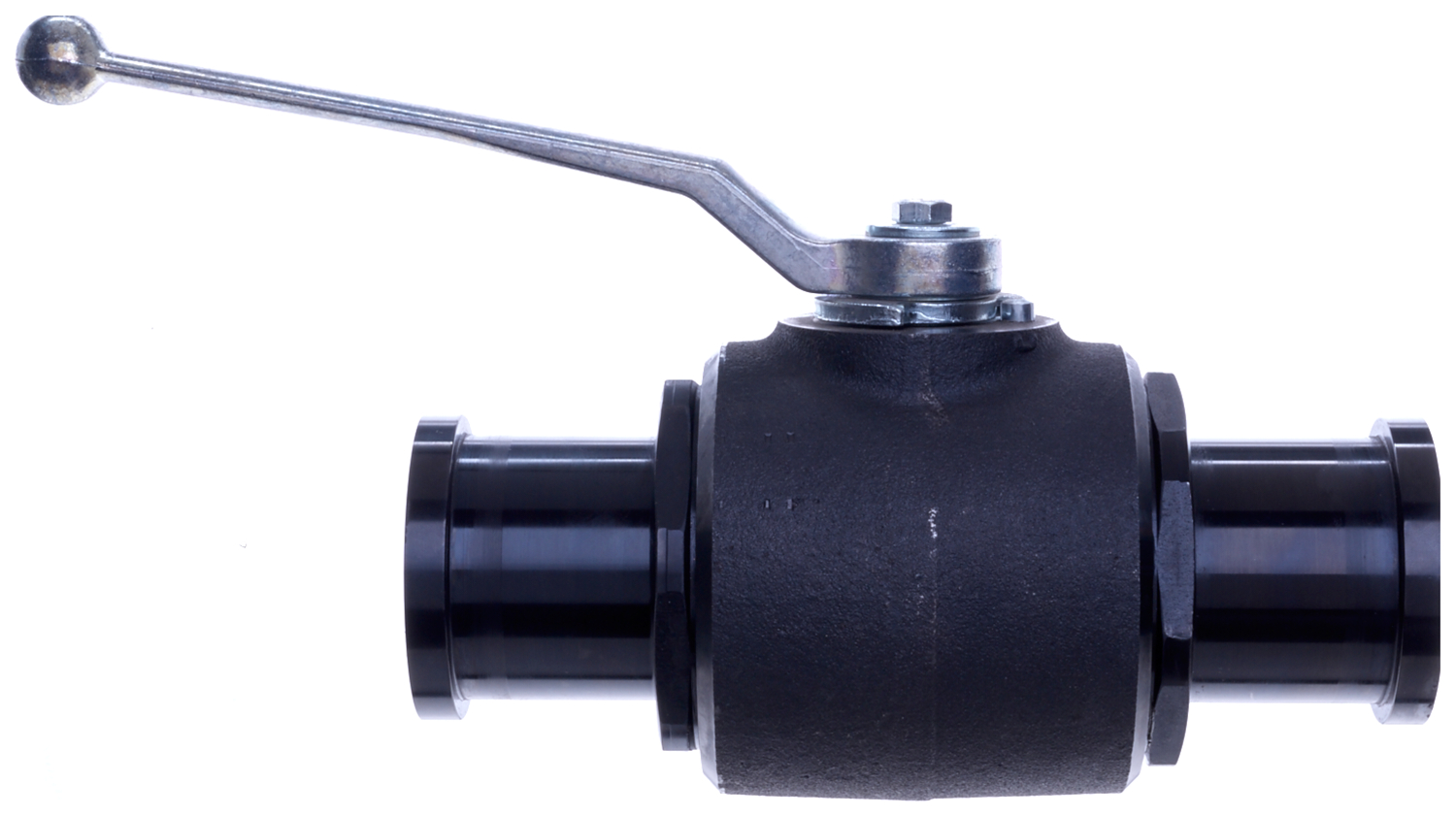

Ball Valve These Ball Valves are ideal for applications on stationary plant equipment as well as mobile equipment in agriculture, construction and mining. Premium quality, easy to install and easy to maintain. Available in 2-way block, 2-way round and 3-way block styles. Features a durable ball and stem, buna, Viton®, o-rings and Delrin® ball seats to deliver optimal performance and long life.
Variations (23)
12FB-12FBBV / G96115-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| Inside Diameter (mm) | 19.1 |
| Max. Working Pressure | 5880 |
| Max. Working Pressure (Bar) | 405.4 |
| Working Pressure (psi) | 5880 |
| End 1 Diameter (mm) | 12 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 3.35 |
12FP-12FP-12FPBV / G96210-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| Inside Diameter (mm) | 19.1 |
| Max. Working Pressure | 5145 |
| Max. Working Pressure (Bar) | 354.7 |
| Working Pressure (psi) | 5145 |
| End 1 Diameter (mm) | 12 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 3.5 |
12FP-12FPBV / G96110-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| Inside Diameter (mm) | 19.1 |
| Max. Working Pressure | 5880 |
| Max. Working Pressure (Bar) | 405.4 |
| Working Pressure (psi) | 5880 |
| End 1 Diameter (mm) | 12 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 3.35 |
16FB-16FBBV / G96115-1616
| End 2 Diameter (mm) | 16 |
|---|---|
| Inside Diameter (mm) | 25.4 |
| Max. Working Pressure | 5145 |
| Max. Working Pressure (Bar) | 354.7 |
| Working Pressure (psi) | 5145 |
| End 1 Diameter (mm) | 16 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 4.55 |
16FP-16FP-16FPBV / G96210-1616
| End 2 Diameter (mm) | 16 |
|---|---|
| Inside Diameter (mm) | 25.4 |
| Max. Working Pressure | 5145 |
| Max. Working Pressure (Bar) | 354.7 |
| Working Pressure (psi) | 5145 |
| End 1 Diameter (mm) | 16 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 4.85 |
16FP-16FPBV / G96110-1616
| End 2 Diameter (mm) | 16 |
|---|---|
| Inside Diameter (mm) | 25.4 |
| Max. Working Pressure | 5145 |
| Max. Working Pressure (Bar) | 354.7 |
| Working Pressure (psi) | 5145 |
| End 1 Diameter (mm) | 16 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 4.55 |
20FLH-20FLHBV / G96355-2020
| End 2 Diameter (mm) | 20 |
|---|---|
| M Flange Diameter (in) | 1.25 |
| M Flange Diameter (mm) | 31.8 |
| Nom. Flg. Size (in) | 1 1/4 |
| Inside Diameter (mm) | 31.8 |
| Max. Working Pressure | 6000 |
| Max. Working Pressure (Bar) | 413.7 |
| Working Pressure (psi) | 6000 |
| End 1 Diameter (mm) | 20 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 9.9 |
20FP-16FPBV / G96110-2016
| End 2 Diameter (mm) | 16 |
|---|---|
| Inside Diameter (mm) | 25.4 |
| Max. Working Pressure | 5145 |
| Max. Working Pressure (Bar) | 354.7 |
| Working Pressure (psi) | 5145 |
| End 1 Diameter (mm) | 20 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 4.85 |
20FP-20FP-20FPBV / G96211-2020
| End 2 Diameter (mm) | 20 |
|---|---|
| Inside Diameter (mm) | 31.8 |
| Max. Working Pressure | 5145 |
| Max. Working Pressure (Bar) | 354.7 |
| Working Pressure (psi) | 5145 |
| End 1 Diameter (mm) | 20 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 9.25 |
20FP-20FPBV / G96120-2020
| End 2 Diameter (mm) | 20 |
|---|---|
| Inside Diameter (mm) | 31.8 |
| Max. Working Pressure | 6175 |
| Max. Working Pressure (Bar) | 425.8 |
| Working Pressure (psi) | 6175 |
| End 1 Diameter (mm) | 20 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 7.55 |
24FP-24FPBV / G96120-2424
| End 2 Diameter (mm) | 24 |
|---|---|
| Inside Diameter (mm) | 38.1 |
| Max. Working Pressure | 6175 |
| Max. Working Pressure (Bar) | 425.8 |
| Working Pressure (psi) | 6175 |
| End 1 Diameter (mm) | 24 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 8.5 |
32FL-32FLBV / G96310-3232
| End 2 Diameter (mm) | 32 |
|---|---|
| M Flange Diameter (in) | 2 |
| M Flange Diameter (mm) | 50.8 |
| Nom. Flg. Size (in) | 2 |
| Inside Diameter (mm) | 50.8 |
| Max. Working Pressure | 3000 |
| Max. Working Pressure (Bar) | 206.8 |
| Working Pressure (psi) | 3000 |
| End 1 Diameter (mm) | 32 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 15.4 |
32FP-32FPBV / G96120-3232
| End 2 Diameter (mm) | 32 |
|---|---|
| Inside Diameter (mm) | 50.8 |
| Max. Working Pressure | 6175 |
| Max. Working Pressure (Bar) | 425.8 |
| Working Pressure (psi) | 6175 |
| End 1 Diameter (mm) | 32 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 15.5 |
4FB-4FBBV / G96115-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Inside Diameter (mm) | 6.4 |
| Max. Working Pressure | 7350 |
| Max. Working Pressure (Bar) | 506.8 |
| Working Pressure (psi) | 7350 |
| End 1 Diameter (mm) | 4 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.8 |
4FP-4FP-4FPBV / G96210-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Inside Diameter (mm) | 6.4 |
| Max. Working Pressure | 5880 |
| Max. Working Pressure (Bar) | 405.4 |
| Working Pressure (psi) | 5880 |
| End 1 Diameter (mm) | 4 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.85 |
4FP-4FPBV / G96110-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Inside Diameter (mm) | 6.4 |
| Max. Working Pressure | 7350 |
| Max. Working Pressure (Bar) | 506.8 |
| Working Pressure (psi) | 7350 |
| End 1 Diameter (mm) | 4 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.8 |
6FB-6FBBV / G96115-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Inside Diameter (mm) | 9.5 |
| Max. Working Pressure | 7350 |
| Max. Working Pressure (Bar) | 506.8 |
| Working Pressure (psi) | 7350 |
| End 1 Diameter (mm) | 6 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 1.2 |
6FP-6FP-6FPBV / G96210-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Inside Diameter (mm) | 9.5 |
| Max. Working Pressure | 5880 |
| Max. Working Pressure (Bar) | 405.4 |
| Working Pressure (psi) | 5880 |
| End 1 Diameter (mm) | 6 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 1.3 |
6FP-6FPBV / G96110-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Inside Diameter (mm) | 9.5 |
| Max. Working Pressure | 7350 |
| Max. Working Pressure (Bar) | 506.8 |
| Working Pressure (psi) | 7350 |
| End 1 Diameter (mm) | 6 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 1.2 |
8FB-8FBBV / G96115-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Inside Diameter (mm) | 12.7 |
| Max. Working Pressure | 7350 |
| Max. Working Pressure (Bar) | 506.8 |
| Working Pressure (psi) | 7350 |
| End 1 Diameter (mm) | 8 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 1.45 |
8FL-8FLBV / G96300-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| M Flange Diameter (in) | 0.5 |
| M Flange Diameter (mm) | 12.7 |
| Nom. Flg. Size (in) | 1/2 |
| Inside Diameter (mm) | 12.7 |
| Max. Working Pressure | 3000 |
| Max. Working Pressure (Bar) | 206.8 |
| Working Pressure (psi) | 3000 |
| End 1 Diameter (mm) | 8 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 1.85 |
8FP-8FP-8FPBV / G96210-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Inside Diameter (mm) | 12.7 |
| Max. Working Pressure | 5145 |
| Max. Working Pressure (Bar) | 354.7 |
| Working Pressure (psi) | 5145 |
| End 1 Diameter (mm) | 8 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 1.55 |
8FP-8FPBV / G96110-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Inside Diameter (mm) | 12.7 |
| Max. Working Pressure | 7350 |
| Max. Working Pressure (Bar) | 506.8 |
| Working Pressure (psi) | 7350 |
| End 1 Diameter (mm) | 8 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 1.45 |
Specifications
| End 2 Diameter (mm) | 4 – 32 |
|---|---|
| Inside Diameter (mm) | 6.4 – 50.8 |
| Max. Working Pressure | 3000 – 7350 |
| Max. Working Pressure (Bar) | 206.8 – 506.8 |
| Working Pressure (psi) | 3000 – 7350 |
| End 1 Diameter (mm) | 4 – 32 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.8 – 15.5 |
| M Flange Diameter (in) | 0.5 – 2 |
| M Flange Diameter (mm) | 12.7 – 50.8 |
| Nom. Flg. Size (in) | 1 1/4, 2, 1/2 |
