Attributes
| Part Number | 7250-000000-000050 |
|---|
Description

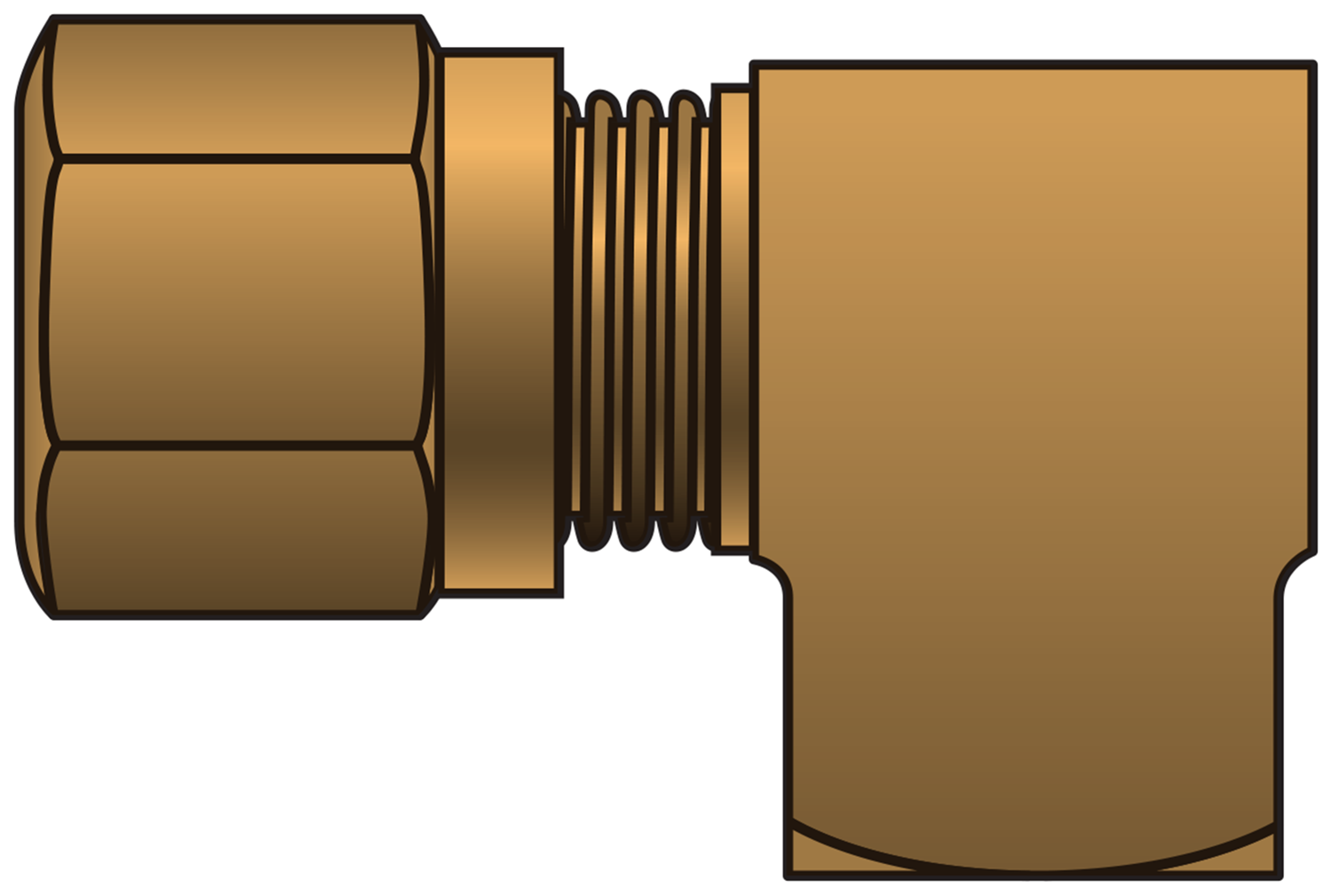

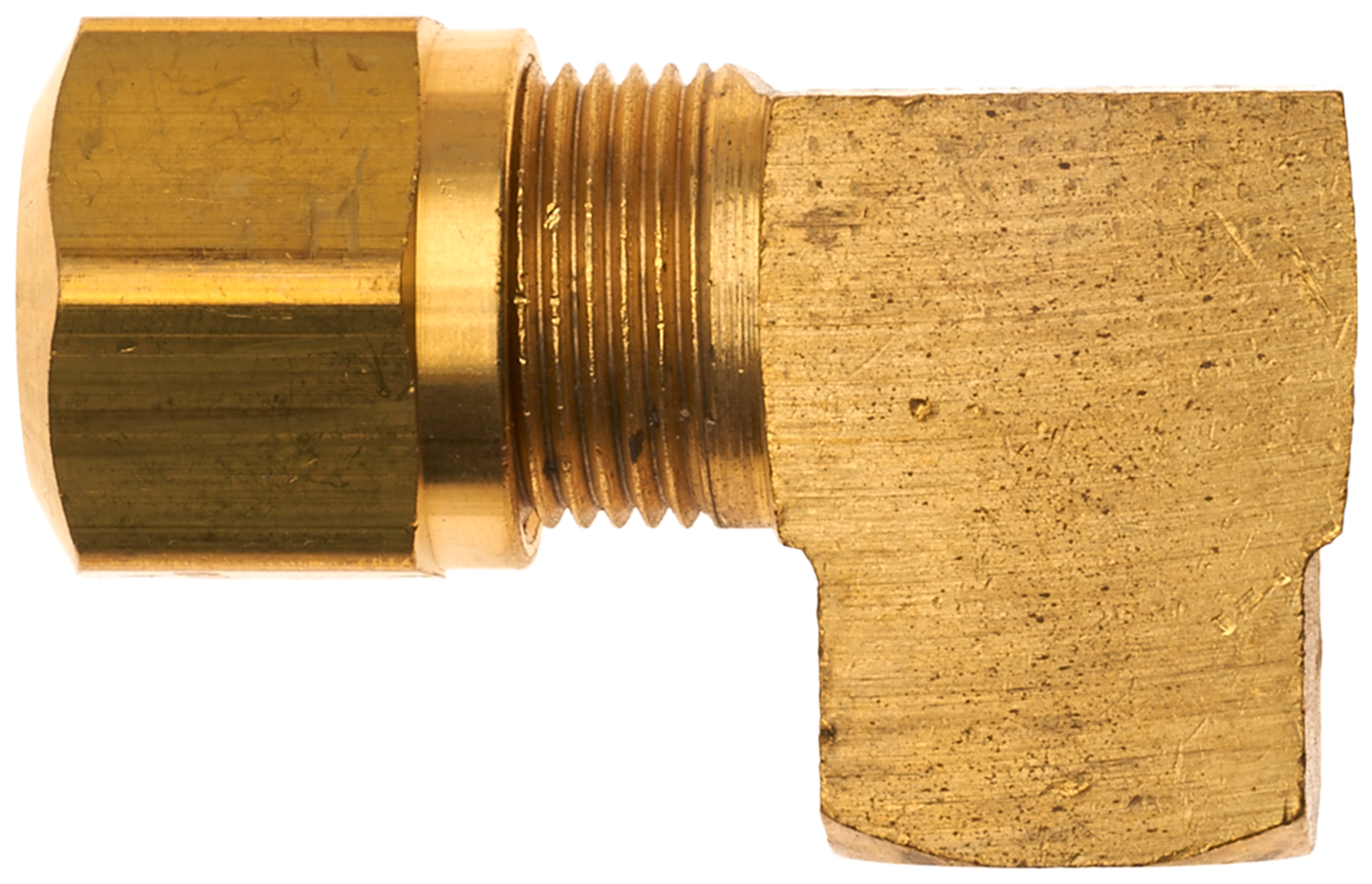

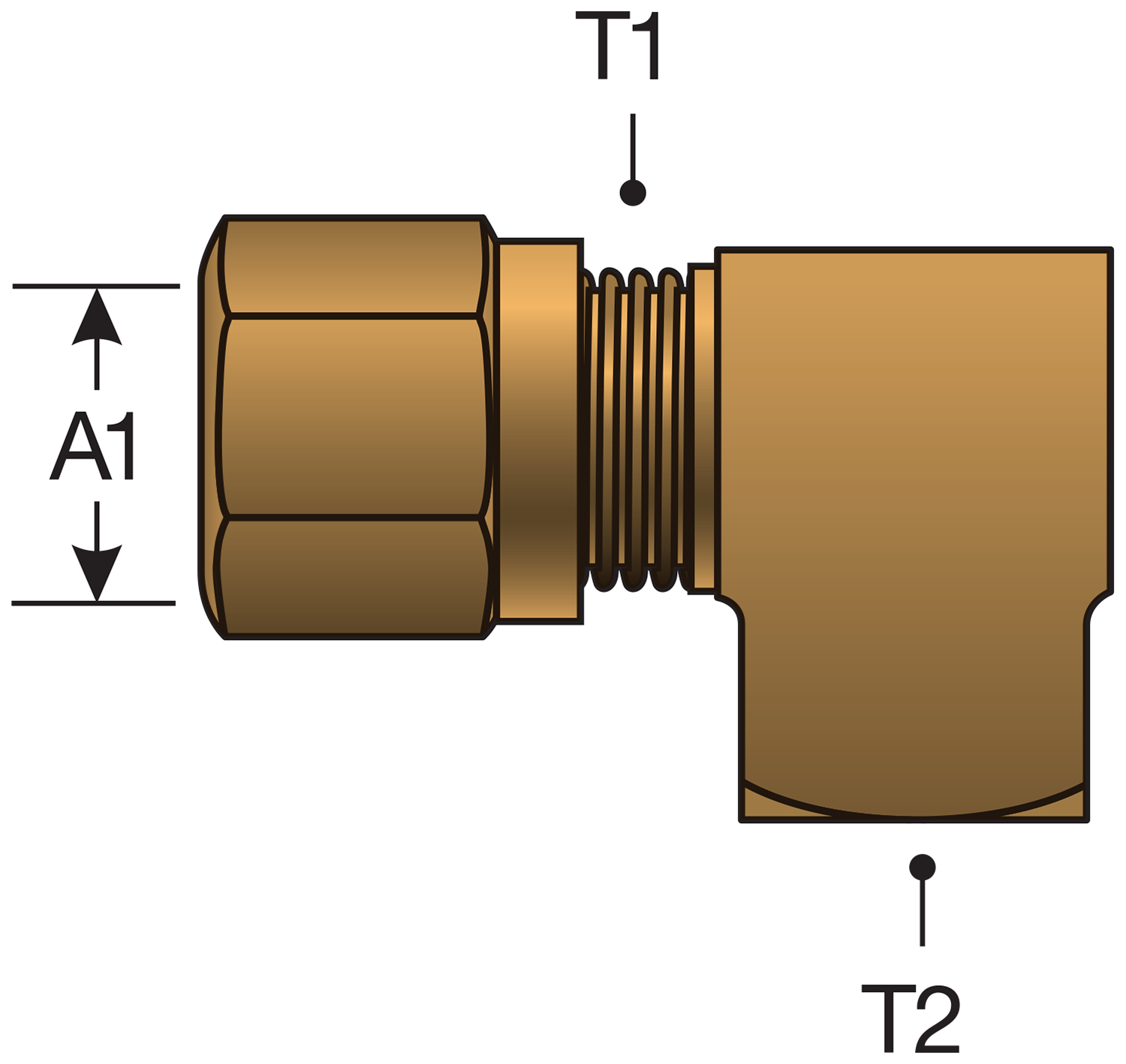

# Pipe Adapters-Brass
Recommended for grease, refrigeration and instrumentation.
- Offered in a large range of sizes and configurations to cover most application needs.
- For use with brass, bronze and iron tubing.
- Meets ASME and SAE conformance.
## Brass with Benefits.
As leaders in industrial material science, we know the right metals for your applications. Known for its corrosion-resistance and strength, brass provides a safe, durable fitting connection that will maintain in excellent condition for years of reliable service.
Variations (155)
12FP-12FP-12FP-12FPB / G60639-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.33 |
12FP-12FP-12FPB / G60640-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.7 |
12FP-12FP-12MPB / G60642-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.64 |
12FP-12FP-8FPB / G60640-1208
| End 2 Diameter (mm) | 12 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.6 |
12FP-12FPB / G60631-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.33 |
12FP-12FPB90 / G60637-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.6 |
12FP-12FPXB / G60632-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.64 |
12FP-12MP-12FPB / G60641-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.6 |
12FP-8FPB / G60631-1208
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
12FPB-CAP / G60600-0012
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
12MP-12FP45 / G60618-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 45 |
| End 1 Diameter (mm) | 12 |
| Material | Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.33 |
12MP-12FPB-L / G60615-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
12MP-12FPB90 / G60620-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.52 |
12MP-12MP-12MPB / G60612-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.38 |
12MP-12MPB / G60605-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.18 |
12MP-12MPB-CNS / G60606-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| L Length (in) | 1.38 |
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.12 |
12MP-12MPB-CNXL / G60608-1212
| End 2 Diameter (mm) | 12 |
|---|---|
| L Length (in) | 2 |
| L Length (mm) | 50.8 |
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.33 |
12MP-6FPB / G60614-1206
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.16 |
12MP-8FPB / G60614-1208
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.12 |
12MPB-PLUG / G60601-0012
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.14 |
12MPB-PLUG SQ HEAD / G60602-0012
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 12 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.12 |
1FP-1FPB / G60631-0101
| End 2 Diameter (mm) | 1 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 1 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
1MP-1FPB90 / G60620-0101
| End 2 Diameter (mm) | 1 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 1 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
1MP-1MP / G60605-0101
| End 2 Diameter (mm) | 1 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 1 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.28 |
1MP-2FPB-L / G60615-0102
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 1 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
1MP-2MPB / G60605-0102
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 1 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
1MPB-PLUG / G60601-0001
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 1 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
1MPB-PLUG HK HEAD / G60603-0001
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 1 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.001 |
2FP-2FP-2FP-2FPB / G60639-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
2FP-2FP-2FPB / G60640-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
2FP-2FP-2MPB / G60642-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
2FP-2FP-4FPB / G60640-0204
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
2FP-2FPB / G60631-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
2FP-2FPB45 / G60635-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 45 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.05 |
2FP-2FPB90 / G60637-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
2FP-2FPXB / G60632-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
2FP-2MP-2FPB / G60641-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
2FP-4FPB90 / G60637-0204
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.16 |
2FPB-CAP / G60600-0002
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
2MP-2FP-3MS / G60623-0203
| End 2 Diameter (mm) | 2 |
|---|---|
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
2MP-2FP45 / G60618-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 45 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
2MP-2FPB-L / G60615-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
2MP-2FPB90 / G60620-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
2MP-2FPR / G60633-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.4 |
2MP-2MP-2MPB / G60612-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
2MP-2MPB / G60605-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
2MP-2MPB-CNL / G60607-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| L Length (in) | 1.5 |
| L Length (mm) | 38.1 |
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
2MP-2MPB-CNS / G60606-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| L Length (in) | 0.75 |
| L Length (mm) | 19.1 |
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
2MP-2MPB-CNXL / G60608-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| L Length (in) | 2 |
| L Length (mm) | 50.8 |
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
2MP-2MPB90 / G60610-0202
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.05 |
2MP-4FPB-L / G60615-0204
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
2MP-4FPB90 / G60620-0204
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
2MP-4MPB / G60605-0204
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
2MP-4MPB90 / G60610-0204
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
2MP-6FPB-L / G60615-0206
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
2MP-6MPB / G60605-0206
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
2MP-6MPB90 / G60610-0206
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.05 |
2MPB-PLUG / G60601-0002
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
2MPB-PLUG HK HEAD / G60603-0002
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
2MPB-PLUG SQ HEAD / G60602-0002
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
2MPB-PLUG-SL / G60604-0002
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 2 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
4FP-2FPB / G60631-0402
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
4FP-4FP-2FPB / G60640-0402
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
4FP-4FP-4FP-4FPB / G60639-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
4FP-4FP-4FPB / G60640-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.18 |
4FP-4FP-4MPB / G60642-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.12 |
4FP-4FPB / G60631-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
4FP-4FPB45 / G60635-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 45 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
4FP-4FPB90 / G60637-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.14 |
4FP-4FPXB / G60632-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.18 |
4FP-4MP-4FPB / G60641-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.24 |
4FP-6FPB90 / G60637-0406
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
4FPB-CAP / G60600-0004
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
4MP-2FPB / G60614-0402
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
4MP-2FPB90 / G60620-0402
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
4MP-4FP45 / G60618-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 45 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
4MP-4FPB-L / G60615-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
4MP-4FPB90 / G60620-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
4MP-4MP-4MPB / G60612-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
4MP-4MPB / G60605-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
4MP-4MPB-CNL / G60607-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| L Length (in) | 1.5 |
| L Length (mm) | 38.1 |
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
4MP-4MPB-CNS / G60606-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| L Length (in) | 0.88 |
| L Length (mm) | 22.4 |
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
4MP-4MPB-CNXL / G60608-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| L Length (in) | 2 |
| L Length (mm) | 50.8 |
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
4MP-4MPB90 / G60610-0404
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
4MP-6FPB-L / G60615-0406
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
4MP-6FPB90 / G60620-0406
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
4MP-6MPB / G60605-0406
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
4MP-6MPB90 / G60610-0406
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.25 |
4MP-8FPB-L / G60615-0408
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
4MP-8MPB / G60605-0408
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
4MPB-PLUG / G60601-0004
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
4MPB-PLUG HK HEAD / G60603-0004
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
4MPB-PLUG SQ HEAD / G60602-0004
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
4MPB-PLUG-SL / G60604-0004
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 4 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
6FP-2FPB / G60631-0602
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
6FP-4FPB / G60631-0604
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
6FP-6FP-4FPB / G60640-0604
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
6FP-6FP-6FP-6FPB / G60639-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
6FP-6FP-6FPB / G60640-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.24 |
6FP-6FP-6MPB / G60642-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.24 |
6FP-6FPB / G60631-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
6FP-6FPB45 / G60635-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 45 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
6FP-6FPB90 / G60637-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.18 |
6FP-6FPXB / G60632-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.26 |
6FP-6MP-6FPB / G60641-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.34 |
6FP-8FPB90 / G60637-0608
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.4 |
6FPB-CAP / G60600-0006
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
6MP-2FPB / G60614-0602
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
6MP-4FPB / G60614-0604
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
6MP-4FPB90 / G60620-0604
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.12 |
6MP-6FP45 / G60618-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 45 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
6MP-6FPB-L / G60615-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
6MP-6FPB90 / G60620-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.14 |
6MP-6MP-6MPB / G60612-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
6MP-6MPB / G60605-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
6MP-6MPB-CNL / G60607-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| L Length (in) | 1.5 |
| L Length (mm) | 38.1 |
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
6MP-6MPB-CNS / G60606-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| L Length (in) | 1 |
| L Length (mm) | 25.7 |
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
6MP-6MPB-CNXL / G60608-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| L Length (in) | 2 |
| L Length (mm) | 50.8 |
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
6MP-6MPB90 / G60610-0606
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
6MP-8FPB-L / G60615-0608
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
6MP-8FPB90 / G60620-0608
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.4 |
6MP-8MPB / G60605-0608
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
6MP-8MPB90 / G60610-0608
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
6MPB-PLUG / G60601-0006
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
6MPB-PLUG HK HEAD / G60603-0006
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
6MPB-PLUG SQ HEAD / G60602-0006
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
6MPB-PLUG-SL / G60604-0006
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 6 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
8FP-6FPB / G60631-0806
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
8FP-8FP-6FPB / G60640-0806
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.3 |
8FP-8FP-8FP-8FPB / G60639-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.25 |
8FP-8FP-8FPB / G60640-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.44 |
8FP-8FP-8MPB / G60642-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.28 |
8FP-8FPB / G60631-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
8FP-8FPB45 / G60635-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 45 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.24 |
8FP-8FPB90 / G60637-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.36 |
8FP-8FPXB / G60632-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.25 |
8FP-8MP-8FPB / G60641-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.38 |
8FPB-CAP / G60600-0008
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.25 |
8MP-12FPB-L / G60615-0812
| End 2 Diameter (mm) | 12 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.14 |
8MP-12MPB / G60605-0812
| End 2 Diameter (mm) | 12 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
8MP-2FPB / G60614-0802
| End 2 Diameter (mm) | 2 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
8MP-4FPB / G60614-0804
| End 2 Diameter (mm) | 4 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
8MP-6FPB / G60614-0806
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
8MP-6FPB90 / G60620-0806
| End 2 Diameter (mm) | 6 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.3 |
8MP-8FP45 / G60618-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 45 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.24 |
8MP-8FPB-L / G60615-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
8MP-8FPB90 / G60620-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.25 |
8MP-8MP-8MPB / G60612-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.25 |
8MP-8MPB / G60605-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
8MP-8MPB-CNS / G60606-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| L Length (in) | 1.12 |
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
8MP-8MPB-CNXL / G60608-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| L Length (in) | 2 |
| L Length (mm) | 50.8 |
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.14 |
8MP-8MPB90 / G60610-0808
| End 2 Diameter (mm) | 8 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| Angle. | 90 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
8MPB-PLUG / G60601-0008
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
8MPB-PLUG HK HEAD / G60603-0008
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
8MPB-PLUG SQ HEAD / G60602-0008
| Max. Working Pressure | 1200 |
|---|---|
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 8 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
Specifications
| End 2 Diameter (mm) | 1 – 12 |
|---|---|
| Max. Working Pressure | 1200 |
| Max. Working Pressure (Bar) | 82.7 |
| End 1 Diameter (mm) | 1 – 12 |
| Material | 360 Brass, Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.001 – 0.7 |
| Angle. | 45 – 90 |
| L Length (in) | 0.75 – 2 |
| L Length (mm) | 19.1 – 50.8 |
| Notes | For use up to SAE 100R2 maximum working pressure. |
PDF Documents
No PDF documents.
