Air Brake Compression Tube Sleeve

Scraped SKU: 7250-000000-000013 Series: Air Brake Compression Tube Sleeve 2026-06-12 14:13:59

Attributes

Part Number7250-000000-000013

Description

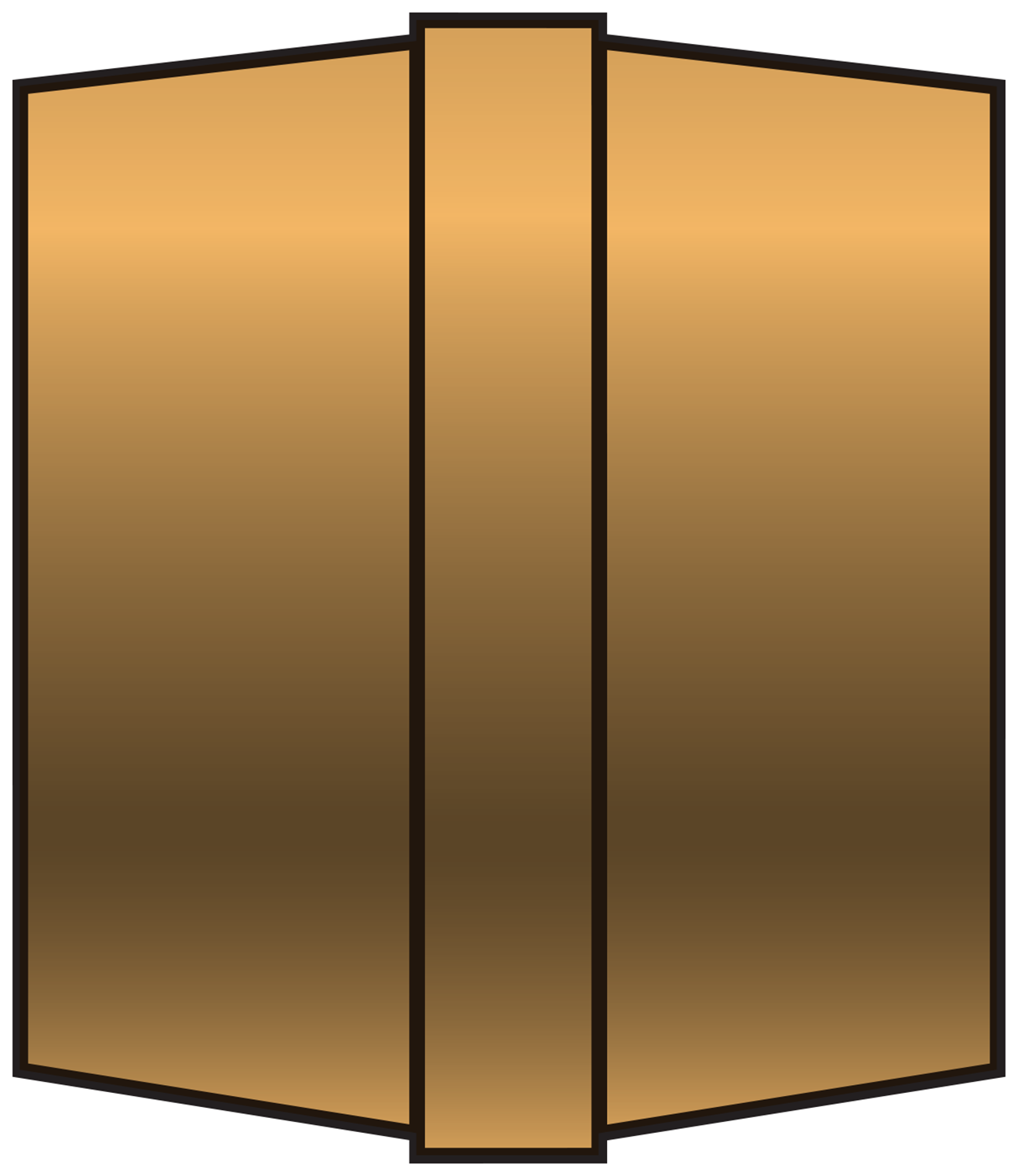

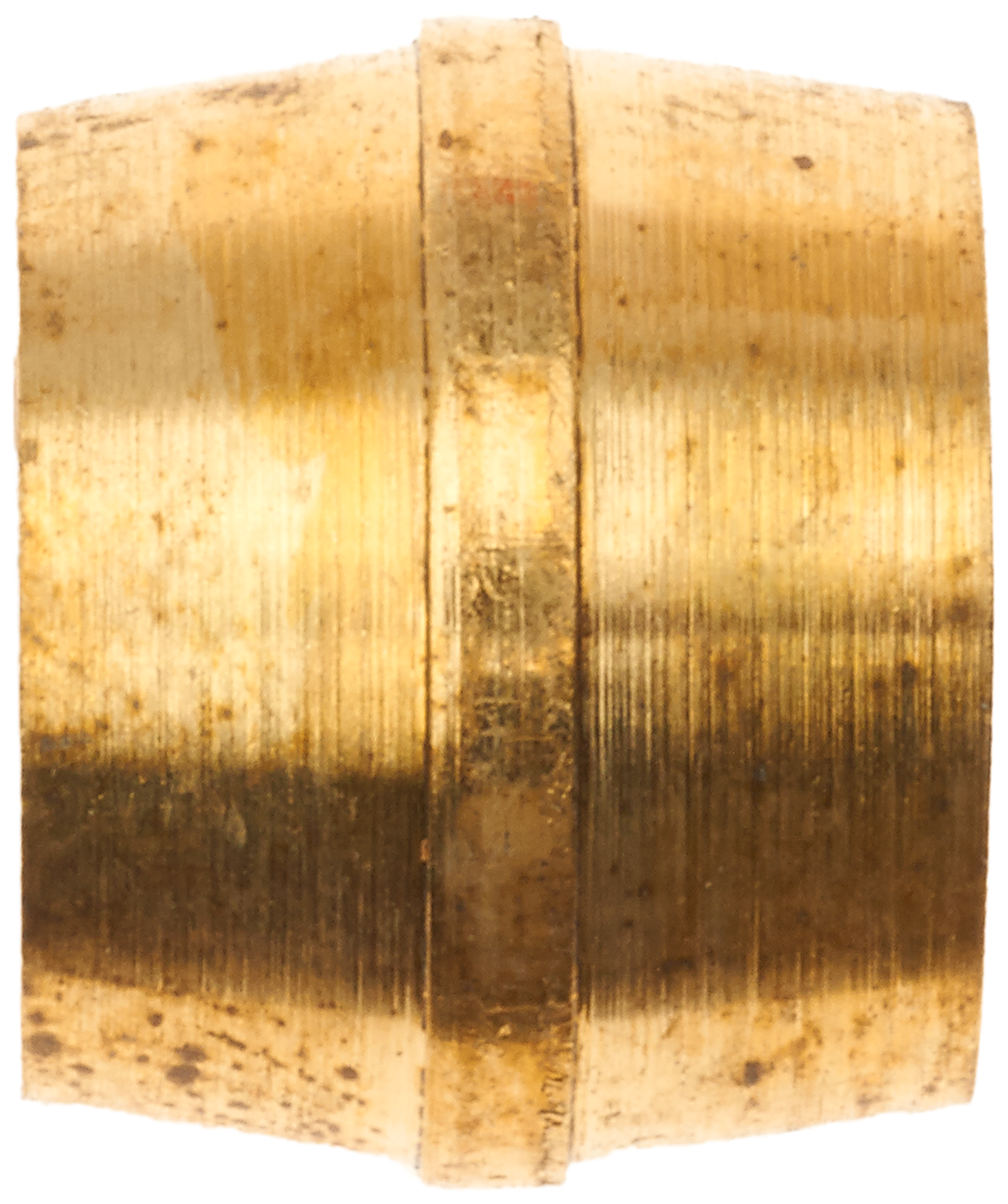

Air Brake Compression Tube Sleeve Recommended for use in air brake systems - compressed air for suspension, steering, engine transmission or other onboard vehicle applications. For use as a connector on all air brake systems at locations other than between chassis frame and axle or between towed and towing vehicle. Easy to assemble - field serviceable fitting consists of four component parts. Meets DOT FMVSS 571.106, SAE J246, SAE J1131, DIN 74324 and German TUV requirements. For use with SAE J844 and DIN 74324 nylon tubing. Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C).

Variations (5)

10TS-ABC / G32050-0010

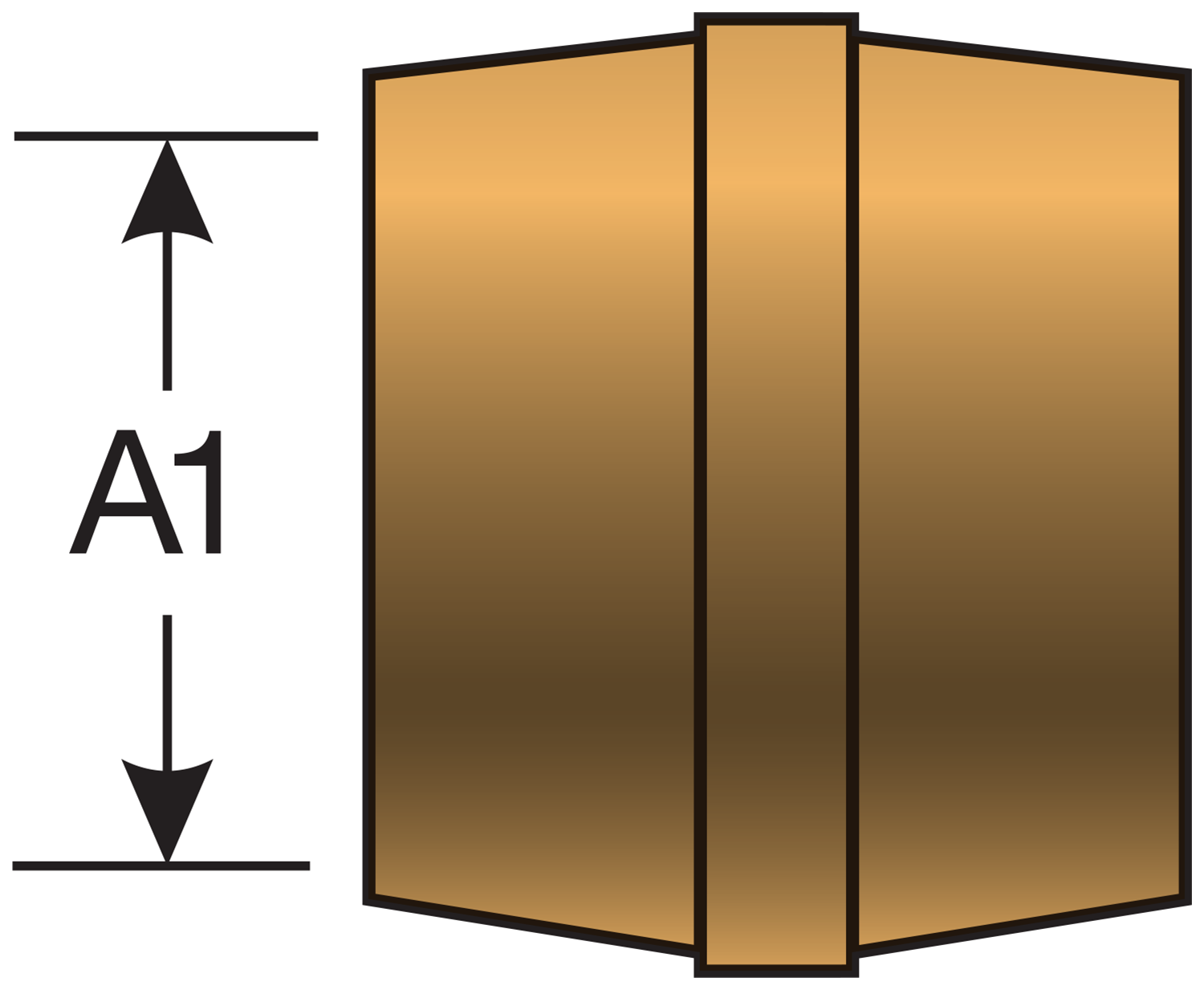

A1 Outside Diameter (in)0.625
A1 Outside Diameter (mm)15.9
Max. Working Pressure150
Max. Working Pressure (Bar)10
Material360 Brass
Customer Pack1
Weight (lbs.)0.02

12TS-ABC / G32050-0012

A1 Outside Diameter (in)0.75
A1 Outside Diameter (mm)19.1
Max. Working Pressure150
Max. Working Pressure (Bar)10
Material360 Brass
Customer Pack1
Weight (lbs.)0.02

4TS-ABC / G32050-0004

A1 Outside Diameter (in)0.25
A1 Outside Diameter (mm)6.4
Max. Working Pressure150
Max. Working Pressure (Bar)10
Material360 Brass
Customer Pack1
Weight (lbs.)0.15

6TS-ABC / G32050-0006

A1 Outside Diameter (in)0.375
A1 Outside Diameter (mm)9.5
Max. Working Pressure150
Max. Working Pressure (Bar)10
Material360 Brass
Customer Pack1
Weight (lbs.)0.2

8TS-ABC / G32050-0008

A1 Outside Diameter (in)0.5
A1 Outside Diameter (mm)12.7
Max. Working Pressure150
Max. Working Pressure (Bar)10
Material360 Brass
Customer Pack1
Weight (lbs.)0.02

Specifications

A1 Outside Diameter (in)0.25 – 0.75
A1 Outside Diameter (mm)6.4 – 19.1
Max. Working Pressure150
Max. Working Pressure (Bar)10
Material360 Brass
Customer Pack1
Weight (lbs.)0.02 – 0.2
