Attributes
| Part Number | 4171-000000-000001 |
|---|
Description

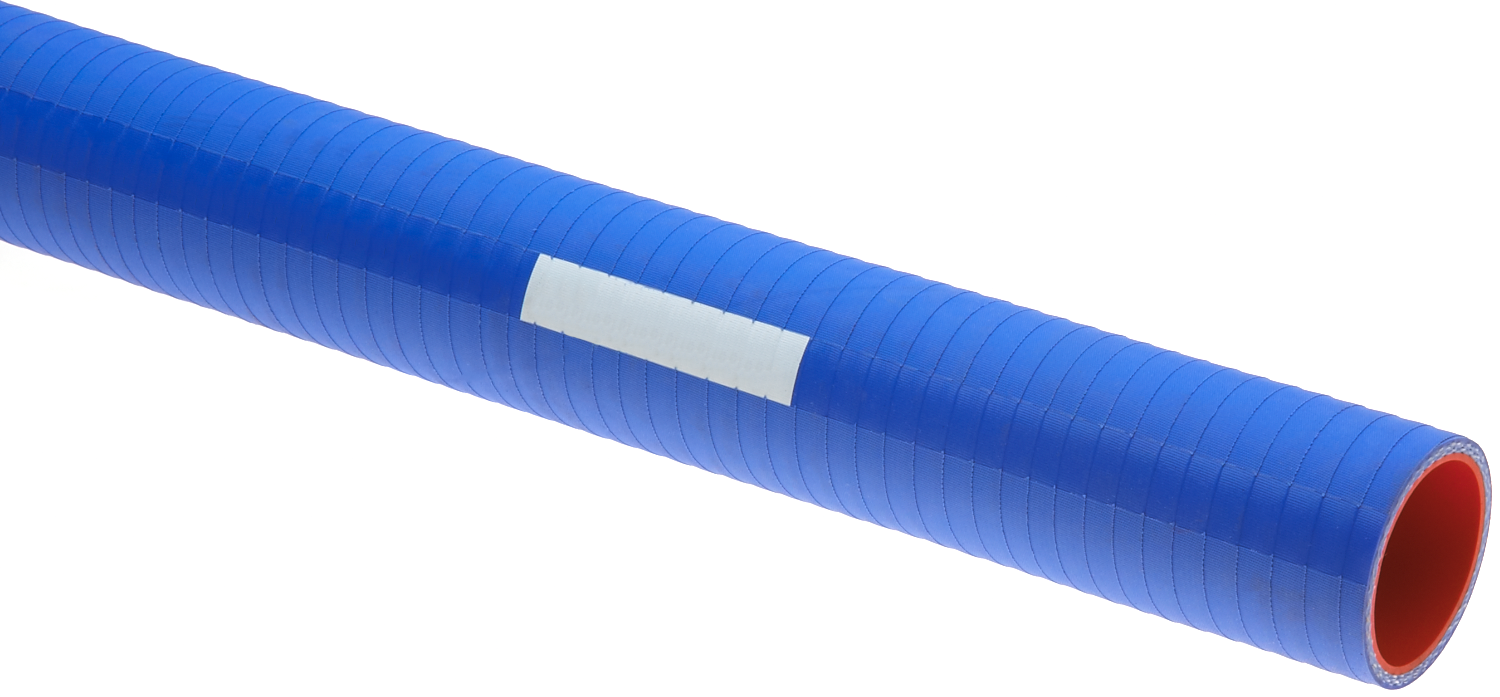

Straight Silicone Hose For your extremely high temperature radiator, heater, and coolant transfer applications, Gates Straight Silicone Coolant Hose is engineered with extra long-lasting silicone rubber for extreme ambient and radiant temperature conditions. The Silicone tube and cover resist prolonged exposure to under-hood and coolant heat, weathering, ozone, and deterioration. Use Gates thermoplastic clamps or silicone hose clamps to complete your assembly. Temperature Range: -56°C to +177°C (-70°F to +350°F). Use thermoplastic clamps or silicone hose clamps. Exceeds SAE 20R1 (Class A Standard Wall). Note: Silicone’s water permeation rate is 10 to 15 times greater than Straight 2-Ply Coolant Hose.
Variations (24)
24808
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 13 |
| Inside Diameter 1 (in) | 0.5 |
| Inside Diameter 1 (mm) | 13 |
| Inside Diameter 2 (in) | 0.5 |
| Inside Diameter 2 (mm) | 13 |
| Working Pressure (psi) | 110 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 64 |
| Weight (lbs.) | 0.81 |
24810
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 0.625 |
| Hose Inside Diameter (mm) | 16 |
| Inside Diameter 1 (in) | 0.625 |
| Inside Diameter 1 (mm) | 16 |
| Inside Diameter 2 (in) | 0.625 |
| Inside Diameter 2 (mm) | 16 |
| Working Pressure (psi) | 110 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.44 |
24812
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19 |
| Inside Diameter 1 (in) | 0.75 |
| Inside Diameter 1 (mm) | 19 |
| Inside Diameter 2 (in) | 0.75 |
| Inside Diameter 2 (mm) | 19 |
| Working Pressure (psi) | 110 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 45 |
| Weight (lbs.) | 0.39 |
24814
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 0.875 |
| Hose Inside Diameter (mm) | 22 |
| Inside Diameter 1 (in) | 0.875 |
| Inside Diameter 1 (mm) | 22 |
| Inside Diameter 2 (in) | 0.875 |
| Inside Diameter 2 (mm) | 22 |
| Working Pressure (psi) | 110 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 36 |
| Weight (lbs.) | 0.48 |
24816
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25 |
| Inside Diameter 1 (in) | 1 |
| Inside Diameter 1 (mm) | 25 |
| Inside Diameter 2 (in) | 1 |
| Inside Diameter 2 (mm) | 25 |
| Working Pressure (psi) | 90 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.25 |
24818
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 1.125 |
| Hose Inside Diameter (mm) | 29 |
| Inside Diameter 1 (in) | 1.125 |
| Inside Diameter 1 (mm) | 29 |
| Inside Diameter 2 (in) | 1.125 |
| Inside Diameter 2 (mm) | 29 |
| Working Pressure (psi) | 90 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 25 |
| Weight (lbs.) | 0.53 |
24820
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 1.25 |
| Hose Inside Diameter (mm) | 32 |
| Inside Diameter 1 (in) | 1.25 |
| Inside Diameter 1 (mm) | 32 |
| Inside Diameter 2 (in) | 1.25 |
| Inside Diameter 2 (mm) | 32 |
| Working Pressure (psi) | 85 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 22 |
| Weight (lbs.) | 1.63 |
24822
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 1.375 |
| Hose Inside Diameter (mm) | 35 |
| Inside Diameter 1 (in) | 1.375 |
| Inside Diameter 1 (mm) | 35 |
| Inside Diameter 2 (in) | 1.375 |
| Inside Diameter 2 (mm) | 35 |
| Working Pressure (psi) | 85 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.74 |
24824
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 1.5 |
| Hose Inside Diameter (mm) | 38 |
| Inside Diameter 1 (in) | 1.5 |
| Inside Diameter 1 (mm) | 38 |
| Inside Diameter 2 (in) | 1.5 |
| Inside Diameter 2 (mm) | 38 |
| Working Pressure (psi) | 85 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 16 |
| Weight (lbs.) | 0.71 |
24826
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 1.625 |
| Hose Inside Diameter (mm) | 41 |
| Inside Diameter 1 (in) | 1.625 |
| Inside Diameter 1 (mm) | 41 |
| Inside Diameter 2 (in) | 1.625 |
| Inside Diameter 2 (mm) | 41 |
| Working Pressure (psi) | 80 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 16 |
| Weight (lbs.) | 0.76 |
24828
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 1.75 |
| Hose Inside Diameter (mm) | 44 |
| Inside Diameter 1 (in) | 1.75 |
| Inside Diameter 1 (mm) | 44 |
| Inside Diameter 2 (in) | 1.75 |
| Inside Diameter 2 (mm) | 44 |
| Working Pressure (psi) | 80 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 12 |
| Weight (lbs.) | 2.18 |
24832
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 2 |
| Hose Inside Diameter (mm) | 51 |
| Inside Diameter 1 (in) | 2 |
| Inside Diameter 1 (mm) | 51 |
| Inside Diameter 2 (in) | 2 |
| Inside Diameter 2 (mm) | 51 |
| Working Pressure (psi) | 75 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 9 |
| Weight (lbs.) | 2.6 |
24836
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 2.25 |
| Hose Inside Diameter (mm) | 57 |
| Inside Diameter 1 (in) | 2.25 |
| Inside Diameter 1 (mm) | 57 |
| Inside Diameter 2 (in) | 2.25 |
| Inside Diameter 2 (mm) | 57 |
| Working Pressure (psi) | 75 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 9 |
| Weight (lbs.) | 0.98 |
24838
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 2.375 |
| Hose Inside Diameter (mm) | 60 |
| Inside Diameter 1 (in) | 2.375 |
| Inside Diameter 1 (mm) | 60 |
| Inside Diameter 2 (in) | 2.375 |
| Inside Diameter 2 (mm) | 60 |
| Working Pressure (psi) | 65 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 8 |
| Weight (lbs.) | 1.04 |
24840
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 2.5 |
| Hose Inside Diameter (mm) | 64 |
| Inside Diameter 1 (in) | 2.5 |
| Inside Diameter 1 (mm) | 64 |
| Inside Diameter 2 (in) | 2.5 |
| Inside Diameter 2 (mm) | 64 |
| Working Pressure (psi) | 65 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 6 |
| Weight (lbs.) | 3.19 |
24844
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 2.75 |
| Hose Inside Diameter (mm) | 70 |
| Inside Diameter 1 (in) | 2.75 |
| Inside Diameter 1 (mm) | 70 |
| Inside Diameter 2 (in) | 2.75 |
| Inside Diameter 2 (mm) | 70 |
| Working Pressure (psi) | 50 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 6 |
| Weight (lbs.) | 3.0 |
24848
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 3 |
| Hose Inside Diameter (mm) | 76 |
| Inside Diameter 1 (in) | 3 |
| Inside Diameter 1 (mm) | 76 |
| Inside Diameter 2 (in) | 3 |
| Inside Diameter 2 (mm) | 76 |
| Working Pressure (psi) | 50 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 5 |
| Weight (lbs.) | 1.27 |
24850
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 3.125 |
| Hose Inside Diameter (mm) | 79 |
| Inside Diameter 1 (in) | 3.125 |
| Inside Diameter 1 (mm) | 79 |
| Inside Diameter 2 (in) | 3.125 |
| Inside Diameter 2 (mm) | 79 |
| Working Pressure (psi) | 40 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 4 |
| Weight (lbs.) | 3.63 |
24852
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 3.25 |
| Hose Inside Diameter (mm) | 83 |
| Inside Diameter 1 (in) | 3.25 |
| Inside Diameter 1 (mm) | 83 |
| Inside Diameter 2 (in) | 3.25 |
| Inside Diameter 2 (mm) | 83 |
| Working Pressure (psi) | 40 |
| Construction | 4-Ply |
| Notes | SB clamps not available, use silicone hose clamps. |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 4 |
| Weight (lbs.) | 1.27 |
24856
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 3.5 |
| Hose Inside Diameter (mm) | 89 |
| Inside Diameter 1 (in) | 3.5 |
| Inside Diameter 1 (mm) | 89 |
| Inside Diameter 2 (in) | 3.5 |
| Inside Diameter 2 (mm) | 89 |
| Working Pressure (psi) | 35 |
| Construction | 4-Ply |
| Notes | SB clamps not available, use silicone hose clamps. |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 4 |
| Weight (lbs.) | 4.08 |
24860
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 3.75 |
| Hose Inside Diameter (mm) | 95 |
| Inside Diameter 1 (in) | 3.75 |
| Inside Diameter 1 (mm) | 95 |
| Inside Diameter 2 (in) | 3.75 |
| Inside Diameter 2 (mm) | 95 |
| Working Pressure (psi) | 35 |
| Construction | 4-Ply |
| Notes | SB clamps not available, use silicone hose clamps. |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 3 |
| Weight (lbs.) | 3.27 |
24864
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 4 |
| Hose Inside Diameter (mm) | 102 |
| Inside Diameter 1 (in) | 4 |
| Inside Diameter 1 (mm) | 102 |
| Inside Diameter 2 (in) | 4 |
| Inside Diameter 2 (mm) | 102 |
| Working Pressure (psi) | 35 |
| Construction | 4-Ply |
| Notes | SB clamps not available, use silicone hose clamps. |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 2 |
| Weight (lbs.) | 1.58 |
24872
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 4.5 |
| Hose Inside Diameter (mm) | 114 |
| Inside Diameter 1 (in) | 4.5 |
| Inside Diameter 1 (mm) | 114 |
| Inside Diameter 2 (in) | 4.5 |
| Inside Diameter 2 (mm) | 114 |
| Working Pressure (psi) | 25 |
| Construction | 4-Ply |
| Notes | SB clamps not available, use silicone hose clamps. |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 2 |
| Weight (lbs.) | 1.71 |
32300298
No variation attributes.
Specifications
| Centerline Length (ft) | 3 |
|---|---|
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.91 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 0.5 – 4.5 |
| Hose Inside Diameter (mm) | 13 – 114 |
| Inside Diameter 1 (in) | 0.5 – 4.5 |
| Inside Diameter 1 (mm) | 13 – 114 |
| Inside Diameter 2 (in) | 0.5 – 4.5 |
| Inside Diameter 2 (mm) | 13 – 114 |
| Working Pressure (psi) | 25 – 110 |
| Construction | 4-Ply |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 2 – 64 |
| Weight (lbs.) | 0.39 – 4.08 |
| Notes | SB clamps not available, use silicone hose clamps. |
PDF Documents
No PDF documents.
