Attributes
| Part Number | 3200-000000-000000 |
|---|
Description

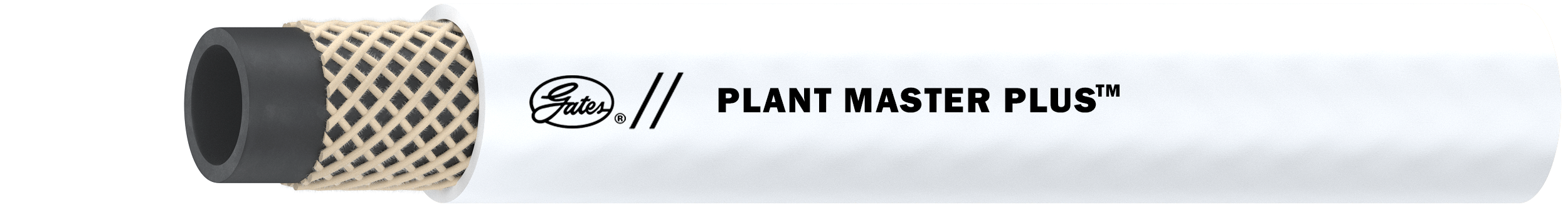

Plant Master™ Plus Hose RECOMMENDED FOR: Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. ARPM (Class B) Medium oil–resistant tube. ARPM (Class C) Limited oil–resistant cover. Air, water, and heat resistant.
Features and Benefits Working pressure: 1,72 to 1,38 MPa Design factor: 3:1 Sizes: 1/4" to 2" Formerly: Duro Flex™
Variations (69)
24PM4001
| Vacuum (In. Hg) | 10 |
|---|---|
| Minimum Bend Radius (in) | 12 |
| Minimum Bend Radius (mm) | 305 |
| Inside Diameter (in) | 1.50 |
| Inside Diameter (mm) | 38.1 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 1.98 |
| Outside Diameter (mm) | 38.1 |
| Coupling Recommendation | Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Red |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Specially compounded elastomer - Type B1. Black. Medium oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
24PM4002
| Vacuum (In. Hg) | 10 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 12 |
| Minimum Bend Radius (mm) | 305 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 1.5 |
| Hose Inside Diameter (mm) | 38.1 |
| Hose Outside Diameter (in) | 1.98 |
| Hose Outside Diameter (mm) | 50.3 |
| Inside Diameter (in) | 1.5 |
| Inside Diameter (mm) | 38.1 |
| Working Pressure (psi) | 250 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.98 |
| Outside Diameter (mm) | 38.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.79 |
20PM4000
| Vacuum (In. Hg) | 10 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 10 |
| Minimum Bend Radius (mm) | 254 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Hose Outside Diameter (in) | 1.73 |
| Hose Outside Diameter (mm) | 43.9 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Working Pressure (psi) | 250 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.73 |
| Outside Diameter (mm) | 31.8 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.67 |
22PM4000
| Vacuum (In. Hg) | 10 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 11 |
| Minimum Bend Radius (mm) | 279 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 1.38 |
| Hose Inside Diameter (mm) | 34.9 |
| Hose Outside Diameter (in) | 1.88 |
| Hose Outside Diameter (mm) | 47.8 |
| Inside Diameter (in) | 1.38 |
| Inside Diameter (mm) | 34.9 |
| Working Pressure (psi) | 250 |
| Length (m) | 76.2 |
| Outside Diameter (in) | 1.88 |
| Outside Diameter (mm) | 34.9 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.864 |
8PM4000
| Vacuum (In. Hg) | 25 |
|---|---|
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 102 |
| Inside Diameter (in) | 0.50 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Coupling Recommendation | 19 Standard Air Hose. 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. |
| Color | Black |
| Cover | EPDM - Type P. Perforated. |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Specially compounded elastomer - Type B1. Black. Medium oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
8PM1102
| Vacuum (In. Hg) | 25 |
|---|---|
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Inside Diameter (in) | 0.50 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Coupling Recommendation | 19 Standard Air Hose. 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. |
| Color | Red |
| Cover | EPDM - Type P. Perforated. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
8PM4010
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 102 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.25 |
8PM4110
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 102 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.84 |
| Hose Outside Diameter (mm) | 21.3 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.84 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.22 |
8PM4001
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 102 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.19 |
8PM4101
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 102 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.84 |
| Hose Outside Diameter (mm) | 21.3 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.84 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.25 |
8PM4160
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -20°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Chloroprene - Type A |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air, water, oils, antifreeze solutions and applications where Lock-On fittings are used. |
| Caution | Hose is not recommended for applications where vibrations or pressure surges exist. Do not use oil for Lock-On fitting insertion purposes. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.18 |
8PM4163
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -20°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Green |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air, water, oils, antifreeze solutions and applications where Lock-On fittings are used. |
| Caution | Hose is not recommended for applications where vibrations or pressure surges exist. Do not use oil for Lock-On fitting insertion purposes. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.18 |
8PM4162
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -20°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Gray |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air, water, oils, antifreeze solutions and applications where Lock-On fittings are used. |
| Caution | Hose is not recommended for applications where vibrations or pressure surges exist. Do not use oil for Lock-On fitting insertion purposes. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.18 |
8PM4164
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -20°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air, water, oils, antifreeze solutions and applications where Lock-On fittings are used. |
| Caution | Hose is not recommended for applications where vibrations or pressure surges exist. Do not use oil for Lock-On fitting insertion purposes. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.18 |
3222-0145
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Inside Diameter (in) | 0.50 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -20°F to +212°F (-29°C to +100°C) |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Coupling Recommendation | GLX® Couplings [G44 Series]. Field Attachable LOC Couplings [G36 Series]. |
| Color | Blue |
| Cover | Modified Nitrile - Type C2. |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Nitrile - Type C. Black. High oil resistance |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
4PM4010
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.09 |
4PM4001
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.095 |
4PM4100
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.57 |
| Hose Outside Diameter (mm) | 14.5 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.57 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.12 |
4PM4162
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -20°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.54 |
| Hose Outside Diameter (mm) | 13.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.54 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Chloroprene - Type A |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air, water, oils, antifreeze solutions and applications where Lock-On fittings are used. |
| Caution | Hose is not recommended for applications where vibrations or pressure surges exist. Do not use oil for Lock-On fitting insertion purposes. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.11 |
4PM4163
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -20°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.54 |
| Hose Outside Diameter (mm) | 13.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.54 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Blue |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air, water, oils, antifreeze solutions and applications where Lock-On fittings are used. |
| Caution | Hose is not recommended for applications where vibrations or pressure surges exist. Do not use oil for Lock-On fitting insertion purposes. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.11 |
1/4X500 PLANT+ 300 LOCKON RED
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -20°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.54 |
| Hose Outside Diameter (mm) | 13.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.54 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air, water, oils, antifreeze solutions and applications where Lock-On fittings are used. |
| Caution | Hose is not recommended for applications where vibrations or pressure surges exist. Do not use oil for Lock-On fitting insertion purposes. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.11 |
1/4X500 PLANT+ 300 LOCKON YEL
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -20°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.54 |
| Hose Outside Diameter (mm) | 13.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.54 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Yellow |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air, water, oils, antifreeze solutions and applications where Lock-On fittings are used. |
| Caution | Hose is not recommended for applications where vibrations or pressure surges exist. Do not use oil for Lock-On fitting insertion purposes. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.11 |
16PM4000
| Vacuum (In. Hg) | 10 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.47 |
| Hose Outside Diameter (mm) | 37.3 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 250 |
| Length (m) | 121.9 |
| Outside Diameter (in) | 1.47 |
| Outside Diameter (mm) | 25.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 400 |
| Weight (lbs.) | 0.54 |
205MB BLACKXCTN1 1/2
No variation attributes.
205MB BLACKXCTN2
No variation attributes.
1-1/2X250' (250WP) ADAPTA BLK
| Vacuum (In. Hg) | 10 |
|---|---|
| Minimum Bend Radius (in) | 12 |
| Minimum Bend Radius (mm) | 305 |
| Inside Diameter (in) | 1.50 |
| Inside Diameter (mm) | 38.1 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 76.2 |
| Outside Diameter (in) | 1.98 |
| Outside Diameter (mm) | 38.1 |
| Coupling Recommendation | Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Black |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
32PM4000
| Vacuum (In. Hg) | 4 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 17 |
| Minimum Bend Radius (mm) | 419 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 2 |
| Hose Inside Diameter (mm) | 50.8 |
| Hose Outside Diameter (in) | 2.56 |
| Hose Outside Diameter (mm) | 65 |
| Inside Diameter (in) | 2 |
| Inside Diameter (mm) | 50.8 |
| Working Pressure (psi) | 200 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 2.56 |
| Outside Diameter (mm) | 50.8 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | Specially compounded elastomer - Type D3 |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 100 |
| Weight (lbs.) | 1.32 |
32PM4001
| Vacuum (In. Hg) | 4 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 17 |
| Minimum Bend Radius (mm) | 419 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 2 |
| Hose Inside Diameter (mm) | 50.8 |
| Hose Outside Diameter (in) | 2.56 |
| Hose Outside Diameter (mm) | 65 |
| Inside Diameter (in) | 2 |
| Inside Diameter (mm) | 50.8 |
| Working Pressure (psi) | 200 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 2.56 |
| Outside Diameter (mm) | 50.8 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | Specially compounded elastomer - Type D3 |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 100 |
| Weight (lbs.) | 1.28 |
3/4X50 PLANT+ 250
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 250 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.36 |
12PM4010
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.35 |
12PM4110
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.36 |
12PM4001
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.36 |
12PM4100
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.36 |
6PM4162
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -20°F to +212°F (-29°C to +100°C) |
| Working Pressure (psi) | 300 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | GLX® Couplings [G44 Series]. Field Attachable LOC Couplings [G36 Series]. |
| Color | Black |
| Cover | Chloroprene - Type A. |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Chloroprene - Type A |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Nitrile - Type C. Black. High oil resistance |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
6PM4164
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -20°F to +212°F (-29°C to +100°C) |
| Working Pressure (psi) | 300 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | GLX® Couplings [G44 Series]. Field Attachable LOC Couplings [G36 Series]. |
| Color | Blue |
| Cover | Modified Nitrile - Type C2. |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Nitrile - Type C. Black. High oil resistance |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
6PM1502
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 300 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 0.67 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | 19 Standard Air Hose. 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. |
| Color | Red |
| Cover | EPDM - Type P. Perforated. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
6PM4010
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.14 |
6PM4110
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.73 |
| Hose Outside Diameter (mm) | 18.5 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.73 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.18 |
6PM4001
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.14 |
6PM4100
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.73 |
| Hose Outside Diameter (mm) | 18.5 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.73 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.18 |
6PM4163
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -20°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Chloroprene - Type A |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air, water, oils, antifreeze solutions and applications where Lock-On fittings are used. |
| Caution | Hose is not recommended for applications where vibrations or pressure surges exist. Do not use oil for Lock-On fitting insertion purposes. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.15 |
6PM4165
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -20°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Blue |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air, water, oils, antifreeze solutions and applications where Lock-On fittings are used. |
| Caution | Hose is not recommended for applications where vibrations or pressure surges exist. Do not use oil for Lock-On fitting insertion purposes. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.15 |
6PM4167
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -20°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Green |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air, water, oils, antifreeze solutions and applications where Lock-On fittings are used. |
| Caution | Hose is not recommended for applications where vibrations or pressure surges exist. Do not use oil for Lock-On fitting insertion purposes. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.15 |
6PM4166
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -20°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Gray |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air, water, oils, antifreeze solutions and applications where Lock-On fittings are used. |
| Caution | Hose is not recommended for applications where vibrations or pressure surges exist. Do not use oil for Lock-On fitting insertion purposes. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.15 |
6PM4169
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -20°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air, water, oils, antifreeze solutions and applications where Lock-On fittings are used. |
| Caution | Hose is not recommended for applications where vibrations or pressure surges exist. Do not use oil for Lock-On fitting insertion purposes. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.15 |
10PM4000
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.98 |
| Hose Outside Diameter (mm) | 24.9 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.98 |
| Outside Diameter (mm) | 15.9 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.27 |
10PM4100
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.98 |
| Hose Outside Diameter (mm) | 24.9 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.98 |
| Outside Diameter (mm) | 15.9 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.3 |
8PM4100
| Vacuum (In. Hg) | 25 |
|---|---|
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 102 |
| Inside Diameter (in) | 0.50 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.84 |
| Outside Diameter (mm) | 12.7 |
| Coupling Recommendation | 19 Standard Air Hose. 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. |
| Color | Black |
| Cover | EPDM - Type P. Perforated. |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Specially compounded elastomer - Type B1. Black. Medium oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
1.33PM1100
| Vacuum (In. Hg) | 10 |
|---|---|
| Minimum Bend Radius (in) | 10 |
| Minimum Bend Radius (mm) | 254 |
| Inside Diameter (in) | 1.33 |
| Inside Diameter (mm) | 33.8 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 1.57 |
| Outside Diameter (mm) | 33.8 |
| Coupling Recommendation | Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Black |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
16PM4010
| Vacuum (In. Hg) | 25 |
|---|---|
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 102 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 250 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.48 |
| Outside Diameter (mm) | 37.6 |
| Coupling Recommendation | Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Red |
| Cover | EPDM - Type P |
| Reinforcement | Synthetic Textile |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Specially compounded elastomer - Type B1. Black. Medium oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
24PM1102
| Vacuum (In. Hg) | 10 |
|---|---|
| Minimum Bend Radius (in) | 12 |
| Minimum Bend Radius (mm) | 305 |
| Inside Diameter (in) | 1.5 |
| Inside Diameter (mm) | 38.1 |
| Working Pressure (psi) | 250 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 1.97 |
| Outside Diameter (mm) | 50 |
| Coupling Recommendation | Power Crimp™ Couplings, GLX® Couplings [G44 Series] |
| Color | Black |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
24PM4000
| Vacuum (In. Hg) | 10 |
|---|---|
| Minimum Bend Radius (in) | 12 |
| Minimum Bend Radius (mm) | 305 |
| Inside Diameter (in) | 1.50 |
| Inside Diameter (mm) | 38.1 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 1.98 |
| Outside Diameter (mm) | 38.1 |
| Coupling Recommendation | Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Red |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Specially compounded elastomer - Type B1. Black. Medium oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
24PM4003
| Vacuum (In. Hg) | 10 |
|---|---|
| Minimum Bend Radius (in) | 12 |
| Minimum Bend Radius (mm) | 305 |
| Inside Diameter (in) | 1.50 |
| Inside Diameter (mm) | 38.1 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.98 |
| Outside Diameter (mm) | 38.1 |
| Coupling Recommendation | Power Crimp™ Couplings. GLX® Couplings [G44 Series] |
| Color | Red |
| Cover | EPDM - Type P |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Specially compounded elastomer - Type B1. Black. Medium oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
24PM4104
| Vacuum (In. Hg) | 10 |
|---|---|
| Minimum Bend Radius (in) | 12 |
| Minimum Bend Radius (mm) | 305 |
| Inside Diameter (in) | 1.50 |
| Inside Diameter (mm) | 38.1 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 76.2 |
| Outside Diameter (in) | 1.98 |
| Outside Diameter (mm) | 38.1 |
| Coupling Recommendation | Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | White |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Specially compounded elastomer - Type B1. Black. Medium oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
4PM4160
No variation attributes.
4PM4161
No variation attributes.
6PM4160
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -20°F to +212°F (-29°C to +100°C) |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | GLX® Couplings [G44 Series]. Field Attachable LOC Couplings [G36 Series]. |
| Color | Blue |
| Cover | Modified Nitrile - Type C2. |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Nitrile - Type C. Black. High oil resistance |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
6PM4161
No variation attributes.
6PM4168
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -20°F to +212°F (-29°C to +100°C) |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | GLX® Couplings [G44 Series]. Field Attachable LOC Couplings [G36 Series]. |
| Color | Red |
| Cover | Modified Nitrile - Type C2. |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Nitrile - Type C. Black. High oil resistance |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
36050680
No variation attributes.
36050670
No variation attributes.
36021063
No variation attributes.
36050692
No variation attributes.
32000311
No variation attributes.
36051408
No variation attributes.
32000105
No variation attributes.
36022123
No variation attributes.
36021053
No variation attributes.
32041638
No variation attributes.
Specifications
| Vacuum (In. Hg) | 4 – 30 |
|---|---|
| Minimum Bend Radius (in) | 2 – 17 |
| Minimum Bend Radius (mm) | 51 – 419 |
| Inside Diameter (in) | 0.25 – 2 |
| Inside Diameter (mm) | 6.4 – 50.8 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C), -20°F to +212°F (-29°C to +100°C) |
| Working Pressure (psi) | 200 – 300 |
| Length (m) | 15.2 – 152.4 |
| Outside Diameter (in) | 0.5 – 2.56 |
| Outside Diameter (mm) | 6.4 – 50.8 |
| Coupling Recommendation | Power Crimp™ Couplings. GLX® Couplings [G44 Series]., 19 Standard Air Hose. 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings., GLX® Couplings [G44 Series]. Field Attachable LOC Couplings [G36 Series]., Power Crimp™ Couplings, GLX® Couplings [G44 Series], Power Crimp™ Couplings. GLX® Couplings [G44 Series] |
| Color | Red, Black, Green, Gray, Blue, Yellow, +1 more |
| Cover | EPDM - Type P., EPDM - Type P. Perforated., Modified Nitrile - Type C2., Chloroprene - Type A., EPDM - Type P |
| Reinforcement | Synthetic textile, Synthetic Textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance., EPDM - Type P. Limited oil resistance., Nitrile - Type C. High oil resistance. |
| Construction: Cover | EPDM - Type P, Chloroprene - Type A, Modified Nitrile - Type C2, Specially compounded elastomer - Type D3 |
| Construction: Design Factor | 3:1, 4:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Specially compounded elastomer - Type B1. Black. Medium oil resistance, EPDM - Type P. Black. Limited oil resistance, Nitrile - Type C. Black. High oil resistance |
| Standards: Cover | ARPM Class C, ARPM Class B |
| Standards: Tube | ARPM Class B, ARPM Class C, ARPM Class A |
| Continuous Operating Temperature Range | -40°F to +200°F, -20°F to +212°F |
| Min. Burst Pressure (psi) | 600 – 1200 |
| Hose Inside Diameter (in). | 0.25 – 2 |
| Hose Inside Diameter (mm) | 6.4 – 50.8 |
| Hose Outside Diameter (in) | 0.5 – 2.56 |
| Hose Outside Diameter (mm) | 12.7 – 65 |
| Use | Industrial Hose |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring maximum flexibility and good resistance to air, water and heat. For SAE oils intermittent contact only., Air, water, oils, antifreeze solutions and applications where Lock-On fittings are used. |
| Customer Pack | 100 – 600 |
| Weight (lbs.) | 0.09 – 1.32 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Caution | Hose is not recommended for applications where vibrations or pressure surges exist. Do not use oil for Lock-On fitting insertion purposes. Not recommended for gasoline or diesel fuels. |
PDF Documents
No PDF documents.
