Attributes
| Part Number | 3205-000000-000000 |
|---|
Description

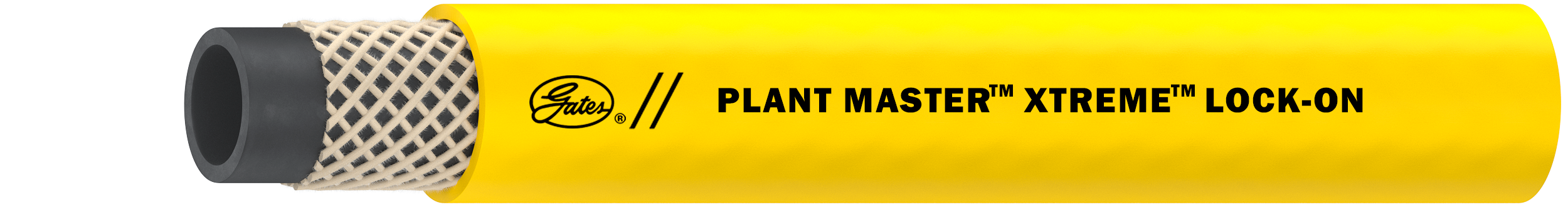

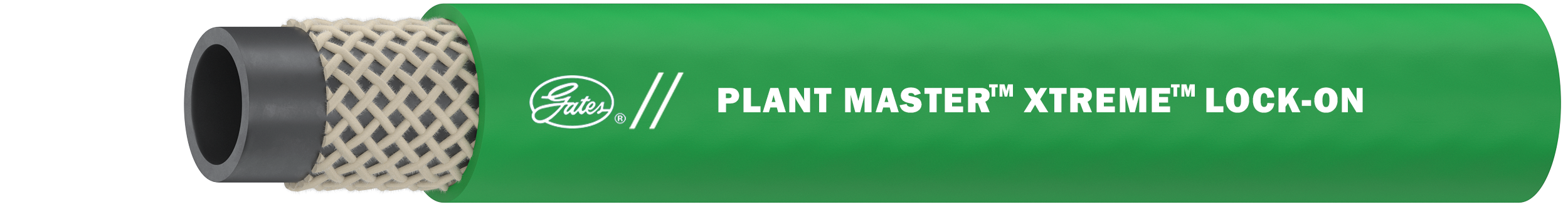

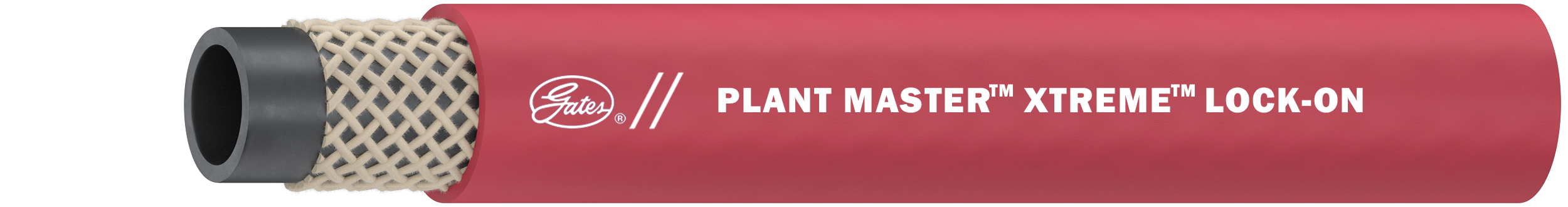

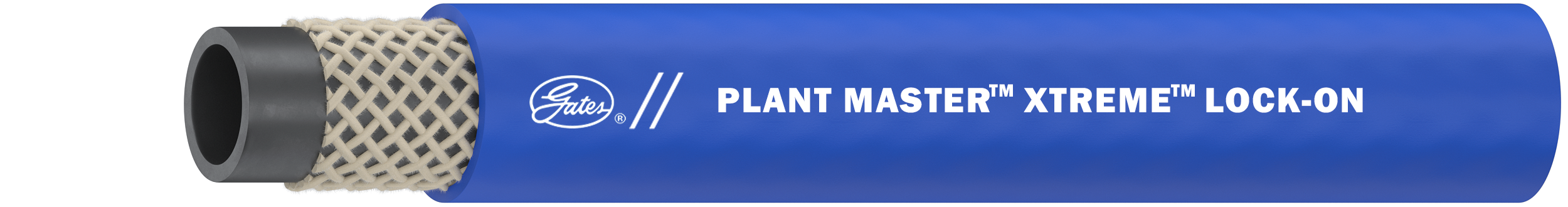

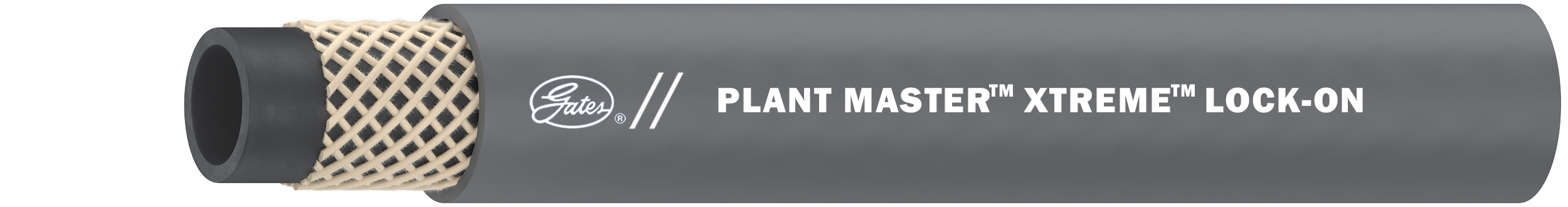

# Plant Master™ XTreme™
RECOMMENDED FOR: Petroleum–based hydraulic oils, water, glycol anti–freeze solutions, hot lubricating oils, and air.
- CAUTION: Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings.
- Not recommended for gasoline or diesel fuels.
- Black cover meets MSHA Flame–resistant.
## Features and Benefits
- R > 10^6 Ohm, Storage may adversely affect electrical resistance.
- Tube: ARPM (class A) high oil resistance.
- Cover: ARPM (class B) medium oil resistance.
- Tube: High oil resistance.
- Design factor: 4:1.
- Size: 3/16" to 3/4".
- Best in class.
- Red cover.
Variations (90)
1XRL 250 PREMO ORANGE
| Vacuum (In. Hg) | 10 |
|---|---|
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 1.47 |
| Outside Diameter (mm) | 25.4 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. 8 Tri-Lokt. 14 Interlocking, Ground Joint. |
| Color | Orange |
| Cover | Modified Nitrile - Type C2. |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Nitrile - Type C. Black. High oil resistance |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
24PM3000
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Vacuum (In. Hg) | 10 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 11.81 |
| Minimum Bend Radius (mm) | 300 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 2 |
| Hose Inside Diameter (mm) | 50.8 |
| Hose Outside Diameter (in) | 2 |
| Hose Outside Diameter (mm) | 50.8 |
| Inside Diameter (in) | 1.5 |
| Inside Diameter (mm) | 38.1 |
| Max. Working Pressure | 250 |
| Max. Working Pressure (Bar) | 17 |
| Working Pressure (psi) | 250 |
| Length (m) | 61 |
| Outside Diameter (in) | 2 |
| Outside Diameter (mm) | 38.1 |
| Markets/Applications | Water & Air / Multi-purpose |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 200 |
| Weight (lbs.) | 1.26 |
20PM3000
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Vacuum (In. Hg) | 10 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 9.84 |
| Minimum Bend Radius (mm) | 250 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 1.75 |
| Hose Inside Diameter (mm) | 44.5 |
| Hose Outside Diameter (in) | 1.75 |
| Hose Outside Diameter (mm) | 44.5 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Max. Working Pressure | 250 |
| Max. Working Pressure (Bar) | 17 |
| Working Pressure (psi) | 250 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 1.75 |
| Outside Diameter (mm) | 31.8 |
| Markets/Applications | Water & Air / Multi-purpose |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 300 |
| Weight (lbs.) | 1.0 |
8PM3100
| Vacuum (In. Hg) | 25 |
|---|---|
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 102 |
| Inside Diameter (in) | 0.50 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 315 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 0.88 |
| Outside Diameter (mm) | 12.7 |
| Coupling Recommendation | 19 Standard Air Hose. 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. 8 Tri-Lokt. |
| Color | Red |
| Cover | Modified Nitrile - Type C2. |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Nitrile - Type C. Black. High oil resistance |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
8PM3010
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 102 |
| Min. Burst Pressure (psi) | 1000 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.85 |
| Hose Outside Diameter (mm) | 21.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.85 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.24 |
8PM3110
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 102 |
| Min. Burst Pressure (psi) | 1260 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.88 |
| Hose Outside Diameter (mm) | 22.4 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 315 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.88 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.24 |
8PM3501
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 102 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.84 |
| Hose Outside Diameter (mm) | 21.3 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.84 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Carboxylated Nitrile - Type C4 |
| Standards | Meets MSHA Flame-resistant. Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class A |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with superior abrasion resistance, excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils (to +212°F). Recommended for gasoline, kerosene, and fuel oil transfer only to +120°F. Good weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.22 |
8PM3000
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Vacuum (In. Hg) | 25 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3.94 |
| Minimum Bend Radius (mm) | 100 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.85 |
| Hose Inside Diameter (mm) | 21.6 |
| Hose Outside Diameter (in) | 0.85 |
| Hose Outside Diameter (mm) | 21.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Max. Working Pressure | 250 |
| Max. Working Pressure (Bar) | 17 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.85 |
| Outside Diameter (mm) | 12.7 |
| Markets/Applications | Water & Air / Multi-purpose |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.33 |
8PM3101
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 102 |
| Min. Burst Pressure (psi) | 1260 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.88 |
| Hose Outside Diameter (mm) | 22.4 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 315 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.88 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.2785 |
8PM3510
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 102 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.84 |
| Hose Outside Diameter (mm) | 21.3 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.84 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Carboxylated Nitrile - Type C4 |
| Standards | Meets MSHA Flame-resistant. Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class A |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with superior abrasion resistance, excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils (to +212°F). Recommended for gasoline, kerosene, and fuel oil transfer only to +120°F. Good weather and ozone resistance. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.22 |
8PM3500
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 102 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.84 |
| Hose Outside Diameter (mm) | 21.3 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.84 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Carboxylated Nitrile - Type C4 |
| Standards | Meets MSHA Flame-resistant. Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class A |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with superior abrasion resistance, excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils (to +212°F). Recommended for gasoline, kerosene, and fuel oil transfer only to +120°F. Good weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.21 |
8PM3060
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.77 |
| Hose Outside Diameter (mm) | 19.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.77 |
| Outside Diameter (mm) | 12.7 |
| Color | Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.15 |
8PM3061
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.77 |
| Hose Outside Diameter (mm) | 19.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.77 |
| Outside Diameter (mm) | 12.7 |
| Color | Blue |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.15 |
8PM3063
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.77 |
| Hose Outside Diameter (mm) | 19.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.77 |
| Outside Diameter (mm) | 12.7 |
| Color | Green |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.15 |
8PM3062
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.77 |
| Hose Outside Diameter (mm) | 19.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.77 |
| Outside Diameter (mm) | 12.7 |
| Color | Gray |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.15 |
8PM3064
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.77 |
| Hose Outside Diameter (mm) | 19.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.77 |
| Outside Diameter (mm) | 12.7 |
| Color | Red |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.15 |
8PM3065
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.77 |
| Hose Outside Diameter (mm) | 19.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.77 |
| Outside Diameter (mm) | 12.7 |
| Color | Yellow |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.15 |
4PM3010
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Min. Burst Pressure (psi) | 1000 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.09 |
4PM3110
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Min. Burst Pressure (psi) | 1260 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.57 |
| Hose Outside Diameter (mm) | 14.5 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 315 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.57 |
| Outside Diameter (mm) | 6.4 |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.12 |
4PM3501
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.53 |
| Hose Outside Diameter (mm) | 13.5 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.53 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Carboxylated Nitrile - Type C4 |
| Standards | Meets MSHA Flame-resistant. Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class A |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with superior abrasion resistance, excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils (to +212°F). Recommended for gasoline, kerosene, and fuel oil transfer only to +120°F. Good weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.1 |
4PM3001
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 1.97 |
| Minimum Bend Radius (mm) | 50 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Max. Working Pressure | 250 |
| Max. Working Pressure (Bar) | 17 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 6.4 |
| Markets/Applications | Water & Air / Multi-purpose |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.13 |
4PM3100
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Min. Burst Pressure (psi) | 1260 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.57 |
| Hose Outside Diameter (mm) | 14.5 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 315 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.57 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.12 |
4PM3510
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.53 |
| Hose Outside Diameter (mm) | 13.5 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.53 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Carboxylated Nitrile - Type C4 |
| Standards | Meets MSHA Flame-resistant. Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class A |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with superior abrasion resistance, excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils (to +212°F). Recommended for gasoline, kerosene, and fuel oil transfer only to +120°F. Good weather and ozone resistance. |
| Customer Pack | 600 |
| Weight (lbs.) | 0.1 |
1/4XRL 2BRD/500 119B
No variation attributes.
4PM3500
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.53 |
| Hose Outside Diameter (mm) | 13.5 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.53 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Carboxylated Nitrile - Type C4 |
| Standards | Meets MSHA Flame-resistant. Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class A |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with superior abrasion resistance, excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils (to +212°F). Recommended for gasoline, kerosene, and fuel oil transfer only to +120°F. Good weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.11 |
4PM3060
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 6.4 |
| Color | Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.09 |
4PM3061
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 6.4 |
| Color | Blue |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.09 |
4PM3063
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 6.4 |
| Color | Green |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.09 |
4PM3062
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 6.4 |
| Color | Gray |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.09 |
4PM3064
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 6.4 |
| Color | Red |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.09 |
4PM3065
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.47 |
| Hose Outside Diameter (mm) | 11.9 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.47 |
| Outside Diameter (mm) | 6.4 |
| Color | Yellow |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.09 |
16PM3001
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Vacuum (In. Hg) | 10 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7.87 |
| Minimum Bend Radius (mm) | 200 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 1.47 |
| Hose Inside Diameter (mm) | 37.3 |
| Hose Outside Diameter (in) | 1.47 |
| Hose Outside Diameter (mm) | 37.3 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Max. Working Pressure | 250 |
| Max. Working Pressure (Bar) | 17 |
| Working Pressure (psi) | 250 |
| Length (m) | 121.9 |
| Outside Diameter (in) | 1.47 |
| Outside Diameter (mm) | 25.4 |
| Markets/Applications | Water & Air / Multi-purpose |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 400 |
| Weight (lbs.) | 0.8 |
16PM3501
| Vacuum (In. Hg) | 10 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.5 |
| Hose Outside Diameter (mm) | 38.1 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 121.9 |
| Outside Diameter (in) | 1.5 |
| Outside Diameter (mm) | 25.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Carboxylated Nitrile - Type C4 |
| Standards | Meets MSHA Flame-resistant. Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class A |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with superior abrasion resistance, excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils (to +212°F). Recommended for gasoline, kerosene, and fuel oil transfer only to +120°F. Good weather and ozone resistance. |
| Customer Pack | 400 |
| Weight (lbs.) | 0.59 |
16PM3500
| Vacuum (In. Hg) | 10 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.5 |
| Hose Outside Diameter (mm) | 38.1 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 121.9 |
| Outside Diameter (in) | 1.5 |
| Outside Diameter (mm) | 25.4 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Carboxylated Nitrile - Type C4 |
| Standards | Meets MSHA Flame-resistant. Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class A |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with superior abrasion resistance, excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils (to +212°F). Recommended for gasoline, kerosene, and fuel oil transfer only to +120°F. Good weather and ozone resistance. |
| Customer Pack | 400 |
| Weight (lbs.) | 0.59 |
12PM3001
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1000 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 250 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.36 |
12PM3010
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1000 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.412 |
12PM3110
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1260 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.19 |
| Hose Outside Diameter (mm) | 30.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 315 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.19 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.39 |
12PM3500
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.19 |
| Hose Outside Diameter (mm) | 30.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.19 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Carboxylated Nitrile - Type C4 |
| Standards | Meets MSHA Flame-resistant. Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class A |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with superior abrasion resistance, excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils (to +212°F). Recommended for gasoline, kerosene, and fuel oil transfer only to +120°F. Good weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.4666 |
12PM3002
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Vacuum (In. Hg) | 21 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5.12 |
| Minimum Bend Radius (mm) | 130 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 1.15 |
| Hose Inside Diameter (mm) | 29.2 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Max. Working Pressure | 250 |
| Max. Working Pressure (Bar) | 17 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Markets/Applications | Water & Air / Multi-purpose |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.54 |
12PM3100
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1260 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.19 |
| Hose Outside Diameter (mm) | 30.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 315 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.19 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.4 |
12PM3510
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.19 |
| Hose Outside Diameter (mm) | 30.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.19 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Carboxylated Nitrile - Type C4 |
| Standards | Meets MSHA Flame-resistant. Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class A |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with superior abrasion resistance, excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils (to +212°F). Recommended for gasoline, kerosene, and fuel oil transfer only to +120°F. Good weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.4 |
12PM3501
| Vacuum (In. Hg) | 20 |
|---|---|
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 300 |
| Length (m) | 182.9 |
| Outside Diameter (in) | 1.19 |
| Outside Diameter (mm) | 19.1 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. 8 Tri-Lokt. 14 Interlocking, Ground Joint. |
| Color | Red |
| Cover | Carboxylated Nitrile - Type C4. |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Carboxylated Nitrile - Type C4 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Nitrile - Type C. Black. High oil resistance |
| Standards: Cover | ARPM Class A |
| Standards: Tube | ARPM Class A |
HOSE 12 BLCK PREMOFLEX RL
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 182.9 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. 8 Tri-Lokt. 14 Interlocking, Ground Joint. |
| Color | Black |
| Cover | Modified Nitrile - Type C2. |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Nitrile - Type C. Black. High oil resistance |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
12PM3060
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 178 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.06 |
| Hose Outside Diameter (mm) | 26.9 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 68.6 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 19.1 |
| Color | Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.24 |
12PM3061
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 178 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.06 |
| Hose Outside Diameter (mm) | 26.9 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 68.6 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 19.1 |
| Color | Blue |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.24 |
12PM3063
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 178 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.06 |
| Hose Outside Diameter (mm) | 26.9 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 68.6 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 19.1 |
| Color | Green |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.24 |
12PM3062
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 178 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.06 |
| Hose Outside Diameter (mm) | 26.9 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 68.6 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 19.1 |
| Color | Gray |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.24 |
12PM3064
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 178 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.06 |
| Hose Outside Diameter (mm) | 26.9 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 68.6 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 19.1 |
| Color | Red |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.24 |
12PM3065
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 178 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.06 |
| Hose Outside Diameter (mm) | 26.9 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 68.6 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 19.1 |
| Color | Yellow |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.24 |
12PM3702
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 1300 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.09 |
| Hose Outside Diameter (mm) | 27.7 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 325 |
| Length (m) | 160 |
| Outside Diameter (in) | 1.09 |
| Outside Diameter (mm) | 19.1 |
| Color | Red |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Applications requiring a premium grade braided hose, with excellent flexibility and maximum resistance to air, water, petroleum oils, gasoline, kerosene and fuel oil (to +120°F) and lubricating oils (to +212°F). Excellent weather and ozone resistance. |
| Caution | Not recommended for constant contact with fuels. Not recommended for Bio-Diesel fuels. |
| Customer Pack | 525 |
| Weight (lbs.) | 0.29 |
6PM3100
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 315 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 0.73 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | 19 Standard Air Hose. 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. 8 Tri-Lokt. |
| Color | Red |
| Cover | Modified Nitrile - Type C2. |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Nitrile - Type C. Black. High oil resistance |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
6PM3010
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1000 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.14 |
6PM3110
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1260 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.73 |
| Hose Outside Diameter (mm) | 18.5 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 315 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.73 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.18 |
6PM3501
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.7 |
| Hose Outside Diameter (mm) | 17.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.7 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Carboxylated Nitrile - Type C4 |
| Standards | Meets MSHA Flame-resistant. Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class A |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with superior abrasion resistance, excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils (to +212°F). Recommended for gasoline, kerosene, and fuel oil transfer only to +120°F. Good weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.16 |
6PM3000
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 2.95 |
| Minimum Bend Radius (mm) | 75 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.66 |
| Hose Inside Diameter (mm) | 16.8 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Max. Working Pressure | 250 |
| Max. Working Pressure (Bar) | 17 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Markets/Applications | Water & Air / Multi-purpose |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.25 |
6PM3101
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1260 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.73 |
| Hose Outside Diameter (mm) | 18.5 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 315 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.73 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.18 |
6PM3510
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.7 |
| Hose Outside Diameter (mm) | 17.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.7 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Carboxylated Nitrile - Type C4 |
| Standards | Meets MSHA Flame-resistant. Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class A |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with superior abrasion resistance, excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils (to +212°F). Recommended for gasoline, kerosene, and fuel oil transfer only to +120°F. Good weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.16 |
6PM3500
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.7 |
| Hose Outside Diameter (mm) | 17.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.7 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Carboxylated Nitrile - Type C4 |
| Standards | Meets MSHA Flame-resistant. Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class A |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with superior abrasion resistance, excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils (to +212°F). Recommended for gasoline, kerosene, and fuel oil transfer only to +120°F. Good weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.16 |
6PM3060
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.63 |
| Outside Diameter (mm) | 9.5 |
| Color | Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.11 |
6PM3061
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.63 |
| Outside Diameter (mm) | 9.5 |
| Color | Blue |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.11 |
6PM3063
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.63 |
| Outside Diameter (mm) | 9.5 |
| Color | Green |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.11 |
6PM3062
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.63 |
| Outside Diameter (mm) | 9.5 |
| Color | Gray |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.11 |
6PM3064
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.63 |
| Outside Diameter (mm) | 9.5 |
| Color | Red |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.11 |
6PM3065
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.63 |
| Hose Outside Diameter (mm) | 16 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.63 |
| Outside Diameter (mm) | 9.5 |
| Color | Yellow |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.11 |
5PM3000
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Min. Burst Pressure (psi) | 1000 |
| Hose Inside Diameter (in). | 0.31 |
| Hose Inside Diameter (mm) | 7.9 |
| Hose Outside Diameter (in) | 0.56 |
| Hose Outside Diameter (mm) | 14.2 |
| Inside Diameter (in) | 0.31 |
| Inside Diameter (mm) | 7.9 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.56 |
| Outside Diameter (mm) | 7.9 |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.11 |
5PM3100
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Min. Burst Pressure (psi) | 1260 |
| Hose Inside Diameter (in). | 0.31 |
| Hose Inside Diameter (mm) | 7.9 |
| Hose Outside Diameter (in) | 0.67 |
| Hose Outside Diameter (mm) | 17 |
| Inside Diameter (in) | 0.31 |
| Inside Diameter (mm) | 7.9 |
| Working Pressure (psi) | 315 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.67 |
| Outside Diameter (mm) | 7.9 |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.16 |
10PM3010
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1000 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.98 |
| Hose Outside Diameter (mm) | 24.9 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.98 |
| Outside Diameter (mm) | 15.9 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.27 |
10PM3110
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 1260 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.98 |
| Hose Outside Diameter (mm) | 24.9 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 315 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.98 |
| Outside Diameter (mm) | 15.9 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.3 |
10PM3000
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Vacuum (In. Hg) | 21 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5.12 |
| Minimum Bend Radius (mm) | 130 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.98 |
| Hose Inside Diameter (mm) | 24.9 |
| Hose Outside Diameter (in) | 0.98 |
| Hose Outside Diameter (mm) | 24.9 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Max. Working Pressure | 250 |
| Max. Working Pressure (Bar) | 17 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.98 |
| Outside Diameter (mm) | 15.9 |
| Markets/Applications | Water & Air / Multi-purpose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.13 |
10PM3100
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Hose Inside Diameter (in). | 0.98 |
| Hose Inside Diameter (mm) | 24.9 |
| Hose Outside Diameter (in) | 0.98 |
| Hose Outside Diameter (mm) | 24.9 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Max. Working Pressure | 315 |
| Max. Working Pressure (Bar) | 22 |
| Working Pressure (psi) | 315 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.98 |
| Outside Diameter (mm) | 15.9 |
| Markets/Applications | Water & Air / Multi-purpose |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.26 |
10PM3060
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 76.2 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 15.9 |
| Color | Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.2 |
10PM3061
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 76.2 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 15.9 |
| Color | Blue |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.2 |
10PM3063
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 76.2 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 15.9 |
| Color | Green |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.2 |
10PM3062
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 76.2 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 15.9 |
| Color | Gray |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.2 |
10PM3064
| Vacuum (In. Hg) | 28 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 1200 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 300 |
| Length (m) | 76.2 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 15.9 |
| Color | Yellow |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standards | Black cover meets MSHA Flame-resistant. |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air. |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.2 |
10PM3700
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 1300 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 325 |
| Length (m) | 160 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 15.9 |
| Color | Black |
| Reinforcement | Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Chloroprene - Type A |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
| Recommended For | Applications requiring a premium grade braided hose, with excellent flexibility and maximum resistance to air, water, petroleum oils, gasoline, kerosene and fuel oil (to +120°F) and lubricating oils (to +212°F). Excellent weather and ozone resistance. |
| Caution | Not recommended for constant contact with fuels. Not recommended for Bio-Diesel fuels. |
| Customer Pack | 525 |
| Weight (lbs.) | 0.24 |
20PM3010
| Vacuum (In. Hg) | 10 |
|---|---|
| Minimum Bend Radius (in) | 10 |
| Minimum Bend Radius (mm) | 254 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 45.7 |
| Outside Diameter (in) | 1.75 |
| Outside Diameter (mm) | 31.8 |
| Coupling Recommendation | 1 Long Shank. 8 Tri-Lokt. 14 Interlocking, Ground Joint. 15 Interlocking, Washer Joint. Power Crimp™ Couplings. |
| Color | Red |
| Cover | Modified Nitrile - Type C2. |
| Reinforcement | Synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Nitrile - Type C. Black. High oil resistance |
| Standards: Cover | ARPM Class B |
| Standards: Tube | ARPM Class A |
3/4XRL 33FT INCR PM XTREME 300 LOCK-ON BRAID GRAY
No variation attributes.
4PM3000
No variation attributes.
32011131
No variation attributes.
32192901
No variation attributes.
32192951
No variation attributes.
32844206
No variation attributes.
32195318
No variation attributes.
32192950
No variation attributes.
32192923
No variation attributes.
32050304
No variation attributes.
32130546
No variation attributes.
32195317
No variation attributes.
32845345
No variation attributes.
Specifications
| Vacuum (In. Hg) | 10 – 30 |
|---|---|
| Minimum Bend Radius (in) | 1.97 – 11.81 |
| Minimum Bend Radius (mm) | 50 – 300 |
| Inside Diameter (in) | 0.25 – 1.5 |
| Inside Diameter (mm) | 6.4 – 38.1 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 250 – 325 |
| Length (m) | 15.2 – 182.9 |
| Outside Diameter (in) | 0.47 – 2 |
| Outside Diameter (mm) | 6.4 – 38.1 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. 8 Tri-Lokt. 14 Interlocking, Ground Joint., 19 Standard Air Hose. 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. 8 Tri-Lokt., 1 Long Shank. 8 Tri-Lokt. 14 Interlocking, Ground Joint. 15 Interlocking, Washer Joint. Power Crimp™ Couplings. |
| Color | Orange, Red, Black, Blue, Green, Gray, +1 more |
| Cover | Modified Nitrile - Type C2., Carboxylated Nitrile - Type C4. |
| Reinforcement | Synthetic textile, Braided, synthetic textile |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2, Carboxylated Nitrile - Type C4, Chloroprene - Type A |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Nitrile - Type C. Black. High oil resistance |
| Standards: Cover | ARPM Class B, ARPM Class A |
| Standards: Tube | ARPM Class A |
| Dynamic WP (Max.psi) (1) | 250 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Min. Burst Pressure (psi) | 900 – 1300 |
| Hose Inside Diameter (in). | 0.25 – 2 |
| Hose Inside Diameter (mm) | 6.4 – 50.8 |
| Hose Outside Diameter (in) | 0.47 – 2 |
| Hose Outside Diameter (mm) | 11.9 – 50.8 |
| Max. Working Pressure | 250 – 315 |
| Max. Working Pressure (Bar) | 17 – 22 |
| Markets/Applications | Water & Air / Multi-purpose |
| Use | Industrial Hose |
| Standards | Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance., Meets MSHA Flame-resistant. Non-conductive (>1 Megohm/in.). Storage and use may adversely affect electrical resistance., Black cover meets MSHA Flame-resistant. |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Applications requiring a premium grade spiral hose with excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils, (to +212°F). Recommended for gasoline, kerosene and fuel oil transfer only (to +120°F). Excellent weather and ozone resistance., Applications requiring a premium grade spiral hose with superior abrasion resistance, excellent flexibility and maximum resistance to air, water, petroleum oils and lubricating oils (to +212°F). Recommended for gasoline, kerosene, and fuel oil transfer only to +120°F. Good weather and ozone resistance., Petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils, and air., Applications requiring a premium grade braided hose, with excellent flexibility and maximum resistance to air, water, petroleum oils, gasoline, kerosene and fuel oil (to +120°F) and lubricating oils (to +212°F). Excellent weather and ozone resistance. |
| Customer Pack | 200 – 600 |
| Weight (lbs.) | 0.09 – 1.26 |
| Caution | Hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels., Not recommended for constant contact with fuels. Not recommended for Bio-Diesel fuels. |
PDF Documents
No PDF documents.
