Attributes
| Part Number | 3204-000000-000001 |
|---|
Description

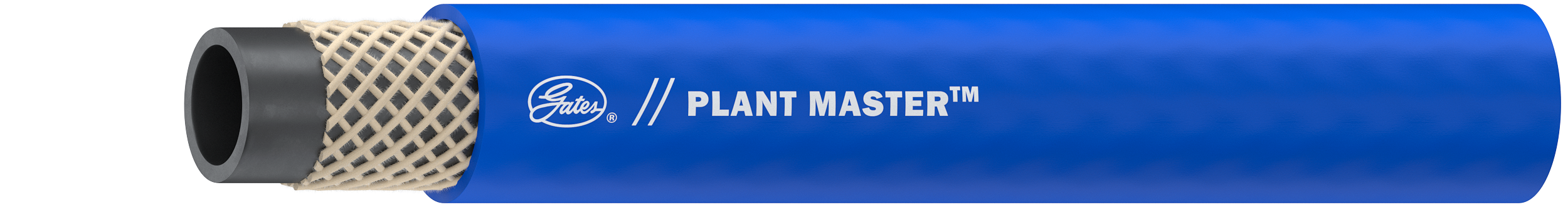

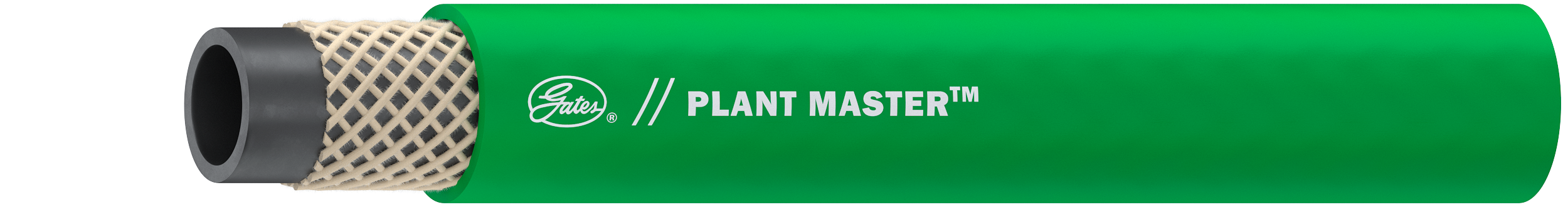

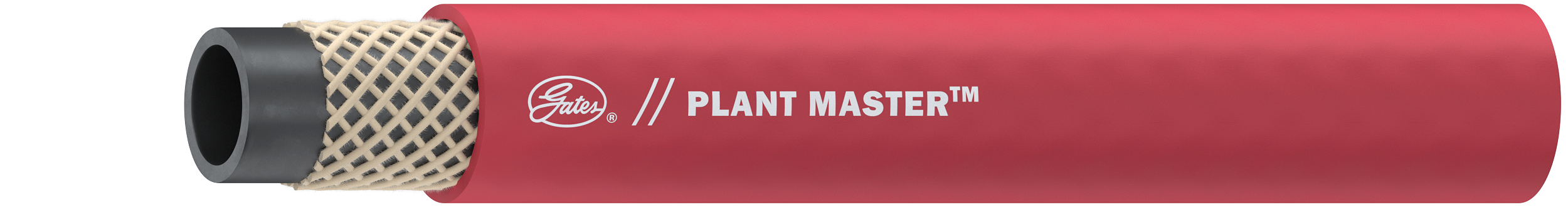

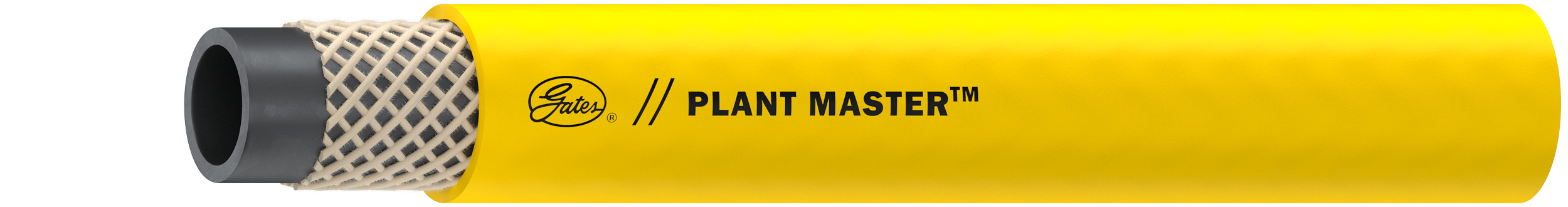

Plant Master™ Hose RECOMMENDED FOR: Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in–plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. Outstanding resistance to heat and ozone. ARPM (Class C) Limited oil–resistant tube. ARPM (Class C) Limited oil–resistant cover.
Features and Benefits Working pressures from 150 psi to 300 psi. Tube and cover: EPDM. Design factor: 3:1. Size: 1/4" to 4".
Variations (122)
16PM1013
| Vacuum (In. Hg) | 10 |
|---|---|
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 200 |
| Length (m) | 121.9 |
| Outside Diameter (in) | 1.40 |
| Outside Diameter (mm) | 25.4 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Red |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
24PM1100
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Outside Diameter 1 (mm) | 50 |
| Vacuum (In. Hg) | 10 |
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 12 |
| Minimum Bend Radius (mm) | 305 |
| Min. Burst Pressure (psi) | 650 |
| Hose Inside Diameter (in). | 1.5 |
| Hose Inside Diameter (mm) | 38.1 |
| Hose Outside Diameter (in) | 1.98 |
| Hose Outside Diameter (mm) | 50.3 |
| Inside Diameter 1 (in) | 1.5 |
| Inside Diameter 1 (mm) | 38 |
| Inside Diameter 2 (in) | 1.5 |
| Inside Diameter 2 (mm) | 38 |
| Max. Working Pressure (Bar) | 11 |
| Length (m) | 75 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 200 |
| Weight (lbs.) | 1.26 |
20PM1100
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Outside Diameter 1 (mm) | 44 |
| Vacuum (In. Hg) | 10 |
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 10 |
| Minimum Bend Radius (mm) | 254 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Hose Outside Diameter (in) | 1.73 |
| Hose Outside Diameter (mm) | 43.9 |
| Inside Diameter 1 (in) | 1.26 |
| Inside Diameter 1 (mm) | 32 |
| Inside Diameter 2 (in) | 1.26 |
| Inside Diameter 2 (mm) | 32 |
| Max. Working Pressure (Bar) | 11 |
| Length (m) | 90 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 200 |
| Weight (lbs.) | 1.01 |
1-1/4X50 PLANT 250 BLACK UPS
| Vacuum (In. Hg) | 10 |
|---|---|
| Minimum Bend Radius (in) | 10 |
| Minimum Bend Radius (mm) | 254 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 1.73 |
| Outside Diameter (mm) | 31.8 |
| Coupling Recommendation | Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Black |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
1/2X25 PLANT STEAM 250 SMOOTH
| Vacuum (In. Hg) | 25 |
|---|---|
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 178 |
| Inside Diameter (in) | 0.50 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +450°F (-40°C to +232°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 7.6 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 12.7 |
| Coupling Recommendation | 1 Long Shank. 15 Interlocking, Washer Joint. 76 Permanent Crimped Steam. |
| Color | Black |
| Cover | EPDM - Type P2. Smooth, Perforated. |
| Reinforcement | Braided, steel wire |
| Tube | EPDM - Type P2. Limited oil resistance. |
| Construction: Cover | EPDM - Type P2 |
| Construction: Design Factor | 10:1 |
| Construction: Reinforcement | Braided, steel wire |
| Construction: Tube | EPDM - Type P2. Black. Limited oil resistance |
8PM1003
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 200 |
| Length (m) | 76.2 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.208 |
8PM1004
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 200 |
| Length (m) | 76.2 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.2292 |
8PM1011
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.19 |
8PM1012
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.221 |
8PM1110
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.19 |
8PM1510
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.83 |
| Hose Outside Diameter (mm) | 21.1 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.83 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.22 |
8PM1001
| Dynamic WP (Max.psi) (1) | 200 |
|---|---|
| Outside Diameter 1 (mm) | 21 |
| Vacuum (In. Hg) | 25 |
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter 1 (in) | 0.51 |
| Inside Diameter 1 (mm) | 13 |
| Inside Diameter 2 (in) | 0.51 |
| Inside Diameter 2 (mm) | 13 |
| Max. Working Pressure (Bar) | 14 |
| Length (m) | 180 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.3 |
8PM1002
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.2 |
8PM1101
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Blue |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.19 |
8PM1103
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.19 |
8PM1104
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Yellow |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.19 |
8PM1500
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.83 |
| Hose Outside Diameter (mm) | 21.1 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.83 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Blue |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.2 |
8PM1502
| Vacuum (In. Hg) | 25 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.83 |
| Hose Outside Diameter (mm) | 21.1 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.83 |
| Outside Diameter (mm) | 12.7 |
| Use | Industrial Hose |
| Color | Yellow |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.2 |
3204-1416
| Vacuum (In. Hg) | 25 |
|---|---|
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Inside Diameter (in) | 0.50 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 12.7 |
| Coupling Recommendation | 19 Standard Air Hose. 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. |
| Color | Black |
| Cover | EPDM - Type P. Perforated. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
4PM4000
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.50 |
| Outside Diameter (mm) | 6.4 |
| Coupling Recommendation | 19 Standard Air Hose. 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. |
| Color | Black |
| Cover | EPDM - Type P. Perforated. |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Specially compounded elastomer - Type B1. Black. Medium oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
4PM1103
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 250 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.08 |
1/4X50 BULK PLANT 200 RED
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 200 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.08 |
4PM1011
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.09 |
4PM1012
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.108 |
4PM1110
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.08 |
4PM1510
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.53 |
| Hose Outside Diameter (mm) | 13.5 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.53 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.1 |
4PM1000
| Dynamic WP (Max.psi) (1) | 200 |
|---|---|
| Outside Diameter 1 (mm) | 13 |
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter 1 (in) | 0.24 |
| Inside Diameter 1 (mm) | 6 |
| Inside Diameter 2 (in) | 0.24 |
| Inside Diameter 2 (mm) | 6 |
| Max. Working Pressure (Bar) | 14 |
| Length (m) | 180 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.13 |
4PM1003
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.09 |
4PM1001
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.09 |
4PM1101
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Blue |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.08 |
4PM1102
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Green |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.08 |
4PM1104
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.08 |
4PM1105
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Yellow |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.08 |
4PM1500
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.53 |
| Hose Outside Diameter (mm) | 13.5 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.53 |
| Outside Diameter (mm) | 6.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.1 |
ADPTA R 3/4X100F
| Vacuum (In. Hg) | 15 |
|---|---|
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 200 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 1.11 |
| Outside Diameter (mm) | 19.1 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Red |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
3/4 X 50 PLT BLK ECONOFLX
| Vacuum (In. Hg) | 15 |
|---|---|
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 200 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 1.11 |
| Outside Diameter (mm) | 19.1 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Black |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
16PM1005
| Vacuum (In. Hg) | 10 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.4 |
| Hose Outside Diameter (mm) | 35.6 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 200 |
| Length (m) | 38.1 |
| Outside Diameter (in) | 1.4 |
| Outside Diameter (mm) | 25.4 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 125 |
| Weight (lbs.) | 1.11 |
16PM1006
| Vacuum (In. Hg) | 10 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.4 |
| Hose Outside Diameter (mm) | 35.6 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 200 |
| Length (m) | 38.1 |
| Outside Diameter (in) | 1.4 |
| Outside Diameter (mm) | 25.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 125 |
| Weight (lbs.) | 0.45 |
1X300 RED ADAPTAFLEX
| Vacuum (In. Hg) | 10 |
|---|---|
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 300 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 1.47 |
| Outside Diameter (mm) | 25.4 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Red |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
16PM1510
| Vacuum (In. Hg) | 10 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.47 |
| Hose Outside Diameter (mm) | 37.3 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 121.9 |
| Outside Diameter (in) | 1.47 |
| Outside Diameter (mm) | 25.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 400 |
| Weight (lbs.) | 0.54 |
16PM1003
| Vacuum (In. Hg) | 10 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Min. Burst Pressure (psi) | 450 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.39 |
| Hose Outside Diameter (mm) | 35.3 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 150 |
| Length (m) | 121.9 |
| Outside Diameter (in) | 1.39 |
| Outside Diameter (mm) | 25.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 400 |
| Weight (lbs.) | 0.48 |
16PM1002
| Dynamic WP (Max.psi) (1) | 200 |
|---|---|
| Outside Diameter 1 (mm) | 36 |
| Vacuum (In. Hg) | 10 |
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.39 |
| Hose Outside Diameter (mm) | 35.3 |
| Inside Diameter 1 (in) | 0.98 |
| Inside Diameter 1 (mm) | 25 |
| Inside Diameter 2 (in) | 0.98 |
| Inside Diameter 2 (mm) | 25 |
| Max. Working Pressure (Bar) | 14 |
| Length (m) | 100 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 400 |
| Weight (lbs.) | 0.71 |
16PM1004
| Vacuum (In. Hg) | 10 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.39 |
| Hose Outside Diameter (mm) | 35.3 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 200 |
| Length (m) | 121.9 |
| Outside Diameter (in) | 1.39 |
| Outside Diameter (mm) | 25.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 400 |
| Weight (lbs.) | 0.48 |
16PM1100
| Vacuum (In. Hg) | 10 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.47 |
| Hose Outside Diameter (mm) | 37.3 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 250 |
| Length (m) | 121.9 |
| Outside Diameter (in) | 1.47 |
| Outside Diameter (mm) | 25.4 |
| Use | Industrial Hose |
| Color | Yellow |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 400 |
| Weight (lbs.) | 0.62 |
16PM1503
| Vacuum (In. Hg) | 10 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.48 |
| Hose Outside Diameter (mm) | 37.6 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 121.9 |
| Outside Diameter (in) | 1.48 |
| Outside Diameter (mm) | 25.4 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 350 |
| Weight (lbs.) | 0.59 |
16PM1502
| Vacuum (In. Hg) | 10 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.47 |
| Hose Outside Diameter (mm) | 37.3 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 121.9 |
| Outside Diameter (in) | 1.47 |
| Outside Diameter (mm) | 25.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 400 |
| Weight (lbs.) | 0.54 |
3204-1428
| Vacuum (In. Hg) | 10 |
|---|---|
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 150 |
| Length (m) | 121.9 |
| Outside Diameter (in) | 1.40 |
| Outside Diameter (mm) | 25.4 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Black |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
16PM1504
| Vacuum (In. Hg) | 10 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.47 |
| Hose Outside Diameter (mm) | 37.3 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.47 |
| Outside Diameter (mm) | 25.4 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.6 |
12PM10014
| Vacuum (In. Hg) | 15 |
|---|---|
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 200 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 1.11 |
| Outside Diameter (mm) | 19.1 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Red |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
12PM10016
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.11 |
| Hose Outside Diameter (mm) | 28.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 200 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.11 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.31 |
12PM1100
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 250 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 200 |
| Weight (lbs.) | 1.285 |
12PM10012
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.11 |
| Hose Outside Diameter (mm) | 28.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 200 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 1.11 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.31 |
12PM1101
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 250 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.35 |
12PM1105
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 250 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.35 |
12PM1501
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Blue |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.35 |
12PM1503
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Green |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.35 |
12PM1505
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.35 |
12PM1507
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Yellow |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.37 |
12PM1011
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.11 |
| Hose Outside Diameter (mm) | 28.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.11 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.23 |
12PM1012
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.11 |
| Hose Outside Diameter (mm) | 28.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.11 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.358 |
12PM1110
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.11 |
| Hose Outside Diameter (mm) | 28.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.11 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.35 |
12PM1519
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.35 |
12PM10010
| Dynamic WP (Max.psi) (1) | 200 |
|---|---|
| Outside Diameter 1 (mm) | 28 |
| Vacuum (In. Hg) | 15 |
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.11 |
| Hose Outside Diameter (mm) | 28.2 |
| Inside Diameter 1 (in) | 0.75 |
| Inside Diameter 1 (mm) | 19 |
| Inside Diameter 2 (in) | 0.75 |
| Inside Diameter 2 (mm) | 19 |
| Max. Working Pressure (Bar) | 14 |
| Length (m) | 180 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.48 |
12PM10015
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.11 |
| Hose Outside Diameter (mm) | 28.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.11 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.31 |
12PM1102
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.35 |
12PM1103
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Blue |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.35 |
12PM1104
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Green |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.35 |
12PM1106
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.11 |
| Hose Outside Diameter (mm) | 28.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.11 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.35 |
12PM1107
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Yellow |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.35 |
12PM1500
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.35 |
12PM1502
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Blue |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.35 |
12PM1504
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Green |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.35 |
12PM1506
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.35 |
12PM1508
| Vacuum (In. Hg) | 15 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 19.1 |
| Use | Industrial Hose |
| Color | Yellow |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.35 |
6PM4000
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | 19 Standard Air Hose. 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. |
| Color | Black |
| Cover | EPDM - Type P. Perforated. |
| Reinforcement | Synthetic textile |
| Tube | Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | Specially compounded elastomer - Type B1. Black. Medium oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class B |
6PM1006
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 200 |
| Length (m) | 121.9 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 400 |
| Weight (lbs.) | 0.14 |
6PM1100
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 250 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Termination ends are 1/4" male NPT. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 5 |
| Weight (lbs.) | 7.43 |
6PM1130
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 250 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Termination ends are 1/4" male NPT. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 8 |
| Weight (lbs.) | 7.72 |
6PM1011
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.14 |
6PM1012
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.14 |
6PM1111
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.14 |
6PM1112
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.14 |
6PM1510
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.67 |
| Hose Outside Diameter (mm) | 17 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.67 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.15 |
6PM1002
| Dynamic WP (Max.psi) (1) | 200 |
|---|---|
| Outside Diameter 1 (mm) | 17 |
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.7 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter 1 (in) | 0.39 |
| Inside Diameter 1 (mm) | 10 |
| Inside Diameter 2 (in) | 0.39 |
| Inside Diameter 2 (mm) | 10 |
| Max. Working Pressure (Bar) | 14 |
| Length (m) | 180 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.21 |
6PM1005
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.1525 |
6PM1004
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.14 |
6PM1102
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Blue |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.14 |
6PM1103
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Green |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.14 |
6PM1104
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.14 |
6PM1105
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Yellow |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.14 |
6PM1500
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.69 |
| Hose Outside Diameter (mm) | 17.5 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.69 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Blue |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.15 |
6PM1503
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.67 |
| Hose Outside Diameter (mm) | 17 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.67 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.15 |
6PM1504
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 900 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.69 |
| Hose Outside Diameter (mm) | 17.5 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 300 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.69 |
| Outside Diameter (mm) | 9.5 |
| Use | Industrial Hose |
| Color | Yellow |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.15 |
3204-1410
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | 19 Standard Air Hose. 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. |
| Color | Black |
| Cover | EPDM - Type P. Perforated. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
3/8XGAYLORD PLANT MASTER 200 BLACK
No variation attributes.
5PM1000
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.31 |
| Hose Inside Diameter (mm) | 7.9 |
| Hose Outside Diameter (in) | 0.53 |
| Hose Outside Diameter (mm) | 13.5 |
| Inside Diameter (in) | 0.31 |
| Inside Diameter (mm) | 7.9 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.53 |
| Outside Diameter (mm) | 7.9 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.09 |
5PM1001
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.31 |
| Hose Inside Diameter (mm) | 7.9 |
| Hose Outside Diameter (in) | 0.53 |
| Hose Outside Diameter (mm) | 13.5 |
| Inside Diameter (in) | 0.31 |
| Inside Diameter (mm) | 7.9 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.53 |
| Outside Diameter (mm) | 7.9 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.09 |
10PM1002
| Vacuum (In. Hg) | 20 |
|---|---|
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 200 |
| Length (m) | 182.9 |
| Outside Diameter (in) | 0.97 |
| Outside Diameter (mm) | 15.9 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Black |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
10PM1000
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.97 |
| Hose Outside Diameter (mm) | 24.6 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 200 |
| Length (m) | 76.2 |
| Outside Diameter (in) | 0.97 |
| Outside Diameter (mm) | 15.9 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.26 |
10PM1100
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 750 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.97 |
| Hose Outside Diameter (mm) | 24.6 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 250 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 0.97 |
| Outside Diameter (mm) | 15.9 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.26 |
10PM1010
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.97 |
| Hose Outside Diameter (mm) | 24.6 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.97 |
| Outside Diameter (mm) | 15.9 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.287 |
10PM1001
| Dynamic WP (Max.psi) (1) | 200 |
|---|---|
| Outside Diameter 1 (mm) | 25 |
| Vacuum (In. Hg) | 20 |
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.64 |
| Hose Inside Diameter (mm) | 16.2 |
| Hose Outside Diameter (in) | 0.97 |
| Hose Outside Diameter (mm) | 24.6 |
| Inside Diameter 1 (in) | 0.63 |
| Inside Diameter 1 (mm) | 16 |
| Inside Diameter 2 (in) | 0.63 |
| Inside Diameter 2 (mm) | 16 |
| Max. Working Pressure (Bar) | 14 |
| Length (m) | 180 |
| Use | Industrial Hose |
| Color | Black |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.39 |
10PM1003
| Vacuum (In. Hg) | 20 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +200°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.97 |
| Hose Outside Diameter (mm) | 24.6 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 200 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.97 |
| Outside Diameter (mm) | 15.9 |
| Use | Industrial Hose |
| Color | Red |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 500 |
| Weight (lbs.) | 0.26 |
3204-1340
| Vacuum (In. Hg) | 20 |
|---|---|
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 152.4 |
| Outside Diameter (in) | 0.97 |
| Outside Diameter (mm) | 15.9 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Red |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
3/8X50FT PLANT MASTER 200 RED
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 200 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | 19 Standard Air Hose. 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. |
| Color | Red |
| Cover | EPDM - Type P. Perforated. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
1/2XGAYLORD PLANT MASTER 200 BLACK
No variation attributes.
1/4XGAYLORD PLANT MASTER 200 BLACK
No variation attributes.
12PM10011
| Vacuum (In. Hg) | 15 |
|---|---|
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 200 |
| Length (m) | 182.9 |
| Outside Diameter (in) | 1.11 |
| Outside Diameter (mm) | 19.1 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Black |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
16PM1011
| Vacuum (In. Hg) | 10 |
|---|---|
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 200 |
| Length (m) | 121.9 |
| Outside Diameter (in) | 1.40 |
| Outside Diameter (mm) | 25.4 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Black |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
16PM1012
| Vacuum (In. Hg) | 10 |
|---|---|
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 150 |
| Length (m) | 121.9 |
| Outside Diameter (in) | 1.39 |
| Outside Diameter (mm) | 25.4 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Red |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
16PM1500
| Vacuum (In. Hg) | 10 |
|---|---|
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Working Pressure (psi) | 300 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 1.47 |
| Outside Diameter (mm) | 25.4 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. GLX® Couplings [G44 Series]. |
| Color | Red |
| Cover | EPDM - Type P. |
| Reinforcement | Synthetic textile |
| Tube | EPDM - Type P. Limited oil resistance. |
| Construction: Cover | EPDM - Type P |
| Construction: Design Factor | 3:1 |
| Construction: Reinforcement | Synthetic textile |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C |
1XGAYLORD PLANT MASTER 150 BLACK
No variation attributes.
32041648
No variation attributes.
32041643
No variation attributes.
32041611
No variation attributes.
32041646
No variation attributes.
32040726
No variation attributes.
32040699
No variation attributes.
32041647
No variation attributes.
32041585
No variation attributes.
32041644
No variation attributes.
32041645
No variation attributes.
Specifications
| Vacuum (In. Hg) | 10 – 30 |
|---|---|
| Minimum Bend Radius (in) | 2 – 12 |
| Minimum Bend Radius (mm) | 51 – 305 |
| Inside Diameter (in) | 0.25 – 1.25 |
| Inside Diameter (mm) | 6.4 – 31.8 |
| Temperature Range | -40°F to +200°F (-40°C to +93°C), -40°F to +450°F (-40°C to +232°C) |
| Working Pressure (psi) | 150 – 300 |
| Length (m) | 7.6 – 182.9 |
| Outside Diameter (in) | 0.50 – 1.73 |
| Outside Diameter (mm) | 6.4 – 31.8 |
| Coupling Recommendation | 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. GLX® Couplings [G44 Series]., Power Crimp™ Couplings. GLX® Couplings [G44 Series]., 1 Long Shank. 15 Interlocking, Washer Joint. 76 Permanent Crimped Steam., 19 Standard Air Hose. 1 Long Shank. 3 Cast Brass or Zinc Short Shank. 4 Machined Brass Short Shank. Power Crimp™ Couplings. |
| Color | Red, Black, Blue, Yellow, Green |
| Cover | EPDM - Type P., EPDM - Type P2. Smooth, Perforated., EPDM - Type P. Perforated. |
| Reinforcement | Synthetic textile, Braided, steel wire |
| Tube | EPDM - Type P. Limited oil resistance., EPDM - Type P2. Limited oil resistance., Specially compounded elastomer - Type B1. Medium oil resistance. |
| Construction: Cover | EPDM - Type P, EPDM - Type P2 |
| Construction: Design Factor | 3:1, 10:1 |
| Construction: Reinforcement | Synthetic textile, Braided, steel wire |
| Construction: Tube | EPDM - Type P. Black. Limited oil resistance, EPDM - Type P2. Black. Limited oil resistance, Specially compounded elastomer - Type B1. Black. Medium oil resistance |
| Standards: Cover | ARPM Class C |
| Standards: Tube | ARPM Class C, ARPM Class B |
| Dynamic WP (Max.psi) (1) | 200 – 250 |
| Outside Diameter 1 (mm) | 13 – 50 |
| Continuous Operating Temperature Range | -40°F to +200°F |
| Min. Burst Pressure (psi) | 450 – 900 |
| Hose Inside Diameter (in). | 0.25 – 1.5 |
| Hose Inside Diameter (mm) | 6.4 – 38.1 |
| Hose Outside Diameter (in) | 0.5 – 1.98 |
| Hose Outside Diameter (mm) | 12.7 – 50.3 |
| Inside Diameter 1 (in) | 0.24 – 1.5 |
| Inside Diameter 1 (mm) | 6 – 38 |
| Inside Diameter 2 (in) | 0.24 – 1.5 |
| Inside Diameter 2 (mm) | 6 – 38 |
| Max. Working Pressure (Bar) | 11 – 14 |
| Use | Industrial Hose |
| Notes | NOTE: Pkg Code T = One piece continuous length reel. Pkg Code XX = Two piece reel, 50 ft increments, no length less than 50 ft., NOTE: Termination ends are 1/4" male NPT. |
| Recommended For | Air and water applications requiring maximum flexibility in any industry, including mining, construction, agriculture, vehicle repair and in-plant operations. Outstanding resistance to heat and ozone. Suitable for light agricultural spraying, such as dilute solutions of herbicides. |
| Customer Pack | 5 – 500 |
| Weight (lbs.) | 0.08 – 7.72 |
PDF Documents
No PDF documents.
