Attributes
| Part Number | 4177-000000-000004 |
|---|
Description

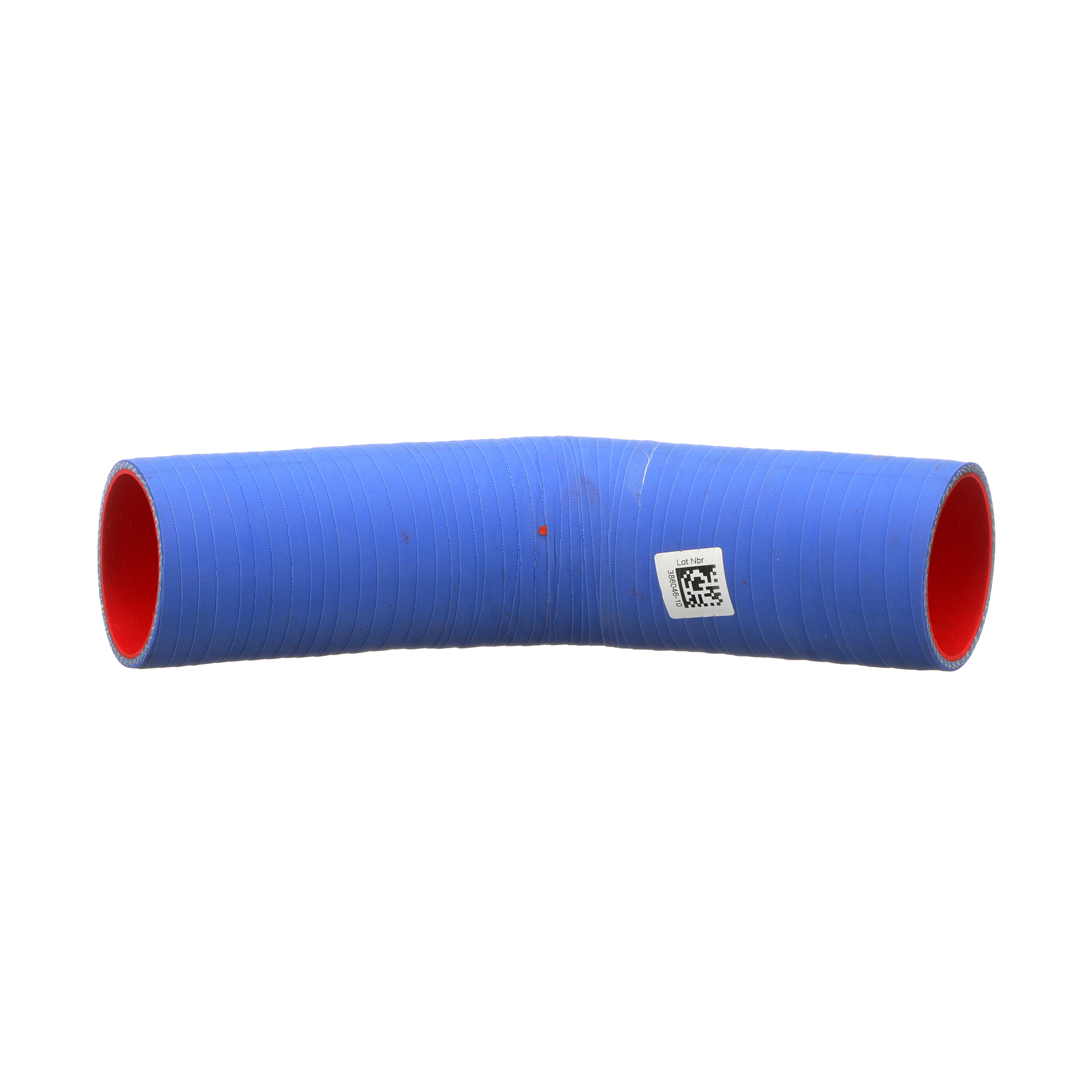

45° Silicone Coolant Hose Elbows The 45° silicone coolant hose elbows guarantees an outstanding performance for heavier duty applications in high-temperature environments, offering high durability and low maintenance. They are made of a soft and flexible material, which exhibits excellent resistance to compression set, perfect for areas in close proximity to high heat sources (exhaust, turbo hot side, etc.) or where there is limited air flow around engines creating significantly high heat conditions. Reinforcement: Polyester knit, unaffected by permeation of coolants and heat. Tube: Extra thick and resilient, preventing cold water leaks and hardening under effect of heat. Cover: Resistant to coolants, ozone, weathering, sunlight and extreme ambient temperatures.
Features and Benefits Temperature Range: -54°C to +177°C (-65°F to +350°F). High-heat resistance material meets or exceeds OE specs. Industry standard blue cover for easy indentification. Exceeds requirements of SAE J20R1, class A. Multiple layers of first grade silicone material. Premium 4-ply construction.
Variations (6)
28200
| Arm Length 1 (in) | 6 |
|---|---|
| Arm Length 1 (mm) | 152 |
| Arm Length 2 (in) | 6 |
| Arm Length 2 (mm) | 152 |
| Centerline Length (in) | 12 |
| Centerline Length (mm) | 305 |
| Hose Inside Diameter (in). | 2.5 |
| Hose Inside Diameter (mm) | 64 |
| Inside Diameter 1 (in) | 2.5 |
| Inside Diameter 1 (mm) | 64 |
| Inside Diameter 2 (in) | 2.5 |
| Inside Diameter 2 (mm) | 64 |
| Angle. | 45 |
| Construction | Premium 4-Ply Polyester-Reinforced |
| Customer Pack | 25 |
| Weight (lbs.) | 0.98 |
28201
| Arm Length 1 (in) | 6 |
|---|---|
| Arm Length 1 (mm) | 152 |
| Arm Length 2 (in) | 6 |
| Arm Length 2 (mm) | 152 |
| Centerline Length (in) | 12 |
| Centerline Length (mm) | 305 |
| Hose Inside Diameter (in). | 2.75 |
| Hose Inside Diameter (mm) | 70 |
| Inside Diameter 1 (in) | 2.75 |
| Inside Diameter 1 (mm) | 70 |
| Inside Diameter 2 (in) | 2.75 |
| Inside Diameter 2 (mm) | 70 |
| Angle. | 45 |
| Construction | Premium 4-Ply Polyester-Reinforced |
| Customer Pack | 25 |
| Weight (lbs.) | 1.04 |
28202
| Arm Length 1 (in) | 6 |
|---|---|
| Arm Length 1 (mm) | 152 |
| Arm Length 2 (in) | 6 |
| Arm Length 2 (mm) | 152 |
| Centerline Length (in) | 12 |
| Centerline Length (mm) | 305 |
| Hose Inside Diameter (in). | 3 |
| Hose Inside Diameter (mm) | 76 |
| Inside Diameter 1 (in) | 3 |
| Inside Diameter 1 (mm) | 76 |
| Inside Diameter 2 (in) | 3 |
| Inside Diameter 2 (mm) | 76 |
| Angle. | 45 |
| Construction | Premium 4-Ply Polyester-Reinforced |
| Customer Pack | 25 |
| Weight (lbs.) | 1.04 |
28203
| Arm Length 1 (in) | 6 |
|---|---|
| Arm Length 1 (mm) | 152 |
| Arm Length 2 (in) | 6 |
| Arm Length 2 (mm) | 152 |
| Centerline Length (in) | 12 |
| Centerline Length (mm) | 305 |
| Hose Inside Diameter (in). | 3.5 |
| Hose Inside Diameter (mm) | 89 |
| Inside Diameter 1 (in) | 3.5 |
| Inside Diameter 1 (mm) | 89 |
| Inside Diameter 2 (in) | 3.5 |
| Inside Diameter 2 (mm) | 89 |
| Angle. | 45 |
| Construction | Premium 4-Ply Polyester-Reinforced |
| Customer Pack | 15 |
| Weight (lbs.) | 1.04 |
28204
| Arm Length 1 (in) | 6 |
|---|---|
| Arm Length 1 (mm) | 152 |
| Arm Length 2 (in) | 6 |
| Arm Length 2 (mm) | 152 |
| Centerline Length (in) | 12 |
| Centerline Length (mm) | 305 |
| Hose Inside Diameter (in). | 4 |
| Hose Inside Diameter (mm) | 102 |
| Inside Diameter 1 (in) | 4 |
| Inside Diameter 1 (mm) | 102 |
| Inside Diameter 2 (in) | 4 |
| Inside Diameter 2 (mm) | 102 |
| Angle. | 45 |
| Construction | Premium 4-Ply Polyester-Reinforced |
| Customer Pack | 15 |
| Weight (lbs.) | 1.56 |
28207
| Arm Length 1 (in) | 6 |
|---|---|
| Arm Length 1 (mm) | 152 |
| Arm Length 2 (in) | 6 |
| Arm Length 2 (mm) | 152 |
| Centerline Length (in) | 12 |
| Centerline Length (mm) | 305 |
| Hose Inside Diameter (in). | 2.25 |
| Hose Inside Diameter (mm) | 57 |
| Inside Diameter 1 (in) | 2.25 |
| Inside Diameter 1 (mm) | 57 |
| Inside Diameter 2 (in) | 2.25 |
| Inside Diameter 2 (mm) | 57 |
| Angle. | 45 |
| Construction | Premium 4-Ply Polyester-Reinforced |
| Customer Pack | 25 |
| Weight (lbs.) | 0.72 |
Specifications
| Arm Length 1 (in) | 6 |
|---|---|
| Arm Length 1 (mm) | 152 |
| Arm Length 2 (in) | 6 |
| Arm Length 2 (mm) | 152 |
| Centerline Length (in) | 12 |
| Centerline Length (mm) | 305 |
| Hose Inside Diameter (in). | 2.25 – 4 |
| Hose Inside Diameter (mm) | 57 – 102 |
| Inside Diameter 1 (in) | 2.25 – 4 |
| Inside Diameter 1 (mm) | 57 – 102 |
| Inside Diameter 2 (in) | 2.25 – 4 |
| Inside Diameter 2 (mm) | 57 – 102 |
| Angle. | 45 |
| Construction | Premium 4-Ply Polyester-Reinforced |
| Customer Pack | 15 – 25 |
| Weight (lbs.) | 0.72 – 1.56 |
