Attributes
| Part Number | 8701-000000-000000 |
|---|
Description

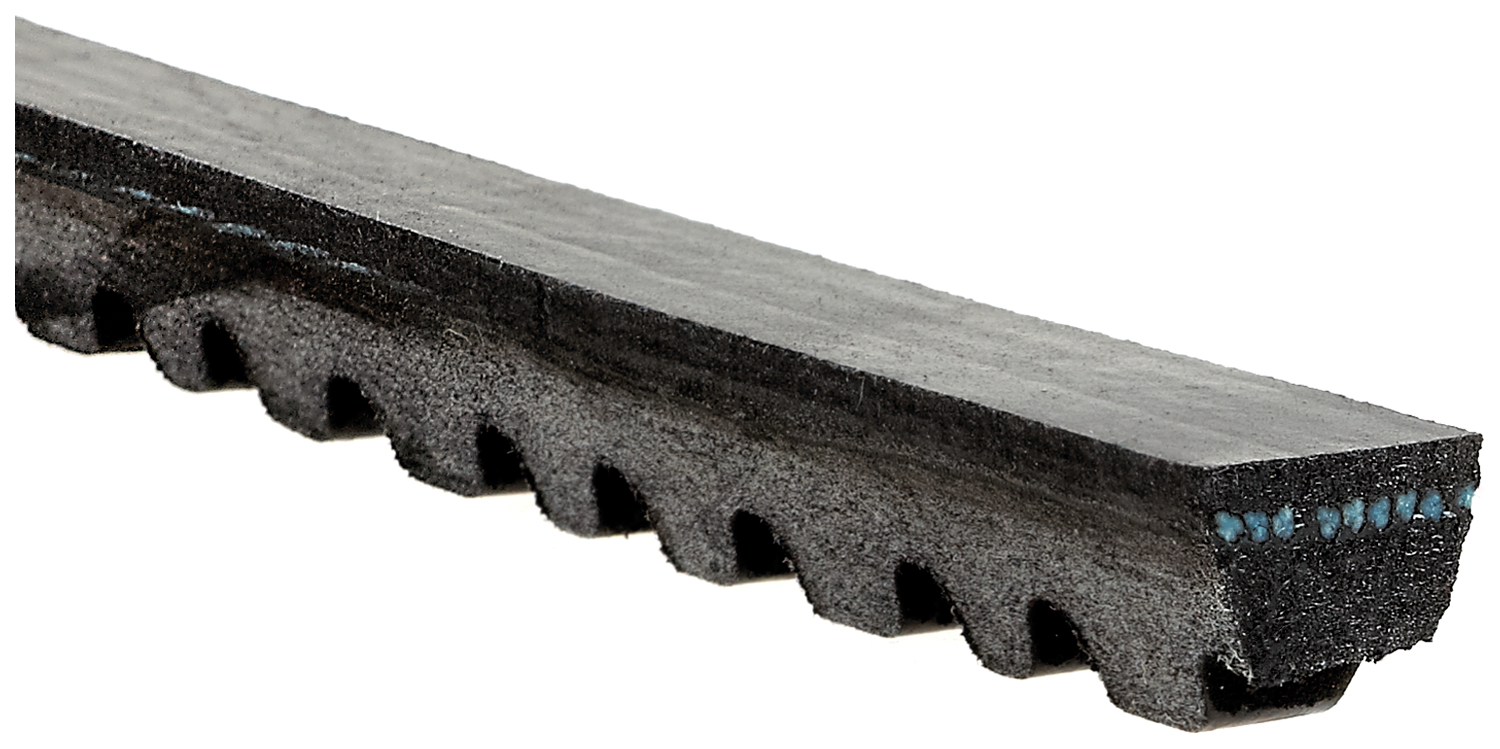

Automotive XL V-Belts The Automotive XL™ is a durable, heavy-duty replacement V-belt designed for the most demanding engine drives. Due to thermal forces in the vehicle engine, this variable notched belt tightens on the drive as it heats up to prevent slippage or belt loss, improve belt performance, and reduce noise. Fiber-loaded rubber stock adds flexibility along the length of the belt and provides greater lateral stability in the pulley. Form-ground to ensure precise top width and sidewall dimensional control for proper fit to the pulley. Thermally active tensile cords for maintenance-free performance when properly installed and tensioned. XL Belts resist oil, heat, ozone, weather, and aging for improved belt life. Meets or exceeds SAE J636C specifications.
Variations (216)
7228
No variation attributes.
7370
No variation attributes.
7715
No variation attributes.
9341
No variation attributes.
9361M
No variation attributes.
9555
No variation attributes.
9580
No variation attributes.
7208
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 20.69 |
| Effective Length (mm) | 526 |
| Notched | true |
| Outside Circumference (in) | 21.54 |
| Outside Circumference (mm) | 547 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 275 |
| Weight (lbs.) | 0.1 |
7215
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 21.5 |
| Effective Length (mm) | 546 |
| Notched | true |
| Outside Circumference (in) | 22.35 |
| Outside Circumference (mm) | 568 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.12 |
7234
| Cross Section | HC31 |
|---|---|
| Effective Length (in) | 23.5 |
| Effective Length (mm) | 597 |
| Notched | false |
| Outside Circumference (in) | 23.82 |
| Outside Circumference (mm) | 605 |
| Strand | 1 |
| Top Width (in) | 0.325 |
| Top Width (mm) | 8 |
| Angle. | 38 |
| Thickness (in) | 0.25 |
| Thickness (mm) | 6 |
| Customer Pack | 325 |
| Weight (lbs.) | 0.09 |
7240
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 24 |
| Effective Length (mm) | 610 |
| Notched | true |
| Outside Circumference (in) | 24.58 |
| Outside Circumference (mm) | 624 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.13 |
7250
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 25 |
| Effective Length (mm) | 635 |
| Notched | true |
| Outside Circumference (in) | 25.84 |
| Outside Circumference (mm) | 650 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 850 |
| Weight (lbs.) | 0.13 |
7255
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 25.5 |
| Effective Length (mm) | 648 |
| Notched | true |
| Outside Circumference (in) | 26.34 |
| Outside Circumference (mm) | 669 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 20 |
| Weight (lbs.) | 0.14 |
7260
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 26 |
| Effective Length (mm) | 660 |
| Notched | true |
| Outside Circumference (in) | 26.84 |
| Outside Circumference (mm) | 682 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 850 |
| Weight (lbs.) | 0.14 |
7261
| Cross Section | HC25 |
|---|---|
| Effective Length (in) | 26.2 |
| Effective Length (mm) | 665 |
| Notched | false |
| Outside Circumference (in) | 26.2 |
| Outside Circumference (mm) | 665 |
| Strand | 1 |
| Top Width (in) | 0.265 |
| Top Width (mm) | 6 |
| Angle. | 36 |
| Thickness (in) | 0.22 |
| Thickness (mm) | 6 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.07 |
7265
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 26.5 |
| Effective Length (mm) | 673 |
| Notched | true |
| Outside Circumference (in) | 27.34 |
| Outside Circumference (mm) | 694 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 225 |
| Weight (lbs.) | 0.14 |
7270
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 27 |
| Effective Length (mm) | 686 |
| Notched | true |
| Outside Circumference (in) | 27.84 |
| Outside Circumference (mm) | 707 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 750 |
| Weight (lbs.) | 0.14 |
7280
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 28 |
| Effective Length (mm) | 711 |
| Notched | true |
| Outside Circumference (in) | 28.84 |
| Outside Circumference (mm) | 732.5 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 750 |
| Weight (lbs.) | 0.15 |
7290
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 29 |
| Effective Length (mm) | 737 |
| Notched | true |
| Outside Circumference (in) | 29.84 |
| Outside Circumference (mm) | 758 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 750 |
| Weight (lbs.) | 0.15 |
7292
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 29.25 |
| Effective Length (mm) | 743 |
| Notched | true |
| Outside Circumference (in) | 30.09 |
| Outside Circumference (mm) | 764 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 200 |
| Weight (lbs.) | 0.15 |
7295
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 29.5 |
| Effective Length (mm) | 749 |
| Notched | true |
| Outside Circumference (in) | 30.34 |
| Outside Circumference (mm) | 771 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 750 |
| Weight (lbs.) | 0.15 |
7300
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 30 |
| Effective Length (mm) | 762 |
| Notched | true |
| Outside Circumference (in) | 30.84 |
| Outside Circumference (mm) | 783 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 750 |
| Weight (lbs.) | 0.15 |
7304
| Cross Section | HC31 |
|---|---|
| Effective Length (in) | 30.48 |
| Effective Length (mm) | 774 |
| Notched | false |
| Outside Circumference (in) | 30.71 |
| Outside Circumference (mm) | 780 |
| Strand | 1 |
| Top Width (in) | 0.325 |
| Top Width (mm) | 8 |
| Angle. | 36 |
| Thickness (in) | 0.25 |
| Thickness (mm) | 6 |
| Customer Pack | 250 |
| Weight (lbs.) | 0.11 |
7305
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 30.6 |
| Effective Length (mm) | 777 |
| Notched | true |
| Outside Circumference (in) | 31.44 |
| Outside Circumference (mm) | 798.5 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.16 |
7312
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 31 |
| Effective Length (mm) | 787 |
| Notched | true |
| Outside Circumference (in) | 31.84 |
| Outside Circumference (mm) | 809 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.16 |
7315
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 31.5 |
| Effective Length (mm) | 800 |
| Notched | true |
| Outside Circumference (in) | 32.34 |
| Outside Circumference (mm) | 821 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 750 |
| Weight (lbs.) | 0.16 |
7320
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 32 |
| Effective Length (mm) | 813 |
| Notched | true |
| Outside Circumference (in) | 32.84 |
| Outside Circumference (mm) | 834 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 750 |
| Weight (lbs.) | 0.16 |
7324
| Cross Section | HC31 |
|---|---|
| Effective Length (in) | 32.5 |
| Effective Length (mm) | 826 |
| Notched | false |
| Outside Circumference (in) | 32.68 |
| Outside Circumference (mm) | 830 |
| Strand | 1 |
| Top Width (in) | 0.325 |
| Top Width (mm) | 8 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Customer Pack | 250 |
| Weight (lbs.) | 0.12 |
7325
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 32.5 |
| Effective Length (mm) | 826 |
| Notched | true |
| Outside Circumference (in) | 33.34 |
| Outside Circumference (mm) | 847 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 750 |
| Weight (lbs.) | 0.17 |
7328
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 32.75 |
| Effective Length (mm) | 832 |
| Notched | true |
| Outside Circumference (in) | 33.59 |
| Outside Circumference (mm) | 853 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.17 |
7329
| Cross Section | HC25 |
|---|---|
| Effective Length (in) | 33 |
| Effective Length (mm) | 838 |
| Notched | false |
| Outside Circumference (in) | 33.27 |
| Outside Circumference (mm) | 845 |
| Strand | 1 |
| Top Width (in) | 0.265 |
| Top Width (mm) | 6 |
| Angle. | 38 |
| Thickness (in) | 0.21 |
| Thickness (mm) | 5 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.09 |
7330
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 33 |
| Effective Length (mm) | 838 |
| Notched | true |
| Outside Circumference (in) | 33.84 |
| Outside Circumference (mm) | 853 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 750 |
| Weight (lbs.) | 0.17 |
7335
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 33.5 |
| Effective Length (mm) | 851 |
| Notched | true |
| Outside Circumference (in) | 34.34 |
| Outside Circumference (mm) | 872 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 20 |
| Weight (lbs.) | 0.17 |
7340
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 34 |
| Effective Length (mm) | 864 |
| Notched | true |
| Outside Circumference (in) | 34.84 |
| Outside Circumference (mm) | 885 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 750 |
| Weight (lbs.) | 0.17 |
7345
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 34.51 |
| Effective Length (mm) | 877 |
| Notched | true |
| Outside Circumference (in) | 35.35 |
| Outside Circumference (mm) | 898 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 750 |
| Weight (lbs.) | 0.18 |
7348
| Cross Section | HC25 |
|---|---|
| Effective Length (in) | 35 |
| Effective Length (mm) | 889 |
| Notched | false |
| Outside Circumference (in) | 35.24 |
| Outside Circumference (mm) | 895 |
| Strand | 1 |
| Top Width (in) | 0.265 |
| Top Width (mm) | 6 |
| Angle. | 38 |
| Thickness (in) | 0.21 |
| Thickness (mm) | 5 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.09 |
7350
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 34.99 |
| Effective Length (mm) | 889 |
| Notched | true |
| Outside Circumference (in) | 35.83 |
| Outside Circumference (mm) | 910 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 750 |
| Weight (lbs.) | 0.18 |
7355
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 35.6 |
| Effective Length (mm) | 904 |
| Notched | true |
| Outside Circumference (in) | 36.43 |
| Outside Circumference (mm) | 925 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 650 |
| Weight (lbs.) | 0.19 |
7359
| Cross Section | HC25 |
|---|---|
| Effective Length (in) | 36 |
| Effective Length (mm) | 914 |
| Notched | false |
| Outside Circumference (in) | 36.22 |
| Outside Circumference (mm) | 920 |
| Strand | 1 |
| Top Width (in) | 0.265 |
| Top Width (mm) | 6 |
| Angle. | 38 |
| Thickness (in) | 0.21 |
| Thickness (mm) | 5 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.1 |
7360
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 36 |
| Effective Length (mm) | 914 |
| Notched | true |
| Outside Circumference (in) | 36.83 |
| Outside Circumference (mm) | 935 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 650 |
| Weight (lbs.) | 0.19 |
7363
| Cross Section | HC25 |
|---|---|
| Effective Length (in) | 36.5 |
| Effective Length (mm) | 927 |
| Notched | false |
| Outside Circumference (in) | 36.81 |
| Outside Circumference (mm) | 935 |
| Strand | 1 |
| Top Width (in) | 0.265 |
| Top Width (mm) | 6 |
| Angle. | 38 |
| Thickness (in) | 0.21 |
| Thickness (mm) | 5 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.1 |
7365
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 36.5 |
| Effective Length (mm) | 927 |
| Notched | true |
| Outside Circumference (in) | 37.33 |
| Outside Circumference (mm) | 948 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 650 |
| Weight (lbs.) | 0.19 |
7369
| Cross Section | HC31 |
|---|---|
| Effective Length (in) | 37 |
| Effective Length (mm) | 940 |
| Notched | false |
| Outside Circumference (in) | 37.2 |
| Outside Circumference (mm) | 945 |
| Strand | 1 |
| Top Width (in) | 0.325 |
| Top Width (mm) | 8 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Customer Pack | 250 |
| Weight (lbs.) | 0.14 |
7375
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 37.5 |
| Effective Length (mm) | 953 |
| Notched | true |
| Outside Circumference (in) | 38.33 |
| Outside Circumference (mm) | 973.5 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 650 |
| Weight (lbs.) | 0.2 |
7380
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 37.98 |
| Effective Length (mm) | 965 |
| Notched | true |
| Outside Circumference (in) | 38.81 |
| Outside Circumference (mm) | 985 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 650 |
| Weight (lbs.) | 0.2 |
7381
| Cross Section | HC25 |
|---|---|
| Effective Length (in) | 38 |
| Effective Length (mm) | 965 |
| Notched | false |
| Outside Circumference (in) | 38.19 |
| Outside Circumference (mm) | 970 |
| Strand | 1 |
| Top Width (in) | 0.265 |
| Top Width (mm) | 6 |
| Angle. | 38 |
| Thickness (in) | 0.21 |
| Thickness (mm) | 5 |
| Customer Pack | 250 |
| Weight (lbs.) | 0.1 |
7384
| Cross Section | HC31 |
|---|---|
| Effective Length (in) | 38.5 |
| Effective Length (mm) | 978 |
| Notched | false |
| Outside Circumference (in) | 38.78 |
| Outside Circumference (mm) | 985 |
| Strand | 1 |
| Top Width (in) | 0.325 |
| Top Width (mm) | 8 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Customer Pack | 250 |
| Weight (lbs.) | 0.14 |
7385
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 38.51 |
| Effective Length (mm) | 978 |
| Notched | true |
| Outside Circumference (in) | 39.34 |
| Outside Circumference (mm) | 999 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 650 |
| Weight (lbs.) | 0.19 |
7388
| Cross Section | HC25 |
|---|---|
| Effective Length (in) | 39 |
| Effective Length (mm) | 991 |
| Notched | false |
| Outside Circumference (in) | 39.17 |
| Outside Circumference (mm) | 995 |
| Strand | 1 |
| Top Width (in) | 0.265 |
| Top Width (mm) | 6 |
| Angle. | 38 |
| Thickness (in) | 0.21 |
| Thickness (mm) | 5 |
| Customer Pack | 250 |
| Weight (lbs.) | 0.11 |
7390
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 39 |
| Effective Length (mm) | 991 |
| Notched | true |
| Outside Circumference (in) | 39.83 |
| Outside Circumference (mm) | 1011 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 650 |
| Weight (lbs.) | 0.2 |
7395
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 39.5 |
| Effective Length (mm) | 1003 |
| Notched | true |
| Outside Circumference (in) | 40.33 |
| Outside Circumference (mm) | 1024 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 500 |
| Weight (lbs.) | 0.2 |
7400
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 40 |
| Effective Length (mm) | 1016 |
| Notched | true |
| Outside Circumference (in) | 40.83 |
| Outside Circumference (mm) | 1037 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 500 |
| Weight (lbs.) | 0.21 |
7404
| Cross Section | HC31 |
|---|---|
| Effective Length (in) | 40.5 |
| Effective Length (mm) | 1029 |
| Notched | false |
| Outside Circumference (in) | 40.75 |
| Outside Circumference (mm) | 1035 |
| Strand | 1 |
| Top Width (in) | 0.325 |
| Top Width (mm) | 8 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Customer Pack | 20 |
| Weight (lbs.) | 0.16 |
7405
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 40.5 |
| Effective Length (mm) | 1029 |
| Notched | true |
| Outside Circumference (in) | 41.33 |
| Outside Circumference (mm) | 1049 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 500 |
| Weight (lbs.) | 0.21 |
7410
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 40.99 |
| Effective Length (mm) | 1041 |
| Notched | true |
| Outside Circumference (in) | 41.82 |
| Outside Circumference (mm) | 1062 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 500 |
| Weight (lbs.) | 0.21 |
7417
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 41.5 |
| Effective Length (mm) | 1054 |
| Notched | true |
| Outside Circumference (in) | 42.33 |
| Outside Circumference (mm) | 1075 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 500 |
| Weight (lbs.) | 0.22 |
7419
| Cross Section | HC31 |
|---|---|
| Effective Length (in) | 42 |
| Effective Length (mm) | 1067 |
| Notched | false |
| Outside Circumference (in) | 42.32 |
| Outside Circumference (mm) | 1075 |
| Strand | 1 |
| Top Width (in) | 0.325 |
| Top Width (mm) | 8 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Customer Pack | 125 |
| Weight (lbs.) | 0.17 |
7420
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 42 |
| Effective Length (mm) | 1067 |
| Notched | true |
| Outside Circumference (in) | 42.83 |
| Outside Circumference (mm) | 1087 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 500 |
| Weight (lbs.) | 0.22 |
7425
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 42.51 |
| Effective Length (mm) | 1080 |
| Notched | true |
| Outside Circumference (in) | 43.34 |
| Outside Circumference (mm) | 1101 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 500 |
| Weight (lbs.) | 0.22 |
7430
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 43 |
| Effective Length (mm) | 1092 |
| Notched | true |
| Outside Circumference (in) | 43.83 |
| Outside Circumference (mm) | 1113 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 20 |
| Weight (lbs.) | 0.22 |
7435
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 43.5 |
| Effective Length (mm) | 1105 |
| Notched | true |
| Outside Circumference (in) | 44.33 |
| Outside Circumference (mm) | 1126 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 500 |
| Weight (lbs.) | 0.22 |
7440
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 44 |
| Effective Length (mm) | 1118 |
| Notched | true |
| Outside Circumference (in) | 44.83 |
| Outside Circumference (mm) | 1138 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 500 |
| Weight (lbs.) | 0.22 |
7444
| Cross Section | HC31 |
|---|---|
| Effective Length (in) | 44.5 |
| Effective Length (mm) | 1130 |
| Notched | false |
| Outside Circumference (in) | 44.69 |
| Outside Circumference (mm) | 1135 |
| Strand | 1 |
| Top Width (in) | 0.325 |
| Top Width (mm) | 8 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.17 |
7445
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 44.5 |
| Effective Length (mm) | 1130 |
| Notched | true |
| Outside Circumference (in) | 45.33 |
| Outside Circumference (mm) | 1151 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 500 |
| Weight (lbs.) | 0.23 |
7447M
| Cross Section | HC38 |
|---|---|
| Effective Length (in) | 44.78 |
| Effective Length (mm) | 1137 |
| Notched | false |
| Outside Circumference (in) | 45.25 |
| Outside Circumference (mm) | 1149 |
| Strand | 1 |
| Top Width (in) | 0.406 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 25 |
| Weight (lbs.) | 0.38 |
7448
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 44.75 |
| Effective Length (mm) | 1137 |
| Notched | true |
| Outside Circumference (in) | 45.58 |
| Outside Circumference (mm) | 1158 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 500 |
| Weight (lbs.) | 0.23 |
7450
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 45 |
| Effective Length (mm) | 1143 |
| Notched | true |
| Outside Circumference (in) | 45.82 |
| Outside Circumference (mm) | 1164 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 500 |
| Weight (lbs.) | 0.23 |
7453
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 45.25 |
| Effective Length (mm) | 1149 |
| Notched | true |
| Outside Circumference (in) | 46.07 |
| Outside Circumference (mm) | 1170 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.23 |
7455
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 45.5 |
| Effective Length (mm) | 1156 |
| Notched | true |
| Outside Circumference (in) | 46.32 |
| Outside Circumference (mm) | 1176.5 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.23 |
7460
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 46 |
| Effective Length (mm) | 1168 |
| Notched | true |
| Outside Circumference (in) | 46.82 |
| Outside Circumference (mm) | 1189 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.24 |
7465
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 46.5 |
| Effective Length (mm) | 1181 |
| Notched | true |
| Outside Circumference (in) | 47.32 |
| Outside Circumference (mm) | 1202 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.24 |
7470
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 47 |
| Effective Length (mm) | 1194 |
| Notched | true |
| Outside Circumference (in) | 47.82 |
| Outside Circumference (mm) | 1215 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.24 |
7473
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 47.25 |
| Effective Length (mm) | 1200 |
| Notched | true |
| Outside Circumference (in) | 48.07 |
| Outside Circumference (mm) | 1221 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 98 |
| Weight (lbs.) | 0.24 |
7475
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 47.5 |
| Effective Length (mm) | 1207 |
| Notched | true |
| Outside Circumference (in) | 48.32 |
| Outside Circumference (mm) | 1227 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.24 |
7480
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 48 |
| Effective Length (mm) | 1219 |
| Notched | true |
| Outside Circumference (in) | 48.82 |
| Outside Circumference (mm) | 1240 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.24 |
7483
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 48.3 |
| Effective Length (mm) | 1227 |
| Notched | true |
| Outside Circumference (in) | 49.12 |
| Outside Circumference (mm) | 1247 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.25 |
7485
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 48.5 |
| Effective Length (mm) | 1232 |
| Notched | true |
| Outside Circumference (in) | 49.32 |
| Outside Circumference (mm) | 1253 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.25 |
7490
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 49 |
| Effective Length (mm) | 1245 |
| Notched | true |
| Outside Circumference (in) | 49.83 |
| Outside Circumference (mm) | 1266 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.26 |
7495
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 49.5 |
| Effective Length (mm) | 1257 |
| Notched | true |
| Outside Circumference (in) | 50.32 |
| Outside Circumference (mm) | 1278 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.25 |
7496
| Cross Section | HC31 |
|---|---|
| Effective Length (in) | 49.5 |
| Effective Length (mm) | 1257 |
| Notched | false |
| Outside Circumference (in) | 49.61 |
| Outside Circumference (mm) | 1260 |
| Strand | 1 |
| Top Width (in) | 0.325 |
| Top Width (mm) | 8 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Customer Pack | 125 |
| Weight (lbs.) | 0.19 |
7500
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 49.99 |
| Effective Length (mm) | 1270 |
| Notched | true |
| Outside Circumference (in) | 50.81 |
| Outside Circumference (mm) | 1290 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.26 |
7508
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 50.49 |
| Effective Length (mm) | 1282 |
| Notched | true |
| Outside Circumference (in) | 51.31 |
| Outside Circumference (mm) | 1303 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.24 |
7512
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 51 |
| Effective Length (mm) | 1295 |
| Notched | true |
| Outside Circumference (in) | 51.82 |
| Outside Circumference (mm) | 1316 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.25 |
7516
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 51.5 |
| Effective Length (mm) | 1308 |
| Notched | true |
| Outside Circumference (in) | 52.32 |
| Outside Circumference (mm) | 1329 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.25 |
7520
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 52 |
| Effective Length (mm) | 1321 |
| Notched | true |
| Outside Circumference (in) | 52.82 |
| Outside Circumference (mm) | 1342 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.25 |
7525
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 52.5 |
| Effective Length (mm) | 1334 |
| Notched | true |
| Outside Circumference (in) | 53.32 |
| Outside Circumference (mm) | 1354 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.25 |
7530
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 53 |
| Effective Length (mm) | 1346 |
| Notched | true |
| Outside Circumference (in) | 53.82 |
| Outside Circumference (mm) | 1367 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.27 |
7535
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 53.51 |
| Effective Length (mm) | 1359 |
| Notched | true |
| Outside Circumference (in) | 54.33 |
| Outside Circumference (mm) | 1380 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.28 |
7541
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 54 |
| Effective Length (mm) | 1372 |
| Notched | true |
| Outside Circumference (in) | 54.82 |
| Outside Circumference (mm) | 1392 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.28 |
7545
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 54.5 |
| Effective Length (mm) | 1384 |
| Notched | true |
| Outside Circumference (in) | 55.32 |
| Outside Circumference (mm) | 1405 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.26 |
7550
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 55 |
| Effective Length (mm) | 1397 |
| Notched | true |
| Outside Circumference (in) | 55.82 |
| Outside Circumference (mm) | 1418 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.28 |
7555
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 55.5 |
| Effective Length (mm) | 1410 |
| Notched | true |
| Outside Circumference (in) | 56.31 |
| Outside Circumference (mm) | 1430 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.29 |
7560
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 56 |
| Effective Length (mm) | 1422 |
| Notched | true |
| Outside Circumference (in) | 56.81 |
| Outside Circumference (mm) | 1443 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.27 |
7565
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 56.5 |
| Effective Length (mm) | 1435 |
| Notched | true |
| Outside Circumference (in) | 57.31 |
| Outside Circumference (mm) | 1456 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.27 |
7570
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 57 |
| Effective Length (mm) | 1448 |
| Notched | true |
| Outside Circumference (in) | 57.81 |
| Outside Circumference (mm) | 1468 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.29 |
7575
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 57.5 |
| Effective Length (mm) | 1461 |
| Notched | true |
| Outside Circumference (in) | 58.31 |
| Outside Circumference (mm) | 1481 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.27 |
7580
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 58 |
| Effective Length (mm) | 1473 |
| Notched | true |
| Outside Circumference (in) | 58.81 |
| Outside Circumference (mm) | 1494 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.28 |
7585
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 58.5 |
| Effective Length (mm) | 1486 |
| Notched | true |
| Outside Circumference (in) | 59.31 |
| Outside Circumference (mm) | 1506 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.3 |
7590
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 59 |
| Effective Length (mm) | 1499 |
| Notched | true |
| Outside Circumference (in) | 59.81 |
| Outside Circumference (mm) | 1519 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.28 |
7597
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 59.5 |
| Effective Length (mm) | 1511 |
| Notched | true |
| Outside Circumference (in) | 60.31 |
| Outside Circumference (mm) | 1532 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 375 |
| Weight (lbs.) | 0.28 |
7603
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 60 |
| Effective Length (mm) | 1524 |
| Notched | true |
| Outside Circumference (in) | 60.81 |
| Outside Circumference (mm) | 1544.5 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 375 |
| Weight (lbs.) | 0.31 |
7612
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 61 |
| Effective Length (mm) | 1549 |
| Notched | true |
| Outside Circumference (in) | 61.81 |
| Outside Circumference (mm) | 1570 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 375 |
| Weight (lbs.) | 0.32 |
7619
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 62 |
| Effective Length (mm) | 1575 |
| Notched | true |
| Outside Circumference (in) | 62.81 |
| Outside Circumference (mm) | 1595 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 125 |
| Weight (lbs.) | 0.29 |
7625
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 62.5 |
| Effective Length (mm) | 1588 |
| Notched | true |
| Outside Circumference (in) | 63.31 |
| Outside Circumference (mm) | 1608 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.32 |
7630
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 63 |
| Effective Length (mm) | 1600 |
| Notched | true |
| Outside Circumference (in) | 63.31 |
| Outside Circumference (mm) | 1608 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.32 |
7640
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 64 |
| Effective Length (mm) | 1626 |
| Notched | true |
| Outside Circumference (in) | 64.81 |
| Outside Circumference (mm) | 1646 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 375 |
| Weight (lbs.) | 0.3 |
7650
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 65 |
| Effective Length (mm) | 1651 |
| Notched | true |
| Outside Circumference (in) | 65.8 |
| Outside Circumference (mm) | 1671 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.33 |
7660
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 66 |
| Effective Length (mm) | 1676 |
| Notched | true |
| Outside Circumference (in) | 66.8 |
| Outside Circumference (mm) | 1697 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.34 |
7665
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 66.5 |
| Effective Length (mm) | 1689 |
| Notched | true |
| Outside Circumference (in) | 67.3 |
| Outside Circumference (mm) | 1709 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.34 |
7673
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 67 |
| Effective Length (mm) | 1702 |
| Notched | true |
| Outside Circumference (in) | 67.8 |
| Outside Circumference (mm) | 1722 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.34 |
7680
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 68 |
| Effective Length (mm) | 1727 |
| Notched | true |
| Outside Circumference (in) | 68.8 |
| Outside Circumference (mm) | 1747.5 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.35 |
7695
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 69.5 |
| Effective Length (mm) | 1765 |
| Notched | true |
| Outside Circumference (in) | 70.3 |
| Outside Circumference (mm) | 1785 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.31 |
7730
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 73 |
| Effective Length (mm) | 1854 |
| Notched | true |
| Outside Circumference (in) | 73.79 |
| Outside Circumference (mm) | 1874 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.35 |
7760
| Cross Section | HC41 |
|---|---|
| Effective Length (in) | 75.99 |
| Effective Length (mm) | 1930 |
| Notched | true |
| Outside Circumference (in) | 76.78 |
| Outside Circumference (mm) | 1950 |
| Strand | 1 |
| Top Width (in) | 0.41 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Customer Pack | 75 |
| Weight (lbs.) | 0.4 |
9245
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 24.5 |
| Effective Length (mm) | 622 |
| Notched | true |
| Outside Circumference (in) | 25.14 |
| Outside Circumference (mm) | 638.5 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 800 |
| Weight (lbs.) | 0.17 |
9255
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 25.5 |
| Effective Length (mm) | 648 |
| Notched | true |
| Outside Circumference (in) | 26.13 |
| Outside Circumference (mm) | 664 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 800 |
| Weight (lbs.) | 0.18 |
9260
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 26 |
| Effective Length (mm) | 660 |
| Notched | true |
| Outside Circumference (in) | 26.63 |
| Outside Circumference (mm) | 676 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 20 |
| Weight (lbs.) | 0.19 |
9265
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 26.5 |
| Effective Length (mm) | 673 |
| Notched | true |
| Outside Circumference (in) | 27.13 |
| Outside Circumference (mm) | 689 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.19 |
9270
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 27 |
| Effective Length (mm) | 686 |
| Notched | true |
| Outside Circumference (in) | 27.63 |
| Outside Circumference (mm) | 702 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.19 |
9279
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 27.89 |
| Effective Length (mm) | 708 |
| Notched | true |
| Outside Circumference (in) | 28.52 |
| Outside Circumference (mm) | 724 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 700 |
| Weight (lbs.) | 0.2 |
9290
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 29 |
| Effective Length (mm) | 737 |
| Notched | true |
| Outside Circumference (in) | 29.63 |
| Outside Circumference (mm) | 753 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 700 |
| Weight (lbs.) | 0.2 |
9295
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 29.5 |
| Effective Length (mm) | 749 |
| Notched | true |
| Outside Circumference (in) | 30.13 |
| Outside Circumference (mm) | 765 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 700 |
| Weight (lbs.) | 0.21 |
9300
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 30 |
| Effective Length (mm) | 762 |
| Notched | true |
| Outside Circumference (in) | 30.63 |
| Outside Circumference (mm) | 778 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.21 |
9305
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 30.5 |
| Effective Length (mm) | 775 |
| Notched | true |
| Outside Circumference (in) | 31.13 |
| Outside Circumference (mm) | 791 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 600 |
| Weight (lbs.) | 0.21 |
9309
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 31 |
| Effective Length (mm) | 787 |
| Notched | true |
| Outside Circumference (in) | 31.63 |
| Outside Circumference (mm) | 803 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 600 |
| Weight (lbs.) | 0.22 |
9313
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 31.48 |
| Effective Length (mm) | 800 |
| Notched | true |
| Outside Circumference (in) | 32.11 |
| Outside Circumference (mm) | 815.5 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 600 |
| Weight (lbs.) | 0.22 |
9319
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 32 |
| Effective Length (mm) | 813 |
| Notched | true |
| Outside Circumference (in) | 32.63 |
| Outside Circumference (mm) | 829 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 600 |
| Weight (lbs.) | 0.22 |
9325
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 32.5 |
| Effective Length (mm) | 826 |
| Notched | true |
| Outside Circumference (in) | 33.13 |
| Outside Circumference (mm) | 841.5 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 600 |
| Weight (lbs.) | 0.22 |
9330
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 33 |
| Effective Length (mm) | 838 |
| Notched | true |
| Outside Circumference (in) | 33.63 |
| Outside Circumference (mm) | 854 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 600 |
| Weight (lbs.) | 0.24 |
9335
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 33.5 |
| Effective Length (mm) | 851 |
| Notched | true |
| Outside Circumference (in) | 34.13 |
| Outside Circumference (mm) | 867 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 600 |
| Weight (lbs.) | 0.24 |
9345
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 34.5 |
| Effective Length (mm) | 876 |
| Notched | true |
| Outside Circumference (in) | 35.13 |
| Outside Circumference (mm) | 892 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 550 |
| Weight (lbs.) | 0.24 |
9348M
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 34.84 |
| Effective Length (mm) | 885 |
| Notched | true |
| Outside Circumference (in) | 35.25 |
| Outside Circumference (mm) | 895 |
| Strand | 1 |
| Top Width (in) | 0.531 |
| Top Width (mm) | 13 |
| Angle. | 30 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 76 |
| Weight (lbs.) | 0.22 |
9350
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 35 |
| Effective Length (mm) | 889 |
| Notched | true |
| Outside Circumference (in) | 35.62 |
| Outside Circumference (mm) | 905 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 550 |
| Weight (lbs.) | 0.25 |
9355
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 35.5 |
| Effective Length (mm) | 902 |
| Notched | true |
| Outside Circumference (in) | 36.12 |
| Outside Circumference (mm) | 917 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 550 |
| Weight (lbs.) | 0.24 |
9360
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 36 |
| Effective Length (mm) | 914 |
| Notched | true |
| Outside Circumference (in) | 36.62 |
| Outside Circumference (mm) | 930 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 550 |
| Weight (lbs.) | 0.25 |
9362M
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 36.23 |
| Effective Length (mm) | 920 |
| Notched | true |
| Outside Circumference (in) | 36.625 |
| Outside Circumference (mm) | 930 |
| Strand | 1 |
| Top Width (in) | 0.531 |
| Top Width (mm) | 13 |
| Angle. | 30 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.2 |
9365
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 36.5 |
| Effective Length (mm) | 927 |
| Notched | true |
| Outside Circumference (in) | 36.88 |
| Outside Circumference (mm) | 937 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 550 |
| Weight (lbs.) | 0.26 |
9370
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 36.98 |
| Effective Length (mm) | 939 |
| Notched | true |
| Outside Circumference (in) | 37.6 |
| Outside Circumference (mm) | 955 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 550 |
| Weight (lbs.) | 0.26 |
9375
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 37.5 |
| Effective Length (mm) | 953 |
| Notched | true |
| Outside Circumference (in) | 38.12 |
| Outside Circumference (mm) | 968 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.26 |
9378
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 37.73 |
| Effective Length (mm) | 958 |
| Notched | true |
| Outside Circumference (in) | 38.35 |
| Outside Circumference (mm) | 974 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 125 |
| Weight (lbs.) | 0.26 |
9380
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 38 |
| Effective Length (mm) | 965 |
| Notched | true |
| Outside Circumference (in) | 38.62 |
| Outside Circumference (mm) | 981 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.27 |
9385
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 38.5 |
| Effective Length (mm) | 978 |
| Notched | true |
| Outside Circumference (in) | 39.12 |
| Outside Circumference (mm) | 994 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.27 |
9390
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 38.99 |
| Effective Length (mm) | 990 |
| Notched | true |
| Outside Circumference (in) | 39.61 |
| Outside Circumference (mm) | 1006 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.28 |
9395
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 39.5 |
| Effective Length (mm) | 1003 |
| Notched | true |
| Outside Circumference (in) | 40.12 |
| Outside Circumference (mm) | 1019 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.28 |
9400
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 40 |
| Effective Length (mm) | 1016 |
| Notched | true |
| Outside Circumference (in) | 40.62 |
| Outside Circumference (mm) | 1031 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.28 |
9403
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 40.25 |
| Effective Length (mm) | 1022 |
| Notched | true |
| Outside Circumference (in) | 40.87 |
| Outside Circumference (mm) | 1038 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.28 |
9405
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 40.5 |
| Effective Length (mm) | 1029 |
| Notched | true |
| Outside Circumference (in) | 41.12 |
| Outside Circumference (mm) | 1044 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.28 |
9412
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 41 |
| Effective Length (mm) | 1041 |
| Notched | true |
| Outside Circumference (in) | 41.62 |
| Outside Circumference (mm) | 1057 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.29 |
9415
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 41.5 |
| Effective Length (mm) | 1054 |
| Notched | true |
| Outside Circumference (in) | 42.12 |
| Outside Circumference (mm) | 1070 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.29 |
9420
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 42 |
| Effective Length (mm) | 1067 |
| Notched | true |
| Outside Circumference (in) | 42.62 |
| Outside Circumference (mm) | 1082 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 450 |
| Weight (lbs.) | 0.29 |
9425
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 42.5 |
| Effective Length (mm) | 1080 |
| Notched | true |
| Outside Circumference (in) | 43.12 |
| Outside Circumference (mm) | 1095 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.3 |
9430
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 43 |
| Effective Length (mm) | 1092 |
| Notched | true |
| Outside Circumference (in) | 43.62 |
| Outside Circumference (mm) | 1108 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.3 |
9435
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 43.5 |
| Effective Length (mm) | 1105 |
| Notched | true |
| Outside Circumference (in) | 44.12 |
| Outside Circumference (mm) | 1120 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.3 |
9440
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 44 |
| Effective Length (mm) | 1118 |
| Notched | true |
| Outside Circumference (in) | 44.62 |
| Outside Circumference (mm) | 1133 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.31 |
9447
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 44.5 |
| Effective Length (mm) | 1130 |
| Notched | true |
| Outside Circumference (in) | 45.12 |
| Outside Circumference (mm) | 1146 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.31 |
9451
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 45 |
| Effective Length (mm) | 1143 |
| Notched | true |
| Outside Circumference (in) | 45.62 |
| Outside Circumference (mm) | 1159 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.35 |
9452M
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 45.22 |
| Effective Length (mm) | 1149 |
| Notched | true |
| Outside Circumference (in) | 45.625 |
| Outside Circumference (mm) | 1158 |
| Strand | 1 |
| Top Width (in) | 0.531 |
| Top Width (mm) | 13 |
| Angle. | 30 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.3 |
9453M
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 45.34 |
| Effective Length (mm) | 1152 |
| Notched | true |
| Outside Circumference (in) | 45.75 |
| Outside Circumference (mm) | 1161 |
| Strand | 1 |
| Top Width (in) | 0.531 |
| Top Width (mm) | 13 |
| Angle. | 30 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.4 |
9455
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 45.5 |
| Effective Length (mm) | 1156 |
| Notched | true |
| Outside Circumference (in) | 46.11 |
| Outside Circumference (mm) | 1171 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.32 |
9463
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 46 |
| Effective Length (mm) | 1168 |
| Notched | true |
| Outside Circumference (in) | 46.61 |
| Outside Circumference (mm) | 1184 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.33 |
9465
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 46.5 |
| Effective Length (mm) | 1181 |
| Notched | true |
| Outside Circumference (in) | 47.11 |
| Outside Circumference (mm) | 1196.5 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.32 |
9470
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 47 |
| Effective Length (mm) | 1194 |
| Notched | true |
| Outside Circumference (in) | 47.61 |
| Outside Circumference (mm) | 1209 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.33 |
9476
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 47.5 |
| Effective Length (mm) | 1207 |
| Notched | true |
| Outside Circumference (in) | 48.11 |
| Outside Circumference (mm) | 1222 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.33 |
9480
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 48 |
| Effective Length (mm) | 1219 |
| Notched | true |
| Outside Circumference (in) | 48.61 |
| Outside Circumference (mm) | 1235 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.34 |
9485
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 48.5 |
| Effective Length (mm) | 1232 |
| Notched | true |
| Outside Circumference (in) | 49.11 |
| Outside Circumference (mm) | 1247 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.34 |
9490
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 49 |
| Effective Length (mm) | 1245 |
| Notched | true |
| Outside Circumference (in) | 49.61 |
| Outside Circumference (mm) | 1260 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.35 |
9492M
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 49.21 |
| Effective Length (mm) | 1250 |
| Notched | true |
| Outside Circumference (in) | 49.625 |
| Outside Circumference (mm) | 1259 |
| Strand | 1 |
| Top Width (in) | 0.579 |
| Top Width (mm) | 15 |
| Angle. | 40 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.25 |
9495
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 49.5 |
| Effective Length (mm) | 1257 |
| Notched | true |
| Outside Circumference (in) | 50.11 |
| Outside Circumference (mm) | 1273 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.34 |
9500
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 50 |
| Effective Length (mm) | 1270 |
| Notched | true |
| Outside Circumference (in) | 50.61 |
| Outside Circumference (mm) | 1285.5 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.35 |
9505
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 50.5 |
| Effective Length (mm) | 1283 |
| Notched | true |
| Outside Circumference (in) | 51.11 |
| Outside Circumference (mm) | 1298 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.35 |
9510
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 51 |
| Effective Length (mm) | 1295 |
| Notched | true |
| Outside Circumference (in) | 51.61 |
| Outside Circumference (mm) | 1311 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 350 |
| Weight (lbs.) | 0.36 |
9520
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 52 |
| Effective Length (mm) | 1321 |
| Notched | true |
| Outside Circumference (in) | 52.61 |
| Outside Circumference (mm) | 1336 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 350 |
| Weight (lbs.) | 0.36 |
9525
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 52.5 |
| Effective Length (mm) | 1334 |
| Notched | true |
| Outside Circumference (in) | 53.11 |
| Outside Circumference (mm) | 1349 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 350 |
| Weight (lbs.) | 0.35 |
9530
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 53 |
| Effective Length (mm) | 1346 |
| Notched | true |
| Outside Circumference (in) | 53.61 |
| Outside Circumference (mm) | 1362 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 270 |
| Weight (lbs.) | 0.37 |
9540
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 54 |
| Effective Length (mm) | 1372 |
| Notched | true |
| Outside Circumference (in) | 54.61 |
| Outside Circumference (mm) | 1387 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 350 |
| Weight (lbs.) | 0.37 |
9545
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 54.5 |
| Effective Length (mm) | 1384 |
| Notched | true |
| Outside Circumference (in) | 55.11 |
| Outside Circumference (mm) | 1399 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.37 |
9550
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 55 |
| Effective Length (mm) | 1397 |
| Notched | true |
| Outside Circumference (in) | 55.61 |
| Outside Circumference (mm) | 1412 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 350 |
| Weight (lbs.) | 0.39 |
9551M
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 55.18 |
| Effective Length (mm) | 1402 |
| Notched | true |
| Outside Circumference (in) | 55.5 |
| Outside Circumference (mm) | 1411 |
| Strand | 1 |
| Top Width (in) | 0.531 |
| Top Width (mm) | 13 |
| Angle. | 40 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 350 |
| Weight (lbs.) | 0.35 |
9560
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 56 |
| Effective Length (mm) | 1422 |
| Notched | true |
| Outside Circumference (in) | 56.61 |
| Outside Circumference (mm) | 1438 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.38 |
9565
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 56.5 |
| Effective Length (mm) | 1435 |
| Notched | true |
| Outside Circumference (in) | 57.1 |
| Outside Circumference (mm) | 1450 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.38 |
9570
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 57 |
| Effective Length (mm) | 1448 |
| Notched | true |
| Outside Circumference (in) | 57.6 |
| Outside Circumference (mm) | 1463 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.4 |
9585
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 58.5 |
| Effective Length (mm) | 1486 |
| Notched | true |
| Outside Circumference (in) | 59.1 |
| Outside Circumference (mm) | 1501 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.36 |
9590
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 59 |
| Effective Length (mm) | 1499 |
| Notched | true |
| Outside Circumference (in) | 59.6 |
| Outside Circumference (mm) | 1539 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.4 |
9600
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 60 |
| Effective Length (mm) | 1524 |
| Notched | true |
| Outside Circumference (in) | 60.6 |
| Outside Circumference (mm) | 1539 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.42 |
9605
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 60.5 |
| Effective Length (mm) | 1537 |
| Notched | true |
| Outside Circumference (in) | 61.1 |
| Outside Circumference (mm) | 1552 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.41 |
9610
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 61 |
| Effective Length (mm) | 1549 |
| Notched | true |
| Outside Circumference (in) | 61.6 |
| Outside Circumference (mm) | 1552 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.41 |
9620
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 62 |
| Effective Length (mm) | 1575 |
| Notched | true |
| Outside Circumference (in) | 62.6 |
| Outside Circumference (mm) | 1590 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.42 |
9625
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 62.5 |
| Effective Length (mm) | 1588 |
| Notched | true |
| Outside Circumference (in) | 63.1 |
| Outside Circumference (mm) | 1603 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.42 |
9630
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 63 |
| Effective Length (mm) | 1600 |
| Notched | true |
| Outside Circumference (in) | 63.6 |
| Outside Circumference (mm) | 1615 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.42 |
9635
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 63.5 |
| Effective Length (mm) | 1613 |
| Notched | true |
| Outside Circumference (in) | 64.1 |
| Outside Circumference (mm) | 1628 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.43 |
9640
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 64.01 |
| Effective Length (mm) | 1626 |
| Notched | true |
| Outside Circumference (in) | 64.61 |
| Outside Circumference (mm) | 1641 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.44 |
9650
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 65.01 |
| Effective Length (mm) | 1651 |
| Notched | true |
| Outside Circumference (in) | 65.6 |
| Outside Circumference (mm) | 1666 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.44 |
9660
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 66 |
| Effective Length (mm) | 1676 |
| Notched | true |
| Outside Circumference (in) | 66.59 |
| Outside Circumference (mm) | 1691 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.44 |
9670
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 67 |
| Effective Length (mm) | 1702 |
| Notched | true |
| Outside Circumference (in) | 67.59 |
| Outside Circumference (mm) | 1716 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.45 |
9680
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 68 |
| Effective Length (mm) | 1727 |
| Notched | true |
| Outside Circumference (in) | 68.59 |
| Outside Circumference (mm) | 1742 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.45 |
9690
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 69 |
| Effective Length (mm) | 1753 |
| Notched | true |
| Outside Circumference (in) | 69.59 |
| Outside Circumference (mm) | 1767 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.47 |
9700
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 70 |
| Effective Length (mm) | 1778 |
| Notched | true |
| Outside Circumference (in) | 70.59 |
| Outside Circumference (mm) | 1793 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 250 |
| Weight (lbs.) | 0.47 |
9710
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 71 |
| Effective Length (mm) | 1803 |
| Notched | true |
| Outside Circumference (in) | 71.59 |
| Outside Circumference (mm) | 1818 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 250 |
| Weight (lbs.) | 0.48 |
9720
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 72 |
| Effective Length (mm) | 1829 |
| Notched | true |
| Outside Circumference (in) | 72.59 |
| Outside Circumference (mm) | 1844 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 250 |
| Weight (lbs.) | 0.48 |
9730
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 73 |
| Effective Length (mm) | 1854 |
| Notched | true |
| Outside Circumference (in) | 73.59 |
| Outside Circumference (mm) | 1869 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 250 |
| Weight (lbs.) | 0.49 |
9740
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 74 |
| Effective Length (mm) | 1880 |
| Notched | true |
| Outside Circumference (in) | 74.59 |
| Outside Circumference (mm) | 1894.5 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 250 |
| Weight (lbs.) | 0.5 |
9745
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 74.49 |
| Effective Length (mm) | 1892 |
| Notched | true |
| Outside Circumference (in) | 75.08 |
| Outside Circumference (mm) | 1907 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 65 |
| Weight (lbs.) | 0.5 |
9755
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 75.5 |
| Effective Length (mm) | 1918 |
| Notched | true |
| Outside Circumference (in) | 76.14 |
| Outside Circumference (mm) | 1934 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 250 |
| Weight (lbs.) | 0.51 |
9765
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 76.5 |
| Effective Length (mm) | 1943 |
| Notched | true |
| Outside Circumference (in) | 77.08 |
| Outside Circumference (mm) | 1958 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 65 |
| Weight (lbs.) | 0.51 |
9770
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 77 |
| Effective Length (mm) | 1956 |
| Notched | true |
| Outside Circumference (in) | 77.58 |
| Outside Circumference (mm) | 1970.5 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 65 |
| Weight (lbs.) | 0.52 |
9775
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 77.5 |
| Effective Length (mm) | 1969 |
| Notched | true |
| Outside Circumference (in) | 78.08 |
| Outside Circumference (mm) | 1983 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 70 |
| Weight (lbs.) | 0.53 |
9810
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 81 |
| Effective Length (mm) | 2057 |
| Notched | true |
| Outside Circumference (in) | 81.58 |
| Outside Circumference (mm) | 2072 |
| Strand | 1 |
| Top Width (in) | 0.47 |
| Top Width (mm) | 12 |
| Angle. | 36 |
| Thickness (in) | 0.36 |
| Thickness (mm) | 9 |
| Customer Pack | 60 |
| Weight (lbs.) | 0.55 |
870174834
No variation attributes.
87010013
No variation attributes.
870194054
No variation attributes.
87010014
No variation attributes.
870175904
No variation attributes.
870194254
No variation attributes.
87010015
No variation attributes.
870175004
No variation attributes.
87010012
No variation attributes.
Specifications
| Cross Section | HC41, HC31, HC25, HC38, HC50 |
|---|---|
| Effective Length (in) | 20.69 – 81 |
| Effective Length (mm) | 526 – 2057 |
| Notched | true, false |
| Outside Circumference (in) | 21.54 – 81.58 |
| Outside Circumference (mm) | 547 – 2072 |
| Strand | 1 |
| Top Width (in) | 0.265 – 0.579 |
| Top Width (mm) | 6 – 15 |
| Angle. | 30 – 40 |
| Thickness (in) | 0.21 – 0.37 |
| Thickness (mm) | 5 – 9 |
| Customer Pack | 20 – 850 |
| Weight (lbs.) | 0.07 – 0.55 |
PDF Documents
No PDF documents.
