Attributes
| Part Number | 8531-000000-000016 |
|---|
Description

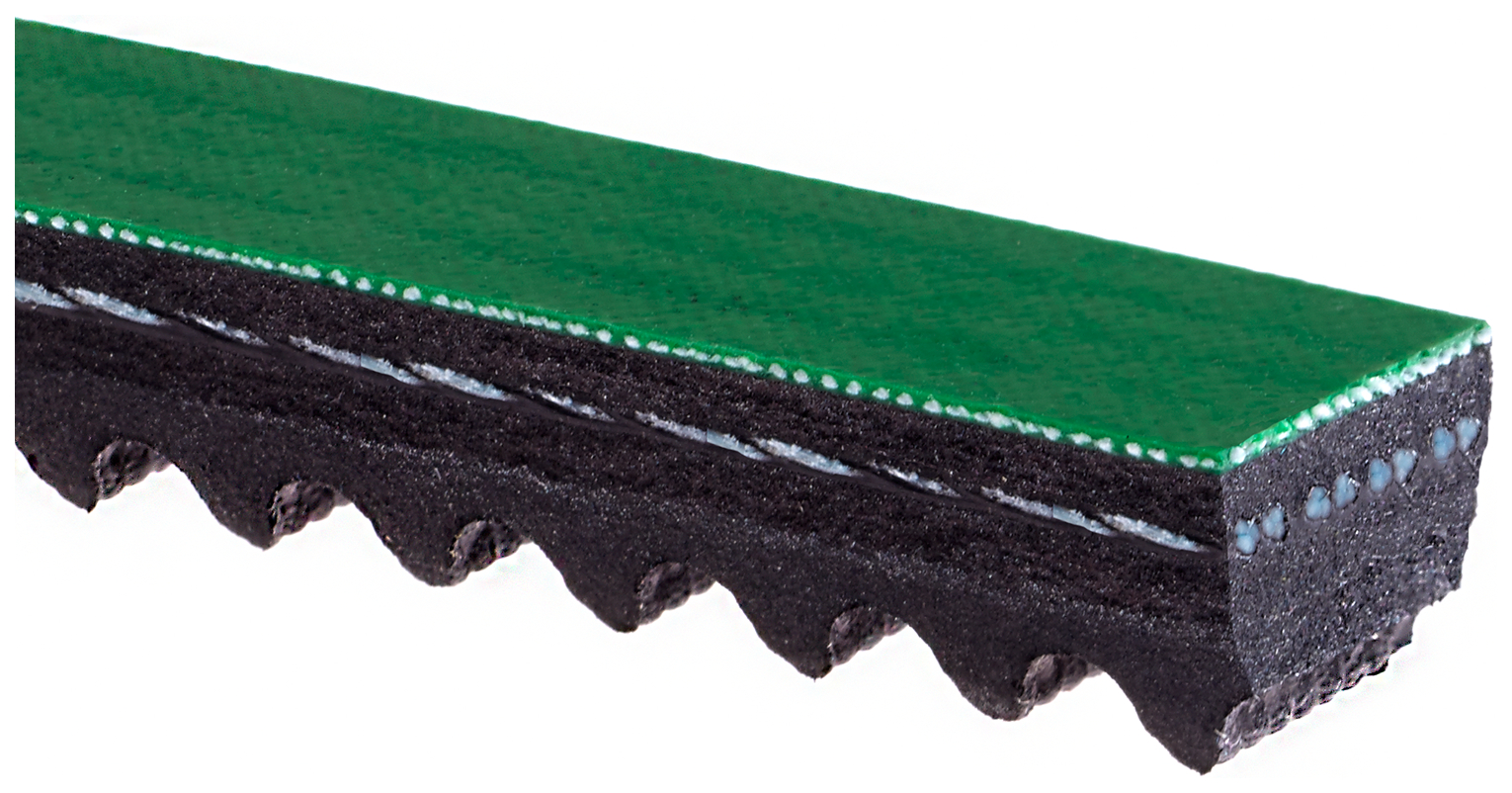

FleetRunner™ V-Belts Gates has coverage for hard-to-find belts used on specific lawn and garden applications, vintage vehicles and specialized equipment.
Variations (70)
9350HD
No variation attributes.
9455HD
No variation attributes.
9590HD
No variation attributes.
9680HD
No variation attributes.
9305HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 30.5 |
| Effective Length (mm) | 775 |
| Notched | true |
| Outside Circumference (in) | 30.88 |
| Outside Circumference (mm) | 784 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.32 |
9313HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 31.5 |
| Effective Length (mm) | 800 |
| Notched | true |
| Outside Circumference (in) | 31.88 |
| Outside Circumference (mm) | 810 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.33 |
9330HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 33 |
| Effective Length (mm) | 838 |
| Notched | true |
| Outside Circumference (in) | 33.38 |
| Outside Circumference (mm) | 848 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.34 |
9335HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 33.54 |
| Effective Length (mm) | 852 |
| Notched | true |
| Outside Circumference (in) | 33.92 |
| Outside Circumference (mm) | 862 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.35 |
9341HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 34 |
| Effective Length (mm) | 864 |
| Notched | true |
| Outside Circumference (in) | 34.38 |
| Outside Circumference (mm) | 873 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.35 |
9345HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 34.49 |
| Effective Length (mm) | 876 |
| Notched | true |
| Outside Circumference (in) | 34.87 |
| Outside Circumference (mm) | 886 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.36 |
9360HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 35.98 |
| Effective Length (mm) | 914 |
| Notched | true |
| Outside Circumference (in) | 36.36 |
| Outside Circumference (mm) | 924 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.37 |
9365HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 36.48 |
| Effective Length (mm) | 927 |
| Notched | true |
| Outside Circumference (in) | 36.86 |
| Outside Circumference (mm) | 936 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.38 |
9370HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 37.01 |
| Effective Length (mm) | 940 |
| Notched | true |
| Outside Circumference (in) | 37.39 |
| Outside Circumference (mm) | 950 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 150 |
| Weight (lbs.) | 0.38 |
9375HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 37.55 |
| Effective Length (mm) | 954 |
| Notched | true |
| Outside Circumference (in) | 37.93 |
| Outside Circumference (mm) | 963 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.42 |
9380HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 38 |
| Effective Length (mm) | 965 |
| Notched | true |
| Outside Circumference (in) | 38.38 |
| Outside Circumference (mm) | 975 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.43 |
9385HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 38.54 |
| Effective Length (mm) | 979 |
| Notched | true |
| Outside Circumference (in) | 38.92 |
| Outside Circumference (mm) | 989 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.43 |
9390HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 39 |
| Effective Length (mm) | 991 |
| Notched | true |
| Outside Circumference (in) | 39.38 |
| Outside Circumference (mm) | 1000 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.44 |
9395HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 39.52 |
| Effective Length (mm) | 1004 |
| Notched | true |
| Outside Circumference (in) | 39.9 |
| Outside Circumference (mm) | 1013 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.44 |
9400HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 40 |
| Effective Length (mm) | 1016 |
| Notched | true |
| Outside Circumference (in) | 40.38 |
| Outside Circumference (mm) | 1026 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.45 |
9405HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 40.47 |
| Effective Length (mm) | 1028 |
| Notched | true |
| Outside Circumference (in) | 40.85 |
| Outside Circumference (mm) | 1038 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.44 |
9412HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 41 |
| Effective Length (mm) | 1041 |
| Notched | true |
| Outside Circumference (in) | 41.38 |
| Outside Circumference (mm) | 1051 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.44 |
9415HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 41.53 |
| Effective Length (mm) | 1055 |
| Notched | true |
| Outside Circumference (in) | 41.91 |
| Outside Circumference (mm) | 1065 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.45 |
9420HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 41.96 |
| Effective Length (mm) | 1066 |
| Notched | true |
| Outside Circumference (in) | 42.34 |
| Outside Circumference (mm) | 1075 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.45 |
9425HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 42.47 |
| Effective Length (mm) | 1079 |
| Notched | true |
| Outside Circumference (in) | 42.85 |
| Outside Circumference (mm) | 1088 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.42 |
9430HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 43.05 |
| Effective Length (mm) | 1093 |
| Notched | true |
| Outside Circumference (in) | 43.43 |
| Outside Circumference (mm) | 1103 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.43 |
9435HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 43.5 |
| Effective Length (mm) | 1105 |
| Notched | true |
| Outside Circumference (in) | 43.88 |
| Outside Circumference (mm) | 1115 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.43 |
9440HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 44 |
| Effective Length (mm) | 1118 |
| Notched | true |
| Outside Circumference (in) | 44.38 |
| Outside Circumference (mm) | 1127 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.44 |
9447HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 44.46 |
| Effective Length (mm) | 1129 |
| Notched | true |
| Outside Circumference (in) | 44.84 |
| Outside Circumference (mm) | 1139 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.44 |
9451HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 45.07 |
| Effective Length (mm) | 1145 |
| Notched | true |
| Outside Circumference (in) | 45.45 |
| Outside Circumference (mm) | 1154 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.45 |
9463HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 46 |
| Effective Length (mm) | 1168 |
| Notched | true |
| Outside Circumference (in) | 46.38 |
| Outside Circumference (mm) | 1178 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.46 |
9465HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 46.47 |
| Effective Length (mm) | 1180 |
| Notched | true |
| Outside Circumference (in) | 46.85 |
| Outside Circumference (mm) | 1190 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.46 |
9470HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 47 |
| Effective Length (mm) | 1194 |
| Notched | true |
| Outside Circumference (in) | 47.38 |
| Outside Circumference (mm) | 1203 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.47 |
9476HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 47.56 |
| Effective Length (mm) | 1208 |
| Notched | true |
| Outside Circumference (in) | 47.94 |
| Outside Circumference (mm) | 1218 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.47 |
9480HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 48.09 |
| Effective Length (mm) | 1221 |
| Notched | true |
| Outside Circumference (in) | 48.47 |
| Outside Circumference (mm) | 1231 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.48 |
9485HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 48.45 |
| Effective Length (mm) | 1231 |
| Notched | true |
| Outside Circumference (in) | 48.83 |
| Outside Circumference (mm) | 1240 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.48 |
9490HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 49 |
| Effective Length (mm) | 1245 |
| Notched | true |
| Outside Circumference (in) | 49.38 |
| Outside Circumference (mm) | 1254 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.49 |
9495HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 49.53 |
| Effective Length (mm) | 1258 |
| Notched | true |
| Outside Circumference (in) | 49.91 |
| Outside Circumference (mm) | 1268 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.49 |
9500HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 50.05 |
| Effective Length (mm) | 1271 |
| Notched | true |
| Outside Circumference (in) | 50.43 |
| Outside Circumference (mm) | 1281 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 400 |
| Weight (lbs.) | 0.5 |
9505HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 50.5 |
| Effective Length (mm) | 1283 |
| Notched | true |
| Outside Circumference (in) | 50.88 |
| Outside Circumference (mm) | 1292 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.5 |
9510HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 51 |
| Effective Length (mm) | 1295 |
| Notched | true |
| Outside Circumference (in) | 51.38 |
| Outside Circumference (mm) | 1305 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 350 |
| Weight (lbs.) | 0.51 |
9520HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 52.06 |
| Effective Length (mm) | 1322 |
| Notched | true |
| Outside Circumference (in) | 52.44 |
| Outside Circumference (mm) | 1332 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.52 |
9525HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 52.5 |
| Effective Length (mm) | 1334 |
| Notched | true |
| Outside Circumference (in) | 52.88 |
| Outside Circumference (mm) | 1343 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.52 |
9530HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 53.05 |
| Effective Length (mm) | 1347 |
| Notched | true |
| Outside Circumference (in) | 53.43 |
| Outside Circumference (mm) | 1357 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 350 |
| Weight (lbs.) | 0.53 |
9540HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 54.01 |
| Effective Length (mm) | 1372 |
| Notched | true |
| Outside Circumference (in) | 54.39 |
| Outside Circumference (mm) | 1382 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 350 |
| Weight (lbs.) | 0.54 |
9545HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 54.45 |
| Effective Length (mm) | 1383 |
| Notched | true |
| Outside Circumference (in) | 54.83 |
| Outside Circumference (mm) | 1393 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 350 |
| Weight (lbs.) | 0.54 |
9550HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 55.04 |
| Effective Length (mm) | 1398 |
| Notched | true |
| Outside Circumference (in) | 55.42 |
| Outside Circumference (mm) | 1408 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.55 |
9555HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 55.45 |
| Effective Length (mm) | 1408 |
| Notched | true |
| Outside Circumference (in) | 55.83 |
| Outside Circumference (mm) | 1418 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.55 |
9560HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 56.02 |
| Effective Length (mm) | 1423 |
| Notched | true |
| Outside Circumference (in) | 56.4 |
| Outside Circumference (mm) | 1433 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.56 |
9565HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 56.45 |
| Effective Length (mm) | 1434 |
| Notched | true |
| Outside Circumference (in) | 56.83 |
| Outside Circumference (mm) | 1443 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.56 |
9570HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 57.04 |
| Effective Length (mm) | 1449 |
| Notched | true |
| Outside Circumference (in) | 57.42 |
| Outside Circumference (mm) | 1458 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.57 |
9580HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 58 |
| Effective Length (mm) | 1473 |
| Notched | true |
| Outside Circumference (in) | 58.38 |
| Outside Circumference (mm) | 1483 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.58 |
9585HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 58.5 |
| Effective Length (mm) | 1486 |
| Notched | true |
| Outside Circumference (in) | 58.88 |
| Outside Circumference (mm) | 1496 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.58 |
9600HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 60.03 |
| Effective Length (mm) | 1525 |
| Notched | true |
| Outside Circumference (in) | 60.41 |
| Outside Circumference (mm) | 1534 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.6 |
9605HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 60.59 |
| Effective Length (mm) | 1539 |
| Notched | true |
| Outside Circumference (in) | 60.97 |
| Outside Circumference (mm) | 1549 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.6 |
9610HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 61.07 |
| Effective Length (mm) | 1551 |
| Notched | true |
| Outside Circumference (in) | 61.45 |
| Outside Circumference (mm) | 1561 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.61 |
9620HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 61.98 |
| Effective Length (mm) | 1574 |
| Notched | true |
| Outside Circumference (in) | 62.36 |
| Outside Circumference (mm) | 1584 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.62 |
9625HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 62.43 |
| Effective Length (mm) | 1586 |
| Notched | true |
| Outside Circumference (in) | 62.875 |
| Outside Circumference (mm) | 1597 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.3 |
9630HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 63.02 |
| Effective Length (mm) | 1601 |
| Notched | true |
| Outside Circumference (in) | 63.4 |
| Outside Circumference (mm) | 1610 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.63 |
9635HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 63.53 |
| Effective Length (mm) | 1614 |
| Notched | true |
| Outside Circumference (in) | 63.91 |
| Outside Circumference (mm) | 1623 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.63 |
9640HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 64 |
| Effective Length (mm) | 1626 |
| Notched | true |
| Outside Circumference (in) | 64.38 |
| Outside Circumference (mm) | 1635 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.64 |
9650HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 65.01 |
| Effective Length (mm) | 1651 |
| Notched | true |
| Outside Circumference (in) | 65.39 |
| Outside Circumference (mm) | 1661 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.65 |
9660HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 66 |
| Effective Length (mm) | 1676 |
| Notched | true |
| Outside Circumference (in) | 66.38 |
| Outside Circumference (mm) | 1686 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 100 |
| Weight (lbs.) | 0.66 |
9670HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 67.01 |
| Effective Length (mm) | 1702 |
| Notched | true |
| Outside Circumference (in) | 67.39 |
| Outside Circumference (mm) | 1712 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 300 |
| Weight (lbs.) | 0.67 |
9690HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 69 |
| Effective Length (mm) | 1753 |
| Notched | true |
| Outside Circumference (in) | 69.38 |
| Outside Circumference (mm) | 1762 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.69 |
9700HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 70.01 |
| Effective Length (mm) | 1778 |
| Notched | true |
| Outside Circumference (in) | 70.39 |
| Outside Circumference (mm) | 1788 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.7 |
9710HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 71.01 |
| Effective Length (mm) | 1804 |
| Notched | true |
| Outside Circumference (in) | 71.39 |
| Outside Circumference (mm) | 1813 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.71 |
9720HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 72 |
| Effective Length (mm) | 1829 |
| Notched | true |
| Outside Circumference (in) | 72.38 |
| Outside Circumference (mm) | 1838 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.72 |
9730HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 72.95 |
| Effective Length (mm) | 1853 |
| Notched | true |
| Outside Circumference (in) | 73.33 |
| Outside Circumference (mm) | 1863 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 90 |
| Weight (lbs.) | 0.73 |
9745HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 74.41 |
| Effective Length (mm) | 1890 |
| Notched | true |
| Outside Circumference (in) | 74.875 |
| Outside Circumference (mm) | 1900 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 80 |
| Weight (lbs.) | 0.41 |
9755HD
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 75.57 |
| Effective Length (mm) | 1919 |
| Notched | true |
| Outside Circumference (in) | 75.95 |
| Outside Circumference (mm) | 1929 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 80 |
| Weight (lbs.) | 0.75 |
Specifications
| Cross Section | HC50 |
|---|---|
| Effective Length (in) | 30.5 – 75.57 |
| Effective Length (mm) | 775 – 1919 |
| Notched | true |
| Outside Circumference (in) | 30.88 – 75.95 |
| Outside Circumference (mm) | 784 – 1929 |
| Strand | 1 |
| Top Width (in) | 0.51 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.37 |
| Thickness (mm) | 9 |
| Customer Pack | 80 – 400 |
| Weight (lbs.) | 0.3 – 0.75 |
PDF Documents
No PDF documents.
