Attributes
| Part Number | 7347-000000-000001 |
|---|
Description
# G8K Couplings
Gates G8K stems and ferrules are designed specifically for use with G8K (8000 psi) hose.
- No-skive coupling offered only in Caterpillar-style, heavy-duty flange.
- Used on ultra-high pressure, high impulse applications.
- G8K hose and couplings offer industry leading bend radius capability.
Variations (7)
G19415-1212X
| T Drop (in) | 2.756 |
|---|---|
| C Cutoff (in) | 3.217 |
| C Cutoff (mm) | 81.7 |
| L Length (in) | 6.181 |
| L Length (mm) | 157 |
| Hose Inside Diameter (in) | 0.752 |
| Hose Inside Diameter (mm) | 19.1 |
| Inside Diameter (in) | 0.752 |
| Inside Diameter (mm) | 19.1 |
| Angle. | 90 |
| Material | Steel |
G19400-1616X
| C Cutoff (in) | 2.961 |
|---|---|
| C Cutoff (mm) | 75.2 |
| L Length (in) | 5.642 |
| L Length (mm) | 143.3 |
| Hose Inside Diameter (in) | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Material | Steel |

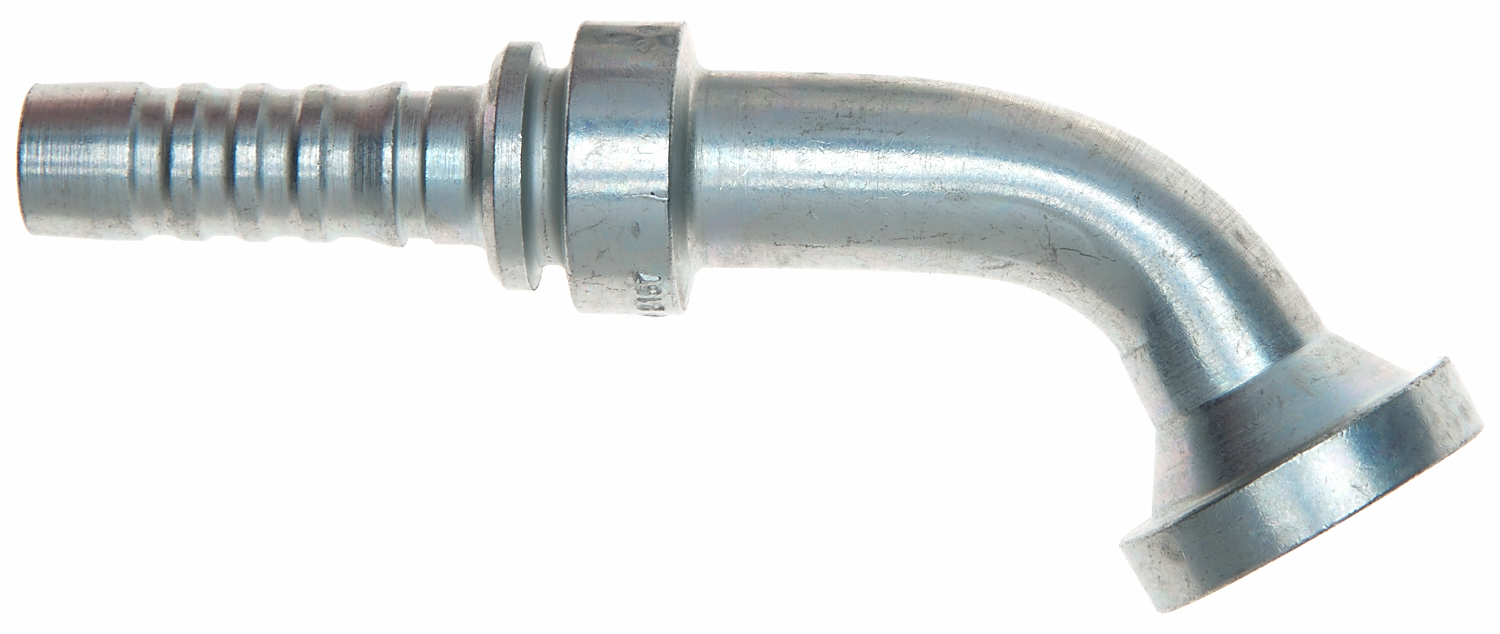

16G8K-16FLC45-050 XBULK
| T Drop (in) | 1.969 |
|---|---|
| C Cutoff (in) | 5.079 |
| C Cutoff (mm) | 129 |
| L Length (in) | 7.756 |
| L Length (mm) | 197 |
| Angle. | 45 |
G19415-1616X
| T Drop (in) | 3.661 |
|---|---|
| C Cutoff (in) | 3.787 |
| C Cutoff (mm) | 96.2 |
| L Length (in) | 6.457 |
| L Length (mm) | 164 |
| Hose Inside Diameter (in) | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Angle. | 90 |
| Material | Steel |
16G8K-16FLC90-117 XBULK
| T Drop (in) | 4.606 |
|---|---|
| C Cutoff (in) | 3.787 |
| C Cutoff (mm) | 96.2 |
| L Length (in) | 6.457 |
| L Length (mm) | 164 |
| Angle. | 90 |

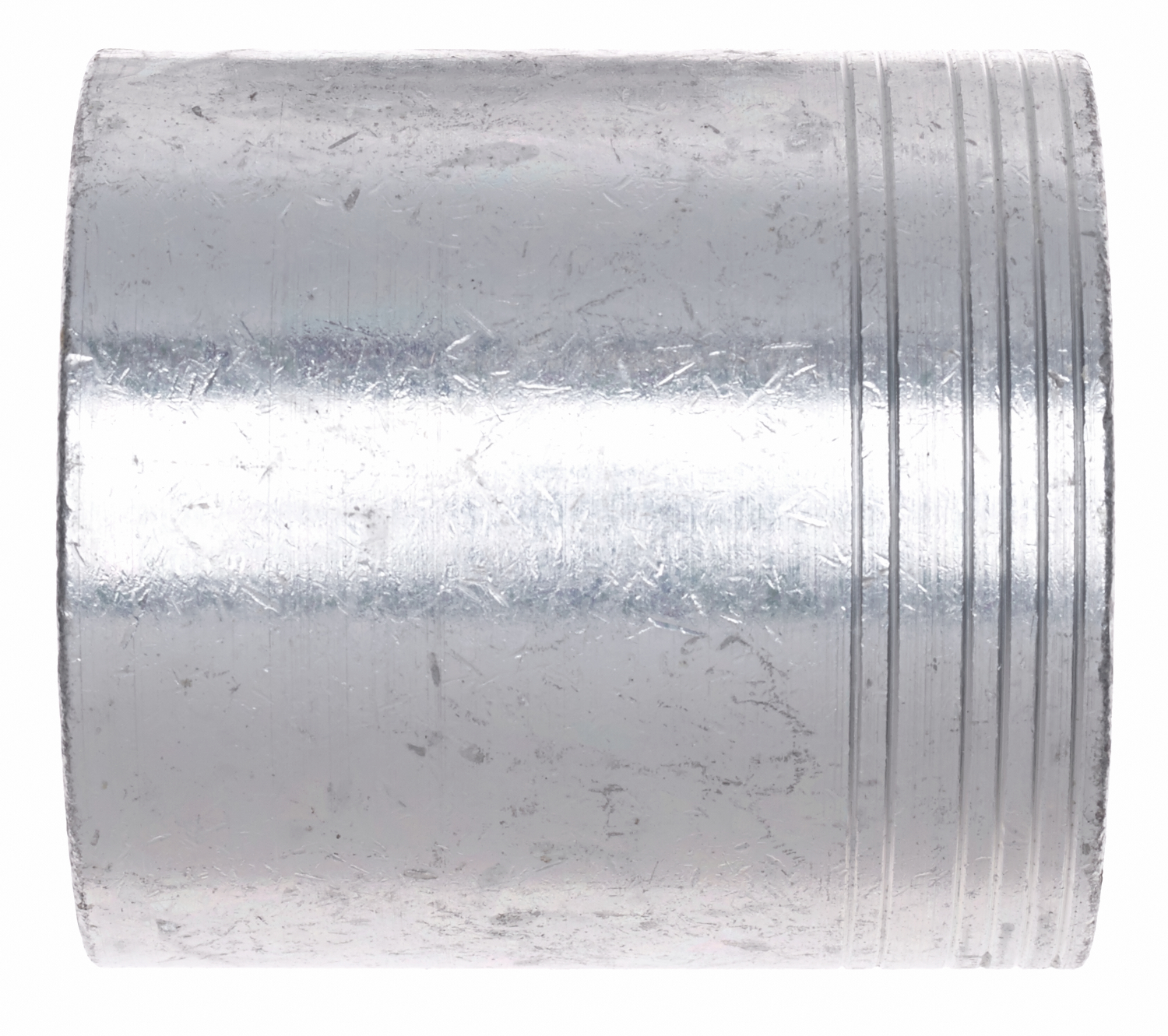

G19995-0016
| A1 Outside Diameter (in) | 2.48 |
|---|---|
| A1 Outside Diameter (mm) | 63 |
| L Length (in) | 2.6 |
| L Length (mm) | 66 |
| Hose Inside Diameter (in) | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| L (in) | 2.6 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 1.185 |
G19995-0016X
| A1 Outside Diameter (in) | 2.48 |
|---|---|
| A1 Outside Diameter (mm) | 63 |
| L Length (in) | 2.6 |
| L Length (mm) | 66 |
| Hose Inside Diameter (in) | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| L (in) | 2.6 |
| Material | Steel |
| Customer Pack | 35 |
| Weight (lbs.) | 1.185 |
Specifications
| T Drop (in) | 1.969 – 4.606 |
|---|---|
| C Cutoff (in) | 2.961 – 5.079 |
| C Cutoff (mm) | 75.2 – 129 |
| L Length (in) | 2.6 – 7.756 |
| L Length (mm) | 66 – 197 |
| Hose Inside Diameter (in) | 0.752 – 1 |
| Hose Inside Diameter (mm) | 19.1 – 25.4 |
| Inside Diameter (in) | 0.752 – 1 |
| Inside Diameter (mm) | 19.1 – 25.4 |
| Angle. | 45 – 90 |
| Material | Steel |
| A1 Outside Diameter (in) | 2.48 |
| A1 Outside Diameter (mm) | 63 |
| L (in) | 2.6 |
| Customer Pack | 1 – 35 |
| Weight (lbs.) | 1.185 |
