Attributes
| Part Number | 4651-000000-000011 |
|---|
Description

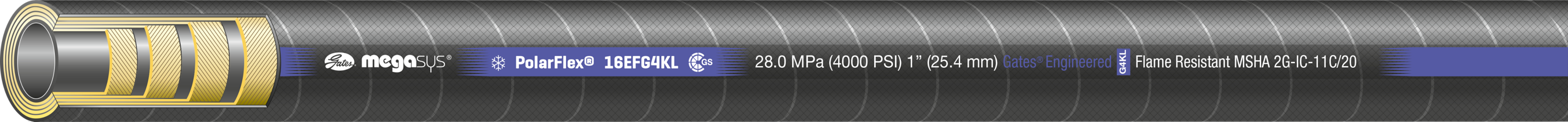

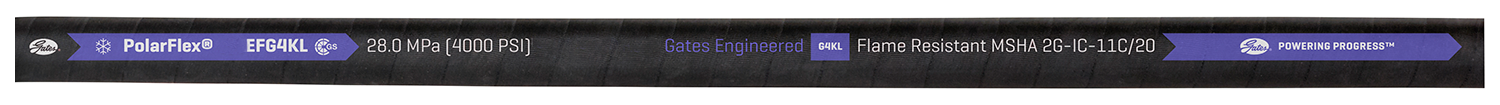

# EFG4KL Spiral Wire Hose - 280 Bar - PolarFlex™ Low Temp -57°C
EFG4KL Low-Temp hose is recommended for very high-pressure hydraulic applications to provide greater performance, flexibility, easier routing and plumbing of mobile and stationary hydraulic platforms in very low temperature environments. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum–based fluid.
- Compatible with biodegradable hydraulic fluids and standard petroleum-based fluids.
- For use with GlobalSpiral™ Couplings [G20 Series] and GlobalSpiral™ OnePiece Couplings [G21 Series, -20 Only].
- Resistant to cover cracking at low temperature and tight bends.
- Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of SAE 100R12 bend radii.
## Features and Benefits
- Standards: Meets or exceeds the requirements of ISO 3862 R12. SAE 100R12.
- Resistant to cover cracking at low temperature and tight bend radius.
- Meets or exceeds performance requirements of EN 856 4SP.
- 40% of EN 856 4SP bend radius at rated working pressure.
- Validated with GlobalSpiral.
- Cover: MSHA approved.
- Temperature Range:
- - - -57°C to +100°C
- -70°F to +212°F
- Size: 3/8" to 1-1/4".
Variations (8)
10EFG4K-XTFXREEL
No variation attributes.
85017
| Minimum Bend Radius (in) | 4.8 |
|---|---|
| Minimum Bend Radius (mm) | 121.9 |
| Min. Burst Pressure (psi) | 4000 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -70°F to +212°F (-57°C to +100°C) |
| Working Pressure (psi) | 4000 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.21 |
| Outside Diameter (mm) | 30.7 |
| Coupling Recommendation | GlobalSpiral™ Couplings [G20 Series]; Stainless Steel Spiral Couplings [G18 Series] |
| Color | Black |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Construction: Reinforcement | 4-spiral, wire |
| Construction: Tube | Nitrile - Type C |
77001
| Dynamic WP (Max.psi) (1) | 4000 |
|---|---|
| Continuous Operating Temperature Range | -70°F to +212°F |
| Minimum Bend Radius (in) | 4.8 |
| Minimum Bend Radius (mm) | 121.9 |
| Min. Burst Pressure (psi) | 16000 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.21 |
| Hose Outside Diameter (mm) | 30.7 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 4000 |
| Length (m) | 30 |
| Outside Diameter (in) | 1.21 |
| Outside Diameter (mm) | 30.7 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Recommended For | Very high-pressure hydraulic applications in low-temperature environments. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluid. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.86 |
| Packaging | A |
85016
| Minimum Bend Radius (in) | 6 |
|---|---|
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 4000 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Temperature Range | -70°F to +212°F (-57°C to +100°C) |
| Working Pressure (psi) | 4000 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.53 |
| Outside Diameter (mm) | 38.9 |
| Coupling Recommendation | GlobalSpiral™ Couplings [G20 Series]; Stainless Steel Spiral Couplings [G18 Series] |
| Color | Black |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Construction: Reinforcement | 4-spiral, wire |
| Construction: Tube | Nitrile - Type C |
77002
| Dynamic WP (Max.psi) (1) | 4000 |
|---|---|
| Continuous Operating Temperature Range | -70°F to +212°F |
| Minimum Bend Radius (in) | 5.9 |
| Minimum Bend Radius (mm) | 150 |
| Min. Burst Pressure (psi) | 16000 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.53 |
| Hose Outside Diameter (mm) | 38.9 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 4000 |
| Length (m) | 30 |
| Outside Diameter (in) | 1.53 |
| Outside Diameter (mm) | 38.9 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Recommended For | Very high-pressure hydraulic applications in low-temperature environments. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluid. |
| Customer Pack | 100 |
| Weight (lbs.) | 1.27 |
| Packaging | A |
70086
| Dynamic WP (Max.psi) (1) | 4000 |
|---|---|
| Continuous Operating Temperature Range | -70°F to +212°F |
| Minimum Bend Radius (in) | 8.3 |
| Minimum Bend Radius (mm) | 210 |
| Min. Burst Pressure (psi) | 16000 |
| Hose Inside Diameter (in). | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Hose Outside Diameter (in) | 1.85 |
| Hose Outside Diameter (mm) | 47 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Working Pressure (psi) | 4000 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.85 |
| Outside Diameter (mm) | 47 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Recommended For | Very high-pressure hydraulic applications in low-temperature environments. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluid. |
| Customer Pack | 50 |
| Weight (lbs.) | 1.91 |
| Packaging | A |
46510129
No variation attributes.
46510130
No variation attributes.
Specifications
| Minimum Bend Radius (in) | 4.8 – 8.3 |
|---|---|
| Minimum Bend Radius (mm) | 121.9 – 210 |
| Min. Burst Pressure (psi) | 4000 – 16000 |
| Inside Diameter (in) | 0.75 – 1.25 |
| Inside Diameter (mm) | 19.1 – 31.8 |
| Temperature Range | -70°F to +212°F (-57°C to +100°C) |
| Working Pressure (psi) | 4000 |
| Length (m) | 15 – 30 |
| Outside Diameter (in) | 1.21 – 1.85 |
| Outside Diameter (mm) | 30.7 – 47 |
| Coupling Recommendation | GlobalSpiral™ Couplings [G20 Series]; Stainless Steel Spiral Couplings [G18 Series] |
| Color | Black |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Construction: Reinforcement | 4-spiral, wire |
| Construction: Tube | Nitrile - Type C |
| Dynamic WP (Max.psi) (1) | 4000 |
| Continuous Operating Temperature Range | -70°F to +212°F |
| Hose Inside Diameter (in). | 0.75 – 1.25 |
| Hose Inside Diameter (mm) | 19.1 – 31.8 |
| Hose Outside Diameter (in) | 1.21 – 1.85 |
| Hose Outside Diameter (mm) | 30.7 – 47 |
| Use | Spiral Wire |
| Recommended For | Very high-pressure hydraulic applications in low-temperature environments. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluid. |
| Customer Pack | 50 – 100 |
| Weight (lbs.) | 0.86 – 1.91 |
| Packaging | A |
