Attributes
| Part Number | 8400-000000-000000 |
|---|
Description

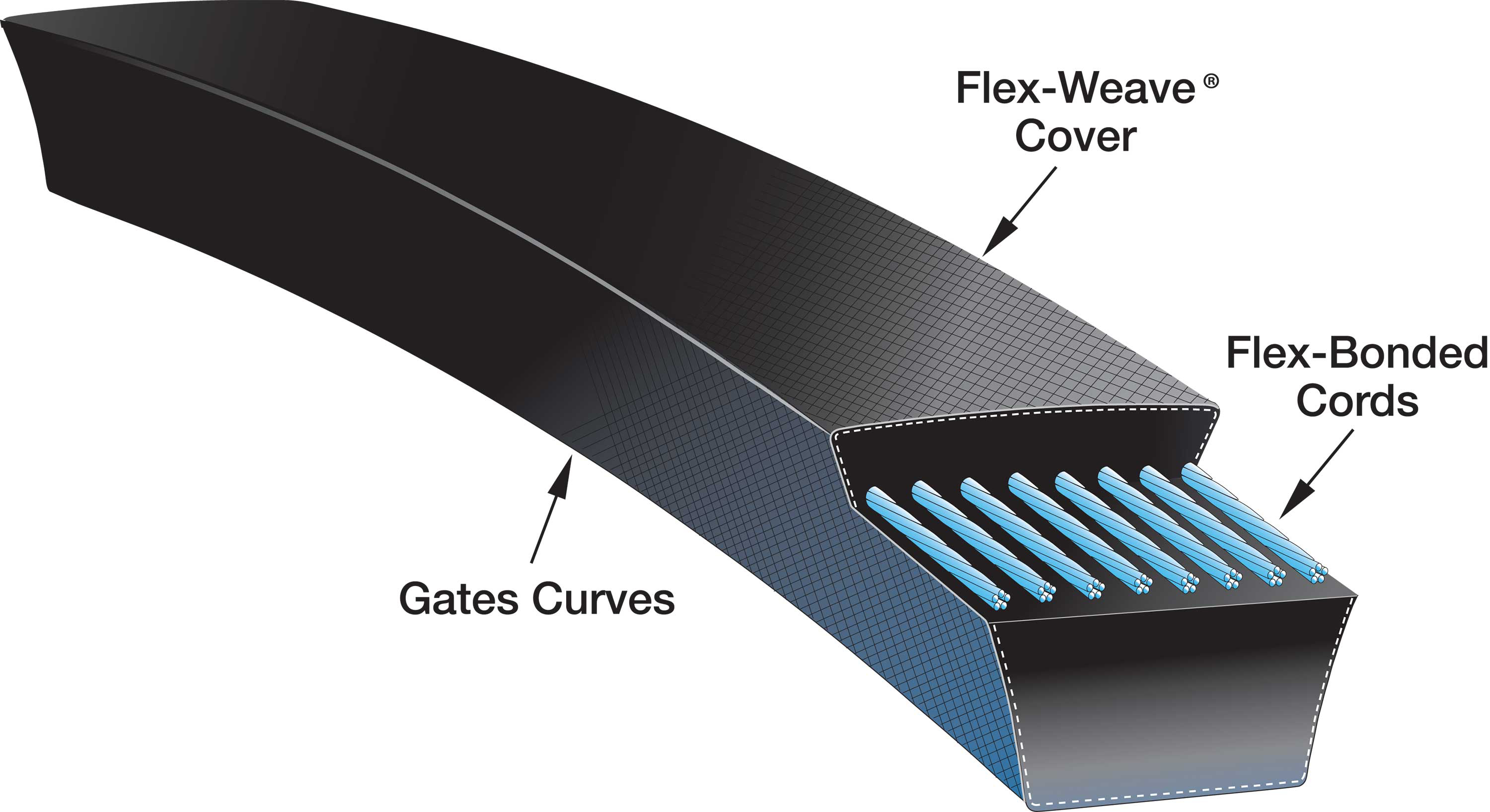

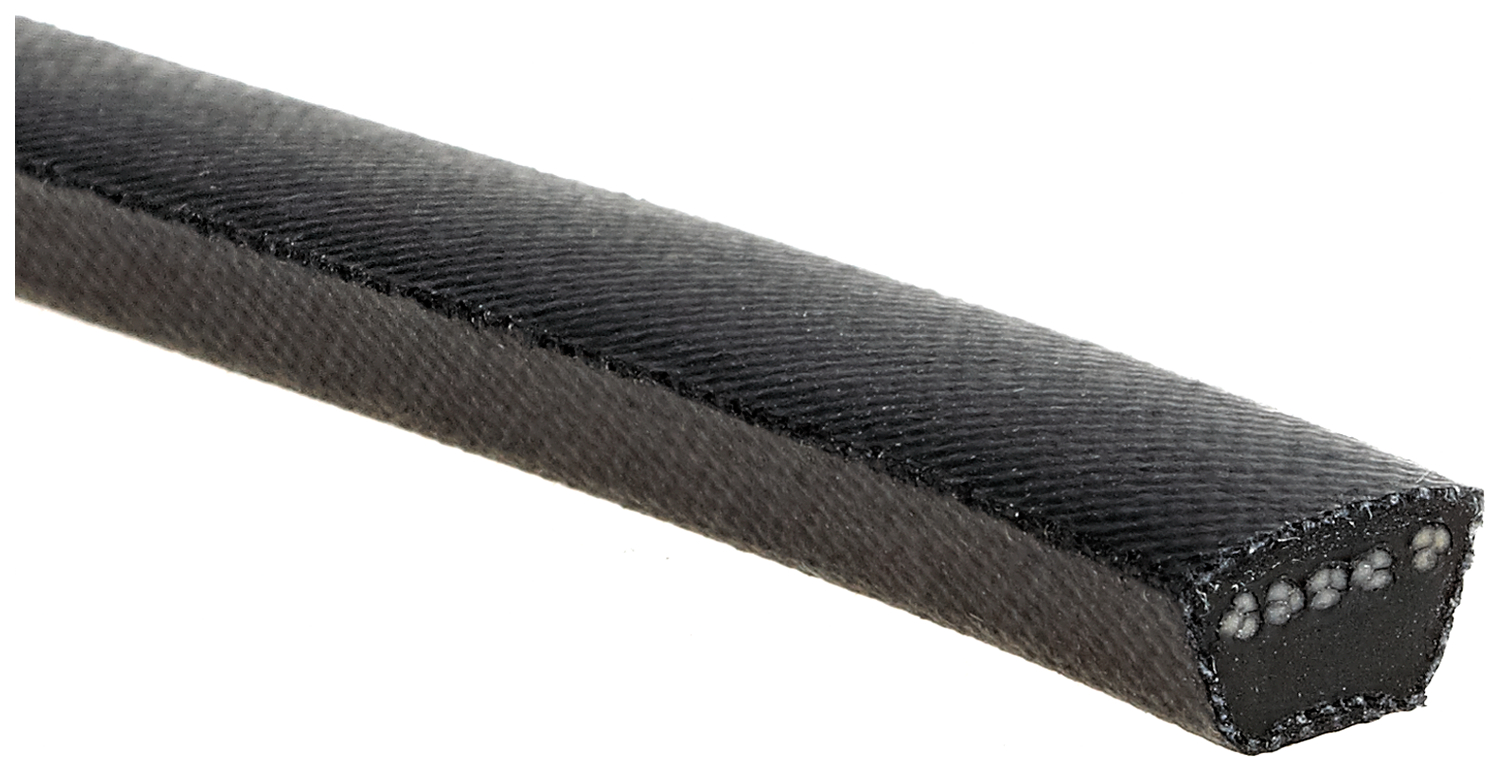

Truflex™ V-Belts Gates Curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear and increased belt life.
Variations (230)
2L100 / 0100
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 9.76 |
| Effective Length (mm) | 248 |
| Notched | false |
| Outside Circumference (in) | 10 |
| Outside Circumference (mm) | 254 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.015 |
2L110 / 0110
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 10.76 |
| Effective Length (mm) | 273 |
| Notched | false |
| Outside Circumference (in) | 11 |
| Outside Circumference (mm) | 279 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.016 |
2L120 / 0120
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 11.86 |
| Effective Length (mm) | 301 |
| Notched | false |
| Outside Circumference (in) | 12 |
| Outside Circumference (mm) | 305 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 41 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.02 |
2L130 / 0130
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 12.76 |
| Effective Length (mm) | 324 |
| Notched | false |
| Outside Circumference (in) | 13 |
| Outside Circumference (mm) | 330 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.02 |
2L140 / 0140
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 13.76 |
| Effective Length (mm) | 350 |
| Notched | false |
| Outside Circumference (in) | 14 |
| Outside Circumference (mm) | 356 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.021 |
2L150 / 0150
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 14.76 |
| Effective Length (mm) | 375 |
| Notched | false |
| Outside Circumference (in) | 15 |
| Outside Circumference (mm) | 381 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.023 |
2L160 / 0160
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 15.76 |
| Effective Length (mm) | 400 |
| Notched | false |
| Outside Circumference (in) | 16 |
| Outside Circumference (mm) | 406 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.024 |
2L170 / 0170
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 16.76 |
| Effective Length (mm) | 426 |
| Notched | false |
| Outside Circumference (in) | 17 |
| Outside Circumference (mm) | 432 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.026 |
2L180 / 0180
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 17.76 |
| Effective Length (mm) | 451 |
| Notched | false |
| Outside Circumference (in) | 18 |
| Outside Circumference (mm) | 457 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.028 |
2L190 / 0190
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 18.75 |
| Effective Length (mm) | 476 |
| Notched | false |
| Outside Circumference (in) | 19 |
| Outside Circumference (mm) | 483 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.029 |
2L200 / 0200
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 19.76 |
| Effective Length (mm) | 502 |
| Notched | false |
| Outside Circumference (in) | 20 |
| Outside Circumference (mm) | 508 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.03 |
2L210 / 0210
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 20.76 |
| Effective Length (mm) | 527 |
| Notched | false |
| Outside Circumference (in) | 21 |
| Outside Circumference (mm) | 533 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.032 |
2L230 / 0230
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 22.76 |
| Effective Length (mm) | 578 |
| Notched | false |
| Outside Circumference (in) | 23 |
| Outside Circumference (mm) | 584 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.034 |
2L240 / 0240
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 23.76 |
| Effective Length (mm) | 604 |
| Notched | false |
| Outside Circumference (in) | 24 |
| Outside Circumference (mm) | 610 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.036 |
2L250 / 0250
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 24.7 |
| Effective Length (mm) | 627 |
| Notched | false |
| Outside Circumference (in) | 25 |
| Outside Circumference (mm) | 635 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 41 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.02 |
2L260 / 0260
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 25.76 |
| Effective Length (mm) | 654 |
| Notched | false |
| Outside Circumference (in) | 26 |
| Outside Circumference (mm) | 660 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.04 |
2L270 / 0270
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 26.76 |
| Effective Length (mm) | 680 |
| Notched | false |
| Outside Circumference (in) | 27 |
| Outside Circumference (mm) | 686 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.042 |
2L280 / 0280
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 27.76 |
| Effective Length (mm) | 705 |
| Notched | false |
| Outside Circumference (in) | 28 |
| Outside Circumference (mm) | 711 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.043 |
2L290 / 0290
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 28.75 |
| Effective Length (mm) | 730 |
| Notched | false |
| Outside Circumference (in) | 29 |
| Outside Circumference (mm) | 737 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.044 |
2L310 / 0310
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 30.76 |
| Effective Length (mm) | 781 |
| Notched | false |
| Outside Circumference (in) | 31 |
| Outside Circumference (mm) | 787 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.048 |
2L320 / 0320
| Effective Length (in) | 31.76 |
|---|---|
| Effective Length (mm) | 807 |
| Outside Circumference (in) | 32 |
| Outside Circumference (mm) | 813 |
| Number of Ribs | 1 |
| Section | 2L |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
2L340 / 0340
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 33.76 |
| Effective Length (mm) | 858 |
| Notched | false |
| Outside Circumference (in) | 34 |
| Outside Circumference (mm) | 864 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 41 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.052 |
2L350 / 0350
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 34.76 |
| Effective Length (mm) | 883 |
| Notched | false |
| Outside Circumference (in) | 35 |
| Outside Circumference (mm) | 889 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.054 |
2L360 / 0360
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 35.76 |
| Effective Length (mm) | 908 |
| Notched | false |
| Outside Circumference (in) | 36 |
| Outside Circumference (mm) | 914 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.056 |
2L380 / 0380
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 37.76 |
| Effective Length (mm) | 959 |
| Notched | false |
| Outside Circumference (in) | 38 |
| Outside Circumference (mm) | 965 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 40 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.059 |
2L460 / 0460
| Cross Section | 2L |
|---|---|
| Effective Length (in) | 45.9 |
| Effective Length (mm) | 1166 |
| Notched | false |
| Outside Circumference (in) | 46 |
| Outside Circumference (mm) | 1168 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 |
| Top Width (mm) | 6 |
| Angle. | 41 |
| Thickness (in) | 0.12 |
| Thickness (mm) | 3 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 225 |
| Weight (lbs.) | 0.071 |
3L110 / 1110
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 10.68 |
| Effective Length (mm) | 271 |
| Notched | false |
| Outside Circumference (in) | 11 |
| Outside Circumference (mm) | 279 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 35 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.059 |
3L120 / 1120
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 11.68 |
| Effective Length (mm) | 297 |
| Notched | false |
| Outside Circumference (in) | 12 |
| Outside Circumference (mm) | 305 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 35 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.06 |
3L130 / 1130
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 12.68 |
| Effective Length (mm) | 322 |
| Notched | false |
| Outside Circumference (in) | 13 |
| Outside Circumference (mm) | 330 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.063 |
3L140 / 1140
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 13.68 |
| Effective Length (mm) | 347 |
| Notched | false |
| Outside Circumference (in) | 14 |
| Outside Circumference (mm) | 356 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 35 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.067 |
3L150 / 1150
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 14.68 |
| Effective Length (mm) | 373 |
| Notched | false |
| Outside Circumference (in) | 15 |
| Outside Circumference (mm) | 381 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.068 |
3L160 / 1160
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 15.68 |
| Effective Length (mm) | 398 |
| Notched | false |
| Outside Circumference (in) | 16 |
| Outside Circumference (mm) | 406 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.07 |
3L170 / 1170
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 16.68 |
| Effective Length (mm) | 424 |
| Notched | false |
| Outside Circumference (in) | 17 |
| Outside Circumference (mm) | 432 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 36 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.073 |
3L180 / 1180
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 17.68 |
| Effective Length (mm) | 449 |
| Notched | false |
| Outside Circumference (in) | 18 |
| Outside Circumference (mm) | 457 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 134 |
| Weight (lbs.) | 0.076 |
3L190 / 1190
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 18.68 |
| Effective Length (mm) | 474 |
| Notched | false |
| Outside Circumference (in) | 19 |
| Outside Circumference (mm) | 483 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 2970 |
| Weight (lbs.) | 0.078 |
3L200 / 1200
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 19.68 |
| Effective Length (mm) | 500 |
| Notched | false |
| Outside Circumference (in) | 20 |
| Outside Circumference (mm) | 508 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 2400 |
| Weight (lbs.) | 0.08 |
3L210 / 1210
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 20.68 |
| Effective Length (mm) | 525 |
| Notched | false |
| Outside Circumference (in) | 21 |
| Outside Circumference (mm) | 533 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 2400 |
| Weight (lbs.) | 0.075 |
3L220 / 1220
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 21.68 |
| Effective Length (mm) | 551 |
| Notched | false |
| Outside Circumference (in) | 22 |
| Outside Circumference (mm) | 559 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 2400 |
| Weight (lbs.) | 0.085 |
3L230 / 1230
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 22.68 |
| Effective Length (mm) | 576 |
| Notched | false |
| Outside Circumference (in) | 23 |
| Outside Circumference (mm) | 584 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 2400 |
| Weight (lbs.) | 0.088 |
3L240 / 1240
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 23.68 |
| Effective Length (mm) | 601 |
| Notched | false |
| Outside Circumference (in) | 24 |
| Outside Circumference (mm) | 610 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 2190 |
| Weight (lbs.) | 0.1 |
3L245 / 1245
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 24.18 |
| Effective Length (mm) | 614 |
| Notched | false |
| Outside Circumference (in) | 24.5 |
| Outside Circumference (mm) | 622 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.09 |
3L250 / 1250
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 24.68 |
| Effective Length (mm) | 627 |
| Notched | false |
| Outside Circumference (in) | 25 |
| Outside Circumference (mm) | 635 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 2190 |
| Weight (lbs.) | 0.093 |
3L250BGT
No variation attributes.
3L255 / 1255
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 25.2 |
| Effective Length (mm) | 640 |
| Notched | false |
| Outside Circumference (in) | 25.5 |
| Outside Circumference (mm) | 648 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.094 |
3L260 / 1260
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 25.68 |
| Effective Length (mm) | 652 |
| Notched | false |
| Outside Circumference (in) | 26 |
| Outside Circumference (mm) | 660 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.095 |
3L265 / 1265
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 26.18 |
| Effective Length (mm) | 665 |
| Notched | false |
| Outside Circumference (in) | 26.5 |
| Outside Circumference (mm) | 673 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.096 |
3L270 / 1270
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 26.68 |
| Effective Length (mm) | 678 |
| Notched | false |
| Outside Circumference (in) | 27 |
| Outside Circumference (mm) | 686 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1980 |
| Weight (lbs.) | 0.097 |
3L275 / 1275
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 27.18 |
| Effective Length (mm) | 690 |
| Notched | false |
| Outside Circumference (in) | 27.5 |
| Outside Circumference (mm) | 699 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.098 |
3L280 / 1280
No variation attributes.
3L285 / 1285
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 28.18 |
| Effective Length (mm) | 716 |
| Notched | false |
| Outside Circumference (in) | 28.5 |
| Outside Circumference (mm) | 724 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.101 |
3L290 / 1290
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 28.68 |
| Effective Length (mm) | 728 |
| Notched | false |
| Outside Circumference (in) | 29 |
| Outside Circumference (mm) | 737 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1590 |
| Weight (lbs.) | 0.102 |
3L293 / 1293
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 28.98 |
| Effective Length (mm) | 736 |
| Notched | false |
| Outside Circumference (in) | 29 |
| Outside Circumference (mm) | 737 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.103 |
3L300 / 1300
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 29.68 |
| Effective Length (mm) | 754 |
| Notched | false |
| Outside Circumference (in) | 30 |
| Outside Circumference (mm) | 762 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 37 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1380 |
| Weight (lbs.) | 0.105 |
3L310 / 1310
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 30.68 |
| Effective Length (mm) | 779 |
| Notched | false |
| Outside Circumference (in) | 31 |
| Outside Circumference (mm) | 787 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1380 |
| Weight (lbs.) | 0.107 |
3L320 / 1320
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 31.68 |
| Effective Length (mm) | 805 |
| Notched | false |
| Outside Circumference (in) | 32 |
| Outside Circumference (mm) | 813 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1380 |
| Weight (lbs.) | 0.11 |
3L330 / 1330
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 32.68 |
| Effective Length (mm) | 830 |
| Notched | false |
| Outside Circumference (in) | 33 |
| Outside Circumference (mm) | 838 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1200 |
| Weight (lbs.) | 0.113 |
3L340 / 1340
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 33.68 |
| Effective Length (mm) | 855 |
| Notched | false |
| Outside Circumference (in) | 34 |
| Outside Circumference (mm) | 864 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1200 |
| Weight (lbs.) | 0.115 |
3L345 / 1345
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 34.18 |
| Effective Length (mm) | 868 |
| Notched | false |
| Outside Circumference (in) | 34.5 |
| Outside Circumference (mm) | 876 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.116 |
3L350 / 1350
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 34.68 |
| Effective Length (mm) | 881 |
| Notched | false |
| Outside Circumference (in) | 35 |
| Outside Circumference (mm) | 889 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1200 |
| Weight (lbs.) | 0.119 |
3L360 / 1360
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 35.68 |
| Effective Length (mm) | 906 |
| Notched | false |
| Outside Circumference (in) | 36 |
| Outside Circumference (mm) | 914 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 990 |
| Weight (lbs.) | 0.119 |
3L370 / 1370
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 36.68 |
| Effective Length (mm) | 932 |
| Notched | false |
| Outside Circumference (in) | 37 |
| Outside Circumference (mm) | 940 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 990 |
| Weight (lbs.) | 0.122 |
3L380 / 1380
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 37.68 |
| Effective Length (mm) | 957 |
| Notched | false |
| Outside Circumference (in) | 38 |
| Outside Circumference (mm) | 965 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 50 |
| Weight (lbs.) | 0.123 |
3L390 / 1390
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 38.68 |
| Effective Length (mm) | 982 |
| Notched | false |
| Outside Circumference (in) | 39 |
| Outside Circumference (mm) | 991 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 50 |
| Weight (lbs.) | 0.127 |
3L400 / 1400
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 39.68 |
| Effective Length (mm) | 1008 |
| Notched | false |
| Outside Circumference (in) | 40 |
| Outside Circumference (mm) | 1016 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 40 |
| Weight (lbs.) | 0.13 |
3L410 / 1410
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 40.68 |
| Effective Length (mm) | 1033 |
| Notched | false |
| Outside Circumference (in) | 41 |
| Outside Circumference (mm) | 1041 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 795 |
| Weight (lbs.) | 0.132 |
3L415 / 1415
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 41.18 |
| Effective Length (mm) | 1046 |
| Notched | false |
| Outside Circumference (in) | 41.5 |
| Outside Circumference (mm) | 1054 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.133 |
3L420 / 1420
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 41.9 |
| Effective Length (mm) | 1064 |
| Notched | false |
| Outside Circumference (in) | 42 |
| Outside Circumference (mm) | 1067 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 40 |
| Weight (lbs.) | 0.134 |
3L430 / 1430
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 42.68 |
| Effective Length (mm) | 1084 |
| Notched | false |
| Outside Circumference (in) | 43 |
| Outside Circumference (mm) | 1092 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 40 |
| Weight (lbs.) | 0.137 |
3L440 / 1440
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 43.68 |
| Effective Length (mm) | 1109 |
| Notched | false |
| Outside Circumference (in) | 44 |
| Outside Circumference (mm) | 1118 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.14 |
3L450 / 1450
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 44.68 |
| Effective Length (mm) | 1135 |
| Notched | false |
| Outside Circumference (in) | 45 |
| Outside Circumference (mm) | 1143 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 40 |
| Weight (lbs.) | 0.142 |
3L460 / 1460
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 45.68 |
| Effective Length (mm) | 1160 |
| Notched | false |
| Outside Circumference (in) | 46 |
| Outside Circumference (mm) | 1168 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 40 |
| Weight (lbs.) | 0.145 |
3L470 / 1470
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 46.68 |
| Effective Length (mm) | 1186 |
| Notched | false |
| Outside Circumference (in) | 47 |
| Outside Circumference (mm) | 1194 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.148 |
3L480 / 1480
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 47.68 |
| Effective Length (mm) | 1211 |
| Notched | false |
| Outside Circumference (in) | 48 |
| Outside Circumference (mm) | 1219 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.15 |
3L490 / 1490
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 48.68 |
| Effective Length (mm) | 1236 |
| Notched | false |
| Outside Circumference (in) | 49 |
| Outside Circumference (mm) | 1245 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.152 |
3L500 / 1500
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 49.68 |
| Effective Length (mm) | 1262 |
| Notched | false |
| Outside Circumference (in) | 50 |
| Outside Circumference (mm) | 1270 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.154 |
3L510 / 1510
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 50.68 |
| Effective Length (mm) | 1287 |
| Notched | false |
| Outside Circumference (in) | 51 |
| Outside Circumference (mm) | 1295 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.157 |
3L520 / 1520
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 51.68 |
| Effective Length (mm) | 1313 |
| Notched | false |
| Outside Circumference (in) | 52 |
| Outside Circumference (mm) | 1321 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.159 |
3L530 / 1530
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 52.68 |
| Effective Length (mm) | 1338 |
| Notched | false |
| Outside Circumference (in) | 53 |
| Outside Circumference (mm) | 1346 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.162 |
3L540 / 1540
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 53.68 |
| Effective Length (mm) | 1363 |
| Notched | false |
| Outside Circumference (in) | 54 |
| Outside Circumference (mm) | 1372 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.165 |
3L550 / 1550
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 54.68 |
| Effective Length (mm) | 1389 |
| Notched | false |
| Outside Circumference (in) | 55 |
| Outside Circumference (mm) | 1397 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.167 |
3L560 / 1560
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 55.68 |
| Effective Length (mm) | 1414 |
| Notched | false |
| Outside Circumference (in) | 56 |
| Outside Circumference (mm) | 1422 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.169 |
3L570 / 1570
No variation attributes.
3L580 / 1580
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 57.68 |
| Effective Length (mm) | 1465 |
| Notched | false |
| Outside Circumference (in) | 58 |
| Outside Circumference (mm) | 1473 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.174 |
3L590 / 1590
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 58.68 |
| Effective Length (mm) | 1490 |
| Notched | false |
| Outside Circumference (in) | 59 |
| Outside Circumference (mm) | 1499 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.177 |
3L600 / 1600
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 59.68 |
| Effective Length (mm) | 1516 |
| Notched | false |
| Outside Circumference (in) | 60 |
| Outside Circumference (mm) | 1524 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.178 |
3L610 / 1610
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 60.95 |
| Effective Length (mm) | 1548 |
| Notched | false |
| Outside Circumference (in) | 61 |
| Outside Circumference (mm) | 1549 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.183 |
3L620 / 1620
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 61.68 |
| Effective Length (mm) | 1567 |
| Notched | false |
| Outside Circumference (in) | 62 |
| Outside Circumference (mm) | 1575 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.184 |
3L630 / 1630
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 62.95 |
| Effective Length (mm) | 1599 |
| Notched | false |
| Outside Circumference (in) | 63 |
| Outside Circumference (mm) | 1600 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.186 |
3L640 / 1640
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 63.68 |
| Effective Length (mm) | 1617 |
| Notched | false |
| Outside Circumference (in) | 64 |
| Outside Circumference (mm) | 1626 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.189 |
3L650 / 1650
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 64.76 |
| Effective Length (mm) | 1645 |
| Notched | false |
| Outside Circumference (in) | 65 |
| Outside Circumference (mm) | 1651 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 40 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.192 |
3L660 / 1660
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 65.68 |
| Effective Length (mm) | 1668 |
| Notched | false |
| Outside Circumference (in) | 66 |
| Outside Circumference (mm) | 1676 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.194 |
3L670 / 1670
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 66.74 |
| Effective Length (mm) | 1695 |
| Notched | false |
| Outside Circumference (in) | 67 |
| Outside Circumference (mm) | 1702 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 40 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.195 |
3L675 / 1675
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 67.24 |
| Effective Length (mm) | 1708 |
| Notched | false |
| Outside Circumference (in) | 67.5 |
| Outside Circumference (mm) | 1715 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 40 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.196 |
3L680 / 1680
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 67.76 |
| Effective Length (mm) | 1721 |
| Notched | false |
| Outside Circumference (in) | 68 |
| Outside Circumference (mm) | 1727 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 40 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.199 |
3L690 / 1690
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 68.74 |
| Effective Length (mm) | 1746 |
| Notched | false |
| Outside Circumference (in) | 69 |
| Outside Circumference (mm) | 1753 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 40 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.203 |
3L700 / 1700
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 69.74 |
| Effective Length (mm) | 1771 |
| Notched | false |
| Outside Circumference (in) | 70 |
| Outside Circumference (mm) | 1778 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 40 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.204 |
3L710 / 1710
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 70.74 |
| Effective Length (mm) | 1797 |
| Notched | false |
| Outside Circumference (in) | 71 |
| Outside Circumference (mm) | 1803 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 40 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.206 |
3L730 / 1730
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 72.74 |
| Effective Length (mm) | 1848 |
| Notched | false |
| Outside Circumference (in) | 73 |
| Outside Circumference (mm) | 1854 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 40 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.211 |
3L740 / 1740
| Cross Section | 3L |
|---|---|
| Effective Length (in) | 73.68 |
| Effective Length (mm) | 1871 |
| Notched | false |
| Outside Circumference (in) | 74 |
| Outside Circumference (mm) | 1880 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.24 |
| Thickness (mm) | 6 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.213 |
4L1000 / 21000
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 99.96 |
| Effective Length (mm) | 2539 |
| Notched | false |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 55 |
| Weight (lbs.) | 0.54 |
4L150 / 2150
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 14.95 |
| Effective Length (mm) | 380 |
| Notched | false |
| Outside Circumference (in) | 15 |
| Outside Circumference (mm) | 381 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 34 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.08 |
4L160 / 2160
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 15.95 |
| Effective Length (mm) | 405 |
| Notched | false |
| Outside Circumference (in) | 16 |
| Outside Circumference (mm) | 406 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 34 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.075 |
4L170 / 2170
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 16.67 |
| Effective Length (mm) | 423 |
| Notched | false |
| Outside Circumference (in) | 17 |
| Outside Circumference (mm) | 432 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 40 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.09 |
4L180 / 2180
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 17.95 |
| Effective Length (mm) | 456 |
| Notched | false |
| Outside Circumference (in) | 18 |
| Outside Circumference (mm) | 457 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 35 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 120 |
| Weight (lbs.) | 0.1 |
4L188 / 2188
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 18.46 |
| Effective Length (mm) | 469 |
| Notched | false |
| Outside Circumference (in) | 19 |
| Outside Circumference (mm) | 483 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 40 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.1 |
4L190 / 2190
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 18.95 |
| Effective Length (mm) | 481 |
| Notched | false |
| Outside Circumference (in) | 19 |
| Outside Circumference (mm) | 483 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 120 |
| Weight (lbs.) | 0.11 |
4L200 / 2200
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 19.95 |
| Effective Length (mm) | 507 |
| Notched | false |
| Outside Circumference (in) | 20 |
| Outside Circumference (mm) | 508 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 2400 |
| Weight (lbs.) | 0.11 |
4L210 / 2210
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 20.95 |
| Effective Length (mm) | 532 |
| Notched | false |
| Outside Circumference (in) | 21 |
| Outside Circumference (mm) | 533 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 35 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 2400 |
| Weight (lbs.) | 0.11 |
4L215 / 2215
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 21.45 |
| Effective Length (mm) | 545 |
| Notched | false |
| Outside Circumference (in) | 21.5 |
| Outside Circumference (mm) | 546 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 35 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 10 |
| Weight (lbs.) | 0.11 |
4L220 / 2220
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 21.96 |
| Effective Length (mm) | 558 |
| Notched | false |
| Outside Circumference (in) | 22 |
| Outside Circumference (mm) | 559 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1980 |
| Weight (lbs.) | 0.12 |
4L230 / 2230
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 22.95 |
| Effective Length (mm) | 583 |
| Notched | false |
| Outside Circumference (in) | 23 |
| Outside Circumference (mm) | 584 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1980 |
| Weight (lbs.) | 0.12 |
4L235 / 2235
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 23.45 |
| Effective Length (mm) | 596 |
| Notched | false |
| Outside Circumference (in) | 23.5 |
| Outside Circumference (mm) | 597 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 250 |
| Weight (lbs.) | 0.1 |
4L240 / 2240
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 23.96 |
| Effective Length (mm) | 609 |
| Notched | false |
| Outside Circumference (in) | 24 |
| Outside Circumference (mm) | 610 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1980 |
| Weight (lbs.) | 0.12 |
4L250 / 2250
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 24.96 |
| Effective Length (mm) | 634 |
| Notched | false |
| Outside Circumference (in) | 25 |
| Outside Circumference (mm) | 635 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1590 |
| Weight (lbs.) | 0.13 |
4L255 / 2255
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 25.16 |
| Effective Length (mm) | 639 |
| Notched | false |
| Outside Circumference (in) | 25.4 |
| Outside Circumference (mm) | 645 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 40 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 225 |
| Weight (lbs.) | 0.14 |
4L260 / 2260
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 25.95 |
| Effective Length (mm) | 659 |
| Notched | false |
| Outside Circumference (in) | 26 |
| Outside Circumference (mm) | 660 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1590 |
| Weight (lbs.) | 0.14 |
4L270 / 2270
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 26.95 |
| Effective Length (mm) | 685 |
| Notched | false |
| Outside Circumference (in) | 27 |
| Outside Circumference (mm) | 686 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1380 |
| Weight (lbs.) | 0.15 |
4L275 / 2275
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 27.46 |
| Effective Length (mm) | 697 |
| Notched | false |
| Outside Circumference (in) | 27.5 |
| Outside Circumference (mm) | 699 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 200 |
| Weight (lbs.) | 0.15 |
4L280 / 2280
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 27.96 |
| Effective Length (mm) | 710 |
| Notched | false |
| Outside Circumference (in) | 28 |
| Outside Circumference (mm) | 711 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1380 |
| Weight (lbs.) | 0.15 |
4L285 / 2285
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 28.46 |
| Effective Length (mm) | 723 |
| Notched | false |
| Outside Circumference (in) | 28.5 |
| Outside Circumference (mm) | 724 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 185 |
| Weight (lbs.) | 0.15 |
4L290 / 2290
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 28.95 |
| Effective Length (mm) | 735 |
| Notched | false |
| Outside Circumference (in) | 29 |
| Outside Circumference (mm) | 737 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1380 |
| Weight (lbs.) | 0.15 |
4L295 / 2295
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 29.16 |
| Effective Length (mm) | 741 |
| Notched | false |
| Outside Circumference (in) | 29.5 |
| Outside Circumference (mm) | 749 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 40 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 185 |
| Weight (lbs.) | 0.16 |
4L300 / 2300
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 29.96 |
| Effective Length (mm) | 761 |
| Notched | false |
| Outside Circumference (in) | 30 |
| Outside Circumference (mm) | 762 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 36 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.16 |
4L305 / 2305
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 30.15 |
| Effective Length (mm) | 766 |
| Notched | false |
| Outside Circumference (in) | 30.5 |
| Outside Circumference (mm) | 775 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 40 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 10 |
| Weight (lbs.) | 0.16 |
4L310 / 2310
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 30.96 |
| Effective Length (mm) | 786 |
| Notched | false |
| Outside Circumference (in) | 31 |
| Outside Circumference (mm) | 787 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1200 |
| Weight (lbs.) | 0.16 |
4L318 / 2318
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 31.45 |
| Effective Length (mm) | 799 |
| Notched | false |
| Outside Circumference (in) | 32 |
| Outside Circumference (mm) | 813 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 40 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 185 |
| Weight (lbs.) | 0.17 |
4L320 / 2320
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 31.96 |
| Effective Length (mm) | 812 |
| Notched | false |
| Outside Circumference (in) | 32 |
| Outside Circumference (mm) | 813 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1200 |
| Weight (lbs.) | 0.17 |
4L328 / 2328
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 32.75 |
| Effective Length (mm) | 832 |
| Notched | false |
| Outside Circumference (in) | 33 |
| Outside Circumference (mm) | 838 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 185 |
| Weight (lbs.) | 0.18 |
4L330 / 2330
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 32.96 |
| Effective Length (mm) | 837 |
| Notched | false |
| Outside Circumference (in) | 33 |
| Outside Circumference (mm) | 838 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 60 |
| Weight (lbs.) | 0.18 |
4L333 / 2333
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 32.95 |
| Effective Length (mm) | 837 |
| Notched | false |
| Outside Circumference (in) | 33 |
| Outside Circumference (mm) | 838 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 40 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 185 |
| Weight (lbs.) | 0.18 |
4L338 / 2338
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 33.45 |
| Effective Length (mm) | 850 |
| Notched | false |
| Outside Circumference (in) | 34 |
| Outside Circumference (mm) | 864 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 40 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 185 |
| Weight (lbs.) | 0.18 |
4L340 / 2340
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 33.96 |
| Effective Length (mm) | 863 |
| Notched | false |
| Outside Circumference (in) | 34 |
| Outside Circumference (mm) | 864 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 1200 |
| Weight (lbs.) | 0.19 |
4L346 / 2346
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 34.24 |
| Effective Length (mm) | 870 |
| Notched | false |
| Outside Circumference (in) | 35 |
| Outside Circumference (mm) | 889 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 40 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 185 |
| Weight (lbs.) | 0.19 |
4L350 / 2350
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 34.96 |
| Effective Length (mm) | 888 |
| Notched | false |
| Outside Circumference (in) | 35 |
| Outside Circumference (mm) | 889 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 990 |
| Weight (lbs.) | 0.19 |
4L360 / 2360
No variation attributes.
4L370 / 2370
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 36.96 |
| Effective Length (mm) | 939 |
| Notched | false |
| Outside Circumference (in) | 37 |
| Outside Circumference (mm) | 940 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 990 |
| Weight (lbs.) | 0.2 |
4L380 / 2380
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 37.96 |
| Effective Length (mm) | 964 |
| Notched | false |
| Outside Circumference (in) | 38 |
| Outside Circumference (mm) | 965 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 990 |
| Weight (lbs.) | 0.2 |
4L390 / 2390
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 38.96 |
| Effective Length (mm) | 990 |
| Notched | false |
| Outside Circumference (in) | 39 |
| Outside Circumference (mm) | 991 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 50 |
| Weight (lbs.) | 0.21 |
4L400 / 2400
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 39.95 |
| Effective Length (mm) | 1015 |
| Notched | false |
| Outside Circumference (in) | 40 |
| Outside Circumference (mm) | 1016 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 10 |
| Weight (lbs.) | 0.21 |
4L405 / 2405
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 40.14 |
| Effective Length (mm) | 1020 |
| Notched | false |
| Outside Circumference (in) | 40.5 |
| Outside Circumference (mm) | 1029 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 40 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 110 |
| Weight (lbs.) | 0.21 |
4L410 / 2410
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 40.95 |
| Effective Length (mm) | 1040 |
| Notched | false |
| Outside Circumference (in) | 41 |
| Outside Circumference (mm) | 1041 |
| Number of Ribs | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 795 |
| Weight (lbs.) | 0.22 |
4L420 / 2420
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 41.95 |
| Effective Length (mm) | 1066 |
| Notched | false |
| Outside Circumference (in) | 42 |
| Outside Circumference (mm) | 1067 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 795 |
| Weight (lbs.) | 0.22 |
4L430 / 2430
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 42.95 |
| Effective Length (mm) | 1091 |
| Notched | false |
| Outside Circumference (in) | 43 |
| Outside Circumference (mm) | 1092 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 795 |
| Weight (lbs.) | 0.23 |
4L440 / 2440
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 43.96 |
| Effective Length (mm) | 1117 |
| Notched | false |
| Outside Circumference (in) | 44 |
| Outside Circumference (mm) | 1118 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 795 |
| Weight (lbs.) | 0.23 |
4L450 / 2450
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 44.96 |
| Effective Length (mm) | 1142 |
| Notched | false |
| Outside Circumference (in) | 45 |
| Outside Circumference (mm) | 1143 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 40 |
| Weight (lbs.) | 0.24 |
4L460 / 2460
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 45.96 |
| Effective Length (mm) | 1167 |
| Notched | false |
| Outside Circumference (in) | 46 |
| Outside Circumference (mm) | 1168 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 10 |
| Weight (lbs.) | 0.24 |
4L470 / 2470
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 46.96 |
| Effective Length (mm) | 1193 |
| Notched | false |
| Outside Circumference (in) | 47 |
| Outside Circumference (mm) | 1194 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 40 |
| Weight (lbs.) | 0.25 |
4L475 / 2475
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 47.46 |
| Effective Length (mm) | 1205 |
| Notched | false |
| Outside Circumference (in) | 47.5 |
| Outside Circumference (mm) | 1207 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 110 |
| Weight (lbs.) | 0.25 |
4L480 / 2480
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 47.96 |
| Effective Length (mm) | 1218 |
| Notched | false |
| Outside Circumference (in) | 48 |
| Outside Circumference (mm) | 1219 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 795 |
| Weight (lbs.) | 0.25 |
4L490 / 2490
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 48.95 |
| Effective Length (mm) | 1243 |
| Notched | false |
| Outside Circumference (in) | 49 |
| Outside Circumference (mm) | 1245 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 40 |
| Weight (lbs.) | 0.26 |
4L500 / 2500
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 49.95 |
| Effective Length (mm) | 1269 |
| Notched | false |
| Outside Circumference (in) | 50 |
| Outside Circumference (mm) | 1270 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 40 |
| Weight (lbs.) | 0.26 |
4L510 / 2510
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 50.95 |
| Effective Length (mm) | 1294 |
| Notched | false |
| Outside Circumference (in) | 51 |
| Outside Circumference (mm) | 1295 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.27 |
4L520 / 2520
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 51.96 |
| Effective Length (mm) | 1320 |
| Notched | false |
| Outside Circumference (in) | 52 |
| Outside Circumference (mm) | 1321 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.28 |
4L530 / 2530
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 52.96 |
| Effective Length (mm) | 1345 |
| Notched | false |
| Outside Circumference (in) | 53 |
| Outside Circumference (mm) | 1346 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 120 |
| Weight (lbs.) | 0.28 |
4L540 / 2540
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 53.96 |
| Effective Length (mm) | 1371 |
| Notched | false |
| Outside Circumference (in) | 54 |
| Outside Circumference (mm) | 1372 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 120 |
| Weight (lbs.) | 0.29 |
4L550 / 2550
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 54.96 |
| Effective Length (mm) | 1396 |
| Notched | false |
| Outside Circumference (in) | 55 |
| Outside Circumference (mm) | 1397 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 120 |
| Weight (lbs.) | 0.3 |
4L560 / 2560
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 55.96 |
| Effective Length (mm) | 1421 |
| Notched | false |
| Outside Circumference (in) | 56 |
| Outside Circumference (mm) | 1422 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 120 |
| Weight (lbs.) | 0.3 |
4L570 / 2570
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 56.96 |
| Effective Length (mm) | 1447 |
| Notched | false |
| Outside Circumference (in) | 57 |
| Outside Circumference (mm) | 1448 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 120 |
| Weight (lbs.) | 0.3 |
4L580 / 2580
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 57.96 |
| Effective Length (mm) | 1472 |
| Notched | false |
| Outside Circumference (in) | 58 |
| Outside Circumference (mm) | 1473 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 35 |
| Weight (lbs.) | 0.31 |
4L590 / 2590
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 58.96 |
| Effective Length (mm) | 1498 |
| Notched | false |
| Outside Circumference (in) | 59 |
| Outside Circumference (mm) | 1499 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 120 |
| Weight (lbs.) | 0.31 |
4L600 / 2600
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 59.97 |
| Effective Length (mm) | 1523 |
| Notched | false |
| Outside Circumference (in) | 60 |
| Outside Circumference (mm) | 1524 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 120 |
| Weight (lbs.) | 0.32 |
4L610 / 2610
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 60.96 |
| Effective Length (mm) | 1548 |
| Notched | false |
| Outside Circumference (in) | 61 |
| Outside Circumference (mm) | 1549 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 120 |
| Weight (lbs.) | 0.33 |
4L620 / 2620
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 61.96 |
| Effective Length (mm) | 1574 |
| Notched | false |
| Outside Circumference (in) | 62 |
| Outside Circumference (mm) | 1575 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.33 |
4L630 / 2630
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 62.96 |
| Effective Length (mm) | 1599 |
| Notched | false |
| Outside Circumference (in) | 63 |
| Outside Circumference (mm) | 1600 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.34 |
4L640 / 2640
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 63.96 |
| Effective Length (mm) | 1625 |
| Notched | false |
| Outside Circumference (in) | 64 |
| Outside Circumference (mm) | 1626 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.34 |
4L650 / 2650
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 64.96 |
| Effective Length (mm) | 1650 |
| Notched | false |
| Outside Circumference (in) | 65 |
| Outside Circumference (mm) | 1651 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.35 |
4L660 / 2660
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 65.96 |
| Effective Length (mm) | 1675 |
| Notched | false |
| Outside Circumference (in) | 66 |
| Outside Circumference (mm) | 1676 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.35 |
4L670 / 2670
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 66.96 |
| Effective Length (mm) | 1701 |
| Notched | false |
| Outside Circumference (in) | 67 |
| Outside Circumference (mm) | 1702 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.36 |
4L680 / 2680
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 67.96 |
| Effective Length (mm) | 1726 |
| Notched | false |
| Outside Circumference (in) | 68 |
| Outside Circumference (mm) | 1727 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.36 |
4L690 / 2690
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 68.96 |
| Effective Length (mm) | 1752 |
| Notched | false |
| Outside Circumference (in) | 69 |
| Outside Circumference (mm) | 1753 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.37 |
4L700 / 2700
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 69.96 |
| Effective Length (mm) | 1777 |
| Notched | false |
| Outside Circumference (in) | 70 |
| Outside Circumference (mm) | 1778 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.37 |
4L710 / 2710
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 70.96 |
| Effective Length (mm) | 1802 |
| Notched | false |
| Outside Circumference (in) | 71 |
| Outside Circumference (mm) | 1803 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 100 |
| Weight (lbs.) | 0.38 |
4L720 / 2720
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 71.96 |
| Effective Length (mm) | 1828 |
| Notched | false |
| Outside Circumference (in) | 72 |
| Outside Circumference (mm) | 1829 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 50 |
| Weight (lbs.) | 0.39 |
4L730 / 2730
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 72.96 |
| Effective Length (mm) | 1853 |
| Notched | false |
| Outside Circumference (in) | 73 |
| Outside Circumference (mm) | 1854 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 50 |
| Weight (lbs.) | 0.39 |
4L740 / 2740
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 73.96 |
| Effective Length (mm) | 1879 |
| Notched | false |
| Outside Circumference (in) | 74 |
| Outside Circumference (mm) | 1880 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 50 |
| Weight (lbs.) | 0.4 |
4L750 / 2750
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 74.96 |
| Effective Length (mm) | 1904 |
| Notched | false |
| Outside Circumference (in) | 75 |
| Outside Circumference (mm) | 1905 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 50 |
| Weight (lbs.) | 0.4 |
4L760 / 2760
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 75.96 |
| Effective Length (mm) | 1929 |
| Notched | false |
| Outside Circumference (in) | 76 |
| Outside Circumference (mm) | 1930 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.41 |
4L770 / 2770
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 76.96 |
| Effective Length (mm) | 1955 |
| Notched | false |
| Outside Circumference (in) | 77 |
| Outside Circumference (mm) | 1956 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.41 |
4L780 / 2780
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 77.96 |
| Effective Length (mm) | 1980 |
| Notched | false |
| Outside Circumference (in) | 78 |
| Outside Circumference (mm) | 1981 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.42 |
4L790 / 2790
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 78.96 |
| Effective Length (mm) | 2006 |
| Notched | false |
| Outside Circumference (in) | 79 |
| Outside Circumference (mm) | 2007 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.42 |
4L800 / 2800
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 79.05 |
| Effective Length (mm) | 2008 |
| Notched | false |
| Outside Circumference (in) | 80 |
| Outside Circumference (mm) | 2032 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.43 |
4L810 / 2810
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 80.96 |
| Effective Length (mm) | 2056 |
| Notched | false |
| Outside Circumference (in) | 81 |
| Outside Circumference (mm) | 2057 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.44 |
4L820 / 2820
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 81.96 |
| Effective Length (mm) | 2082 |
| Notched | false |
| Outside Circumference (in) | 82 |
| Outside Circumference (mm) | 2083 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.44 |
4L830 / 2830
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 82.96 |
| Effective Length (mm) | 2107 |
| Notched | false |
| Outside Circumference (in) | 83 |
| Outside Circumference (mm) | 2108 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.45 |
4L840 / 2840
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 83.96 |
| Effective Length (mm) | 2133 |
| Notched | false |
| Outside Circumference (in) | 84 |
| Outside Circumference (mm) | 2134 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 60 |
| Weight (lbs.) | 0.45 |
4L850 / 2850
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 84.96 |
| Effective Length (mm) | 2158 |
| Notched | false |
| Outside Circumference (in) | 85 |
| Outside Circumference (mm) | 2159 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.46 |
4L860 / 2860
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 85.96 |
| Effective Length (mm) | 2183 |
| Notched | false |
| Outside Circumference (in) | 86 |
| Outside Circumference (mm) | 2184 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.46 |
4L870 / 2870
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 86.96 |
| Effective Length (mm) | 2209 |
| Notched | false |
| Outside Circumference (in) | 87 |
| Outside Circumference (mm) | 2210 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.47 |
4L880 / 2880
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 87.96 |
| Effective Length (mm) | 2234 |
| Notched | false |
| Outside Circumference (in) | 88 |
| Outside Circumference (mm) | 2235 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 55 |
| Weight (lbs.) | 0.47 |
4L890 / 2890
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 88.96 |
| Effective Length (mm) | 2260 |
| Notched | false |
| Outside Circumference (in) | 89 |
| Outside Circumference (mm) | 2261 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 55 |
| Weight (lbs.) | 0.48 |
4L900 / 2900
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 89.96 |
| Effective Length (mm) | 2285 |
| Notched | false |
| Outside Circumference (in) | 90 |
| Outside Circumference (mm) | 2286 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 55 |
| Weight (lbs.) | 0.48 |
4L910 / 2910
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 90.94 |
| Effective Length (mm) | 2310 |
| Notched | false |
| Outside Circumference (in) | 91 |
| Outside Circumference (mm) | 2311 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 55 |
| Weight (lbs.) | 0.49 |
4L920 / 2920
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 91.96 |
| Effective Length (mm) | 2336 |
| Notched | false |
| Outside Circumference (in) | 92 |
| Outside Circumference (mm) | 2337 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 55 |
| Weight (lbs.) | 0.5 |
4L930 / 2930
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 92.96 |
| Effective Length (mm) | 2361 |
| Notched | false |
| Outside Circumference (in) | 93 |
| Outside Circumference (mm) | 2362 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 55 |
| Weight (lbs.) | 0.5 |
4L940 / 2940
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 93.96 |
| Effective Length (mm) | 2387 |
| Notched | false |
| Outside Circumference (in) | 94 |
| Outside Circumference (mm) | 2388 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 60 |
| Weight (lbs.) | 0.5 |
4L950 / 2950
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 94.96 |
| Effective Length (mm) | 2412 |
| Notched | false |
| Outside Circumference (in) | 95 |
| Outside Circumference (mm) | 2413 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 60 |
| Weight (lbs.) | 0.51 |
4L960 / 2960
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 95.96 |
| Effective Length (mm) | 2437 |
| Notched | false |
| Outside Circumference (in) | 96 |
| Outside Circumference (mm) | 2438 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 55 |
| Weight (lbs.) | 0.51 |
4L970 / 2970
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 96.96 |
| Effective Length (mm) | 2463 |
| Notched | false |
| Outside Circumference (in) | 97 |
| Outside Circumference (mm) | 2464 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 55 |
| Weight (lbs.) | 0.52 |
4L980 / 2980
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 97.96 |
| Effective Length (mm) | 2488 |
| Notched | false |
| Outside Circumference (in) | 98 |
| Outside Circumference (mm) | 2489 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 55 |
| Weight (lbs.) | 0.53 |
4L990 / 2990
| Cross Section | 4L |
|---|---|
| Effective Length (in) | 98.96 |
| Effective Length (mm) | 2514 |
| Notched | false |
| Outside Circumference (in) | 99 |
| Outside Circumference (mm) | 2515 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.28 |
| Thickness (mm) | 7 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 55 |
| Weight (lbs.) | 0.53 |
5L1000 / 3999
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 99.93 |
| Effective Length (mm) | 2538 |
| Notched | false |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 37 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 45 |
| Weight (lbs.) | 0.84 |
5L230 / 3230
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 22.73 |
| Effective Length (mm) | 577 |
| Notched | false |
| Outside Circumference (in) | 23 |
| Outside Circumference (mm) | 584 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 34 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.2 |
5L240 / 3240
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 23.72 |
| Effective Length (mm) | 602 |
| Notched | false |
| Outside Circumference (in) | 24 |
| Outside Circumference (mm) | 610 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 34 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.22 |
5L250 / 3250
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 24.7 |
| Effective Length (mm) | 627 |
| Notched | false |
| Outside Circumference (in) | 25 |
| Outside Circumference (mm) | 635 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 34 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.22 |
5L260 / 3260
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 25.76 |
| Effective Length (mm) | 654 |
| Notched | false |
| Outside Circumference (in) | 26 |
| Outside Circumference (mm) | 660 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 34 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.23 |
5L265 / 3265
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 26.26 |
| Effective Length (mm) | 667 |
| Notched | false |
| Outside Circumference (in) | 26.5 |
| Outside Circumference (mm) | 673 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.23 |
5L270 / 3270
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 26.92 |
| Effective Length (mm) | 684 |
| Notched | false |
| Outside Circumference (in) | 27 |
| Outside Circumference (mm) | 686 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 34 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 150 |
| Weight (lbs.) | 0.24 |
5L280 / 3280
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 27.92 |
| Effective Length (mm) | 709 |
| Notched | false |
| Outside Circumference (in) | 28 |
| Outside Circumference (mm) | 711 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 35 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 35 |
| Weight (lbs.) | 0.25 |
5L290 / 3290
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 28.94 |
| Effective Length (mm) | 735 |
| Notched | false |
| Outside Circumference (in) | 29 |
| Outside Circumference (mm) | 737 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 35 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 130 |
| Weight (lbs.) | 0.25 |
5L300 / 3300
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 29.94 |
| Effective Length (mm) | 760 |
| Notched | false |
| Outside Circumference (in) | 30 |
| Outside Circumference (mm) | 762 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 35 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 130 |
| Weight (lbs.) | 0.26 |
5L310 / 3310
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 30.94 |
| Effective Length (mm) | 786 |
| Notched | false |
| Outside Circumference (in) | 31 |
| Outside Circumference (mm) | 787 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 35 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 125 |
| Weight (lbs.) | 0.27 |
5L320 / 3320
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 31.94 |
| Effective Length (mm) | 811 |
| Notched | false |
| Outside Circumference (in) | 32 |
| Outside Circumference (mm) | 813 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 35 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 90 |
| Weight (lbs.) | 0.28 |
5L330 / 3330
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 32.92 |
| Effective Length (mm) | 836 |
| Notched | false |
| Outside Circumference (in) | 33 |
| Outside Circumference (mm) | 838 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 35 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 90 |
| Weight (lbs.) | 0.29 |
5L340 / 3340
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 33.91 |
| Effective Length (mm) | 861 |
| Notched | false |
| Outside Circumference (in) | 34 |
| Outside Circumference (mm) | 864 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 35 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 90 |
| Weight (lbs.) | 0.3 |
5L350 / 3350
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 34.91 |
| Effective Length (mm) | 887 |
| Notched | false |
| Outside Circumference (in) | 35 |
| Outside Circumference (mm) | 889 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 35 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 90 |
| Weight (lbs.) | 0.3 |
5L355 / 3355
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 35.25 |
| Effective Length (mm) | 895 |
| Notched | false |
| Outside Circumference (in) | 35.5 |
| Outside Circumference (mm) | 902 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 90 |
| Weight (lbs.) | 0.31 |
5L360 / 3360
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 35.91 |
| Effective Length (mm) | 912 |
| Notched | false |
| Outside Circumference (in) | 36 |
| Outside Circumference (mm) | 914 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 35 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 90 |
| Weight (lbs.) | 0.31 |
5L370 / 3370
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 36.92 |
| Effective Length (mm) | 938 |
| Notched | false |
| Outside Circumference (in) | 37 |
| Outside Circumference (mm) | 940 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 35 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 90 |
| Weight (lbs.) | 0.32 |
5L380 / 3380
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 37.95 |
| Effective Length (mm) | 964 |
| Notched | false |
| Outside Circumference (in) | 38 |
| Outside Circumference (mm) | 965 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 35 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 90 |
| Weight (lbs.) | 0.33 |
5L390 / 3390
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 38.95 |
| Effective Length (mm) | 989 |
| Notched | false |
| Outside Circumference (in) | 39 |
| Outside Circumference (mm) | 991 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 40 |
| Weight (lbs.) | 0.34 |
5L400 / 3400
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 39.95 |
| Effective Length (mm) | 1015 |
| Notched | false |
| Outside Circumference (in) | 40 |
| Outside Circumference (mm) | 1016 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 90 |
| Weight (lbs.) | 0.35 |
5L410 / 3410
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 40.95 |
| Effective Length (mm) | 1040 |
| Notched | false |
| Outside Circumference (in) | 41 |
| Outside Circumference (mm) | 1041 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.35 |
5L420 / 3420
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 41.95 |
| Effective Length (mm) | 1066 |
| Notched | false |
| Outside Circumference (in) | 42 |
| Outside Circumference (mm) | 1067 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.36 |
5L430 / 3430
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 42.95 |
| Effective Length (mm) | 1091 |
| Notched | false |
| Outside Circumference (in) | 43 |
| Outside Circumference (mm) | 1092 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.37 |
5L440 / 3440
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 43.95 |
| Effective Length (mm) | 1116 |
| Notched | false |
| Outside Circumference (in) | 44 |
| Outside Circumference (mm) | 1118 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.38 |
5L450 / 3450
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 44.95 |
| Effective Length (mm) | 1142 |
| Notched | false |
| Outside Circumference (in) | 45 |
| Outside Circumference (mm) | 1143 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.39 |
5L460 / 3460
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 45.95 |
| Effective Length (mm) | 1167 |
| Notched | false |
| Outside Circumference (in) | 46 |
| Outside Circumference (mm) | 1168 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.4 |
5L470 / 3470
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 46.96 |
| Effective Length (mm) | 1193 |
| Notched | false |
| Outside Circumference (in) | 47 |
| Outside Circumference (mm) | 1194 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.4 |
5L480 / 3480
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 47.96 |
| Effective Length (mm) | 1218 |
| Notched | false |
| Outside Circumference (in) | 48 |
| Outside Circumference (mm) | 1219 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.41 |
5L490 / 3490
| Cross Section | 5L |
|---|---|
| Effective Length (in) | 48.95 |
| Effective Length (mm) | 1243 |
| Notched | false |
| Outside Circumference (in) | 49 |
| Outside Circumference (mm) | 1245 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 36 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 75 |
| Weight (lbs.) | 0.42 |
Specifications
| Cross Section | 2L, 3L, 4L, 5L |
|---|---|
| Effective Length (in) | 9.76 – 99.96 |
| Effective Length (mm) | 248 – 2539 |
| Notched | false |
| Outside Circumference (in) | 10 – 100 |
| Outside Circumference (mm) | 254 – 2540 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.24 – 0.66 |
| Top Width (mm) | 6 – 17 |
| Angle. | 34 – 41 |
| Thickness (in) | 0.12 – 0.35 |
| Thickness (mm) | 3 – 9 |
| Markets/Applications | Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Belt Notes | Truflex® belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3). |
| Customer Pack | 10 – 2970 |
| Weight (lbs.) | 0.015 – 0.84 |
| Section | 2L |
PDF Documents
No PDF documents.
