Attributes
| Part Number | 4657-000000-000015 |
|---|
Description

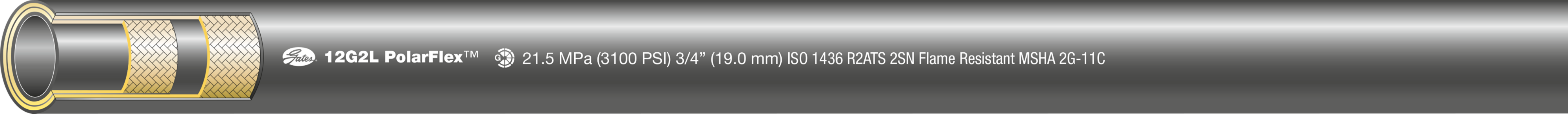

# G2L Wire Braid Hose - EN 853 2SN - PolarFlex™ Low Temp -57°C
G2L PolarFlex™ is recommended for extremely low temperature high-pressure hydraulic oil line applications and is compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids.
- Recommended For: Low-temperature high-pressure hydraulic oil lines.
- For use with Field Attachable Type T Couplings [G28 Series], GlobalSpiral™ Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series] and MegaCrimp™ Couplings [G25 Series].
- Tested to industry-standard 600,000 impulse cycles.
- Unique low temperature tube for extended service life at extremely low temperatures.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
## Features and Benefits
- Unique low temperature tube for extended service life at extremely low temperatures.
- -4 to -20 validated with MegaCrimp™; -24 to -32 with GlobalSpiral™ Plus.
- Cover: MSHA approved.
- Temperature Range:
- - - -57°C to +100°C
- -70°F to +212°F
- Size: 1/4" to 2".
Variations (20)
85735
| Dynamic WP (Max.psi) (1) | 3625 |
|---|---|
| Continuous Operating Temperature Range | -70°F to +212°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203.2 |
| Min. Burst Pressure (psi) | 14500 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.99 |
| Hose Outside Diameter (mm) | 25.1 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 3625 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.99 |
| Outside Diameter (mm) | 25.1 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Chloroprene - Type A |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S |
| Meets These Agency Specifications | DIN - Deutsch Industry Norm; International, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers |
| Notes | 1436 2SN R2853 2SN. 100R2. Mil-DTL-13531 Type II Class B. Meets MSHA 2G. |
| Recommended For | Low-temperature high-pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN. Qualified to Mil-DTL-13531 Type II Class B. |
| Customer Pack | 1 |
| Weight (lbs.) | 27.5 |
| Packaging | T |
70291
| Minimum Bend Radius (in) | 8 |
|---|---|
| Minimum Bend Radius (mm) | 203.2 |
| Min. Burst Pressure (psi) | 3625 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Temperature Range | -70°F to +212°F (-57°C to +100°C) |
| Working Pressure (psi) | 3625 |
| Length (m) | 67 |
| Outside Diameter (in) | 0.99 |
| Outside Diameter (mm) | 25.1 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series]; GlobalSpiral™ Couplings [G20 Series]; Field Attachable Type T Couplings [G28 Series] |
| Color | Black |
| Cover | Chloroprene - Type A. Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Chloroprene - Type A |
| Construction: Reinforcement | 2-braid, wire |
| Construction: Tube | Nitrile - Type C |
| Notes | 1436 2SN R2853 2SN. 100R2. Mil-DTL-13531 Type II Class B. Meets MSHA 2G. |
85736
| Dynamic WP (Max.psi) (1) | 3100 |
|---|---|
| Continuous Operating Temperature Range | -70°F to +212°F |
| Minimum Bend Radius (in) | 9.5 |
| Minimum Bend Radius (mm) | 241.3 |
| Min. Burst Pressure (psi) | 12400 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 3100 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 29.2 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Chloroprene - Type A |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S |
| Meets These Agency Specifications | DIN - Deutsch Industry Norm; International, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers |
| Notes | 1436 2SN R2853 2SN. 100R2. Mil-DTL-13531 Type II Class B. Meets MSHA 2G. |
| Recommended For | Low-temperature high-pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN. Qualified to Mil-DTL-13531 Type II Class B. |
| Customer Pack | 1 |
| Weight (lbs.) | 32.68 |
| Packaging | T |
85737
| Dynamic WP (Max.psi) (1) | 2400 |
|---|---|
| Continuous Operating Temperature Range | -70°F to +212°F |
| Minimum Bend Radius (in) | 12 |
| Minimum Bend Radius (mm) | 304.8 |
| Min. Burst Pressure (psi) | 9600 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.48 |
| Hose Outside Diameter (mm) | 37.6 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 2400 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.48 |
| Outside Diameter (mm) | 37.6 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Chloroprene - Type A |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S |
| Meets These Agency Specifications | DIN - Deutsch Industry Norm; International, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers |
| Notes | 1436 2SN R2853 2SN. 100R2. Mil-DTL-13531 Type II Class B. Meets MSHA 2G. |
| Recommended For | Low-temperature high-pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN. Qualified to Mil-DTL-13531 Type II Class B. |
| Customer Pack | 1 |
| Weight (lbs.) | 49.06 |
| Packaging | T |
70294
| Minimum Bend Radius (in) | 16.5 |
|---|---|
| Minimum Bend Radius (mm) | 419.1 |
| Min. Burst Pressure (psi) | 1825 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Temperature Range | -70°F to +212°F (-57°C to +100°C) |
| Working Pressure (psi) | 1825 |
| Length (m) | 37 |
| Outside Diameter (in) | 1.84 |
| Outside Diameter (mm) | 46.7 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series]; GlobalSpiral™ Couplings [G20 Series]; Field Attachable Type T Couplings [G28 Series] |
| Color | Black |
| Cover | Chloroprene - Type A. Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Chloroprene - Type A |
| Construction: Reinforcement | 2-braid, wire |
| Construction: Tube | Nitrile - Type C |
| Notes | 1436 2SN R2853 2SN. 100R2. Mil-DTL-13531 Type II Class B. Meets MSHA 2G. |
85708
| Dynamic WP (Max.psi) (1) | 1300 |
|---|---|
| Continuous Operating Temperature Range | -70°F to +212°F |
| Minimum Bend Radius (in) | 20 |
| Minimum Bend Radius (mm) | 508 |
| Min. Burst Pressure (psi) | 5200 |
| Hose Inside Diameter (in). | 1.5 |
| Hose Inside Diameter (mm) | 38.1 |
| Hose Outside Diameter (in) | 2.12 |
| Hose Outside Diameter (mm) | 53.8 |
| Inside Diameter (in) | 1.5 |
| Inside Diameter (mm) | 38.1 |
| Working Pressure (psi) | 1300 |
| Length (m) | 15 |
| Outside Diameter (in) | 2.12 |
| Outside Diameter (mm) | 53.8 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Chloroprene - Type A |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S |
| Meets These Agency Specifications | DIN - Deutsch Industry Norm; International, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers |
| Notes | 1436 2SN R2853 2SN. 100R2. Mil-DTL-13531 Type II Class B. Meets MSHA 2G. |
| Recommended For | Low-temperature high-pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN. Qualified to Mil-DTL-13531 Type II Class B. |
| Customer Pack | 1 |
| Weight (lbs.) | 80.75 |
| Packaging | T |
70314
| Dynamic WP (Max.psi) (1) | 1300 |
|---|---|
| Continuous Operating Temperature Range | -70°F to +212°F |
| Minimum Bend Radius (in) | 19.7 |
| Minimum Bend Radius (mm) | 500 |
| Min. Burst Pressure (psi) | 5200 |
| Hose Inside Diameter (in). | 1.5 |
| Hose Inside Diameter (mm) | 38.1 |
| Hose Outside Diameter (in) | 2.12 |
| Hose Outside Diameter (mm) | 53.8 |
| Inside Diameter (in) | 1.5 |
| Inside Diameter (mm) | 38.1 |
| Working Pressure (psi) | 1300 |
| Length (m) | 37 |
| Outside Diameter (in) | 2.12 |
| Outside Diameter (mm) | 53.8 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Chloroprene - Type A |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S |
| Meets These Agency Specifications | DIN - Deutsch Industry Norm; International, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers |
| Notes | 1436 2SN R2853 2SN. 100R2. Mil-DTL-13531 Type II Class B. Meets MSHA 2G. |
| Recommended For | Low-temperature high-pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN. Qualified to Mil-DTL-13531 Type II Class B. |
| Customer Pack | 120 |
| Weight (lbs.) | 1.5 |
| Packaging | A |
85732
| Continuous Operating Temperature Range | -70°F to +212°F |
|---|---|
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 5 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.59 |
| Hose Outside Diameter (mm) | 15 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 5800 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.59 |
| Outside Diameter (mm) | 15 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Chloroprene - Type A |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S |
| Meets These Agency Specifications | DIN - Deutsch Industry Norm; International, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers |
| Notes | 1436 2SN R2853 2SN. 100R2. Mil-DTL-13531 Type II Class B. Meets MSHA 2G. |
| Recommended For | Low-temperature high-pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN. Qualified to Mil-DTL-13531 Type II Class B. |
| Customer Pack | 1 |
| Weight (lbs.) | 12.93 |
| Packaging | T |
85733
| Dynamic WP (Max.psi) (1) | 4800 |
|---|---|
| Continuous Operating Temperature Range | -70°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 19200 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.74 |
| Hose Outside Diameter (mm) | 18.8 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 4800 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.74 |
| Outside Diameter (mm) | 18.8 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Chloroprene - Type A |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S |
| Meets These Agency Specifications | DIN - Deutsch Industry Norm; International, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers |
| Notes | 1436 2SN R2853 2SN. 100R2. Mil-DTL-13531 Type II Class B. Meets MSHA 2G. |
| Recommended For | Low-temperature high-pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN. Qualified to Mil-DTL-13531 Type II Class B. |
| Customer Pack | 1 |
| Weight (lbs.) | 19.19 |
| Packaging | T |
4G2LXREEL
| Minimum Bend Radius (in) | 4 |
|---|---|
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 5800 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Temperature Range | -70°F to +212°F (-57°C to +100°C) |
| Working Pressure (psi) | 5800 |
| Length (m) | 134 |
| Outside Diameter (in) | 0.59 |
| Outside Diameter (mm) | 15 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series]; Field Attachable Type T Couplings [G28 Series] |
| Color | Black |
| Cover | Chloroprene - Type A. Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Chloroprene - Type A |
| Construction: Reinforcement | 2-braid, wire |
| Construction: Tube | Nitrile - Type C |
| Notes | 1436 2SN R2853 2SN. 100R2. Mil-DTL-13531 Type II Class B. Meets MSHA 2G. |
6G2LXREEL
| Minimum Bend Radius (in) | 5 |
|---|---|
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 4800 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -70°F to +212°F (-57°C to +100°C) |
| Working Pressure (psi) | 4800 |
| Length (m) | 117 |
| Outside Diameter (in) | 0.74 |
| Outside Diameter (mm) | 18.8 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series]; GlobalSpiral™ Couplings [G20 Series]; Field Attachable Type T Couplings [G28 Series] |
| Color | Black |
| Cover | Chloroprene - Type A. Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Chloroprene - Type A |
| Construction: Reinforcement | 2-braid, wire |
| Construction: Tube | Nitrile - Type C |
| Notes | 1436 2SN R2853 2SN. 100R2. Mil-DTL-13531 Type II Class B. Meets MSHA 2G. |
12G2LXREEL
| Minimum Bend Radius (in) | 9.5 |
|---|---|
| Minimum Bend Radius (mm) | 241.3 |
| Min. Burst Pressure (psi) | 3100 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -70°F to +212°F (-57°C to +100°C) |
| Working Pressure (psi) | 3100 |
| Length (m) | 67 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 29.2 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series]; GlobalSpiral™ Couplings [G20 Series]; Field Attachable Type T Couplings [G28 Series] |
| Color | Black |
| Cover | Chloroprene - Type A. Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Chloroprene - Type A |
| Construction: Reinforcement | 2-braid, wire |
| Construction: Tube | Nitrile - Type C |
| Notes | 1436 2SN R2853 2SN. 100R2. Mil-DTL-13531 Type II Class B. Meets MSHA 2G. |
16G2LXREEL
| Minimum Bend Radius (in) | 12 |
|---|---|
| Minimum Bend Radius (mm) | 304.8 |
| Min. Burst Pressure (psi) | 2400 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Temperature Range | -70°F to +212°F (-57°C to +100°C) |
| Working Pressure (psi) | 2400 |
| Length (m) | 50 |
| Outside Diameter (in) | 1.48 |
| Outside Diameter (mm) | 37.6 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series]; GlobalSpiral™ Couplings [G20 Series]; Field Attachable Type T Couplings [G28 Series] |
| Color | Black |
| Cover | Chloroprene - Type A. Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Chloroprene - Type A |
| Construction: Reinforcement | 2-braid, wire |
| Construction: Tube | Nitrile - Type C |
| Notes | 1436 2SN R2853 2SN. 100R2. Mil-DTL-13531 Type II Class B. Meets MSHA 2G. |
85734
| Dynamic WP (Max.psi) (1) | 4000 |
|---|---|
| Continuous Operating Temperature Range | -70°F to +212°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 16000 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.86 |
| Hose Outside Diameter (mm) | 21.8 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 4000 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.86 |
| Outside Diameter (mm) | 21.8 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Chloroprene - Type A |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S |
| Meets These Agency Specifications | DIN - Deutsch Industry Norm; International, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers |
| Notes | 1436 2SN R2853 2SN. 100R2. Mil-DTL-13531 Type II Class B. Meets MSHA 2G. |
| Recommended For | Low-temperature high-pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN. Qualified to Mil-DTL-13531 Type II Class B. |
| Customer Pack | 1 |
| Weight (lbs.) | 22.84 |
| Packaging | T |
70290
| Minimum Bend Radius (in) | 7 |
|---|---|
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 4000 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -70°F to +212°F (-57°C to +100°C) |
| Working Pressure (psi) | 4000 |
| Length (m) | 101 |
| Outside Diameter (in) | 0.86 |
| Outside Diameter (mm) | 21.8 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series]; GlobalSpiral™ Couplings [G20 Series]; Field Attachable Type T Couplings [G28 Series] |
| Color | Black |
| Cover | Chloroprene - Type A. Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Chloroprene - Type A |
| Construction: Reinforcement | 2-braid, wire |
| Construction: Tube | Nitrile - Type C |
| Notes | 1436 2SN R2853 2SN. 100R2. Mil-DTL-13531 Type II Class B. Meets MSHA 2G. |
46574467
No variation attributes.
46574466
No variation attributes.
46574468
No variation attributes.
46574465
No variation attributes.
46574469
No variation attributes.
Specifications
| Dynamic WP (Max.psi) (1) | 1300 – 4800 |
|---|---|
| Continuous Operating Temperature Range | -70°F to +212°F |
| Minimum Bend Radius (in) | 4 – 20 |
| Minimum Bend Radius (mm) | 101.6 – 508 |
| Min. Burst Pressure (psi) | 5 – 19200 |
| Hose Inside Diameter (in). | 0.25 – 1.5 |
| Hose Inside Diameter (mm) | 6.4 – 38.1 |
| Hose Outside Diameter (in) | 0.59 – 2.12 |
| Hose Outside Diameter (mm) | 15 – 53.8 |
| Inside Diameter (in) | 0.25 – 1.5 |
| Inside Diameter (mm) | 6.4 – 38.1 |
| Working Pressure (psi) | 1300 – 5800 |
| Length (m) | 15 – 134 |
| Outside Diameter (in) | 0.59 – 2.12 |
| Outside Diameter (mm) | 15 – 53.8 |
| Use | Wire Braid |
| Color | Black |
| Reinforcement | 2-braid, wire |
| Tube | Nitrile - Type C; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | Chloroprene - Type A |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S |
| Meets These Agency Specifications | DIN - Deutsch Industry Norm; International, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers |
| Notes | 1436 2SN R2853 2SN. 100R2. Mil-DTL-13531 Type II Class B. Meets MSHA 2G. |
| Recommended For | Low-temperature high-pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN. Qualified to Mil-DTL-13531 Type II Class B. |
| Customer Pack | 1 – 120 |
| Weight (lbs.) | 1.5 – 80.75 |
| Packaging | T, A |
| Temperature Range | -70°F to +212°F (-57°C to +100°C) |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series]; GlobalSpiral™ Couplings [G20 Series]; Field Attachable Type T Couplings [G28 Series], MegaCrimp® Couplings [G25 Series]; Field Attachable Type T Couplings [G28 Series] |
| Cover | Chloroprene - Type A. Black |
| Construction: Reinforcement | 2-braid, wire |
| Construction: Tube | Nitrile - Type C |
PDF Documents
Hydraulics Catalog
Open PDF
