Attributes
| Part Number | 4657-000000-000044 |
|---|
Description

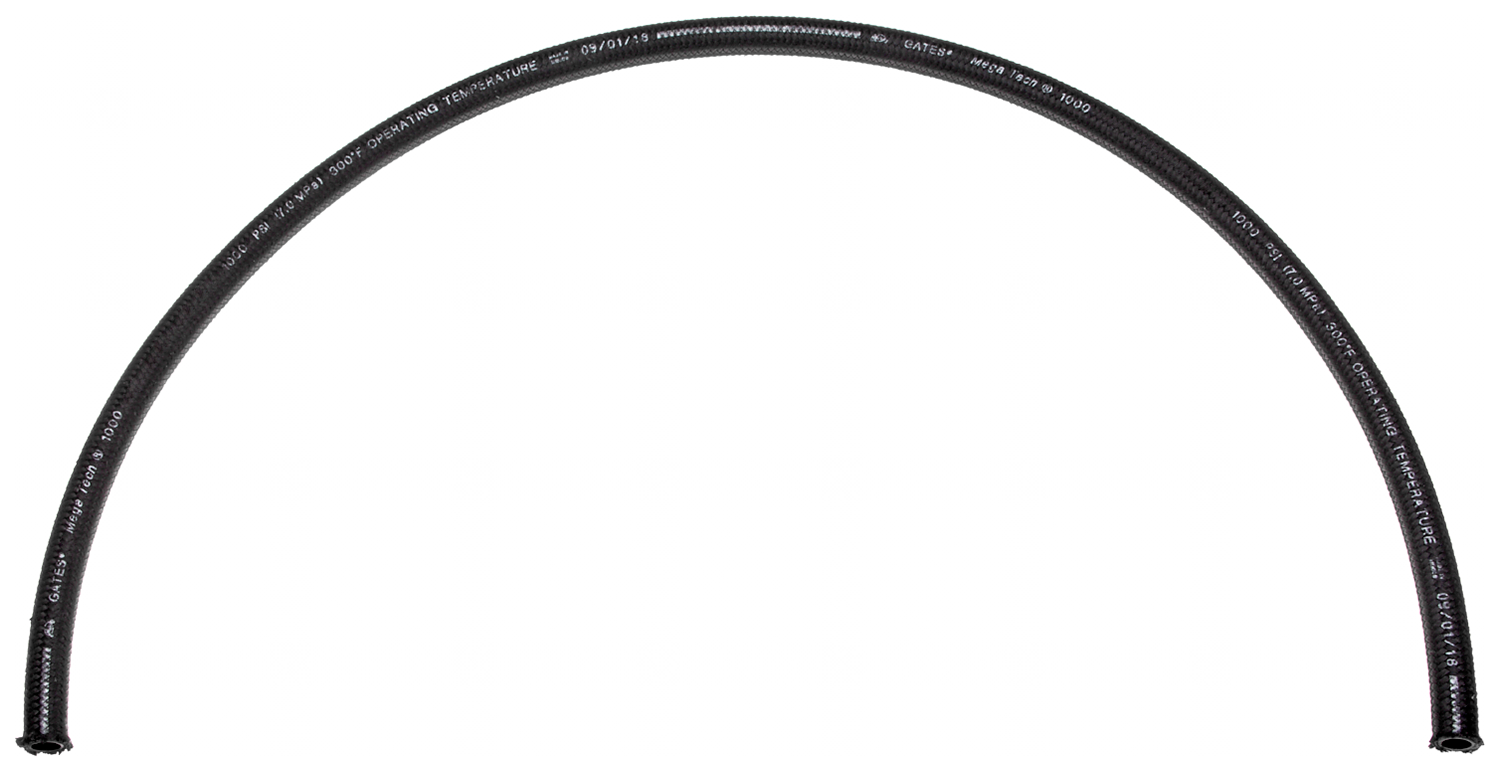

# MegaTech™ 1000 High Temperature Hot Oil Hose - SAE J1405
MegaTech™ 1000 High-Temp hose is recommended for air brake hose, pressurized hot oil return lines and rotary oil/air compressor lines. Not recommended for gasoline or diesel fuel applications.
- Recommended For: Air brake hose, pressurized hot oil return lines and rotary oil/air compressor lines. Not recommended for gasoline or diesel fuel applications.
- For use with MegaCrimp™ Couplings [G25 Series].
- 1000 psi constant pressure for all ID's.
- Meets the requirements of DOT FMVSS 106–74, SAE J1402, for air brake hose (-4, -6, -8, -10).
## Features and Benefits
- Meets the requirements of SAE J1405 performance specifications for use in high-temperature transmission oil systems and high-temperature lubrication oil systems using petroleum based oils.
- MegaTech™ is True-Bore ID Gates® Technical Spec 300F tube stock with Textile braid cover.
- MegaTech™ is compatible with a variety of fluids such as hydraulic oil, phosphate esters, diesters.
- MegaTech 1000 has a Black Textile braid cover.
- -4 to -20 validated with MegaCrimp™.
- Working pressure: 7 MPa.
- Temperature Range:
- - - -40°C to +150°C
- -40°F to +302°F
- - Air Only:
- -40°C to +121°C
- -40°F to +250°F
- - Phosphate ester fluids:
- -40°C to +100°C
- -40°F to +212°F
- Design factor: 4:1.
- Size: 1/4" to 1-1/4".
Variations (20)
70853
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.625 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.93 |
| Hose Outside Diameter (mm) | 23.6 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Temperature Range | -40°F to +300°F (-40°C to +149°C) |
| Working Pressure (psi) | 1000 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.93 |
| Outside Diameter (mm) | 23.6 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Textile Braid Impregnated with Synthetic Rubber. Black |
| Reinforcement | 1-braid, wire |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Construction: Reinforcement | 1-braid, wire |
| Construction: Tube | CPE - Type J |
| Notes | J1402. DOT FMVSS 106-74. Phosphate Ester Fluids to +212°F. |
85984
| Dynamic WP (Max.psi) (1) | 1000 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 4.7 |
| Minimum Bend Radius (mm) | 119.4 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 1000 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 29.2 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | DOT FMVSS 106-74. Phosphate Ester Fluids to +212°F. |
| Recommended For | Air brake hose, pressurized hot oil return lines and rotary oil/air compressor lines. Meets the requirements of DOT FMVSS 106-74, SAE J1402, for Air Brake Hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 21.0 |
| Packaging | T |
70888
| Dynamic WP (Max.psi) (1) | 1000 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 4.7 |
| Minimum Bend Radius (mm) | 120 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 1000 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 29.2 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | DOT FMVSS 106-74. Phosphate Ester Fluids to +212°F. |
| Recommended For | Air brake hose, pressurized hot oil return lines and rotary oil/air compressor lines. Meets the requirements of DOT FMVSS 106-74, SAE J1402, for Air Brake Hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.4 |
| Packaging | F |
85985
| Dynamic WP (Max.psi) (1) | 1000 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.37 |
| Hose Outside Diameter (mm) | 34.8 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 1000 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.37 |
| Outside Diameter (mm) | 34.8 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | DOT FMVSS 106-74. Phosphate Ester Fluids to +212°F. |
| Recommended For | Air brake hose, pressurized hot oil return lines and rotary oil/air compressor lines. Meets the requirements of DOT FMVSS 106-74, SAE J1402, for Air Brake Hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 25.8 |
| Packaging | T |
85986
| Dynamic WP (Max.psi) (1) | 1000 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 8.5 |
| Minimum Bend Radius (mm) | 215.9 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Hose Outside Diameter (in) | 1.64 |
| Hose Outside Diameter (mm) | 41.7 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Working Pressure (psi) | 1000 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.64 |
| Outside Diameter (mm) | 41.7 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | DOT FMVSS 106-74. Phosphate Ester Fluids to +212°F. |
| Recommended For | Air brake hose, pressurized hot oil return lines and rotary oil/air compressor lines. Meets the requirements of DOT FMVSS 106-74, SAE J1402, for Air Brake Hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 45.67 |
| Packaging | T |
70890
| Dynamic WP (Max.psi) (1) | 1000 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 8.5 |
| Minimum Bend Radius (mm) | 216 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Hose Outside Diameter (in) | 1.64 |
| Hose Outside Diameter (mm) | 41.7 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Working Pressure (psi) | 1000 |
| Length (m) | 30 |
| Outside Diameter (in) | 1.64 |
| Outside Diameter (mm) | 41.7 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | DOT FMVSS 106-74. Phosphate Ester Fluids to +212°F. |
| Recommended For | Air brake hose, pressurized hot oil return lines and rotary oil/air compressor lines. Meets the requirements of DOT FMVSS 106-74, SAE J1402, for Air Brake Hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.83 |
| Packaging | A |
70850
| Dynamic WP (Max.psi) (1) | 1000 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 50.8 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.52 |
| Hose Outside Diameter (mm) | 13.2 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 1000 |
| Length (m) | 107 |
| Outside Diameter (in) | 0.52 |
| Outside Diameter (mm) | 13.2 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | J1402. DOT FMVSS 106-74. Phosphate Ester Fluids to +212°F. |
| Recommended For | Air brake hose, pressurized hot oil return lines and rotary oil/air compressor lines. Meets the requirements of DOT FMVSS 106-74, SAE J1402, for Air Brake Hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 350 |
| Weight (lbs.) | 0.11 |
| Packaging | F |
85980
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 50.8 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.52 |
| Hose Outside Diameter (mm) | 13.2 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Temperature Range | -40°F to +300°F (-40°C to +149°C) |
| Working Pressure (psi) | 1000 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.52 |
| Outside Diameter (mm) | 13.2 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Textile Braid Impregnated with Synthetic Rubber. Black |
| Reinforcement | 1-braid, wire |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Construction: Reinforcement | 1-braid, wire |
| Construction: Tube | CPE - Type J |
| Notes | J1402. DOT FMVSS 106-74. Phosphate Ester Fluids to +212°F. |
70102
No variation attributes.
70851
| Dynamic WP (Max.psi) (1) | 1000 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 2.5 |
| Minimum Bend Radius (mm) | 63.5 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 1000 |
| Length (m) | 107 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 16.8 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | J1402. DOT FMVSS 106-74. Phosphate Ester Fluids to +212°F. |
| Recommended For | Air brake hose, pressurized hot oil return lines and rotary oil/air compressor lines. Meets the requirements of DOT FMVSS 106-74, SAE J1402, for Air Brake Hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 350 |
| Weight (lbs.) | 0.2 |
| Packaging | F |
85981
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2.5 |
| Minimum Bend Radius (mm) | 63.5 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.375 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +300°F (-40°C to +149°C) |
| Working Pressure (psi) | 1000 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 16.8 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Textile Braid Impregnated with Synthetic Rubber. Black |
| Reinforcement | 1-braid, wire |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Construction: Reinforcement | 1-braid, wire |
| Construction: Tube | CPE - Type J |
| Notes | J1402. DOT FMVSS 106-74. Phosphate Ester Fluids to +212°F. |
6MEGATECH1000 XBALE
No variation attributes.
16MEGATECH 1000XREEL
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.37 |
| Hose Outside Diameter (mm) | 34.8 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Temperature Range | -40°F to +300°F (-40°C to +149°C) |
| Working Pressure (psi) | 1000 |
| Length (m) | 46 |
| Outside Diameter (in) | 1.37 |
| Outside Diameter (mm) | 34.8 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Textile Braid Impregnated with Synthetic Rubber. Black |
| Reinforcement | 1-braid, wire |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Construction: Reinforcement | 1-braid, wire |
| Construction: Tube | CPE - Type J |
| Notes | DOT FMVSS 106-74. Phosphate Ester Fluids to +212°F. |
10MEGATECH1000 X50FT
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.625 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.93 |
| Hose Outside Diameter (mm) | 23.6 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Temperature Range | -40°F to +300°F (-40°C to +149°C) |
| Working Pressure (psi) | 1000 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.93 |
| Outside Diameter (mm) | 23.6 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Textile Braid Impregnated with Synthetic Rubber. Black |
| Reinforcement | 1-braid, wire |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Construction: Reinforcement | 1-braid, wire |
| Construction: Tube | CPE - Type J |
| Notes | J1402. DOT FMVSS 106-74. Phosphate Ester Fluids to +212°F. |
70852
| Dynamic WP (Max.psi) (1) | 1000 |
|---|---|
| Vacuum (In. Hg) | 30 |
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 3.5 |
| Minimum Bend Radius (mm) | 88.9 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.8 |
| Hose Outside Diameter (mm) | 20.3 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 1000 |
| Length (m) | 107 |
| Outside Diameter (in) | 0.8 |
| Outside Diameter (mm) | 20.3 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 1-braid, wire |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Notes | J1402. DOT FMVSS 106-74. Phosphate Ester Fluids to +212°F. |
| Recommended For | Air brake hose, pressurized hot oil return lines and rotary oil/air compressor lines. Meets the requirements of DOT FMVSS 106-74, SAE J1402, for Air Brake Hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 350 |
| Weight (lbs.) | 0.24 |
| Packaging | F |
85982
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 3.5 |
| Minimum Bend Radius (mm) | 88.9 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.8 |
| Hose Outside Diameter (mm) | 20.3 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +300°F (-40°C to +149°C) |
| Working Pressure (psi) | 1000 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.8 |
| Outside Diameter (mm) | 20.3 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Textile Braid Impregnated with Synthetic Rubber. Black |
| Reinforcement | 1-braid, wire |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Construction: Reinforcement | 1-braid, wire |
| Construction: Tube | CPE - Type J |
| Notes | J1402. DOT FMVSS 106-74. Phosphate Ester Fluids to +212°F. |
70104
No variation attributes.
46578023
No variation attributes.
46570324
No variation attributes.
46570323
No variation attributes.
Specifications
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2 – 8.5 |
| Minimum Bend Radius (mm) | 50.8 – 216 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.25 – 1.25 |
| Hose Inside Diameter (mm) | 6.4 – 31.8 |
| Hose Outside Diameter (in) | 0.52 – 1.64 |
| Hose Outside Diameter (mm) | 13.2 – 41.7 |
| Inside Diameter (in) | 0.25 – 1.25 |
| Inside Diameter (mm) | 6.4 – 31.8 |
| Temperature Range | -40°F to +300°F (-40°C to +149°C) |
| Working Pressure (psi) | 1000 |
| Length (m) | 15 – 107 |
| Outside Diameter (in) | 0.52 – 1.64 |
| Outside Diameter (mm) | 13.2 – 41.7 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Textile Braid Impregnated with Synthetic Rubber. Black |
| Reinforcement | 1-braid, wire |
| Tube | CPE - Type J; Black; Chemical, Temperature Resistant |
| Construction: Cover | Textile Braid Impregnated w/ Synthetic Rubber |
| Construction: Reinforcement | 1-braid, wire |
| Construction: Tube | CPE - Type J |
| Notes | J1402. DOT FMVSS 106-74. Phosphate Ester Fluids to +212°F., DOT FMVSS 106-74. Phosphate Ester Fluids to +212°F. |
| Dynamic WP (Max.psi) (1) | 1000 |
| Continuous Operating Temperature Range | -40°F to +300°F |
| Use | Fleet |
| Standard Industry Specification | SAE J1402 |
| Meets These Agency Specifications | DOT - Department of Transportation; USA, FMVSS - Federal Motor Vehicle Safety Std. USA, SAE - Society of Automotive Engineers |
| Recommended For | Air brake hose, pressurized hot oil return lines and rotary oil/air compressor lines. Meets the requirements of DOT FMVSS 106-74, SAE J1402, for Air Brake Hose (-4, -6, -8, -10). Not recommended for gasoline or diesel fuel applications. |
| Customer Pack | 1 – 350 |
| Weight (lbs.) | 0.11 – 45.67 |
| Packaging | T, F, A |
PDF Documents
Oilfield Hose, Couplings and Equipment Catalog
Open PDF
