Attributes
| Part Number | 7362-000000-000001 |
|---|
Description
# Power Crimp™ Couplings
Power Crimp stems and ferrules are designed for use with your Gates hoses with a wide variety of couplings available for easy installation.
- Designed to perform with high and medium pressure hose.
- Sizes 3/16 in. through 2 in. I.D.
- Zinc plated carbon steel.
Variations (233)

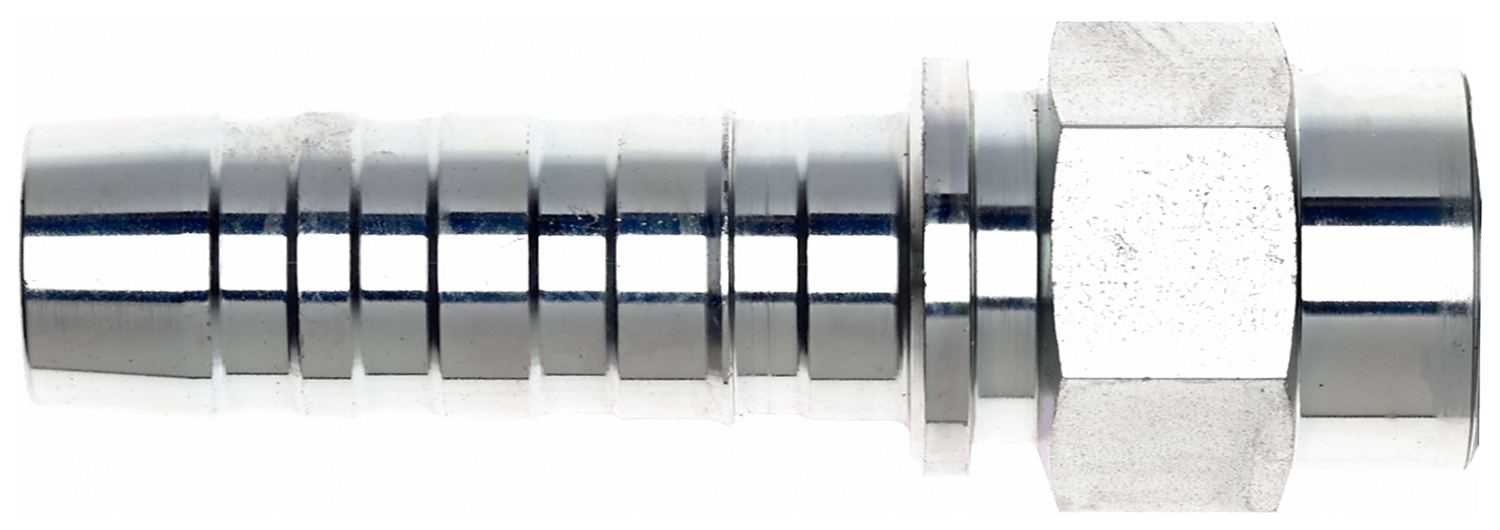

80147
| H1 Stem Hex (in) | 0.875 |
|---|---|
| H1 Stem Hex (mm) | 22.23 |
| H2 Nut Hex (in) | 1.0625 |
| H2 Nut Hex (mm) | 26.99 |
| C Cutoff (in) | 1.6 |
| C Cutoff (mm) | 40.64 |
| L Length (in) | 3.039 |
| L Length (mm) | 77.2 |
80193
| C Cutoff (in) | 1.586 |
|---|---|
| C Cutoff (mm) | 40.28 |
| L Length (in) | 3.031 |
| L Length (mm) | 77 |

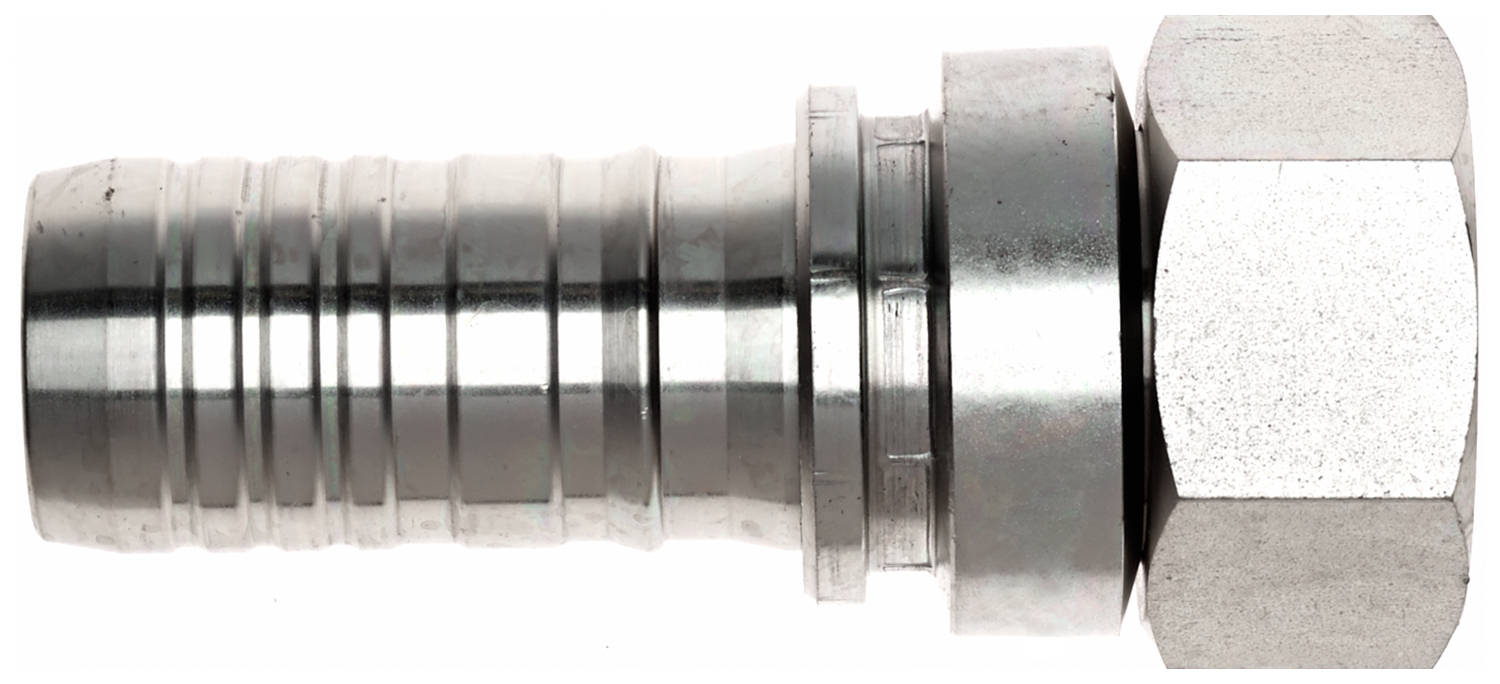

80148
| H1 Stem Hex (in) | 1 |
|---|---|
| H1 Stem Hex (mm) | 25.4 |
| H2 Nut Hex (in) | 1.25 |
| H2 Nut Hex (mm) | 31.75 |
| C Cutoff (in) | 1.68 |
| C Cutoff (mm) | 42.67 |
| L Length (in) | 3.122 |
| L Length (mm) | 79.3 |
80016
| H1 Stem Hex (in) | 1.0625 |
|---|---|
| H1 Stem Hex (mm) | 26.99 |
| C Cutoff (in) | 1.506 |
| C Cutoff (mm) | 38.25 |
| L Length (in) | 2.941 |
| L Length (mm) | 74.7 |
80016X
| H1 Stem Hex (in) | 1.0625 |
|---|---|
| H1 Stem Hex (mm) | 26.99 |
| C Cutoff (in) | 1.506 |
| C Cutoff (mm) | 38.25 |
| L Length (in) | 2.941 |
| L Length (mm) | 74.7 |
80149X
| C Cutoff (in) | 1.81 |
|---|---|
| C Cutoff (mm) | 45.97 |
| L Length (in) | 3.268 |
| L Length (mm) | 83 |

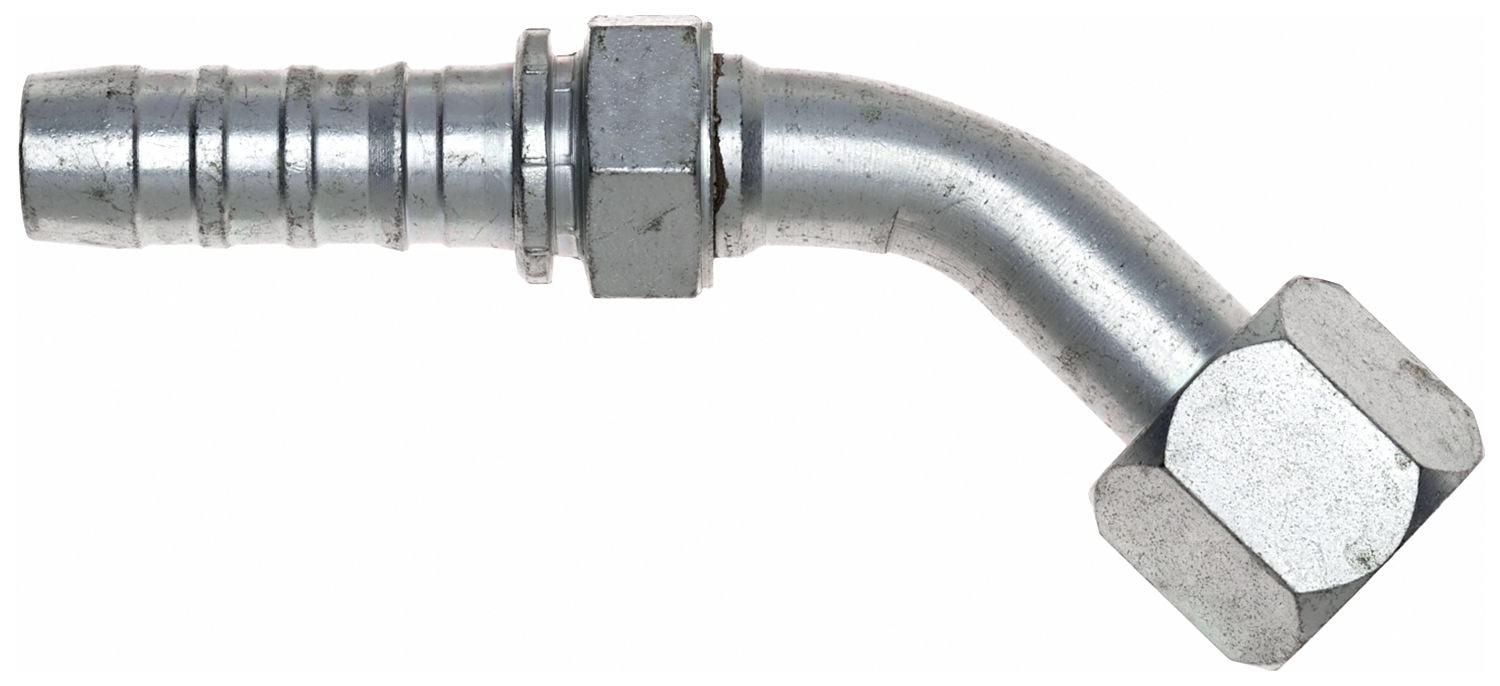

83667X
| T Drop (in) | 0.669 |
|---|---|
| C Cutoff (in) | 2.46 |
| C Cutoff (mm) | 62.48 |
| L Length (in) | 3.898 |
| L Length (mm) | 99 |
| Angle. | 45 |
83180X
| T Drop (in) | 0.787 |
|---|---|
| C Cutoff (in) | 2.58 |
| C Cutoff (mm) | 65.53 |
| L Length (in) | 4.016 |
| L Length (mm) | 102 |
| Angle. | 45 |

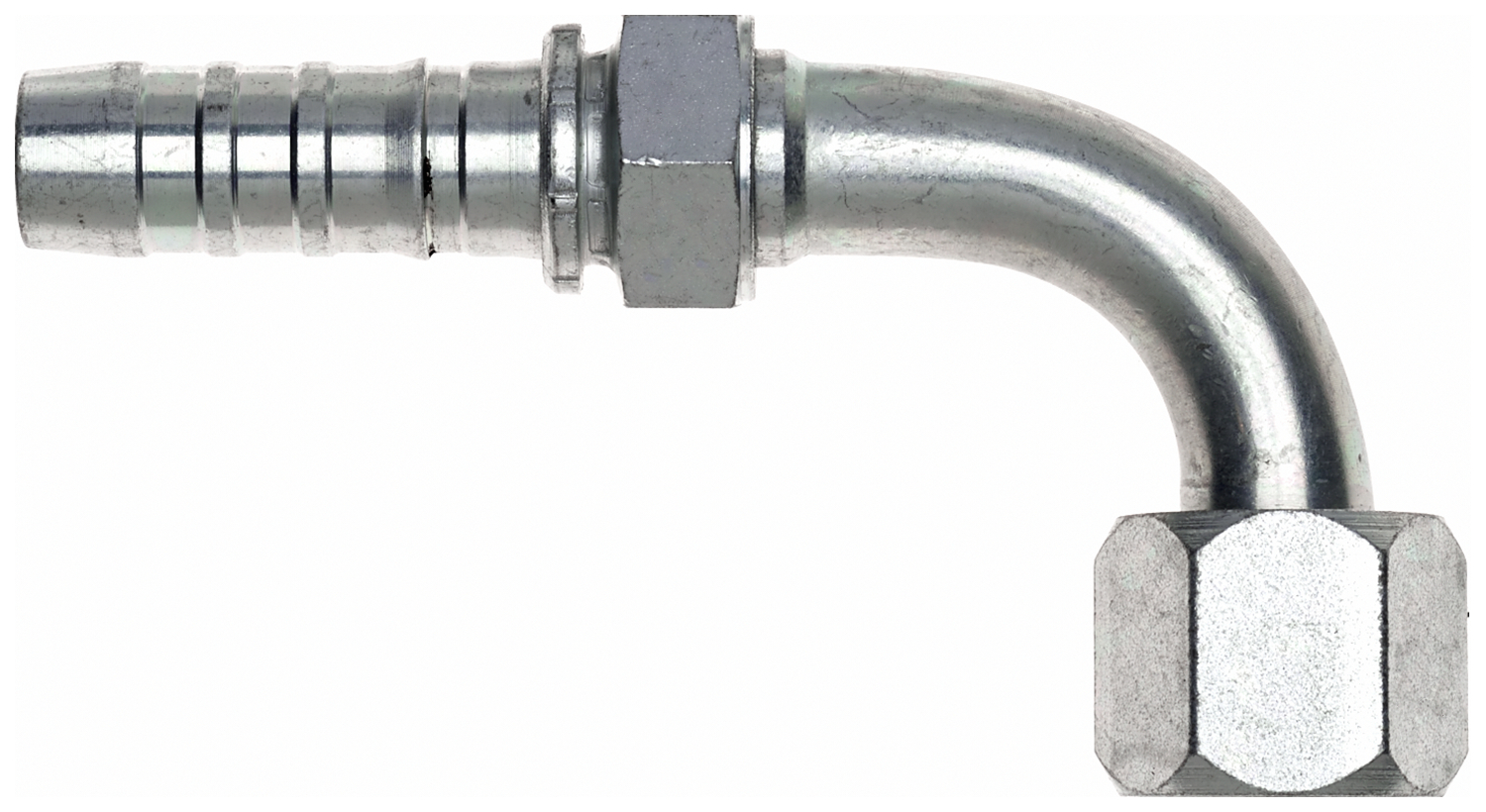

83134X
| T Drop (in) | 1.811 |
|---|---|
| C Cutoff (in) | 2.19 |
| C Cutoff (mm) | 55.62 |
| L Length (in) | 3.622 |
| L Length (mm) | 92 |
| Angle. | 90 |
83135X
| T Drop (in) | 1.811 |
|---|---|
| C Cutoff (in) | 2.69 |
| C Cutoff (mm) | 68.32 |
| L Length (in) | 4.134 |
| L Length (mm) | 105 |
| Angle. | 90 |
10C2-18FDLX XBULK
| C Cutoff (in) | 1.7 |
|---|---|
| C Cutoff (mm) | 43.18 |
| L Length (in) | 3.15 |
| L Length (mm) | 80 |
80477
| A1 Outside Diameter (in) | 1.31 |
|---|---|
| A1 Outside Diameter (mm) | 33.3 |
| L Length (in) | 1.469 |
| L Length (mm) | 37.3 |
80477X
| A1 Outside Diameter (in) | 1.31 |
|---|---|
| A1 Outside Diameter (mm) | 33.3 |
| L Length (in) | 1.47 |
| L Length (mm) | 37.3 |
| Hose Inside Diameter (in) | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Inside Diameter (in) | 0.626 |
| Inside Diameter (mm) | 15.9 |
| L (in) | 1.47 |
| Outside Diameter (in) | 1.31 |
| Outside Diameter (mm) | 33.3 |
| Material | Steel |
| Customer Pack | 150 |
| Weight (lbs.) | 0.19 |
80486
| A1 Outside Diameter (in) | 1.21 |
|---|---|
| A1 Outside Diameter (mm) | 30.7 |
| L Length (in) | 1.49 |
| L Length (mm) | 37.9 |
| Hose Inside Diameter (in) | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Inside Diameter (in) | 0.626 |
| Inside Diameter (mm) | 15.9 |
| L (in) | 1.49 |
| Outside Diameter (in) | 1.21 |
| Outside Diameter (mm) | 30.7 |
| Material | Steel |
| Customer Pack | 10 |
| Weight (lbs.) | 0.13 |
80486X
| A1 Outside Diameter (in) | 1.21 |
|---|---|
| A1 Outside Diameter (mm) | 30.7 |
| L Length (in) | 1.49 |
| L Length (mm) | 37.9 |
| Hose Inside Diameter (in) | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Inside Diameter (in) | 0.626 |
| Inside Diameter (mm) | 15.9 |
| L (in) | 1.49 |
| Outside Diameter (in) | 1.21 |
| Outside Diameter (mm) | 30.7 |
| Material | Steel |
| Customer Pack | 200 |
| Weight (lbs.) | 0.13 |
80476
| A1 Outside Diameter (in) | 1.32 |
|---|---|
| A1 Outside Diameter (mm) | 33.5 |
| L Length (in) | 1.469 |
| L Length (mm) | 37.3 |
80476X
| A1 Outside Diameter (in) | 1.32 |
|---|---|
| A1 Outside Diameter (mm) | 33.5 |
| L Length (in) | 1.469 |
| L Length (mm) | 37.3 |
80447
| A1 Outside Diameter (in) | 1.23 |
|---|---|
| A1 Outside Diameter (mm) | 31.2 |
| L Length (in) | 1.25 |
| L Length (mm) | 31.8 |
| Hose Inside Diameter (in) | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Inside Diameter (in) | 0.626 |
| Inside Diameter (mm) | 15.9 |
| L (in) | 1.25 |
| Outside Diameter (in) | 1.23 |
| Outside Diameter (mm) | 31.2 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.13 |
80447X
No variation attributes.
80151
| C Cutoff (in) | 1.49 |
|---|---|
| C Cutoff (mm) | 37.84 |
| L Length (in) | 3.189 |
| L Length (mm) | 81 |
80406
| B Tube Length (in) | 0.38 |
|---|---|
| B Tube Length (mm) | 9.5 |
| H1 Stem Hex (in) | 1.06 |
| H1 Stem Hex (mm) | 27 |
| H2 Nut Hex (in) | 1.06 |
| H2 Nut Hex (mm) | 26.9 |
| A1 Outside Diameter (in) | 0.75 |
| A1 Outside Diameter (mm) | 19.1 |
| C Cutoff (in) | 0.76 |
| C Cutoff (mm) | 19.3 |
| L Length (in) | 2.47 |
| L Length (mm) | 62.7 |
| Hose Inside Diameter (in) | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Inside Diameter (in) | 0.752 |
| Inside Diameter (mm) | 19.1 |
| C (in) | 0.76 |
| L (in) | 2.47 |
| Outside Diameter (in) | 1.12 |
| Outside Diameter (mm) | 28.5 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.18 |
80376X
| T Drop (in) | 2.126 |
|---|---|
| C Cutoff (in) | 2.44 |
| C Cutoff (mm) | 61.97 |
| L Length (in) | 4.15 |
| L Length (mm) | 105.4 |
| Angle. | 90 |
80072X
| H1 Stem Hex (in) | 1.25 |
|---|---|
| H1 Stem Hex (mm) | 31.75 |
| C Cutoff (in) | 1.25 |
| C Cutoff (mm) | 31.75 |
| L Length (in) | 2.921 |
| L Length (mm) | 74.2 |
80195X
| H1 Stem Hex (in) | 1.0625 |
|---|---|
| H1 Stem Hex (mm) | 26.99 |
| C Cutoff (in) | 1.7 |
| C Cutoff (mm) | 43.18 |
| L Length (in) | 3.409 |
| L Length (mm) | 86.6 |
80018X
| H1 Stem Hex (in) | 1.0625 |
|---|---|
| H1 Stem Hex (mm) | 26.99 |
| C Cutoff (in) | 1.5 |
| C Cutoff (mm) | 38.1 |
| L Length (in) | 3.209 |
| L Length (mm) | 81.5 |
80043
| C Cutoff (in) | 2 |
|---|---|
| C Cutoff (mm) | 50.8 |
| L Length (in) | 3.701 |
| L Length (mm) | 94 |
80153
| C Cutoff (in) | 1.85 |
|---|---|
| C Cutoff (mm) | 46.99 |
| L Length (in) | 3.543 |
| L Length (mm) | 90 |
80153X
| C Cutoff (in) | 1.85 |
|---|---|
| C Cutoff (mm) | 46.99 |
| L Length (in) | 3.543 |
| L Length (mm) | 90 |
| Hose Inside Diameter (in) | 0.752 |
| Hose Inside Diameter (mm) | 19.1 |
| Inside Diameter (in) | 0.752 |
| Inside Diameter (mm) | 19.1 |
| Material | Steel |
| Customer Pack | 125 |
| Weight (lbs.) | 0.39 |
80196
| C Cutoff (in) | 1.77 |
|---|---|
| C Cutoff (mm) | 44.95 |
| L Length (in) | 3.465 |
| L Length (mm) | 88 |
80407
| B Tube Length (in) | 0.47 |
|---|---|
| B Tube Length (mm) | 11.9 |
| A1 Outside Diameter (in) | 1.01 |
| A1 Outside Diameter (mm) | 25.7 |
| C Cutoff (in) | 1.04 |
| C Cutoff (mm) | 26.4 |
| L Length (in) | 2.75 |
| L Length (mm) | 69.9 |
| Hose Inside Diameter (in) | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Inside Diameter (in) | 0.752 |
| Inside Diameter (mm) | 19.1 |
| C (in) | 1.04 |
| L (in) | 2.75 |
| Outside Diameter (in) | 1.38 |
| Outside Diameter (mm) | 35.1 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.19 |
80407X
| A1 Outside Diameter (in) | 1.38 |
|---|---|
| A1 Outside Diameter (mm) | 35.05 |
| C Cutoff (in) | 1.04 |
| C Cutoff (mm) | 26.41 |
| L Length (in) | 2.756 |
| L Length (mm) | 70 |
| Hose Inside Diameter (in) | 0.752 |
| Hose Inside Diameter (mm) | 19.1 |
| Inside Diameter (in) | 0.752 |
| Inside Diameter (mm) | 19.1 |
| Material | Steel |
80154
| C Cutoff (in) | 1.8 |
|---|---|
| C Cutoff (mm) | 45.72 |
| L Length (in) | 3.504 |
| L Length (mm) | 89 |
80017
| C Cutoff (in) | 1.5 |
|---|---|
| C Cutoff (mm) | 38.1 |
| L Length (in) | 3.228 |
| L Length (mm) | 82 |
80017X
| H1 Stem Hex (in) | 1.0625 |
|---|---|
| H1 Stem Hex (mm) | 26.99 |
| C Cutoff (in) | 1.5 |
| C Cutoff (mm) | 38.1 |
| L Length (in) | 3.209 |
| L Length (mm) | 81.5 |
83621X
| C Cutoff (in) | 1.89 |
|---|---|
| C Cutoff (mm) | 48 |
| L Length (in) | 3.622 |
| L Length (mm) | 92 |
83232X
| T Drop (in) | 2.047 |
|---|---|
| C Cutoff (in) | 2.81 |
| C Cutoff (mm) | 71.37 |
| L Length (in) | 4.528 |
| L Length (mm) | 115 |
| Angle. | 90 |
83136X
| T Drop (in) | 1.811 |
|---|---|
| C Cutoff (in) | 2.81 |
| C Cutoff (mm) | 71.37 |
| L Length (in) | 4.528 |
| L Length (mm) | 115 |
| Angle. | 90 |
83695X
| T Drop (in) | 2.205 |
|---|---|
| C Cutoff (in) | 3.54 |
| C Cutoff (mm) | 89.91 |
| L Length (in) | 5.236 |
| L Length (mm) | 133 |
| Angle. | 90 |
83140X
| T Drop (in) | 1.142 |
|---|---|
| C Cutoff (in) | 3.79 |
| C Cutoff (mm) | 96.26 |
| L Length (in) | 5.512 |
| L Length (mm) | 140 |
| Angle. | 45 |
80475
| A1 Outside Diameter (in) | 1.57 |
|---|---|
| A1 Outside Diameter (mm) | 39.9 |
| L Length (in) | 1.69 |
| L Length (mm) | 42.9 |
| Hose Inside Diameter (in) | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Inside Diameter (in) | 0.752 |
| Inside Diameter (mm) | 19.1 |
| L (in) | 1.69 |
| Outside Diameter (in) | 1.57 |
| Outside Diameter (mm) | 39.9 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.29 |
80475X
| A1 Outside Diameter (in) | 1.57 |
|---|---|
| A1 Outside Diameter (mm) | 39.9 |
| L Length (in) | 1.689 |
| L Length (mm) | 42.9 |
80487
| A1 Outside Diameter (in) | 1.53 |
|---|---|
| A1 Outside Diameter (mm) | 38.9 |
| L Length (in) | 1.69 |
| L Length (mm) | 42.9 |
| Hose Inside Diameter (in) | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Inside Diameter (in) | 0.752 |
| Inside Diameter (mm) | 19.1 |
| L (in) | 1.69 |
| Outside Diameter (in) | 1.53 |
| Outside Diameter (mm) | 38.9 |
| Material | Steel |
| Customer Pack | 10 |
| Weight (lbs.) | 0.21 |
80487X
| A1 Outside Diameter (in) | 1.53 |
|---|---|
| A1 Outside Diameter (mm) | 38.9 |
| L Length (in) | 1.69 |
| L Length (mm) | 42.9 |
| Hose Inside Diameter (in) | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Inside Diameter (in) | 0.752 |
| Inside Diameter (mm) | 19.1 |
| L (in) | 1.69 |
| Outside Diameter (in) | 1.53 |
| Outside Diameter (mm) | 38.9 |
| Material | Steel |
| Customer Pack | 150 |
| Weight (lbs.) | 0.21 |
80423
| A1 Outside Diameter (in) | 1.5 |
|---|---|
| A1 Outside Diameter (mm) | 38.1 |
| L Length (in) | 1.47 |
| L Length (mm) | 37.3 |
| Hose Inside Diameter (in) | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Inside Diameter (in) | 0.752 |
| Inside Diameter (mm) | 19.1 |
| L (in) | 1.47 |
| Outside Diameter (in) | 1.5 |
| Outside Diameter (mm) | 38.1 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.14 |
80423X
| A1 Outside Diameter (in) | 1.5 |
|---|---|
| A1 Outside Diameter (mm) | 38.1 |
| L Length (in) | 1.47 |
| L Length (mm) | 37.3 |
| Hose Inside Diameter (in) | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Inside Diameter (in) | 0.752 |
| Inside Diameter (mm) | 19.1 |
| L (in) | 1.47 |
| Outside Diameter (in) | 1.5 |
| Outside Diameter (mm) | 38.1 |
| Material | Steel |
| Customer Pack | 200 |
| Weight (lbs.) | 0.1 |
80422
| A1 Outside Diameter (in) | 1.38 |
|---|---|
| A1 Outside Diameter (mm) | 35.1 |
| L Length (in) | 1.97 |
| L Length (mm) | 50 |
| Hose Inside Diameter (in) | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Inside Diameter (in) | 0.752 |
| Inside Diameter (mm) | 19.1 |
| L (in) | 1.97 |
| Outside Diameter (in) | 1.38 |
| Outside Diameter (mm) | 35.1 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.25 |
80422X
| A1 Outside Diameter (in) | 1.38 |
|---|---|
| A1 Outside Diameter (mm) | 35.1 |
| L Length (in) | 1.97 |
| L Length (mm) | 50 |
| Hose Inside Diameter (in) | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Inside Diameter (in) | 0.752 |
| Inside Diameter (mm) | 19.1 |
| L (in) | 1.97 |
| Outside Diameter (in) | 1.38 |
| Outside Diameter (mm) | 35.1 |
| Material | Steel |
| Customer Pack | 125 |
| Weight (lbs.) | 0.27 |
80156
| C Cutoff (in) | 1.73 |
|---|---|
| C Cutoff (mm) | 43.94 |
| L Length (in) | 3.425 |
| L Length (mm) | 87 |
80408
| B Tube Length (in) | 0.47 |
|---|---|
| B Tube Length (mm) | 11.9 |
| A1 Outside Diameter (in) | 1.01 |
| A1 Outside Diameter (mm) | 25.7 |
| C Cutoff (in) | 1.04 |
| C Cutoff (mm) | 26.5 |
| L Length (in) | 2.75 |
| L Length (mm) | 69.9 |
| Hose Inside Diameter (in) | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| C (in) | 1.04 |
| L (in) | 2.75 |
| Outside Diameter (in) | 1.38 |
| Outside Diameter (mm) | 35.1 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.4 |
80158X
| H1 Stem Hex (in) | 1.375 |
|---|---|
| H1 Stem Hex (mm) | 34.93 |
| H2 Nut Hex (in) | 1.5 |
| H2 Nut Hex (mm) | 38.1 |
| C Cutoff (in) | 1.92 |
| C Cutoff (mm) | 48.76 |
| L Length (in) | 3.63 |
| L Length (mm) | 92.2 |
80318X
| C Cutoff (in) | 1.91 |
|---|---|
| C Cutoff (mm) | 48.51 |
| L Length (in) | 3.618 |
| L Length (mm) | 91.9 |
80378X
| T Drop (in) | 2.362 |
|---|---|
| C Cutoff (in) | 2.85 |
| C Cutoff (mm) | 72.39 |
| L Length (in) | 4.559 |
| L Length (mm) | 115.8 |
| Angle. | 90 |
80199X
| C Cutoff (in) | 1.89 |
|---|---|
| C Cutoff (mm) | 48 |
| L Length (in) | 3.583 |
| L Length (mm) | 91 |
80023X
| H1 Stem Hex (in) | 1.375 |
|---|---|
| H1 Stem Hex (mm) | 34.93 |
| C Cutoff (in) | 1.91 |
| C Cutoff (mm) | 48.51 |
| L Length (in) | 3.622 |
| L Length (mm) | 92 |
80160X
| H1 Stem Hex (in) | 1.375 |
|---|---|
| H1 Stem Hex (mm) | 34.93 |
| C Cutoff (in) | 2.339 |
| C Cutoff (mm) | 59.41 |
| L Length (in) | 4.051 |
| L Length (mm) | 102.9 |
| Hose Inside Diameter (in) | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Material | Brass |
| Customer Pack | 40 |
| Weight (lbs.) | 0.77 |
80044
| C Cutoff (in) | 2.47 |
|---|---|
| C Cutoff (mm) | 62.73 |
| L Length (in) | 4.173 |
| L Length (mm) | 106 |
80319X
| C Cutoff (in) | 1.91 |
|---|---|
| C Cutoff (mm) | 48.51 |
| L Length (in) | 3.618 |
| L Length (mm) | 91.9 |
83626X
| C Cutoff (in) | 2.14 |
|---|---|
| C Cutoff (mm) | 54.35 |
| L Length (in) | 3.858 |
| L Length (mm) | 98 |
83213X
| T Drop (in) | 4.331 |
|---|---|
| C Cutoff (in) | 3.55 |
| C Cutoff (mm) | 90.17 |
| L Length (in) | 5.236 |
| L Length (mm) | 133 |
| Angle. | 90 |
83138X
| T Drop (in) | 2.244 |
|---|---|
| C Cutoff (in) | 3.55 |
| C Cutoff (mm) | 90.17 |
| L Length (in) | 5.236 |
| L Length (mm) | 133 |
| Angle. | 90 |
80480
| A1 Outside Diameter (in) | 1.94 |
|---|---|
| A1 Outside Diameter (mm) | 49.3 |
| L Length (in) | 1.69 |
| L Length (mm) | 42.9 |
| Hose Inside Diameter (in) | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| L (in) | 1.69 |
| Outside Diameter (in) | 1.94 |
| Outside Diameter (mm) | 49.3 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.44 |
80480X
| A1 Outside Diameter (in) | 1.94 |
|---|---|
| A1 Outside Diameter (mm) | 49.3 |
| L Length (in) | 1.69 |
| L Length (mm) | 42.9 |
| Hose Inside Diameter (in) | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| L (in) | 1.69 |
| Outside Diameter (in) | 1.94 |
| Outside Diameter (mm) | 49.3 |
| Material | Steel |
| Customer Pack | 75 |
| Weight (lbs.) | 0.44 |
80488
| A1 Outside Diameter (in) | 1.32 |
|---|---|
| A1 Outside Diameter (mm) | 33.5 |
| L Length (in) | 1.689 |
| L Length (mm) | 42.9 |
80488X
| A1 Outside Diameter (in) | 1.32 |
|---|---|
| A1 Outside Diameter (mm) | 33.5 |
| L Length (in) | 1.69 |
| L Length (mm) | 42.9 |
| Hose Inside Diameter (in) | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| L (in) | 1.69 |
| Outside Diameter (in) | 1.32 |
| Outside Diameter (mm) | 33.5 |
| Material | Steel |
| Customer Pack | 80 |
| Weight (lbs.) | 0.34 |
80424
| A1 Outside Diameter (in) | 1.75 |
|---|---|
| A1 Outside Diameter (mm) | 44.5 |
| L Length (in) | 1.97 |
| L Length (mm) | 50 |
| Hose Inside Diameter (in) | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| L (in) | 1.97 |
| Outside Diameter (in) | 1.75 |
| Outside Diameter (mm) | 44.5 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.32 |
80424X
| A1 Outside Diameter (in) | 1.75 |
|---|---|
| A1 Outside Diameter (mm) | 44.5 |
| L Length (in) | 1.97 |
| L Length (mm) | 50 |
| Hose Inside Diameter (in) | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| L (in) | 1.97 |
| Outside Diameter (in) | 1.75 |
| Outside Diameter (mm) | 44.5 |
| Material | Steel |
| Customer Pack | 90 |
| Weight (lbs.) | 0.32 |
80425
| A1 Outside Diameter (in) | 1.87 |
|---|---|
| A1 Outside Diameter (mm) | 47.5 |
| L Length (in) | 2.07 |
| L Length (mm) | 52.6 |
| Hose Inside Diameter (in) | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| L (in) | 2.07 |
| Outside Diameter (in) | 1.87 |
| Outside Diameter (mm) | 47.5 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.4 |
80425X
| A1 Outside Diameter (in) | 1.87 |
|---|---|
| A1 Outside Diameter (mm) | 47.5 |
| L Length (in) | 2.07 |
| L Length (mm) | 52.6 |
| Hose Inside Diameter (in) | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| L (in) | 2.07 |
| Outside Diameter (in) | 1.87 |
| Outside Diameter (mm) | 47.5 |
| Material | Steel |
| Customer Pack | 75 |
| Weight (lbs.) | 0.4 |
80409
| B Tube Length (in) | 0.38 |
|---|---|
| B Tube Length (mm) | 9.5 |
| A1 Outside Diameter (in) | 1.26 |
| A1 Outside Diameter (mm) | 46 |
| C Cutoff (in) | 1.11 |
| C Cutoff (mm) | 28.2 |
| L Length (in) | 3.29 |
| L Length (mm) | 83.6 |
| Hose Inside Diameter (in) | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Inside Diameter (in) | 1.252 |
| Inside Diameter (mm) | 31.8 |
| C (in) | 1.11 |
| L (in) | 3.29 |
| Outside Diameter (in) | 1.81 |
| Outside Diameter (mm) | 46 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.73 |
80409X
| A1 Outside Diameter (in) | 1.81 |
|---|---|
| A1 Outside Diameter (mm) | 45.97 |
| C Cutoff (in) | 1.11 |
| C Cutoff (mm) | 28.19 |
| L Length (in) | 3.307 |
| L Length (mm) | 84 |
| Hose Inside Diameter (in) | 1.252 |
| Hose Inside Diameter (mm) | 31.8 |
| Inside Diameter (in) | 1.252 |
| Inside Diameter (mm) | 31.8 |
| Material | Steel |
80202
| C Cutoff (in) | 2.13 |
|---|---|
| C Cutoff (mm) | 54.1 |
| L Length (in) | 4.449 |
| L Length (mm) | 113 |
80164
| C Cutoff (in) | 2.55 |
|---|---|
| C Cutoff (mm) | 64.77 |
| L Length (in) | 4.843 |
| L Length (mm) | 123 |
80382X
| T Drop (in) | 2.638 |
|---|---|
| C Cutoff (in) | 3.08 |
| C Cutoff (mm) | 78.23 |
| L Length (in) | 5.382 |
| L Length (mm) | 136.7 |
| Angle. | 90 |
83235X
| T Drop (in) | 3.504 |
|---|---|
| C Cutoff (in) | 3.2 |
| C Cutoff (mm) | 81.28 |
| L Length (in) | 5.512 |
| L Length (mm) | 140 |
| Angle. | 90 |
20GS-20FPLS XBULK
No variation attributes.
80489
| A1 Outside Diameter (in) | 2.38 |
|---|---|
| A1 Outside Diameter (mm) | 60.5 |
| L Length (in) | 2.41 |
| L Length (mm) | 61.2 |
| Hose Inside Diameter (in) | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Inside Diameter (in) | 1.252 |
| Inside Diameter (mm) | 31.8 |
| L (in) | 2.41 |
| Outside Diameter (in) | 2.38 |
| Outside Diameter (mm) | 60.5 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.61 |
80489X
| A1 Outside Diameter (in) | 2.38 |
|---|---|
| A1 Outside Diameter (mm) | 60.5 |
| L Length (in) | 2.409 |
| L Length (mm) | 61.2 |
80427
| A1 Outside Diameter (in) | 2.25 |
|---|---|
| A1 Outside Diameter (mm) | 57.2 |
| L Length (in) | 2.35 |
| L Length (mm) | 59.7 |
| Hose Inside Diameter (in) | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Inside Diameter (in) | 1.252 |
| Inside Diameter (mm) | 31.8 |
| L (in) | 2.35 |
| Outside Diameter (in) | 2.25 |
| Outside Diameter (mm) | 57.2 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.7 |
80427X
| A1 Outside Diameter (in) | 2.25 |
|---|---|
| A1 Outside Diameter (mm) | 57.2 |
| L Length (in) | 2.35 |
| L Length (mm) | 59.7 |
| Hose Inside Diameter (in) | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Inside Diameter (in) | 1.252 |
| Inside Diameter (mm) | 31.8 |
| L (in) | 2.35 |
| Outside Diameter (in) | 2.25 |
| Outside Diameter (mm) | 57.2 |
| Material | Steel |
| Customer Pack | 40 |
| Weight (lbs.) | 0.7 |
80426
| A1 Outside Diameter (in) | 2.19 |
|---|---|
| A1 Outside Diameter (mm) | 55.6 |
| L Length (in) | 2.77 |
| L Length (mm) | 70.4 |
| Hose Inside Diameter (in) | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Inside Diameter (in) | 1.252 |
| Inside Diameter (mm) | 31.8 |
| L (in) | 2.77 |
| Outside Diameter (in) | 2.19 |
| Outside Diameter (mm) | 55.6 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.71 |
80426X
| A1 Outside Diameter (in) | 2.19 |
|---|---|
| A1 Outside Diameter (mm) | 55.6 |
| L Length (in) | 2.77 |
| L Length (mm) | 70.4 |
| Hose Inside Diameter (in) | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Inside Diameter (in) | 1.252 |
| Inside Diameter (mm) | 31.8 |
| L (in) | 2.77 |
| Outside Diameter (in) | 2.19 |
| Outside Diameter (mm) | 55.6 |
| Material | Steel |
| Customer Pack | 40 |
| Weight (lbs.) | 0.72 |
80411
| B Tube Length (in) | 0.38 |
|---|---|
| B Tube Length (mm) | 9.5 |
| A1 Outside Diameter (in) | 1.51 |
| A1 Outside Diameter (mm) | 38.4 |
| C Cutoff (in) | 0.94 |
| C Cutoff (mm) | 23.8 |
| L Length (in) | 3.57 |
| L Length (mm) | 90.7 |
| Hose Inside Diameter (in) | 1.5 |
| Hose Inside Diameter (mm) | 38.1 |
| Inside Diameter (in) | 1.5 |
| Inside Diameter (mm) | 38.1 |
| C (in) | 1.11 |
| L (in) | 3.75 |
| Outside Diameter (in) | 2 |
| Outside Diameter (mm) | 50.8 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.66 |
80411X
| A1 Outside Diameter (in) | 2 |
|---|---|
| A1 Outside Diameter (mm) | 50.8 |
| C Cutoff (in) | 1.11 |
| C Cutoff (mm) | 28.19 |
| L Length (in) | 3.74 |
| L Length (mm) | 95 |
| Hose Inside Diameter (in) | 1.5 |
| Hose Inside Diameter (mm) | 38.1 |
| Inside Diameter (in) | 1.5 |
| Inside Diameter (mm) | 38.1 |
| Material | Steel |
80333
| T Drop (in) | 0.63 |
|---|---|
| C Cutoff (in) | 3.48 |
| C Cutoff (mm) | 88.39 |
| L Length (in) | 6.118 |
| L Length (mm) | 155.4 |
| Angle. | 22.5 |
80343
| T Drop (in) | 0.866 |
|---|---|
| C Cutoff (in) | 3.7 |
| C Cutoff (mm) | 93.98 |
| L Length (in) | 6.339 |
| L Length (mm) | 161 |
| Angle. | 30 |
80363
| T Drop (in) | 2.008 |
|---|---|
| C Cutoff (in) | 3.93 |
| C Cutoff (mm) | 99.82 |
| L Length (in) | 6.571 |
| L Length (mm) | 166.9 |
| Angle. | 60 |
80373
| T Drop (in) | 2.008 |
|---|---|
| C Cutoff (in) | 3.89 |
| C Cutoff (mm) | 98.8 |
| L Length (in) | 6.531 |
| L Length (mm) | 165.9 |
| Angle. | 67.5 |
80324
| C Cutoff (in) | 2.3 |
|---|---|
| C Cutoff (mm) | 58.42 |
| L Length (in) | 4.941 |
| L Length (mm) | 125.5 |
80354
| T Drop (in) | 1.417 |
|---|---|
| C Cutoff (in) | 3.89 |
| C Cutoff (mm) | 98.8 |
| L Length (in) | 6.531 |
| L Length (mm) | 165.9 |
| Angle. | 45 |
24C2-24FFORX XBULK
| C Cutoff (in) | 2.58 |
|---|---|
| C Cutoff (mm) | 65.53 |
| L Length (in) | 5.197 |
| L Length (mm) | 132 |
83059
| T Drop (in) | 3.11 |
|---|---|
| C Cutoff (in) | 4.62 |
| C Cutoff (mm) | 117.35 |
| L Length (in) | 7.244 |
| L Length (mm) | 184 |
| Angle. | 90 |
80491
| A1 Outside Diameter (in) | 2.69 |
|---|---|
| A1 Outside Diameter (mm) | 68.3 |
| L Length (in) | 2.689 |
| L Length (mm) | 68.3 |
80491X
| A1 Outside Diameter (in) | 2.69 |
|---|---|
| A1 Outside Diameter (mm) | 68.3 |
| L Length (in) | 2.69 |
| L Length (mm) | 68.3 |
| Hose Inside Diameter (in) | 1.5 |
| Hose Inside Diameter (mm) | 38.1 |
| Inside Diameter (in) | 1.5 |
| Inside Diameter (mm) | 38.1 |
| L (in) | 2.69 |
| Outside Diameter (in) | 2.69 |
| Outside Diameter (mm) | 68.3 |
| Material | Steel |
| Customer Pack | 25 |
| Weight (lbs.) | 0.82 |
80428
| A1 Outside Diameter (in) | 2.55 |
|---|---|
| A1 Outside Diameter (mm) | 64.8 |
| L Length (in) | 2.882 |
| L Length (mm) | 73.2 |
80428X
| A1 Outside Diameter (in) | 2.55 |
|---|---|
| A1 Outside Diameter (mm) | 64.8 |
| L Length (in) | 2.88 |
| L Length (mm) | 73.2 |
| Hose Inside Diameter (in) | 1.5 |
| Hose Inside Diameter (mm) | 38.1 |
| Inside Diameter (in) | 1.5 |
| Inside Diameter (mm) | 38.1 |
| L (in) | 2.88 |
| Outside Diameter (in) | 2.55 |
| Outside Diameter (mm) | 64.8 |
| Material | Steel |
| Customer Pack | 30 |
| Weight (lbs.) | 0.8 |
80061
| H1 Stem Hex (in) | 0.5625 |
|---|---|
| H1 Stem Hex (mm) | 14.29 |
| C Cutoff (in) | 0.76 |
| C Cutoff (mm) | 19.3 |
| L Length (in) | 1.85 |
| L Length (mm) | 47 |
80001
| H1 Stem Hex (in) | 0.5 |
|---|---|
| H1 Stem Hex (mm) | 12.7 |
| C Cutoff (in) | 0.943 |
| C Cutoff (mm) | 23.95 |
| L Length (in) | 2.031 |
| L Length (mm) | 51.6 |
80001X
| H1 Stem Hex (in) | 0.5 |
|---|---|
| H1 Stem Hex (mm) | 12.7 |
| T1 Thread (in) | 1/8-27 |
| C Cutoff (in) | 0.94 |
| C Cutoff (mm) | 24.1 |
| L Length (in) | 2.03 |
| L Length (mm) | 51.6 |
| Hose Inside Diameter (in) | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Inside Diameter (in) | 0.189 |
| Inside Diameter (mm) | 4.8 |
| C (in) | 0.94 |
| L (in) | 2.03 |
| Material | Steel |
| Customer Pack | 600 |
| Weight (lbs.) | 0.04 |
80120
| H1 Stem Hex (in) | 0.5625 |
|---|---|
| H1 Stem Hex (mm) | 14.29 |
| C Cutoff (in) | 0.551 |
| C Cutoff (mm) | 14 |
| L Length (in) | 1.339 |
| L Length (mm) | 34 |
80120X
| H1 Stem Hex (in) | 0.56 |
|---|---|
| H1 Stem Hex (mm) | 14.3 |
| T1 Thread (in) | 1/8-27 |
| C Cutoff (in) | 0.56 |
| C Cutoff (mm) | 14.2 |
| L Length (in) | 1.34 |
| L Length (mm) | 34 |
| Hose Inside Diameter (in) | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Inside Diameter (in) | 0.189 |
| Inside Diameter (mm) | 4.8 |
| C (in) | 0.56 |
| L (in) | 1.34 |
| Material | Steel |
| Customer Pack | 1000 |
| Weight (lbs.) | 0.05 |
80140
| H1 Stem Hex (in) | 0.5625 |
|---|---|
| H1 Stem Hex (mm) | 14.29 |
| C Cutoff (in) | 0.787 |
| C Cutoff (mm) | 20 |
| L Length (in) | 1.339 |
| L Length (mm) | 34 |
80140X
| H1 Stem Hex (in) | 0.56 |
|---|---|
| H1 Stem Hex (mm) | 14.3 |
| T1 Thread (in) | 1/8-27 |
| C Cutoff (in) | 0.79 |
| C Cutoff (mm) | 20 |
| L Length (in) | 1.34 |
| L Length (mm) | 34 |
| Hose Inside Diameter (in) | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Inside Diameter (in) | 0.189 |
| Inside Diameter (mm) | 4.8 |
| C (in) | 0.78 |
| L (in) | 1.34 |
| Material | Brass |
| Customer Pack | 1000 |
| Weight (lbs.) | 0.05 |
80031
| H1 Stem Hex (in) | 0.5 |
|---|---|
| H1 Stem Hex (mm) | 12.7 |
| C Cutoff (in) | 1.31 |
| C Cutoff (mm) | 33.27 |
| L Length (in) | 2.402 |
| L Length (mm) | 61 |
80131
| H1 Stem Hex (in) | 0.5 |
|---|---|
| H1 Stem Hex (mm) | 12.7 |
| H2 Nut Hex (in) | 0.5625 |
| H2 Nut Hex (mm) | 14.29 |
| C Cutoff (in) | 1.11 |
| C Cutoff (mm) | 28.19 |
| L Length (in) | 2.201 |
| L Length (mm) | 55.9 |
80410
| B Tube Length (in) | 0.25 |
|---|---|
| B Tube Length (mm) | 6.4 |
| A1 Outside Diameter (in) | 0.25 |
| A1 Outside Diameter (mm) | 6.4 |
| C Cutoff (in) | 0.68 |
| C Cutoff (mm) | 17.1 |
| L Length (in) | 1.76 |
| L Length (mm) | 44.7 |
| Hose Inside Diameter (in) | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Inside Diameter (in) | 0.189 |
| Inside Diameter (mm) | 4.8 |
| C (in) | 0.68 |
| L (in) | 1.76 |
| Outside Diameter (in) | 0.56 |
| Outside Diameter (mm) | 14.2 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
80132
| H1 Stem Hex (in) | 0.5 |
|---|---|
| H1 Stem Hex (mm) | 12.7 |
| H2 Nut Hex (in) | 0.5625 |
| H2 Nut Hex (mm) | 14.29 |
| C Cutoff (in) | 1.12 |
| C Cutoff (mm) | 28.44 |
| L Length (in) | 2.209 |
| L Length (mm) | 56.1 |
80132X
| H1 Stem Hex (in) | 0.5 |
|---|---|
| H1 Stem Hex (mm) | 12.7 |
| H2 Nut Hex (in) | 0.56 |
| H2 Nut Hex (mm) | 14.3 |
| T1 Thread (in) | 7/16-20 |
| C Cutoff (in) | 1.12 |
| C Cutoff (mm) | 28.4 |
| L Length (in) | 2.21 |
| L Length (mm) | 56.1 |
| Hose Inside Diameter (in) | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Inside Diameter (in) | 0.189 |
| Inside Diameter (mm) | 4.8 |
| C (in) | 1.12 |
| L (in) | 2.21 |
| Material | Steel |
| Customer Pack | 550 |
| Weight (lbs.) | 0.06 |
80181
| H1 Stem Hex (in) | 0.5 |
|---|---|
| H1 Stem Hex (mm) | 12.7 |
| C Cutoff (in) | 1 |
| C Cutoff (mm) | 25.4 |
| L Length (in) | 2.091 |
| L Length (mm) | 53.1 |
80002
| H1 Stem Hex (in) | 0.5625 |
|---|---|
| H1 Stem Hex (mm) | 14.29 |
| C Cutoff (in) | 1.133 |
| C Cutoff (mm) | 28.77 |
| L Length (in) | 2.22 |
| L Length (mm) | 56.4 |
80002X
| H1 Stem Hex (in) | 0.56 |
|---|---|
| H1 Stem Hex (mm) | 14.3 |
| T1 Thread (in) | 1/4-18 |
| C Cutoff (in) | 1.13 |
| C Cutoff (mm) | 28.8 |
| L Length (in) | 2.22 |
| L Length (mm) | 56.4 |
| Hose Inside Diameter (in) | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Inside Diameter (in) | 0.189 |
| Inside Diameter (mm) | 4.8 |
| C (in) | 1.13 |
| L (in) | 2.22 |
| Material | Steel |
| Customer Pack | 600 |
| Weight (lbs.) | 0.06 |
80365
| T Drop (in) | 2.874 |
|---|---|
| C Cutoff (in) | 5.48 |
| C Cutoff (mm) | 139.19 |
| L Length (in) | 9.012 |
| L Length (mm) | 228.9 |
| Angle. | 60 |
80165X
| H1 Stem Hex (in) | 2.5 |
|---|---|
| H1 Stem Hex (mm) | 63.5 |
| C Cutoff (in) | 2.691 |
| C Cutoff (mm) | 68.35 |
| L Length (in) | 6.22 |
| L Length (mm) | 158 |
| Hose Inside Diameter (in) | 2 |
| Hose Inside Diameter (mm) | 50.8 |
| Inside Diameter (in) | 2 |
| Inside Diameter (mm) | 50.8 |
| C (in) | 2.69 |
| L (in) | 6.22 |
| Material | Brass |
| Customer Pack | 12 |
| Weight (lbs.) | 3.46 |
80300
| C Cutoff (in) | 2.54 |
|---|---|
| C Cutoff (mm) | 64.51 |
| L Length (in) | 6.071 |
| L Length (mm) | 154.2 |
80492
| A1 Outside Diameter (in) | 3.25 |
|---|---|
| A1 Outside Diameter (mm) | 82.6 |
| L Length (in) | 3.559 |
| L Length (mm) | 90.4 |
80492X
| A1 Outside Diameter (in) | 3.25 |
|---|---|
| A1 Outside Diameter (mm) | 82.6 |
| L Length (in) | 3.56 |
| L Length (mm) | 90.4 |
| Hose Inside Diameter (in) | 2 |
| Hose Inside Diameter (mm) | 50.8 |
| Inside Diameter (in) | 2 |
| Inside Diameter (mm) | 50.8 |
| L (in) | 3.56 |
| Outside Diameter (in) | 3.25 |
| Outside Diameter (mm) | 82.6 |
| Material | Steel |
| Customer Pack | 12 |
| Weight (lbs.) | 1.629 |
80429
| A1 Outside Diameter (in) | 3.16 |
|---|---|
| A1 Outside Diameter (mm) | 80.3 |
| L Length (in) | 3.429 |
| L Length (mm) | 87.1 |
80429X
| A1 Outside Diameter (in) | 3.16 |
|---|---|
| A1 Outside Diameter (mm) | 80.3 |
| L Length (in) | 3.43 |
| L Length (mm) | 87.1 |
| Hose Inside Diameter (in) | 2 |
| Hose Inside Diameter (mm) | 50.8 |
| Inside Diameter (in) | 2 |
| Inside Diameter (mm) | 50.8 |
| L (in) | 3.43 |
| Outside Diameter (in) | 3.16 |
| Outside Diameter (mm) | 80.3 |
| Material | Steel |
| Customer Pack | 16 |
| Weight (lbs.) | 1.59 |
83301
| H1 Stem Hex (in) | 0.5 |
|---|---|
| H1 Stem Hex (mm) | 12.7 |
| H2 Nut Hex (in) | 0.375 |
| H2 Nut Hex (mm) | 9.53 |
| C Cutoff (in) | 1.58 |
| C Cutoff (mm) | 40.13 |
| L Length (in) | 2.669 |
| L Length (mm) | 67.8 |
83303
| H2 Nut Hex (in) | 0.375 |
|---|---|
| H2 Nut Hex (mm) | 9.53 |
| T Drop (in) | 1.051 |
| C Cutoff (in) | 1.33 |
| C Cutoff (mm) | 33.78 |
| L Length (in) | 2.421 |
| L Length (mm) | 61.5 |
| Hose Inside Diameter (in) | 0.189 |
| Hose Inside Diameter (mm) | 4.8 |
| Inside Diameter (in) | 0.189 |
| Inside Diameter (mm) | 4.8 |
| C (in) | 1.33 |
| L (in) | 2.42 |
| Angle. | 90 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
83105X
| H1 Stem Hex (in) | 0.5 |
|---|---|
| H1 Stem Hex (mm) | 12.7 |
| H2 Nut Hex (in) | 0.5625 |
| H2 Nut Hex (mm) | 14.29 |
| T Drop (in) | 0.315 |
| C Cutoff (in) | 1.71 |
| C Cutoff (mm) | 43.43 |
| L Length (in) | 2.795 |
| L Length (mm) | 71 |
| Angle. | 45 |
83125
| H2 Nut Hex (in) | 0.56 |
|---|---|
| H2 Nut Hex (mm) | 14.3 |
| T1 Thread (in) | 7/16-20 |
| T Drop (in) | 0.68 |
| C Cutoff (in) | 1.45 |
| C Cutoff (mm) | 36.8 |
| L Length (in) | 2.54 |
| L Length (mm) | 64.5 |
| Hose Inside Diameter (in) | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Inside Diameter (in) | 0.189 |
| Inside Diameter (mm) | 4.8 |
| C (in) | 1.45 |
| L (in) | 2.54 |
| Angle. | 90 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.09 |
83125X
| H2 Nut Hex (in) | 0.5625 |
|---|---|
| H2 Nut Hex (mm) | 14.29 |
| T Drop (in) | 0.681 |
| C Cutoff (in) | 1.45 |
| C Cutoff (mm) | 36.83 |
| L Length (in) | 2.539 |
| L Length (mm) | 64.5 |
| Angle. | 90 |
83709
| H1 Stem Hex (in) | 0.55 |
|---|---|
| H1 Stem Hex (mm) | 14 |
| H2 Nut Hex (in) | 0.55 |
| H2 Nut Hex (mm) | 14 |
| T1 Thread (in) | M12x1.5 |
| A1 Outside Diameter (in) | 0.24 |
| A1 Outside Diameter (mm) | 6 |
| C Cutoff (in) | 1.11 |
| C Cutoff (mm) | 28.2 |
| L Length (in) | 2.2 |
| L Length (mm) | 55.9 |
| Hose Inside Diameter (in) | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Inside Diameter (in) | 0.189 |
| Inside Diameter (mm) | 4.8 |
| C (in) | 1.11 |
| L (in) | 2.2 |
| Outside Diameter (in) | 0.24 |
| Outside Diameter (mm) | 6 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.11 |
83709X
| H1 Stem Hex (in) | 0.55 |
|---|---|
| H1 Stem Hex (mm) | 14 |
| H2 Nut Hex (in) | 0.55 |
| H2 Nut Hex (mm) | 14 |
| T1 Thread (in) | M12x1.5 |
| A1 Outside Diameter (in) | 0.24 |
| A1 Outside Diameter (mm) | 6 |
| C Cutoff (in) | 1.11 |
| C Cutoff (mm) | 28.2 |
| L Length (in) | 2.2 |
| L Length (mm) | 55.9 |
| Hose Inside Diameter (in) | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Inside Diameter (in) | 0.189 |
| Inside Diameter (mm) | 4.8 |
| C (in) | 1.11 |
| L (in) | 2.2 |
| Outside Diameter (in) | 0.24 |
| Outside Diameter (mm) | 6 |
| Material | Steel |
| Customer Pack | 250 |
| Weight (lbs.) | 0.11 |
83740
| H2 Nut Hex (in) | 0.55 |
|---|---|
| H2 Nut Hex (mm) | 14 |
| T1 Thread (in) | M12x1.5 |
| T Drop (in) | 1.26 |
| A1 Outside Diameter (in) | 0.24 |
| A1 Outside Diameter (mm) | 6 |
| A1 Tube Outside Diameter (mm) | 6 |
| C Cutoff (in) | 1.43 |
| C Cutoff (mm) | 36.3 |
| L Length (in) | 2.52 |
| L Length (mm) | 64 |
| Hose Inside Diameter (in) | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Inside Diameter (in) | 0.189 |
| Inside Diameter (mm) | 4.8 |
| C (in) | 1.43 |
| L (in) | 2.52 |
| Angle. | 90 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
80481
| A1 Outside Diameter (in) | 0.83 |
|---|---|
| A1 Outside Diameter (mm) | 21.1 |
| L Length (in) | 1.201 |
| L Length (mm) | 30.5 |
80481X
| A1 Outside Diameter (in) | 0.83 |
|---|---|
| A1 Outside Diameter (mm) | 21.1 |
| L Length (in) | 1.2 |
| L Length (mm) | 30.5 |
| Hose Inside Diameter (in) | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Inside Diameter (in) | 0.189 |
| Inside Diameter (mm) | 4.8 |
| L (in) | 1.2 |
| Outside Diameter (in) | 0.83 |
| Outside Diameter (mm) | 21.1 |
| Material | Steel |
| Customer Pack | 400 |
| Weight (lbs.) | 0.05 |
80415
| A1 Outside Diameter (in) | 0.76 |
|---|---|
| A1 Outside Diameter (mm) | 19.3 |
| L Length (in) | 1 |
| L Length (mm) | 25.4 |
| Hose Inside Diameter (in) | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Inside Diameter (in) | 0.189 |
| Inside Diameter (mm) | 4.8 |
| L (in) | 1 |
| Outside Diameter (in) | 0.76 |
| Outside Diameter (mm) | 19.3 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.05 |
80415X
| A1 Outside Diameter (in) | 0.76 |
|---|---|
| A1 Outside Diameter (mm) | 19.3 |
| L Length (in) | 1 |
| L Length (mm) | 25.4 |
| Hose Inside Diameter (in) | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Inside Diameter (in) | 0.189 |
| Inside Diameter (mm) | 4.8 |
| L (in) | 1 |
| Outside Diameter (in) | 0.76 |
| Outside Diameter (mm) | 19.3 |
| Material | Steel |
| Customer Pack | 500 |
| Weight (lbs.) | 0.05 |
80062
| C Cutoff (in) | 0.71 |
|---|---|
| C Cutoff (mm) | 18.03 |
| L Length (in) | 1.811 |
| L Length (mm) | 46 |
80401
| B Tube Length (in) | 0.25 |
|---|---|
| B Tube Length (mm) | 6.4 |
| A1 Outside Diameter (in) | 0.25 |
| A1 Outside Diameter (mm) | 6.4 |
| C Cutoff (in) | 0.58 |
| C Cutoff (mm) | 14.8 |
| L Length (in) | 1.67 |
| L Length (mm) | 42.4 |
| Hose Inside Diameter (in) | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Inside Diameter (in) | 0.252 |
| Inside Diameter (mm) | 6.4 |
| C (in) | 0.58 |
| L (in) | 1.67 |
| Outside Diameter (in) | 0.56 |
| Outside Diameter (mm) | 14.2 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
84401
| B Tube Length (in) | 0.25 |
|---|---|
| B Tube Length (mm) | 6.4 |
| A1 Outside Diameter (in) | 0.25 |
| A1 Outside Diameter (mm) | 6.4 |
| C Cutoff (in) | 0.58 |
| C Cutoff (mm) | 14.8 |
| L Length (in) | 1.67 |
| L Length (mm) | 42.4 |
| Hose Inside Diameter (in) | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Inside Diameter (in) | 0.252 |
| Inside Diameter (mm) | 6.4 |
| C (in) | 0.58 |
| L (in) | 1.67 |
| Outside Diameter (in) | 0.56 |
| Outside Diameter (mm) | 14.2 |
| Material | Steel |
| Customer Pack | 800 |
| Weight (lbs.) | 0.05 |
80134X
| H1 Stem Hex (in) | 0.5 |
|---|---|
| H1 Stem Hex (mm) | 12.7 |
| H2 Nut Hex (in) | 0.5625 |
| H2 Nut Hex (mm) | 14.29 |
| C Cutoff (in) | 1.19 |
| C Cutoff (mm) | 30.22 |
| L Length (in) | 2.13 |
| L Length (mm) | 54.1 |
80063
| H1 Stem Hex (in) | 0.6875 |
|---|---|
| H1 Stem Hex (mm) | 17.46 |
| C Cutoff (in) | 0.94 |
| C Cutoff (mm) | 23.87 |
| L Length (in) | 2.031 |
| L Length (mm) | 51.6 |
80391
| C Cutoff (in) | 1.24 |
|---|---|
| C Cutoff (mm) | 31.49 |
| L Length (in) | 2.323 |
| L Length (mm) | 59 |
80166
| C Cutoff (in) | 1.04 |
|---|---|
| C Cutoff (mm) | 26.41 |
| L Length (in) | 2.126 |
| L Length (mm) | 54 |
80182
| C Cutoff (in) | 1.13 |
|---|---|
| C Cutoff (mm) | 28.7 |
| L Length (in) | 2.205 |
| L Length (mm) | 56 |
80004X
| C Cutoff (in) | 1.13 |
|---|---|
| C Cutoff (mm) | 28.7 |
| L Length (in) | 2.205 |
| L Length (mm) | 56 |
80032
| H1 Stem Hex (in) | 0.5 |
|---|---|
| H1 Stem Hex (mm) | 12.7 |
| C Cutoff (in) | 1.54 |
| C Cutoff (mm) | 39.11 |
| L Length (in) | 2.63 |
| L Length (mm) | 66.8 |
80402
| B Tube Length (in) | 0.25 |
|---|---|
| B Tube Length (mm) | 6.4 |
| A1 Outside Diameter (in) | 0.32 |
| A1 Outside Diameter (mm) | 8.1 |
| C Cutoff (in) | 0.58 |
| C Cutoff (mm) | 14.8 |
| L Length (in) | 1.67 |
| L Length (mm) | 42.4 |
| Hose Inside Diameter (in) | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Inside Diameter (in) | 0.252 |
| Inside Diameter (mm) | 6.4 |
| C (in) | 0.58 |
| L (in) | 1.67 |
| Outside Diameter (in) | 0.56 |
| Outside Diameter (mm) | 14.2 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
80135X
| C Cutoff (in) | 1.18 |
|---|---|
| C Cutoff (mm) | 29.97 |
| L Length (in) | 2.283 |
| L Length (mm) | 58 |
80136X
| H1 Stem Hex (in) | 0.5625 |
|---|---|
| H1 Stem Hex (mm) | 14.29 |
| H2 Nut Hex (in) | 0.75 |
| H2 Nut Hex (mm) | 19.05 |
| C Cutoff (in) | 1.18 |
| C Cutoff (mm) | 29.97 |
| L Length (in) | 2.28 |
| L Length (mm) | 57.9 |
80033
| C Cutoff (in) | 1.69 |
|---|---|
| C Cutoff (mm) | 42.92 |
| L Length (in) | 2.795 |
| L Length (mm) | 71 |
80006
| C Cutoff (in) | 1.39 |
|---|---|
| C Cutoff (mm) | 35.3 |
| L Length (in) | 2.48 |
| L Length (mm) | 63 |
83605X
| C Cutoff (in) | 1.23 |
|---|---|
| C Cutoff (mm) | 31.24 |
| L Length (in) | 2.323 |
| L Length (mm) | 59 |
83671X
| T Drop (in) | 0.394 |
|---|---|
| C Cutoff (in) | 1.58 |
| C Cutoff (mm) | 40.13 |
| L Length (in) | 2.677 |
| L Length (mm) | 68 |
| Angle. | 45 |
83702X
| T Drop (in) | 1.811 |
|---|---|
| C Cutoff (in) | 1.33 |
| C Cutoff (mm) | 33.78 |
| L Length (in) | 2.402 |
| L Length (mm) | 61 |
| Angle. | 90 |
83126X
| T Drop (in) | 0.669 |
|---|---|
| C Cutoff (in) | 1.44 |
| C Cutoff (mm) | 36.57 |
| L Length (in) | 2.559 |
| L Length (mm) | 65 |
| Angle. | 90 |
83127X
| T Drop (in) | 0.787 |
|---|---|
| C Cutoff (in) | 1.52 |
| C Cutoff (mm) | 38.6 |
| L Length (in) | 2.638 |
| L Length (mm) | 67 |
| Angle. | 90 |
83128X
| T Drop (in) | 0.866 |
|---|---|
| C Cutoff (in) | 1.73 |
| C Cutoff (mm) | 43.94 |
| L Length (in) | 2.835 |
| L Length (mm) | 72 |
| Angle. | 90 |
80584
| A1 Outside Diameter (in) | 0.89 |
|---|---|
| A1 Outside Diameter (mm) | 22.6 |
| L Length (in) | 1.2 |
| L Length (mm) | 30.5 |
| Hose Inside Diameter (in) | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Inside Diameter (in) | 0.252 |
| Inside Diameter (mm) | 6.4 |
| L (in) | 1.2 |
| Outside Diameter (in) | 0.89 |
| Outside Diameter (mm) | 22.6 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.07 |
80584X
| A1 Outside Diameter (in) | 0.89 |
|---|---|
| A1 Outside Diameter (mm) | 22.6 |
| L Length (in) | 1.2 |
| L Length (mm) | 30.5 |
| Hose Inside Diameter (in) | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Inside Diameter (in) | 0.252 |
| Inside Diameter (mm) | 6.4 |
| L (in) | 1.2 |
| Outside Diameter (in) | 0.89 |
| Outside Diameter (mm) | 22.6 |
| Material | Steel |
| Customer Pack | 600 |
| Weight (lbs.) | 0.07 |
80468
| A1 Outside Diameter (in) | 0.83 |
|---|---|
| A1 Outside Diameter (mm) | 21.1 |
| L Length (in) | 1.201 |
| L Length (mm) | 30.5 |
80468X
| A1 Outside Diameter (in) | 0.83 |
|---|---|
| A1 Outside Diameter (mm) | 21.1 |
| L Length (in) | 1.201 |
| L Length (mm) | 30.5 |
| Hose Inside Diameter (in) | 0.252 |
| Hose Inside Diameter (mm) | 6.4 |
| Inside Diameter (in) | 0.252 |
| Inside Diameter (mm) | 6.4 |
| L (in) | 1.2 |
| Outside Diameter (in) | 0.83 |
| Outside Diameter (mm) | 21.1 |
| Material | Steel |
| Customer Pack | 400 |
| Weight (lbs.) | 0.02 |
80482
| A1 Outside Diameter (in) | 0.87 |
|---|---|
| A1 Outside Diameter (mm) | 22.1 |
| L Length (in) | 1.28 |
| L Length (mm) | 32.5 |
80482X
| A1 Outside Diameter (in) | 0.87 |
|---|---|
| A1 Outside Diameter (mm) | 22.1 |
| L Length (in) | 1.28 |
| L Length (mm) | 32.5 |
80416
| A1 Outside Diameter (in) | 0.84 |
|---|---|
| A1 Outside Diameter (mm) | 21.3 |
| L Length (in) | 1 |
| L Length (mm) | 25.4 |
80416X
| A1 Outside Diameter (in) | 0.84 |
|---|---|
| A1 Outside Diameter (mm) | 21.3 |
| L Length (in) | 1 |
| L Length (mm) | 25.4 |
| Hose Inside Diameter (in) | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Inside Diameter (in) | 0.252 |
| Inside Diameter (mm) | 6.4 |
| L (in) | 1 |
| Outside Diameter (in) | 0.84 |
| Outside Diameter (mm) | 21.3 |
| Material | Steel |
| Customer Pack | 800 |
| Weight (lbs.) | 0.05 |
80461
| A1 Outside Diameter (in) | 0.89 |
|---|---|
| A1 Outside Diameter (mm) | 22.6 |
| L Length (in) | 1.2 |
| L Length (mm) | 30.5 |
| Hose Inside Diameter (in) | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Inside Diameter (in) | 0.252 |
| Inside Diameter (mm) | 6.4 |
| L (in) | 1.2 |
| Outside Diameter (in) | 0.89 |
| Outside Diameter (mm) | 22.6 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.07 |
80461X
| H1 Stem Hex (in) | 0.63 |
|---|---|
| H1 Stem Hex (mm) | 15.9 |
| A1 Outside Diameter (in) | 0.89 |
| A1 Outside Diameter (mm) | 22.6 |
| L Length (in) | 1.2 |
| L Length (mm) | 30.5 |
| Hose Inside Diameter (in) | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Inside Diameter (in) | 0.252 |
| Inside Diameter (mm) | 6.4 |
| L (in) | 1.2 |
| Outside Diameter (in) | 0.89 |
| Outside Diameter (mm) | 22.6 |
| Material | Steel |
| Customer Pack | 600 |
| Weight (lbs.) | 0.07 |
80137
| H1 Stem Hex (in) | 0.625 |
|---|---|
| H1 Stem Hex (mm) | 15.88 |
| H2 Nut Hex (in) | 0.6875 |
| H2 Nut Hex (mm) | 17.46 |
| C Cutoff (in) | 1.23 |
| C Cutoff (mm) | 31.24 |
| L Length (in) | 2.252 |
| L Length (mm) | 57.2 |
80138
| H1 Stem Hex (in) | 0.625 |
|---|---|
| H1 Stem Hex (mm) | 15.88 |
| H2 Nut Hex (in) | 0.75 |
| H2 Nut Hex (mm) | 19.05 |
| C Cutoff (in) | 1.22 |
| C Cutoff (mm) | 30.98 |
| L Length (in) | 2.24 |
| L Length (mm) | 56.9 |
80185
| H1 Stem Hex (in) | 0.625 |
|---|---|
| H1 Stem Hex (mm) | 15.88 |
| C Cutoff (in) | 1.148 |
| C Cutoff (mm) | 29.15 |
| L Length (in) | 2.169 |
| L Length (mm) | 55.1 |
83110X
| T Drop (in) | 0.394 |
|---|---|
| C Cutoff (in) | 2.1 |
| C Cutoff (mm) | 53.34 |
| L Length (in) | 3.11 |
| L Length (mm) | 79 |
| Angle. | 45 |
80483
| A1 Outside Diameter (in) | 0.97 |
|---|---|
| A1 Outside Diameter (mm) | 24.6 |
| L Length (in) | 1.201 |
| L Length (mm) | 30.5 |
80483X
| A1 Outside Diameter (in) | 0.97 |
|---|---|
| A1 Outside Diameter (mm) | 24.6 |
| L Length (in) | 1.2 |
| L Length (mm) | 30.5 |
| Hose Inside Diameter (in) | 0.31 |
| Hose Inside Diameter (mm) | 7.9 |
| Inside Diameter (in) | 0.311 |
| Inside Diameter (mm) | 7.9 |
| L (in) | 1.2 |
| Outside Diameter (in) | 0.97 |
| Outside Diameter (mm) | 24.6 |
| Material | Steel |
| Customer Pack | 400 |
| Weight (lbs.) | 0.07 |
80417
| A1 Outside Diameter (in) | 0.87 |
|---|---|
| A1 Outside Diameter (mm) | 22.1 |
| L Length (in) | 1 |
| L Length (mm) | 25.4 |
80417X
| A1 Outside Diameter (in) | 0.87 |
|---|---|
| A1 Outside Diameter (mm) | 22.1 |
| L Length (in) | 1 |
| L Length (mm) | 25.4 |
80083X
| C Cutoff (in) | 1.14 |
|---|---|
| C Cutoff (mm) | 28.95 |
| L Length (in) | 2.165 |
| L Length (mm) | 55 |
80114X
| T Drop (in) | 1.693 |
|---|---|
| C Cutoff (in) | 0.83 |
| C Cutoff (mm) | 21.08 |
| L Length (in) | 1.85 |
| L Length (mm) | 47 |
| Angle. | 90 |
80403
| B Tube Length (in) | 0.38 |
|---|---|
| B Tube Length (mm) | 9.5 |
| A1 Outside Diameter (in) | 0.38 |
| A1 Outside Diameter (mm) | 9.7 |
| C Cutoff (in) | 0.7 |
| C Cutoff (mm) | 17.9 |
| L Length (in) | 1.72 |
| L Length (mm) | 43.7 |
| Hose Inside Diameter (in) | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Inside Diameter (in) | 0.374 |
| Inside Diameter (mm) | 9.5 |
| C (in) | 0.7 |
| L (in) | 1.72 |
| Outside Diameter (in) | 0.75 |
| Outside Diameter (mm) | 19.1 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
80403X
| B Tube Length (in) | 0.38 |
|---|---|
| B Tube Length (mm) | 9.5 |
| A1 Outside Diameter (in) | 0.38 |
| A1 Outside Diameter (mm) | 9.7 |
| C Cutoff (in) | 0.7 |
| C Cutoff (mm) | 17.9 |
| L Length (in) | 1.72 |
| L Length (mm) | 43.7 |
| Hose Inside Diameter (in) | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Inside Diameter (in) | 0.374 |
| Inside Diameter (mm) | 9.5 |
| C (in) | 0.7 |
| L (in) | 1.72 |
| Outside Diameter (in) | 0.75 |
| Outside Diameter (mm) | 19.1 |
| Material | Steel |
| Customer Pack | 550 |
| Weight (lbs.) | 0.07 |
80186X
| C Cutoff (in) | 1.14 |
|---|---|
| C Cutoff (mm) | 28.95 |
| L Length (in) | 2.165 |
| L Length (mm) | 55 |
80400
| B Tube Length (in) | 0.38 |
|---|---|
| B Tube Length (mm) | 9.5 |
| A1 Outside Diameter (in) | 0.5 |
| A1 Outside Diameter (mm) | 12.7 |
| C Cutoff (in) | 0.7 |
| C Cutoff (mm) | 17.9 |
| L Length (in) | 1.72 |
| L Length (mm) | 43.7 |
| Hose Inside Diameter (in) | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Inside Diameter (in) | 0.374 |
| Inside Diameter (mm) | 9.5 |
| C (in) | 0.7 |
| L (in) | 1.72 |
| Outside Diameter (in) | 0.88 |
| Outside Diameter (mm) | 22.4 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
84400
| B Tube Length (in) | 0.38 |
|---|---|
| B Tube Length (mm) | 9.5 |
| A1 Outside Diameter (in) | 0.5 |
| A1 Outside Diameter (mm) | 12.7 |
| C Cutoff (in) | 0.7 |
| C Cutoff (mm) | 17.9 |
| L Length (in) | 1.72 |
| L Length (mm) | 43.7 |
| Hose Inside Diameter (in) | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Inside Diameter (in) | 0.374 |
| Inside Diameter (mm) | 9.5 |
| C (in) | 0.7 |
| L (in) | 1.72 |
| Outside Diameter (in) | 0.88 |
| Outside Diameter (mm) | 22.4 |
| Material | Steel |
| Customer Pack | 500 |
| Weight (lbs.) | 0.06 |
80113X
| T Drop (in) | 1.614 |
|---|---|
| C Cutoff (in) | 0.83 |
| C Cutoff (mm) | 21.08 |
| L Length (in) | 2.323 |
| L Length (mm) | 59 |
| Angle. | 90 |
80037X
| C Cutoff (in) | 1.93 |
|---|---|
| C Cutoff (mm) | 49.02 |
| L Length (in) | 1.929 |
| L Length (mm) | 49 |
6C2-12FDLX XBULK
| C Cutoff (in) | 1.36 |
|---|---|
| C Cutoff (mm) | 34.54 |
| L Length (in) | 2.362 |
| L Length (mm) | 60 |
83228X
| T Drop (in) | 1.102 |
|---|---|
| C Cutoff (in) | 1.81 |
| C Cutoff (mm) | 45.97 |
| L Length (in) | 2.835 |
| L Length (mm) | 72 |
| Angle. | 90 |
83130X
| T Drop (in) | 0.866 |
|---|---|
| C Cutoff (in) | 1.81 |
| C Cutoff (mm) | 45.97 |
| L Length (in) | 2.835 |
| L Length (mm) | 72 |
| Angle. | 90 |
83131X
| T Drop (in) | 1.102 |
|---|---|
| C Cutoff (in) | 2.14 |
| C Cutoff (mm) | 54.35 |
| L Length (in) | 3.15 |
| L Length (mm) | 80 |
| Angle. | 90 |
80585
| A1 Outside Diameter (in) | 0.97 |
|---|---|
| A1 Outside Diameter (mm) | 24.6 |
| L Length (in) | 1.2 |
| L Length (mm) | 30.5 |
| Hose Inside Diameter (in) | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Inside Diameter (in) | 0.374 |
| Inside Diameter (mm) | 9.5 |
| L (in) | 1.2 |
| Outside Diameter (in) | 0.97 |
| Outside Diameter (mm) | 24.6 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.07 |
80585X
| A1 Outside Diameter (in) | 0.97 |
|---|---|
| A1 Outside Diameter (mm) | 24.6 |
| L Length (in) | 1.2 |
| L Length (mm) | 30.5 |
| Hose Inside Diameter (in) | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Inside Diameter (in) | 0.374 |
| Inside Diameter (mm) | 9.5 |
| L (in) | 1.2 |
| Outside Diameter (in) | 0.97 |
| Outside Diameter (mm) | 24.6 |
| Material | Steel |
| Customer Pack | 500 |
| Weight (lbs.) | 0.07 |
81512
| A1 Outside Diameter (in) | 1.06 |
|---|---|
| A1 Outside Diameter (mm) | 26.9 |
| L Length (in) | 1.2 |
| L Length (mm) | 30.5 |
| Hose Inside Diameter (in) | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Inside Diameter (in) | 0.374 |
| Inside Diameter (mm) | 9.5 |
| L (in) | 1.2 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 26.9 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.09 |
81512X
| A1 Outside Diameter (in) | 1.06 |
|---|---|
| A1 Outside Diameter (mm) | 26.9 |
| L Length (in) | 1.201 |
| L Length (mm) | 30.5 |
80484
| A1 Outside Diameter (in) | 0.96 |
|---|---|
| A1 Outside Diameter (mm) | 24.4 |
| L Length (in) | 1.201 |
| L Length (mm) | 30.5 |
80484X
| A1 Outside Diameter (in) | 0.96 |
|---|---|
| A1 Outside Diameter (mm) | 24.4 |
| L Length (in) | 1.2 |
| L Length (mm) | 30.5 |
| Hose Inside Diameter (in) | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Inside Diameter (in) | 0.374 |
| Inside Diameter (mm) | 9.5 |
| L (in) | 1.2 |
| Outside Diameter (in) | 0.96 |
| Outside Diameter (mm) | 24.4 |
| Material | Steel |
| Customer Pack | 375 |
| Weight (lbs.) | 0.09 |
80418
| A1 Outside Diameter (in) | 0.94 |
|---|---|
| A1 Outside Diameter (mm) | 23.9 |
| L Length (in) | 1 |
| L Length (mm) | 25.4 |
80418X
| A1 Outside Diameter (in) | 0.94 |
|---|---|
| A1 Outside Diameter (mm) | 23.9 |
| L Length (in) | 1 |
| L Length (mm) | 25.4 |
| Hose Inside Diameter (in) | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Inside Diameter (in) | 0.374 |
| Inside Diameter (mm) | 9.5 |
| L (in) | 1 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 23.9 |
| Material | Steel |
| Customer Pack | 600 |
| Weight (lbs.) | 0.06 |
80462
| A1 Outside Diameter (in) | 1.06 |
|---|---|
| A1 Outside Diameter (mm) | 26.9 |
| L Length (in) | 1.2 |
| L Length (mm) | 30.5 |
| Hose Inside Diameter (in) | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Inside Diameter (in) | 0.374 |
| Inside Diameter (mm) | 9.5 |
| L (in) | 1.2 |
| Outside Diameter (in) | 1.06 |
| Outside Diameter (mm) | 26.9 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.09 |
80462X
| A1 Outside Diameter (in) | 1.06 |
|---|---|
| A1 Outside Diameter (mm) | 26.9 |
| L Length (in) | 1.201 |
| L Length (mm) | 30.5 |
80405
| B Tube Length (in) | 0.38 |
|---|---|
| B Tube Length (mm) | 9.5 |
| A1 Outside Diameter (in) | 0.63 |
| A1 Outside Diameter (mm) | 16 |
| C Cutoff (in) | 0.76 |
| C Cutoff (mm) | 19.3 |
| L Length (in) | 2.2 |
| L Length (mm) | 55.9 |
| Hose Inside Diameter (in) | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| C (in) | 0.76 |
| L (in) | 2.2 |
| Outside Diameter (in) | 0.88 |
| Outside Diameter (mm) | 22.4 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
80144X
| H1 Stem Hex (in) | 0.8125 |
|---|---|
| H1 Stem Hex (mm) | 20.64 |
| H2 Nut Hex (in) | 1.0625 |
| H2 Nut Hex (mm) | 26.99 |
| C Cutoff (in) | 1.54 |
| C Cutoff (mm) | 39.11 |
| L Length (in) | 2.98 |
| L Length (mm) | 75.7 |
80173
| H1 Stem Hex (in) | 0.8125 |
|---|---|
| H1 Stem Hex (mm) | 20.64 |
| H2 Nut Hex (in) | 1.0625 |
| H2 Nut Hex (mm) | 26.99 |
| C Cutoff (in) | 1.55 |
| C Cutoff (mm) | 39.37 |
| L Length (in) | 2.992 |
| L Length (mm) | 76 |
80191X
| H1 Stem Hex (in) | 0.875 |
|---|---|
| H1 Stem Hex (mm) | 22.23 |
| C Cutoff (in) | 1.47 |
| C Cutoff (mm) | 37.33 |
| L Length (in) | 2.909 |
| L Length (mm) | 73.9 |
80216
| C Cutoff (in) | 1.58 |
|---|---|
| C Cutoff (mm) | 40.13 |
| L Length (in) | 3.031 |
| L Length (mm) | 77 |
80145X
| H1 Stem Hex (in) | 1 |
|---|---|
| H1 Stem Hex (mm) | 25.4 |
| H2 Nut Hex (in) | 1.25 |
| H2 Nut Hex (mm) | 31.75 |
| C Cutoff (in) | 1.66 |
| C Cutoff (mm) | 42.16 |
| L Length (in) | 3.098 |
| L Length (mm) | 78.7 |
80128
| C Cutoff (in) | 1.18 |
|---|---|
| C Cutoff (mm) | 29.97 |
| L Length (in) | 2.638 |
| L Length (mm) | 67 |
80038
| C Cutoff (in) | 1.76 |
|---|---|
| C Cutoff (mm) | 44.7 |
| L Length (in) | 3.189 |
| L Length (mm) | 81 |
80404
| B Tube Length (in) | 0.38 |
|---|---|
| B Tube Length (mm) | 9.5 |
| A1 Outside Diameter (in) | 0.5 |
| A1 Outside Diameter (mm) | 12.7 |
| C Cutoff (in) | 0.76 |
| C Cutoff (mm) | 19.3 |
| L Length (in) | 2.2 |
| L Length (mm) | 55.9 |
| Hose Inside Diameter (in) | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| C (in) | 0.76 |
| L (in) | 2.2 |
| Outside Diameter (in) | 0.88 |
| Outside Diameter (mm) | 22.4 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.11 |
80404X
| B Tube Length (in) | 0.38 |
|---|---|
| B Tube Length (mm) | 9.5 |
| A1 Outside Diameter (in) | 0.5 |
| A1 Outside Diameter (mm) | 12.7 |
| C Cutoff (in) | 0.76 |
| C Cutoff (mm) | 19.3 |
| L Length (in) | 2.2 |
| L Length (mm) | 55.9 |
| Hose Inside Diameter (in) | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| C (in) | 0.76 |
| L (in) | 2.2 |
| Outside Diameter (in) | 0.88 |
| Outside Diameter (mm) | 22.4 |
| Material | Steel |
| Customer Pack | 350 |
| Weight (lbs.) | 0.11 |
80143X
| H1 Stem Hex (in) | 0.8125 |
|---|---|
| H1 Stem Hex (mm) | 20.64 |
| H2 Nut Hex (in) | 0.875 |
| H2 Nut Hex (mm) | 22.23 |
| C Cutoff (in) | 1.32 |
| C Cutoff (mm) | 33.52 |
| L Length (in) | 2.76 |
| L Length (mm) | 70.1 |
80071X
| H1 Stem Hex (in) | 1 |
|---|---|
| H1 Stem Hex (mm) | 25.4 |
| C Cutoff (in) | 1.19 |
| C Cutoff (mm) | 30.22 |
| L Length (in) | 2.63 |
| L Length (mm) | 66.8 |
80393
| H1 Stem Hex (in) | 0.8125 |
|---|---|
| H1 Stem Hex (mm) | 20.64 |
| H2 Nut Hex (in) | 1 |
| H2 Nut Hex (mm) | 25.4 |
| C Cutoff (in) | 1.44 |
| C Cutoff (mm) | 36.57 |
| L Length (in) | 2.882 |
| L Length (mm) | 73.2 |
80189X
| C Cutoff (in) | 1.36 |
|---|---|
| C Cutoff (mm) | 34.54 |
| L Length (in) | 2.795 |
| L Length (mm) | 71 |
80013X
| H1 Stem Hex (in) | 0.875 |
|---|---|
| H1 Stem Hex (mm) | 22.23 |
| C Cutoff (in) | 1.45 |
| C Cutoff (mm) | 36.83 |
| L Length (in) | 2.89 |
| L Length (mm) | 73.4 |
80039
| H1 Stem Hex (in) | 0.8125 |
|---|---|
| H1 Stem Hex (mm) | 20.64 |
| C Cutoff (in) | 1.94 |
| C Cutoff (mm) | 49.27 |
| L Length (in) | 3.382 |
| L Length (mm) | 85.9 |
83614X
| C Cutoff (in) | 1.86 |
|---|---|
| C Cutoff (mm) | 47.24 |
| L Length (in) | 3.307 |
| L Length (mm) | 84 |
8C2-10FJX90
No variation attributes.
83133X
| T Drop (in) | 1.22 |
|---|---|
| C Cutoff (in) | 2.19 |
| C Cutoff (mm) | 55.62 |
| L Length (in) | 3.622 |
| L Length (mm) | 92 |
| Angle. | 90 |
83132X
| T Drop (in) | 1.102 |
|---|---|
| C Cutoff (in) | 1.93 |
| C Cutoff (mm) | 49.02 |
| L Length (in) | 3.386 |
| L Length (mm) | 86 |
| Angle. | 90 |
83295X
| T Drop (in) | 1.102 |
|---|---|
| C Cutoff (in) | 1.62 |
| C Cutoff (mm) | 41.14 |
| L Length (in) | 3.071 |
| L Length (mm) | 78 |
| Angle. | 90 |
80586
| A1 Outside Diameter (in) | 1.15 |
|---|---|
| A1 Outside Diameter (mm) | 29.2 |
| L Length (in) | 1.5 |
| L Length (mm) | 38.1 |
| Hose Inside Diameter (in) | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| L (in) | 1.5 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 29.2 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
80586X
| A1 Outside Diameter (in) | 1.15 |
|---|---|
| A1 Outside Diameter (mm) | 29.2 |
| L Length (in) | 1.5 |
| L Length (mm) | 38.1 |
| Hose Inside Diameter (in) | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| L (in) | 1.5 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 29.2 |
| Material | Steel |
| Customer Pack | 300 |
| Weight (lbs.) | 0.15 |
80474
| A1 Outside Diameter (in) | 1.2 |
|---|---|
| A1 Outside Diameter (mm) | 30.5 |
| L Length (in) | 1.469 |
| L Length (mm) | 37.3 |
80474X
| A1 Outside Diameter (in) | 1.2 |
|---|---|
| A1 Outside Diameter (mm) | 30.5 |
| L Length (in) | 1.47 |
| L Length (mm) | 37.3 |
| Hose Inside Diameter (in) | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| L (in) | 1.47 |
| Outside Diameter (in) | 1.2 |
| Outside Diameter (mm) | 30.5 |
| Material | Steel |
| Customer Pack | 250 |
| Weight (lbs.) | 0.19 |
80485
| A1 Outside Diameter (in) | 1.15 |
|---|---|
| A1 Outside Diameter (mm) | 29.2 |
| L Length (in) | 1.469 |
| L Length (mm) | 37.3 |
80485X
| A1 Outside Diameter (in) | 1.15 |
|---|---|
| A1 Outside Diameter (mm) | 29.2 |
| L Length (in) | 1.469 |
| L Length (mm) | 37.3 |
80419
| A1 Outside Diameter (in) | 1.13 |
|---|---|
| A1 Outside Diameter (mm) | 28.7 |
| L Length (in) | 1.25 |
| L Length (mm) | 31.8 |
| Hose Inside Diameter (in) | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| L (in) | 1.25 |
| Outside Diameter (in) | 1.13 |
| Outside Diameter (mm) | 28.7 |
| Material | Steel |
| Customer Pack | 10 |
| Weight (lbs.) | 0.11 |
80419X
| A1 Outside Diameter (in) | 1.13 |
|---|---|
| A1 Outside Diameter (mm) | 28.7 |
| L Length (in) | 1.25 |
| L Length (mm) | 31.8 |
| Hose Inside Diameter (in) | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| L (in) | 1.25 |
| Outside Diameter (in) | 1.13 |
| Outside Diameter (mm) | 28.7 |
| Material | Steel |
| Customer Pack | 375 |
| Weight (lbs.) | 0.12 |
80463
| A1 Outside Diameter (in) | 1.28 |
|---|---|
| A1 Outside Diameter (mm) | 32.5 |
| L Length (in) | 1.47 |
| L Length (mm) | 37.3 |
| Hose Inside Diameter (in) | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| L (in) | 1.47 |
| Outside Diameter (in) | 1.28 |
| Outside Diameter (mm) | 32.5 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.17 |
80463X
| A1 Outside Diameter (in) | 1.28 |
|---|---|
| A1 Outside Diameter (mm) | 32.5 |
| L Length (in) | 1.469 |
| L Length (mm) | 37.3 |
12PC2F2 TUB
No variation attributes.
80003
No variation attributes.
80015
No variation attributes.
80755X
No variation attributes.
80756X
No variation attributes.
73062956
No variation attributes.
73340798
No variation attributes.
73340998
No variation attributes.
73035370
No variation attributes.
73024245
No variation attributes.
73030127
No variation attributes.
Specifications
| H1 Stem Hex (in) | 0.5 – 2.5 |
|---|---|
| H1 Stem Hex (mm) | 12.7 – 63.5 |
| H2 Nut Hex (in) | 0.375 – 1.5 |
| H2 Nut Hex (mm) | 9.53 – 38.1 |
| C Cutoff (in) | 0.551 – 5.48 |
| C Cutoff (mm) | 14 – 139.19 |
| L Length (in) | 1 – 9.012 |
| L Length (mm) | 25.4 – 228.9 |
| T Drop (in) | 0.315 – 4.331 |
| Angle. | 22.5 – 90 |
| A1 Outside Diameter (in) | 0.24 – 3.25 |
| A1 Outside Diameter (mm) | 6 – 82.6 |
| Hose Inside Diameter (in) | 0.189 – 2 |
| Hose Inside Diameter (mm) | 4.8 – 50.8 |
| Inside Diameter (in) | 0.189 – 2 |
| Inside Diameter (mm) | 4.8 – 50.8 |
| L (in) | 1 – 6.22 |
| Outside Diameter (in) | 0.24 – 3.25 |
| Outside Diameter (mm) | 6 – 82.6 |
| Material | Steel, Brass |
| Customer Pack | 1 – 1000 |
| Weight (lbs.) | 0.02 – 3.46 |
| B Tube Length (in) | 0.25 – 0.47 |
| B Tube Length (mm) | 6.4 – 11.9 |
| C (in) | 0.56 – 2.69 |
| T1 Thread (in) | 1/8-27, 7/16-20, 1/4-18, M12x1.5 |
| A1 Tube Outside Diameter (mm) | 6 |
PDF Documents
No PDF documents.
