Attributes
| Part Number | 7253-000000-000002 |
|---|
Description
Steel Adapter Accessories Gates hydraulic adapters allow for easy assembly on medium, high, very high and extremely high pressure hose. Available in the following configuration: SAE to SAE, British to SAE, Metric to SAE, International to International, Metric Conversion and Japanese Conversion. Conforms to SAE and ASME specifications (rated to SAE 100R2 pressure maximum unless otherwise noted). Select configurations available in bent or block configurations for replacing bent tube assemblies with standard stock couplings.
Variations (223)
10BS / G64787-0010

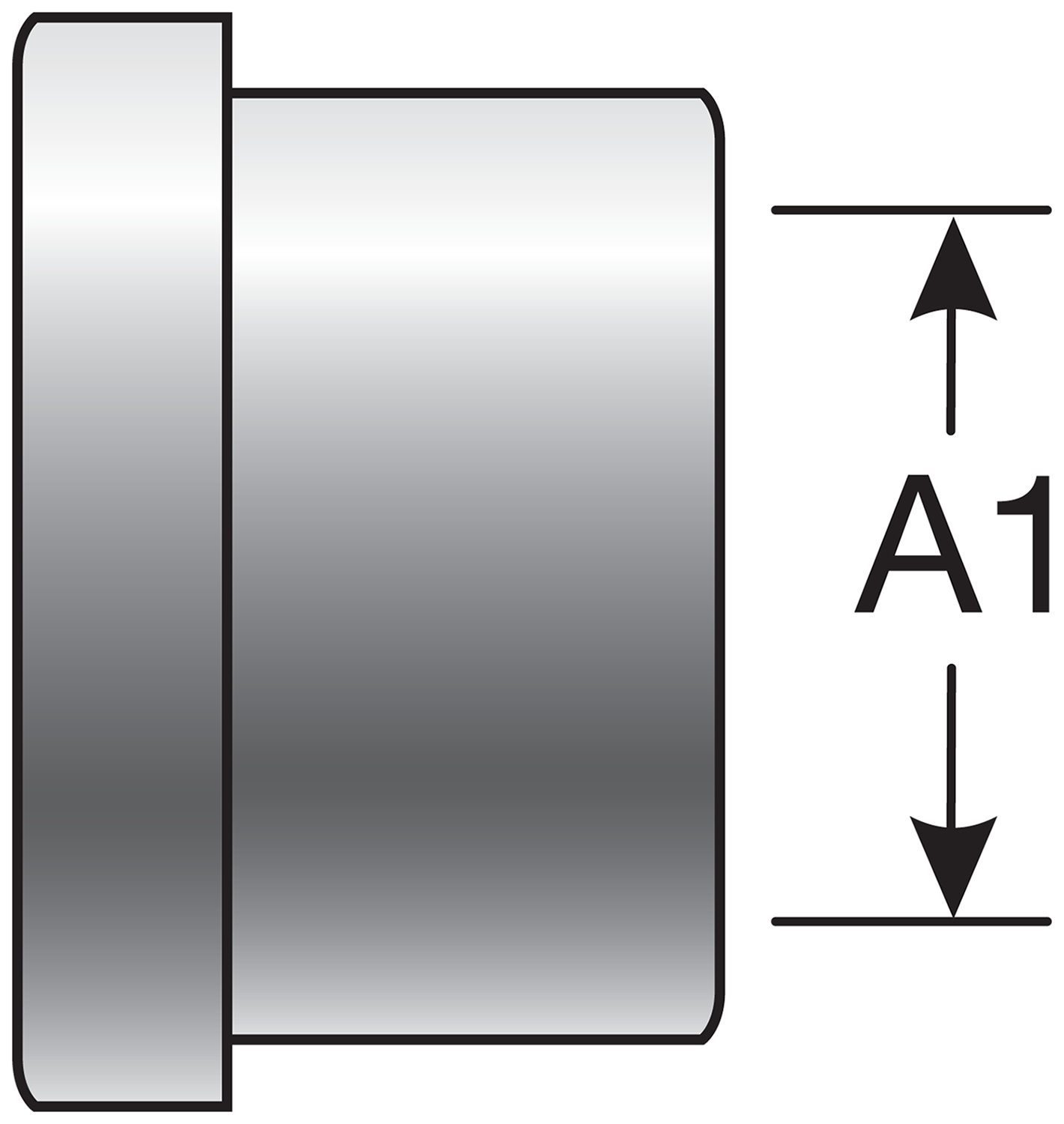

| A1 Outside Diameter (in) | 0.39 |
|---|---|
| A1 Outside Diameter (mm) | 10 |
| A1 Tube Outside Diameter (mm) | 10 |
| End 1 Diameter (mm) | 10 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
10FFN / G60050-0010
| H1 Stem Hex (in) | 1 |
|---|---|
| H1 Stem Hex (mm) | 25.4 |
| A1 Outside Diameter (in) | 0.63 |
| A1 Outside Diameter (mm) | 16 |
| A1 Tube Outside Diameter (in) | 5/8 |
| End 1 Diameter (mm) | 10 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.3 |
10FFS / G60051-0010
| A1 Outside Diameter (in) | 0.63 |
|---|---|
| A1 Outside Diameter (mm) | 16 |
| A1 Tube Outside Diameter (in) | 5/8 |
| End 1 Diameter (mm) | 10 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
10MBDS / G64775-0010
| Hose Inside Diameter (mm) | 10 |
|---|---|
| Inside Diameter (mm) | 10 |
| End 1 Diameter (mm) | 10 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
10MNH / G64789-0010
| A1 Outside Diameter (in) | 0.39 |
|---|---|
| A1 Outside Diameter (mm) | 10 |
| A1 Tube Outside Diameter (mm) | 10 |
| End 1 Diameter (mm) | 10 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
10MNL / G64788-0010
| A1 Outside Diameter (in) | 0.39 |
|---|---|
| A1 Outside Diameter (mm) | 10 |
| A1 Tube Outside Diameter (mm) | 10 |
| End 1 Diameter (mm) | 10 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.05 |
10TS / G60394-0010
| A1 Outside Diameter (in) | 0.63 |
|---|---|
| A1 Outside Diameter (mm) | 16 |
| A1 Tube Outside Diameter (in) | 5/8 |
| End 1 Diameter (mm) | 10 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.0221 |
10TSN / G60395-0010
| H1 Stem Hex (in) | 1 |
|---|---|
| H1 Stem Hex (mm) | 25.4 |
| A1 Outside Diameter (in) | 0.63 |
| A1 Outside Diameter (mm) | 16 |
| A1 Tube Outside Diameter (in) | 5/8 |
| End 1 Diameter (mm) | 10 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.0882 |
12BS / G64787-0012
| A1 Outside Diameter (in) | 0.47 |
|---|---|
| A1 Outside Diameter (mm) | 12 |
| A1 Tube Outside Diameter (mm) | 12 |
| End 1 Diameter (mm) | 12 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
12CFH FLANGE CLAMP HALF / G60896-0012X
| M Flange Diameter (in) | 0.75 |
|---|---|
| M Flange Diameter (mm) | 19.1 |
| Material | Steel |
| Customer Pack | 75 |
| Weight (lbs.) | 0.45 |
12CFHS / G60899-0012
| M Flange Diameter (in) | 0.75 |
|---|---|
| M Flange Diameter (mm) | 19.1 |
| Nom. Flg. Size (in) | 3/4 |
| A (in) | 1.88 |
| B (in) | 0.41 |
| End 1 Diameter (mm) | 12 |
| Material | Steel |
| Notes | Each set contains 2 flange halves, 1 O-Ring and 4 bolts (Grade 8) with lock washers. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.6 |
12FFN / G60050-0012
| H1 Stem Hex (in) | 1.25 |
|---|---|
| H1 Stem Hex (mm) | 31.8 |
| A1 Outside Diameter (in) | 0.75 |
| A1 Outside Diameter (mm) | 19 |
| A1 Tube Outside Diameter (in) | 3/4 |
| End 1 Diameter (mm) | 12 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.3 |
12FFS / G60051-0012
| A1 Outside Diameter (in) | 0.75 |
|---|---|
| A1 Outside Diameter (mm) | 19 |
| A1 Tube Outside Diameter (in) | 3/4 |
| End 1 Diameter (mm) | 12 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.3 |
12FHHS / G60929-0012
| B (mm) | 0.41 |
|---|---|
| M Flange Diameter (in) | 0.75 |
| M Flange Diameter (mm) | 19.1 |
| Nom. Flg. Size (in) | 3/4 |
| A (in) | 2 |
| B (in) | 0.41 |
| End 1 Diameter (mm) | 12 |
| Material | Steel |
| Notes | Each set contains 2 flange halves, 1 O-Ring and 4 bolts (Grade 8) with lock washers. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.95 |
12MBDS / G64775-0012
| Hose Inside Diameter (mm) | 12 |
|---|---|
| Inside Diameter (mm) | 12 |
| End 1 Diameter (mm) | 12 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
12MNH / G64789-0012
| A1 Outside Diameter (in) | 0.47 |
|---|---|
| A1 Outside Diameter (mm) | 12 |
| A1 Tube Outside Diameter (mm) | 12 |
| End 1 Diameter (mm) | 12 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
12MNL / G64788-0012
| A1 Outside Diameter (in) | 0.47 |
|---|---|
| A1 Outside Diameter (mm) | 12 |
| A1 Tube Outside Diameter (mm) | 12 |
| End 1 Diameter (mm) | 12 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.05 |
12TS / G60394-0012
| A1 Outside Diameter (in) | 0.75 |
|---|---|
| A1 Outside Diameter (mm) | 19 |
| A1 Tube Outside Diameter (in) | 3/4 |
| End 1 Diameter (mm) | 12 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.04 |
12TSN / G60395-0012
| H1 Stem Hex (in) | 1.25 |
|---|---|
| H1 Stem Hex (mm) | 31.8 |
| A1 Outside Diameter (in) | 0.75 |
| A1 Outside Diameter (mm) | 19 |
| A1 Tube Outside Diameter (in) | 3/4 |
| End 1 Diameter (mm) | 12 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.165375 |
14BS / G64787-0014
| A1 Outside Diameter (in) | 0.55 |
|---|---|
| A1 Outside Diameter (mm) | 14 |
| A1 Tube Outside Diameter (mm) | 14 |
| End 1 Diameter (mm) | 14 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.32 |
14MBDS / G64775-0014
| Hose Inside Diameter (mm) | 14 |
|---|---|
| Inside Diameter (mm) | 14 |
| End 1 Diameter (mm) | 14 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
14MNH / G64789-0014
| A1 Outside Diameter (in) | 0.55 |
|---|---|
| A1 Outside Diameter (mm) | 14 |
| A1 Tube Outside Diameter (mm) | 14 |
| End 1 Diameter (mm) | 14 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.1 |
14TS / G60394-0014
| A1 Outside Diameter (in) | 0.88 |
|---|---|
| A1 Outside Diameter (mm) | 22 |
| A1 Tube Outside Diameter (in) | 7/8 |
| End 1 Diameter (mm) | 14 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.0331 |
14TSN / G60395-0014
| H1 Stem Hex (in) | 1.38 |
|---|---|
| H1 Stem Hex (mm) | 34.9 |
| A1 Outside Diameter (in) | 0.88 |
| A1 Outside Diameter (mm) | 22 |
| A1 Tube Outside Diameter (in) | 7/8 |
| End 1 Diameter (mm) | 14 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.19845 |
15BS / G64787-0015
| A1 Outside Diameter (in) | 0.59 |
|---|---|
| A1 Outside Diameter (mm) | 15 |
| A1 Tube Outside Diameter (mm) | 15 |
| End 1 Diameter (mm) | 15 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
15MNL / G64788-0015
| A1 Outside Diameter (in) | 0.59 |
|---|---|
| A1 Outside Diameter (mm) | 15 |
| A1 Tube Outside Diameter (mm) | 15 |
| End 1 Diameter (mm) | 15 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.05 |
16BS / G64787-0016
| A1 Outside Diameter (in) | 0.63 |
|---|---|
| A1 Outside Diameter (mm) | 16 |
| A1 Tube Outside Diameter (mm) | 16 |
| End 1 Diameter (mm) | 16 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
16CFH FLANGE CLAMP HALF / G60896-0016X
| M Flange Diameter (in) | 1 |
|---|---|
| M Flange Diameter (mm) | 25.4 |
| Material | Steel |
| Customer Pack | 25 |
| Weight (lbs.) | 0.5 |
16CFHS / G60899-0016
| M Flange Diameter (in) | 1 |
|---|---|
| M Flange Diameter (mm) | 25.4 |
| Nom. Flg. Size (in) | 1 |
| A (in) | 2.06 |
| B (in) | 0.41 |
| End 1 Diameter (mm) | 16 |
| Material | Steel |
| Notes | Each set contains 2 flange halves, 1 O-Ring and 4 bolts (Grade 8) with lock washers. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.72 |
16FFN / G60050-0016
| H1 Stem Hex (in) | 1.5 |
|---|---|
| H1 Stem Hex (mm) | 38.1 |
| A1 Outside Diameter (in) | 1 |
| A1 Outside Diameter (mm) | 25 |
| A1 Tube Outside Diameter (in) | 1 |
| End 1 Diameter (mm) | 16 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.3 |
16FFS / G60051-0016
| A1 Outside Diameter (in) | 1 |
|---|---|
| A1 Outside Diameter (mm) | 25 |
| A1 Tube Outside Diameter (in) | 1 |
| End 1 Diameter (mm) | 16 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.025 |
16FHHS / G60929-0016
| B (mm) | 0.47 |
|---|---|
| M Flange Diameter (in) | 1 |
| M Flange Diameter (mm) | 25.4 |
| Nom. Flg. Size (in) | 1 |
| A (in) | 2.25 |
| B (in) | 0.47 |
| End 1 Diameter (mm) | 16 |
| Material | Steel |
| Notes | Each set contains 2 flange halves, 1 O-Ring and 4 bolts (Grade 8) with lock washers. |
| Customer Pack | 1 |
| Weight (lbs.) | 1.6 |
16LN / G60399-0016
| End 1 Type | LN |
|---|---|
| Material | Steel |
16MBDS / G64775-0016
| Hose Inside Diameter (mm) | 16 |
|---|---|
| Inside Diameter (mm) | 16 |
| End 1 Diameter (mm) | 16 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
16MNH / G64789-0016
| A1 Outside Diameter (in) | 0.63 |
|---|---|
| A1 Outside Diameter (mm) | 16 |
| A1 Tube Outside Diameter (mm) | 16 |
| End 1 Diameter (mm) | 16 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
16TS / G60394-0016
| A1 Outside Diameter (in) | 1 |
|---|---|
| A1 Outside Diameter (mm) | 25 |
| A1 Tube Outside Diameter (in) | 1 |
| End 1 Diameter (mm) | 16 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.0441 |
16TSN / G60395-0016
| H1 Stem Hex (in) | 1.5 |
|---|---|
| H1 Stem Hex (mm) | 38.1 |
| A1 Outside Diameter (in) | 1 |
| A1 Outside Diameter (mm) | 25 |
| A1 Tube Outside Diameter (in) | 1 |
| End 1 Diameter (mm) | 16 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2205 |
18BS / G64787-0018
| A1 Outside Diameter (in) | 0.71 |
|---|---|
| A1 Outside Diameter (mm) | 18 |
| A1 Tube Outside Diameter (mm) | 18 |
| End 1 Diameter (mm) | 18 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
18MBDS / G64775-0018
| Hose Inside Diameter (mm) | 18 |
|---|---|
| Inside Diameter (mm) | 18 |
| End 1 Diameter (mm) | 18 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
18MNL / G64788-0018
| A1 Outside Diameter (in) | 0.71 |
|---|---|
| A1 Outside Diameter (mm) | 18 |
| A1 Tube Outside Diameter (mm) | 18 |
| End 1 Diameter (mm) | 18 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.15 |
20BS / G64787-0020
| A1 Outside Diameter (in) | 0.79 |
|---|---|
| A1 Outside Diameter (mm) | 20 |
| A1 Tube Outside Diameter (mm) | 20 |
| End 1 Diameter (mm) | 20 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
20CFH FLANGE CLAMP HALF / G60896-0020X
| M Flange Diameter (in) | 1.25 |
|---|---|
| M Flange Diameter (mm) | 31.8 |
| Material | Steel |
| Customer Pack | 20 |
| Weight (lbs.) | 0.85 |
20CFHS / G60899-0020
| M Flange Diameter (in) | 1.25 |
|---|---|
| M Flange Diameter (mm) | 31.8 |
| Nom. Flg. Size (in) | 1 1/4 |
| A (in) | 2.31 |
| B (in) | 0.47 |
| End 1 Diameter (mm) | 20 |
| Material | Steel |
| Notes | Each set contains 2 flange halves, 1 O-Ring and 4 bolts (Grade 8) with lock washers. |
| Customer Pack | 1 |
| Weight (lbs.) | 1.1 |
20FHHS / G60929-0020
| B (mm) | 0.53 |
|---|---|
| M Flange Diameter (in) | 1.25 |
| M Flange Diameter (mm) | 31.8 |
| Nom. Flg. Size (in) | 1 1/4 |
| A (in) | 2.63 |
| B (in) | 0.53 |
| End 1 Diameter (mm) | 20 |
| Material | Steel |
| Notes | Each set contains 2 flange halves, 1 O-Ring and 4 bolts (Grade 8) with lock washers. |
| Customer Pack | 1 |
| Weight (lbs.) | 2.5 |
20FLHCFM / G60928-0020
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 1.85 |
20MBDS / G64775-0020
| Hose Inside Diameter (mm) | 20 |
|---|---|
| Inside Diameter (mm) | 20 |
| End 1 Diameter (mm) | 20 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
20MNH / G64789-0020
| A1 Outside Diameter (in) | 0.79 |
|---|---|
| A1 Outside Diameter (mm) | 20 |
| A1 Tube Outside Diameter (mm) | 20 |
| End 1 Diameter (mm) | 20 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.25 |
20TS / G60394-0020
| A1 Outside Diameter (in) | 1.25 |
|---|---|
| A1 Outside Diameter (mm) | 32 |
| A1 Tube Outside Diameter (in) | 1 1/4 |
| End 1 Diameter (mm) | 20 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.0485 |
20TSN / G60395-0020
| H1 Stem Hex (in) | 2 |
|---|---|
| H1 Stem Hex (mm) | 50.8 |
| A1 Outside Diameter (in) | 1.25 |
| A1 Outside Diameter (mm) | 32 |
| A1 Tube Outside Diameter (in) | 1 1/4 |
| End 1 Diameter (mm) | 20 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.55125 |
22BS / G64787-0022
| A1 Outside Diameter (in) | 0.87 |
|---|---|
| A1 Outside Diameter (mm) | 22 |
| A1 Tube Outside Diameter (mm) | 22 |
| End 1 Diameter (mm) | 22 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
22MBDS / G64775-0022
| Hose Inside Diameter (mm) | 22 |
|---|---|
| Inside Diameter (mm) | 22 |
| End 1 Diameter (mm) | 22 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
22MNL / G64788-0022
| A1 Outside Diameter (in) | 0.87 |
|---|---|
| A1 Outside Diameter (mm) | 22 |
| A1 Tube Outside Diameter (mm) | 22 |
| End 1 Diameter (mm) | 22 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
24CFH FLANGE CLAMP HALF / G60896-0024X
| M Flange Diameter (in) | 1.5 |
|---|---|
| M Flange Diameter (mm) | 38.1 |
| Material | Steel |
| Customer Pack | 50 |
| Weight (lbs.) | 0.2 |
24CFHS / G60899-0024
| M Flange Diameter (in) | 1.5 |
|---|---|
| M Flange Diameter (mm) | 38.1 |
| Nom. Flg. Size (in) | 1 1/2 |
| A (in) | 2.75 |
| B (in) | 0.53 |
| End 1 Diameter (mm) | 24 |
| Material | Steel |
| Notes | Each set contains 2 flange halves, 1 O-Ring and 4 bolts (Grade 8) with lock washers. |
| Customer Pack | 1 |
| Weight (lbs.) | 2.48 |
24FHHS / G60929-0024
| B (mm) | 0.66 |
|---|---|
| M Flange Diameter (in) | 1.5 |
| M Flange Diameter (mm) | 38.1 |
| Nom. Flg. Size (in) | 1 1/2 |
| A (in) | 3.13 |
| B (in) | 0.66 |
| End 1 Diameter (mm) | 24 |
| Material | Steel |
| Notes | Each set contains 2 flange halves, 1 O-Ring and 4 bolts (Grade 8) with lock washers. |
| Customer Pack | 1 |
| Weight (lbs.) | 4.4 |
24MBDS / G64775-0024
| Hose Inside Diameter (mm) | 24 |
|---|---|
| Inside Diameter (mm) | 24 |
| End 1 Diameter (mm) | 24 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
24TS / G60394-0024
| A1 Outside Diameter (in) | 1.5 |
|---|---|
| A1 Outside Diameter (mm) | 38 |
| A1 Tube Outside Diameter (in) | 1 1/2 |
| End 1 Diameter (mm) | 24 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.135 |
25BS / G64787-0025
| A1 Outside Diameter (in) | 0.98 |
|---|---|
| A1 Outside Diameter (mm) | 25 |
| A1 Tube Outside Diameter (mm) | 25 |
| End 1 Diameter (mm) | 25 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.03 |
25MNH / G64789-0025
| A1 Outside Diameter (in) | 0.98 |
|---|---|
| A1 Outside Diameter (mm) | 25 |
| A1 Tube Outside Diameter (mm) | 25 |
| End 1 Diameter (mm) | 25 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.46 |
26MBDS / G64775-0026
| Hose Inside Diameter (mm) | 26 |
|---|---|
| Inside Diameter (mm) | 26 |
| End 1 Diameter (mm) | 26 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
27MBDS / G64775-0027
| Hose Inside Diameter (mm) | 27 |
|---|---|
| Inside Diameter (mm) | 27 |
| End 1 Diameter (mm) | 27 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
28BS / G64787-0028
| A1 Outside Diameter (in) | 1.1 |
|---|---|
| A1 Outside Diameter (mm) | 28 |
| A1 Tube Outside Diameter (mm) | 28 |
| End 1 Diameter (mm) | 28 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.48 |
28MNL / G64788-0028
| A1 Outside Diameter (in) | 1.1 |
|---|---|
| A1 Outside Diameter (mm) | 28 |
| A1 Tube Outside Diameter (mm) | 28 |
| End 1 Diameter (mm) | 28 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.2 |
2TSN / G60395-0002
| H1 Stem Hex (in) | 0.38 |
|---|---|
| H1 Stem Hex (mm) | 9.5 |
| A1 Outside Diameter (in) | 0.13 |
| A1 Outside Diameter (mm) | 3 |
| A1 Tube Outside Diameter (in) | 1/8 |
| End 1 Diameter (mm) | 2 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
30BS / G64787-0030
| A1 Outside Diameter (in) | 1.181 |
|---|---|
| A1 Outside Diameter (mm) | 30 |
| A1 Tube Outside Diameter (mm) | 30 |
| End 1 Diameter (mm) | 30 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.03 |
30MBDS / G64775-0030
| Hose Inside Diameter (mm) | 30 |
|---|---|
| Inside Diameter (mm) | 30 |
| End 1 Diameter (mm) | 30 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
30MNH / G64789-0030
| A1 Outside Diameter (in) | 1.181 |
|---|---|
| A1 Outside Diameter (mm) | 30 |
| A1 Tube Outside Diameter (mm) | 30 |
| End 1 Diameter (mm) | 30 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.47 |
32CFH FLANGE CLAMP HALF / G60896-0032X
| M Flange Diameter (in) | 2 |
|---|---|
| M Flange Diameter (mm) | 50.8 |
| Material | Steel |
| Customer Pack | 15 |
| Weight (lbs.) | 1.1 |
32CFHS / G60899-0032
| M Flange Diameter (in) | 2 |
|---|---|
| M Flange Diameter (mm) | 50.8 |
| Nom. Flg. Size (in) | 2 |
| A (in) | 3.06 |
| B (in) | 0.53 |
| End 1 Diameter (mm) | 32 |
| Material | Steel |
| Notes | Each set contains 2 flange halves, 1 O-Ring and 4 bolts (Grade 8) with lock washers. |
| Customer Pack | 1 |
| Weight (lbs.) | 1.64 |
32FHHS / G60929-0032
| B (mm) | 0.78 |
|---|---|
| M Flange Diameter (in) | 2 |
| M Flange Diameter (mm) | 50.8 |
| Nom. Flg. Size (in) | 2 |
| A (in) | 3.81 |
| B (in) | 0.78 |
| End 1 Diameter (mm) | 32 |
| Material | Steel |
| Notes | Each set contains 2 flange halves, 1 O-Ring and 4 bolts (Grade 8) with lock washers. |
| Customer Pack | 1 |
| Weight (lbs.) | 7.0 |
32TS / G60394-0032
| A1 Outside Diameter (in) | 2 |
|---|---|
| A1 Outside Diameter (mm) | 51 |
| A1 Tube Outside Diameter (in) | 2 |
| End 1 Diameter (mm) | 32 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.27 |
32TSN / G60395-0032
| H1 Stem Hex (in) | 2.88 |
|---|---|
| H1 Stem Hex (mm) | 73 |
| A1 Outside Diameter (in) | 2 |
| A1 Outside Diameter (mm) | 51 |
| A1 Tube Outside Diameter (in) | 2 |
| End 1 Diameter (mm) | 32 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 1.1907 |
33MBDS / G64775-0033
| Hose Inside Diameter (mm) | 33 |
|---|---|
| Inside Diameter (mm) | 33 |
| End 1 Diameter (mm) | 33 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
35BS / G64787-0035
| A1 Outside Diameter (in) | 1.38 |
|---|---|
| A1 Outside Diameter (mm) | 35 |
| A1 Tube Outside Diameter (mm) | 35 |
| End 1 Diameter (mm) | 35 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.05 |
35MNL / G64788-0035
| A1 Outside Diameter (in) | 1.38 |
|---|---|
| A1 Outside Diameter (mm) | 35 |
| A1 Tube Outside Diameter (mm) | 35 |
| End 1 Diameter (mm) | 35 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.3 |
36MBDS / G64775-0036
| Hose Inside Diameter (mm) | 36 |
|---|---|
| Inside Diameter (mm) | 36 |
| End 1 Diameter (mm) | 36 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
38BS / G64787-0038
| A1 Outside Diameter (in) | 1.496 |
|---|---|
| A1 Outside Diameter (mm) | 38 |
| A1 Tube Outside Diameter (mm) | 38 |
| End 1 Diameter (mm) | 38 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
38MNH / G64789-0038
| A1 Outside Diameter (in) | 1.496 |
|---|---|
| A1 Outside Diameter (mm) | 38 |
| A1 Tube Outside Diameter (mm) | 38 |
| End 1 Diameter (mm) | 38 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.7 |
3TS / G60394-0003
| A1 Outside Diameter (in) | 0.19 |
|---|---|
| A1 Outside Diameter (mm) | 5 |
| A1 Tube Outside Diameter (in) | 3/16 |
| End 1 Diameter (mm) | 3 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 5 |
| Weight (lbs.) | 0.1 |
3TSN / G60395-0003
| H1 Stem Hex (in) | 0.25 |
|---|---|
| H1 Stem Hex (mm) | 6.4 |
| A1 Outside Diameter (in) | 0.19 |
| A1 Outside Diameter (mm) | 5 |
| A1 Tube Outside Diameter (in) | 3/16 |
| End 1 Diameter (mm) | 3 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.11 |
40CFH FLANGE CLAMP HALF / G60896-0040X
| M Flange Diameter (in) | 2.5 |
|---|---|
| M Flange Diameter (mm) | 63.5 |
| Material | Steel |
| Customer Pack | 10 |
| Weight (lbs.) | 2.0 |
40CFHS / G60899-0040
| M Flange Diameter (in) | 2.5 |
|---|---|
| M Flange Diameter (mm) | 63.5 |
| Nom. Flg. Size (in) | 2 1/2 |
| A (in) | 3.50 |
| B (in) | 0.54 |
| End 1 Diameter (mm) | 40 |
| Material | Steel |
| Notes | Each set contains 2 flange halves, 1 O-Ring and 4 bolts (Grade 8) with lock washers. |
| Customer Pack | 1 |
| Weight (lbs.) | 2.5 |
42BS / G64787-0042
| A1 Outside Diameter (in) | 1.65 |
|---|---|
| A1 Outside Diameter (mm) | 42 |
| A1 Tube Outside Diameter (mm) | 42 |
| End 1 Diameter (mm) | 42 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06 |
42MBDS / G64775-0042
| Hose Inside Diameter (mm) | 42 |
|---|---|
| Inside Diameter (mm) | 42 |
| End 1 Diameter (mm) | 42 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
42MNL / G64788-0042
| A1 Outside Diameter (in) | 1.65 |
|---|---|
| A1 Outside Diameter (mm) | 42 |
| A1 Tube Outside Diameter (mm) | 42 |
| End 1 Diameter (mm) | 42 |
| Material | Steel |
| Customer Pack | 1 |
| Weight (lbs.) | 0.48 |
45MBDS / G64775-0045
| Hose Inside Diameter (mm) | 45 |
|---|---|
| Inside Diameter (mm) | 45 |
| End 1 Diameter (mm) | 45 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
48CFHS / G60899-0048
| M Flange Diameter (in) | 3 |
|---|---|
| M Flange Diameter (mm) | 76.2 |
| Nom. Flg. Size (in) | 3 |
| A (in) | 4.19 |
| B (in) | 0.66 |
| End 1 Diameter (mm) | 48 |
| Material | Steel |
| Notes | Each set contains 2 flange halves, 1 O-Ring and 4 bolts (Grade 8) with lock washers. |
| Customer Pack | 1 |
| Weight (lbs.) | 4.0 |
4FFN / G60050-0004
| H1 Stem Hex (in) | 0.56 |
|---|---|
| H1 Stem Hex (mm) | 14.3 |
| A1 Outside Diameter (in) | 0.25 |
| A1 Outside Diameter (mm) | 6 |
| A1 Tube Outside Diameter (in) | 1/4 |
| End 1 Diameter (mm) | 4 |
| Material | Steel |
| Customer Pack | 5 |
| Weight (lbs.) | 0.03 |
4FFS / G60051-0004
| A1 Outside Diameter (in) | 0.25 |
|---|---|
| A1 Outside Diameter (mm) | 6 |
| A1 Tube Outside Diameter (in) | 1/4 |
| End 1 Diameter (mm) | 4 |
| Material | Steel |
| Customer Pack | 5 |
| Weight (lbs.) | 0.03 |
4MBSPP-4MB / G62350-0404
| End 1 Type | MBSPP |
|---|---|
| End 2 Type | MB |
| Material | Steel |
4TS / G60394-0004
| A1 Outside Diameter (in) | 0.25 |
|---|---|
| A1 Outside Diameter (mm) | 6 |
| A1 Tube Outside Diameter (in) | 1/4 |
| End 1 Diameter (mm) | 4 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 5 |
| Weight (lbs.) | 0.025 |
4TSN / G60395-0004
| H1 Stem Hex (in) | 0.56 |
|---|---|
| H1 Stem Hex (mm) | 14.3 |
| A1 Outside Diameter (in) | 0.25 |
| A1 Outside Diameter (mm) | 6 |
| A1 Tube Outside Diameter (in) | 1/4 |
| End 1 Diameter (mm) | 4 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
50MBDS / G64775-0050
| Hose Inside Diameter (mm) | 50 |
|---|---|
| Inside Diameter (mm) | 50 |
| End 1 Diameter (mm) | 50 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.02 |
52MBDS / G64775-0052
| Hose Inside Diameter (mm) | 52 |
|---|---|
| Inside Diameter (mm) | 54 |
| End 1 Diameter (mm) | 52 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
5FFN / G60050-0005
| H1 Stem Hex (in) | 0.63 |
|---|---|
| H1 Stem Hex (mm) | 15.9 |
| A1 Outside Diameter (in) | 0.31 |
| A1 Outside Diameter (mm) | 8 |
| A1 Tube Outside Diameter (in) | 5/16 |
| End 1 Diameter (mm) | 5 |
| Material | Steel |
| Customer Pack | 5 |
| Weight (lbs.) | 0.036 |
5FFS / G60051-0005
| A1 Outside Diameter (in) | 0.31 |
|---|---|
| A1 Outside Diameter (mm) | 8 |
| A1 Tube Outside Diameter (in) | 5/16 |
| End 1 Diameter (mm) | 5 |
| Material | Steel |
| Customer Pack | 5 |
| Weight (lbs.) | 0.005 |
5TS / G60394-0005
| A1 Outside Diameter (in) | 0.31 |
|---|---|
| A1 Outside Diameter (mm) | 8 |
| A1 Tube Outside Diameter (in) | 5/16 |
| End 1 Diameter (mm) | 5 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 5 |
| Weight (lbs.) | 0.03 |
5TSN / G60395-0005
| H1 Stem Hex (in) | 0.63 |
|---|---|
| H1 Stem Hex (mm) | 15.9 |
| A1 Outside Diameter (in) | 0.31 |
| A1 Outside Diameter (mm) | 8 |
| A1 Tube Outside Diameter (in) | 5/16 |
| End 1 Diameter (mm) | 5 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.033075 |
64CFHS / G60899-0064
| M Flange Diameter (in) | 4 |
|---|---|
| M Flange Diameter (mm) | 101.6 |
| Nom. Flg. Size (in) | 4 |
| A (in) | 4.75 |
| B (in) | 0.66 |
| End 1 Diameter (mm) | 64 |
| Material | Steel |
| Notes | Each set contains 2 flange halves, 1 O-Ring and 4 bolts (Grade 8) with lock washers. |
| Customer Pack | 1 |
| Weight (lbs.) | 4.75 |
6BS / G64787-0006
| A1 Outside Diameter (in) | 0.24 |
|---|---|
| A1 Outside Diameter (mm) | 6 |
| A1 Tube Outside Diameter (mm) | 6 |
| End 1 Diameter (mm) | 6 |
| Material | Steel |
| Customer Pack | 5 |
| Weight (lbs.) | 0.011 |
6FFN / G60050-0006
| H1 Stem Hex (in) | 0.69 |
|---|---|
| H1 Stem Hex (mm) | 17.5 |
| A1 Outside Diameter (in) | 0.38 |
| A1 Outside Diameter (mm) | 10 |
| A1 Tube Outside Diameter (in) | 3/8 |
| End 1 Diameter (mm) | 6 |
| Material | Steel |
| Customer Pack | 5 |
| Weight (lbs.) | 0.04 |
6FFS / G60051-0006
| A1 Outside Diameter (in) | 0.38 |
|---|---|
| A1 Outside Diameter (mm) | 10 |
| A1 Tube Outside Diameter (in) | 3/8 |
| End 1 Diameter (mm) | 6 |
| Material | Steel |
| Customer Pack | 5 |
| Weight (lbs.) | 0.3 |
6MBDS / G64775-0006
| Hose Inside Diameter (mm) | 6 |
|---|---|
| Inside Diameter (mm) | 6 |
| End 1 Diameter (mm) | 6 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
6MFFOR-10MB90
| End 1 Type | FFOR |
|---|---|
| End 2 Type | MB |
| Angle. | 90 |
| Material | Steel |
6MNH / G64789-0006
| A1 Outside Diameter (in) | 0.24 |
|---|---|
| A1 Outside Diameter (mm) | 6 |
| A1 Tube Outside Diameter (mm) | 6 |
| End 1 Diameter (mm) | 6 |
| Material | Steel |
| Customer Pack | 5 |
| Weight (lbs.) | 0.05 |
6MNL / G64788-0006
| A1 Outside Diameter (in) | 0.24 |
|---|---|
| A1 Outside Diameter (mm) | 6 |
| A1 Tube Outside Diameter (mm) | 6 |
| End 1 Diameter (mm) | 6 |
| Material | Steel |
| Customer Pack | 5 |
| Weight (lbs.) | 0.022 |
6TS / G60394-0006
| A1 Outside Diameter (in) | 0.38 |
|---|---|
| A1 Outside Diameter (mm) | 10 |
| A1 Tube Outside Diameter (in) | 3/8 |
| End 1 Diameter (mm) | 6 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 5 |
| Weight (lbs.) | 0.03 |
6TSN / G60395-0006
| H1 Stem Hex (in) | 0.69 |
|---|---|
| H1 Stem Hex (mm) | 17.5 |
| A1 Outside Diameter (in) | 0.38 |
| A1 Outside Diameter (mm) | 10 |
| A1 Tube Outside Diameter (in) | 3/8 |
| End 1 Diameter (mm) | 6 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.0441 |
6TSN XBULK / G60395-0006X
| Material | Steel |
|---|---|
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 950 |
| Weight (lbs.) | 0.0441 |
8BS / G64787-0008
| A1 Outside Diameter (in) | 0.315 |
|---|---|
| A1 Outside Diameter (mm) | 8 |
| A1 Tube Outside Diameter (mm) | 8 |
| End 1 Diameter (mm) | 8 |
| Material | Steel |
| Customer Pack | 5 |
| Weight (lbs.) | 0.011 |
8CFH FLANGE CLAMP HALF / G60896-0008X
| M Flange Diameter (in) | 0.5 |
|---|---|
| M Flange Diameter (mm) | 12.7 |
| Material | Steel |
| Customer Pack | 100 |
| Weight (lbs.) | 0.16 |
8CFHS / G60899-0008
| M Flange Diameter (in) | 0.5 |
|---|---|
| M Flange Diameter (mm) | 12.7 |
| Nom. Flg. Size (in) | 1/2 |
| A (in) | 1.50 |
| B (in) | 0.34 |
| End 1 Diameter (mm) | 8 |
| Material | Steel |
| Notes | Each set contains 2 flange halves, 1 O-Ring and 4 bolts (Grade 8) with lock washers. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.4 |
8FFN / G60050-0008
| H1 Stem Hex (in) | 0.88 |
|---|---|
| H1 Stem Hex (mm) | 22.2 |
| A1 Outside Diameter (in) | 0.5 |
| A1 Outside Diameter (mm) | 13 |
| A1 Tube Outside Diameter (in) | 1/2 |
| End 1 Diameter (mm) | 8 |
| Material | Steel |
| Customer Pack | 5 |
| Weight (lbs.) | 0.3 |
8FFS / G60051-0008
| A1 Outside Diameter (in) | 0.5 |
|---|---|
| A1 Outside Diameter (mm) | 13 |
| A1 Tube Outside Diameter (in) | 1/2 |
| End 1 Diameter (mm) | 8 |
| Material | Steel |
| Customer Pack | 5 |
| Weight (lbs.) | 0.05 |
8FHHS / G60929-0008
| B (mm) | 0.34 |
|---|---|
| M Flange Diameter (in) | 0.5 |
| M Flange Diameter (mm) | 12.7 |
| Nom. Flg. Size (in) | 1/2 |
| A (in) | 1.55 |
| B (in) | 0.34 |
| End 1 Diameter (mm) | 8 |
| Material | Steel |
| Notes | Each set contains 2 flange halves, 1 O-Ring and 4 bolts (Grade 8) with lock washers. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.03 |
8MBDS / G64775-0008
| Hose Inside Diameter (mm) | 8 |
|---|---|
| Inside Diameter (mm) | 8 |
| End 1 Diameter (mm) | 8 |
| Material | Steel/Rubber |
| Customer Pack | 1 |
| Weight (lbs.) | 0.011 |
8MNH / G64789-0008
| A1 Outside Diameter (in) | 0.315 |
|---|---|
| A1 Outside Diameter (mm) | 8 |
| A1 Tube Outside Diameter (mm) | 8 |
| End 1 Diameter (mm) | 8 |
| Material | Steel |
| Customer Pack | 5 |
| Weight (lbs.) | 0.04 |
8MNL / G64788-0008
| A1 Outside Diameter (in) | 0.315 |
|---|---|
| A1 Outside Diameter (mm) | 8 |
| A1 Tube Outside Diameter (mm) | 8 |
| End 1 Diameter (mm) | 8 |
| Material | Steel |
| Customer Pack | 5 |
| Weight (lbs.) | 0.03 |
8TS / G60394-0008
| A1 Outside Diameter (in) | 0.5 |
|---|---|
| A1 Outside Diameter (mm) | 13 |
| A1 Tube Outside Diameter (in) | 1/2 |
| End 1 Diameter (mm) | 8 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 5 |
| Weight (lbs.) | 0.1 |
8TSN / G60395-0008
| H1 Stem Hex (in) | 0.88 |
|---|---|
| H1 Stem Hex (mm) | 22.2 |
| A1 Outside Diameter (in) | 0.5 |
| A1 Outside Diameter (mm) | 13 |
| A1 Tube Outside Diameter (in) | 1/2 |
| End 1 Diameter (mm) | 8 |
| Material | Steel |
| Notes | For use up to SAE 100R2 maximum working pressure. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.06615 |
12MJ-16MP90L
| Angle. | 90 |
|---|---|
| Material | Steel |
G60104-0001
| End 1 Type | MP |
|---|---|
| End 2 Type | Plug |
| Material | Steel |
G60104-0002
| End 1 Type | MP |
|---|---|
| End 2 Type | Plug |
| Material | Steel |
G60104-0020
| End 1 Type | MP |
|---|---|
| End 2 Type | Plug |
| Material | Steel |
G60104-0024
| End 1 Type | MP |
|---|---|
| End 2 Type | Plug |
| Material | Steel |
G60130-2404
| End 1 Type | FP |
|---|---|
| End 2 Type | FP |
| Material | Steel |
G60130-2406
| End 1 Type | FP |
|---|---|
| End 2 Type | FP |
| Material | Steel |
G60130-2408
| End 1 Type | FP |
|---|---|
| End 2 Type | FP |
| Material | Steel |
G60130-3212
| End 1 Type | FP |
|---|---|
| End 2 Type | FP |
| Material | Steel |
G60136-2024
| End 1 Type | FP |
|---|---|
| End 2 Type | FP |
| Angle. | 90 |
| Material | Steel |
G60146-0610
| End 1 Type | MP |
|---|---|
| End 2 Type | FJX |
| Material | Steel |
G60154-0404
| End 1 Type | FP |
|---|---|
| End 2 Type | FP |
| Angle. | 45 |
| Material | Steel |
G60154-2020
| End 1 Type | FP |
|---|---|
| End 2 Type | FP |
| Angle. | 45 |
| Material | Steel |
G60255-0002
| End 1 Type | MB |
|---|---|
| End 2 Type | Plug |
| Material | Steel |
G60255-0003
| End 1 Type | MB |
|---|---|
| End 2 Type | Plug |
| Material | Steel |
G60255-0005
| End 1 Type | MB |
|---|---|
| End 2 Type | Plug |
| Material | Steel |
G60255-0014
| End 1 Type | MB |
|---|---|
| End 2 Type | Plug |
| Material | Steel |
G60255-0016
| End 1 Type | MB |
|---|---|
| End 2 Type | Plug |
| Material | Steel |
G60255-0020
| End 1 Type | MB |
|---|---|
| End 2 Type | Plug |
| Material | Steel |
G60265-0812
| End 1 Type | MB |
|---|---|
| End 2 Type | MP |
| Material | Steel |
G60265-1620
| End 1 Type | MB |
|---|---|
| End 2 Type | MP |
| Material | Steel |
G60265-2012
| End 1 Type | MB |
|---|---|
| End 2 Type | MP |
| Material | Steel |
G60340-0404
| End 1 Type | MB |
|---|---|
| End 2 Type | FB |
| Material | Steel |
G60340-0608
| End 1 Type | MB |
|---|---|
| End 2 Type | FB |
| Material | Steel |
G60410-2416
| End 1 Type | MJ |
|---|---|
| End 2 Type | MJ |
| Material | Steel |
G60410-3224
| End 1 Type | MJ |
|---|---|
| End 2 Type | MJ |
| Material | Steel |
G60420-3224
| End 1 Type | MJ |
|---|---|
| End 2 Type | FJ |
| Material | Steel |
G60499-2432
| End 1 Type | MJ |
|---|---|
| End 2 Type | MP |
| Angle. | 90 |
| Material | Steel |
G60514-0406
| End 1 Type | MJ |
|---|---|
| End 2 Type | FP |
| Angle. | 90 |
| Material | Steel |
G60530-1006
| End 1 Type | FJX |
|---|---|
| End 2 Type | FP |
| Material | Steel |
G60575-0404
| End 1 Type | MJ |
|---|---|
| End 2 Type | MJ |
| Thread Size 3 | 7/16-20 |
| Material | Steel |
G60575-1212
| End 1 Type | MJ |
|---|---|
| End 2 Type | MJ |
| Thread Size 3 | 1 1/16-12 |
| Material | Steel |
G60575-1616
| End 1 Type | MJ |
|---|---|
| End 2 Type | MJ |
| Thread Size 3 | 1 5/16-12 |
| Material | Steel |
G90001-0001
No variation attributes.
G90001-0002
No variation attributes.
G90001-0003
No variation attributes.
G90001-0004
No variation attributes.
G90001-0005
No variation attributes.
G90001-0006
No variation attributes.
G90001-0007
No variation attributes.
G90001-0008
No variation attributes.
G90001-0009
No variation attributes.
G90001-0010
No variation attributes.
G90001-0011
No variation attributes.
G90001-0012
No variation attributes.
G90001-0013
No variation attributes.
G90001-0014
No variation attributes.
G90001-0015
No variation attributes.
G90001-0016
No variation attributes.
G90001-0017
No variation attributes.
G90001-0018
No variation attributes.
G90001-0019
No variation attributes.
G90001-0020
No variation attributes.
G90001-0021
No variation attributes.
G90001-0022
No variation attributes.
G90001-0023
No variation attributes.
G90001-0024
No variation attributes.
G90001-0025
No variation attributes.
G90001-0026
No variation attributes.
G90001-0027
No variation attributes.
G90001-0028
No variation attributes.
G90001-0029
No variation attributes.
G90001-0030
No variation attributes.
G90001-0031
No variation attributes.
G90001-0032
No variation attributes.
G90001-0033
No variation attributes.
G90001-0034
No variation attributes.
G90001-0035
No variation attributes.
G90002-0001
No variation attributes.
G90002-0002
No variation attributes.
G90002-0003
No variation attributes.
G90002-0004
No variation attributes.
G90002-0005
No variation attributes.
G90002-0006
No variation attributes.
G90002-0007
No variation attributes.
G90002-0008
No variation attributes.
G90002-0009
No variation attributes.
G90002-0010
No variation attributes.
G90002-0011
No variation attributes.
G90002-0012
No variation attributes.
G90002-0013
No variation attributes.
G90002-0014
No variation attributes.
G90002-0015
No variation attributes.
G90002-0016
No variation attributes.
G90002-0017
No variation attributes.
G90002-0018
No variation attributes.
G90002-0019
No variation attributes.
G90002-0020
No variation attributes.
G90002-0021
No variation attributes.
G90002-0022
No variation attributes.
G90003-0001
No variation attributes.
G90003-0002
No variation attributes.
G90003-0003
No variation attributes.
G90003-0004
No variation attributes.
G90003-0005
No variation attributes.
G90003-0006
No variation attributes.
G90003-0007
No variation attributes.
G90003-0008
No variation attributes.
G90003-0009
No variation attributes.
G90003-0010
No variation attributes.
G90003-0011
No variation attributes.
VSCHR38W
No variation attributes.
7253-00975
| Customer Pack | 20 |
|---|---|
| Weight (lbs.) | 1.54 |
Specifications
| A1 Outside Diameter (in) | 0.13 – 2 |
|---|---|
| A1 Outside Diameter (mm) | 3 – 51 |
| A1 Tube Outside Diameter (mm) | 6 – 42 |
| End 1 Diameter (mm) | 2 – 64 |
| Material | Steel, Steel/Rubber |
| Customer Pack | 1 – 950 |
| Weight (lbs.) | 0.005 – 7.0 |
| H1 Stem Hex (in) | 0.25 – 2.88 |
| H1 Stem Hex (mm) | 6.4 – 73 |
| A1 Tube Outside Diameter (in) | 5/8, 3/4, 7/8, 1, 1 1/4, 1 1/2, +7 more |
| Hose Inside Diameter (mm) | 6 – 52 |
| Inside Diameter (mm) | 6 – 54 |
| Notes | For use up to SAE 100R2 maximum working pressure., Each set contains 2 flange halves, 1 O-Ring and 4 bolts (Grade 8) with lock washers. |
| M Flange Diameter (in) | 0.5 – 4 |
| M Flange Diameter (mm) | 12.7 – 101.6 |
| Nom. Flg. Size (in) | 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2, +3 more |
| A (in) | 1.50 – 4.75 |
| B (in) | 0.34 – 0.78 |
| B (mm) | 0.34 – 0.78 |
| End 1 Type | LN, MBSPP, FFOR, MP, FP, MB, +2 more |
| End 2 Type | MB, Plug, FP, FJX, MP, FB, +2 more |
| Angle. | 45 – 90 |
| Thread Size 3 | 7/16-20, 1 1/16-12, 1 5/16-12 |
PDF Documents
No PDF documents.
