Attributes
| Part Number | 4657-000000-000017 |
|---|
Description

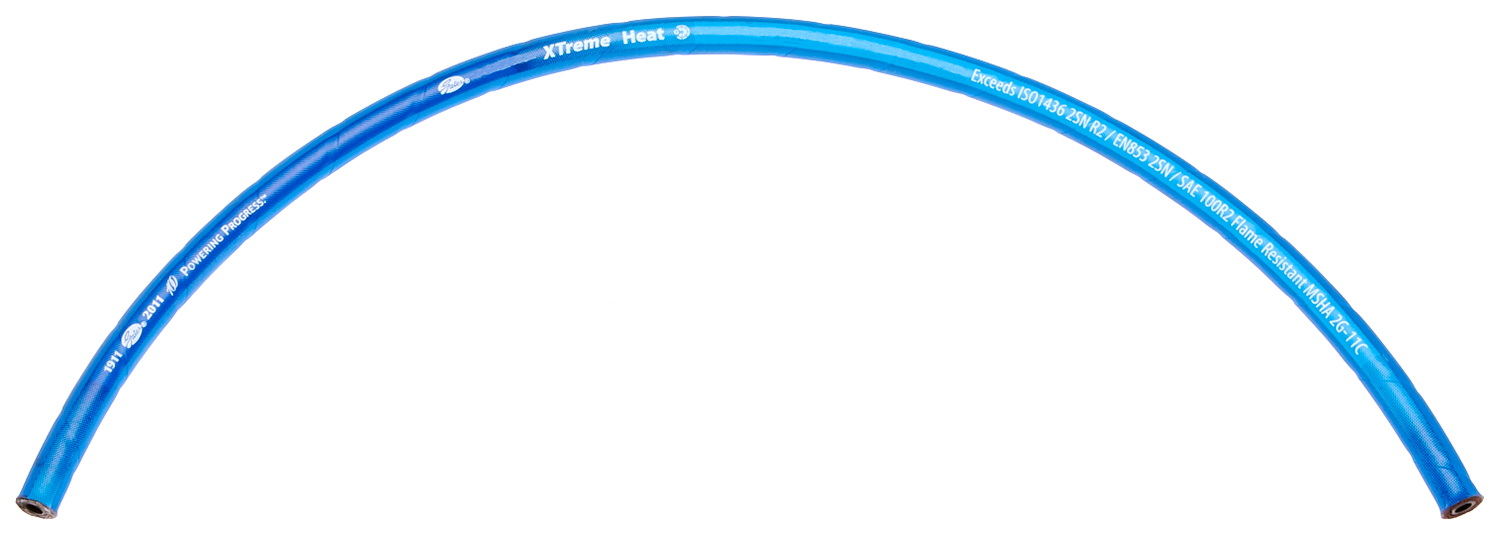

# G2XH Wire Braid Hose - EN 853 2SN - High Temp +149°C
Global G2XH hose is recommended for extremely high-temperature, high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum base or phosphate ester fluids is required. Compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids and phosphate esters.
- Recommended For: Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required.
- For use with GlobalSpiral™ Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp™ Couplings [G25 Series] and Stainless Steel Braid Couplings [G17 Series].
- Blue, oil- and abrasion-resistant, thin synthetic rubber cover indicates higher temperature hose.
- Tested to industry-standard 600,000 impulse cycles.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
## Features and Benefits
- -4 to -20 validated with MegaCrimp™; -24 to -32 with GlobalSpiral™ Plus.
- Higher working pressures and burst pressures than SAE 100R2.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
- Blue cover stock to indicate higher temperature hose.
- Cover: Blue. MSHA approved.
- Temperature Range:
- - - -40°C to +149°C
- -40°F to +300°F
- Size: 1/4" to 2".
Variations (18)
85801
| Dynamic WP (Max.psi) (1) | 3625 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203.2 |
| Min. Burst Pressure (psi) | 14500 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.99 |
| Hose Outside Diameter (mm) | 25.1 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 3625 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.99 |
| Outside Diameter (mm) | 25.1 |
| Use | Wire Braid |
| Color | Blue |
| Reinforcement | 2-braid, wire |
| Tube | CPE - Type J; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | CSM - Type M |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S, SAE J1942 |
| Meets These Agency Specifications | EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 2SN R2853 2SN. 100R2. Petroleum-Base Fluid. Phosphate Ester Fluids to +212°F. |
| Recommended For | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
| Customer Pack | 1 |
| Weight (lbs.) | 27.2 |
| Packaging | T |
70803
| Dynamic WP (Max.psi) (1) | 3625 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 7.9 |
| Minimum Bend Radius (mm) | 200 |
| Min. Burst Pressure (psi) | 14500 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.99 |
| Hose Outside Diameter (mm) | 25.1 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 3625 |
| Length (m) | 67 |
| Outside Diameter (in) | 0.99 |
| Outside Diameter (mm) | 25.1 |
| Use | Wire Braid |
| Color | Blue |
| Reinforcement | 2-braid, wire |
| Tube | CPE - Type J; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | CSM - Type M |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S, SAE J1942 |
| Meets These Agency Specifications | EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 2SN R2853 2SN. 100R2. Petroleum-Base Fluid. Phosphate Ester Fluids to +212°F. |
| Recommended For | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
| Customer Pack | 220 |
| Weight (lbs.) | 0.56 |
| Packaging | F |
85802
| Dynamic WP (Max.psi) (1) | 3100 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 9.5 |
| Minimum Bend Radius (mm) | 241.3 |
| Min. Burst Pressure (psi) | 12400 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 3100 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 29.2 |
| Use | Wire Braid |
| Color | Blue |
| Reinforcement | 2-braid, wire |
| Tube | CPE - Type J; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | CSM - Type M |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S, SAE J1942 |
| Meets These Agency Specifications | EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 2SN R2853 2SN. 100R2. Petroleum-Base Fluid. Phosphate Ester Fluids to +212°F. |
| Recommended For | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
| Customer Pack | 1 |
| Weight (lbs.) | 32.0 |
| Packaging | T |
70909
| Dynamic WP (Max.psi) (1) | 3100 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 9.5 |
| Minimum Bend Radius (mm) | 241.3 |
| Min. Burst Pressure (psi) | 12400 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.15 |
| Hose Outside Diameter (mm) | 29.2 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 3100 |
| Length (m) | 67 |
| Outside Diameter (in) | 1.15 |
| Outside Diameter (mm) | 29.2 |
| Use | Wire Braid |
| Color | Blue |
| Reinforcement | 2-braid, wire |
| Tube | CPE - Type J; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | CSM - Type M |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S, SAE J1942 |
| Meets These Agency Specifications | EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 2SN R2853 2SN. 100R2. Petroleum-Base Fluid. Phosphate Ester Fluids to +212°F. |
| Recommended For | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
| Customer Pack | 220 |
| Weight (lbs.) | 0.68 |
| Packaging | F |
85803
| Dynamic WP (Max.psi) (1) | 2500 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 12 |
| Minimum Bend Radius (mm) | 304.8 |
| Min. Burst Pressure (psi) | 10000 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.48 |
| Hose Outside Diameter (mm) | 37.6 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 2500 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.48 |
| Outside Diameter (mm) | 37.6 |
| Use | Wire Braid |
| Color | Blue |
| Reinforcement | 2-braid, wire |
| Tube | CPE - Type J; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | CSM - Type M |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S, SAE J1942 |
| Meets These Agency Specifications | EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 2SN R2853 2SN. 100R2. Petroleum-Base Fluid. Phosphate Ester Fluids to +212°F. |
| Recommended For | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
| Customer Pack | 1 |
| Weight (lbs.) | 49.6 |
| Packaging | T |
70878
| Dynamic WP (Max.psi) (1) | 2500 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 11.8 |
| Minimum Bend Radius (mm) | 300 |
| Min. Burst Pressure (psi) | 10000 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.48 |
| Hose Outside Diameter (mm) | 37.6 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 2500 |
| Length (m) | 50 |
| Outside Diameter (in) | 1.48 |
| Outside Diameter (mm) | 37.6 |
| Use | Wire Braid |
| Color | Blue |
| Reinforcement | 2-braid, wire |
| Tube | CPE - Type J; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | CSM - Type M |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S, SAE J1942 |
| Meets These Agency Specifications | EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 2SN R2853 2SN. 100R2. Petroleum-Base Fluid. Phosphate Ester Fluids to +212°F. |
| Recommended For | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
| Customer Pack | 165 |
| Weight (lbs.) | 1.02 |
| Packaging | F |
70990
| Dynamic WP (Max.psi) (1) | 2250 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 16.5 |
| Minimum Bend Radius (mm) | 419.1 |
| Min. Burst Pressure (psi) | 9000 |
| Hose Inside Diameter (in). | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Hose Outside Diameter (in) | 1.86 |
| Hose Outside Diameter (mm) | 47.2 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Working Pressure (psi) | 2250 |
| Length (m) | 40 |
| Outside Diameter (in) | 1.86 |
| Outside Diameter (mm) | 47.2 |
| Use | Wire Braid |
| Color | Blue |
| Reinforcement | 2-braid, wire |
| Tube | CPE - Type J; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | CSM - Type M |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S, SAE J1942 |
| Meets These Agency Specifications | EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 2SN R2853 2SN. 100R2. Petroleum-Base Fluid. Phosphate Ester Fluids to +212°F. |
| Recommended For | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
| Customer Pack | 130 |
| Weight (lbs.) | 1.82 |
| Packaging | A |
70988
| Dynamic WP (Max.psi) (1) | 1800 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 19.7 |
| Minimum Bend Radius (mm) | 500 |
| Min. Burst Pressure (psi) | 6000 |
| Hose Inside Diameter (in). | 1.5 |
| Hose Inside Diameter (mm) | 38.1 |
| Hose Outside Diameter (in) | 2.15 |
| Hose Outside Diameter (mm) | 54.6 |
| Inside Diameter (in) | 1.5 |
| Inside Diameter (mm) | 38.1 |
| Working Pressure (psi) | 1800 |
| Length (m) | 40 |
| Outside Diameter (in) | 2.15 |
| Outside Diameter (mm) | 54.6 |
| Use | Wire Braid |
| Color | Blue |
| Reinforcement | 2-braid, wire |
| Tube | CPE - Type J; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | CSM - Type M |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S, SAE J1942 |
| Meets These Agency Specifications | EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 2SN R2853 2SN. 100R2. Petroleum-Base Fluid. Phosphate Ester Fluids to +212°F. |
| Recommended For | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
| Customer Pack | 130 |
| Weight (lbs.) | 1.5 |
| Packaging | A |
70989
| Dynamic WP (Max.psi) (1) | 1500 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 24.8 |
| Minimum Bend Radius (mm) | 630 |
| Min. Burst Pressure (psi) | 5200 |
| Hose Inside Diameter (in). | 2 |
| Hose Inside Diameter (mm) | 50.8 |
| Hose Outside Diameter (in) | 2.65 |
| Hose Outside Diameter (mm) | 67.3 |
| Inside Diameter (in) | 2 |
| Inside Diameter (mm) | 50.8 |
| Working Pressure (psi) | 1500 |
| Length (m) | 40 |
| Outside Diameter (in) | 2.65 |
| Outside Diameter (mm) | 67.3 |
| Use | Wire Braid |
| Color | Blue |
| Reinforcement | 2-braid, wire |
| Tube | CPE - Type J; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | CSM - Type M |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S, SAE J1942 |
| Meets These Agency Specifications | EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 2SN R2853 2SN. 100R2. Petroleum-Base Fluid. Phosphate Ester Fluids to +212°F. |
| Recommended For | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
| Customer Pack | 130 |
| Weight (lbs.) | 2.12 |
| Packaging | A |
85798
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.59 |
| Hose Outside Diameter (mm) | 15 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 6000 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.59 |
| Outside Diameter (mm) | 15 |
| Use | Wire Braid |
| Color | Blue |
| Reinforcement | 2-braid, wire |
| Tube | CPE - Type J; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | CSM - Type M |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S, SAE J1942 |
| Meets These Agency Specifications | EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 2SN R2853 2SN. 100R2. Petroleum-Base Fluid. Phosphate Ester Fluids to +212°F. |
| Recommended For | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
| Customer Pack | 1 |
| Weight (lbs.) | 13.0 |
| Packaging | T |
70966
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.59 |
| Hose Outside Diameter (mm) | 15 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 6000 |
| Length (m) | 168 |
| Outside Diameter (in) | 0.59 |
| Outside Diameter (mm) | 15 |
| Use | Wire Braid |
| Color | Blue |
| Reinforcement | 2-braid, wire |
| Tube | CPE - Type J; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | CSM - Type M |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S, SAE J1942 |
| Meets These Agency Specifications | EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 2SN R2853 2SN. 100R2. Petroleum-Base Fluid. Phosphate Ester Fluids to +212°F. |
| Recommended For | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
| Customer Pack | 550 |
| Weight (lbs.) | 0.25 |
| Packaging | E |
85799
| Dynamic WP (Max.psi) (1) | 5000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 20000 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.74 |
| Hose Outside Diameter (mm) | 18.8 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 5000 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.74 |
| Outside Diameter (mm) | 18.8 |
| Use | Wire Braid |
| Color | Blue |
| Reinforcement | 2-braid, wire |
| Tube | CPE - Type J; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | CSM - Type M |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S, SAE J1942 |
| Meets These Agency Specifications | EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 2SN R2853 2SN. 100R2. Petroleum-Base Fluid. Phosphate Ester Fluids to +212°F. |
| Recommended For | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
| Customer Pack | 1 |
| Weight (lbs.) | 17.5 |
| Packaging | T |
70967
| Dynamic WP (Max.psi) (1) | 5000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 20000 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.74 |
| Hose Outside Diameter (mm) | 18.8 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 5000 |
| Length (m) | 122 |
| Outside Diameter (in) | 0.74 |
| Outside Diameter (mm) | 18.8 |
| Use | Wire Braid |
| Color | Blue |
| Reinforcement | 2-braid, wire |
| Tube | CPE - Type J; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | CSM - Type M |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S, SAE J1942 |
| Meets These Agency Specifications | EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 2SN R2853 2SN. 100R2. Petroleum-Base Fluid. Phosphate Ester Fluids to +212°F. |
| Recommended For | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
| Customer Pack | 400 |
| Weight (lbs.) | 0.39 |
| Packaging | E |
85800
| Dynamic WP (Max.psi) (1) | 4250 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 17000 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.86 |
| Hose Outside Diameter (mm) | 21.8 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 4250 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.86 |
| Outside Diameter (mm) | 21.8 |
| Use | Wire Braid |
| Color | Blue |
| Reinforcement | 2-braid, wire |
| Tube | CPE - Type J; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | CSM - Type M |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S, SAE J1942 |
| Meets These Agency Specifications | EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 2SN R2853 2SN. 100R2. Petroleum-Base Fluid. Phosphate Ester Fluids to +212°F. |
| Recommended For | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
| Customer Pack | 1 |
| Weight (lbs.) | 22.6 |
| Packaging | T |
70968
| Dynamic WP (Max.psi) (1) | 4250 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 7 |
| Minimum Bend Radius (mm) | 177.8 |
| Min. Burst Pressure (psi) | 17000 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.86 |
| Hose Outside Diameter (mm) | 21.8 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 4250 |
| Length (m) | 101 |
| Outside Diameter (in) | 0.86 |
| Outside Diameter (mm) | 21.8 |
| Use | Wire Braid |
| Color | Blue |
| Reinforcement | 2-braid, wire |
| Tube | CPE - Type J; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | CSM - Type M |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S, SAE J1942 |
| Meets These Agency Specifications | EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 2SN R2853 2SN. 100R2. Petroleum-Base Fluid. Phosphate Ester Fluids to +212°F. |
| Recommended For | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
| Customer Pack | 330 |
| Weight (lbs.) | 0.48 |
| Packaging | F |
46578026
No variation attributes.
46578025
No variation attributes.
46578024
No variation attributes.
Specifications
| Dynamic WP (Max.psi) (1) | 1500 – 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 4 – 24.8 |
| Minimum Bend Radius (mm) | 101.6 – 630 |
| Min. Burst Pressure (psi) | 5200 – 24000 |
| Hose Inside Diameter (in). | 0.25 – 2 |
| Hose Inside Diameter (mm) | 6.4 – 50.8 |
| Hose Outside Diameter (in) | 0.59 – 2.65 |
| Hose Outside Diameter (mm) | 15 – 67.3 |
| Inside Diameter (in) | 0.25 – 2 |
| Inside Diameter (mm) | 6.4 – 50.8 |
| Working Pressure (psi) | 1500 – 6000 |
| Length (m) | 15 – 168 |
| Outside Diameter (in) | 0.59 – 2.65 |
| Outside Diameter (mm) | 15 – 67.3 |
| Use | Wire Braid |
| Color | Blue |
| Reinforcement | 2-braid, wire |
| Tube | CPE - Type J; Black; Hyd Fluids, Phosphate Esters, Water Glycol |
| Construction: Cover | CSM - Type M |
| Standard Industry Specification | EN 853 2SN, ISO 1436 2SN R2, SAE 100R2 S, SAE J1942 |
| Meets These Agency Specifications | EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, ISO - International Standards Organization. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 1436 2SN R2853 2SN. 100R2. Petroleum-Base Fluid. Phosphate Ester Fluids to +212°F. |
| Recommended For | Extremely high-temperature high-pressure hydraulic applications where pressure or temperature requirements exceed SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN or where resistance to either petroleum-base or phosphate ester fluids is required. Meets SAE J1942 requirements. |
| Customer Pack | 1 – 550 |
| Weight (lbs.) | 0.25 – 49.6 |
| Packaging | T, F, A, E |
