Attributes
| Part Number | 4219-000000-000003 |
|---|
Description

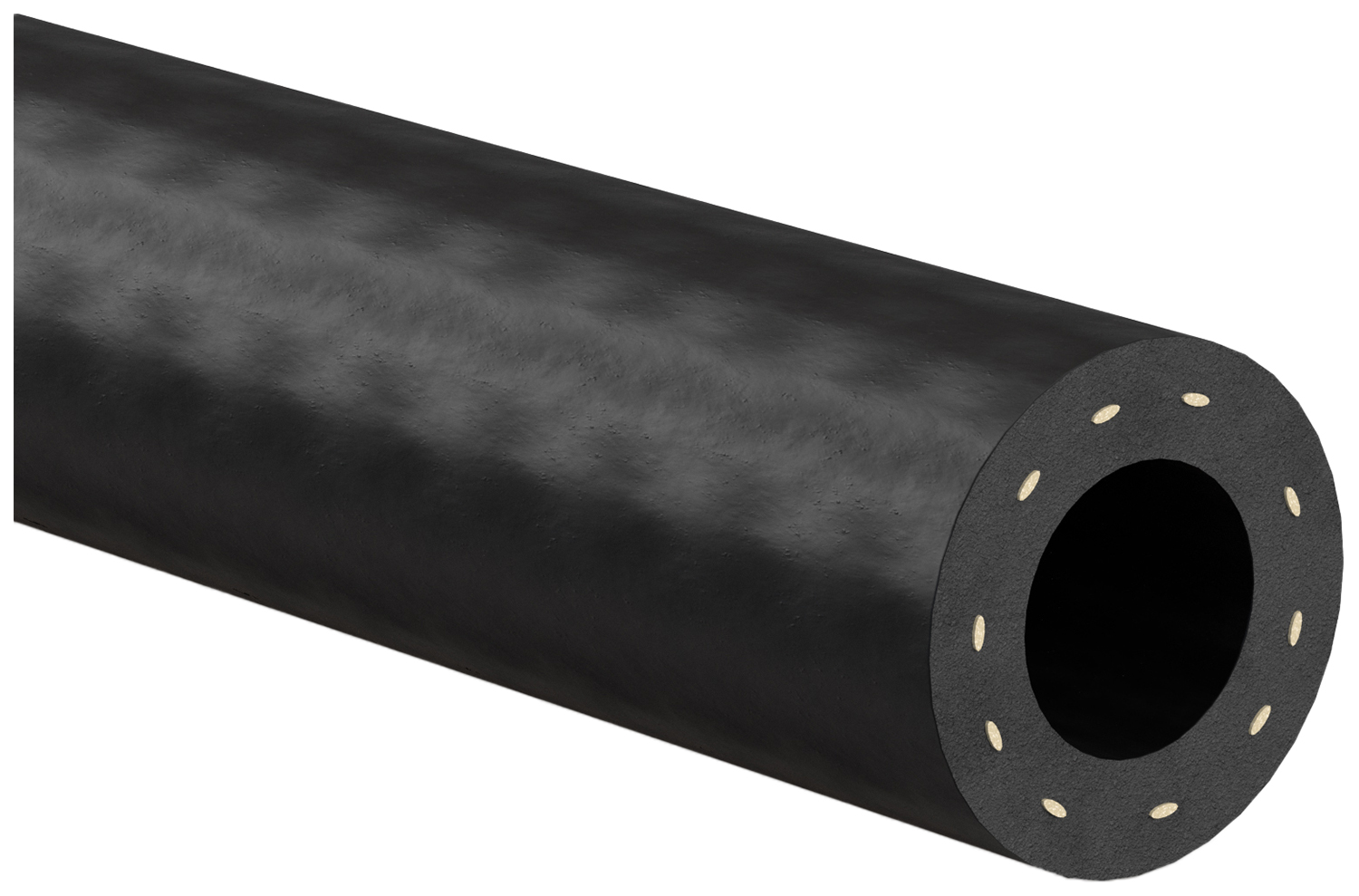

Barricade™ Fuel Injection Hose Barricade™ fuel injection hose is a low permeation, multi-fuel compatible hose that virtually eliminates fuel vapor loss thanks to our 5-layer GreenShield™ barrier technology. Works with multiple fuels (approved for use with leaded and unleaded petrol, diesel, biodiesel up to B-100, E-10, E-15, E-85, 100% methanol, ethanol and gasohol fuels). Fuel savings from Barricade's incredibly low permeation rate - the lowest on the market at 1g/m2/day. Easily complies with environmental standards, exceeds the requirements of SAE J30R14T2 (except for kink resistance). Best in class working pressure of 1.55 Mpa (15.5 kg/cm2).
PATENTED GREENSHIELD™ TECHNOLOGY Our five-layer Greenshield™ Barrier Technology cuts vapor loss and saves fuel, making it safe for the environment and fuel efficient. 1. Barrier tube - provides high heat and corrosive liquid resistance. 2. Greenshield™ barrier - patent-pending technology provides the lowest permeation in the industry. 3. Adhesion layer - secondary protective barrier. 4. Reinforcement layer - spiral textile reinforcement provide strength and pressure resistance. 5. Cover - protect underlying components.
MULTI-FUEL COMPATIBLE Barricade™ Fuel Injection Hose provides a versatile solution in OE-quality aftermarket fuel hose. The Barricade™ Fuel Injection Hose is approved for use with: unleaded gasoline, diesel, biodiesel (up to B100 [SME, PME, RME], max temp +100°C; +212°F), methanol, ethanol (E10, E15, E85), and gasohol fuels.
Features and Benefits Patented, five-layer Greenshield™ barrier technology. High temperature range tolerance: -40°C to +125°C (-40°F to +257°F). HNBR tube with thermoplastic barrier and CPE cover; reinforced aramid fiber. Meets SAE 30R14 T2 non-road fuel lines. Multi-fuel compatibility. Max working pressure: 225 psi. Oil, heat, ozone, and abrasion-resistant cover.
Variations (5)
27339
| Outside Diameter 1 (mm) | 13 |
|---|---|
| Centerline Length (ft) | 25 |
| Centerline Length (m) | 7.62 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.3 |
| Inside Diameter 1 (in) | 0.25 |
| Inside Diameter 1 (mm) | 6 |
| Inside Diameter 2 (in) | 0.25 |
| Inside Diameter 2 (mm) | 6 |
| Max. Working Pressure (Bar) | 15.5 |
| Length (m) | 7.6 |
| Automotive Notes | Do not submerse in gasoline. |
| Customer Pack | 6 |
| Weight (lbs.) | 2.25 |
27340
| Outside Diameter 1 (mm) | 14 |
|---|---|
| Centerline Length (ft) | 25 |
| Centerline Length (m) | 7.62 |
| Hose Inside Diameter (in). | 0.312 |
| Hose Inside Diameter (mm) | 8 |
| Inside Diameter 1 (in) | 0.3125 |
| Inside Diameter 1 (mm) | 8 |
| Inside Diameter 2 (in) | 0.3125 |
| Inside Diameter 2 (mm) | 8 |
| Max. Working Pressure (Bar) | 15.5 |
| Length (m) | 7.6 |
| Automotive Notes | Do not submerse in gasoline. |
| Customer Pack | 6 |
| Weight (lbs.) | 3.04 |
27341
| Outside Diameter 1 (mm) | 16 |
|---|---|
| Centerline Length (ft) | 25 |
| Centerline Length (m) | 7.62 |
| Hose Inside Diameter (in). | 0.375 |
| Hose Inside Diameter (mm) | 9.5 |
| Inside Diameter 1 (in) | 0.375 |
| Inside Diameter 1 (mm) | 9.5 |
| Inside Diameter 2 (in) | 0.375 |
| Inside Diameter 2 (mm) | 9.5 |
| Max. Working Pressure (Bar) | 15.5 |
| Length (m) | 7.6 |
| Automotive Notes | Do not submerse in gasoline. |
| Customer Pack | 6 |
| Weight (lbs.) | 2.98 |
27342
| Centerline Length (ft) | 25 |
|---|---|
| Centerline Length (m) | 7.62 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Inside Diameter 1 (in) | 0.5 |
| Inside Diameter 1 (mm) | 13 |
| Inside Diameter 2 (in) | 0.5 |
| Inside Diameter 2 (mm) | 13 |
| Working Pressure (psi) | 225 |
| Automotive Notes | Do not submerse in gasoline. |
| Customer Pack | 1 |
| Weight (lbs.) | 4.5 |
27344
| Outside Diameter 1 (mm) | 13 |
|---|---|
| Centerline Length (ft) | 250 |
| Centerline Length (m) | 76.2 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.3 |
| Inside Diameter 1 (in) | 0.25 |
| Inside Diameter 1 (mm) | 6 |
| Inside Diameter 2 (in) | 0.25 |
| Inside Diameter 2 (mm) | 6 |
| Max. Working Pressure (Bar) | 15.5 |
| Length (m) | 76.2 |
| Automotive Notes | Do not submerse in gasoline. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.1 |
Specifications
| Outside Diameter 1 (mm) | 13 – 16 |
|---|---|
| Centerline Length (ft) | 25 – 250 |
| Centerline Length (m) | 7.62 – 76.2 |
| Hose Inside Diameter (in). | 0.25 – 0.5 |
| Hose Inside Diameter (mm) | 6.3 – 12.7 |
| Inside Diameter 1 (in) | 0.25 – 0.5 |
| Inside Diameter 1 (mm) | 6 – 13 |
| Inside Diameter 2 (in) | 0.25 – 0.5 |
| Inside Diameter 2 (mm) | 6 – 13 |
| Max. Working Pressure (Bar) | 15.5 |
| Length (m) | 7.6 – 76.2 |
| Automotive Notes | Do not submerse in gasoline. |
| Customer Pack | 1 – 250 |
| Weight (lbs.) | 0.1 – 4.5 |
| Working Pressure (psi) | 225 |
