Attributes
| Part Number | 9516-000000-000000 |
|---|
Description

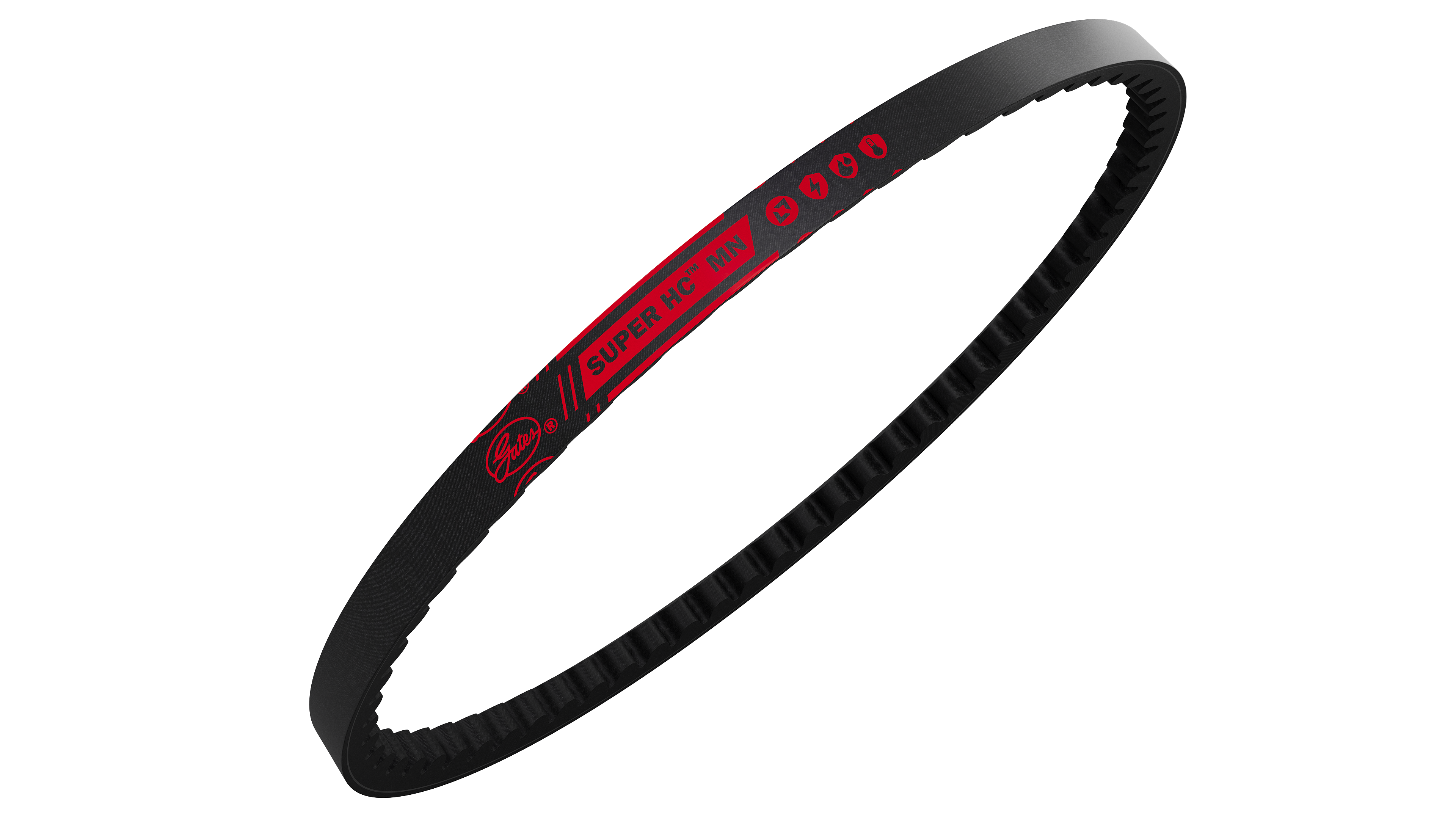

Super HC™ Molded Notch Belts Flex-bonded tensile cords are vulcanized as one solid unit making the belt highly resistant to tensile and flexing forces, fatigue and shock loads.
Variations (271)
3VX1000
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 99.81 |
| Effective Length (mm) | 2535 |
| Notched | true |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.385 |
3VX1027
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 101.48 |
| Effective Length (mm) | 2578 |
| Notched | true |
| Outside Circumference (in) | 102.7 |
| Outside Circumference (mm) | 2609 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.395 |
3VX1060
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 105.97 |
| Effective Length (mm) | 2692 |
| Notched | true |
| Outside Circumference (in) | 106 |
| Outside Circumference (mm) | 2692 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.41 |
3VX1088
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 108.75 |
| Effective Length (mm) | 2762 |
| Notched | true |
| Outside Circumference (in) | 108.8 |
| Outside Circumference (mm) | 2764 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 54 |
| Weight (lbs.) | 0.42 |
3VX1120
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 111.98 |
| Effective Length (mm) | 2844 |
| Notched | true |
| Outside Circumference (in) | 112 |
| Outside Circumference (mm) | 2845 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.43 |
3VX1146
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 113.24 |
| Effective Length (mm) | 2876 |
| Notched | true |
| Outside Circumference (in) | 114.6 |
| Outside Circumference (mm) | 2911 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 54 |
| Weight (lbs.) | 0.44 |
3VX1180
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 117.98 |
| Effective Length (mm) | 2997 |
| Notched | true |
| Outside Circumference (in) | 118 |
| Outside Circumference (mm) | 2997 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.45 |
3VX1224
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 120.94 |
| Effective Length (mm) | 3072 |
| Notched | true |
| Outside Circumference (in) | 122.4 |
| Outside Circumference (mm) | 3109 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.47 |
3VX1250
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 124.99 |
| Effective Length (mm) | 3175 |
| Notched | true |
| Outside Circumference (in) | 125 |
| Outside Circumference (mm) | 3175 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.475 |
3VX1296
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 128.06 |
| Effective Length (mm) | 3253 |
| Notched | true |
| Outside Circumference (in) | 129.6 |
| Outside Circumference (mm) | 3292 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 54 |
| Weight (lbs.) | 0.49 |
3VX1320
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 131.81 |
| Effective Length (mm) | 3348 |
| Notched | true |
| Outside Circumference (in) | 132 |
| Outside Circumference (mm) | 3353 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.5 |
3VX1400
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 139.84 |
| Effective Length (mm) | 3552 |
| Notched | true |
| Outside Circumference (in) | 140 |
| Outside Circumference (mm) | 3556 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.53 |
3VX1500
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 149.65 |
| Effective Length (mm) | 3801 |
| Outside Circumference (in) | 150 |
| Outside Circumference (mm) | 3810 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 51 |
| Weight (lbs.) | 0.56 |
3VX250
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 24.7 |
| Effective Length (mm) | 627 |
| Notched | true |
| Outside Circumference (in) | 25 |
| Outside Circumference (mm) | 635 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.11 |
3VX265
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 26.18 |
| Effective Length (mm) | 665 |
| Notched | true |
| Outside Circumference (in) | 26.5 |
| Outside Circumference (mm) | 673 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.12 |
3VX280
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 27.66 |
| Effective Length (mm) | 703 |
| Notched | true |
| Outside Circumference (in) | 28 |
| Outside Circumference (mm) | 711 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.13 |
3VX300
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 29.64 |
| Effective Length (mm) | 753 |
| Notched | true |
| Outside Circumference (in) | 30 |
| Outside Circumference (mm) | 762 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.13 |
3VX315
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 31.12 |
| Effective Length (mm) | 790 |
| Notched | true |
| Outside Circumference (in) | 31.5 |
| Outside Circumference (mm) | 800 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.14 |
3VX335
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 33.1 |
| Effective Length (mm) | 841 |
| Notched | true |
| Outside Circumference (in) | 33.5 |
| Outside Circumference (mm) | 851 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.147 |
3VX350
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 34.58 |
| Effective Length (mm) | 878 |
| Notched | true |
| Outside Circumference (in) | 35 |
| Outside Circumference (mm) | 889 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.15 |
3VX355
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 35.07 |
| Effective Length (mm) | 891 |
| Notched | true |
| Outside Circumference (in) | 35.5 |
| Outside Circumference (mm) | 902 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.155 |
3VX366
No variation attributes.
3VX366
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 36.16 |
| Effective Length (mm) | 918 |
| Notched | true |
| Outside Circumference (in) | 36.6 |
| Outside Circumference (mm) | 930 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.16 |
3VX375
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 37.05 |
| Effective Length (mm) | 941 |
| Notched | true |
| Outside Circumference (in) | 37.5 |
| Outside Circumference (mm) | 953 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.162 |
3VX385
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 38.04 |
| Effective Length (mm) | 966 |
| Notched | true |
| Outside Circumference (in) | 38.5 |
| Outside Circumference (mm) | 978 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.165 |
3VX390
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 38.53 |
| Effective Length (mm) | 979 |
| Notched | true |
| Outside Circumference (in) | 39 |
| Outside Circumference (mm) | 991 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 107 |
| Weight (lbs.) | 0.165 |
3VX400
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 39.52 |
| Effective Length (mm) | 1004 |
| Notched | true |
| Outside Circumference (in) | 40 |
| Outside Circumference (mm) | 1016 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.17 |
3VX415
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 41 |
| Effective Length (mm) | 1041 |
| Notched | true |
| Outside Circumference (in) | 41.5 |
| Outside Circumference (mm) | 1054 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.175 |
3VX425
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 41.99 |
| Effective Length (mm) | 1067 |
| Notched | true |
| Outside Circumference (in) | 42.5 |
| Outside Circumference (mm) | 1080 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.18 |
3VX450
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 44.46 |
| Effective Length (mm) | 1129 |
| Notched | true |
| Outside Circumference (in) | 45 |
| Outside Circumference (mm) | 1143 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.19 |
3VX464
No variation attributes.
3VX464
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 45.84 |
| Effective Length (mm) | 1164 |
| Notched | true |
| Outside Circumference (in) | 46.4 |
| Outside Circumference (mm) | 1179 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.2 |
3VX475
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 46.93 |
| Effective Length (mm) | 1192 |
| Notched | true |
| Outside Circumference (in) | 47.5 |
| Outside Circumference (mm) | 1207 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.2 |
3VX487
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 48.12 |
| Effective Length (mm) | 1222 |
| Notched | true |
| Outside Circumference (in) | 48.7 |
| Outside Circumference (mm) | 1237 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 107 |
| Weight (lbs.) | 0.205 |
3VX500
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 49.4 |
| Effective Length (mm) | 1255 |
| Notched | true |
| Outside Circumference (in) | 50 |
| Outside Circumference (mm) | 1270 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.205 |
3VX520
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 51.38 |
| Effective Length (mm) | 1305 |
| Notched | true |
| Outside Circumference (in) | 52 |
| Outside Circumference (mm) | 1321 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.21 |
3VX530
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 52.37 |
| Effective Length (mm) | 1330 |
| Notched | true |
| Outside Circumference (in) | 53 |
| Outside Circumference (mm) | 1346 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.215 |
3VX540
No variation attributes.
3VX540
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 53.35 |
| Effective Length (mm) | 1355 |
| Notched | true |
| Outside Circumference (in) | 54 |
| Outside Circumference (mm) | 1372 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.22 |
3VX550
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 54.34 |
| Effective Length (mm) | 1380 |
| Notched | true |
| Outside Circumference (in) | 55 |
| Outside Circumference (mm) | 1397 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.225 |
3VX560
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 55.33 |
| Effective Length (mm) | 1405 |
| Notched | true |
| Outside Circumference (in) | 56 |
| Outside Circumference (mm) | 1422 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.23 |
3VX570
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 56.32 |
| Effective Length (mm) | 1431 |
| Notched | true |
| Outside Circumference (in) | 57 |
| Outside Circumference (mm) | 1448 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.235 |
3VX580
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 57.31 |
| Effective Length (mm) | 1456 |
| Notched | true |
| Outside Circumference (in) | 58 |
| Outside Circumference (mm) | 1473 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.235 |
3VX590
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 58.3 |
| Effective Length (mm) | 1481 |
| Notched | true |
| Outside Circumference (in) | 59 |
| Outside Circumference (mm) | 1499 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.24 |
3VX600
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 59.28 |
| Effective Length (mm) | 1506 |
| Notched | true |
| Outside Circumference (in) | 60 |
| Outside Circumference (mm) | 1524 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.24 |
3VX600K-10
No variation attributes.
3VX616
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 60.86 |
| Effective Length (mm) | 1546 |
| Notched | true |
| Outside Circumference (in) | 61.6 |
| Outside Circumference (mm) | 1565 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.25 |
3VX630
No variation attributes.
3VX630
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 62.25 |
| Effective Length (mm) | 1581 |
| Notched | true |
| Outside Circumference (in) | 63 |
| Outside Circumference (mm) | 1600 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.25 |
3VX630K-10
No variation attributes.
3VX650
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 64.22 |
| Effective Length (mm) | 1631 |
| Notched | true |
| Outside Circumference (in) | 65 |
| Outside Circumference (mm) | 1651 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.26 |
3VX650K-10
No variation attributes.
3VX670
No variation attributes.
3VX670
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 66.2 |
| Effective Length (mm) | 1681 |
| Notched | true |
| Outside Circumference (in) | 67 |
| Outside Circumference (mm) | 1702 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.27 |
3VX690
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 68.18 |
| Effective Length (mm) | 1732 |
| Notched | true |
| Outside Circumference (in) | 69 |
| Outside Circumference (mm) | 1753 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.275 |
3VX710
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 70.15 |
| Effective Length (mm) | 1782 |
| Notched | true |
| Outside Circumference (in) | 71 |
| Outside Circumference (mm) | 1803 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.285 |
3VX730
No variation attributes.
3VX750
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 74.11 |
| Effective Length (mm) | 1882 |
| Notched | true |
| Outside Circumference (in) | 75 |
| Outside Circumference (mm) | 1905 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.295 |
3VX771
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 76.18 |
| Effective Length (mm) | 1935 |
| Notched | true |
| Outside Circumference (in) | 77.1 |
| Outside Circumference (mm) | 1958 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.3 |
3VX800
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 79.05 |
| Effective Length (mm) | 2008 |
| Notched | true |
| Outside Circumference (in) | 80 |
| Outside Circumference (mm) | 2032 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.315 |
3VX826
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 81.62 |
| Effective Length (mm) | 2073 |
| Notched | true |
| Outside Circumference (in) | 82.6 |
| Outside Circumference (mm) | 2098 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.32 |
3VX826/XPZ2100 / 3VX826
No variation attributes.
3VX850
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 83.99 |
| Effective Length (mm) | 2133 |
| Notched | true |
| Outside Circumference (in) | 85 |
| Outside Circumference (mm) | 2159 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.33 |
3VX900
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 88.93 |
| Effective Length (mm) | 2259 |
| Notched | true |
| Outside Circumference (in) | 90 |
| Outside Circumference (mm) | 2286 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.35 |
3VX926
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 92.58 |
| Effective Length (mm) | 2352 |
| Notched | true |
| Outside Circumference (in) | 92.6 |
| Outside Circumference (mm) | 2352 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.355 |
3VX950
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 93.87 |
| Effective Length (mm) | 2384 |
| Notched | true |
| Outside Circumference (in) | 95 |
| Outside Circumference (mm) | 2413 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.37 |
3VX974
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 97.36 |
| Effective Length (mm) | 2473 |
| Notched | true |
| Outside Circumference (in) | 97.4 |
| Outside Circumference (mm) | 2474 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 54 |
| Weight (lbs.) | 0.375 |
5VX1000
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 99.81 |
| Effective Length (mm) | 2535 |
| Notched | true |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.0 |
5VX1017
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 100.79 |
| Effective Length (mm) | 2560 |
| Notched | true |
| Outside Circumference (in) | 101.7 |
| Outside Circumference (mm) | 2583 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.02 |
5VX1030
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 101.78 |
| Effective Length (mm) | 2585 |
| Notched | true |
| Outside Circumference (in) | 103 |
| Outside Circumference (mm) | 2616 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.03 |
5VX1050
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 103.75 |
| Effective Length (mm) | 2635 |
| Notched | true |
| Outside Circumference (in) | 105 |
| Outside Circumference (mm) | 2667 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.05 |
5VX1060
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 104.74 |
| Effective Length (mm) | 2660 |
| Notched | true |
| Outside Circumference (in) | 106 |
| Outside Circumference (mm) | 2692 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.06 |
5VX1080
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 106.72 |
| Effective Length (mm) | 2711 |
| Notched | true |
| Outside Circumference (in) | 108 |
| Outside Circumference (mm) | 2743 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.07 |
5VX1108
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 109.68 |
| Effective Length (mm) | 2786 |
| Notched | true |
| Outside Circumference (in) | 110.8 |
| Outside Circumference (mm) | 2814 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.1 |
5VX1120
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 110.67 |
| Effective Length (mm) | 2811 |
| Notched | true |
| Outside Circumference (in) | 112 |
| Outside Circumference (mm) | 2845 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.11 |
5VX1139
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 112.65 |
| Effective Length (mm) | 2861 |
| Notched | true |
| Outside Circumference (in) | 113.9 |
| Outside Circumference (mm) | 2893 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.14 |
5VX1150
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 113.64 |
| Effective Length (mm) | 2886 |
| Notched | true |
| Outside Circumference (in) | 115 |
| Outside Circumference (mm) | 2921 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.14 |
5VX1160
No variation attributes.
5VX1162
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 115.61 |
| Effective Length (mm) | 2936 |
| Notched | true |
| Outside Circumference (in) | 116.2 |
| Outside Circumference (mm) | 2951 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.15 |
5VX1180
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 117.59 |
| Effective Length (mm) | 2987 |
| Notched | true |
| Outside Circumference (in) | 118 |
| Outside Circumference (mm) | 2997 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.17 |
5VX1220
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 120.55 |
| Effective Length (mm) | 3062 |
| Notched | true |
| Outside Circumference (in) | 121 |
| Outside Circumference (mm) | 3073 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.2 |
5VX1230
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 122.53 |
| Effective Length (mm) | 3112 |
| Notched | true |
| Outside Circumference (in) | 123 |
| Outside Circumference (mm) | 3124 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.22 |
5VX1250
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 124.51 |
| Effective Length (mm) | 3163 |
| Notched | true |
| Outside Circumference (in) | 125 |
| Outside Circumference (mm) | 3175 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.24 |
5VX1277
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 126.48 |
| Effective Length (mm) | 3213 |
| Notched | true |
| Outside Circumference (in) | 127.7 |
| Outside Circumference (mm) | 3244 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.27 |
5VX1320
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 131.42 |
| Effective Length (mm) | 3338 |
| Notched | true |
| Outside Circumference (in) | 132 |
| Outside Circumference (mm) | 3353 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.3 |
5VX1374
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 136.36 |
| Effective Length (mm) | 3464 |
| Notched | true |
| Outside Circumference (in) | 137.4 |
| Outside Circumference (mm) | 3490 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.36 |
5VX1400
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 139.33 |
| Effective Length (mm) | 3539 |
| Notched | true |
| Outside Circumference (in) | 140 |
| Outside Circumference (mm) | 3556 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.38 |
5VX1469
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 145.26 |
| Effective Length (mm) | 3690 |
| Notched | true |
| Outside Circumference (in) | 146.9 |
| Outside Circumference (mm) | 3731 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.46 |
5VX1500
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 149.21 |
| Effective Length (mm) | 3790 |
| Notched | true |
| Outside Circumference (in) | 150 |
| Outside Circumference (mm) | 3810 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.48 |
5VX1600
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 159.09 |
| Effective Length (mm) | 4041 |
| Notched | true |
| Outside Circumference (in) | 160 |
| Outside Circumference (mm) | 4064 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.56 |
5VX1701
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 168.97 |
| Effective Length (mm) | 4292 |
| Notched | true |
| Outside Circumference (in) | 170 |
| Outside Circumference (mm) | 4318 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.67 |
5VX372
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 36.75 |
| Effective Length (mm) | 933 |
| Notched | true |
| Outside Circumference (in) | 37.2 |
| Outside Circumference (mm) | 945 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 68 |
| Weight (lbs.) | 0.38 |
5VX392
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 38.73 |
| Effective Length (mm) | 984 |
| Notched | true |
| Outside Circumference (in) | 39.2 |
| Outside Circumference (mm) | 996 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 68 |
| Weight (lbs.) | 0.4 |
5VX412
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 40.71 |
| Effective Length (mm) | 1034 |
| Notched | true |
| Outside Circumference (in) | 41.2 |
| Outside Circumference (mm) | 1046 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 68 |
| Weight (lbs.) | 0.42 |
5VX422
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 41.69 |
| Effective Length (mm) | 1059 |
| Notched | true |
| Outside Circumference (in) | 42.2 |
| Outside Circumference (mm) | 1072 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 68 |
| Weight (lbs.) | 0.43 |
5VX433
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 42.78 |
| Effective Length (mm) | 1087 |
| Notched | true |
| Outside Circumference (in) | 43.3 |
| Outside Circumference (mm) | 1100 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 68 |
| Weight (lbs.) | 0.45 |
5VX450
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 44.47 |
| Effective Length (mm) | 1130 |
| Notched | true |
| Outside Circumference (in) | 45 |
| Outside Circumference (mm) | 1143 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.46 |
5VX470
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 46.44 |
| Effective Length (mm) | 1180 |
| Notched | true |
| Outside Circumference (in) | 47 |
| Outside Circumference (mm) | 1194 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.48 |
5VX490
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 48.42 |
| Effective Length (mm) | 1230 |
| Notched | true |
| Outside Circumference (in) | 49 |
| Outside Circumference (mm) | 1245 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.5 |
5VX500
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 49.41 |
| Effective Length (mm) | 1255 |
| Notched | true |
| Outside Circumference (in) | 50 |
| Outside Circumference (mm) | 1270 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.51 |
5VX510
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 50.4 |
| Effective Length (mm) | 1280 |
| Notched | true |
| Outside Circumference (in) | 51 |
| Outside Circumference (mm) | 1295 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.52 |
5VX519
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 51.38 |
| Effective Length (mm) | 1305 |
| Notched | true |
| Outside Circumference (in) | 51.9 |
| Outside Circumference (mm) | 1318 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 34 |
| Weight (lbs.) | 0.54 |
5VX530
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 52.37 |
| Effective Length (mm) | 1330 |
| Notched | true |
| Outside Circumference (in) | 53 |
| Outside Circumference (mm) | 1346 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.54 |
5VX540
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 53.36 |
| Effective Length (mm) | 1355 |
| Notched | true |
| Outside Circumference (in) | 54 |
| Outside Circumference (mm) | 1372 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.55 |
5VX550
No variation attributes.
5VX550
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 54.35 |
| Effective Length (mm) | 1380 |
| Notched | true |
| Outside Circumference (in) | 55 |
| Outside Circumference (mm) | 1397 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.56 |
5VX560
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 55.34 |
| Effective Length (mm) | 1406 |
| Notched | true |
| Outside Circumference (in) | 56 |
| Outside Circumference (mm) | 1422 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.57 |
5VX570
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 56.32 |
| Effective Length (mm) | 1431 |
| Notched | true |
| Outside Circumference (in) | 57 |
| Outside Circumference (mm) | 1448 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.58 |
5VX580
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 57.31 |
| Effective Length (mm) | 1456 |
| Notched | true |
| Outside Circumference (in) | 58 |
| Outside Circumference (mm) | 1473 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.59 |
5VX590
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 58.3 |
| Effective Length (mm) | 1481 |
| Notched | true |
| Outside Circumference (in) | 59 |
| Outside Circumference (mm) | 1499 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.6 |
5VX600
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 59.29 |
| Effective Length (mm) | 1506 |
| Notched | true |
| Outside Circumference (in) | 60 |
| Outside Circumference (mm) | 1524 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.6 |
5VX610
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 60.28 |
| Effective Length (mm) | 1531 |
| Notched | true |
| Outside Circumference (in) | 61 |
| Outside Circumference (mm) | 1549 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.61 |
5VX619
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 61.26 |
| Effective Length (mm) | 1556 |
| Notched | true |
| Outside Circumference (in) | 61.9 |
| Outside Circumference (mm) | 1572 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.62 |
5VX630
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 62.25 |
| Effective Length (mm) | 1581 |
| Notched | true |
| Outside Circumference (in) | 63 |
| Outside Circumference (mm) | 1600 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.64 |
5VX650
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 64.23 |
| Effective Length (mm) | 1631 |
| Notched | true |
| Outside Circumference (in) | 65 |
| Outside Circumference (mm) | 1651 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.66 |
5VX660
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 65.22 |
| Effective Length (mm) | 1657 |
| Notched | true |
| Outside Circumference (in) | 66 |
| Outside Circumference (mm) | 1676 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.66 |
5VX670
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 66.21 |
| Effective Length (mm) | 1682 |
| Notched | true |
| Outside Circumference (in) | 67 |
| Outside Circumference (mm) | 1702 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.68 |
5VX680
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 67.19 |
| Effective Length (mm) | 1707 |
| Notched | true |
| Outside Circumference (in) | 68 |
| Outside Circumference (mm) | 1727 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.68 |
5VX690
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 68.18 |
| Effective Length (mm) | 1732 |
| Notched | true |
| Outside Circumference (in) | 69 |
| Outside Circumference (mm) | 1753 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.68 |
5VX700
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 69.17 |
| Effective Length (mm) | 1757 |
| Notched | true |
| Outside Circumference (in) | 70 |
| Outside Circumference (mm) | 1778 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.7 |
5VX710
No variation attributes.
5VX720
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 71.15 |
| Effective Length (mm) | 1807 |
| Notched | true |
| Outside Circumference (in) | 72 |
| Outside Circumference (mm) | 1829 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.72 |
5VX730
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 72.13 |
| Effective Length (mm) | 1832 |
| Notched | true |
| Outside Circumference (in) | 73 |
| Outside Circumference (mm) | 1854 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.74 |
5VX740
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 73.12 |
| Effective Length (mm) | 1857 |
| Notched | true |
| Outside Circumference (in) | 74 |
| Outside Circumference (mm) | 1880 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.75 |
5VX750
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 74.11 |
| Effective Length (mm) | 1882 |
| Notched | true |
| Outside Circumference (in) | 75 |
| Outside Circumference (mm) | 1905 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.76 |
5VX760
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 75.1 |
| Effective Length (mm) | 1908 |
| Notched | true |
| Outside Circumference (in) | 76 |
| Outside Circumference (mm) | 1930 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.76 |
5VX769
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 76.09 |
| Effective Length (mm) | 1933 |
| Notched | true |
| Outside Circumference (in) | 76.9 |
| Outside Circumference (mm) | 1953 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.77 |
5VX780
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 77.08 |
| Effective Length (mm) | 1958 |
| Notched | true |
| Outside Circumference (in) | 78 |
| Outside Circumference (mm) | 1981 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.78 |
5VX790
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 78.06 |
| Effective Length (mm) | 1983 |
| Notched | true |
| Outside Circumference (in) | 79 |
| Outside Circumference (mm) | 2007 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.8 |
5VX800
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 79.05 |
| Effective Length (mm) | 2008 |
| Notched | true |
| Outside Circumference (in) | 80 |
| Outside Circumference (mm) | 2032 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.81 |
5VX810
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 80.04 |
| Effective Length (mm) | 2033 |
| Notched | true |
| Outside Circumference (in) | 81 |
| Outside Circumference (mm) | 2057 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.82 |
5VX830
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 82.02 |
| Effective Length (mm) | 2083 |
| Notched | true |
| Outside Circumference (in) | 83 |
| Outside Circumference (mm) | 2108 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.83 |
5VX840
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 83 |
| Effective Length (mm) | 2108 |
| Notched | true |
| Outside Circumference (in) | 84 |
| Outside Circumference (mm) | 2134 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.84 |
5VX850
No variation attributes.
5VX850
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 83.99 |
| Effective Length (mm) | 2133 |
| Notched | true |
| Outside Circumference (in) | 85 |
| Outside Circumference (mm) | 2159 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.85 |
5VX860
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 84.98 |
| Effective Length (mm) | 2158 |
| Notched | true |
| Outside Circumference (in) | 85 |
| Outside Circumference (mm) | 2159 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.86 |
5VX867
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 85.97 |
| Effective Length (mm) | 2184 |
| Notched | true |
| Outside Circumference (in) | 86.7 |
| Outside Circumference (mm) | 2202 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 34 |
| Weight (lbs.) | 0.86 |
5VX880
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 86.96 |
| Effective Length (mm) | 2209 |
| Notched | true |
| Outside Circumference (in) | 88 |
| Outside Circumference (mm) | 2235 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.89 |
5VX890
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 87.94 |
| Effective Length (mm) | 2234 |
| Notched | true |
| Outside Circumference (in) | 89 |
| Outside Circumference (mm) | 2261 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.9 |
5VX900
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 88.93 |
| Effective Length (mm) | 2259 |
| Notched | true |
| Outside Circumference (in) | 90 |
| Outside Circumference (mm) | 2286 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.9 |
5VX918
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 90.91 |
| Effective Length (mm) | 2309 |
| Notched | true |
| Outside Circumference (in) | 91.8 |
| Outside Circumference (mm) | 2332 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.92 |
5VX930
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 91.9 |
| Effective Length (mm) | 2334 |
| Notched | true |
| Outside Circumference (in) | 93 |
| Outside Circumference (mm) | 2362 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.93 |
5VX940
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 92.89 |
| Effective Length (mm) | 2359 |
| Notched | true |
| Outside Circumference (in) | 94 |
| Outside Circumference (mm) | 2388 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.93 |
5VX950
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 93.87 |
| Effective Length (mm) | 2384 |
| Notched | true |
| Outside Circumference (in) | 95 |
| Outside Circumference (mm) | 2413 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.95 |
5VX960
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 94.86 |
| Effective Length (mm) | 2409 |
| Notched | true |
| Outside Circumference (in) | 96 |
| Outside Circumference (mm) | 2438 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.96 |
5VX978
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 96.84 |
| Effective Length (mm) | 2460 |
| Notched | true |
| Outside Circumference (in) | 97.8 |
| Outside Circumference (mm) | 2484 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.98 |
5VX990
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 97.83 |
| Effective Length (mm) | 2485 |
| Notched | true |
| Outside Circumference (in) | 99 |
| Outside Circumference (mm) | 2515 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.98 |
8VX1000
| Cross Section | 8VX |
|---|---|
| Effective Length (in) | 99.81 |
| Effective Length (mm) | 2535 |
| Notched | true |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 41 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.234 |
8VX1060
| Cross Section | 8VX |
|---|---|
| Effective Length (in) | 104.73 |
| Effective Length (mm) | 2660 |
| Notched | true |
| Outside Circumference (in) | 106 |
| Outside Circumference (mm) | 2692 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 41 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.307 |
8VX1120
| Cross Section | 8VX |
|---|---|
| Effective Length (in) | 110.73 |
| Effective Length (mm) | 2813 |
| Notched | true |
| Outside Circumference (in) | 112 |
| Outside Circumference (mm) | 2845 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 41 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.7 |
8VX1180
| Cross Section | 8VX |
|---|---|
| Effective Length (in) | 116.59 |
| Effective Length (mm) | 2961 |
| Notched | true |
| Outside Circumference (in) | 118 |
| Outside Circumference (mm) | 2997 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 41 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.476 |
8VX1250
| Cross Section | 8VX |
|---|---|
| Effective Length (in) | 123.76 |
| Effective Length (mm) | 3144 |
| Notched | true |
| Outside Circumference (in) | 125 |
| Outside Circumference (mm) | 3175 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 41 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.539 |
8VX1320
| Cross Section | 8VX |
|---|---|
| Effective Length (in) | 130.87 |
| Effective Length (mm) | 3324 |
| Notched | true |
| Outside Circumference (in) | 132 |
| Outside Circumference (mm) | 3353 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 41 |
| Thickness (in) | 0.82 |
| Thickness (mm) | 21 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.63 |
8VX1400
| Cross Section | 8VX |
|---|---|
| Effective Length (in) | 138.8 |
| Effective Length (mm) | 3526 |
| Notched | true |
| Outside Circumference (in) | 140 |
| Outside Circumference (mm) | 3556 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 41 |
| Thickness (in) | 0.82 |
| Thickness (mm) | 21 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 1.749 |
8VX1500
| Cross Section | 8VX |
|---|---|
| Effective Length (in) | 148.51 |
| Effective Length (mm) | 3772 |
| Notched | true |
| Outside Circumference (in) | 150 |
| Outside Circumference (mm) | 3810 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 41 |
| Thickness (in) | 0.82 |
| Thickness (mm) | 21 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 1.68 |
8VX1600
| Cross Section | 8VX |
|---|---|
| Effective Length (in) | 158.41 |
| Effective Length (mm) | 4024 |
| Notched | true |
| Outside Circumference (in) | 160 |
| Outside Circumference (mm) | 4064 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 41 |
| Thickness (in) | 0.82 |
| Thickness (mm) | 21 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 2.47 |
8VX1700
| Cross Section | 8VX |
|---|---|
| Effective Length (in) | 168.3 |
| Effective Length (mm) | 4275 |
| Notched | true |
| Outside Circumference (in) | 170 |
| Outside Circumference (mm) | 4318 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 41 |
| Thickness (in) | 0.82 |
| Thickness (mm) | 21 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 2.77 |
8VX1800
| Cross Section | 8VX |
|---|---|
| Effective Length (in) | 178.19 |
| Effective Length (mm) | 4526 |
| Notched | true |
| Outside Circumference (in) | 180 |
| Outside Circumference (mm) | 4572 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 41 |
| Thickness (in) | 0.82 |
| Thickness (mm) | 21 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 2.778 |
8VX1900
| Cross Section | 8VX |
|---|---|
| Effective Length (in) | 188.08 |
| Effective Length (mm) | 4777 |
| Notched | true |
| Outside Circumference (in) | 190 |
| Outside Circumference (mm) | 4826 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 41 |
| Thickness (in) | 0.82 |
| Thickness (mm) | 21 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 2.363 |
8VX2000
| Cross Section | 8VX |
|---|---|
| Effective Length (in) | 197.97 |
| Effective Length (mm) | 5028 |
| Notched | true |
| Outside Circumference (in) | 200 |
| Outside Circumference (mm) | 5080 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 41 |
| Thickness (in) | 0.82 |
| Thickness (mm) | 21 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 2.486 |
3VX1000
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 99.96 |
| Effective Length (mm) | 2.539 |
| Notched | true |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 0.4 |
3VX1060
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 105.97 |
| Effective Length (mm) | 2.692 |
| Notched | true |
| Outside Circumference (in) | 106 |
| Outside Circumference (mm) | 2692 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 0.45 |
3VX1120
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 111.98 |
| Effective Length (mm) | 2.844 |
| Notched | true |
| Outside Circumference (in) | 112 |
| Outside Circumference (mm) | 2845 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 75 |
| Weight (lbs.) | 0.45 |
3VX1180
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 117.98 |
| Effective Length (mm) | 2.997 |
| Notched | true |
| Outside Circumference (in) | 118 |
| Outside Circumference (mm) | 2997 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 75 |
| Weight (lbs.) | 0.45 |
3VX1250
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 124.99 |
| Effective Length (mm) | 3.175 |
| Notched | true |
| Outside Circumference (in) | 125 |
| Outside Circumference (mm) | 3175 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 75 |
| Weight (lbs.) | 0.5 |
3VX1320
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 131.81 |
| Effective Length (mm) | 3.348 |
| Notched | true |
| Outside Circumference (in) | 132 |
| Outside Circumference (mm) | 3353 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.55 |
3VX1400
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 139.84 |
| Effective Length (mm) | 3.552 |
| Notched | true |
| Outside Circumference (in) | 140 |
| Outside Circumference (mm) | 3556 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 75 |
| Weight (lbs.) | 0.55 |
3VX250
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 25.18 |
| Effective Length (mm) | 640 |
| Notched | true |
| Outside Circumference (in) | 25 |
| Outside Circumference (mm) | 635 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.1 |
3VX265
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 26.68 |
| Effective Length (mm) | 678 |
| Notched | true |
| Outside Circumference (in) | 26.5 |
| Outside Circumference (mm) | 673 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.1 |
3VX280
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 28.19 |
| Effective Length (mm) | 716 |
| Notched | true |
| Outside Circumference (in) | 28 |
| Outside Circumference (mm) | 711 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.15 |
3VX300
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 30.19 |
| Effective Length (mm) | 767 |
| Notched | true |
| Outside Circumference (in) | 30 |
| Outside Circumference (mm) | 762 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.15 |
3VX315
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 31.67 |
| Effective Length (mm) | 804 |
| Notched | true |
| Outside Circumference (in) | 31.5 |
| Outside Circumference (mm) | 800 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.15 |
3VX335
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 33.69 |
| Effective Length (mm) | 856 |
| Notched | true |
| Outside Circumference (in) | 33.5 |
| Outside Circumference (mm) | 851 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.15 |
3VX350
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 35.19 |
| Effective Length (mm) | 894 |
| Notched | true |
| Outside Circumference (in) | 35 |
| Outside Circumference (mm) | 889 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.15 |
3VX355
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 35.69 |
| Effective Length (mm) | 906 |
| Notched | true |
| Outside Circumference (in) | 35.5 |
| Outside Circumference (mm) | 902 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 225 |
| Weight (lbs.) | 0.15 |
3VX355
No variation attributes.
3VX375
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 37.69 |
| Effective Length (mm) | 957 |
| Notched | true |
| Outside Circumference (in) | 37.5 |
| Outside Circumference (mm) | 953 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 185 |
| Weight (lbs.) | 0.2 |
3VX400
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 40.19 |
| Effective Length (mm) | 1.021 |
| Notched | true |
| Outside Circumference (in) | 40 |
| Outside Circumference (mm) | 1016 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 185 |
| Weight (lbs.) | 0.2 |
3VX425
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 42.69 |
| Effective Length (mm) | 1.084 |
| Notched | true |
| Outside Circumference (in) | 42.5 |
| Outside Circumference (mm) | 1080 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 150 |
| Weight (lbs.) | 0.2 |
3VX450
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 45.19 |
| Effective Length (mm) | 1.148 |
| Notched | true |
| Outside Circumference (in) | 45 |
| Outside Circumference (mm) | 1143 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 150 |
| Weight (lbs.) | 0.2 |
3VX470
| Notched | true |
|---|---|
| Outside Circumference (in) | 47 |
| Outside Circumference (mm) | 1194 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
3VX475
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 47.68 |
| Effective Length (mm) | 1.211 |
| Notched | true |
| Outside Circumference (in) | 47.5 |
| Outside Circumference (mm) | 1207 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 150 |
| Weight (lbs.) | 0.2 |
3VX475
No variation attributes.
3VX485
No variation attributes.
3VX500
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 50.18 |
| Effective Length (mm) | 1.275 |
| Notched | true |
| Outside Circumference (in) | 50 |
| Outside Circumference (mm) | 1270 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 175 |
| Weight (lbs.) | 0.25 |
3VX530
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 53.18 |
| Effective Length (mm) | 1.351 |
| Notched | true |
| Outside Circumference (in) | 53 |
| Outside Circumference (mm) | 1346 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 175 |
| Weight (lbs.) | 0.25 |
3VX560
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 56.18 |
| Effective Length (mm) | 1.427 |
| Notched | true |
| Outside Circumference (in) | 56 |
| Outside Circumference (mm) | 1422 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 175 |
| Weight (lbs.) | 0.25 |
3VX570
| Notched | true |
|---|---|
| Outside Circumference (in) | 57 |
| Outside Circumference (mm) | 1448 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
3VX600
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 60.18 |
| Effective Length (mm) | 1.529 |
| Notched | true |
| Outside Circumference (in) | 60 |
| Outside Circumference (mm) | 1524 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 150 |
| Weight (lbs.) | 0.3 |
3VX630
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 63.18 |
| Effective Length (mm) | 1.605 |
| Notched | true |
| Outside Circumference (in) | 63 |
| Outside Circumference (mm) | 1600 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 150 |
| Weight (lbs.) | 0.3 |
3VX670
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 67.19 |
| Effective Length (mm) | 1.707 |
| Notched | true |
| Outside Circumference (in) | 67 |
| Outside Circumference (mm) | 1702 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.3 |
3VX710
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 71.08 |
| Effective Length (mm) | 1.805 |
| Notched | true |
| Outside Circumference (in) | 71 |
| Outside Circumference (mm) | 1803 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 125 |
| Weight (lbs.) | 0.3 |
3VX750
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 75.06 |
| Effective Length (mm) | 1.906 |
| Notched | true |
| Outside Circumference (in) | 75 |
| Outside Circumference (mm) | 1905 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 125 |
| Weight (lbs.) | 0.35 |
3VX800
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 80.25 |
| Effective Length (mm) | 2.038 |
| Notched | true |
| Outside Circumference (in) | 80 |
| Outside Circumference (mm) | 2032 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 75 |
| Weight (lbs.) | 0.4 |
3VX800
No variation attributes.
3VX850
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 85.18 |
| Effective Length (mm) | 2.164 |
| Notched | true |
| Outside Circumference (in) | 85 |
| Outside Circumference (mm) | 2159 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 75 |
| Weight (lbs.) | 0.35 |
3VX900
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 90.34 |
| Effective Length (mm) | 2.295 |
| Notched | true |
| Outside Circumference (in) | 90 |
| Outside Circumference (mm) | 2286 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 75 |
| Weight (lbs.) | 0.4 |
3VX950
| Cross Section | 3VX |
|---|---|
| Effective Length (in) | 95.22 |
| Effective Length (mm) | 2.419 |
| Notched | true |
| Outside Circumference (in) | 95 |
| Outside Circumference (mm) | 2413 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 44 |
| Thickness (in) | 0.33 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 75 |
| Weight (lbs.) | 0.4 |
5VX1000
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 100.05 |
| Effective Length (mm) | 2.541 |
| Notched | true |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 1.05 |
5VX1030
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 103.05 |
| Effective Length (mm) | 2.618 |
| Notched | true |
| Outside Circumference (in) | 103 |
| Outside Circumference (mm) | 2616 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 1.1 |
5VX1060
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 106.05 |
| Effective Length (mm) | 2.694 |
| Notched | true |
| Outside Circumference (in) | 106 |
| Outside Circumference (mm) | 2692 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 1.1 |
5VX1080
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 108.05 |
| Effective Length (mm) | 2.744 |
| Notched | true |
| Outside Circumference (in) | 108 |
| Outside Circumference (mm) | 2743 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 1.1 |
5VX1120
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 112.05 |
| Effective Length (mm) | 2.846 |
| Notched | true |
| Outside Circumference (in) | 112 |
| Outside Circumference (mm) | 2845 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 1.15 |
5VX1150
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 115.05 |
| Effective Length (mm) | 2.922 |
| Notched | true |
| Outside Circumference (in) | 115 |
| Outside Circumference (mm) | 2921 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 1.15 |
5VX1180
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 118.05 |
| Effective Length (mm) | 2.998 |
| Notched | true |
| Outside Circumference (in) | 118 |
| Outside Circumference (mm) | 2997 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 1.2 |
5VX1230
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 123.06 |
| Effective Length (mm) | 3.126 |
| Notched | true |
| Outside Circumference (in) | 123 |
| Outside Circumference (mm) | 3124 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.25 |
5VX1250
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 125.05 |
| Effective Length (mm) | 3.176 |
| Notched | true |
| Outside Circumference (in) | 125 |
| Outside Circumference (mm) | 3175 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.25 |
5VX1320
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 132.24 |
| Effective Length (mm) | 3.359 |
| Notched | true |
| Outside Circumference (in) | 132 |
| Outside Circumference (mm) | 3353 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.25 |
5VX1400
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 140.26 |
| Effective Length (mm) | 3.563 |
| Notched | true |
| Outside Circumference (in) | 140 |
| Outside Circumference (mm) | 3556 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.55 |
5VX1600
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 160.09 |
| Effective Length (mm) | 4.066 |
| Notched | true |
| Outside Circumference (in) | 160 |
| Outside Circumference (mm) | 4064 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.65 |
5VX450
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 44.96 |
| Effective Length (mm) | 1.142 |
| Notched | true |
| Outside Circumference (in) | 45 |
| Outside Circumference (mm) | 1143 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 68 |
| Weight (lbs.) | 0.45 |
5VX470
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 46.97 |
| Effective Length (mm) | 1.193 |
| Notched | true |
| Outside Circumference (in) | 47 |
| Outside Circumference (mm) | 1194 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 80 |
| Weight (lbs.) | 0.5 |
5VX490
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 49.03 |
| Effective Length (mm) | 1.245 |
| Notched | true |
| Outside Circumference (in) | 49 |
| Outside Circumference (mm) | 1245 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 75 |
| Weight (lbs.) | 0.5 |
5VX500
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 49.96 |
| Effective Length (mm) | 1.269 |
| Notched | true |
| Outside Circumference (in) | 50 |
| Outside Circumference (mm) | 1270 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 75 |
| Weight (lbs.) | 0.55 |
5VX510
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 50.97 |
| Effective Length (mm) | 1.295 |
| Notched | true |
| Outside Circumference (in) | 51 |
| Outside Circumference (mm) | 1295 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 75 |
| Weight (lbs.) | 0.55 |
5VX530
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 52.98 |
| Effective Length (mm) | 1.346 |
| Notched | true |
| Outside Circumference (in) | 53 |
| Outside Circumference (mm) | 1346 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 75 |
| Weight (lbs.) | 0.55 |
5VX540
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 53.98 |
| Effective Length (mm) | 1.371 |
| Notched | true |
| Outside Circumference (in) | 54 |
| Outside Circumference (mm) | 1372 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 75 |
| Weight (lbs.) | 0.55 |
5VX560
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 55.98 |
| Effective Length (mm) | 1.422 |
| Notched | true |
| Outside Circumference (in) | 56 |
| Outside Circumference (mm) | 1422 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 75 |
| Weight (lbs.) | 0.55 |
5VX570
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 56.98 |
| Effective Length (mm) | 1.447 |
| Notched | true |
| Outside Circumference (in) | 57 |
| Outside Circumference (mm) | 1448 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.6 |
5VX580
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 57.98 |
| Effective Length (mm) | 1.473 |
| Notched | true |
| Outside Circumference (in) | 58 |
| Outside Circumference (mm) | 1473 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.61 |
5VX590
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 58.99 |
| Effective Length (mm) | 1.498 |
| Notched | true |
| Outside Circumference (in) | 59 |
| Outside Circumference (mm) | 1499 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.6 |
5VX600
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 59.99 |
| Effective Length (mm) | 1.524 |
| Notched | true |
| Outside Circumference (in) | 60 |
| Outside Circumference (mm) | 1524 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.63 |
5VX610
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 60.99 |
| Effective Length (mm) | 1.549 |
| Notched | true |
| Outside Circumference (in) | 61 |
| Outside Circumference (mm) | 1549 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.6 |
5VX630
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 62.98 |
| Effective Length (mm) | 1.6 |
| Notched | true |
| Outside Circumference (in) | 63 |
| Outside Circumference (mm) | 1600 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.65 |
5VX650
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 64.99 |
| Effective Length (mm) | 1.651 |
| Notched | true |
| Outside Circumference (in) | 65 |
| Outside Circumference (mm) | 1651 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.65 |
5VX660
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 65.98 |
| Effective Length (mm) | 1.676 |
| Notched | true |
| Outside Circumference (in) | 66 |
| Outside Circumference (mm) | 1676 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.7 |
5VX670
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 66.99 |
| Effective Length (mm) | 1.702 |
| Notched | true |
| Outside Circumference (in) | 67 |
| Outside Circumference (mm) | 1702 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.7 |
5VX680
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 68 |
| Effective Length (mm) | 1.727 |
| Notched | true |
| Outside Circumference (in) | 68 |
| Outside Circumference (mm) | 1727 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.7 |
5VX690
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 69 |
| Effective Length (mm) | 1.753 |
| Notched | true |
| Outside Circumference (in) | 69 |
| Outside Circumference (mm) | 1753 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.7 |
5VX710
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 71 |
| Effective Length (mm) | 1.803 |
| Notched | true |
| Outside Circumference (in) | 71 |
| Outside Circumference (mm) | 1803 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.75 |
5VX730
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 73.01 |
| Effective Length (mm) | 1.854 |
| Notched | true |
| Outside Circumference (in) | 73 |
| Outside Circumference (mm) | 1854 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.75 |
5VX740
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 74.02 |
| Effective Length (mm) | 1.88 |
| Notched | true |
| Outside Circumference (in) | 74 |
| Outside Circumference (mm) | 1880 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 45 |
| Weight (lbs.) | 0.75 |
5VX750
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 75 |
| Effective Length (mm) | 1.905 |
| Notched | true |
| Outside Circumference (in) | 75 |
| Outside Circumference (mm) | 1905 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 45 |
| Weight (lbs.) | 0.8 |
5VX780
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 78.03 |
| Effective Length (mm) | 1.982 |
| Notched | true |
| Outside Circumference (in) | 78 |
| Outside Circumference (mm) | 1981 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.8 |
5VX800
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 80.05 |
| Effective Length (mm) | 2.033 |
| Notched | true |
| Outside Circumference (in) | 80 |
| Outside Circumference (mm) | 2032 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.8 |
5VX810
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 81.03 |
| Effective Length (mm) | 2.058 |
| Notched | true |
| Outside Circumference (in) | 81 |
| Outside Circumference (mm) | 2057 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.85 |
5VX830
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 82.96 |
| Effective Length (mm) | 2.107 |
| Notched | true |
| Outside Circumference (in) | 83 |
| Outside Circumference (mm) | 2108 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.85 |
5VX840
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 84.03 |
| Effective Length (mm) | 2.134 |
| Notched | true |
| Outside Circumference (in) | 84 |
| Outside Circumference (mm) | 2134 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.9 |
5VX860
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 85.96 |
| Effective Length (mm) | 2.183 |
| Notched | true |
| Outside Circumference (in) | 86 |
| Outside Circumference (mm) | 2184 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.93 |
5VX880
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 88.02 |
| Effective Length (mm) | 2.236 |
| Notched | true |
| Outside Circumference (in) | 88 |
| Outside Circumference (mm) | 2235 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.9 |
5VX900
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 90 |
| Effective Length (mm) | 2.286 |
| Notched | true |
| Outside Circumference (in) | 90 |
| Outside Circumference (mm) | 2286 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.95 |
5VX930
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 93.03 |
| Effective Length (mm) | 2.363 |
| Notched | true |
| Outside Circumference (in) | 93 |
| Outside Circumference (mm) | 2362 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.95 |
5VX950
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 95.01 |
| Effective Length (mm) | 2.413 |
| Notched | true |
| Outside Circumference (in) | 95 |
| Outside Circumference (mm) | 2413 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 1.02 |
5VX960
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 96.03 |
| Effective Length (mm) | 2.439 |
| Notched | true |
| Outside Circumference (in) | 96 |
| Outside Circumference (mm) | 2438 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 35 |
| Weight (lbs.) | 1.0 |
94140635
No variation attributes.
94120860
No variation attributes.
94120790
No variation attributes.
94120510
No variation attributes.
941203550
No variation attributes.
941205300
No variation attributes.
94140639
No variation attributes.
955003750
No variation attributes.
94120835
No variation attributes.
94120440
No variation attributes.
94120495
No variation attributes.
94120445
No variation attributes.
94120410
No variation attributes.
94120985
No variation attributes.
941204000
No variation attributes.
941205000
No variation attributes.
941203750
No variation attributes.
941203000
No variation attributes.
92130528
No variation attributes.
941207100
No variation attributes.
941209000
No variation attributes.
941207500
No variation attributes.
941209500
No variation attributes.
92130378
No variation attributes.
941203350
No variation attributes.
941205600
No variation attributes.
941206000
No variation attributes.
Specifications
| Cross Section | 3VX, 5VX, 8VX |
|---|---|
| Effective Length (in) | 24.7 – 197.97 |
| Effective Length (mm) | 1.021 – 5028 |
| Notched | true |
| Outside Circumference (in) | 25 – 200 |
| Outside Circumference (mm) | 635 – 5080 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.38 – 1.02 |
| Top Width (mm) | 10 – 26 |
| Angle. | 41 – 44 |
| Thickness (in) | 0.31 – 0.91 |
| Thickness (mm) | 8 – 23 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 5 – 225 |
| Weight (lbs.) | 0.1 – 2.778 |
PDF Documents
No PDF documents.
