Attributes
| Part Number | 3225-000000-000000 |
|---|
Description

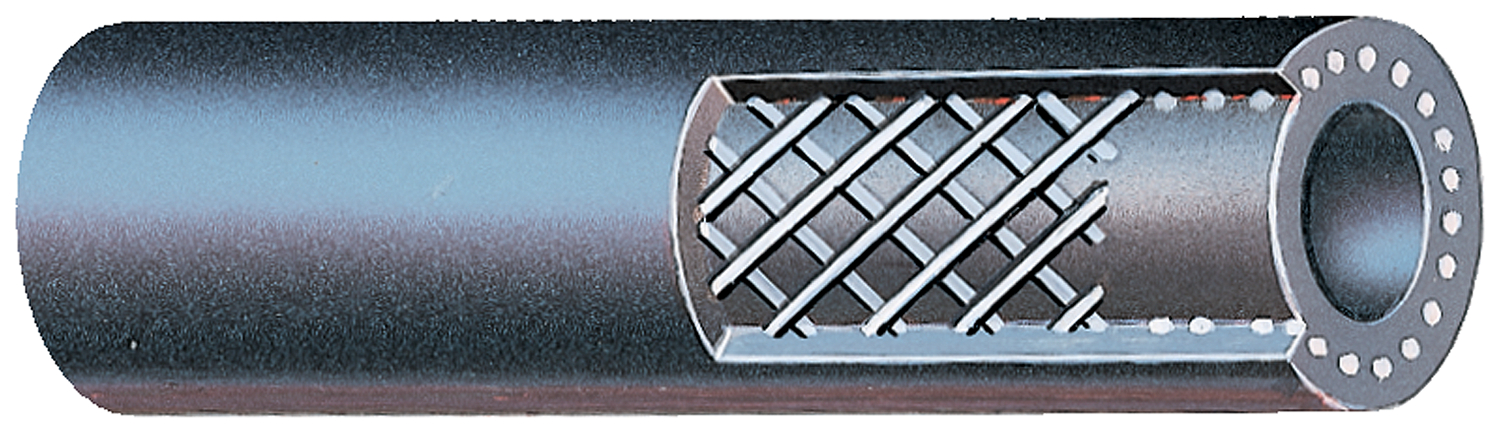

PCV/EEC Fuel Hose RECOMMENDED FOR: Use in fuel, oil, coolant, water and alcohol lines requiring MIL–DTL–6000. CAUTION: This product is not intended or designed for use in any manned, rotor, or fixed–wing aircraft, even on an emergency or temporary basis. Meets MIL–DTL–6000; QPL–6000–16. Test reference MOAMA (MONEB). High oil resistance.
Features and Benefits Vacuum rating of 24 In./Hg for sizes less than 1⁄2" I.D., and 10 In./Hg for sizes 1⁄2" to 3⁄4" I.D. at ambient temperatures. Meets requirements of SAE J30R7 and DIN 73379 (except for tolerances). Nitrile Tube and Modified Nitrile Cover. Synthetic Fiber Reinforcement. Cover resists heat, oil, ozone and weathering. Available in 2ft, 25ft, or 250ft Lengths.
Variations (56)
1-1/4X10 LOW PRES FUEL&OIL 200
| Minimum Bend Radius (in) | 10 |
|---|---|
| Minimum Bend Radius (mm) | 254 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure (psi) | 200 |
| Length (m) | 3 |
| Outside Diameter (in) | 1.52 |
| Outside Diameter (mm) | 31.8 |
| Coupling Recommendation | 19 Standard Air Hose. 21 Preformed Band Clamps. 48 Band-It Nipples. |
| Color | Black |
| Cover | Chloroprene - Type A. Smooth. |
| Reinforcement | Braided, synthetic textile |
| Tube | Chloroprene - Type A. High oil resistance. |
| Construction: Cover | Chloroprene - Type A |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Braided, synthetic textile |
| Construction: Tube | Chloroprene - Type A. Black. High oil resistance |
1/2X10 LOW PRESS FUEL&OIL 250
| Minimum Bend Radius (in) | 5 |
|---|---|
| Minimum Bend Radius (mm) | 127 |
| Inside Diameter (in) | 0.50 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 3 |
| Outside Diameter (in) | 0.84 |
| Outside Diameter (mm) | 12.7 |
| Coupling Recommendation | 19 Standard Air Hose. 21 Preformed Band Clamps. 48 Band-It Nipples. |
| Color | Black |
| Cover | Chloroprene - Type A. Smooth. |
| Reinforcement | Braided, synthetic textile |
| Tube | Chloroprene - Type A. High oil resistance. |
| Construction: Cover | Chloroprene - Type A |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Braided, synthetic textile |
| Construction: Tube | Chloroprene - Type A. Black. High oil resistance |
1/4X10 LOW PRESS FUEL&OIL 250
| Minimum Bend Radius (in) | 3 |
|---|---|
| Minimum Bend Radius (mm) | 76 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 3 |
| Outside Diameter (in) | 0.59 |
| Outside Diameter (mm) | 6.4 |
| Coupling Recommendation | 19 Standard Air Hose. 21 Preformed Band Clamps. 48 Band-It Nipples. |
| Color | Black |
| Cover | Chloroprene - Type A. Smooth. |
| Reinforcement | Braided, synthetic textile |
| Tube | Chloroprene - Type A. High oil resistance. |
| Construction: Cover | Chloroprene - Type A |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Braided, synthetic textile |
| Construction: Tube | Chloroprene - Type A. Black. High oil resistance |
1/8 X 100
No variation attributes.
1X10 LOW PRESS FUEL&OIL 250
| Minimum Bend Radius (in) | 8 |
|---|---|
| Minimum Bend Radius (mm) | 203 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 3 |
| Outside Diameter (in) | 1.34 |
| Outside Diameter (mm) | 25.4 |
| Coupling Recommendation | 19 Standard Air Hose. 21 Preformed Band Clamps. 48 Band-It Nipples. |
| Color | Black |
| Cover | Chloroprene - Type A. Smooth. |
| Reinforcement | Braided, synthetic textile |
| Tube | Chloroprene - Type A. High oil resistance. |
| Construction: Cover | Chloroprene - Type A |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Braided, synthetic textile |
| Construction: Tube | Chloroprene - Type A. Black. High oil resistance |
3/4X10 LOW PRESS FUEL&OIL 250
| Minimum Bend Radius (in) | 6 |
|---|---|
| Minimum Bend Radius (mm) | 152 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 3 |
| Outside Diameter (in) | 1.09 |
| Outside Diameter (mm) | 19.1 |
| Coupling Recommendation | 19 Standard Air Hose. 21 Preformed Band Clamps. 48 Band-It Nipples. |
| Color | Black |
| Cover | Chloroprene - Type A. Smooth. |
| Reinforcement | Braided, synthetic textile |
| Tube | Chloroprene - Type A. High oil resistance. |
| Construction: Cover | Chloroprene - Type A |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Braided, synthetic textile |
| Construction: Tube | Chloroprene - Type A. Black. High oil resistance |
3/8X10 LOW PRESS FUEL&OIL 250
| Minimum Bend Radius (in) | 3 |
|---|---|
| Minimum Bend Radius (mm) | 76 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 3 |
| Outside Diameter (in) | 0.72 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | 19 Standard Air Hose. 21 Preformed Band Clamps. 48 Band-It Nipples. |
| Color | Black |
| Cover | Chloroprene - Type A. Smooth. |
| Reinforcement | Braided, synthetic textile |
| Tube | Chloroprene - Type A. High oil resistance. |
| Construction: Cover | Chloroprene - Type A |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Braided, synthetic textile |
| Construction: Tube | Chloroprene - Type A. Black. High oil resistance |
3X10 LOW PRESSURE FUEL&OIL 100
| Minimum Bend Radius (in) | 36 |
|---|---|
| Minimum Bend Radius (mm) | 914 |
| Inside Diameter (in) | 3 |
| Inside Diameter (mm) | 76.2 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure (psi) | 100 |
| Length (m) | 3 |
| Outside Diameter (in) | 3.27 |
| Outside Diameter (mm) | 76.2 |
| Coupling Recommendation | 19 Standard Air Hose. 21 Preformed Band Clamps. 48 Band-It Nipples. |
| Color | Black |
| Cover | Chloroprene - Type A. Smooth. |
| Reinforcement | Braided, synthetic textile |
| Tube | Chloroprene - Type A. High oil resistance. |
| Construction: Cover | Chloroprene - Type A |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Braided, synthetic textile |
| Construction: Tube | Chloroprene - Type A. Black. High oil resistance |
5/8X10 LOW PRESS FUEL&OIL 250
| Minimum Bend Radius (in) | 6 |
|---|---|
| Minimum Bend Radius (mm) | 152 |
| Inside Diameter (in) | 0.63 |
| Inside Diameter (mm) | 15.9 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 3 |
| Outside Diameter (in) | 0.97 |
| Outside Diameter (mm) | 15.9 |
| Coupling Recommendation | 19 Standard Air Hose. 21 Preformed Band Clamps. 48 Band-It Nipples. |
| Color | Black |
| Cover | Chloroprene - Type A. Smooth. |
| Reinforcement | Braided, synthetic textile |
| Tube | Chloroprene - Type A. High oil resistance. |
| Construction: Cover | Chloroprene - Type A |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Braided, synthetic textile |
| Construction: Tube | Chloroprene - Type A. Black. High oil resistance |
27000
| Vacuum (In. Hg) | 24 |
|---|---|
| Centerline Length (ft) | 25 |
| Centerline Length (in) | 36 |
| Centerline Length (m) | 7.62 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 0.125 |
| Hose Inside Diameter (mm) | 3.2 |
| Temperature Range | -40°F to +257°F (-40°C to +125°C) with gasoline blends. |
| type | Fuel Line/PCV/EEC Hose |
| Working Pressure (psi) | 50 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 6 |
| Weight (lbs.) | 1.11 |
27001
| Vacuum (In. Hg) | 24 |
|---|---|
| Centerline Length (ft) | 25 |
| Centerline Length (m) | 7.62 |
| Hose Inside Diameter (in). | 0.188 |
| Hose Inside Diameter (mm) | 4.8 |
| Inside Diameter 1 (in) | 0.1875 |
| Inside Diameter 1 (mm) | 4.8 |
| Inside Diameter 2 (in) | 0.1875 |
| Inside Diameter 2 (mm) | 4.8 |
| Working Pressure (psi) | 50 |
| Outside Diameter (in) | 0.41 |
| Outside Diameter (mm) | 10 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 6 |
| Weight (lbs.) | 1.66 |
27002
| Vacuum (In. Hg) | 24 |
|---|---|
| Centerline Length (ft) | 25 |
| Centerline Length (m) | 7.62 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.3 |
| Inside Diameter 1 (in) | 0.25 |
| Inside Diameter 1 (mm) | 6.3 |
| Inside Diameter 2 (in) | 0.25 |
| Inside Diameter 2 (mm) | 6.3 |
| Working Pressure (psi) | 50 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 13 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 6 |
| Weight (lbs.) | 2.35 |
27003
| Vacuum (In. Hg) | 24 |
|---|---|
| Centerline Length (ft) | 25 |
| Centerline Length (m) | 7.62 |
| Hose Inside Diameter (in). | 0.312 |
| Hose Inside Diameter (mm) | 8 |
| Inside Diameter 1 (in) | 0.3125 |
| Inside Diameter 1 (mm) | 8 |
| Inside Diameter 2 (in) | 0.3125 |
| Inside Diameter 2 (mm) | 8 |
| Working Pressure (psi) | 50 |
| Outside Diameter (in) | 0.56 |
| Outside Diameter (mm) | 14 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 6 |
| Weight (lbs.) | 2.64 |
27004
| Vacuum (In. Hg) | 24 |
|---|---|
| Centerline Length (ft) | 25 |
| Centerline Length (m) | 7.62 |
| Hose Inside Diameter (in). | 0.375 |
| Hose Inside Diameter (mm) | 9.5 |
| Inside Diameter 1 (in) | 0.375 |
| Inside Diameter 1 (mm) | 9.5 |
| Inside Diameter 2 (in) | 0.375 |
| Inside Diameter 2 (mm) | 9.5 |
| Working Pressure (psi) | 50 |
| Outside Diameter (in) | 0.62 |
| Outside Diameter (mm) | 16 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 6 |
| Weight (lbs.) | 3.0 |
27005
| Vacuum (In. Hg) | 24 |
|---|---|
| Centerline Length (ft) | 25 |
| Centerline Length (m) | 7.62 |
| Hose Inside Diameter (in). | 0.438 |
| Hose Inside Diameter (mm) | 11.1 |
| Inside Diameter 1 (in) | 0.4375 |
| Inside Diameter 1 (mm) | 11.1 |
| Inside Diameter 2 (in) | 0.4375 |
| Inside Diameter 2 (mm) | 11.1 |
| Working Pressure (psi) | 35 |
| Outside Diameter (in) | 0.72 |
| Outside Diameter (mm) | 18 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 1 |
| Weight (lbs.) | 4.05 |
27006
| Vacuum (In. Hg) | 10 |
|---|---|
| Centerline Length (ft) | 25 |
| Centerline Length (m) | 7.62 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Inside Diameter 1 (in) | 0.5 |
| Inside Diameter 1 (mm) | 12.7 |
| Inside Diameter 2 (in) | 0.5 |
| Inside Diameter 2 (mm) | 12.7 |
| Working Pressure (psi) | 35 |
| Outside Diameter (in) | 0.78 |
| Outside Diameter (mm) | 20 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 1 |
| Weight (lbs.) | 4.48 |
27008
| Vacuum (In. Hg) | 10 |
|---|---|
| Centerline Length (ft) | 25 |
| Centerline Length (m) | 7.62 |
| Hose Inside Diameter (in). | 0.625 |
| Hose Inside Diameter (mm) | 15.9 |
| Inside Diameter 1 (in) | 0.625 |
| Inside Diameter 1 (mm) | 15.9 |
| Inside Diameter 2 (in) | 0.625 |
| Inside Diameter 2 (mm) | 15.9 |
| Working Pressure (psi) | 35 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 24 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 1 |
| Weight (lbs.) | 6.08 |
27010
| Vacuum (In. Hg) | 10 |
|---|---|
| Centerline Length (ft) | 25 |
| Centerline Length (m) | 7.62 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19 |
| Inside Diameter 1 (in) | 0.75 |
| Inside Diameter 1 (mm) | 19 |
| Inside Diameter 2 (in) | 0.75 |
| Inside Diameter 2 (mm) | 19 |
| Working Pressure (psi) | 35 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 1 |
| Weight (lbs.) | 8.78 |
27019
| Vacuum (In. Hg) | 10 |
|---|---|
| Centerline Length (ft) | 250 |
| Centerline Length (m) | 76.2 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Inside Diameter 1 (in) | 0.5 |
| Inside Diameter 1 (mm) | 12.7 |
| Inside Diameter 2 (in) | 0.5 |
| Inside Diameter 2 (mm) | 12.7 |
| Working Pressure (psi) | 35 |
| Outside Diameter (in) | 0.78 |
| Outside Diameter (mm) | 20 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 1 |
| Weight (lbs.) | 52.0 |
27020
| Vacuum (In. Hg) | 10 |
|---|---|
| Centerline Length (ft) | 250 |
| Centerline Length (m) | 76.2 |
| Hose Inside Diameter (in). | 0.625 |
| Hose Inside Diameter (mm) | 15.9 |
| Inside Diameter 1 (in) | 0.625 |
| Inside Diameter 1 (mm) | 15.9 |
| Inside Diameter 2 (in) | 0.625 |
| Inside Diameter 2 (mm) | 15.9 |
| Working Pressure (psi) | 35 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 24 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 1 |
| Weight (lbs.) | 60.8 |
27021
| Vacuum (In. Hg) | 10 |
|---|---|
| Centerline Length (ft) | 250 |
| Centerline Length (m) | 76.2 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19 |
| Inside Diameter 1 (in) | 0.75 |
| Inside Diameter 1 (mm) | 19 |
| Inside Diameter 2 (in) | 0.75 |
| Inside Diameter 2 (mm) | 19 |
| Working Pressure (psi) | 35 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 1 |
| Weight (lbs.) | 87.83 |
27027
| Vacuum (In. Hg) | 24 |
|---|---|
| Centerline Length (ft) | 2 |
| Centerline Length (m) | 0.61 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.3 |
| Inside Diameter 1 (in) | 0.25 |
| Inside Diameter 1 (mm) | 6.3 |
| Inside Diameter 2 (in) | 0.25 |
| Inside Diameter 2 (mm) | 6.3 |
| Working Pressure (psi) | 50 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 13 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 54 |
| Weight (lbs.) | 0.19 |
27028
| Vacuum (In. Hg) | 24 |
|---|---|
| Centerline Length (ft) | 2 |
| Centerline Length (m) | 0.61 |
| Hose Inside Diameter (in). | 0.312 |
| Hose Inside Diameter (mm) | 8 |
| Inside Diameter 1 (in) | 0.3125 |
| Inside Diameter 1 (mm) | 8 |
| Inside Diameter 2 (in) | 0.3125 |
| Inside Diameter 2 (mm) | 8 |
| Working Pressure (psi) | 50 |
| Outside Diameter (in) | 0.56 |
| Outside Diameter (mm) | 14 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 54 |
| Weight (lbs.) | 0.21 |
27029
| Vacuum (In. Hg) | 24 |
|---|---|
| Centerline Length (ft) | 2 |
| Centerline Length (m) | 0.61 |
| Hose Inside Diameter (in). | 0.375 |
| Hose Inside Diameter (mm) | 9.5 |
| Inside Diameter 1 (in) | 0.375 |
| Inside Diameter 1 (mm) | 9.5 |
| Inside Diameter 2 (in) | 0.375 |
| Inside Diameter 2 (mm) | 9.5 |
| Working Pressure (psi) | 50 |
| Outside Diameter (in) | 0.62 |
| Outside Diameter (mm) | 16 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 54 |
| Weight (lbs.) | 0.24 |
27068
| Vacuum (In. Hg) | 24 |
|---|---|
| Centerline Length (ft) | 250 |
| Centerline Length (m) | 76.2 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.3 |
| Inside Diameter 1 (in) | 0.25 |
| Inside Diameter 1 (mm) | 6.3 |
| Inside Diameter 2 (in) | 0.25 |
| Inside Diameter 2 (mm) | 6.3 |
| Working Pressure (psi) | 50 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 13 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 1 |
| Weight (lbs.) | 23.46 |
27069
| Vacuum (In. Hg) | 24 |
|---|---|
| Centerline Length (ft) | 250 |
| Centerline Length (m) | 76.2 |
| Hose Inside Diameter (in). | 0.312 |
| Hose Inside Diameter (mm) | 8 |
| Inside Diameter 1 (in) | 0.3125 |
| Inside Diameter 1 (mm) | 8 |
| Inside Diameter 2 (in) | 0.3125 |
| Inside Diameter 2 (mm) | 8 |
| Working Pressure (psi) | 50 |
| Outside Diameter (in) | 0.56 |
| Outside Diameter (mm) | 14 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 1 |
| Weight (lbs.) | 26.43 |
27070
| Vacuum (In. Hg) | 24 |
|---|---|
| Centerline Length (ft) | 250 |
| Centerline Length (m) | 76.2 |
| Hose Inside Diameter (in). | 0.375 |
| Hose Inside Diameter (mm) | 9.5 |
| Inside Diameter 1 (in) | 0.375 |
| Inside Diameter 1 (mm) | 9.5 |
| Inside Diameter 2 (in) | 0.375 |
| Inside Diameter 2 (mm) | 9.5 |
| Working Pressure (psi) | 50 |
| Outside Diameter (in) | 0.62 |
| Outside Diameter (mm) | 16 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 1 |
| Weight (lbs.) | 30.02 |
27098
| Vacuum (In. Hg) | 24 |
|---|---|
| Centerline Length (ft) | 250 |
| Centerline Length (m) | 76.2 |
| Hose Inside Diameter (in). | 0.188 |
| Hose Inside Diameter (mm) | 4.8 |
| Inside Diameter 1 (in) | 0.1875 |
| Inside Diameter 1 (mm) | 4.76 |
| Inside Diameter 2 (in) | 0.1875 |
| Inside Diameter 2 (mm) | 4.76 |
| Working Pressure (psi) | 50 |
| Outside Diameter (in) | 0.41 |
| Outside Diameter (mm) | 10 |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 1 |
| Weight (lbs.) | 21.68 |
3225-00050
| Outside Diameter 1 (mm) | 7.5 |
|---|---|
| Inside Diameter 1 (in) | 0.13 |
| Inside Diameter 1 (mm) | 3.2 |
| Inside Diameter 2 (in) | 0.13 |
| Inside Diameter 2 (mm) | 3.2 |
| Max. Working Pressure (Bar) | 7.5 |
| Length (m) | 15 |
3225-00051
| Outside Diameter 1 (mm) | 9.15 |
|---|---|
| Inside Diameter 1 (in) | 0.16 |
| Inside Diameter 1 (mm) | 4 |
| Inside Diameter 2 (in) | 0.16 |
| Inside Diameter 2 (mm) | 4 |
| Max. Working Pressure (Bar) | 7.5 |
| Length (m) | 15 |
3225-00052
| Outside Diameter 1 (mm) | 11.7 |
|---|---|
| Inside Diameter 1 (in) | 0.24 |
| Inside Diameter 1 (mm) | 6 |
| Inside Diameter 2 (in) | 0.24 |
| Inside Diameter 2 (mm) | 6 |
| Max. Working Pressure (Bar) | 7.5 |
| Length (m) | 15 |
3225-00053
| Outside Diameter 1 (mm) | 13.7 |
|---|---|
| Inside Diameter 1 (in) | 0.31 |
| Inside Diameter 1 (mm) | 8 |
| Inside Diameter 2 (in) | 0.31 |
| Inside Diameter 2 (mm) | 8 |
| Max. Working Pressure (Bar) | 7.5 |
| Length (m) | 15 |
3225-00055
| Outside Diameter 1 (mm) | 10.4 |
|---|---|
| Inside Diameter 1 (in) | 0.2 |
| Inside Diameter 1 (mm) | 5 |
| Inside Diameter 2 (in) | 0.2 |
| Inside Diameter 2 (mm) | 5 |
| Max. Working Pressure (Bar) | 7.5 |
| Length (m) | 15 |
3225-00056
| Outside Diameter 1 (mm) | 12.95 |
|---|---|
| Inside Diameter 1 (in) | 0.28 |
| Inside Diameter 1 (mm) | 7 |
| Inside Diameter 2 (in) | 0.28 |
| Inside Diameter 2 (mm) | 7 |
| Max. Working Pressure (Bar) | 7.5 |
| Length (m) | 15 |
3225-00060
No variation attributes.
3225-00061
No variation attributes.
3225-00062
No variation attributes.
3225-00063
No variation attributes.
3225-00064
No variation attributes.
3225-00065
No variation attributes.
3225-00066
No variation attributes.
3225-00054
| Outside Diameter 1 (mm) | 16.25 |
|---|---|
| Inside Diameter 1 (in) | 0.39 |
| Inside Diameter 1 (mm) | 10 |
| Inside Diameter 2 (in) | 0.39 |
| Inside Diameter 2 (mm) | 10 |
| Max. Working Pressure (Bar) | 7.5 |
| Length (m) | 10 |
32250076
No variation attributes.
32255002
No variation attributes.
32250070
No variation attributes.
32250014
No variation attributes.
32250118
No variation attributes.
32250073
No variation attributes.
32255001
No variation attributes.
32250075
No variation attributes.
32250072
No variation attributes.
32250071
No variation attributes.
32250015
No variation attributes.
32255003
No variation attributes.
32250074
No variation attributes.
32250079
No variation attributes.
Specifications
| Minimum Bend Radius (in) | 3 – 36 |
|---|---|
| Minimum Bend Radius (mm) | 76 – 914 |
| Inside Diameter (in) | 0.25 – 3 |
| Inside Diameter (mm) | 6.4 – 76.2 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C), -40°F to +257°F (-40°C to +125°C) with gasoline blends. |
| Working Pressure (psi) | 35 – 250 |
| Length (m) | 3 – 15 |
| Outside Diameter (in) | 0.41 – 3.27 |
| Outside Diameter (mm) | 6.4 – 76.2 |
| Coupling Recommendation | 19 Standard Air Hose. 21 Preformed Band Clamps. 48 Band-It Nipples. |
| Color | Black |
| Cover | Chloroprene - Type A. Smooth. |
| Reinforcement | Braided, synthetic textile |
| Tube | Chloroprene - Type A. High oil resistance. |
| Construction: Cover | Chloroprene - Type A |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Braided, synthetic textile |
| Construction: Tube | Chloroprene - Type A. Black. High oil resistance |
| Vacuum (In. Hg) | 10 – 24 |
| Centerline Length (ft) | 2 – 250 |
| Centerline Length (in) | 36 |
| Centerline Length (m) | 0.61 – 76.2 |
| Centerline Length (mm) | 914 |
| Hose Inside Diameter (in). | 0.125 – 0.75 |
| Hose Inside Diameter (mm) | 3.2 – 19 |
| type | Fuel Line/PCV/EEC Hose |
| Caution | Do not use for pressure lines on fuel injected engines or for cooling system applications. Use Barricade® Fuel Injection hose for fuel injection applications. Intended for use with fuels where MTBE concentrations are no greater than 15% by volume. |
| Customer Pack | 1 – 54 |
| Weight (lbs.) | 0.19 – 87.83 |
| Inside Diameter 1 (in) | 0.13 – 0.75 |
| Inside Diameter 1 (mm) | 3.2 – 19 |
| Inside Diameter 2 (in) | 0.13 – 0.75 |
| Inside Diameter 2 (mm) | 3.2 – 19 |
| Outside Diameter 1 (mm) | 7.5 – 16.25 |
| Max. Working Pressure (Bar) | 7.5 |
PDF Documents
No PDF documents.
