Attributes
| Part Number | 7483-000000-000000 |
|---|
Description

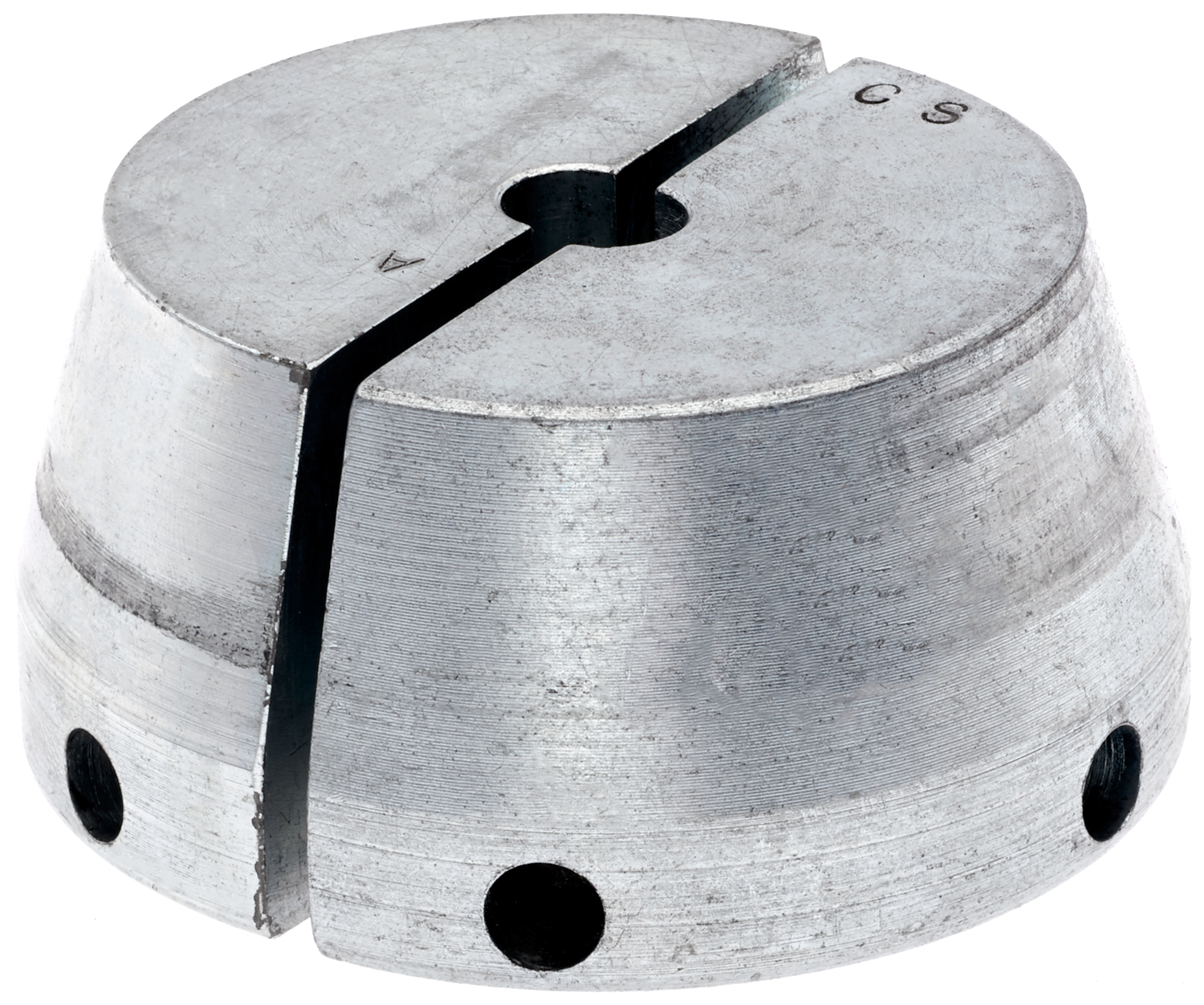

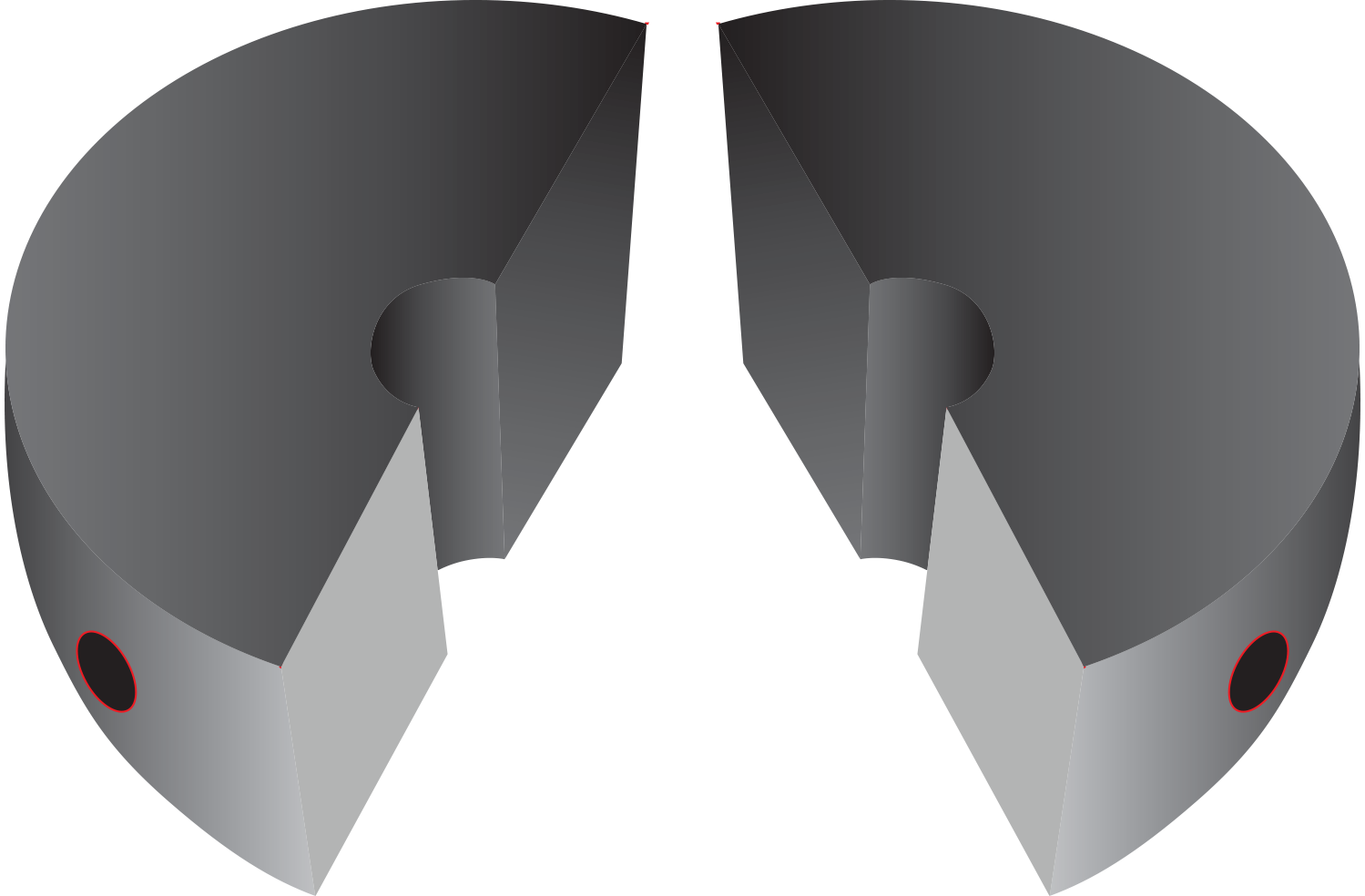

C14 Swage Equipment Gates dies are precision designed and machined to work with Gates authorized crimpers to deliver factory-quality assemblies in the field. Specifically designed to swage Gates C14 hose assemblies. They provide the required swage dimensions to meet full performance. One die set is required for each hose size. See product numbers listed in Gates Crimp Data and Dies Manual.
Variations (19)
CUTTING SHEAR FOR C14 / 78006
| Height (in) | 15 |
|---|---|
| Height (mm) | 381 |
| Specifications | Dimensions: 9" wide by 15" high by 14" deep. 30" handle. |
| Width (in) | 9 |
| Width (mm) | 229 |
| Customer Pack | 1 |
| Weight (lbs.) | 23.0 |
HD-10C14 INSERTION DIE / 78525
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 0.5 |
HD-12C14 INSERTION DIE / 78526
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 0.4 |
HD-16C14 INSERTION DIE / 78527
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 0.25 |
HD-4C14 INSERTION DIE / 78521
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 0.6 |
HD-5C14 INSERTION DIE / 78522
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 0.6 |
HD-6C14 INSERTION DIE / 78523
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 0.55 |
HD-8C14 INSERTION DIE / 78524
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 0.55 |

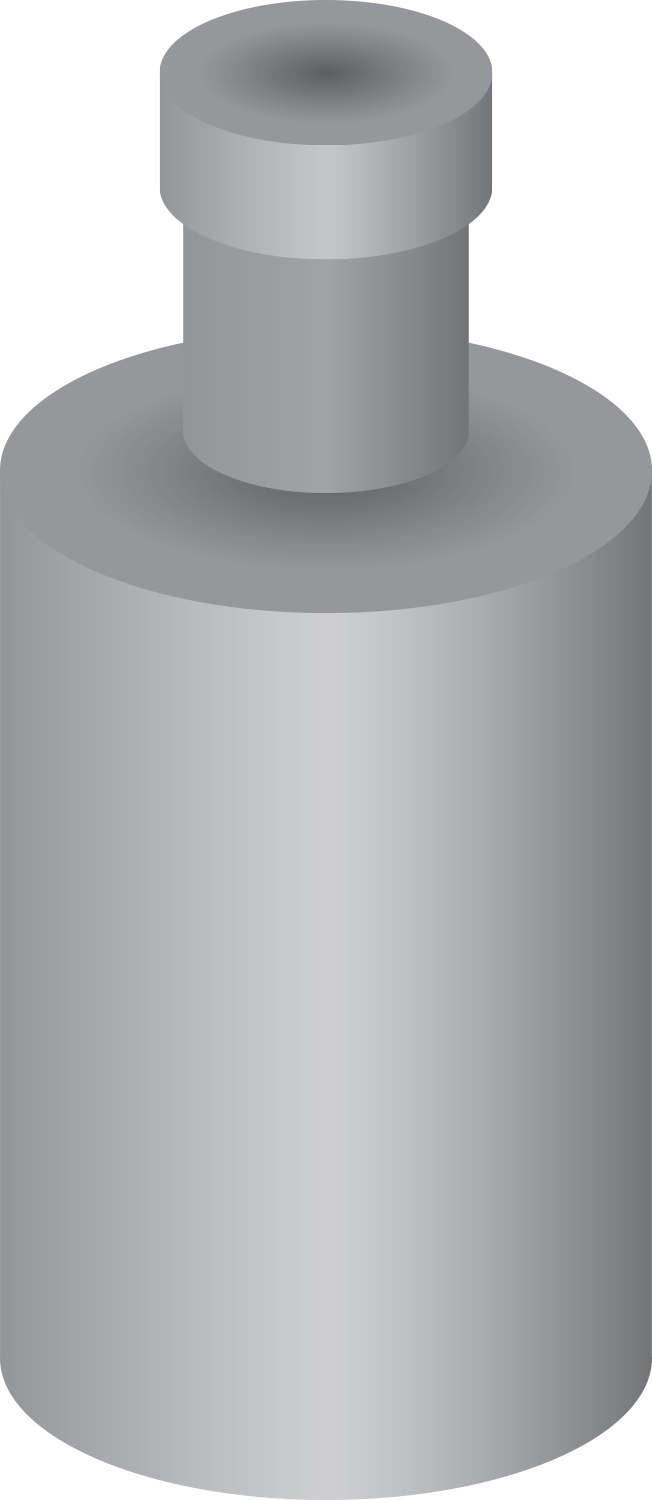

HE-10C14 EXPANDER / 78534
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 0.65 |
HE-12C14 EXPANDER / 78535
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 0.75 |
HE-16C14 EXPANDER / 78536
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 1.33 |
HE-4C14 EXPANDER / 78530
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 1.33 |
HE-5C14 EXPANDER / 78531
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 0.5 |
HE-6C14 EXPANDER / 78532
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 0.6 |
HE-8C14 EXPANDER / 78533
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 0.55 |
HOSE INSERTION FIXTURE / 78517
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 0.58 |
INSERTION DIE HOLDER / 78518
| Customer Pack | 1 |
|---|---|
| Weight (lbs.) | 0.74 |
78652
No variation attributes.
74830502
No variation attributes.
Specifications
| Height (in) | 15 |
|---|---|
| Height (mm) | 381 |
| Specifications | Dimensions: 9" wide by 15" high by 14" deep. 30" handle. |
| Width (in) | 9 |
| Width (mm) | 229 |
| Customer Pack | 1 |
| Weight (lbs.) | 0.25 – 23.0 |
