Attributes
| Part Number | 9186-000000-000000 |
|---|
Description

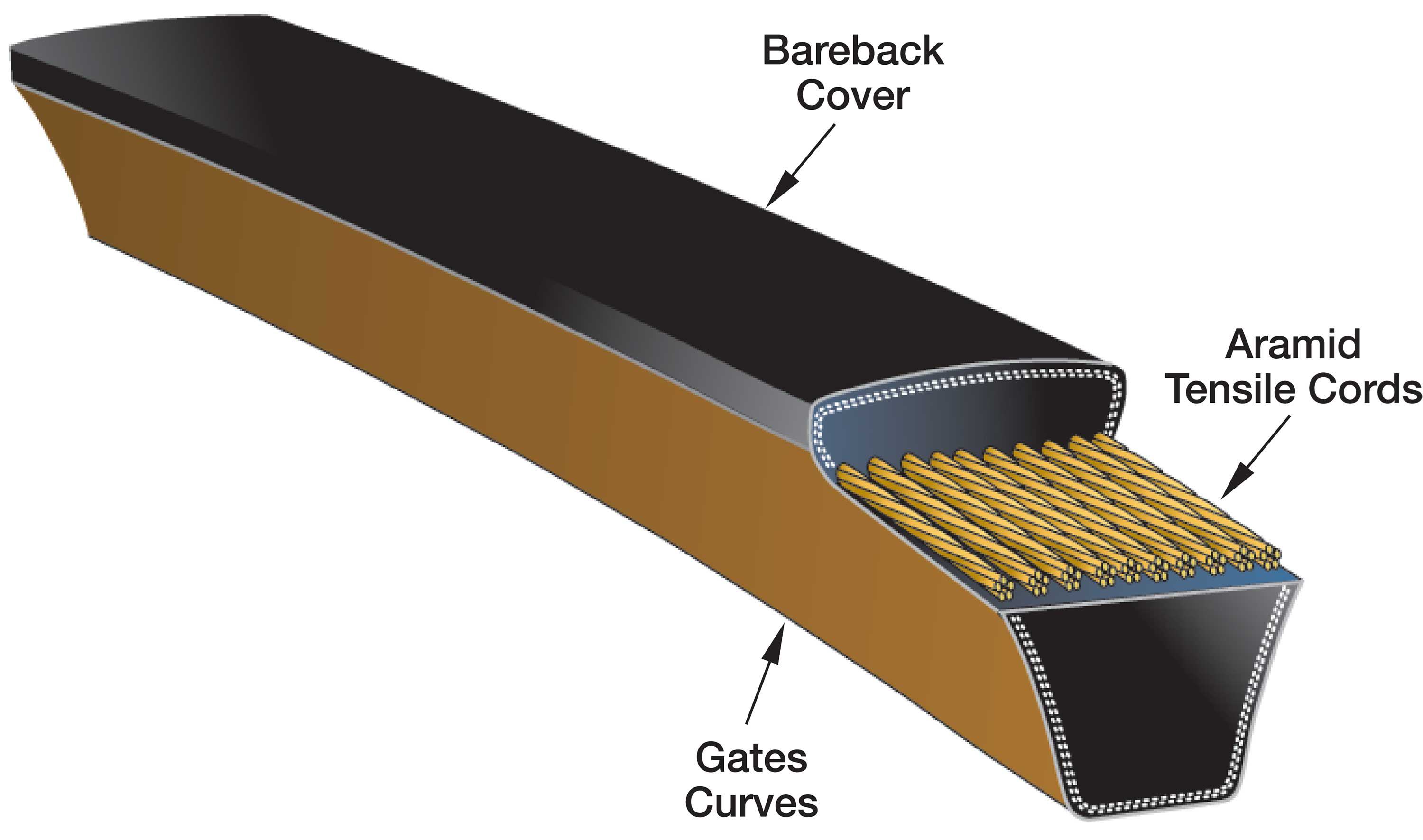

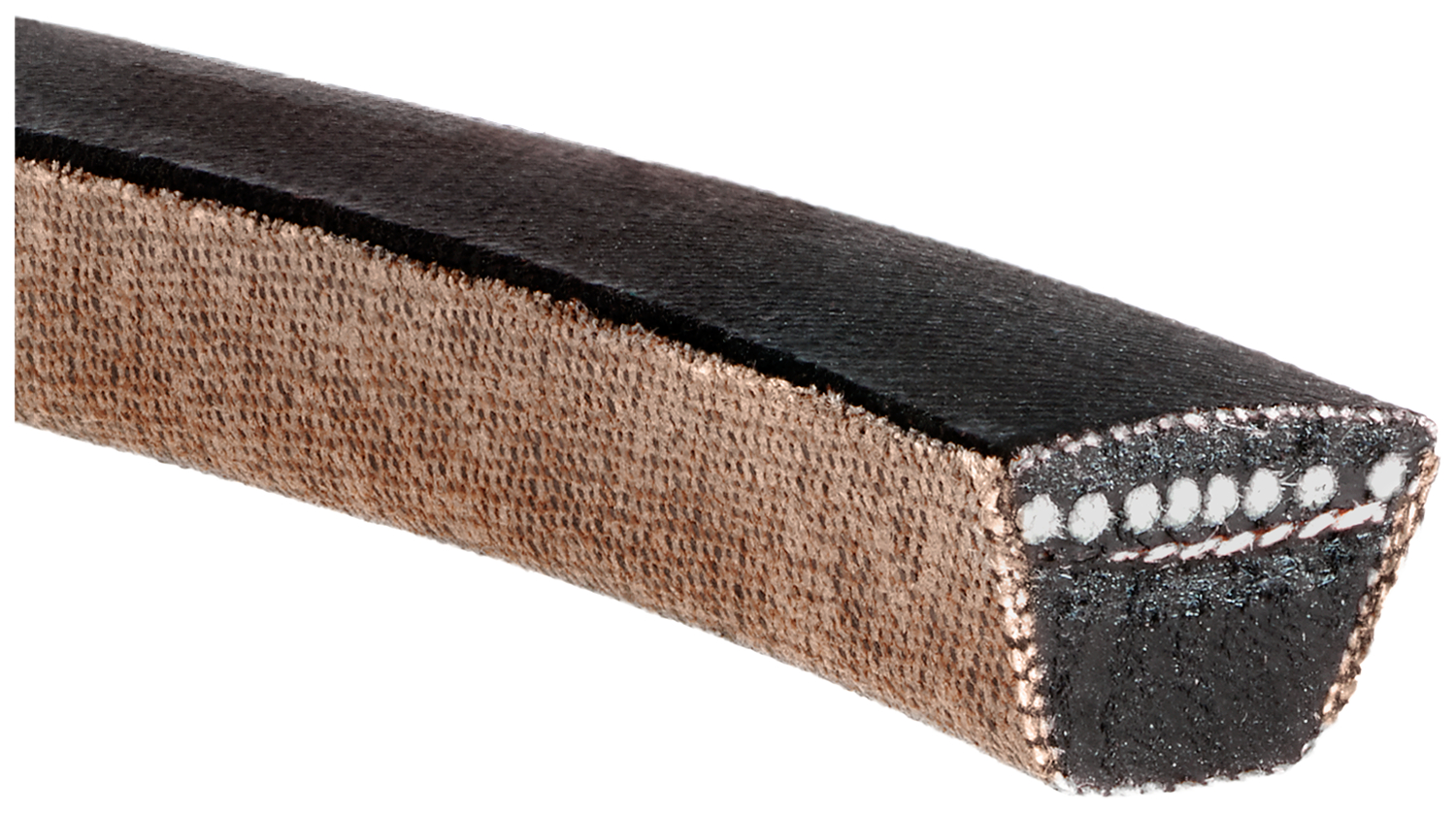

Predator™ Single Belts Improved neoprene rubber compounds provide superb oil and heat resistance. Aramid tensile cord construction is pound for pound stronger than steel and can handle up to 2.2 times (or 40%) more horsepower than standard V-belts. Minimal re-tensioning reduces maintenance needs; less maintenance, less downtime.
Variations (207)
5VP1000
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 100 |
| Inside Circumference (mm) | 2540 |
| Effective Length (in) | 98.81 |
| Effective Length (mm) | 2510 |
| Notched | false |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.28 |
5VP1060
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 106 |
| Inside Circumference (mm) | 2692 |
| Effective Length (in) | 104.74 |
| Effective Length (mm) | 2660 |
| Notched | false |
| Outside Circumference (in) | 106 |
| Outside Circumference (mm) | 2692 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.35 |
5VP1120
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 112 |
| Inside Circumference (mm) | 2845 |
| Effective Length (in) | 110.67 |
| Effective Length (mm) | 2811 |
| Notched | false |
| Outside Circumference (in) | 112 |
| Outside Circumference (mm) | 2845 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.43 |
5VP1180
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 118 |
| Inside Circumference (mm) | 2997 |
| Effective Length (in) | 116.6 |
| Effective Length (mm) | 2962 |
| Notched | false |
| Outside Circumference (in) | 118 |
| Outside Circumference (mm) | 2997 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.5 |
5VP1250
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 125 |
| Inside Circumference (mm) | 3175 |
| Effective Length (in) | 123.52 |
| Effective Length (mm) | 3137 |
| Notched | false |
| Outside Circumference (in) | 125 |
| Outside Circumference (mm) | 3175 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.59 |
5VP1320
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 132 |
| Inside Circumference (mm) | 3353 |
| Effective Length (in) | 130.43 |
| Effective Length (mm) | 3313 |
| Notched | false |
| Outside Circumference (in) | 132 |
| Outside Circumference (mm) | 3353 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.68 |
5VP1400
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 140 |
| Inside Circumference (mm) | 3556 |
| Effective Length (in) | 138.34 |
| Effective Length (mm) | 3514 |
| Notched | false |
| Outside Circumference (in) | 140 |
| Outside Circumference (mm) | 3556 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.79 |
5VP1500
No variation attributes.
5VP1600
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 160 |
| Inside Circumference (mm) | 4064 |
| Effective Length (in) | 158.1 |
| Effective Length (mm) | 4016 |
| Notched | false |
| Outside Circumference (in) | 160 |
| Outside Circumference (mm) | 4064 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.04 |
5VP1700
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 170 |
| Inside Circumference (mm) | 4318 |
| Effective Length (in) | 167.98 |
| Effective Length (mm) | 4267 |
| Notched | false |
| Outside Circumference (in) | 170 |
| Outside Circumference (mm) | 4318 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.17 |
5VP1800
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 180 |
| Inside Circumference (mm) | 4572 |
| Effective Length (in) | 178.85 |
| Effective Length (mm) | 4543 |
| Notched | false |
| Outside Circumference (in) | 180 |
| Outside Circumference (mm) | 4597 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.3 |
5VP1900
No variation attributes.
5VP2000
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 200 |
| Inside Circumference (mm) | 5080 |
| Effective Length (in) | 197.63 |
| Effective Length (mm) | 5020 |
| Notched | false |
| Outside Circumference (in) | 200 |
| Outside Circumference (mm) | 5080 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.55 |
5VP2120
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 212 |
| Inside Circumference (mm) | 5385 |
| Effective Length (in) | 209.49 |
| Effective Length (mm) | 5321 |
| Notched | false |
| Outside Circumference (in) | 212 |
| Outside Circumference (mm) | 5385 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.7 |
5VP2240
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 224 |
| Inside Circumference (mm) | 5690 |
| Effective Length (in) | 221.34 |
| Effective Length (mm) | 5622 |
| Notched | false |
| Outside Circumference (in) | 224 |
| Outside Circumference (mm) | 5690 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 2.86 |
5VP2360
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 236 |
| Inside Circumference (mm) | 5994 |
| Effective Length (in) | 233.2 |
| Effective Length (mm) | 5923 |
| Notched | false |
| Outside Circumference (in) | 236 |
| Outside Circumference (mm) | 5994 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 3.01 |
5VP2500
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 250 |
| Inside Circumference (mm) | 6350 |
| Effective Length (in) | 247.04 |
| Effective Length (mm) | 6275 |
| Notched | false |
| Outside Circumference (in) | 250 |
| Outside Circumference (mm) | 6350 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 3.19 |
5VP2650
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 265 |
| Inside Circumference (mm) | 6731 |
| Effective Length (in) | 261.86 |
| Effective Length (mm) | 6651 |
| Notched | false |
| Outside Circumference (in) | 265 |
| Outside Circumference (mm) | 6731 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 3.38 |
5VP2800
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 280 |
| Inside Circumference (mm) | 7112 |
| Effective Length (in) | 276.68 |
| Effective Length (mm) | 7028 |
| Notched | false |
| Outside Circumference (in) | 280 |
| Outside Circumference (mm) | 7112 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 3.57 |
5VP3000
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 300 |
| Inside Circumference (mm) | 7620 |
| Effective Length (in) | 296.44 |
| Effective Length (mm) | 7530 |
| Notched | false |
| Outside Circumference (in) | 300 |
| Outside Circumference (mm) | 7620 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 3.83 |
5VP3150
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 315 |
| Inside Circumference (mm) | 8001 |
| Effective Length (in) | 311.26 |
| Effective Length (mm) | 7906 |
| Notched | false |
| Outside Circumference (in) | 315 |
| Outside Circumference (mm) | 8001 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 4.02 |
5VP3550
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 355 |
| Inside Circumference (mm) | 9017 |
| Effective Length (in) | 350.79 |
| Effective Length (mm) | 8910 |
| Notched | false |
| Outside Circumference (in) | 355 |
| Outside Circumference (mm) | 9017 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 5 |
| Weight (lbs.) | 4.53 |
5VP800
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 80 |
| Inside Circumference (mm) | 2032 |
| Effective Length (in) | 79.05 |
| Effective Length (mm) | 2008 |
| Notched | false |
| Outside Circumference (in) | 80 |
| Outside Circumference (mm) | 2032 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.02 |
5VP850
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 85 |
| Inside Circumference (mm) | 2159 |
| Effective Length (in) | 83.99 |
| Effective Length (mm) | 2133 |
| Notched | false |
| Outside Circumference (in) | 85 |
| Outside Circumference (mm) | 2159 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.08 |
5VP900
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 90 |
| Inside Circumference (mm) | 2286 |
| Effective Length (in) | 88.93 |
| Effective Length (mm) | 2259 |
| Notched | false |
| Outside Circumference (in) | 90 |
| Outside Circumference (mm) | 2286 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.15 |
5VP950
| Cross Section | 5VP |
|---|---|
| Inside Circumference (in) | 95 |
| Inside Circumference (mm) | 2413 |
| Effective Length (in) | 93.87 |
| Effective Length (mm) | 2384 |
| Notched | false |
| Outside Circumference (in) | 95 |
| Outside Circumference (mm) | 2413 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.21 |
8VP1600
| Cross Section | 8VP |
|---|---|
| Inside Circumference (in) | 160 |
| Inside Circumference (mm) | 4064 |
| Effective Length (in) | 158.1 |
| Effective Length (mm) | 4016 |
| Notched | false |
| Outside Circumference (in) | 160.5 |
| Outside Circumference (mm) | 4.077 |
| Number of Ribs | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 5 |
| Weight (lbs.) | 2.32 |
8VP1700
| Cross Section | 8VP |
|---|---|
| Inside Circumference (in) | 170 |
| Inside Circumference (mm) | 4318 |
| Effective Length (in) | 167.98 |
| Effective Length (mm) | 4267 |
| Notched | false |
| Outside Circumference (in) | 170.5 |
| Outside Circumference (mm) | 4.331 |
| Number of Ribs | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 5 |
| Weight (lbs.) | 2.5 |
8VP1800
| Cross Section | 8VP |
|---|---|
| Inside Circumference (in) | 180 |
| Inside Circumference (mm) | 4572 |
| Effective Length (in) | 177.87 |
| Effective Length (mm) | 4518 |
| Notched | false |
| Outside Circumference (in) | 180.5 |
| Outside Circumference (mm) | 4.585 |
| Number of Ribs | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 5 |
| Weight (lbs.) | 2.68 |
8VP1900
| Cross Section | 8VP |
|---|---|
| Inside Circumference (in) | 190 |
| Inside Circumference (mm) | 4826 |
| Effective Length (in) | 187.75 |
| Effective Length (mm) | 4769 |
| Notched | false |
| Outside Circumference (in) | 190.5 |
| Outside Circumference (mm) | 4.839 |
| Number of Ribs | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 4 |
| Weight (lbs.) | 2.87 |
8VP2000
| Cross Section | 8VP |
|---|---|
| Inside Circumference (in) | 200 |
| Inside Circumference (mm) | 5080 |
| Effective Length (in) | 197.63 |
| Effective Length (mm) | 5020 |
| Notched | false |
| Outside Circumference (in) | 201.1 |
| Outside Circumference (mm) | 5.108 |
| Number of Ribs | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 4 |
| Weight (lbs.) | 3.05 |
8VP2120
| Cross Section | 8VP |
|---|---|
| Inside Circumference (in) | 212 |
| Inside Circumference (mm) | 5385 |
| Effective Length (in) | 209.49 |
| Effective Length (mm) | 5321 |
| Notched | false |
| Outside Circumference (in) | 212.5 |
| Outside Circumference (mm) | 5.398 |
| Number of Ribs | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 4 |
| Weight (lbs.) | 3.27 |
8VP2240
| Cross Section | 8VP |
|---|---|
| Inside Circumference (in) | 224 |
| Inside Circumference (mm) | 5690 |
| Effective Length (in) | 221.34 |
| Effective Length (mm) | 5622 |
| Notched | false |
| Outside Circumference (in) | 224.5 |
| Outside Circumference (mm) | 5.703 |
| Number of Ribs | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 4 |
| Weight (lbs.) | 3.5 |
8VP2360
| Cross Section | 8VP |
|---|---|
| Inside Circumference (in) | 236 |
| Inside Circumference (mm) | 5994 |
| Effective Length (in) | 233.2 |
| Effective Length (mm) | 5923 |
| Notched | false |
| Outside Circumference (in) | 236.5 |
| Outside Circumference (mm) | 6.007 |
| Number of Ribs | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 3 |
| Weight (lbs.) | 3.72 |
8VP2500
| Cross Section | 8VP |
|---|---|
| Inside Circumference (in) | 250 |
| Inside Circumference (mm) | 6350 |
| Effective Length (in) | 247.04 |
| Effective Length (mm) | 6275 |
| Notched | false |
| Outside Circumference (in) | 250.5 |
| Outside Circumference (mm) | 6.363 |
| Number of Ribs | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 3 |
| Weight (lbs.) | 3.98 |
8VP2650
| Cross Section | 8VP |
|---|---|
| Inside Circumference (in) | 265 |
| Inside Circumference (mm) | 6731 |
| Effective Length (in) | 261.86 |
| Effective Length (mm) | 6651 |
| Notched | false |
| Outside Circumference (in) | 265.5 |
| Outside Circumference (mm) | 6.744 |
| Number of Ribs | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 3 |
| Weight (lbs.) | 4.25 |
8VP2800
| Cross Section | 8VP |
|---|---|
| Inside Circumference (in) | 280 |
| Inside Circumference (mm) | 7112 |
| Effective Length (in) | 276.68 |
| Effective Length (mm) | 7028 |
| Notched | false |
| Outside Circumference (in) | 280.5 |
| Outside Circumference (mm) | 7.125 |
| Number of Ribs | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 3 |
| Weight (lbs.) | 4.53 |
8VP3000
| Cross Section | 8VP |
|---|---|
| Inside Circumference (in) | 300 |
| Inside Circumference (mm) | 7620 |
| Effective Length (in) | 296.44 |
| Effective Length (mm) | 7530 |
| Notched | false |
| Outside Circumference (in) | 300.5 |
| Outside Circumference (mm) | 7.633 |
| Number of Ribs | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 3 |
| Weight (lbs.) | 4.9 |
8VP3150
| Cross Section | 8VP |
|---|---|
| Inside Circumference (in) | 315 |
| Inside Circumference (mm) | 8001 |
| Effective Length (in) | 311.26 |
| Effective Length (mm) | 7906 |
| Notched | false |
| Outside Circumference (in) | 315.5 |
| Outside Circumference (mm) | 8.014 |
| Number of Ribs | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 3 |
| Weight (lbs.) | 5.175 |
8VP3350
| Cross Section | 8VP |
|---|---|
| Inside Circumference (in) | 335 |
| Inside Circumference (mm) | 8509 |
| Effective Length (in) | 331.03 |
| Effective Length (mm) | 8408 |
| Notched | false |
| Outside Circumference (in) | 335.5 |
| Outside Circumference (mm) | 8.522 |
| Number of Ribs | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 1 |
| Weight (lbs.) | 5.55 |
8VP3550
| Cross Section | 8VP |
|---|---|
| Inside Circumference (in) | 355 |
| Inside Circumference (mm) | 9017 |
| Effective Length (in) | 350.79 |
| Effective Length (mm) | 8910 |
| Notched | false |
| Outside Circumference (in) | 355.5 |
| Outside Circumference (mm) | 9.03 |
| Number of Ribs | 1 |
| Top Width (in) | 1.02 |
| Top Width (mm) | 26 |
| Angle. | 40 |
| Thickness (in) | 0.91 |
| Thickness (mm) | 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 1 |
| Weight (lbs.) | 5.92 |
AP33
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 33 |
| Inside Circumference (mm) | 838 |
| Effective Length (in) | 34.97 |
| Effective Length (mm) | 838 |
| Notched | false |
| Outside Circumference (in) | 35 |
| Outside Circumference (mm) | 889 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.26 |
AP35
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 35 |
| Inside Circumference (mm) | 889 |
| Effective Length (in) | 36.97 |
| Effective Length (mm) | 889 |
| Notched | false |
| Outside Circumference (in) | 37 |
| Outside Circumference (mm) | 940 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.27 |
AP38
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 38 |
| Inside Circumference (mm) | 965 |
| Effective Length (in) | 39.96 |
| Effective Length (mm) | 965 |
| Notched | false |
| Outside Circumference (in) | 40 |
| Outside Circumference (mm) | 1016 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.29 |
AP40
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 40 |
| Inside Circumference (mm) | 1016 |
| Effective Length (in) | 41.96 |
| Effective Length (mm) | 1016 |
| Notched | false |
| Outside Circumference (in) | 42 |
| Outside Circumference (mm) | 1067 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.31 |
AP41
| Cross Section | A |
|---|---|
| Inside Circumference (in) | 41 |
| Inside Circumference (mm) | 1041 |
| Effective Length (in) | 42.96 |
| Effective Length (mm) | 1041 |
| Outside Circumference (in) | 43 |
| Outside Circumference (mm) | 1092 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 99 |
| Weight (lbs.) | 0.32 |
AP42
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 42 |
| Inside Circumference (mm) | 1067 |
| Effective Length (in) | 43.96 |
| Effective Length (mm) | 1067 |
| Notched | false |
| Outside Circumference (in) | 44 |
| Outside Circumference (mm) | 1118 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.32 |
AP43
No variation attributes.
AP44
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 44 |
| Inside Circumference (mm) | 1118 |
| Effective Length (in) | 45.96 |
| Effective Length (mm) | 1118 |
| Notched | false |
| Outside Circumference (in) | 46 |
| Outside Circumference (mm) | 1168 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.34 |
AP45
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 45 |
| Inside Circumference (mm) | 1143 |
| Effective Length (in) | 46.96 |
| Effective Length (mm) | 1143 |
| Notched | false |
| Outside Circumference (in) | 47 |
| Outside Circumference (mm) | 1194 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 39 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.35 |
AP46
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 46 |
| Inside Circumference (mm) | 1168 |
| Effective Length (in) | 47.96 |
| Effective Length (mm) | 1168 |
| Notched | false |
| Outside Circumference (in) | 48 |
| Outside Circumference (mm) | 1219 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.35 |
AP47
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 47 |
| Inside Circumference (mm) | 1194 |
| Effective Length (in) | 48.96 |
| Effective Length (mm) | 1194 |
| Notched | false |
| Outside Circumference (in) | 49 |
| Outside Circumference (mm) | 1245 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.36 |
AP48
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 48 |
| Inside Circumference (mm) | 1219 |
| Effective Length (in) | 49.96 |
| Effective Length (mm) | 1219 |
| Notched | false |
| Outside Circumference (in) | 50 |
| Outside Circumference (mm) | 1270 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 39 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.37 |
AP50
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 50 |
| Inside Circumference (mm) | 1270 |
| Effective Length (in) | 51.95 |
| Effective Length (mm) | 1270 |
| Notched | false |
| Outside Circumference (in) | 52 |
| Outside Circumference (mm) | 1321 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.38 |
AP51
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 51 |
| Inside Circumference (mm) | 1295 |
| Effective Length (in) | 52.95 |
| Effective Length (mm) | 1295 |
| Notched | false |
| Outside Circumference (in) | 53 |
| Outside Circumference (mm) | 1346 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.39 |
AP52
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 52 |
| Inside Circumference (mm) | 1321 |
| Effective Length (in) | 53.95 |
| Effective Length (mm) | 1321 |
| Notched | false |
| Outside Circumference (in) | 54 |
| Outside Circumference (mm) | 1372 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.4 |
AP53
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 53 |
| Inside Circumference (mm) | 1346 |
| Effective Length (in) | 54.95 |
| Effective Length (mm) | 1346 |
| Notched | false |
| Outside Circumference (in) | 55 |
| Outside Circumference (mm) | 1397 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.4 |
AP54
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 54 |
| Inside Circumference (mm) | 1372 |
| Effective Length (in) | 55.95 |
| Effective Length (mm) | 1372 |
| Notched | false |
| Outside Circumference (in) | 56 |
| Outside Circumference (mm) | 1422 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.41 |
AP55
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 55 |
| Inside Circumference (mm) | 1397 |
| Effective Length (in) | 56.95 |
| Effective Length (mm) | 1397 |
| Notched | false |
| Outside Circumference (in) | 57 |
| Outside Circumference (mm) | 1448 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 38 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.42 |
AP58
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 58 |
| Inside Circumference (mm) | 1473 |
| Effective Length (in) | 59.95 |
| Effective Length (mm) | 1473 |
| Notched | false |
| Outside Circumference (in) | 60 |
| Outside Circumference (mm) | 1524 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 39 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.44 |
AP59
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 59 |
| Inside Circumference (mm) | 1499 |
| Effective Length (in) | 60.95 |
| Effective Length (mm) | 1499 |
| Notched | false |
| Outside Circumference (in) | 61 |
| Outside Circumference (mm) | 1549 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 39 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.45 |
AP60
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 60 |
| Inside Circumference (mm) | 1524 |
| Effective Length (in) | 61.94 |
| Effective Length (mm) | 1524 |
| Notched | false |
| Outside Circumference (in) | 62 |
| Outside Circumference (mm) | 1575 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 39 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.46 |
AP61
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 61 |
| Inside Circumference (mm) | 1549 |
| Effective Length (in) | 62.94 |
| Effective Length (mm) | 1549 |
| Notched | false |
| Outside Circumference (in) | 63 |
| Outside Circumference (mm) | 1600 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 39 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.46 |
AP64
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 64 |
| Inside Circumference (mm) | 1626 |
| Effective Length (in) | 65.94 |
| Effective Length (mm) | 1626 |
| Notched | false |
| Outside Circumference (in) | 66 |
| Outside Circumference (mm) | 1676 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 39 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.48 |
AP64.5
No variation attributes.
AP68
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 68 |
| Inside Circumference (mm) | 1727 |
| Effective Length (in) | 69.94 |
| Effective Length (mm) | 1727 |
| Notched | false |
| Outside Circumference (in) | 70 |
| Outside Circumference (mm) | 1778 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 39 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.51 |
AP71
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 71 |
| Inside Circumference (mm) | 1803 |
| Effective Length (in) | 72.93 |
| Effective Length (mm) | 1803 |
| Notched | false |
| Outside Circumference (in) | 73 |
| Outside Circumference (mm) | 1854 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 39 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.54 |
AP85
| Cross Section | AP |
|---|---|
| Inside Circumference (in) | 85 |
| Inside Circumference (mm) | 2159 |
| Effective Length (in) | 86.92 |
| Effective Length (mm) | 2159 |
| Notched | false |
| Outside Circumference (in) | 87 |
| Outside Circumference (mm) | 2210 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 39 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.64 |
BP100
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 100 |
| Inside Circumference (mm) | 2540 |
| Effective Length (in) | 102.91 |
| Effective Length (mm) | 2540 |
| Notched | false |
| Outside Circumference (in) | 103 |
| Outside Circumference (mm) | 2616 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.15 |
BP103
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 103 |
| Inside Circumference (mm) | 2616 |
| Effective Length (in) | 105.9 |
| Effective Length (mm) | 2616 |
| Notched | false |
| Outside Circumference (in) | 106 |
| Outside Circumference (mm) | 2692 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.19 |
BP105
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 105 |
| Inside Circumference (mm) | 2667 |
| Effective Length (in) | 107.9 |
| Effective Length (mm) | 2667 |
| Notched | false |
| Outside Circumference (in) | 108 |
| Outside Circumference (mm) | 2743 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.21 |
BP108
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 108 |
| Inside Circumference (mm) | 2743 |
| Effective Length (in) | 110.9 |
| Effective Length (mm) | 2743 |
| Notched | false |
| Outside Circumference (in) | 111 |
| Outside Circumference (mm) | 2819 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.24 |
BP110
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 110 |
| Inside Circumference (mm) | 2794 |
| Effective Length (in) | 112.9 |
| Effective Length (mm) | 2794 |
| Notched | false |
| Outside Circumference (in) | 113 |
| Outside Circumference (mm) | 2870 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.23 |
BP112
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 112 |
| Inside Circumference (mm) | 2845 |
| Effective Length (in) | 114.9 |
| Effective Length (mm) | 2845 |
| Notched | false |
| Outside Circumference (in) | 115 |
| Outside Circumference (mm) | 2921 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.29 |
BP116
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 116 |
| Inside Circumference (mm) | 2946 |
| Effective Length (in) | 118.89 |
| Effective Length (mm) | 2946 |
| Notched | false |
| Outside Circumference (in) | 119 |
| Outside Circumference (mm) | 3023 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.3 |
BP120
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 120 |
| Inside Circumference (mm) | 3048 |
| Effective Length (in) | 122.89 |
| Effective Length (mm) | 3048 |
| Notched | false |
| Outside Circumference (in) | 123 |
| Outside Circumference (mm) | 3124 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.38 |
BP124
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 124 |
| Inside Circumference (mm) | 3150 |
| Effective Length (in) | 126.89 |
| Effective Length (mm) | 3150 |
| Notched | false |
| Outside Circumference (in) | 127 |
| Outside Circumference (mm) | 3226 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.42 |
BP128
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 128 |
| Inside Circumference (mm) | 3251 |
| Effective Length (in) | 130.88 |
| Effective Length (mm) | 3325 |
| Notched | false |
| Outside Circumference (in) | 131 |
| Outside Circumference (mm) | 3327 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.47 |
BP136
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 136 |
| Inside Circumference (mm) | 3454 |
| Effective Length (in) | 138.88 |
| Effective Length (mm) | 3528 |
| Notched | false |
| Outside Circumference (in) | 139 |
| Outside Circumference (mm) | 3531 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.56 |
BP140
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 140 |
| Inside Circumference (mm) | 3556 |
| Effective Length (in) | 142.87 |
| Effective Length (mm) | 3630 |
| Notched | false |
| Outside Circumference (in) | 143 |
| Outside Circumference (mm) | 3632 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.6 |
BP144
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 144 |
| Inside Circumference (mm) | 3658 |
| Effective Length (in) | 146.87 |
| Effective Length (mm) | 3731 |
| Notched | false |
| Outside Circumference (in) | 147 |
| Outside Circumference (mm) | 3734 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.65 |
BP148
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 148 |
| Inside Circumference (mm) | 3759 |
| Effective Length (in) | 151.86 |
| Effective Length (mm) | 3835 |
| Notched | false |
| Outside Circumference (in) | 152 |
| Outside Circumference (mm) | 3861 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.68 |
BP158
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 158 |
| Inside Circumference (mm) | 4013 |
| Effective Length (in) | 160.86 |
| Effective Length (mm) | 4087 |
| Notched | false |
| Outside Circumference (in) | 161 |
| Outside Circumference (mm) | 4089 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.8 |
BP162
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 162 |
| Inside Circumference (mm) | 4115 |
| Effective Length (in) | 164.85 |
| Effective Length (mm) | 4188 |
| Notched | false |
| Outside Circumference (in) | 165 |
| Outside Circumference (mm) | 4191 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.84 |
BP173
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 173 |
| Inside Circumference (mm) | 4394 |
| Effective Length (in) | 175.84 |
| Effective Length (mm) | 4468 |
| Notched | false |
| Outside Circumference (in) | 176 |
| Outside Circumference (mm) | 4470 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.97 |
BP180
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 180 |
| Inside Circumference (mm) | 4572 |
| Effective Length (in) | 182.84 |
| Effective Length (mm) | 4646 |
| Notched | false |
| Outside Circumference (in) | 183 |
| Outside Circumference (mm) | 4648 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.04 |
BP195
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 195 |
| Inside Circumference (mm) | 4953 |
| Effective Length (in) | 197.82 |
| Effective Length (mm) | 5027 |
| Notched | false |
| Outside Circumference (in) | 198 |
| Outside Circumference (mm) | 5029 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 2.22 |
BP38
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 38 |
| Inside Circumference (mm) | 965 |
| Effective Length (in) | 40.96 |
| Effective Length (mm) | 965 |
| Notched | false |
| Outside Circumference (in) | 41 |
| Outside Circumference (mm) | 1041 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 37 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.46 |
BP40
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 40 |
| Inside Circumference (mm) | 1016 |
| Effective Length (in) | 42.96 |
| Effective Length (mm) | 1016 |
| Notched | false |
| Outside Circumference (in) | 43 |
| Outside Circumference (mm) | 1092 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 37 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.48 |
BP42
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 42 |
| Inside Circumference (mm) | 1067 |
| Effective Length (in) | 44.96 |
| Effective Length (mm) | 1067 |
| Notched | false |
| Outside Circumference (in) | 45 |
| Outside Circumference (mm) | 1143 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 37 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.5 |
BP45
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 45 |
| Inside Circumference (mm) | 1143 |
| Effective Length (in) | 47.96 |
| Effective Length (mm) | 1143 |
| Notched | false |
| Outside Circumference (in) | 48 |
| Outside Circumference (mm) | 1219 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.53 |
BP46
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 46 |
| Inside Circumference (mm) | 1168 |
| Effective Length (in) | 48.96 |
| Effective Length (mm) | 1168 |
| Notched | false |
| Outside Circumference (in) | 49 |
| Outside Circumference (mm) | 1245 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 37 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.55 |
BP48
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 48 |
| Inside Circumference (mm) | 1219 |
| Effective Length (in) | 50.95 |
| Effective Length (mm) | 1219 |
| Notched | false |
| Outside Circumference (in) | 51 |
| Outside Circumference (mm) | 1295 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.57 |
BP50
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 50 |
| Inside Circumference (mm) | 1270 |
| Effective Length (in) | 52.95 |
| Effective Length (mm) | 1270 |
| Notched | false |
| Outside Circumference (in) | 53 |
| Outside Circumference (mm) | 1346 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.59 |
BP51
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 51 |
| Inside Circumference (mm) | 1295 |
| Effective Length (in) | 53.95 |
| Effective Length (mm) | 1295 |
| Notched | false |
| Outside Circumference (in) | 54 |
| Outside Circumference (mm) | 1372 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.61 |
BP52
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 52 |
| Inside Circumference (mm) | 1321 |
| Effective Length (in) | 54.95 |
| Effective Length (mm) | 1321 |
| Notched | false |
| Outside Circumference (in) | 55 |
| Outside Circumference (mm) | 1397 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.62 |
BP53
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 53 |
| Inside Circumference (mm) | 1346 |
| Effective Length (in) | 55.95 |
| Effective Length (mm) | 1346 |
| Notched | false |
| Outside Circumference (in) | 56 |
| Outside Circumference (mm) | 1422 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.63 |
BP54
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 54 |
| Inside Circumference (mm) | 1372 |
| Effective Length (in) | 56.95 |
| Effective Length (mm) | 1372 |
| Notched | false |
| Outside Circumference (in) | 57 |
| Outside Circumference (mm) | 1448 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.64 |
BP55
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 55 |
| Inside Circumference (mm) | 1397 |
| Effective Length (in) | 57.95 |
| Effective Length (mm) | 1397 |
| Notched | false |
| Outside Circumference (in) | 58 |
| Outside Circumference (mm) | 1473 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.65 |
BP56
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 56 |
| Inside Circumference (mm) | 1422 |
| Effective Length (in) | 58.95 |
| Effective Length (mm) | 1422 |
| Notched | false |
| Outside Circumference (in) | 59 |
| Outside Circumference (mm) | 1499 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.66 |
BP57
No variation attributes.
BP58
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 58 |
| Inside Circumference (mm) | 1473 |
| Effective Length (in) | 60.95 |
| Effective Length (mm) | 1473 |
| Notched | false |
| Outside Circumference (in) | 61 |
| Outside Circumference (mm) | 1549 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.68 |
BP59
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 59 |
| Inside Circumference (mm) | 1499 |
| Effective Length (in) | 61.94 |
| Effective Length (mm) | 1499 |
| Notched | false |
| Outside Circumference (in) | 62 |
| Outside Circumference (mm) | 1575 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.69 |
BP60
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 60 |
| Inside Circumference (mm) | 1524 |
| Effective Length (in) | 62.94 |
| Effective Length (mm) | 1524 |
| Notched | false |
| Outside Circumference (in) | 63 |
| Outside Circumference (mm) | 1600 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.71 |
BP61
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 61 |
| Inside Circumference (mm) | 1549 |
| Effective Length (in) | 63.94 |
| Effective Length (mm) | 1549 |
| Notched | false |
| Outside Circumference (in) | 64 |
| Outside Circumference (mm) | 1626 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.72 |
BP62
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 62 |
| Inside Circumference (mm) | 1575 |
| Effective Length (in) | 64.94 |
| Effective Length (mm) | 1575 |
| Notched | false |
| Outside Circumference (in) | 65 |
| Outside Circumference (mm) | 1651 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.73 |
BP63
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 63 |
| Inside Circumference (mm) | 1600 |
| Effective Length (in) | 65.94 |
| Effective Length (mm) | 1600 |
| Notched | false |
| Outside Circumference (in) | 66 |
| Outside Circumference (mm) | 1676 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.74 |
BP64
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 64 |
| Inside Circumference (mm) | 1626 |
| Effective Length (in) | 66.94 |
| Effective Length (mm) | 1626 |
| Notched | false |
| Outside Circumference (in) | 67 |
| Outside Circumference (mm) | 1702 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.75 |
BP65
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 65 |
| Inside Circumference (mm) | 1651 |
| Effective Length (in) | 67.94 |
| Effective Length (mm) | 1651 |
| Notched | false |
| Outside Circumference (in) | 68 |
| Outside Circumference (mm) | 1727 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.76 |
BP66
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 66 |
| Inside Circumference (mm) | 1676 |
| Effective Length (in) | 68.94 |
| Effective Length (mm) | 1676 |
| Notched | false |
| Outside Circumference (in) | 69 |
| Outside Circumference (mm) | 1753 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.77 |
BP68
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 68 |
| Inside Circumference (mm) | 1727 |
| Effective Length (in) | 70.94 |
| Effective Length (mm) | 1727 |
| Notched | false |
| Outside Circumference (in) | 71 |
| Outside Circumference (mm) | 1803 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.8 |
BP70
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 70 |
| Inside Circumference (mm) | 1778 |
| Effective Length (in) | 72.93 |
| Effective Length (mm) | 1778 |
| Notched | false |
| Outside Circumference (in) | 73 |
| Outside Circumference (mm) | 1854 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.82 |
BP71
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 71 |
| Inside Circumference (mm) | 1803 |
| Effective Length (in) | 73.93 |
| Effective Length (mm) | 1803 |
| Notched | false |
| Outside Circumference (in) | 74 |
| Outside Circumference (mm) | 1880 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.83 |
BP72
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 72 |
| Inside Circumference (mm) | 1829 |
| Effective Length (in) | 74.93 |
| Effective Length (mm) | 1829 |
| Notched | false |
| Outside Circumference (in) | 75 |
| Outside Circumference (mm) | 1905 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.82 |
BP75
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 75 |
| Inside Circumference (mm) | 1905 |
| Effective Length (in) | 77.93 |
| Effective Length (mm) | 1905 |
| Notched | false |
| Outside Circumference (in) | 78 |
| Outside Circumference (mm) | 1981 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.87 |
BP76
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 76 |
| Inside Circumference (mm) | 1930 |
| Effective Length (in) | 78.93 |
| Effective Length (mm) | 1930 |
| Notched | false |
| Outside Circumference (in) | 79 |
| Outside Circumference (mm) | 2007 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.86 |
BP78
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 78 |
| Inside Circumference (mm) | 1981 |
| Effective Length (in) | 80.93 |
| Effective Length (mm) | 1981 |
| Notched | false |
| Outside Circumference (in) | 81 |
| Outside Circumference (mm) | 2057 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.91 |
BP79
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 79 |
| Inside Circumference (mm) | 2007 |
| Effective Length (in) | 81.93 |
| Effective Length (mm) | 2080 |
| Notched | false |
| Outside Circumference (in) | 82 |
| Outside Circumference (mm) | 2083 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 35 |
| Weight (lbs.) | 0.93 |
BP80
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 80 |
| Inside Circumference (mm) | 2032 |
| Effective Length (in) | 82.93 |
| Effective Length (mm) | 2032 |
| Notched | false |
| Outside Circumference (in) | 83 |
| Outside Circumference (mm) | 2108 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.93 |
BP81
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 81 |
| Inside Circumference (mm) | 2057 |
| Effective Length (in) | 83.92 |
| Effective Length (mm) | 2057 |
| Notched | false |
| Outside Circumference (in) | 84 |
| Outside Circumference (mm) | 2134 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.94 |
BP85
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 85 |
| Inside Circumference (mm) | 2159 |
| Effective Length (in) | 87.92 |
| Effective Length (mm) | 2159 |
| Notched | false |
| Outside Circumference (in) | 88 |
| Outside Circumference (mm) | 2235 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.99 |
BP90
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 90 |
| Inside Circumference (mm) | 2286 |
| Effective Length (in) | 92.92 |
| Effective Length (mm) | 2286 |
| Notched | false |
| Outside Circumference (in) | 93 |
| Outside Circumference (mm) | 2362 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.04 |
BP93
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 93 |
| Inside Circumference (mm) | 2362 |
| Effective Length (in) | 95.91 |
| Effective Length (mm) | 2362 |
| Notched | false |
| Outside Circumference (in) | 96 |
| Outside Circumference (mm) | 2438 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.08 |
BP95
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 95 |
| Inside Circumference (mm) | 2413 |
| Effective Length (in) | 97.91 |
| Effective Length (mm) | 2413 |
| Notched | false |
| Outside Circumference (in) | 98 |
| Outside Circumference (mm) | 2489 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.1 |
BP97
| Cross Section | BP |
|---|---|
| Inside Circumference (in) | 97 |
| Inside Circumference (mm) | 2464 |
| Effective Length (in) | 99.91 |
| Effective Length (mm) | 2464 |
| Notched | false |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.43 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.12 |
CP100
| Cross Section | CP |
|---|---|
| Inside Circumference (in) | 100 |
| Inside Circumference (mm) | 2540 |
| Effective Length (in) | 103.91 |
| Effective Length (mm) | 2540 |
| Notched | false |
| Outside Circumference (in) | 104 |
| Outside Circumference (mm) | 2642 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.17 |
CP105
| Cross Section | CP |
|---|---|
| Inside Circumference (in) | 105 |
| Inside Circumference (mm) | 2667 |
| Effective Length (in) | 108.9 |
| Effective Length (mm) | 2667 |
| Notched | false |
| Outside Circumference (in) | 109 |
| Outside Circumference (mm) | 2769 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.27 |
CP112
| Cross Section | CP |
|---|---|
| Inside Circumference (in) | 112 |
| Inside Circumference (mm) | 2845 |
| Effective Length (in) | 115.9 |
| Effective Length (mm) | 2845 |
| Notched | false |
| Outside Circumference (in) | 116 |
| Outside Circumference (mm) | 2946 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.42 |
CP120
| Cross Section | CP |
|---|---|
| Inside Circumference (in) | 120 |
| Inside Circumference (mm) | 3048 |
| Effective Length (in) | 123.89 |
| Effective Length (mm) | 3048 |
| Notched | false |
| Outside Circumference (in) | 124 |
| Outside Circumference (mm) | 3150 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.59 |
CP128
| Cross Section | CP |
|---|---|
| Inside Circumference (in) | 128 |
| Inside Circumference (mm) | 3251 |
| Effective Length (in) | 131.88 |
| Effective Length (mm) | 3251 |
| Notched | false |
| Outside Circumference (in) | 132 |
| Outside Circumference (mm) | 3353 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.75 |
CP136
| Cross Section | CP |
|---|---|
| Inside Circumference (in) | 136 |
| Inside Circumference (mm) | 3454 |
| Effective Length (in) | 139.87 |
| Effective Length (mm) | 3454 |
| Notched | false |
| Outside Circumference (in) | 140 |
| Outside Circumference (mm) | 3556 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 2.92 |
CP144
| Cross Section | CP |
|---|---|
| Inside Circumference (in) | 144 |
| Inside Circumference (mm) | 3658 |
| Effective Length (in) | 147.87 |
| Effective Length (mm) | 3658 |
| Notched | false |
| Outside Circumference (in) | 148 |
| Outside Circumference (mm) | 3759 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 3.09 |
CP158
| Cross Section | CP |
|---|---|
| Inside Circumference (in) | 158 |
| Inside Circumference (mm) | 4013 |
| Effective Length (in) | 161.85 |
| Effective Length (mm) | 4013 |
| Notched | false |
| Outside Circumference (in) | 162 |
| Outside Circumference (mm) | 4115 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 3.38 |
CP162
| Cross Section | CP |
|---|---|
| Inside Circumference (in) | 162 |
| Inside Circumference (mm) | 4115 |
| Effective Length (in) | 165.85 |
| Effective Length (mm) | 4115 |
| Notched | false |
| Outside Circumference (in) | 166 |
| Outside Circumference (mm) | 4216 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 3.46 |
CP173
| Cross Section | CP |
|---|---|
| Inside Circumference (in) | 173 |
| Inside Circumference (mm) | 4394 |
| Effective Length (in) | 176.84 |
| Effective Length (mm) | 4394 |
| Notched | false |
| Outside Circumference (in) | 177 |
| Outside Circumference (mm) | 4496 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 3.69 |
CP180
| Cross Section | CP |
|---|---|
| Inside Circumference (in) | 180 |
| Inside Circumference (mm) | 4572 |
| Effective Length (in) | 183.83 |
| Effective Length (mm) | 4572 |
| Notched | false |
| Outside Circumference (in) | 184 |
| Outside Circumference (mm) | 4674 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 3.84 |
CP195
| Cross Section | CP |
|---|---|
| Inside Circumference (in) | 195 |
| Inside Circumference (mm) | 4953 |
| Effective Length (in) | 198.82 |
| Effective Length (mm) | 4953 |
| Notched | false |
| Outside Circumference (in) | 199 |
| Outside Circumference (mm) | 5055 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 4.15 |
CP240
| Cross Section | CP |
|---|---|
| Inside Circumference (in) | 240 |
| Inside Circumference (mm) | 6096 |
| Effective Length (in) | 241.78 |
| Effective Length (mm) | 6045 |
| Notched | false |
| Outside Circumference (in) | 242 |
| Outside Circumference (mm) | 6147 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 5 |
| Weight (lbs.) | 5.05 |
CP85
| Cross Section | CP |
|---|---|
| Inside Circumference (in) | 85 |
| Inside Circumference (mm) | 2159 |
| Effective Length (in) | 88.92 |
| Effective Length (mm) | 2159 |
| Notched | false |
| Outside Circumference (in) | 89 |
| Outside Circumference (mm) | 2261 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.86 |
CP90
| Cross Section | CP |
|---|---|
| Inside Circumference (in) | 90 |
| Inside Circumference (mm) | 2286 |
| Effective Length (in) | 93.92 |
| Effective Length (mm) | 2286 |
| Notched | false |
| Outside Circumference (in) | 94 |
| Outside Circumference (mm) | 2388 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.96 |
CP96
| Cross Section | CP |
|---|---|
| Inside Circumference (in) | 96 |
| Inside Circumference (mm) | 2438 |
| Effective Length (in) | 99.91 |
| Effective Length (mm) | 2438 |
| Notched | false |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.09 |
CP98
No variation attributes.
SPB1500P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 59.06 |
| Effective Length (mm) | 1500 |
| Notched | false |
| Outside Circumference (in) | 60 |
| Outside Circumference (mm) | 1524 |
| Pitch Length (mm) | 1500 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 0.79 |
SPB1600P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 62.99 |
| Effective Length (mm) | 1600 |
| Notched | false |
| Outside Circumference (in) | 64 |
| Outside Circumference (mm) | 1625 |
| Pitch Length (mm) | 1600 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 0.84 |
SPB1700P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 66.93 |
| Effective Length (mm) | 1700 |
| Notched | false |
| Outside Circumference (in) | 67 |
| Outside Circumference (mm) | 1702 |
| Pitch Length (mm) | 1700 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 38 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 0.9 |
SPB1800P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 70.87 |
| Effective Length (mm) | 1800 |
| Notched | false |
| Outside Circumference (in) | 71 |
| Outside Circumference (mm) | 1803 |
| Pitch Length (mm) | 1800 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 0.95 |
SPB1900P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 74.8 |
| Effective Length (mm) | 1900 |
| Notched | false |
| Outside Circumference (in) | 75 |
| Outside Circumference (mm) | 1905 |
| Pitch Length (mm) | 1900 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.0 |
SPB2000P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 78.74 |
| Effective Length (mm) | 2000 |
| Notched | false |
| Outside Circumference (in) | 80 |
| Outside Circumference (mm) | 2032 |
| Pitch Length (mm) | 2000 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.05 |
SPB2120P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 83.46 |
| Effective Length (mm) | 2120 |
| Notched | false |
| Outside Circumference (in) | 85 |
| Outside Circumference (mm) | 2159 |
| Pitch Length (mm) | 2120 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.12 |
SPB2240P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 88.19 |
| Effective Length (mm) | 2240 |
| Notched | false |
| Outside Circumference (in) | 89 |
| Outside Circumference (mm) | 2261 |
| Pitch Length (mm) | 2240 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.18 |
SPB2360P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 92.91 |
| Effective Length (mm) | 2360 |
| Notched | false |
| Outside Circumference (in) | 94 |
| Outside Circumference (mm) | 2388 |
| Pitch Length (mm) | 2360 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.24 |
SPB2500P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 98.43 |
| Effective Length (mm) | 2500 |
| Notched | false |
| Outside Circumference (in) | 99.9 |
| Outside Circumference (mm) | 2537 |
| Pitch Length (mm) | 2500 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.32 |
SPB2650P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 104.33 |
| Effective Length (mm) | 2650 |
| Notched | false |
| Outside Circumference (in) | 106 |
| Outside Circumference (mm) | 2692 |
| Pitch Length (mm) | 2650 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.4 |
SPB2800P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 110.24 |
| Effective Length (mm) | 2800 |
| Notched | false |
| Outside Circumference (in) | 111 |
| Outside Circumference (mm) | 2819 |
| Pitch Length (mm) | 2800 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.48 |
SPB3000P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 118.11 |
| Effective Length (mm) | 3000 |
| Notched | false |
| Outside Circumference (in) | 119 |
| Outside Circumference (mm) | 3023 |
| Pitch Length (mm) | 3000 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 25 |
| Weight (lbs.) | 1.58 |
SPB3150P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 124.02 |
| Effective Length (mm) | 3150 |
| Notched | false |
| Outside Circumference (in) | 125 |
| Outside Circumference (mm) | 3175 |
| Pitch Length (mm) | 3150 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.66 |
SPB3350P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 131.89 |
| Effective Length (mm) | 3350 |
| Notched | false |
| Outside Circumference (in) | 133 |
| Outside Circumference (mm) | 3378 |
| Pitch Length (mm) | 3350 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.77 |
SPB3550P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 139.76 |
| Effective Length (mm) | 3550 |
| Notched | false |
| Outside Circumference (in) | 140.7 |
| Outside Circumference (mm) | 3575 |
| Pitch Length (mm) | 3550 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 1.87 |
SPB4250P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 167.32 |
| Effective Length (mm) | 4250 |
| Notched | false |
| Outside Circumference (in) | 168 |
| Outside Circumference (mm) | 4267 |
| Pitch Length (mm) | 4250 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 2.24 |
SPB4500P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 177.17 |
| Effective Length (mm) | 4500 |
| Notched | false |
| Outside Circumference (in) | 178 |
| Outside Circumference (mm) | 4521 |
| Pitch Length (mm) | 4500 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 2.37 |
SPB4750P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 187.01 |
| Effective Length (mm) | 4750 |
| Notched | false |
| Outside Circumference (in) | 188 |
| Outside Circumference (mm) | 4775 |
| Pitch Length (mm) | 4750 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.5 |
SPB5000P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 196.85 |
| Effective Length (mm) | 5000 |
| Notched | false |
| Outside Circumference (in) | 197.8 |
| Outside Circumference (mm) | 5025 |
| Pitch Length (mm) | 5000 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.64 |
SPB5300P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 208.66 |
| Effective Length (mm) | 5300 |
| Notched | false |
| Outside Circumference (in) | 210 |
| Outside Circumference (mm) | 5334 |
| Pitch Length (mm) | 5300 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.79 |
SPB5600P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 220.47 |
| Effective Length (mm) | 5600 |
| Notched | false |
| Outside Circumference (in) | 221 |
| Outside Circumference (mm) | 5613 |
| Pitch Length (mm) | 5600 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.95 |
SPB6000P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 236.22 |
| Effective Length (mm) | 6000 |
| Notched | false |
| Outside Circumference (in) | 237.2 |
| Outside Circumference (mm) | 6025 |
| Pitch Length (mm) | 6000 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 3.16 |
SPB6300P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 248.03 |
| Effective Length (mm) | 6300 |
| Notched | false |
| Outside Circumference (in) | 249 |
| Outside Circumference (mm) | 6325 |
| Pitch Length (mm) | 6300 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 3.32 |
SPB8000P
| Cross Section | SPBP |
|---|---|
| Effective Length (in) | 314.96 |
| Effective Length (mm) | 8000 |
| Notched | false |
| Outside Circumference (in) | 316 |
| Outside Circumference (mm) | 8026 |
| Pitch Length (mm) | 8000 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 4.22 |
SPC2000P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 78.74 |
| Effective Length (mm) | 2000 |
| Notched | false |
| Outside Circumference (in) | 80 |
| Outside Circumference (mm) | 2032 |
| Pitch Length (mm) | 2000 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.91 |
SPC2240P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 88.19 |
| Effective Length (mm) | 2240 |
| Notched | false |
| Outside Circumference (in) | 90 |
| Outside Circumference (mm) | 2286 |
| Pitch Length (mm) | 2240 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 20 |
| Weight (lbs.) | 2.14 |
SPC2360P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 92.91 |
| Effective Length (mm) | 2360 |
| Notched | false |
| Outside Circumference (in) | 94.3 |
| Outside Circumference (mm) | 2395 |
| Pitch Length (mm) | 2360 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 20 |
| Weight (lbs.) | 2.26 |
SPC2500P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 98.43 |
| Effective Length (mm) | 2500 |
| Notched | false |
| Outside Circumference (in) | 99.8 |
| Outside Circumference (mm) | 2535 |
| Pitch Length (mm) | 2500 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 20 |
| Weight (lbs.) | 2.39 |
SPC2650P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 104.33 |
| Effective Length (mm) | 2650 |
| Notched | false |
| Outside Circumference (in) | 106 |
| Outside Circumference (mm) | 2692 |
| Pitch Length (mm) | 2650 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 2.53 |
SPC2800P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 110.24 |
| Effective Length (mm) | 2800 |
| Notched | false |
| Outside Circumference (in) | 112 |
| Outside Circumference (mm) | 2845 |
| Pitch Length (mm) | 2800 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 2.68 |
SPC3000P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 118.11 |
| Effective Length (mm) | 3000 |
| Notched | false |
| Outside Circumference (in) | 120 |
| Outside Circumference (mm) | 3048 |
| Pitch Length (mm) | 3000 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 2.87 |
SPC3150P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 124.02 |
| Effective Length (mm) | 3150 |
| Notched | false |
| Outside Circumference (in) | 125.4 |
| Outside Circumference (mm) | 3185 |
| Pitch Length (mm) | 3150 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 3.01 |
SPC3350P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 131.89 |
| Effective Length (mm) | 3350 |
| Notched | false |
| Outside Circumference (in) | 134 |
| Outside Circumference (mm) | 3404 |
| Pitch Length (mm) | 3350 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 3.2 |
SPC3550P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 139.76 |
| Effective Length (mm) | 3550 |
| Notched | false |
| Outside Circumference (in) | 142 |
| Outside Circumference (mm) | 3607 |
| Pitch Length (mm) | 3550 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 3.39 |
SPC3750P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 147.64 |
| Effective Length (mm) | 3750 |
| Notched | false |
| Outside Circumference (in) | 149 |
| Outside Circumference (mm) | 3785 |
| Pitch Length (mm) | 3750 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 3.58 |
SPC4000P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 157.48 |
| Effective Length (mm) | 4000 |
| Notched | false |
| Outside Circumference (in) | 159 |
| Outside Circumference (mm) | 4039 |
| Pitch Length (mm) | 4000 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 3.82 |
SPC4250P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 157.48 |
| Effective Length (mm) | 4000 |
| Notched | false |
| Outside Circumference (in) | 169 |
| Outside Circumference (mm) | 4293 |
| Pitch Length (mm) | 4250 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 4.06 |
SPC4500P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 167.32 |
| Effective Length (mm) | 4250 |
| Notched | false |
| Outside Circumference (in) | 179 |
| Outside Circumference (mm) | 4547 |
| Pitch Length (mm) | 4500 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 4.3 |
SPC4750P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 187.01 |
| Effective Length (mm) | 4750 |
| Notched | false |
| Outside Circumference (in) | 189 |
| Outside Circumference (mm) | 4801 |
| Pitch Length (mm) | 4750 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 4.54 |
SPC5000P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 196.85 |
| Effective Length (mm) | 5000 |
| Notched | false |
| Outside Circumference (in) | 198.2 |
| Outside Circumference (mm) | 5035 |
| Pitch Length (mm) | 5000 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 4.78 |
SPC5300P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 208.66 |
| Effective Length (mm) | 5300 |
| Notched | false |
| Outside Circumference (in) | 210 |
| Outside Circumference (mm) | 5334 |
| Pitch Length (mm) | 5300 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 5.07 |
SPC5600P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 220.47 |
| Effective Length (mm) | 5600 |
| Notched | false |
| Outside Circumference (in) | 222 |
| Outside Circumference (mm) | 5639 |
| Pitch Length (mm) | 5600 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 5.35 |
SPC6000P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 236.22 |
| Effective Length (mm) | 6000 |
| Notched | false |
| Outside Circumference (in) | 238 |
| Outside Circumference (mm) | 6045 |
| Pitch Length (mm) | 6000 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 5.73 |
SPC6300P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 248.03 |
| Effective Length (mm) | 6300 |
| Notched | false |
| Outside Circumference (in) | 250 |
| Outside Circumference (mm) | 6350 |
| Pitch Length (in) | 248.03 |
| Pitch Length (mm) | 6300 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 10 |
| Weight (lbs.) | 6.02 |
SPC6700P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 263.78 |
| Effective Length (mm) | 6700 |
| Notched | false |
| Outside Circumference (in) | 266 |
| Outside Circumference (mm) | 6756 |
| Pitch Length (mm) | 6700 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 5 |
| Weight (lbs.) | 6.4 |
SPC7100P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 279.53 |
| Effective Length (mm) | 7100 |
| Notched | false |
| Outside Circumference (in) | 281 |
| Outside Circumference (mm) | 7137 |
| Pitch Length (mm) | 7100 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 5 |
| Weight (lbs.) | 6.79 |
SPC7500P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 295.28 |
| Effective Length (mm) | 7500 |
| Notched | false |
| Outside Circumference (in) | 297 |
| Outside Circumference (mm) | 7544 |
| Pitch Length (mm) | 7500 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 5 |
| Weight (lbs.) | 7.17 |
SPC8000P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 314.96 |
| Effective Length (mm) | 8000 |
| Notched | false |
| Outside Circumference (in) | 317 |
| Outside Circumference (mm) | 8052 |
| Pitch Length (mm) | 8000 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 5 |
| Weight (lbs.) | 7.65 |
SPC8500P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 334.65 |
| Effective Length (mm) | 8500 |
| Notched | false |
| Outside Circumference (in) | 336 |
| Outside Circumference (mm) | 8535 |
| Pitch Length (mm) | 8500 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.87 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 5 |
| Weight (lbs.) | 8.12 |
SPC9000P
| Cross Section | SPCP |
|---|---|
| Effective Length (in) | 354.33 |
| Effective Length (mm) | 9000 |
| Notched | false |
| Outside Circumference (in) | 356 |
| Outside Circumference (mm) | 9042 |
| Pitch Length (mm) | 9000 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 5 |
| Weight (lbs.) | 8.6 |
SPC9500P
| Cross Section | SPC |
|---|---|
| Effective Length (in) | 374.02 |
| Effective Length (mm) | 9500 |
| Outside Circumference (in) | 374.4 |
| Outside Circumference (mm) | 9512 |
| Pitch Length (mm) | 9500 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.71 |
| Thickness (mm) | 18 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 5 |
| Weight (lbs.) | 8.59 |
3/5VP2000
No variation attributes.
6/SPC8500P
No variation attributes.
AP64
| Cross Section | A |
|---|---|
| Effective Length (in) | 66.24 |
| Effective Length (mm) | 1.682 |
| Notched | false |
| Outside Circumference (in) | 66 |
| Outside Circumference (mm) | 1683 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 39 |
| Thickness (in) | 0.34 |
| Thickness (mm) | 9 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 75 |
| Weight (lbs.) | 0.5 |
BP100
| Cross Section | B |
|---|---|
| Effective Length (in) | 103.04 |
| Effective Length (mm) | 2.617 |
| Notched | false |
| Outside Circumference (in) | 103 |
| Outside Circumference (mm) | 2617 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.42 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 30 |
| Weight (lbs.) | 1.2 |
BP100
No variation attributes.
BP108
| Cross Section | B |
|---|---|
| Effective Length (in) | 111.04 |
| Effective Length (mm) | 2.82 |
| Notched | false |
| Outside Circumference (in) | 111 |
| Outside Circumference (mm) | 2820 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.42 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 30 |
| Weight (lbs.) | 1.25 |
BP108
No variation attributes.
BP95
| Cross Section | B |
|---|---|
| Effective Length (in) | 98.04 |
| Effective Length (mm) | 2.49 |
| Notched | false |
| Outside Circumference (in) | 98 |
| Outside Circumference (mm) | 2490 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 39 |
| Thickness (in) | 0.42 |
| Thickness (mm) | 11 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 30 |
| Weight (lbs.) | 1.1 |
BP95
No variation attributes.
CP105
| Cross Section | C |
|---|---|
| Effective Length (in) | 109.2 |
| Effective Length (mm) | 2.774 |
| Notched | false |
| Outside Circumference (in) | 109 |
| Outside Circumference (mm) | 2769 |
| Strand | 1 |
| Top Width (in) | 0.88 |
| Top Width (mm) | 22 |
| Angle. | 40 |
| Thickness (in) | 0.56 |
| Thickness (mm) | 14 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 15 |
| Weight (lbs.) | 2.32 |
CP105
No variation attributes.
91890150
No variation attributes.
933509500
No variation attributes.
Specifications
| Cross Section | 5VP, 8VP, AP, A, BP, CP, +5 more |
|---|---|
| Inside Circumference (in) | 33 – 355 |
| Inside Circumference (mm) | 838 – 9017 |
| Effective Length (in) | 34.97 – 374.02 |
| Effective Length (mm) | 1.682 – 9500 |
| Notched | false |
| Outside Circumference (in) | 35 – 374.4 |
| Outside Circumference (mm) | 4.077 – 9512 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 – 1.02 |
| Top Width (mm) | 13 – 26 |
| Angle. | 37 – 40 |
| Thickness (in) | 0.34 – 0.91 |
| Thickness (mm) | 9 – 23 |
| Markets/Applications | Predator® belts are well suited as replacement belts for applications exposed to pulsating loads or heavy shock loads, such as mining, agriculture, wood processing, oil field equipment, heavy construction and sand/gravel operations. |
| Color | Brown |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Aramid |
| Belt Notes | Predator® belts do not meet RMA requirements for belt static conductivity. When application requires Predator® belt sets, request belts with same group/match number. |
| Customer Pack | 1 – 99 |
| Weight (lbs.) | 0.26 – 8.6 |
| Pitch Length (mm) | 1500 – 9500 |
| Pitch Length (in) | 248.03 |
PDF Documents
No PDF documents.
