Attributes
| Part Number | 3217-000000-000000 |
|---|
Description

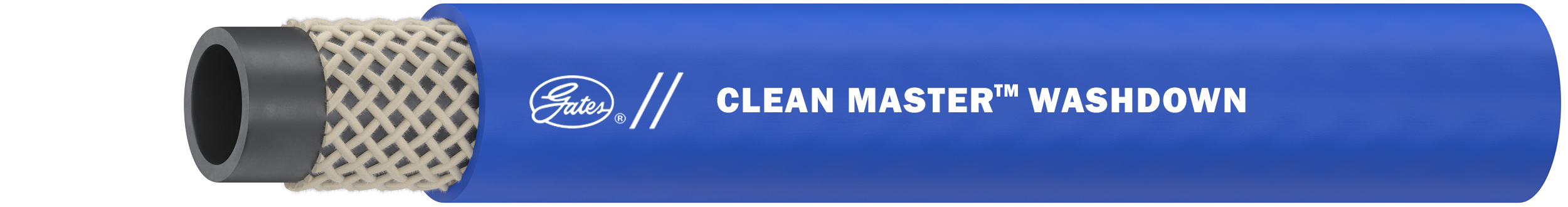

Clean Master™ Washdown 1000 RECOMMENDED FOR: High–pressure washer operations using mild detergents; ideal for meat, poultry and other food processing plants. Cover is resistant to weather, oil, animal fat, abrasion and heat encountered in food plant cleaning applications. CAUTION: Air service working pressure is 300 psi for all sizes. Red, gray and blue cover available on special order. High oil resistance.
Features and Benefits Tube: Type C2 (Modified Nitrile). Black. Reinforcement: Braided, synthetic high tensile cord. Cover: Type C2 (Modified Nitrile). Yellow. Non-marking. Formerly - Cyclone™. Size: 3/8" to 3/4".
Variations (10)
8CL5102
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 1000 |
| Length (m) | 190.5 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 12.7 |
| Color | Yellow |
| Reinforcement | Braided, synthetic textile |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Recommended For | High-pressure washer operations using mild detergents; ideal for meat, poultry and other food processing plants. Cover is resistant to weather, oil, animal fat, abrasion and heat encountered in food plant cleaning applications. |
| Caution | Air service working pressure is 300 psi for all sizes. |
| Customer Pack | 750 |
| Weight (lbs.) | 0.29 |
12CL5101
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 1000 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 1.20 |
| Outside Diameter (mm) | 19.1 |
| Coupling Recommendation | GLX® Couplings [G44 Series] |
| Color | Red |
| Cover | Modified Nitrile - Type C2. Non-marking. |
| Reinforcement | Braided, synthetic textile |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Braided, synthetic textile |
| Construction: Tube | Modified Nitrile - Type C2. Black. High oil resistance |
3/4 X RL CYCLONE BLUE
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 1000 |
| Outside Diameter (in) | 1.20 |
| Outside Diameter (mm) | 19.1 |
| Coupling Recommendation | GLX® Couplings [G44 Series] |
| Color | Blue |
| Cover | Modified Nitrile - Type C2. Non-marking. |
| Reinforcement | Braided, synthetic textile |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Braided, synthetic textile |
| Construction: Tube | Modified Nitrile - Type C2. Black. High oil resistance |
12CL5103
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.2 |
| Hose Outside Diameter (mm) | 30.5 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 1000 |
| Length (m) | 190.5 |
| Outside Diameter (in) | 1.2 |
| Outside Diameter (mm) | 19.1 |
| Color | Yellow |
| Reinforcement | Braided, synthetic textile |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Recommended For | High-pressure washer operations using mild detergents; ideal for meat, poultry and other food processing plants. Cover is resistant to weather, oil, animal fat, abrasion and heat encountered in food plant cleaning applications. |
| Caution | Air service working pressure is 300 psi for all sizes. |
| Customer Pack | 750 |
| Weight (lbs.) | 0.41 |
6CL5102
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 102 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.73 |
| Hose Outside Diameter (mm) | 18.5 |
| Inside Diameter (in) | 0.38 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 1000 |
| Length (m) | 190.5 |
| Outside Diameter (in) | 0.73 |
| Outside Diameter (mm) | 9.5 |
| Color | Yellow |
| Reinforcement | Braided, synthetic textile |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Recommended For | High-pressure washer operations using mild detergents; ideal for meat, poultry and other food processing plants. Cover is resistant to weather, oil, animal fat, abrasion and heat encountered in food plant cleaning applications. |
| Caution | Air service working pressure is 300 psi for all sizes. |
| Customer Pack | 750 |
| Weight (lbs.) | 0.18 |
12CL5102
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 1000 |
| Outside Diameter (in) | 1.20 |
| Outside Diameter (mm) | 19.1 |
| Coupling Recommendation | GLX® Couplings [G44 Series] |
| Color | Red |
| Cover | Modified Nitrile - Type C2. Non-marking. |
| Reinforcement | Braided, synthetic textile |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Braided, synthetic textile |
| Construction: Tube | Modified Nitrile - Type C2. Black. High oil resistance |
6CL5100
No variation attributes.
8CL5100
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Inside Diameter (in) | 0.50 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 1000 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 12.7 |
| Coupling Recommendation | GLX® Couplings [G44 Series] |
| Color | Blue |
| Cover | Modified Nitrile - Type C2. Non-marking. |
| Reinforcement | Braided, synthetic textile |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Braided, synthetic textile |
| Construction: Tube | Modified Nitrile - Type C2. Black. High oil resistance |
32170657
No variation attributes.
32170413
No variation attributes.
Specifications
| Vacuum (In. Hg) | 30 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 4 – 6 |
| Minimum Bend Radius (mm) | 102 – 152 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.38 – 0.75 |
| Hose Inside Diameter (mm) | 9.5 – 19.1 |
| Hose Outside Diameter (in) | 0.73 – 1.2 |
| Hose Outside Diameter (mm) | 18.5 – 30.5 |
| Inside Diameter (in) | 0.38 – 0.75 |
| Inside Diameter (mm) | 9.5 – 19.1 |
| Working Pressure (psi) | 1000 |
| Length (m) | 30.5 – 190.5 |
| Outside Diameter (in) | 0.73 – 1.20 |
| Outside Diameter (mm) | 9.5 – 19.1 |
| Color | Yellow, Red, Blue |
| Reinforcement | Braided, synthetic textile |
| Tube | Modified Nitrile - Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Recommended For | High-pressure washer operations using mild detergents; ideal for meat, poultry and other food processing plants. Cover is resistant to weather, oil, animal fat, abrasion and heat encountered in food plant cleaning applications. |
| Caution | Air service working pressure is 300 psi for all sizes. |
| Customer Pack | 750 |
| Weight (lbs.) | 0.18 – 0.41 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Coupling Recommendation | GLX® Couplings [G44 Series] |
| Cover | Modified Nitrile - Type C2. Non-marking. |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Braided, synthetic textile |
| Construction: Tube | Modified Nitrile - Type C2. Black. High oil resistance |
