Attributes
| Part Number | 4656-000000-000002 |
|---|
Description

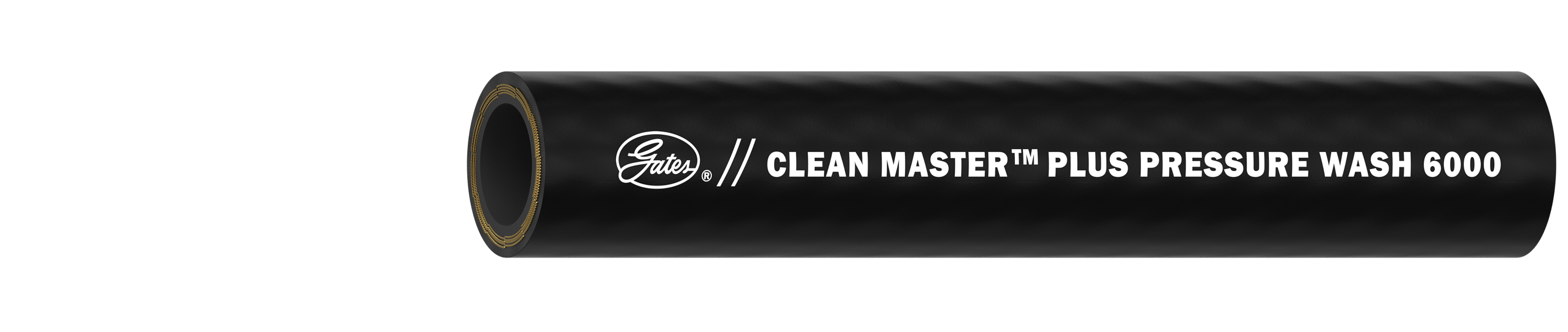

Clean Master™ Plus PW6000 RECOMMENDED FOR: Professional power wash that withstands the incredible working pressure of 6000 psi. It offers the same exceptional qualities of standard versions with the advantage of being stronger and up to 32% lighter, making it easier to handle, especially when dragging long lengths of hose on rough surfaces.. Its unique flexibility gives you more mobility in tight spaces without compromising its power. CAUTION: Not recommended for steam service. Use bend restrictors to extend service life. Meets 300°F (150°C) intermittent per EN1829–2. Increased operating temperatures will reduce hose assembly service life. Recommended for hot and cold water high-pressure cleaning equipment used in commercial and industrial cleaning, food processing, sanitation, and car wash applications where heavy-duty service is required. Specially compounded cover to handle harsh environments. CAUTION: Not recommended for steam service. Use bend restrictors to extend service life. Withstands extreme climates and harsh environments. Superior ozone and abrasion-resistant cover. Great maneuverability on rough surfaces. Compact storage and easy reeling. Compatible with Megacrimp™ couplings, stainless steel couplings, and Gates Crimpers.
Variations (31)
4CL4000
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.35 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 304.8 |
| Outside Diameter (in) | 0.52 |
| Outside Diameter (mm) | 6.4 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Modified Nitrile - Type C2. Smooth. |
| Reinforcement | Braided, steel wire |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | Braided, steel wire |
| Construction: Tube | Nitrile - Type C. Black. |
| Weight (lbs.) | 170.0 |
4CL4001
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.35 |
| Inside Diameter (in) | .25 |
| Inside Diameter (mm) | 6.4 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 609.6 |
| Outside Diameter (in) | 0.52 |
| Outside Diameter (mm) | 6.4 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Modified Nitrile - Type C2. Smooth. |
| Reinforcement | Braided, steel wire |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | Braided, steel wire |
| Construction: Tube | Nitrile - Type C. Black. |
| Weight (lbs.) | 340.0 |
4CL4002
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.35 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 304.8 |
| Outside Diameter (in) | 0.52 |
| Outside Diameter (mm) | 6.4 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Modified Nitrile - Type C2. Smooth. |
| Reinforcement | Braided, steel wire |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | Braided, steel wire |
| Construction: Tube | Nitrile - Type C. Black. |
| Weight (lbs.) | 170.0 |
6CL4000
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 4.25 |
| Minimum Bend Radius (mm) | 108 |
| Hose Inside Diameter (in). | 0.375 |
| Hose Inside Diameter (mm) | 9.53 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 30.5 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Modified Nitrile - Type C2. Smooth. |
| Reinforcement | Braided, steel wire |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | Braided, steel wire |
| Construction: Tube | Nitrile - Type C. Black. |
| Weight (lbs.) | 26.0 |
6CL4001
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 4.25 |
| Minimum Bend Radius (mm) | 108 |
| Hose Inside Diameter (in). | 0.375 |
| Hose Inside Diameter (mm) | 9.53 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 15.2 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Modified Nitrile - Type C2. Smooth. |
| Reinforcement | Braided, steel wire |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | Braided, steel wire |
| Construction: Tube | Nitrile - Type C. Black. |
| Weight (lbs.) | 13.0 |
6CL40010
| Hose Inside Diameter (in). | 0.375 |
|---|---|
| Hose Inside Diameter (mm) | 9.53 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |

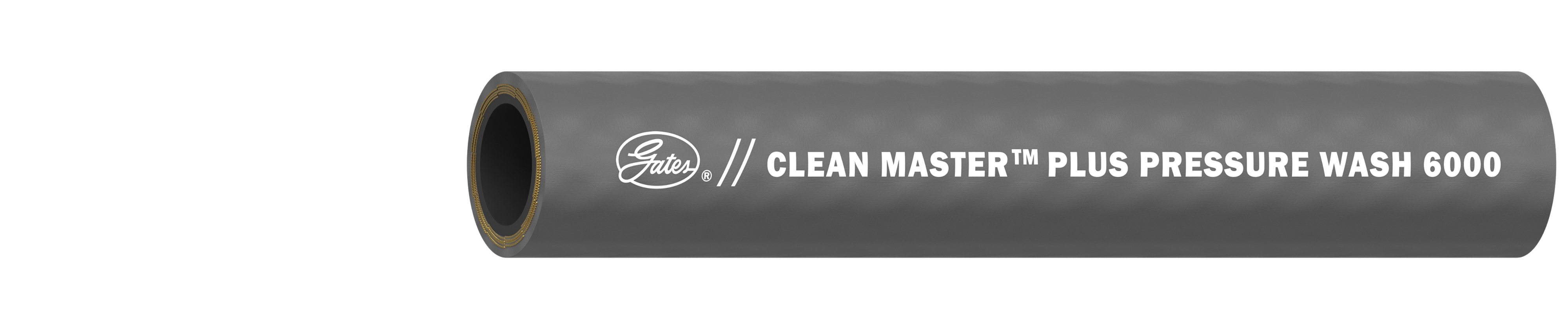

| Color | Gray |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
6CL40011
| Hose Inside Diameter (in). | 0.375 |
|---|---|
| Hose Inside Diameter (mm) | 9.53 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Gray |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
6CL40012
| Hose Inside Diameter (in). | 0.375 |
|---|---|
| Hose Inside Diameter (mm) | 9.53 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Gray |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
6CL40013
| Hose Inside Diameter (in). | 0.375 |
|---|---|
| Hose Inside Diameter (mm) | 9.53 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Gray |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
6CL40014
| Hose Inside Diameter (in). | 0.375 |
|---|---|
| Hose Inside Diameter (mm) | 9.53 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Gray |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
6CL40015
| Hose Inside Diameter (in). | 0.375 |
|---|---|
| Hose Inside Diameter (mm) | 9.53 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |

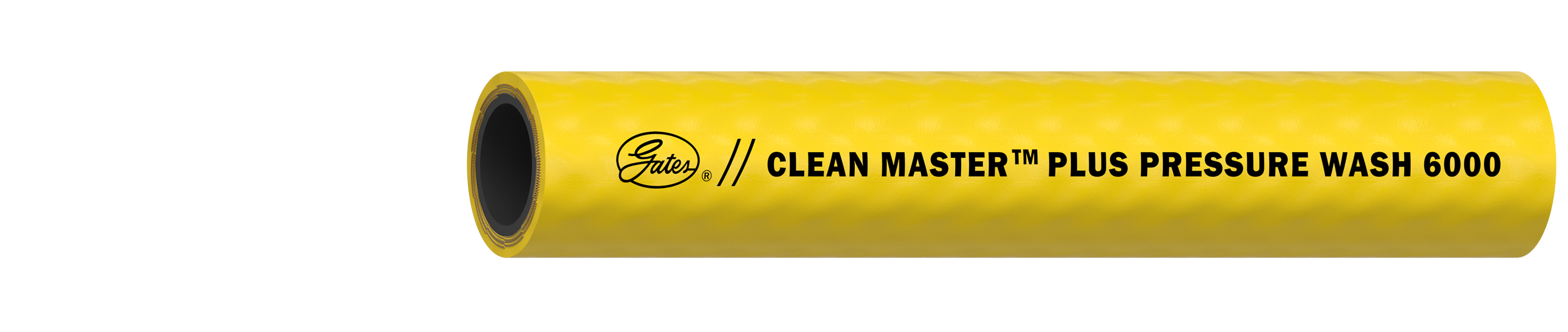

| Color | Yellow |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
6CL40016
| Hose Inside Diameter (in). | 0.375 |
|---|---|
| Hose Inside Diameter (mm) | 9.53 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Yellow |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
6CL4002
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 4.25 |
| Minimum Bend Radius (mm) | 108 |
| Hose Inside Diameter (in). | 0.375 |
| Hose Inside Diameter (mm) | 9.53 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 365.8 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Modified Nitrile - Type C2. Smooth. |
| Reinforcement | Braided, steel wire |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | Braided, steel wire |
| Construction: Tube | Nitrile - Type C. Black. |
| Weight (lbs.) | 312.0 |
6CL4003
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 4.25 |
| Minimum Bend Radius (mm) | 108 |
| Hose Inside Diameter (in). | 0.375 |
| Hose Inside Diameter (mm) | 9.53 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 304.8 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Modified Nitrile - Type C2. Smooth. |
| Reinforcement | Braided, steel wire |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | Braided, steel wire |
| Construction: Tube | Nitrile - Type C. Black. |
| Weight (lbs.) | 260.0 |
6CL4004
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 4.25 |
| Minimum Bend Radius (mm) | 108 |
| Hose Inside Diameter (in). | 0.375 |
| Hose Inside Diameter (mm) | 9.53 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.68 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Modified Nitrile - Type C2. Smooth. |
| Reinforcement | Braided, steel wire |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | Braided, steel wire |
| Construction: Tube | Nitrile - Type C. Black. |
| Weight (lbs.) | 78.0 |
6CL4005
| Hose Inside Diameter (in). | 0.375 |
|---|---|
| Hose Inside Diameter (mm) | 9.53 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Blue |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
6CL4006
| Hose Inside Diameter (in). | 0.375 |
|---|---|
| Hose Inside Diameter (mm) | 9.53 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Blue |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
6CL4007
| Hose Inside Diameter (in). | 0.375 |
|---|---|
| Hose Inside Diameter (mm) | 9.53 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Blue |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
6CL4008
| Hose Inside Diameter (in). | 0.375 |
|---|---|
| Hose Inside Diameter (mm) | 9.53 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Blue |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
6CL4009
| Hose Inside Diameter (in). | 0.375 |
|---|---|
| Hose Inside Diameter (mm) | 9.53 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Blue |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
8CL4000
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 51 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 342.9 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Modified Nitrile - Type C2. Smooth. |
| Reinforcement | Braided, steel wire |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | Braided, steel wire |
| Construction: Tube | Nitrile - Type C. Black. |
| Weight (lbs.) | 348.75 |
8CL4001
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 51 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 304.8 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Modified Nitrile - Type C2. Smooth. |
| Reinforcement | Braided, steel wire |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | Braided, steel wire |
| Construction: Tube | Nitrile - Type C. Black. |
| Weight (lbs.) | 310.0 |
8CL40010
| Hose Inside Diameter (in). | 0.5 |
|---|---|
| Hose Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Yellow |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
8CL4002
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 51 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 91.4 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 9.5 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Modified Nitrile - Type C2. Smooth. |
| Reinforcement | Braided, steel wire |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | Braided, steel wire |
| Construction: Tube | Nitrile - Type C. Black. |
| Weight (lbs.) | 93.0 |
8CL4003
| Hose Inside Diameter (in). | 0.5 |
|---|---|
| Hose Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Blue |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
8CL4004
| Hose Inside Diameter (in). | 0.5 |
|---|---|
| Hose Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Blue |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
8CL4005
| Hose Inside Diameter (in). | 0.5 |
|---|---|
| Hose Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Blue |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
8CL4006
| Hose Inside Diameter (in). | 0.5 |
|---|---|
| Hose Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Gray |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
8CL4007
| Hose Inside Diameter (in). | 0.5 |
|---|---|
| Hose Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Gray |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
8CL4008
| Hose Inside Diameter (in). | 0.5 |
|---|---|
| Hose Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Gray |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
8CL4009
| Hose Inside Diameter (in). | 0.5 |
|---|---|
| Hose Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Color | Yellow |
| Reinforcement | Braided, steel wire |
| Construction: Cover | Modified Nitrile - Type C2 |
Specifications
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2 – 5 |
| Minimum Bend Radius (mm) | 51 – 108 |
| Hose Inside Diameter (in). | 0.25 – 0.5 |
| Hose Inside Diameter (mm) | 6.35 – 12.7 |
| Inside Diameter (in) | 0.25 – 0.5 |
| Inside Diameter (mm) | 6.4 – 9.5 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C), -40°F to +302°F (-40°C to +150°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 15.2 – 609.6 |
| Outside Diameter (in) | 0.52 – 0.81 |
| Outside Diameter (mm) | 6.4 – 9.5 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black, Gray, Yellow, Blue |
| Cover | Modified Nitrile - Type C2. Smooth. |
| Reinforcement | Braided, steel wire |
| Tube | Nitrile - Type C. High oil resistance. |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | Braided, steel wire |
| Construction: Tube | Nitrile - Type C. Black. |
| Weight (lbs.) | 13.0 – 348.75 |
PDF Documents
No PDF documents.
