Attributes
| Part Number | 3604-000000-000000 |
|---|
Description

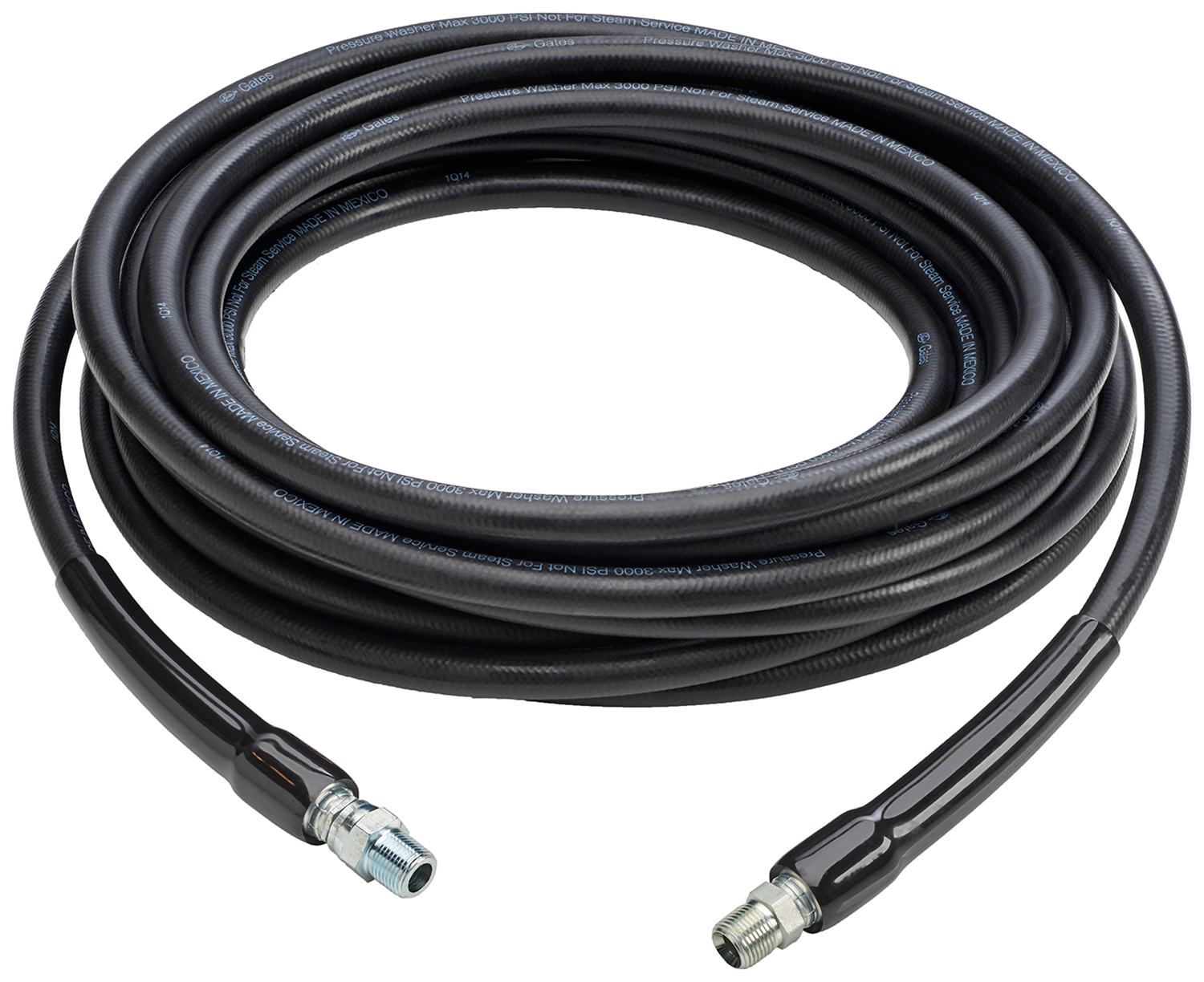

Clean Master™ Pressure Wash Assemblies RECOMMENDED FOR: Hot and cold water high–pressure cleaning equipment used in commercial and industrial cleaning, food processing, sanitation, and car wash applications where heavy–duty service is required. Specially compounded cover to handle harsh environments. Meets 300°F (150°C) intermittent per EN1829–2. Increased operating temperatures will reduce hose assembly service life. CAUTION: Not recommended for steam service. Extremely flexible, lightweight and easy to handle. Tube specially compounded to handle high-pressure water service. Specially compounded cover to handle pressure washer environment. Non–marking (except for black), Abrasion–resistant, Ozone–resistant, MSHA–flame resistant cover.
Variations (16)
36040935
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 4.25 |
| Minimum Bend Radius (mm) | 108 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Length (m) | 30.5 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth, Non-Marking |
| Construction: Tube | Nitrile - Type C, , Braided, steel wire |
36040933
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 4.25 |
| Minimum Bend Radius (mm) | 108 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Length (m) | 30.5 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth, Non-Marking |
| Construction: Tube | Nitrile - Type C, , Braided, steel wire |
36040929
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2.5 |
| Minimum Bend Radius (mm) | 64 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Length (m) | 15.2 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth |
| Construction: Tube | Nitrile - Type C, Braided, steel wire |
36040924
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2.5 |
| Minimum Bend Radius (mm) | 64 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Length (m) | 15.2 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth, Non-Marking |
| Construction: Tube | Nitrile - Type C, Braided, steel wire |
36040923
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2.5 |
| Minimum Bend Radius (mm) | 64 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Length (m) | 30.5 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth |
| Construction: Tube | Nitrile - Type C, Braided, steel wire |
36040920
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2.5 |
| Minimum Bend Radius (mm) | 64 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Length (m) | 30.5 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth, Non-Marking |
| Construction: Tube | Nitrile - Type C, Braided, steel wire |
36040925
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2.5 |
| Minimum Bend Radius (mm) | 64 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Length (m) | 30.5 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth, Non-Marking |
| Construction: Tube | Nitrile - Type C, Braided, steel wire |
36040922
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2.5 |
| Minimum Bend Radius (mm) | 64 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Length (m) | 30.5 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth, Non-Marking |
| Construction: Tube | Nitrile - Type C, Braided, steel wire |
36040926
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2.5 |
| Minimum Bend Radius (mm) | 64 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Length (m) | 15.2 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth, Non-Marking |
| Construction: Tube | Nitrile - Type C, Braided, steel wire |
36040927
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2.5 |
| Minimum Bend Radius (mm) | 64 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Length (m) | 15.2 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth, Non-Marking |
| Construction: Tube | Nitrile - Type C, Braided, steel wire |
36040928
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2.5 |
| Minimum Bend Radius (mm) | 64 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Length (m) | 30.5 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth, Non-Marking |
| Construction: Tube | Nitrile - Type C, Braided, steel wire |
36040930
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2.5 |
| Minimum Bend Radius (mm) | 64 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Length (m) | 30.5 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth |
| Construction: Tube | Nitrile - Type C, Braided, steel wire |
36040932
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 4.25 |
| Minimum Bend Radius (mm) | 108 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Length (m) | 15.2 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth, Non-Marking |
| Construction: Tube | Nitrile - Type C, , Braided, steel wire |
36040931
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 4.25 |
| Minimum Bend Radius (mm) | 108 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Length (m) | 15.2 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth, Non-Marking |
| Construction: Tube | Nitrile - Type C, , Braided, steel wire |
36040934
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 4.25 |
| Minimum Bend Radius (mm) | 108 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Length (m) | 15.2 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth, Non-Marking |
| Construction: Tube | Nitrile - Type C, , Braided, steel wire |
36040921
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 4.25 |
| Minimum Bend Radius (mm) | 108 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C) |
| Length (m) | 30.5 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth, Non-Marking |
| Construction: Tube | Nitrile - Type C, , Braided, steel wire |
Specifications
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2.5 – 4.25 |
| Minimum Bend Radius (mm) | 64 – 108 |
| Hose Inside Diameter (in). | 0.37 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.68 |
| Hose Outside Diameter (mm) | 17.3 |
| Temperature Range | -40°F to +300°F (-40°C to +150°C), -40°F to +250°F (-40°C to +121°C) |
| Length (m) | 15.2 – 30.5 |
| Cover | Modified Nitrile - Type C2 |
| Construction: Cover | Standard, Modified Nitrile - Type C2, Smooth, Non-Marking, Standard, Modified Nitrile - Type C2, Smooth |
| Construction: Tube | Nitrile - Type C, , Braided, steel wire, Nitrile - Type C, Braided, steel wire |
