Attributes
| Part Number | 3230-000000-000000 |
|---|
Description

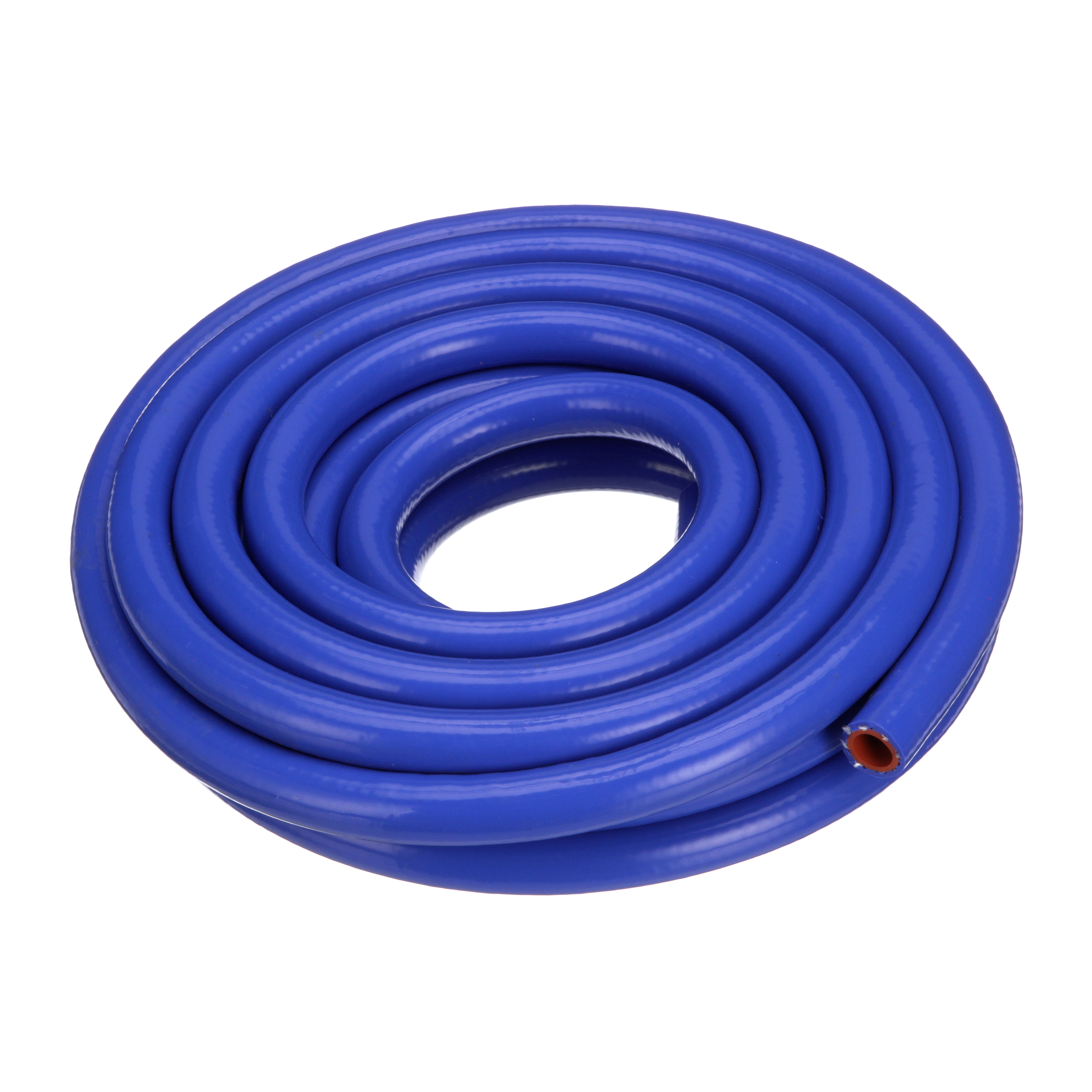

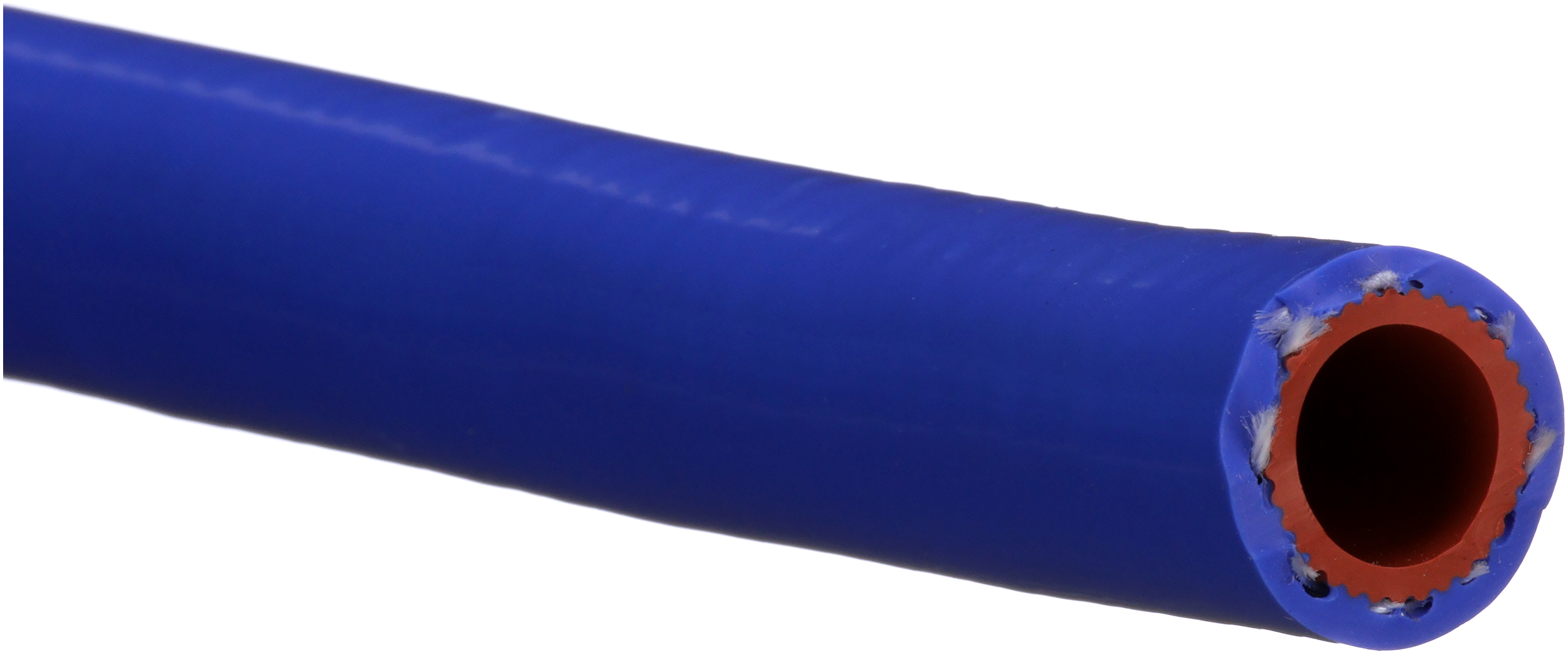

Silicone Heater Hose Silicone Heater Hoses are constructed with polyester-reinforced silicone, making them extremely durable and suited for high-temperature applications such as radiators, heaters, and other coolant transfer hose uses. Exceptional temperature resistance: -65°F to +350°F (-53°C to +176°C). Polyester textile reinforcement for high durability. High flexibility for versatile applications. High environmental resistance to weathering, coolant deterioration, and ozone. Exceeds SAE 20R3 Class A performance.
Variations (8)
26240
No variation attributes.
26239
| Centerline Length (ft) | 25 |
|---|---|
| Centerline Length (in) | 300 |
| Centerline Length (m) | 7.62 |
| Centerline Length (mm) | 7620 |
| Hose Inside Diameter (in). | 0.375 |
| Hose Inside Diameter (mm) | 9.5 |
| Inside Diameter 1 (in) | 0.375 |
| Inside Diameter 1 (mm) | 10 |
| Inside Diameter 2 (in) | 0.375 |
| Inside Diameter 2 (mm) | 10 |
| Working Pressure (psi) | 60 |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 3.98 |
26241
| Centerline Length (ft) | 25 |
|---|---|
| Centerline Length (in) | 300 |
| Centerline Length (m) | 7.62 |
| Centerline Length (mm) | 7620 |
| Hose Inside Diameter (in). | 0.625 |
| Hose Inside Diameter (mm) | 15.9 |
| Inside Diameter 1 (in) | 0.625 |
| Inside Diameter 1 (mm) | 16 |
| Inside Diameter 2 (in) | 0.625 |
| Inside Diameter 2 (mm) | 16 |
| Working Pressure (psi) | 60 |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 6.67 |
26242
| Centerline Length (ft) | 25 |
|---|---|
| Centerline Length (in) | 300 |
| Centerline Length (m) | 7.62 |
| Centerline Length (mm) | 7620 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19 |
| Inside Diameter 1 (in) | 0.75 |
| Inside Diameter 1 (mm) | 19 |
| Inside Diameter 2 (in) | 0.75 |
| Inside Diameter 2 (mm) | 19 |
| Working Pressure (psi) | 50 |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 7.72 |
26244
| Centerline Length (ft) | 25 |
|---|---|
| Centerline Length (in) | 300 |
| Centerline Length (m) | 7.62 |
| Centerline Length (mm) | 7620 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Inside Diameter 1 (in) | 1 |
| Inside Diameter 1 (mm) | 25 |
| Inside Diameter 2 (in) | 1 |
| Inside Diameter 2 (mm) | 25 |
| Working Pressure (psi) | 45 |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 10.32 |
26244B
| Centerline Length (ft) | 200 |
|---|---|
| Centerline Length (in) | 2400 |
| Centerline Length (m) | 61 |
| Centerline Length (mm) | 60960 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25 |
| Working Pressure (psi) | 45 |
| Material | Silicone |
32300289
No variation attributes.
32300285
No variation attributes.
Specifications
| Centerline Length (ft) | 25 – 200 |
|---|---|
| Centerline Length (in) | 300 – 2400 |
| Centerline Length (m) | 7.62 – 61 |
| Centerline Length (mm) | 7620 – 60960 |
| Hose Inside Diameter (in). | 0.375 – 1 |
| Hose Inside Diameter (mm) | 9.5 – 25.4 |
| Inside Diameter 1 (in) | 0.375 – 1 |
| Inside Diameter 1 (mm) | 10 – 25 |
| Inside Diameter 2 (in) | 0.375 – 1 |
| Inside Diameter 2 (mm) | 10 – 25 |
| Working Pressure (psi) | 45 – 60 |
| Caution | Do not use for fuel or oil transfer applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 3.98 – 10.32 |
| Material | Silicone |
