Attributes
| Part Number | 9003-000000-000000 |
|---|
Description

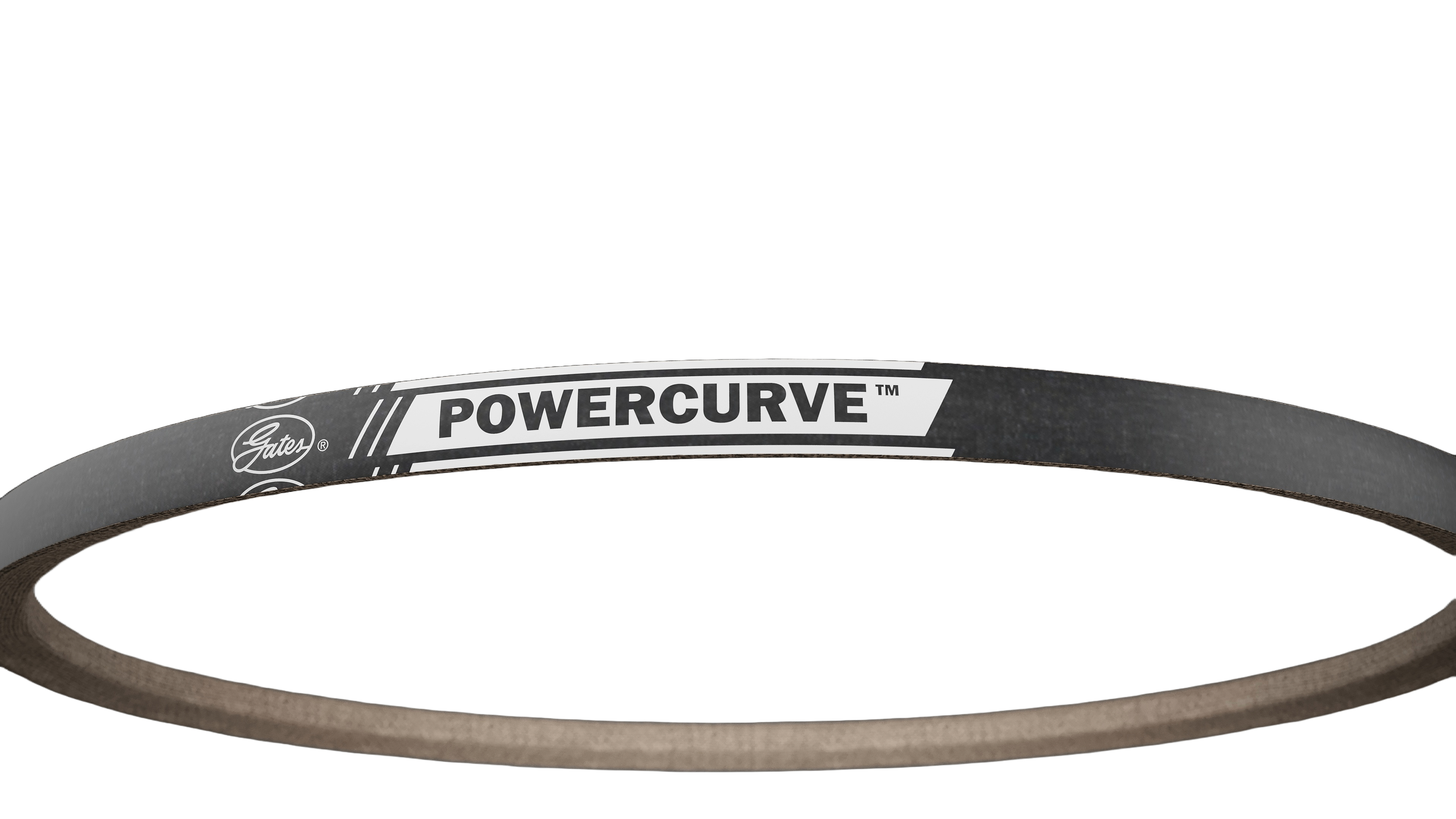

Power Curve™ Belts The bareback cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat. This cover reduces debris and makes for a cleaner running system.
Variations (48)
B100PC
| Effective Length (in) | 102.9 |
|---|---|
| Effective Length (mm) | 2613.66 |
| Notched | false |
| Outside Circumference (in) | 103.1 |
| Outside Circumference (mm) | 2618.74 |
| Number of Ribs | 1 |
| Section | B |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
B105PC
No variation attributes.
B112PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 114.6 |
| Effective Length (mm) | 2910.8 |
| Notched | false |
| Outside Circumference (in) | 114.8 |
| Outside Circumference (mm) | 2915.9 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 30 |
| Weight (lbs.) | 1.3 |
B116PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 118.9 |
| Effective Length (mm) | 3020.1 |
| Notched | false |
| Outside Circumference (in) | 119.1 |
| Outside Circumference (mm) | 3025.1 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 35 |
| Weight (lbs.) | 1.3 |
B120PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 122.9 |
| Effective Length (mm) | 3121.7 |
| Notched | false |
| Outside Circumference (in) | 123.1 |
| Outside Circumference (mm) | 3126.7 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 35 |
| Weight (lbs.) | 1.35 |
B124PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 126.58 |
| Effective Length (mm) | 3215.1 |
| Notched | false |
| Outside Circumference (in) | 126.78 |
| Outside Circumference (mm) | 3220.2 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 30 |
| Weight (lbs.) | 1.4 |
B128PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 130.57 |
| Effective Length (mm) | 3316.5 |
| Notched | false |
| Outside Circumference (in) | 130.77 |
| Outside Circumference (mm) | 3321.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 25 |
| Weight (lbs.) | 1.45 |
B133PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 135.9 |
| Effective Length (mm) | 3451.9 |
| Notched | false |
| Outside Circumference (in) | 136.1 |
| Outside Circumference (mm) | 3456.9 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 25 |
| Weight (lbs.) | 1.5 |
B136PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 138.9 |
| Effective Length (mm) | 3528.1 |
| Notched | false |
| Outside Circumference (in) | 139.1 |
| Outside Circumference (mm) | 3533.1 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 25 |
| Weight (lbs.) | 1.52 |
B140PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 142.9 |
| Effective Length (mm) | 3629.7 |
| Notched | false |
| Outside Circumference (in) | 143.1 |
| Outside Circumference (mm) | 3634.7 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 25 |
| Weight (lbs.) | 1.6 |
B144PC
No variation attributes.
B150PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 152.9 |
| Effective Length (mm) | 3883.7 |
| Notched | false |
| Outside Circumference (in) | 153.1 |
| Outside Circumference (mm) | 3888.7 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 25 |
| Weight (lbs.) | 1.7 |
B154PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 156.9 |
| Effective Length (mm) | 3985.3 |
| Notched | false |
| Outside Circumference (in) | 157.1 |
| Outside Circumference (mm) | 3990.3 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 25 |
| Weight (lbs.) | 1.75 |
B158PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 160.9 |
| Effective Length (mm) | 4086.9 |
| Notched | false |
| Outside Circumference (in) | 161.1 |
| Outside Circumference (mm) | 4091.9 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 25 |
| Weight (lbs.) | 1.77 |
B162PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 164.9 |
| Effective Length (mm) | 4188.5 |
| Notched | false |
| Outside Circumference (in) | 165.1 |
| Outside Circumference (mm) | 4193.5 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 25 |
| Weight (lbs.) | 1.8 |
B173PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 175.9 |
| Effective Length (mm) | 4467.9 |
| Notched | false |
| Outside Circumference (in) | 176.1 |
| Outside Circumference (mm) | 4472.9 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 25 |
| Weight (lbs.) | 1.96 |
B180PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 182.9 |
| Effective Length (mm) | 4645.7 |
| Notched | false |
| Outside Circumference (in) | 183.1 |
| Outside Circumference (mm) | 4650.7 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 25 |
| Weight (lbs.) | 2.0 |
B190PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 192.9 |
| Effective Length (mm) | 4899.7 |
| Notched | false |
| Outside Circumference (in) | 193.1 |
| Outside Circumference (mm) | 4904.7 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 20 |
| Weight (lbs.) | 2.15 |
B195PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 197.9 |
| Effective Length (mm) | 5026.7 |
| Notched | false |
| Outside Circumference (in) | 198.1 |
| Outside Circumference (mm) | 5031.7 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 20 |
| Weight (lbs.) | 2.2 |
B205PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 207.9 |
| Effective Length (mm) | 5280.7 |
| Notched | false |
| Outside Circumference (in) | 208.1 |
| Outside Circumference (mm) | 5285.7 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 20 |
| Weight (lbs.) | 2.3 |
B210PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 212.9 |
| Effective Length (mm) | 5407.7 |
| Notched | false |
| Outside Circumference (in) | 213.1 |
| Outside Circumference (mm) | 5412.7 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 20 |
| Weight (lbs.) | 2.3 |
B225PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 226.4 |
| Effective Length (mm) | 5750.6 |
| Notched | false |
| Outside Circumference (in) | 226.6 |
| Outside Circumference (mm) | 5755.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 20 |
| Weight (lbs.) | 2.5 |
B240PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 241.4 |
| Effective Length (mm) | 6131.6 |
| Notched | false |
| Outside Circumference (in) | 241.6 |
| Outside Circumference (mm) | 6136.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 20 |
| Weight (lbs.) | 2.65 |
B248PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 249.4 |
| Effective Length (mm) | 6334.8 |
| Notched | false |
| Outside Circumference (in) | 249.6 |
| Outside Circumference (mm) | 6339.8 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 10 |
| Weight (lbs.) | 2.75 |
B250PC
| Effective Length (in) | 251.4 |
|---|---|
| Effective Length (mm) | 6385.56 |
| Notched | false |
| Outside Circumference (in) | 251.6 |
| Outside Circumference (mm) | 6390.64 |
| Number of Ribs | 1 |
| Section | B |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
B255PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 256.4 |
| Effective Length (mm) | 6512.6 |
| Notched | false |
| Outside Circumference (in) | 256.6 |
| Outside Circumference (mm) | 6517.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 20 |
| Weight (lbs.) | 2.8 |
B270PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 271.4 |
| Effective Length (mm) | 6893.6 |
| Notched | false |
| Outside Circumference (in) | 271.6 |
| Outside Circumference (mm) | 6898.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 20 |
| Weight (lbs.) | 2.95 |
B285PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 286.4 |
| Effective Length (mm) | 7274.6 |
| Notched | false |
| Outside Circumference (in) | 286.6 |
| Outside Circumference (mm) | 7279.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 15 |
| Weight (lbs.) | 3.15 |
B300PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 301.4 |
| Effective Length (mm) | 7655.6 |
| Notched | false |
| Outside Circumference (in) | 301.6 |
| Outside Circumference (mm) | 7660.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 15 |
| Weight (lbs.) | 3.35 |
B315PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 316.4 |
| Effective Length (mm) | 8036.6 |
| Notched | false |
| Outside Circumference (in) | 316.6 |
| Outside Circumference (mm) | 8041.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 15 |
| Weight (lbs.) | 3.5 |
B330PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 331.4 |
| Effective Length (mm) | 8417.6 |
| Notched | false |
| Outside Circumference (in) | 331.6 |
| Outside Circumference (mm) | 8422.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 5 |
| Weight (lbs.) | 3.7 |
B345PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 346.4 |
| Effective Length (mm) | 8798.6 |
| Notched | false |
| Outside Circumference (in) | 346.6 |
| Outside Circumference (mm) | 8803.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 5 |
| Weight (lbs.) | 3.8 |
B360PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 361.4 |
| Effective Length (mm) | 9179.6 |
| Notched | false |
| Outside Circumference (in) | 361.6 |
| Outside Circumference (mm) | 9184.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 5 |
| Weight (lbs.) | 3.95 |
B375PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 376.4 |
| Effective Length (mm) | 9560.6 |
| Notched | false |
| Outside Circumference (in) | 376.6 |
| Outside Circumference (mm) | 9565.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 5 |
| Weight (lbs.) | 4.15 |
B390PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 391.4 |
| Effective Length (mm) | 9941.6 |
| Notched | false |
| Outside Circumference (in) | 391.6 |
| Outside Circumference (mm) | 9946.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 5 |
| Weight (lbs.) | 4.4 |
B405PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 406.4 |
| Effective Length (mm) | 10322.6 |
| Notched | false |
| Outside Circumference (in) | 406.6 |
| Outside Circumference (mm) | 10327.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 5 |
| Weight (lbs.) | 4.5 |
B420PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 421.4 |
| Effective Length (mm) | 10703.6 |
| Notched | false |
| Outside Circumference (in) | 421.6 |
| Outside Circumference (mm) | 10708.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 5 |
| Weight (lbs.) | 4.65 |
B430PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 431.4 |
| Effective Length (mm) | 10957.6 |
| Notched | false |
| Outside Circumference (in) | 431.6 |
| Outside Circumference (mm) | 10962.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 5 |
| Weight (lbs.) | 4.8 |
B445PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 446.4 |
| Effective Length (mm) | 11338.6 |
| Notched | false |
| Outside Circumference (in) | 446.6 |
| Outside Circumference (mm) | 11343.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 5 |
| Weight (lbs.) | 4.95 |
B460PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 461.4 |
| Effective Length (mm) | 11719.6 |
| Notched | false |
| Outside Circumference (in) | 461.6 |
| Outside Circumference (mm) | 11724.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 5 |
| Weight (lbs.) | 5.2 |
B470PC
| Effective Length (in) | 471.4 |
|---|---|
| Effective Length (mm) | 11973.56 |
| Notched | false |
| Outside Circumference (in) | 471.6 |
| Outside Circumference (mm) | 11978.64 |
| Number of Ribs | 1 |
| Section | B |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
B500PC
| Cross Section | B |
|---|---|
| Effective Length (in) | 501.4 |
| Effective Length (mm) | 12735.6 |
| Notched | false |
| Outside Circumference (in) | 501.6 |
| Outside Circumference (mm) | 12740.6 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 1 |
| Weight (lbs.) | 5.7 |
B124PCBB
No variation attributes.
B136PCBB
No variation attributes.
B225PCBB
No variation attributes.
B270PCBB
No variation attributes.
90035006
No variation attributes.
90035007
No variation attributes.
Specifications
| Effective Length (in) | 102.9 – 501.4 |
|---|---|
| Effective Length (mm) | 2613.66 – 12735.6 |
| Notched | false |
| Outside Circumference (in) | 103.1 – 501.6 |
| Outside Circumference (mm) | 2618.74 – 12740.6 |
| Number of Ribs | 1 |
| Section | B |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Cross Section | B |
| Strand | 1 |
| Markets/Applications | Recommended for power turn conveyor beds and automotive manufacturing conveyors. |
| Recommended For | Multi-Duty® Sheaves |
| Customer Pack | 1 – 35 |
| Weight (lbs.) | 1.3 – 5.7 |
PDF Documents
No PDF documents.
