Attributes
| Part Number | 3317-000000-000000 |
|---|
Description

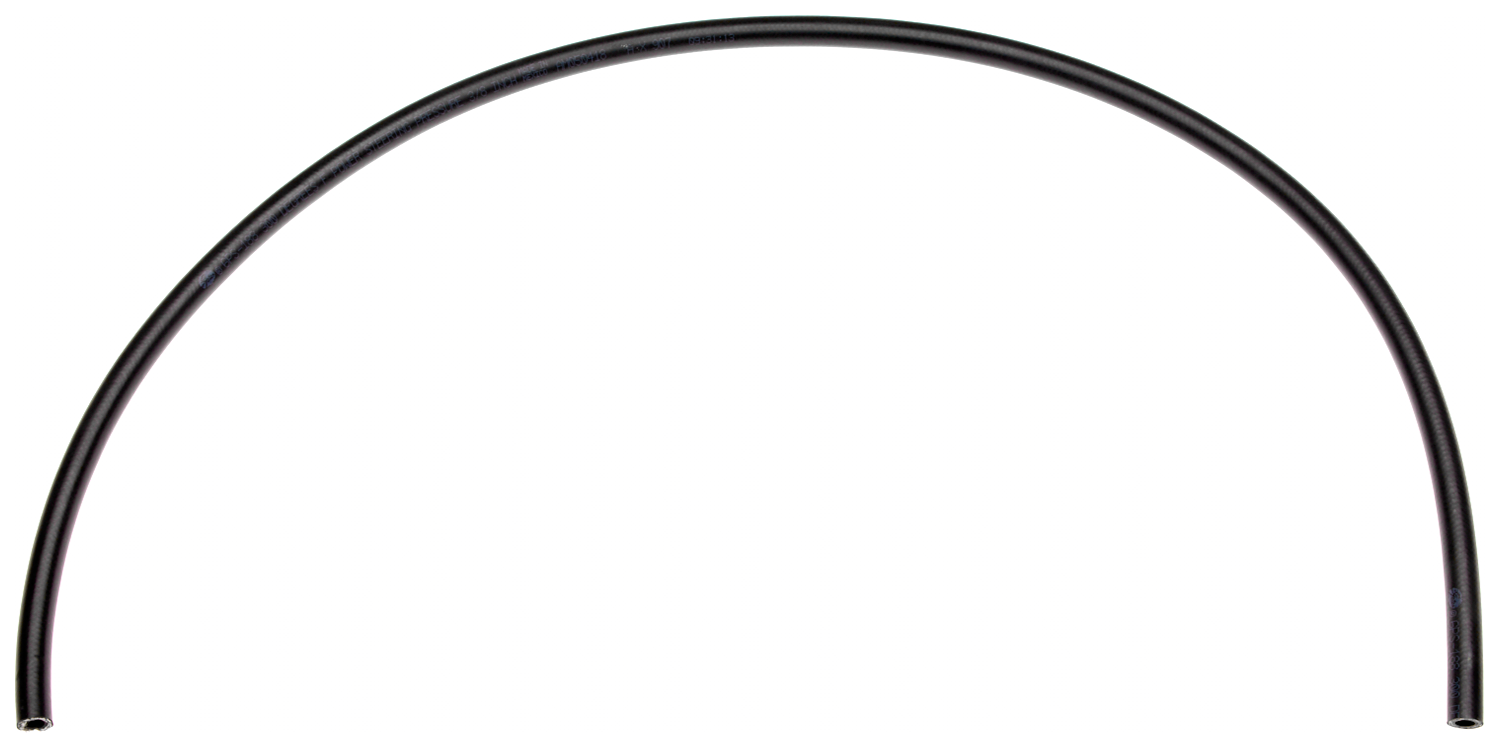

PowerSteering High Pressure Hose Gates PS188 Power Steering Hose is recommended for power steering pressure lines. Recommended For: Power steering pressure lines. Synthetic rubber hose cover developed specifically to resist rugged underhood environments Type CSM. Use with one-piece Gates Power Crimp™ power steering couplings (Refer to Gates Hydraulic catalog for details). Meets SAE J2050 Type 1 performance requirements and SAE J2050 Class B (light weight specifications).
Features and Benefits Nylon Reinforcement (2 ply). CSM Tube and Cover. Hose I.D.: 3/8". Available in 25 ft and 50 ft lengths.
Variations (2)
86049
| Dynamic WP (Max.psi) (1) | 1500 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 3.25 |
| Minimum Bend Radius (mm) | 82.6 |
| Min. Burst Pressure (psi) | 6000 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.71 |
| Hose Outside Diameter (mm) | 18 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 1500 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.71 |
| Outside Diameter (mm) | 18 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 2-braid, high-strength nylon |
| Tube | CSM - Type M; Black; High Temperature, Power Steering Fluid Resistant |
| Construction: Cover | CSM |
| Notes | J2050 |
| Recommended For | Power steering pressure lines. Designed to meet requirements of SAE J2050 specifications. |
| Customer Pack | 1 |
| Weight (lbs.) | 4.23 |
86050
| Minimum Bend Radius (in) | 3.25 |
|---|---|
| Minimum Bend Radius (mm) | 82.6 |
| Min. Burst Pressure (psi) | 1500 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +300°F (-40°C to +149°C) |
| Working Pressure (psi) | 1500 |
| Length (m) | 15 |
| Outside Diameter (in) | 0.71 |
| Outside Diameter (mm) | 18 |
| Coupling Recommendation | Permanent Power Steering Couplings [G50 Series] |
| Color | Black |
| Cover | CSM. Black |
| Reinforcement | 2-braid, high-strength nylon |
| Tube | CSM - Type M; Black; High Temperature, Power Steering Fluid Resistant |
| Construction: Cover | CSM |
| Construction: Reinforcement | 2-braid, high-strength nylon |
| Construction: Tube | CSM - Type M |
| Notes | J2050 |
Specifications
| Dynamic WP (Max.psi) (1) | 1500 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +300°F |
| Minimum Bend Radius (in) | 3.25 |
| Minimum Bend Radius (mm) | 82.6 |
| Min. Burst Pressure (psi) | 1500 – 6000 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.71 |
| Hose Outside Diameter (mm) | 18 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 1500 |
| Length (m) | 8 – 15 |
| Outside Diameter (in) | 0.71 |
| Outside Diameter (mm) | 18 |
| Use | Fleet |
| Color | Black |
| Reinforcement | 2-braid, high-strength nylon |
| Tube | CSM - Type M; Black; High Temperature, Power Steering Fluid Resistant |
| Construction: Cover | CSM |
| Notes | J2050 |
| Recommended For | Power steering pressure lines. Designed to meet requirements of SAE J2050 specifications. |
| Customer Pack | 1 |
| Weight (lbs.) | 4.23 |
| Temperature Range | -40°F to +300°F (-40°C to +149°C) |
| Coupling Recommendation | Permanent Power Steering Couplings [G50 Series] |
| Cover | CSM. Black |
| Construction: Reinforcement | 2-braid, high-strength nylon |
| Construction: Tube | CSM - Type M |
