Attributes
| Part Number | 7752-000000-000001 |
|---|
Description

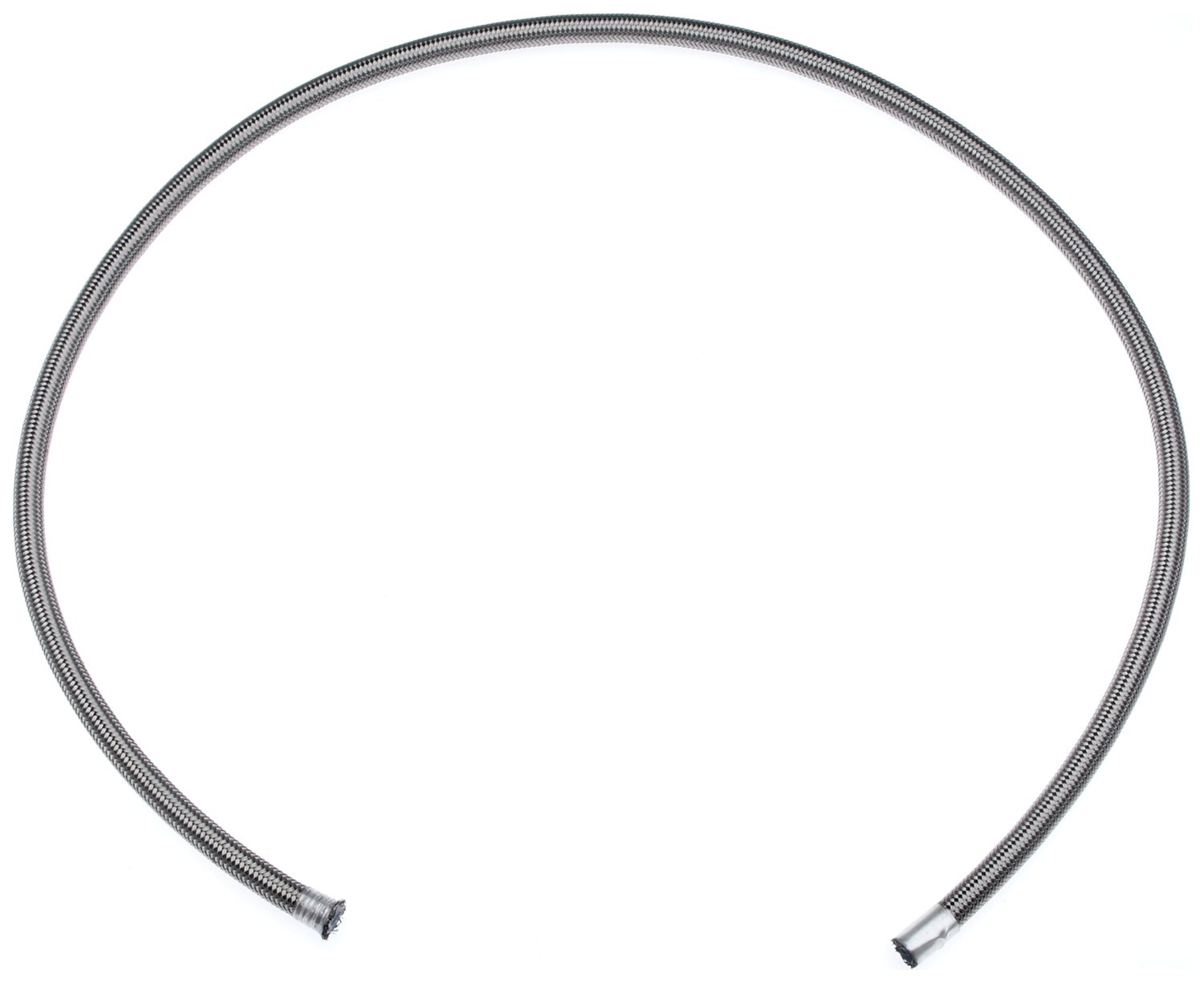

Nonconductive C14 PTFE Hose C14 PTFE hose is recommended for air compressor discharge, hot oil and fluids, hot and greasy environments. Recommended for air compressor discharge, hot oil and fluids, hot and greasy environments. For use with Brass and Stainless Steel C14 Couplings [G40 Series]. Hose and couplings can be crimped or swaged. Hydraulics Catalog
Variations (15)
85704
| Dynamic WP (Max.psi) (1) | 800 |
|---|---|
| Min. Burst Pressure (psi) 45F | 3200 |
| Min. Burst Pressure (psi) 72F | 6000 |
| Vacuum (In. Hg) | 20 |
| Working Pressure (psi) 45F | 800 |
| Working Pressure (psi) 72F | 1500 |
| Continuous Operating Temperature Range | -65°F to +400°F |
| Minimum Bend Radius (in) | 6.5 |
| Minimum Bend Radius (mm) | 165.1 |
| Min. Burst Pressure (psi) | 3200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.65 |
| Hose Outside Diameter (mm) | 16.5 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 800 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.65 |
| Outside Diameter (mm) | 16.5 |
| Use | Fleet |
| Color | Silver |
| Reinforcement | 1-braid, stainless steel |
| Tube | PTFE - Type A; White; Non-Conductive, Smooth Bore |
| Construction: Cover | Stainless Steel Wire 304 |
| Standard Industry Specification | SAE 100R14 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R14 Type A. Static to +450°F. |
| Recommended For | Air compressor discharge, hot oil and fluids, hot and greasy environments. |
| Customer Pack | 1 |
| Weight (lbs.) | 3.75 |
| Packaging | T |
70810
| Dynamic WP (Max.psi) (1) | 800 |
|---|---|
| Min. Burst Pressure (psi) 45F | 3200 |
| Min. Burst Pressure (psi) 72F | 6000 |
| Vacuum (In. Hg) | 20 |
| Working Pressure (psi) 45F | 800 |
| Working Pressure (psi) 72F | 1500 |
| Continuous Operating Temperature Range | -65°F to +400°F |
| Minimum Bend Radius (in) | 6.5 |
| Minimum Bend Radius (mm) | 165.1 |
| Min. Burst Pressure (psi) | 3200 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.65 |
| Hose Outside Diameter (mm) | 16.5 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 800 |
| Length (m) | 61 |
| Outside Diameter (in) | 0.65 |
| Outside Diameter (mm) | 16.5 |
| Use | Fleet |
| Color | Silver |
| Reinforcement | 1-braid, stainless steel |
| Tube | PTFE - Type A; White; Non-Conductive, Smooth Bore |
| Construction: Cover | Stainless Steel Wire 304 |
| Standard Industry Specification | SAE 100R14 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R14 Type A. Static to +450°F. |
| Recommended For | Air compressor discharge, hot oil and fluids, hot and greasy environments. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.15 |
| Packaging | L |
85705
| Dynamic WP (Max.psi) (1) | 800 |
|---|---|
| Min. Burst Pressure (psi) 45F | 2600 |
| Min. Burst Pressure (psi) 72F | 4800 |
| Vacuum (In. Hg) | 20 |
| Working Pressure (psi) 45F | 800 |
| Working Pressure (psi) 72F | 1200 |
| Continuous Operating Temperature Range | -65°F to +400°F |
| Minimum Bend Radius (in) | 7.8 |
| Minimum Bend Radius (mm) | 198.1 |
| Min. Burst Pressure (psi) | 3200 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.79 |
| Hose Outside Diameter (mm) | 20.1 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 800 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.79 |
| Outside Diameter (mm) | 20.1 |
| Use | Fleet |
| Color | Silver |
| Reinforcement | 1-braid, stainless steel |
| Tube | PTFE - Type A; White; Non-Conductive, Smooth Bore |
| Construction: Cover | Stainless Steel Wire 304 |
| Standard Industry Specification | SAE 100R14 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R14 Type A. Static to +450°F. |
| Recommended For | Air compressor discharge, hot oil and fluids, hot and greasy environments. |
| Customer Pack | 1 |
| Weight (lbs.) | 4.25 |
| Packaging | T |
70812
| Dynamic WP (Max.psi) (1) | 800 |
|---|---|
| Min. Burst Pressure (psi) 45F | 2600 |
| Min. Burst Pressure (psi) 72F | 4800 |
| Vacuum (In. Hg) | 20 |
| Working Pressure (psi) 45F | 800 |
| Working Pressure (psi) 72F | 1200 |
| Continuous Operating Temperature Range | -65°F to +400°F |
| Minimum Bend Radius (in) | 7.8 |
| Minimum Bend Radius (mm) | 198.1 |
| Min. Burst Pressure (psi) | 3200 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.79 |
| Hose Outside Diameter (mm) | 20.1 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 800 |
| Length (m) | 46 |
| Outside Diameter (in) | 0.79 |
| Outside Diameter (mm) | 20.1 |
| Use | Fleet |
| Color | Silver |
| Reinforcement | 1-braid, stainless steel |
| Tube | PTFE - Type A; White; Non-Conductive, Smooth Bore |
| Construction: Cover | Stainless Steel Wire 304 |
| Standard Industry Specification | SAE 100R14 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R14 Type A. Static to +450°F. |
| Recommended For | Air compressor discharge, hot oil and fluids, hot and greasy environments. |
| Customer Pack | 150 |
| Weight (lbs.) | 0.17 |
| Packaging | L |
85706
| Dynamic WP (Max.psi) (1) | 800 |
|---|---|
| Min. Burst Pressure (psi) 45F | 2200 |
| Min. Burst Pressure (psi) 72F | 4000 |
| Vacuum (In. Hg) | 14 |
| Working Pressure (psi) 45F | 800 |
| Working Pressure (psi) 72F | 1000 |
| Continuous Operating Temperature Range | -65°F to +400°F |
| Minimum Bend Radius (in) | 9 |
| Minimum Bend Radius (mm) | 228.6 |
| Min. Burst Pressure (psi) | 3500 |
| Hose Inside Diameter (in). | 0.88 |
| Hose Inside Diameter (mm) | 22.2 |
| Hose Outside Diameter (in) | 1.03 |
| Hose Outside Diameter (mm) | 26.2 |
| Inside Diameter (in) | 0.875 |
| Inside Diameter (mm) | 22.2 |
| Working Pressure (psi) | 800 |
| Length (m) | 8 |
| Outside Diameter (in) | 1.03 |
| Outside Diameter (mm) | 26.2 |
| Use | Fleet |
| Color | Silver |
| Reinforcement | 1-braid, stainless steel |
| Tube | PTFE - Type A; White; Non-Conductive, Smooth Bore |
| Construction: Cover | Stainless Steel Wire 304 |
| Standard Industry Specification | SAE 100R14 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R14 Type A. Static to +450°F. |
| Recommended For | Air compressor discharge, hot oil and fluids, hot and greasy environments. |
| Customer Pack | 1 |
| Weight (lbs.) | 6.75 |
| Packaging | T |
70816
| Dynamic WP (Max.psi) (1) | 800 |
|---|---|
| Min. Burst Pressure (psi) 45F | 2200 |
| Min. Burst Pressure (psi) 72F | 4000 |
| Vacuum (In. Hg) | 14 |
| Working Pressure (psi) 45F | 800 |
| Working Pressure (psi) 72F | 1000 |
| Continuous Operating Temperature Range | -65°F to +400°F |
| Minimum Bend Radius (in) | 9 |
| Minimum Bend Radius (mm) | 228.6 |
| Min. Burst Pressure (psi) | 3500 |
| Hose Inside Diameter (in). | 0.88 |
| Hose Inside Diameter (mm) | 22.2 |
| Hose Outside Diameter (in) | 1.03 |
| Hose Outside Diameter (mm) | 26.2 |
| Inside Diameter (in) | 0.875 |
| Inside Diameter (mm) | 22.2 |
| Working Pressure (psi) | 800 |
| Length (m) | 30 |
| Outside Diameter (in) | 1.03 |
| Outside Diameter (mm) | 26.2 |
| Use | Fleet |
| Color | Silver |
| Reinforcement | 1-braid, stainless steel |
| Tube | PTFE - Type A; White; Non-Conductive, Smooth Bore |
| Construction: Cover | Stainless Steel Wire 304 |
| Standard Industry Specification | SAE 100R14 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R14 Type A. Static to +450°F. |
| Recommended For | Air compressor discharge, hot oil and fluids, hot and greasy environments. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.27 |
| Packaging | L |
85700
| Dynamic WP (Max.psi) (1) | 1500 |
|---|---|
| Min. Burst Pressure (psi) 45F | 6000 |
| Min. Burst Pressure (psi) 72F | 12000 |
| Vacuum (In. Hg) | 28 |
| Working Pressure (psi) 45F | 1500 |
| Working Pressure (psi) 72F | 3000 |
| Continuous Operating Temperature Range | -65°F to +400°F |
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 50.8 |
| Min. Burst Pressure (psi) | 6000 |
| Hose Inside Diameter (in). | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Hose Outside Diameter (in) | 0.31 |
| Hose Outside Diameter (mm) | 7.9 |
| Inside Diameter (in) | 0.1875 |
| Inside Diameter (mm) | 4.8 |
| Working Pressure (psi) | 1500 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.31 |
| Outside Diameter (mm) | 7.9 |
| Use | Fleet |
| Color | Silver |
| Reinforcement | 1-braid, stainless steel |
| Tube | PTFE - Type A; White; Non-Conductive, Smooth Bore |
| Construction: Cover | Stainless Steel Wire 304 |
| Standard Industry Specification | SAE 100R14 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R14 Type A. Static to +450°F. |
| Recommended For | Air compressor discharge, hot oil and fluids, hot and greasy environments. |
| Customer Pack | 1 |
| Weight (lbs.) | 2.0 |
| Packaging | T |
70804
| Dynamic WP (Max.psi) (1) | 1500 |
|---|---|
| Min. Burst Pressure (psi) 45F | 6000 |
| Min. Burst Pressure (psi) 72F | 12000 |
| Vacuum (In. Hg) | 28 |
| Working Pressure (psi) 45F | 1500 |
| Working Pressure (psi) 72F | 3000 |
| Continuous Operating Temperature Range | -65°F to +400°F |
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 50.8 |
| Min. Burst Pressure (psi) | 6000 |
| Hose Inside Diameter (in). | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Hose Outside Diameter (in) | 0.31 |
| Hose Outside Diameter (mm) | 7.9 |
| Inside Diameter (in) | 0.1875 |
| Inside Diameter (mm) | 4.8 |
| Working Pressure (psi) | 1500 |
| Length (m) | 122 |
| Outside Diameter (in) | 0.31 |
| Outside Diameter (mm) | 7.9 |
| Use | Fleet |
| Color | Silver |
| Reinforcement | 1-braid, stainless steel |
| Tube | PTFE - Type A; White; Non-Conductive, Smooth Bore |
| Construction: Cover | Stainless Steel Wire 304 |
| Standard Industry Specification | SAE 100R14 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R14 Type A. Static to +450°F. |
| Recommended For | Air compressor discharge, hot oil and fluids, hot and greasy environments. |
| Customer Pack | 400 |
| Weight (lbs.) | 0.08 |
| Packaging | L |
85701
| Dynamic WP (Max.psi) (1) | 1500 |
|---|---|
| Min. Burst Pressure (psi) 45F | 6000 |
| Min. Burst Pressure (psi) 72F | 12000 |
| Vacuum (In. Hg) | 28 |
| Working Pressure (psi) 45F | 1500 |
| Working Pressure (psi) 72F | 3000 |
| Continuous Operating Temperature Range | -65°F to +400°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 6000 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.38 |
| Hose Outside Diameter (mm) | 9.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 1500 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.38 |
| Outside Diameter (mm) | 9.7 |
| Use | Fleet |
| Color | Silver |
| Reinforcement | 1-braid, stainless steel |
| Tube | PTFE - Type A; White; Non-Conductive, Smooth Bore |
| Construction: Cover | Stainless Steel Wire 304 |
| Standard Industry Specification | SAE 100R14 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R14 Type A. Static to +450°F. |
| Recommended For | Air compressor discharge, hot oil and fluids, hot and greasy environments. |
| Customer Pack | 1 |
| Weight (lbs.) | 2.5 |
| Packaging | T |
70805
| Dynamic WP (Max.psi) (1) | 1500 |
|---|---|
| Min. Burst Pressure (psi) 45F | 6000 |
| Min. Burst Pressure (psi) 72F | 12000 |
| Vacuum (In. Hg) | 28 |
| Working Pressure (psi) 45F | 1500 |
| Working Pressure (psi) 72F | 3000 |
| Continuous Operating Temperature Range | -65°F to +400°F |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 6000 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.38 |
| Hose Outside Diameter (mm) | 9.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 1500 |
| Length (m) | 107 |
| Outside Diameter (in) | 0.38 |
| Outside Diameter (mm) | 9.7 |
| Use | Fleet |
| Color | Silver |
| Reinforcement | 1-braid, stainless steel |
| Tube | PTFE - Type A; White; Non-Conductive, Smooth Bore |
| Construction: Cover | Stainless Steel Wire 304 |
| Standard Industry Specification | SAE 100R14 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R14 Type A. Static to +450°F. |
| Recommended For | Air compressor discharge, hot oil and fluids, hot and greasy environments. |
| Customer Pack | 350 |
| Weight (lbs.) | 0.1 |
| Packaging | L |
85702
| Dynamic WP (Max.psi) (1) | 1500 |
|---|---|
| Min. Burst Pressure (psi) 45F | 6000 |
| Min. Burst Pressure (psi) 72F | 10000 |
| Vacuum (In. Hg) | 28 |
| Working Pressure (psi) 45F | 1500 |
| Working Pressure (psi) 72F | 2500 |
| Continuous Operating Temperature Range | -65°F to +400°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 6000 |
| Hose Inside Diameter (in). | 0.31 |
| Hose Inside Diameter (mm) | 7.9 |
| Hose Outside Diameter (in) | 0.45 |
| Hose Outside Diameter (mm) | 11.4 |
| Inside Diameter (in) | 0.3125 |
| Inside Diameter (mm) | 7.9 |
| Working Pressure (psi) | 1500 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.45 |
| Outside Diameter (mm) | 11.4 |
| Use | Fleet |
| Color | Silver |
| Reinforcement | 1-braid, stainless steel |
| Tube | PTFE - Type A; White; Non-Conductive, Smooth Bore |
| Construction: Cover | Stainless Steel Wire 304 |
| Standard Industry Specification | SAE 100R14 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R14 Type A. Static to +450°F. |
| Recommended For | Air compressor discharge, hot oil and fluids, hot and greasy environments. |
| Customer Pack | 1 |
| Weight (lbs.) | 2.75 |
| Packaging | T |
70806
| Dynamic WP (Max.psi) (1) | 1500 |
|---|---|
| Min. Burst Pressure (psi) 45F | 6000 |
| Min. Burst Pressure (psi) 72F | 10000 |
| Vacuum (In. Hg) | 28 |
| Working Pressure (psi) 45F | 1500 |
| Working Pressure (psi) 72F | 2500 |
| Continuous Operating Temperature Range | -65°F to +400°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 6000 |
| Hose Inside Diameter (in). | 0.31 |
| Hose Inside Diameter (mm) | 7.9 |
| Hose Outside Diameter (in) | 0.45 |
| Hose Outside Diameter (mm) | 11.4 |
| Inside Diameter (in) | 0.3125 |
| Inside Diameter (mm) | 7.9 |
| Working Pressure (psi) | 1500 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.45 |
| Outside Diameter (mm) | 11.4 |
| Use | Fleet |
| Color | Silver |
| Reinforcement | 1-braid, stainless steel |
| Tube | PTFE - Type A; White; Non-Conductive, Smooth Bore |
| Construction: Cover | Stainless Steel Wire 304 |
| Standard Industry Specification | SAE 100R14 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R14 Type A. Static to +450°F. |
| Recommended For | Air compressor discharge, hot oil and fluids, hot and greasy environments. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.11 |
| Packaging | L |
85703
| Dynamic WP (Max.psi) (1) | 1000 |
|---|---|
| Min. Burst Pressure (psi) 45F | 4000 |
| Min. Burst Pressure (psi) 72F | 8000 |
| Vacuum (In. Hg) | 28 |
| Working Pressure (psi) 45F | 1000 |
| Working Pressure (psi) 72F | 2000 |
| Continuous Operating Temperature Range | -65°F to +400°F |
| Minimum Bend Radius (in) | 5.3 |
| Minimum Bend Radius (mm) | 134.6 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.41 |
| Hose Inside Diameter (mm) | 10.3 |
| Hose Outside Diameter (in) | 0.55 |
| Hose Outside Diameter (mm) | 14 |
| Inside Diameter (in) | 0.406 |
| Inside Diameter (mm) | 10.3 |
| Working Pressure (psi) | 1000 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.55 |
| Outside Diameter (mm) | 14 |
| Use | Fleet |
| Color | Silver |
| Reinforcement | 1-braid, stainless steel |
| Tube | PTFE - Type A; White; Non-Conductive, Smooth Bore |
| Construction: Cover | Stainless Steel Wire 304 |
| Standard Industry Specification | SAE 100R14 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R14 Type A. Static to +450°F. |
| Recommended For | Air compressor discharge, hot oil and fluids, hot and greasy environments. |
| Customer Pack | 1 |
| Weight (lbs.) | 3.0 |
| Packaging | T |
70808
| Dynamic WP (Max.psi) (1) | 1000 |
|---|---|
| Min. Burst Pressure (psi) 45F | 4000 |
| Min. Burst Pressure (psi) 72F | 8000 |
| Vacuum (In. Hg) | 28 |
| Working Pressure (psi) 45F | 1000 |
| Working Pressure (psi) 72F | 2000 |
| Continuous Operating Temperature Range | -65°F to +400°F |
| Minimum Bend Radius (in) | 5.3 |
| Minimum Bend Radius (mm) | 134.6 |
| Min. Burst Pressure (psi) | 4000 |
| Hose Inside Diameter (in). | 0.41 |
| Hose Inside Diameter (mm) | 10.3 |
| Hose Outside Diameter (in) | 0.55 |
| Hose Outside Diameter (mm) | 14 |
| Inside Diameter (in) | 0.406 |
| Inside Diameter (mm) | 10.3 |
| Working Pressure (psi) | 1000 |
| Length (m) | 76 |
| Outside Diameter (in) | 0.55 |
| Outside Diameter (mm) | 14 |
| Use | Fleet |
| Color | Silver |
| Reinforcement | 1-braid, stainless steel |
| Tube | PTFE - Type A; White; Non-Conductive, Smooth Bore |
| Construction: Cover | Stainless Steel Wire 304 |
| Standard Industry Specification | SAE 100R14 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R14 Type A. Static to +450°F. |
| Recommended For | Air compressor discharge, hot oil and fluids, hot and greasy environments. |
| Customer Pack | 250 |
| Weight (lbs.) | 0.12 |
| Packaging | L |
77520601
No variation attributes.
Specifications
| Dynamic WP (Max.psi) (1) | 800 – 1500 |
|---|---|
| Min. Burst Pressure (psi) 45F | 2200 – 6000 |
| Min. Burst Pressure (psi) 72F | 4000 – 12000 |
| Vacuum (In. Hg) | 14 – 28 |
| Working Pressure (psi) 45F | 800 – 1500 |
| Working Pressure (psi) 72F | 1000 – 3000 |
| Continuous Operating Temperature Range | -65°F to +400°F |
| Minimum Bend Radius (in) | 2 – 9 |
| Minimum Bend Radius (mm) | 50.8 – 228.6 |
| Min. Burst Pressure (psi) | 3200 – 6000 |
| Hose Inside Diameter (in). | 0.19 – 0.88 |
| Hose Inside Diameter (mm) | 4.8 – 22.2 |
| Hose Outside Diameter (in) | 0.31 – 1.03 |
| Hose Outside Diameter (mm) | 7.9 – 26.2 |
| Inside Diameter (in) | 0.1875 – 0.875 |
| Inside Diameter (mm) | 4.8 – 22.2 |
| Working Pressure (psi) | 800 – 1500 |
| Length (m) | 8 – 122 |
| Outside Diameter (in) | 0.31 – 1.03 |
| Outside Diameter (mm) | 7.9 – 26.2 |
| Use | Fleet |
| Color | Silver |
| Reinforcement | 1-braid, stainless steel |
| Tube | PTFE - Type A; White; Non-Conductive, Smooth Bore |
| Construction: Cover | Stainless Steel Wire 304 |
| Standard Industry Specification | SAE 100R14 |
| Meets These Agency Specifications | SAE - Society of Automotive Engineers |
| Notes | 100R14 Type A. Static to +450°F. |
| Recommended For | Air compressor discharge, hot oil and fluids, hot and greasy environments. |
| Customer Pack | 1 – 400 |
| Weight (lbs.) | 0.08 – 6.75 |
| Packaging | T, L |
PDF Documents
C14 PTFE Hose Brochure
Open PDF
