Attributes
| Part Number | 7756-110000-000003 |
|---|
Description

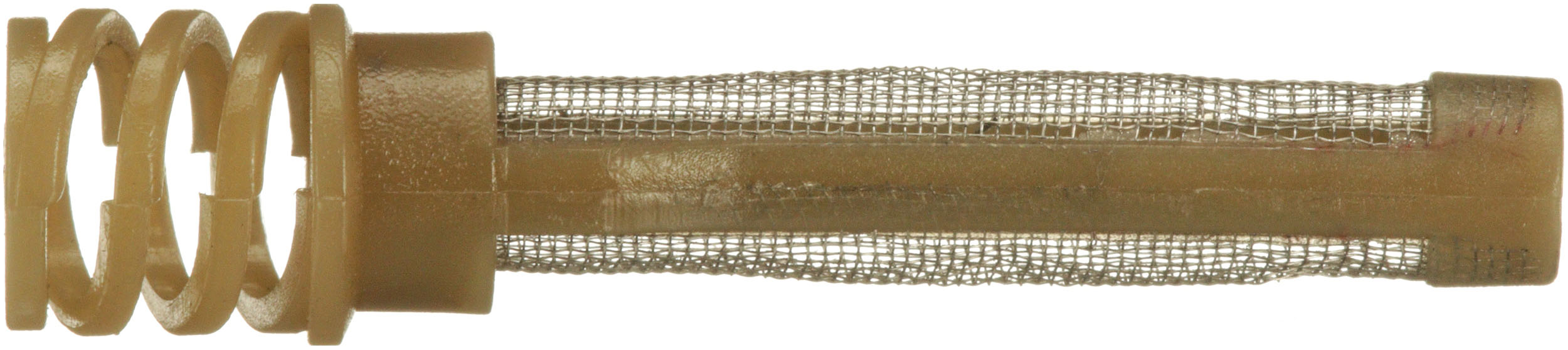

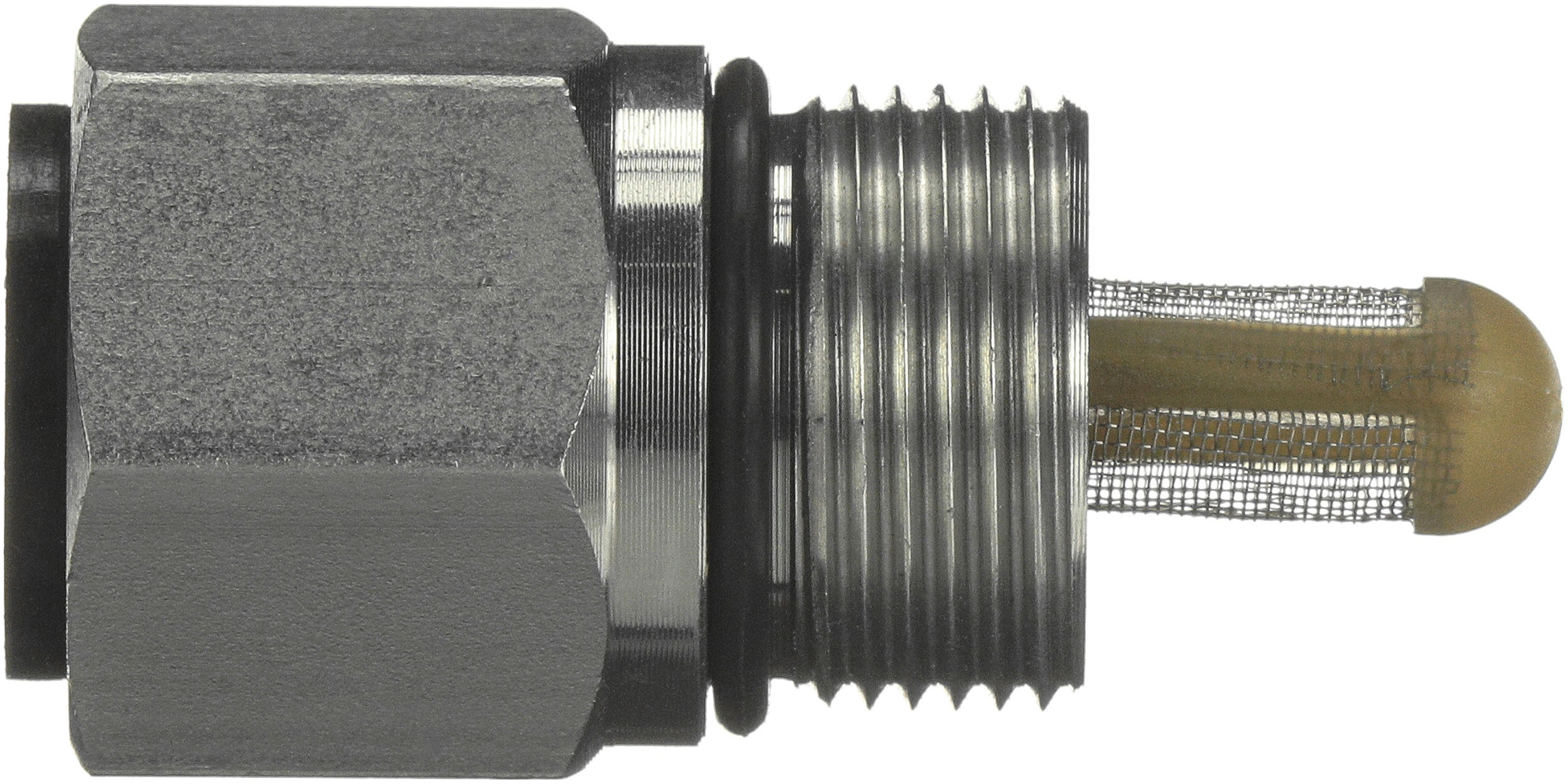

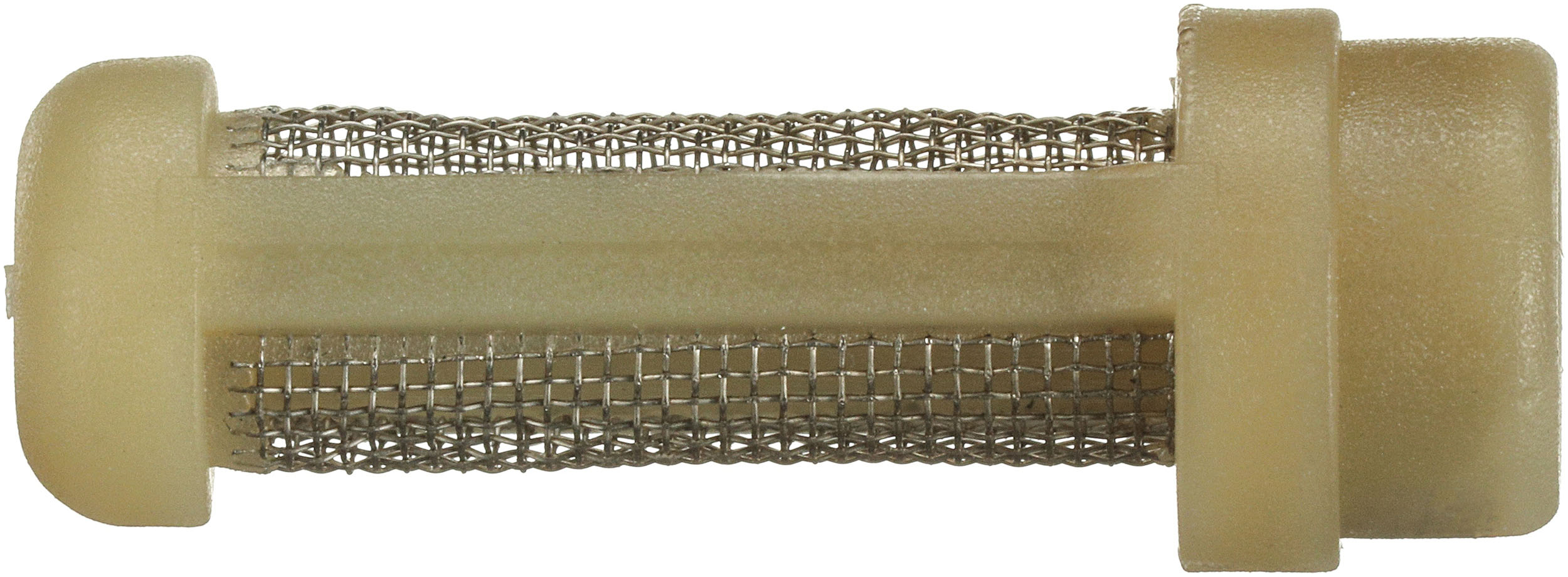

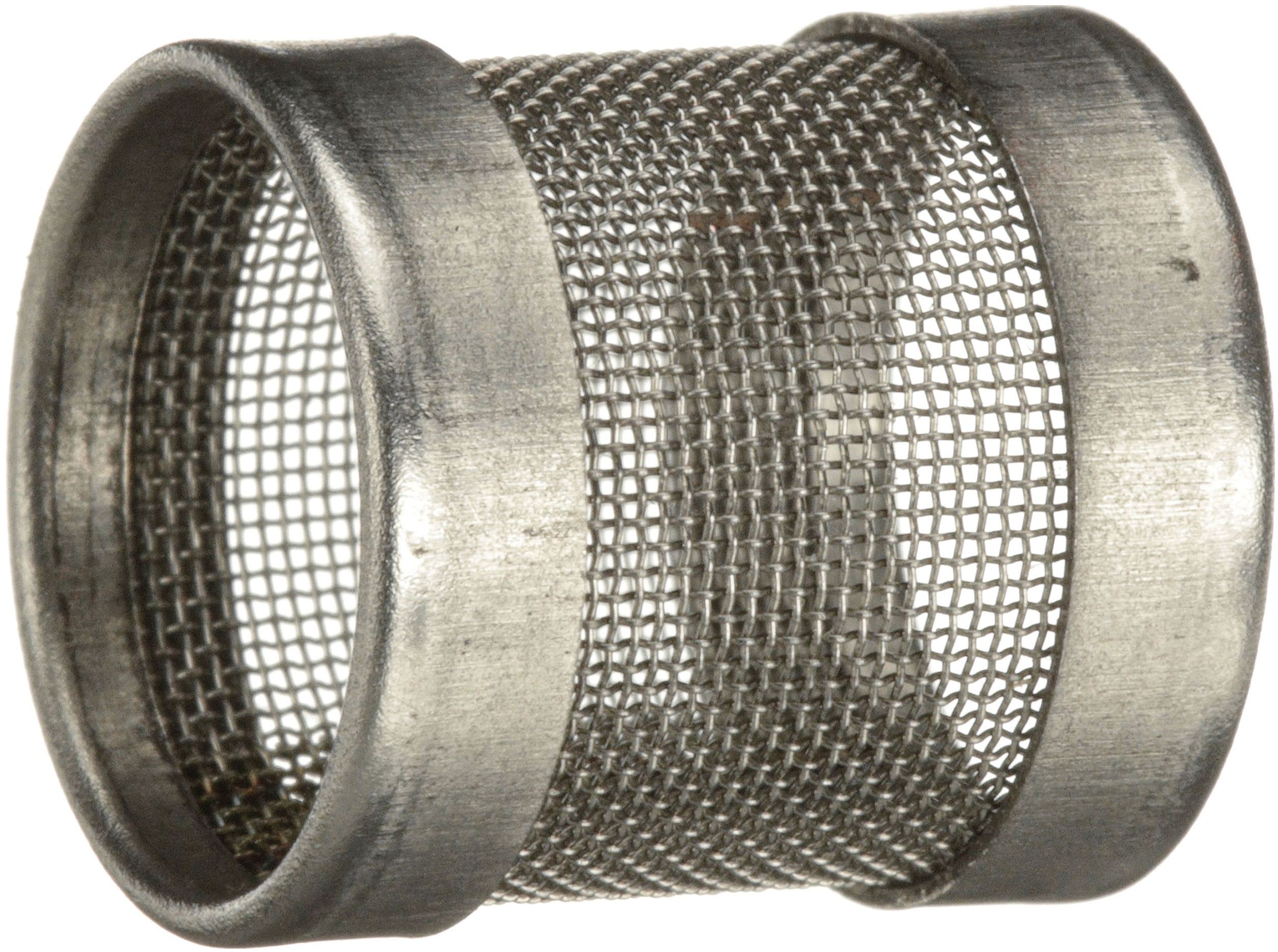

Turbocharger Oil Line Filters Turbocharger Oil Line Filters are designed to OE specifications in form, fit and performance. They are constructed from high quality materials for durability and maximum service life. Filters effectively capture small particles to protect the turbocharger from damage caused by contaminates in the engine oil. Should be replaced whenever the turbocharger of the turbocharger oil supply line(s) are replaced or serviced. Designed to filter out harmful particles. Direct replacement ensures an exact fit and easy installation.
Variations (5)
TF1001
| Height (in) | 0.45 |
|---|---|
| Height (mm) | 11.4 |
| Length (in) | 0.5 |
| Length (mm) | 12.7 |
| Width (in) | 0.45 |
| Width (mm) | 11.4 |
| Material | Stainless Steel |
TF1002
| Height (in) | 0.36 |
|---|---|
| Height (mm) | 9.1 |
| Length (in) | 1.65 |
| Length (mm) | 41.9 |
| Width (in) | 0.36 |
| Width (mm) | 9.1 |
| Material | Plastic |
TF1003
| Height (in) | 0.8 |
|---|---|
| Height (mm) | 20.3 |
| Length (in) | 2.2999999999999998 |
| Length (mm) | 58.4 |
| Width (in) | 0.8 |
| Width (mm) | 20.3 |
| Material | Steel, Plastic |
TF1004
| Height (in) | 0.98 |
|---|---|
| Height (mm) | 24.9 |
| Length (in) | 2 |
| Length (mm) | 50.8 |
| Width (in) | 0.98 |
| Width (mm) | 24.9 |
| Material | Steel, Plastic |
TF1005
| Height (in) | 0.4 |
|---|---|
| Height (mm) | 10.199999999999999 |
| Length (in) | 1 |
| Length (mm) | 25.4 |
| Width (in) | 0.4 |
| Width (mm) | 10.199999999999999 |
| Material | Plastic |
Specifications
| Height (in) | 0.36 – 0.98 |
|---|---|
| Height (mm) | 9.1 – 24.9 |
| Length (in) | 0.5 – 2.2999999999999998 |
| Length (mm) | 12.7 – 58.4 |
| Width (in) | 0.36 – 0.98 |
| Width (mm) | 9.1 – 24.9 |
| Material | Stainless Steel, Plastic, Steel, Plastic |
