Attributes
| Part Number | 4651-000000-000001 |
|---|
Description

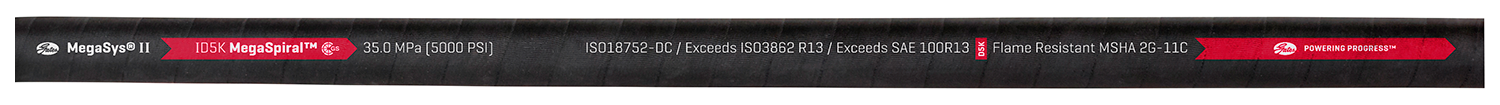

ID5K Spiral Wire Hose - ISO 18752 Type DC ID5K hose is recommended for extremely high pressure hydraulic applications and is designed to meet or exceed all requirements of ISO 18752 Grade D and SAE100R13. It has been tested to 2,300,000 cycles at 133% of working pressure. This FAR exceeds SAE impulse testing at only 120% of working pressure for 500,000 cycles. Ideal for high to extremely high pressure and high impulse applications such as hydrostatic drives, mobile construction equipment, boom arms, mining trucks, excavators, forestry and agricultural machinery. Ultra compact, reduced diameter design improves flexibility, lowers force-to-bend, and reduces weight. For use with GlobalSpiral™ Couplings [G20 Series] with GSID1F-4 Ferrules. Tested up to 2,300,000 impulse cycles. Meets or exceeds all requirements of SAE100R13 and ISO 18752 Grade D.
Variations (7)
70178
| Dynamic WP (Max.psi) (1) | 5000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 20000 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 1 |
| Hose Outside Diameter (mm) | 25.4 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 5000 |
| Length (m) | 30 |
| Outside Diameter (in) | 1 |
| Outside Diameter (mm) | 25.4 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | HNBR; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | ISO 18752, SAE J517 100R13 |
| Meets These Agency Specifications | ISO - International Standards Organization, SAE - Society of Automotive Engineers |
| Notes | 18752 Class 350 Grade D Type DCJ517. 100R13. |
| Recommended For | Extremely high-pressure, high-impulse applications. Tested up to 2.3 million impulse cycles. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.58 |
70177
| Dynamic WP (Max.psi) (1) | 5000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3.9 |
| Minimum Bend Radius (mm) | 100 |
| Min. Burst Pressure (psi) | 20000 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 1 |
| Hose Outside Diameter (mm) | 25.4 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 5000 |
| Length (m) | 62 |
| Outside Diameter (in) | 1 |
| Outside Diameter (mm) | 25.4 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | HNBR; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | ISO 18752, SAE J517 100R13 |
| Meets These Agency Specifications | ISO - International Standards Organization, SAE - Society of Automotive Engineers |
| Notes | 18752 Class 350 Grade D Type DCJ517. 100R13. |
| Recommended For | Extremely high-pressure, high-impulse applications. Tested up to 2.3 million impulse cycles. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.58 |
70112
| Dynamic WP (Max.psi) (1) | 5000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 4.7 |
| Minimum Bend Radius (mm) | 119.4 |
| Min. Burst Pressure (psi) | 20000 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.14 |
| Hose Outside Diameter (mm) | 29 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 5000 |
| Length (m) | 30 |
| Outside Diameter (in) | 1.14 |
| Outside Diameter (mm) | 29 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | HNBR; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | ISO 18752, SAE J517 100R13 |
| Meets These Agency Specifications | ISO - International Standards Organization, SAE - Society of Automotive Engineers |
| Notes | 18752 Class 350 Grade D Type DCJ517. 100R13. |
| Recommended For | Extremely high-pressure, high-impulse applications. Tested up to 2.3 million impulse cycles. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.8 |
70113
| Dynamic WP (Max.psi) (1) | 5000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 4.7 |
| Minimum Bend Radius (mm) | 120 |
| Min. Burst Pressure (psi) | 20000 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.14 |
| Hose Outside Diameter (mm) | 29 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 5000 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.14 |
| Outside Diameter (mm) | 29 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | HNBR; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | ISO 18752, SAE J517 100R13 |
| Meets These Agency Specifications | ISO - International Standards Organization, SAE - Society of Automotive Engineers |
| Notes | 18752 Class 350 Grade D Type DCJ517. 100R13. |
| Recommended For | Extremely high-pressure, high-impulse applications. Tested up to 2.3 million impulse cycles. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.8 |
70117
| Dynamic WP (Max.psi) (1) | 5000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 20000 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.45 |
| Hose Outside Diameter (mm) | 36.8 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 5000 |
| Length (m) | 30 |
| Outside Diameter (in) | 1.45 |
| Outside Diameter (mm) | 36.8 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | HNBR; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | ISO 18752, SAE J517 100R13 |
| Meets These Agency Specifications | ISO - International Standards Organization, SAE - Society of Automotive Engineers |
| Notes | 18752 Class 350 Grade D Type DCJ517. 100R13. |
| Recommended For | Extremely high-pressure, high-impulse applications. Tested up to 2.3 million impulse cycles. |
| Customer Pack | 100 |
| Weight (lbs.) | 1.34 |
70118
| Dynamic WP (Max.psi) (1) | 5000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 5.9 |
| Minimum Bend Radius (mm) | 150 |
| Min. Burst Pressure (psi) | 20000 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.45 |
| Hose Outside Diameter (mm) | 36.8 |
| Working Pressure (psi) | 5000 |
| Length (m) | 61 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | Four alternating layers of spiraled, high-tensile strength steel. |
| Tube | Black, oil-resistant, synthetic rubber (HNBR). |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | ISO 18752, SAE J517 100R13 |
| Meets These Agency Specifications | ISO - International Standards Organization, SAE - Society of Automotive Engineers |
| Notes | Exceeds ISO 18752, Class 350, Grade D, Type DC. Meets SAE J517 100R13. |
| Recommended For | Extremely high-pressure, high-impulse applications. Tested up to 2.3 million impulse cycles. |
| Customer Pack | 200 |
| Weight (lbs.) | 1.34 |
46515053
No variation attributes.
Specifications
| Dynamic WP (Max.psi) (1) | 5000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3.9 – 6 |
| Minimum Bend Radius (mm) | 100 – 152.4 |
| Min. Burst Pressure (psi) | 20000 |
| Hose Inside Diameter (in). | 0.63 – 1 |
| Hose Inside Diameter (mm) | 15.9 – 25.4 |
| Hose Outside Diameter (in) | 1 – 1.45 |
| Hose Outside Diameter (mm) | 25.4 – 36.8 |
| Inside Diameter (in) | 0.625 – 1 |
| Inside Diameter (mm) | 15.9 – 25.4 |
| Working Pressure (psi) | 5000 |
| Length (m) | 30 – 62 |
| Outside Diameter (in) | 1 – 1.45 |
| Outside Diameter (mm) | 25.4 – 36.8 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire, Four alternating layers of spiraled, high-tensile strength steel. |
| Tube | HNBR; Black; Oil Resistant, Black, oil-resistant, synthetic rubber (HNBR). |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | ISO 18752, SAE J517 100R13 |
| Meets These Agency Specifications | ISO - International Standards Organization, SAE - Society of Automotive Engineers |
| Notes | 18752 Class 350 Grade D Type DCJ517. 100R13., Exceeds ISO 18752, Class 350, Grade D, Type DC. Meets SAE J517 100R13. |
| Recommended For | Extremely high-pressure, high-impulse applications. Tested up to 2.3 million impulse cycles. |
| Customer Pack | 100 – 200 |
| Weight (lbs.) | 0.58 – 1.34 |
