Attributes
| Part Number | 8541-000000-000000 |
|---|
Description

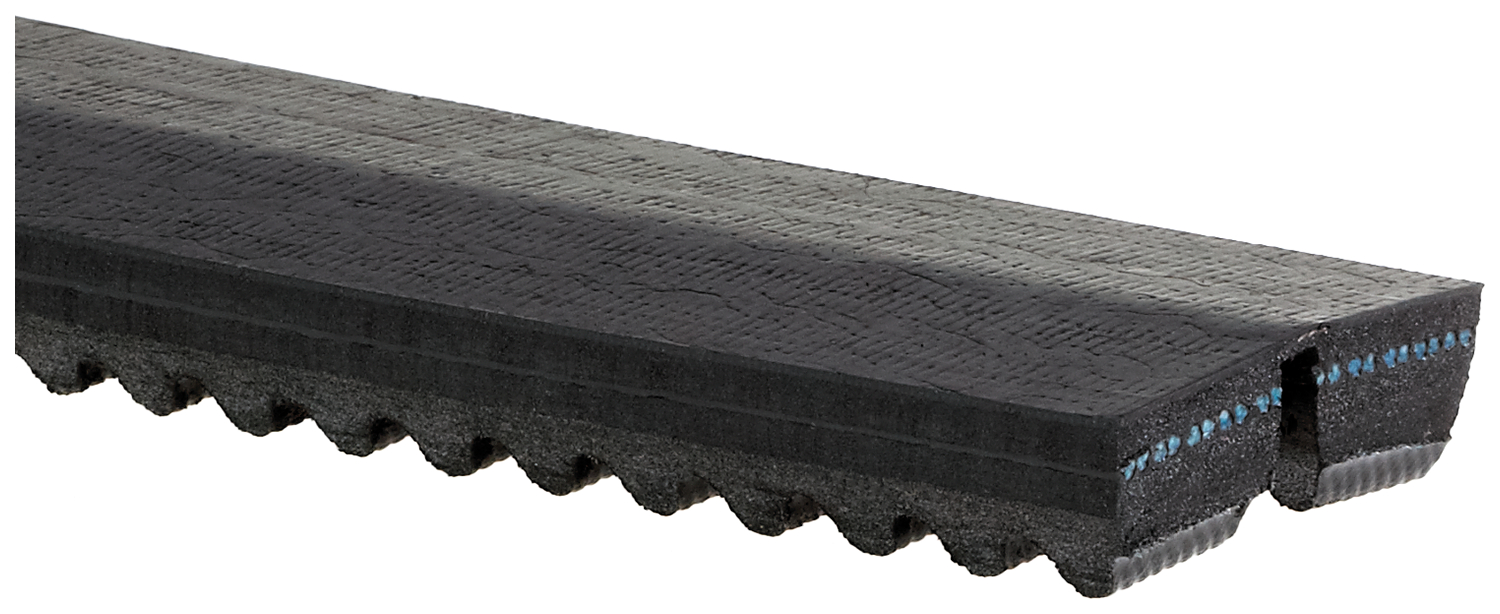

FleetRunner™ PowerBand™ Belts Designed for problematic, heavy-duty, high-vibration applications that require belt sets. The PowerBand™ technology joins belts to operate as a single unit for improved stability and even load distribution, with a secure strand fit into the sheave groove. Unique tensile cord design gives belt extra strength, added flexibility, and shock-load resistance. Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat. Even load distribution between strands provides better shock-load absorption.
Variations (26)
2/9570PB / 2/9570PB
No variation attributes.
2/9571PB / 2/9571PB
No variation attributes.
2/9400PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 39.98 |
| Effective Length (mm) | 1.015 |
| Notched | true |
| Outside Circumference (in) | 40.92 |
| Outside Circumference (mm) | 1.039 |
| Strand | 2 |
| Top Width (in) | 1.14 |
| Top Width (mm) | 29 |
| Angle. | 37 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 40 |
| Weight (lbs.) | 0.63 |
2/9403PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 40.35 |
| Effective Length (mm) | 1.025 |
| Notched | true |
| Outside Circumference (in) | 41.29 |
| Outside Circumference (mm) | 1.049 |
| Strand | 2 |
| Top Width (in) | 1.14 |
| Top Width (mm) | 29 |
| Angle. | 37 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 40 |
| Weight (lbs.) | 0.63 |
2/9420PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 42.04 |
| Effective Length (mm) | 1.068 |
| Notched | true |
| Outside Circumference (in) | 42.98 |
| Outside Circumference (mm) | 1.092 |
| Strand | 2 |
| Top Width (in) | 1.14 |
| Top Width (mm) | 29 |
| Angle. | 37 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 40 |
| Weight (lbs.) | 0.6 |
2/9430PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 43.04 |
| Effective Length (mm) | 1093 |
| Notched | true |
| Outside Circumference (in) | 43.92 |
| Outside Circumference (mm) | 1116 |
| Strand | 2 |
| Top Width (in) | 1.125 |
| Top Width (mm) | 28 |
| Angle. | 36 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 40 |
| Weight (lbs.) | 0.66 |
2/9493PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 49.33 |
| Effective Length (mm) | 1.253 |
| Notched | true |
| Outside Circumference (in) | 50.28 |
| Outside Circumference (mm) | 1.277 |
| Strand | 2 |
| Top Width (in) | 1.14 |
| Top Width (mm) | 29 |
| Angle. | 37 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 30 |
| Weight (lbs.) | 0.76 |
2/9500PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 50.13 |
| Effective Length (mm) | 1273 |
| Notched | true |
| Outside Circumference (in) | 50.75 |
| Outside Circumference (mm) | 1290 |
| Strand | 2 |
| Top Width (in) | 1.125 |
| Top Width (mm) | 28 |
| Angle. | 36 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 30 |
| Weight (lbs.) | 0.79 |
2/9510PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 51.14 |
| Effective Length (mm) | 1299 |
| Notched | true |
| Outside Circumference (in) | 52.02 |
| Outside Circumference (mm) | 1321 |
| Strand | 2 |
| Top Width (in) | 1.125 |
| Top Width (mm) | 28 |
| Angle. | 36 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 30 |
| Weight (lbs.) | 0.81 |
2/9530PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 53.18 |
| Effective Length (mm) | 1351 |
| Notched | true |
| Outside Circumference (in) | 54.06 |
| Outside Circumference (mm) | 1373 |
| Strand | 2 |
| Top Width (in) | 1.125 |
| Top Width (mm) | 28 |
| Angle. | 36 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 35 |
| Weight (lbs.) | 0.82 |
2/9540PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 54.18 |
| Effective Length (mm) | 1376 |
| Notched | true |
| Outside Circumference (in) | 54.75 |
| Outside Circumference (mm) | 1390 |
| Strand | 2 |
| Top Width (in) | 1.125 |
| Top Width (mm) | 28 |
| Angle. | 36 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 35 |
| Weight (lbs.) | 0.83 |
2/9550PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 55.18 |
| Effective Length (mm) | 1402 |
| Notched | true |
| Outside Circumference (in) | 56.06 |
| Outside Circumference (mm) | 1424 |
| Strand | 2 |
| Top Width (in) | 1.125 |
| Top Width (mm) | 28 |
| Angle. | 36 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 35 |
| Weight (lbs.) | 0.84 |
2/9555PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 55.73 |
| Effective Length (mm) | 1416 |
| Notched | true |
| Outside Circumference (in) | 56.5 |
| Outside Circumference (mm) | 1435 |
| Strand | 2 |
| Top Width (in) | 1.125 |
| Top Width (mm) | 28 |
| Angle. | 36 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 35 |
| Weight (lbs.) | 0.87 |
2/9580PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 58.17 |
| Effective Length (mm) | 1478 |
| Notched | true |
| Outside Circumference (in) | 57.99 |
| Outside Circumference (mm) | 1473 |
| Strand | 2 |
| Top Width (in) | 1.125 |
| Top Width (mm) | 28 |
| Angle. | 39 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 35 |
| Weight (lbs.) | 0.9 |
2/9630PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 62.99 |
| Effective Length (mm) | 1.6 |
| Notched | true |
| Outside Circumference (in) | 63.96 |
| Outside Circumference (mm) | 1.625 |
| Strand | 2 |
| Top Width (in) | 1.14 |
| Top Width (mm) | 29 |
| Angle. | 37 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 35 |
| Weight (lbs.) | 0.39 |
2/9640PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 63.99 |
| Effective Length (mm) | 1625 |
| Notched | true |
| Outside Circumference (in) | 64.375 |
| Outside Circumference (mm) | 1635 |
| Strand | 2 |
| Top Width (in) | 1.125 |
| Top Width (mm) | 28 |
| Angle. | 36 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 35 |
| Weight (lbs.) | 0.96 |
2/9650PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 64.99 |
| Effective Length (mm) | 1651 |
| Notched | true |
| Outside Circumference (in) | 65.87 |
| Outside Circumference (mm) | 1673 |
| Strand | 2 |
| Top Width (in) | 1.125 |
| Top Width (mm) | 28 |
| Angle. | 36 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 35 |
| Weight (lbs.) | 0.97 |
2/9670PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 66.99 |
| Effective Length (mm) | 1702 |
| Notched | true |
| Outside Circumference (in) | 67.375 |
| Outside Circumference (mm) | 1710 |
| Strand | 2 |
| Top Width (in) | 1.125 |
| Top Width (mm) | 28 |
| Angle. | 36 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 30 |
| Weight (lbs.) | 1.0 |
2/9680PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 67.98 |
| Effective Length (mm) | 1.727 |
| Notched | true |
| Outside Circumference (in) | 68.96 |
| Outside Circumference (mm) | 1.752 |
| Strand | 2 |
| Top Width (in) | 1.14 |
| Top Width (mm) | 29 |
| Angle. | 37 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 35 |
| Weight (lbs.) | 1.3 |
2/9690PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 69.11 |
| Effective Length (mm) | 1755 |
| Notched | true |
| Outside Circumference (in) | 69.99 |
| Outside Circumference (mm) | 1778 |
| Strand | 2 |
| Top Width (in) | 1.125 |
| Top Width (mm) | 28 |
| Angle. | 36 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 30 |
| Weight (lbs.) | 1.03 |
2/9720PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 71.97 |
| Effective Length (mm) | 1828 |
| Notched | true |
| Outside Circumference (in) | 72.85 |
| Outside Circumference (mm) | 1850 |
| Strand | 2 |
| Top Width (in) | 1.125 |
| Top Width (mm) | 28 |
| Angle. | 36 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 30 |
| Weight (lbs.) | 1.07 |
2/9730PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 73.11 |
| Effective Length (mm) | 1857 |
| Notched | true |
| Outside Circumference (in) | 73.99 |
| Outside Circumference (mm) | 1879 |
| Strand | 2 |
| Top Width (in) | 1.125 |
| Top Width (mm) | 28 |
| Angle. | 36 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 30 |
| Weight (lbs.) | 1.11 |
2/9731PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 73.11 |
| Effective Length (mm) | 1.857 |
| Notched | true |
| Outside Circumference (in) | 74.09 |
| Outside Circumference (mm) | 1.882 |
| Strand | 2 |
| Top Width (in) | 1.14 |
| Top Width (mm) | 29 |
| Angle. | 37 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 30 |
| Weight (lbs.) | 1.11 |
2/9765PB
| Cross Section | HC50 |
|---|---|
| Top Width Per Strand (in) | 0.5 |
| Top Width Per Strand (mm) | 13 |
| Effective Length (in) | 76.46 |
| Effective Length (mm) | 1.942 |
| Notched | true |
| Outside Circumference (in) | 77.45 |
| Outside Circumference (mm) | 1.967 |
| Strand | 2 |
| Top Width (in) | 1.14 |
| Top Width (mm) | 29 |
| Angle. | 37 |
| Thickness (in) | 0.38 |
| Thickness (mm) | 10 |
| Customer Pack | 30 |
| Weight (lbs.) | 0.8 |
2/TR22570PB
| Cross Section | 2/RA |
|---|---|
| Top Width Per Strand (in) | 0.6875 |
| Top Width Per Strand (mm) | 17 |
| Effective Length (in) | 57.07 |
| Effective Length (mm) | 1450 |
| Notched | true |
| Outside Circumference (in) | 57.95 |
| Outside Circumference (mm) | 1472 |
| Strand | 2 |
| Top Width (in) | 1.38 |
| Top Width (mm) | 39 |
| Angle. | 40 |
| Thickness (in) | 0.44 |
| Thickness (mm) | 11 |
| Customer Pack | 25 |
| Weight (lbs.) | 1.43 |
85410155
No variation attributes.
Specifications
| Cross Section | HC50, 2/RA |
|---|---|
| Top Width Per Strand (in) | 0.5 – 0.6875 |
| Top Width Per Strand (mm) | 13 – 17 |
| Effective Length (in) | 39.98 – 76.46 |
| Effective Length (mm) | 1.015 – 1857 |
| Notched | true |
| Outside Circumference (in) | 40.92 – 77.45 |
| Outside Circumference (mm) | 1.039 – 1879 |
| Strand | 2 |
| Top Width (in) | 1.125 – 1.38 |
| Top Width (mm) | 28 – 39 |
| Angle. | 36 – 40 |
| Thickness (in) | 0.38 – 0.44 |
| Thickness (mm) | 10 – 11 |
| Customer Pack | 25 – 40 |
| Weight (lbs.) | 0.39 – 1.43 |
PDF Documents
No PDF documents.
