Attributes
| Part Number | 4651-000000-000015 |
|---|
Description

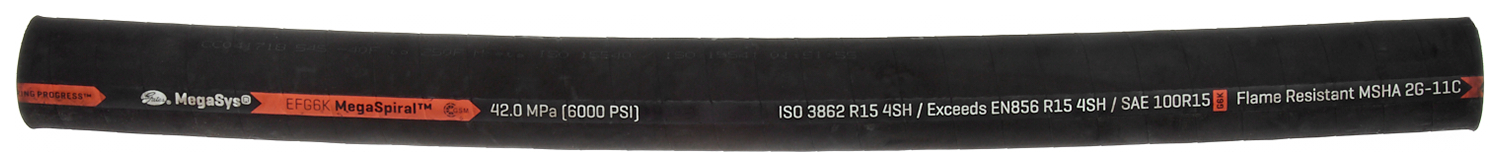

EFG6K Spiral Wire Hose - 420 Bar EFG6K is recommended for extremely high-pressure, high-impulse applications such as hydrostatic transmissions. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Recommended for extremely high pressure and high impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20), and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). 12EFG6K meets ISO 18752 Grade D. Recommended Couplings: GlobalSpiral™ Couplings, GlobalSpiral™ MAX Pressure Couplings, Stainless Steel S Couplings (-6 through -20). The optional MegaTuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance. For use with GlobalSpiral™ Couplings [G20 Series], GlobalSpiral MAX Pressure Couplings [G23 and G24 Series] and Stainless Steel Spiral Couplings [G18 Series]. Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of SAE 100R15 bend radii (except -32). EFG6K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features and Benefits -6 to -20 validated with GlobalSpiral™; -24, -32 with GlobalSpiral™ Maximum. Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure. EFG6K MegaSpiral™ is rated at 1/2 bend radius of SAE 100R15. Meets Flame Resistance Acceptance Designation MSHA 2G. Type approvals: DNV, GL, LR, BV and ABS. 6000 PSI constant pressure for all ID's. Cover: MSHA approved. Temperature Range: -40°C to +121°C -40°F to +250°F Size: 3/8" to 2".
Variations (36)
85467
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 1.09 |
| Hose Outside Diameter (mm) | 27.7 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 6000 |
| Length (m) | 8 |
| Outside Diameter (in) | 1.09 |
| Outside Diameter (mm) | 27.7 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15. 856 4SP. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 1 |
| Weight (lbs.) | 21.0 |
| Packaging | T |
70815
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3.9 |
| Minimum Bend Radius (mm) | 100 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 1.09 |
| Hose Outside Diameter (mm) | 27.7 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 6000 |
| Length (m) | 30 |
| Outside Diameter (in) | 1.09 |
| Outside Diameter (mm) | 27.7 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15. 856 4SP. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.8 |
| Packaging | A |
70735
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3.9 |
| Minimum Bend Radius (mm) | 100 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 1.09 |
| Hose Outside Diameter (mm) | 27.7 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 6000 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.09 |
| Outside Diameter (mm) | 27.7 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15. 856 4SP. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.8 |
| Packaging | O |
85468
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 4.7 |
| Minimum Bend Radius (mm) | 119.4 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.24 |
| Hose Outside Diameter (mm) | 31.5 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 6000 |
| Length (m) | 8 |
| Outside Diameter (in) | 1.24 |
| Outside Diameter (mm) | 31.5 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15856 4SH. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 1 |
| Weight (lbs.) | 25.0 |
| Packaging | T |
85469
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.53 |
| Hose Outside Diameter (mm) | 38.9 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 6000 |
| Length (m) | 8 |
| Outside Diameter (in) | 1.53 |
| Outside Diameter (mm) | 38.9 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15856 4SH. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 1 |
| Weight (lbs.) | 36.25 |
| Packaging | T |
70836
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 5.9 |
| Minimum Bend Radius (mm) | 150 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.53 |
| Hose Outside Diameter (mm) | 38.9 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 6000 |
| Length (m) | 30 |
| Outside Diameter (in) | 1.53 |
| Outside Diameter (mm) | 38.9 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15856 4SH. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 100 |
| Weight (lbs.) | 1.49 |
| Packaging | A |
70737
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 5.9 |
| Minimum Bend Radius (mm) | 150 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.53 |
| Hose Outside Diameter (mm) | 38.9 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 6000 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.53 |
| Outside Diameter (mm) | 38.9 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15856 4SH. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 200 |
| Weight (lbs.) | 1.5 |
| Packaging | O |
85470
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 8.2 |
| Minimum Bend Radius (mm) | 208.3 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Hose Outside Diameter (in) | 1.97 |
| Hose Outside Diameter (mm) | 50 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Working Pressure (psi) | 6000 |
| Length (m) | 8 |
| Outside Diameter (in) | 1.97 |
| Outside Diameter (mm) | 50 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 6-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 856 4SH. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 1 |
| Weight (lbs.) | 67.8 |
| Packaging | T |
70738
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 8.2 |
| Minimum Bend Radius (mm) | 208.3 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 1.25 |
| Hose Inside Diameter (mm) | 31.8 |
| Hose Outside Diameter (in) | 1.97 |
| Hose Outside Diameter (mm) | 50 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Working Pressure (psi) | 6000 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.97 |
| Outside Diameter (mm) | 50 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 6-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 856 4SH. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 200 |
| Weight (lbs.) | 2.67 |
| Packaging | O |
85426
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 10 |
| Minimum Bend Radius (mm) | 254 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 1.5 |
| Hose Inside Diameter (mm) | 38.1 |
| Hose Outside Diameter (in) | 2.26 |
| Hose Outside Diameter (mm) | 57.4 |
| Inside Diameter (in) | 1.5 |
| Inside Diameter (mm) | 38.1 |
| Working Pressure (psi) | 6000 |
| Length (m) | 8 |
| Outside Diameter (in) | 2.26 |
| Outside Diameter (mm) | 57.4 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 6-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 1 |
| Weight (lbs.) | 81.0 |
| Packaging | T |
71065
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 9.8 |
| Minimum Bend Radius (mm) | 250 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 1.5 |
| Hose Inside Diameter (mm) | 38.1 |
| Hose Outside Diameter (in) | 2.26 |
| Hose Outside Diameter (mm) | 57.4 |
| Inside Diameter (in) | 1.5 |
| Inside Diameter (mm) | 38.1 |
| Working Pressure (psi) | 6000 |
| Length (m) | 15 |
| Outside Diameter (in) | 2.26 |
| Outside Diameter (mm) | 57.4 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 6-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 50 |
| Weight (lbs.) | 3.41 |
| Packaging | B |
24EFG6K XLL
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 9.8 |
| Minimum Bend Radius (mm) | 250 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 1.5 |
| Hose Inside Diameter (mm) | 38.1 |
| Hose Outside Diameter (in) | 2.26 |
| Hose Outside Diameter (mm) | 57.4 |
| Inside Diameter (in) | 1.5 |
| Inside Diameter (mm) | 38.1 |
| Working Pressure (psi) | 6000 |
| Length (m) | 61 |
| Outside Diameter (in) | 2.26 |
| Outside Diameter (mm) | 57.4 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 6-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 200 |
| Weight (lbs.) | 3.39 |
| Packaging | O |
71100
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 25 |
| Minimum Bend Radius (mm) | 635 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 2 |
| Hose Inside Diameter (mm) | 50.8 |
| Hose Outside Diameter (in) | 2.8 |
| Hose Outside Diameter (mm) | 71.1 |
| Inside Diameter (in) | 2 |
| Inside Diameter (mm) | 50.8 |
| Working Pressure (psi) | 6000 |
| Length (m) | 15 |
| Outside Diameter (in) | 2.8 |
| Outside Diameter (mm) | 71.1 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 6-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 50 |
| Weight (lbs.) | 4.93 |
| Packaging | B |
71099
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 25 |
| Minimum Bend Radius (mm) | 635 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 2 |
| Hose Inside Diameter (mm) | 50.8 |
| Hose Outside Diameter (in) | 2.8 |
| Hose Outside Diameter (mm) | 71.1 |
| Inside Diameter (in) | 2 |
| Inside Diameter (mm) | 50.8 |
| Working Pressure (psi) | 6000 |
| Length (m) | 61 |
| Outside Diameter (in) | 2.8 |
| Outside Diameter (mm) | 71.1 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 6-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 200 |
| Weight (lbs.) | 4.93 |
| Packaging | O |
70404
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 2.5 |
| Minimum Bend Radius (mm) | 63.5 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.8 |
| Hose Outside Diameter (mm) | 20.3 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 6000 |
| Length (m) | 30 |
| Outside Diameter (in) | 0.8 |
| Outside Diameter (mm) | 20.3 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15. 856 4SP. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.48 |
| Packaging | A |
85465
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 2.5 |
| Minimum Bend Radius (mm) | 63.5 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.8 |
| Hose Outside Diameter (mm) | 20.3 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 6000 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.8 |
| Outside Diameter (mm) | 20.3 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15. 856 4SP. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 1 |
| Weight (lbs.) | 13.7 |
| Packaging | T |
70866
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 2.6 |
| Minimum Bend Radius (mm) | 65 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.8 |
| Hose Outside Diameter (mm) | 20.3 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 6000 |
| Length (m) | 30 |
| Outside Diameter (in) | 0.8 |
| Outside Diameter (mm) | 20.3 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15. 856 4SP. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.51 |
| Packaging | A |
70163
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 2.5 |
| Minimum Bend Radius (mm) | 63.5 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.8 |
| Hose Outside Diameter (mm) | 20.3 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Working Pressure (psi) | 6000 |
| Length (m) | 91 |
| Outside Diameter (in) | 0.8 |
| Outside Diameter (mm) | 20.3 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15. 856 4SP. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 300 |
| Weight (lbs.) | 0.5 |
| Packaging | F |
10EFG6KXREEL
| Minimum Bend Radius (in) | 4 |
|---|---|
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 6000 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.09 |
| Outside Diameter (mm) | 27.7 |
| Coupling Recommendation | GlobalSpiral™ Couplings [G20 Series]; Stainless Steel Spiral Couplings [G18 Series] |
| Color | Black |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Construction: Reinforcement | 4-spiral, wire |
| Construction: Tube | Nitrile - Type C |
| Notes | 3862 Type R15. 856 4SP. 100R15. Meets MSHA 2G. |
12EFG6KXREEL
| Minimum Bend Radius (in) | 4.7 |
|---|---|
| Minimum Bend Radius (mm) | 119.4 |
| Min. Burst Pressure (psi) | 6000 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.24 |
| Outside Diameter (mm) | 31.5 |
| Coupling Recommendation | GlobalSpiral™ Couplings [G20 Series]; Stainless Steel Spiral Couplings [G18 Series] |
| Color | Black |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Construction: Reinforcement | 4-spiral, wire |
| Construction: Tube | Nitrile - Type C |
| Notes | 3862 Type R15856 4SH. 100R15. Meets MSHA 2G. |
8EFG6KX100REEL
| Minimum Bend Radius (in) | 3.5 |
|---|---|
| Minimum Bend Radius (mm) | 88.9 |
| Min. Burst Pressure (psi) | 6000 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 30 |
| Outside Diameter (in) | 0.95 |
| Outside Diameter (mm) | 24.1 |
| Coupling Recommendation | GlobalSpiral™ Couplings [G20 Series]; Stainless Steel Spiral Couplings [G18 Series] |
| Color | Black |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Construction: Reinforcement | 4-spiral, wire |
| Construction: Tube | Nitrile - Type C |
| Notes | 3862 Type R15. 856 4SP. 100R15. Meets MSHA 2G. |
12EFG6KXLL
| Minimum Bend Radius (in) | 4.7 |
|---|---|
| Minimum Bend Radius (mm) | 119.4 |
| Min. Burst Pressure (psi) | 6000 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.24 |
| Outside Diameter (mm) | 31.5 |
| Coupling Recommendation | GlobalSpiral™ Couplings [G20 Series]; Stainless Steel Spiral Couplings [G18 Series] |
| Color | Black |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Construction: Reinforcement | 4-spiral, wire |
| Construction: Tube | Nitrile - Type C |
| Notes | 3862 Type R15856 4SH. 100R15. Meets MSHA 2G. |
20EFG6KXCTN
| Minimum Bend Radius (in) | 8.2 |
|---|---|
| Minimum Bend Radius (mm) | 208.3 |
| Min. Burst Pressure (psi) | 6000 |
| Inside Diameter (in) | 1.25 |
| Inside Diameter (mm) | 31.8 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.97 |
| Outside Diameter (mm) | 50 |
| Coupling Recommendation | GlobalSpiral™ Couplings [G20 Series]; Stainless Steel Spiral Couplings [G18 Series] |
| Color | Black |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Reinforcement | 6-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Construction: Reinforcement | 6-spiral, wire |
| Construction: Tube | Nitrile - Type C |
| Notes | 856 4SH. 100R15. Meets MSHA 2G. |
12EFG6KXCTN
| Minimum Bend Radius (in) | 4.7 |
|---|---|
| Minimum Bend Radius (mm) | 119.4 |
| Min. Burst Pressure (psi) | 6000 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Working Pressure (psi) | 6000 |
| Length (m) | 30 |
| Outside Diameter (in) | 1.24 |
| Outside Diameter (mm) | 31.5 |
| Coupling Recommendation | GlobalSpiral™ Couplings [G20 Series]; Stainless Steel Spiral Couplings [G18 Series] |
| Color | Black |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Construction: Reinforcement | 4-spiral, wire |
| Construction: Tube | Nitrile - Type C |
| Notes | 3862 Type R15856 4SH. 100R15. Meets MSHA 2G. |
85466
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3.5 |
| Minimum Bend Radius (mm) | 88.9 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.95 |
| Hose Outside Diameter (mm) | 24.1 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 6000 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.95 |
| Outside Diameter (mm) | 24.1 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15. 856 4SP. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 1 |
| Weight (lbs.) | 23.4 |
| Packaging | T |
70865
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3.5 |
| Minimum Bend Radius (mm) | 90 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.95 |
| Hose Outside Diameter (mm) | 24.1 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 6000 |
| Length (m) | 30 |
| Outside Diameter (in) | 0.95 |
| Outside Diameter (mm) | 24.1 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15. 856 4SP. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.59 |
| Packaging | A |
70978
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3.5 |
| Minimum Bend Radius (mm) | 88.9 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.95 |
| Hose Outside Diameter (mm) | 24.1 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 6000 |
| Length (m) | 61 |
| Outside Diameter (in) | 0.95 |
| Outside Diameter (mm) | 24.1 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15. 856 4SP. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.584 |
| Packaging | O |
70164
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 3.5 |
| Minimum Bend Radius (mm) | 88.9 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.95 |
| Hose Outside Diameter (mm) | 24.1 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Working Pressure (psi) | 6000 |
| Length (m) | 70 |
| Outside Diameter (in) | 0.95 |
| Outside Diameter (mm) | 24.1 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15. 856 4SP. 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 240 |
| Weight (lbs.) | 0.6 |
| Packaging | F |
71095
No variation attributes.
46511812
No variation attributes.
46515149
No variation attributes.
46515150
No variation attributes.
46510185
No variation attributes.
46510363
No variation attributes.
46511567
No variation attributes.
46515078
No variation attributes.
Specifications
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -40°F to +250°F |
| Minimum Bend Radius (in) | 2.5 – 25 |
| Minimum Bend Radius (mm) | 63.5 – 635 |
| Min. Burst Pressure (psi) | 6000 – 24000 |
| Hose Inside Diameter (in). | 0.38 – 2 |
| Hose Inside Diameter (mm) | 9.5 – 50.8 |
| Hose Outside Diameter (in) | 0.8 – 2.8 |
| Hose Outside Diameter (mm) | 20.3 – 71.1 |
| Inside Diameter (in) | 0.375 – 2 |
| Inside Diameter (mm) | 9.5 – 50.8 |
| Working Pressure (psi) | 6000 |
| Length (m) | 8 – 91 |
| Outside Diameter (in) | 0.8 – 2.8 |
| Outside Diameter (mm) | 20.3 – 71.1 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire, 6-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Standard Industry Specification | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Meets These Agency Specifications | ABS - American Bureau of Shipping, AS - Australian Standard, BV - Bureau Veritas (Marine Division); Int'l, DIN - Deutsch Industry Norm; International, DNV - Det Norske Veritas (North Sea Floating Vessels); Int'l, EN - European Norm, FRAS - Fire Retardant Anti Static; Australia, GL - Germanischer Lloyd's; International, ISO - International Standards Organization, LR - Lloyd's Register; International, MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers, USCG - United States Coast Guard |
| Notes | 3862 Type R15. 856 4SP. 100R15. Meets MSHA 2G., 3862 Type R15856 4SH. 100R15. Meets MSHA 2G., 856 4SH. 100R15. Meets MSHA 2G., 3862 Type R15100R15. Meets MSHA 2G., 100R15. Meets MSHA 2G. |
| Recommended For | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| Customer Pack | 1 – 300 |
| Weight (lbs.) | 0.48 – 81.0 |
| Packaging | T, A, O, B, F |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Coupling Recommendation | GlobalSpiral™ Couplings [G20 Series]; Stainless Steel Spiral Couplings [G18 Series] |
| Cover | Polychloroprene (Neoprene) - Type A. Black |
| Construction: Reinforcement | 4-spiral, wire, 6-spiral, wire |
| Construction: Tube | Nitrile - Type C |
PDF Documents
Hydraulics Catalog
Open PDF
