Attributes
| Part Number | 9332-000000-000000 |
|---|
Description

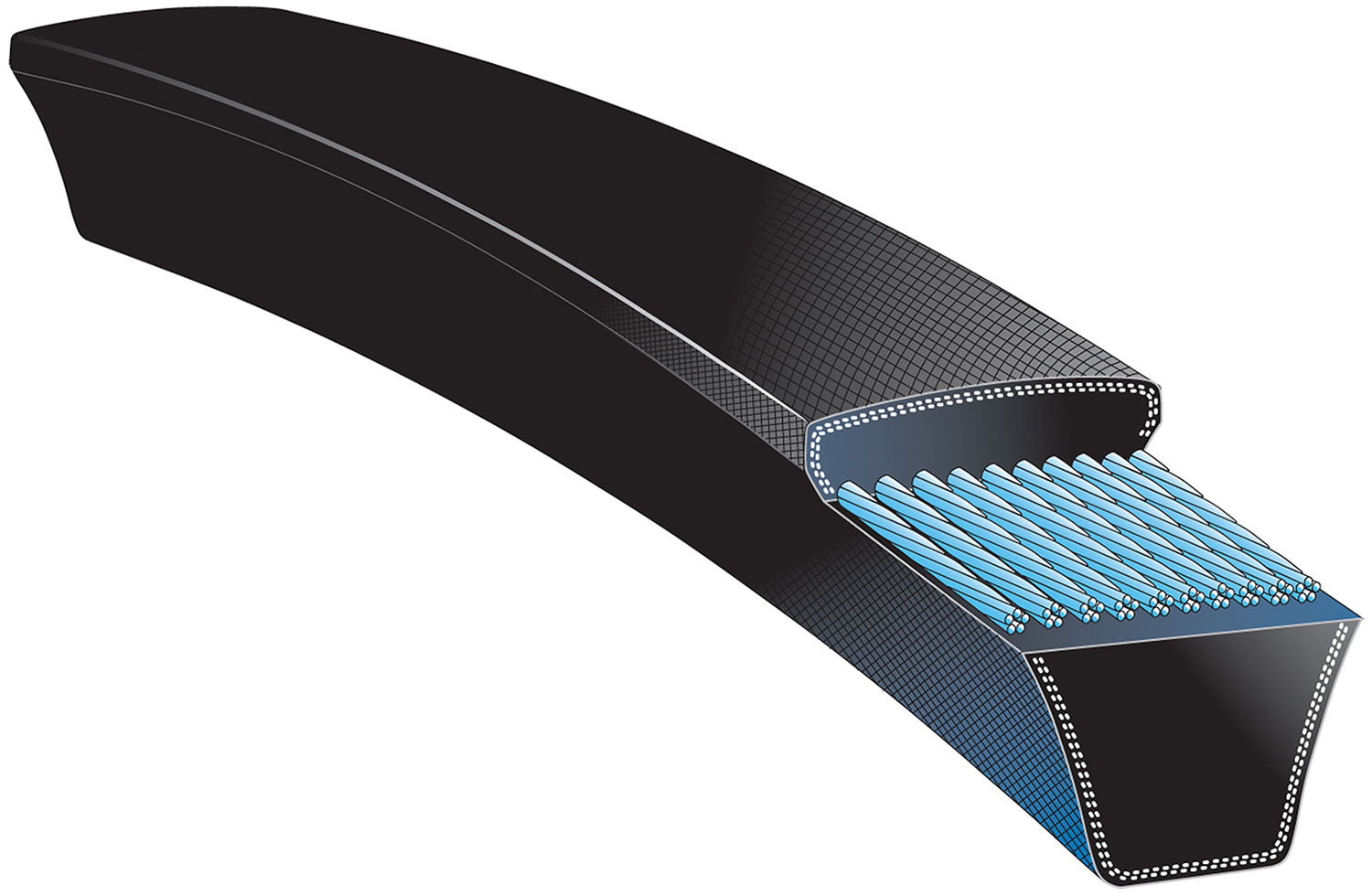

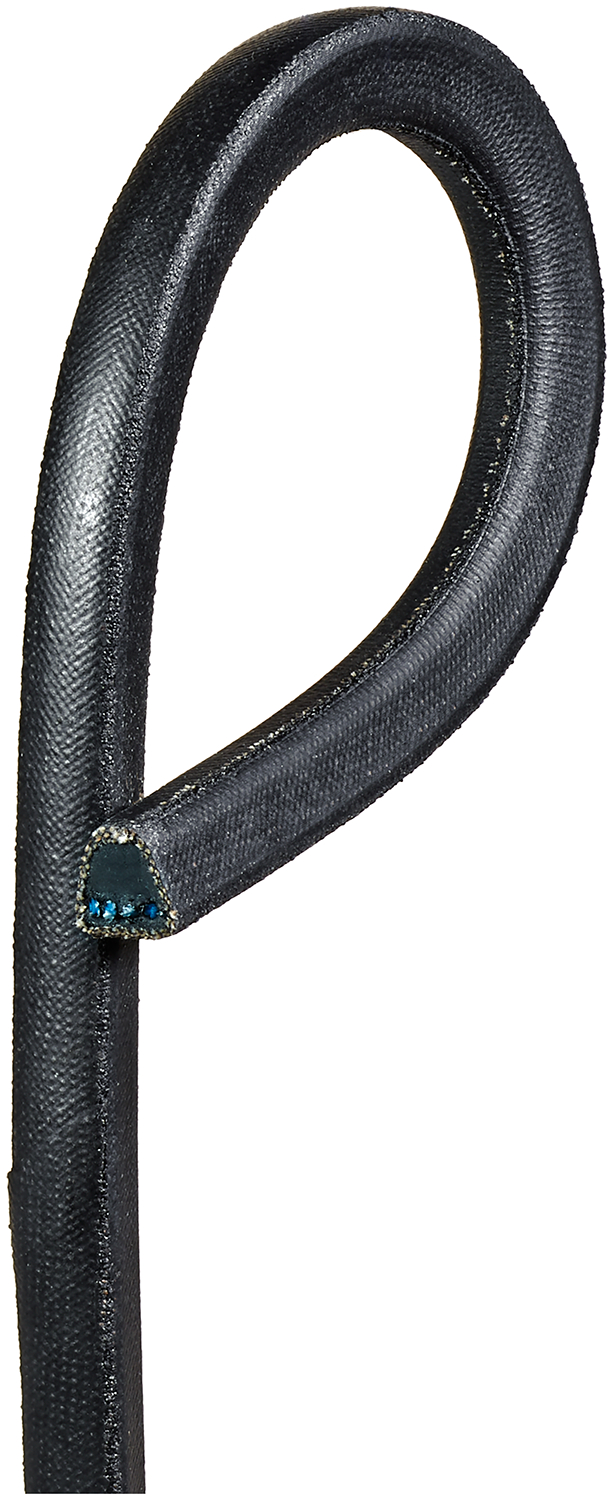

Super HC™ V-Belts Flex-Bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shockloads, and the absorption of bending stress without cord deterioration.
Variations (151)
3V1000

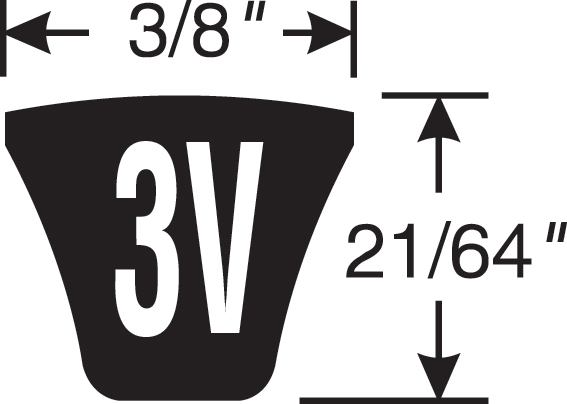

| Cross Section | 3V |
|---|---|
| Effective Length (in) | 99.81 |
| Effective Length (mm) | 2535 |
| Notched | false |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.47 |
3V1060
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 104.7 |
| Effective Length (mm) | 2659 |
| Notched | false |
| Outside Circumference (in) | 106 |
| Outside Circumference (mm) | 2692 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.5 |
3V1120
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 110.67 |
| Effective Length (mm) | 2811 |
| Notched | false |
| Outside Circumference (in) | 112 |
| Outside Circumference (mm) | 2845 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.53 |
3V1180
No variation attributes.
3V1250
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 123.52 |
| Effective Length (mm) | 3137 |
| Notched | false |
| Outside Circumference (in) | 125 |
| Outside Circumference (mm) | 3175 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.59 |
3V1320
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 130.44 |
| Effective Length (mm) | 3313 |
| Notched | false |
| Outside Circumference (in) | 132 |
| Outside Circumference (mm) | 3353 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 40 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.62 |
3V1400
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 138.34 |
| Effective Length (mm) | 3514 |
| Notched | false |
| Outside Circumference (in) | 140 |
| Outside Circumference (mm) | 3556 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 40 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.66 |
3V1500
No variation attributes.
3V250
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 24.7 |
| Effective Length (mm) | 627 |
| Notched | false |
| Outside Circumference (in) | 25 |
| Outside Circumference (mm) | 635 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.12 |
3V265
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 26.21 |
| Effective Length (mm) | 666 |
| Notched | false |
| Outside Circumference (in) | 26.5 |
| Outside Circumference (mm) | 673 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.125 |
3V300
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 29.64 |
| Effective Length (mm) | 753 |
| Notched | false |
| Outside Circumference (in) | 30 |
| Outside Circumference (mm) | 762 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.14 |
3V315
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 31.14 |
| Effective Length (mm) | 791 |
| Notched | false |
| Outside Circumference (in) | 31.5 |
| Outside Circumference (mm) | 800 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.15 |
3V335
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 33.11 |
| Effective Length (mm) | 841 |
| Notched | false |
| Outside Circumference (in) | 33.5 |
| Outside Circumference (mm) | 851 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.16 |
3V355
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 35.07 |
| Effective Length (mm) | 891 |
| Notched | false |
| Outside Circumference (in) | 35.5 |
| Outside Circumference (mm) | 902 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.17 |
3V375
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 36.56 |
| Effective Length (mm) | 929 |
| Notched | false |
| Outside Circumference (in) | 37.5 |
| Outside Circumference (mm) | 953 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.175 |
3V400
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 39.53 |
| Effective Length (mm) | 1004 |
| Notched | false |
| Outside Circumference (in) | 40 |
| Outside Circumference (mm) | 1016 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.19 |
3V420
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 41.5 |
| Effective Length (mm) | 1054 |
| Notched | false |
| Outside Circumference (in) | 42 |
| Outside Circumference (mm) | 1067 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 40 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 150 |
| Weight (lbs.) | 0.2 |
3V425
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 42 |
| Effective Length (mm) | 1067 |
| Notched | false |
| Outside Circumference (in) | 42.5 |
| Outside Circumference (mm) | 1080 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.2 |
3V450
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 44.47 |
| Effective Length (mm) | 1130 |
| Notched | false |
| Outside Circumference (in) | 45 |
| Outside Circumference (mm) | 1143 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.21 |
3V475
No variation attributes.
3V475
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 46.94 |
| Effective Length (mm) | 1192 |
| Notched | false |
| Outside Circumference (in) | 47.5 |
| Outside Circumference (mm) | 1207 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.22 |
3V500
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 49.4 |
| Effective Length (mm) | 1255 |
| Notched | false |
| Outside Circumference (in) | 50 |
| Outside Circumference (mm) | 1270 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.24 |
3V530
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 52.35 |
| Effective Length (mm) | 1330 |
| Notched | false |
| Outside Circumference (in) | 53 |
| Outside Circumference (mm) | 1346 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.25 |
3V560
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 55.29 |
| Effective Length (mm) | 1404 |
| Notched | false |
| Outside Circumference (in) | 56 |
| Outside Circumference (mm) | 1422 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.26 |
3V600
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 59.32 |
| Effective Length (mm) | 1507 |
| Notched | false |
| Outside Circumference (in) | 60 |
| Outside Circumference (mm) | 1524 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.28 |
3V630
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 62.26 |
| Effective Length (mm) | 1581 |
| Notched | false |
| Outside Circumference (in) | 63 |
| Outside Circumference (mm) | 1600 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.3 |
3V650
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 64.23 |
| Effective Length (mm) | 1631 |
| Notched | false |
| Outside Circumference (in) | 65 |
| Outside Circumference (mm) | 1651 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 40 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.31 |
3V670
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 66.2 |
| Effective Length (mm) | 1681 |
| Notched | false |
| Outside Circumference (in) | 67 |
| Outside Circumference (mm) | 1702 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.32 |
3V710
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 70.13 |
| Effective Length (mm) | 1781 |
| Notched | false |
| Outside Circumference (in) | 71 |
| Outside Circumference (mm) | 1803 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.335 |
3V730
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 72.13 |
| Effective Length (mm) | 1832 |
| Notched | false |
| Outside Circumference (in) | 73 |
| Outside Circumference (mm) | 1854 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 40 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.34 |
3V750
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 74.06 |
| Effective Length (mm) | 1881 |
| Notched | false |
| Outside Circumference (in) | 75 |
| Outside Circumference (mm) | 1905 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.35 |
3V800
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 79.05 |
| Effective Length (mm) | 2008 |
| Notched | false |
| Outside Circumference (in) | 80 |
| Outside Circumference (mm) | 2032 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.38 |
3V810
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 80.02 |
| Effective Length (mm) | 2033 |
| Notched | false |
| Outside Circumference (in) | 81 |
| Outside Circumference (mm) | 2057 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 40 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 76 |
| Weight (lbs.) | 0.38 |
3V830
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 82.01 |
| Effective Length (mm) | 2083 |
| Notched | false |
| Outside Circumference (in) | 83 |
| Outside Circumference (mm) | 2108 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 40 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.39 |
3V850
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 83.99 |
| Effective Length (mm) | 2133 |
| Notched | false |
| Outside Circumference (in) | 85 |
| Outside Circumference (mm) | 2159 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.4 |
3V900
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 88.95 |
| Effective Length (mm) | 2259 |
| Notched | false |
| Outside Circumference (in) | 90 |
| Outside Circumference (mm) | 2286 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.43 |
3V950
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 93.88 |
| Effective Length (mm) | 2385 |
| Notched | false |
| Outside Circumference (in) | 95 |
| Outside Circumference (mm) | 2413 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.39 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.45 |
5V1000
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 99.81 |
| Effective Length (mm) | 2535 |
| Notched | false |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.32 |
5V1060
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 104.74 |
| Effective Length (mm) | 2660 |
| Notched | false |
| Outside Circumference (in) | 106 |
| Outside Circumference (mm) | 2692 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.4 |
5V1120
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 110.67 |
| Effective Length (mm) | 2811 |
| Notched | false |
| Outside Circumference (in) | 112 |
| Outside Circumference (mm) | 2845 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.5 |
5V1180
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 116.6 |
| Effective Length (mm) | 2962 |
| Notched | false |
| Outside Circumference (in) | 118 |
| Outside Circumference (mm) | 2997 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.55 |
5V1250
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 123.52 |
| Effective Length (mm) | 3137 |
| Notched | false |
| Outside Circumference (in) | 125 |
| Outside Circumference (mm) | 3175 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.64 |
5V1320
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 130.43 |
| Effective Length (mm) | 3313 |
| Notched | false |
| Outside Circumference (in) | 132 |
| Outside Circumference (mm) | 3353 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.74 |
5V1400
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 138.34 |
| Effective Length (mm) | 3514 |
| Notched | false |
| Outside Circumference (in) | 140 |
| Outside Circumference (mm) | 3556 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.82 |
5V1500
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 148.22 |
| Effective Length (mm) | 3765 |
| Notched | false |
| Outside Circumference (in) | 150 |
| Outside Circumference (mm) | 3810 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.0 |
5V1600
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 158.1 |
| Effective Length (mm) | 4016 |
| Notched | false |
| Outside Circumference (in) | 160 |
| Outside Circumference (mm) | 4064 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.1 |
5V1630
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 161.07 |
| Effective Length (mm) | 4091 |
| Notched | false |
| Outside Circumference (in) | 163 |
| Outside Circumference (mm) | 4140 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 26 |
| Weight (lbs.) | 2.15 |
5V1700
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 167.98 |
| Effective Length (mm) | 4267 |
| Notched | false |
| Outside Circumference (in) | 170 |
| Outside Circumference (mm) | 4318 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.25 |
5V1710
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 168.97 |
| Effective Length (mm) | 4292 |
| Notched | false |
| Outside Circumference (in) | 171 |
| Outside Circumference (mm) | 4343 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 26 |
| Weight (lbs.) | 2.25 |
5V1800
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 177.87 |
| Effective Length (mm) | 4518 |
| Notched | false |
| Outside Circumference (in) | 180 |
| Outside Circumference (mm) | 4572 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.35 |
5V1900
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 187.75 |
| Effective Length (mm) | 4769 |
| Notched | false |
| Outside Circumference (in) | 190 |
| Outside Circumference (mm) | 4826 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.5 |
5V2000
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 197.63 |
| Effective Length (mm) | 5020 |
| Notched | false |
| Outside Circumference (in) | 200 |
| Outside Circumference (mm) | 5080 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.6 |
5V2120
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 209.49 |
| Effective Length (mm) | 5321 |
| Notched | false |
| Outside Circumference (in) | 212 |
| Outside Circumference (mm) | 5385 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.8 |
5V2240
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 221.34 |
| Effective Length (mm) | 5622 |
| Notched | false |
| Outside Circumference (in) | 224 |
| Outside Circumference (mm) | 5690 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 2.95 |
5V2360
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 233.2 |
| Effective Length (mm) | 5923 |
| Notched | false |
| Outside Circumference (in) | 236 |
| Outside Circumference (mm) | 5994 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 3.1 |
5V2500
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 247.04 |
| Effective Length (mm) | 6275 |
| Notched | false |
| Outside Circumference (in) | 250 |
| Outside Circumference (mm) | 6350 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 3.3 |
5V2650
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 261.86 |
| Effective Length (mm) | 6651 |
| Notched | false |
| Outside Circumference (in) | 265 |
| Outside Circumference (mm) | 6731 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 3.5 |
5V2800
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 276.68 |
| Effective Length (mm) | 7028 |
| Notched | false |
| Outside Circumference (in) | 280 |
| Outside Circumference (mm) | 7112 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 3.7 |
5V3000
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 296.44 |
| Effective Length (mm) | 7530 |
| Notched | false |
| Outside Circumference (in) | 300 |
| Outside Circumference (mm) | 7620 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 3.98 |
5V3150
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 311.26 |
| Effective Length (mm) | 7906 |
| Notched | false |
| Outside Circumference (in) | 315 |
| Outside Circumference (mm) | 8001 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 4.2 |
5V3350
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 331.03 |
| Effective Length (mm) | 8408 |
| Notched | false |
| Outside Circumference (in) | 335 |
| Outside Circumference (mm) | 8509 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 4.4 |
5V3550
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 350.79 |
| Effective Length (mm) | 8910 |
| Notched | false |
| Outside Circumference (in) | 355 |
| Outside Circumference (mm) | 9017 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 4.7 |
5V500
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 49.41 |
| Effective Length (mm) | 1255 |
| Notched | false |
| Outside Circumference (in) | 50 |
| Outside Circumference (mm) | 1270 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 38 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.65 |
5V530
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 52.37 |
| Effective Length (mm) | 1330 |
| Notched | false |
| Outside Circumference (in) | 53 |
| Outside Circumference (mm) | 1346 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 38 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.73 |
5V560
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 55.34 |
| Effective Length (mm) | 1406 |
| Notched | false |
| Outside Circumference (in) | 56 |
| Outside Circumference (mm) | 1422 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 38 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.77 |
5V600
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 59.29 |
| Effective Length (mm) | 1506 |
| Notched | false |
| Outside Circumference (in) | 60 |
| Outside Circumference (mm) | 1524 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 38 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.8 |
5V630
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 62.25 |
| Effective Length (mm) | 1581 |
| Notched | false |
| Outside Circumference (in) | 63 |
| Outside Circumference (mm) | 1600 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 38 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.82 |
5V670
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 66.21 |
| Effective Length (mm) | 1682 |
| Notched | false |
| Outside Circumference (in) | 67 |
| Outside Circumference (mm) | 1702 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 38 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.89 |
5V710
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 70.16 |
| Effective Length (mm) | 1782 |
| Notched | false |
| Outside Circumference (in) | 71 |
| Outside Circumference (mm) | 1803 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.93 |
5V750
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 74.11 |
| Effective Length (mm) | 1882 |
| Notched | false |
| Outside Circumference (in) | 75 |
| Outside Circumference (mm) | 1905 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.0 |
5V800
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 79.05 |
| Effective Length (mm) | 2008 |
| Notched | false |
| Outside Circumference (in) | 80 |
| Outside Circumference (mm) | 2032 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.05 |
5V850
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 83.99 |
| Effective Length (mm) | 2133 |
| Notched | false |
| Outside Circumference (in) | 85 |
| Outside Circumference (mm) | 2159 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.1 |
5V900
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 88.93 |
| Effective Length (mm) | 2259 |
| Notched | false |
| Outside Circumference (in) | 90 |
| Outside Circumference (mm) | 2286 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.2 |
5V950
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 93.87 |
| Effective Length (mm) | 2384 |
| Notched | false |
| Outside Circumference (in) | 95 |
| Outside Circumference (mm) | 2413 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.55 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.25 |
5VX1700
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 168.97 |
| Effective Length (mm) | 4292 |
| Notched | true |
| Outside Circumference (in) | 171 |
| Outside Circumference (mm) | 4343 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.67 |
5VX1800
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 178.85 |
| Effective Length (mm) | 4543 |
| Notched | true |
| Outside Circumference (in) | 180 |
| Outside Circumference (mm) | 4572 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.78 |
5VX1900
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 188.74 |
| Effective Length (mm) | 4794 |
| Notched | true |
| Outside Circumference (in) | 190 |
| Outside Circumference (mm) | 4826 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.88 |
5VX2000
| Cross Section | 5VX |
|---|---|
| Effective Length (in) | 198.62 |
| Effective Length (mm) | 5045 |
| Notched | true |
| Outside Circumference (in) | 200 |
| Outside Circumference (mm) | 5080 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.63 |
| Top Width (mm) | 16 |
| Angle. | 41 |
| Thickness (in) | 0.51 |
| Thickness (mm) | 13 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Bandless |
| Material | Belt Material is Ethylene Elastomeric. Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 1.95 |
8V1000
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 99.81 |
| Effective Length (mm) | 2535 |
| Notched | false |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 3.3 |
8V1060
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 104.74 |
| Effective Length (mm) | 2660 |
| Notched | false |
| Outside Circumference (in) | 106 |
| Outside Circumference (mm) | 2692 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 3.55 |
8V1120
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 110.67 |
| Effective Length (mm) | 2811 |
| Notched | false |
| Outside Circumference (in) | 112 |
| Outside Circumference (mm) | 2845 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 3.8 |
8V1180
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 116.6 |
| Effective Length (mm) | 2962 |
| Notched | false |
| Outside Circumference (in) | 118 |
| Outside Circumference (mm) | 2997 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 4.0 |
8V1250
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 123.52 |
| Effective Length (mm) | 3137 |
| Notched | false |
| Outside Circumference (in) | 125 |
| Outside Circumference (mm) | 3175 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 4.1 |
8V1320
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 130.43 |
| Effective Length (mm) | 3313 |
| Notched | false |
| Outside Circumference (in) | 132 |
| Outside Circumference (mm) | 3353 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 4.45 |
8V1400
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 138.34 |
| Effective Length (mm) | 3514 |
| Notched | false |
| Outside Circumference (in) | 140 |
| Outside Circumference (mm) | 3556 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 4.75 |
8V1500
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 148.22 |
| Effective Length (mm) | 3765 |
| Notched | false |
| Outside Circumference (in) | 150 |
| Outside Circumference (mm) | 3810 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 5.15 |
8V1600
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 158.1 |
| Effective Length (mm) | 4016 |
| Notched | false |
| Outside Circumference (in) | 160 |
| Outside Circumference (mm) | 4064 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 5.45 |
8V1700
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 167.98 |
| Effective Length (mm) | 4267 |
| Notched | false |
| Outside Circumference (in) | 170 |
| Outside Circumference (mm) | 4318 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 5.85 |
8V1800
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 177.87 |
| Effective Length (mm) | 4518 |
| Notched | false |
| Outside Circumference (in) | 180 |
| Outside Circumference (mm) | 4572 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 5 |
| Weight (lbs.) | 6.15 |
8V1900
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 187.75 |
| Effective Length (mm) | 4769 |
| Notched | false |
| Outside Circumference (in) | 190 |
| Outside Circumference (mm) | 4826 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 4 |
| Weight (lbs.) | 6.4 |
8V2000
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 197.85 |
| Effective Length (mm) | 5025 |
| Notched | false |
| Outside Circumference (in) | 200 |
| Outside Circumference (mm) | 5080 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 4 |
| Weight (lbs.) | 6.9 |
8V2120
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 209.76 |
| Effective Length (mm) | 5328 |
| Notched | false |
| Outside Circumference (in) | 212 |
| Outside Circumference (mm) | 5385 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 4 |
| Weight (lbs.) | 7.35 |
8V2240
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 221.34 |
| Effective Length (mm) | 5622 |
| Notched | false |
| Outside Circumference (in) | 224 |
| Outside Circumference (mm) | 5690 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 4 |
| Weight (lbs.) | 7.5 |
8V2300
No variation attributes.
8V2360
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 233.2 |
| Effective Length (mm) | 5923 |
| Notched | false |
| Outside Circumference (in) | 236 |
| Outside Circumference (mm) | 5994 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 3 |
| Weight (lbs.) | 7.95 |
8V2500
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 247.04 |
| Effective Length (mm) | 6275 |
| Notched | false |
| Outside Circumference (in) | 250 |
| Outside Circumference (mm) | 6350 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 3 |
| Weight (lbs.) | 8.5 |
8V2650
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 261.86 |
| Effective Length (mm) | 6651 |
| Notched | false |
| Outside Circumference (in) | 265 |
| Outside Circumference (mm) | 6731 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 3 |
| Weight (lbs.) | 9.0 |
8V2800
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 276.68 |
| Effective Length (mm) | 7028 |
| Notched | false |
| Outside Circumference (in) | 280 |
| Outside Circumference (mm) | 7112 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 3 |
| Weight (lbs.) | 9.45 |
8V3000
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 296.44 |
| Effective Length (mm) | 7530 |
| Notched | false |
| Outside Circumference (in) | 300 |
| Outside Circumference (mm) | 7620 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 3 |
| Weight (lbs.) | 10.45 |
8V3150
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 311.26 |
| Effective Length (mm) | 7906 |
| Notched | false |
| Outside Circumference (in) | 315 |
| Outside Circumference (mm) | 8001 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 3 |
| Weight (lbs.) | 10.85 |
8V3350
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 331.03 |
| Effective Length (mm) | 8408 |
| Notched | false |
| Outside Circumference (in) | 335 |
| Outside Circumference (mm) | 8509 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 1 |
| Weight (lbs.) | 11.4 |
8V3550
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 350.79 |
| Effective Length (mm) | 8910 |
| Notched | false |
| Outside Circumference (in) | 355 |
| Outside Circumference (mm) | 9017 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 1 |
| Weight (lbs.) | 12.15 |
8V3750
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 370.55 |
| Effective Length (mm) | 9412 |
| Notched | false |
| Outside Circumference (in) | 375 |
| Outside Circumference (mm) | 9525 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 1 |
| Weight (lbs.) | 12.9 |
8V4000
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 395.26 |
| Effective Length (mm) | 10040 |
| Notched | false |
| Outside Circumference (in) | 400 |
| Outside Circumference (mm) | 10160 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 1 |
| Weight (lbs.) | 13.7 |
8V4250
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 419.96 |
| Effective Length (mm) | 10667 |
| Notched | false |
| Outside Circumference (in) | 425 |
| Outside Circumference (mm) | 10795 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 1 |
| Weight (lbs.) | 14.65 |
8V4500
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 444.66 |
| Effective Length (mm) | 11294 |
| Notched | false |
| Outside Circumference (in) | 450 |
| Outside Circumference (mm) | 11430 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 1 |
| Weight (lbs.) | 15.4 |
8V4750
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 469.37 |
| Effective Length (mm) | 11922 |
| Notched | false |
| Outside Circumference (in) | 475 |
| Outside Circumference (mm) | 12065 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 1 |
| Weight (lbs.) | 16.29 |
8V5000
No variation attributes.
8V5600
| Cross Section | 8V |
|---|---|
| Effective Length (in) | 553.36 |
| Effective Length (mm) | 14055 |
| Notched | false |
| Outside Circumference (in) | 560 |
| Outside Circumference (mm) | 14224 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 1 |
| Top Width (mm) | 25 |
| Angle. | 40 |
| Thickness (in) | 0.87 |
| Thickness (mm) | 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 1 |
| Weight (lbs.) | 19.1 |
3V1000
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 99.62 |
| Effective Length (mm) | 2.53 |
| Notched | false |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 25 |
| Weight (lbs.) | 0.47 |
3V1060
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 105.96 |
| Effective Length (mm) | 2.691 |
| Notched | false |
| Outside Circumference (in) | 106 |
| Outside Circumference (mm) | 2692 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 25 |
| Weight (lbs.) | 0.5 |
3V1120
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 111.93 |
| Effective Length (mm) | 2.843 |
| Notched | false |
| Outside Circumference (in) | 112 |
| Outside Circumference (mm) | 2845 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 25 |
| Weight (lbs.) | 0.53 |
3V1180
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 118.13 |
| Effective Length (mm) | 3.001 |
| Notched | false |
| Outside Circumference (in) | 118 |
| Outside Circumference (mm) | 2997 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 0.56 |
3V1250
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 124.89 |
| Effective Length (mm) | 3.172 |
| Notched | false |
| Outside Circumference (in) | 125 |
| Outside Circumference (mm) | 3175 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 0.59 |
3V250
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 25.08 |
| Effective Length (mm) | 637 |
| Notched | false |
| Outside Circumference (in) | 25 |
| Outside Circumference (mm) | 635 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.12 |
3V265
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 26.52 |
| Effective Length (mm) | 674 |
| Notched | false |
| Outside Circumference (in) | 26.5 |
| Outside Circumference (mm) | 671 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 152 |
| Weight (lbs.) | 0.125 |
3V280
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 28.01 |
| Effective Length (mm) | 711 |
| Notched | false |
| Outside Circumference (in) | 28 |
| Outside Circumference (mm) | 711 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 152 |
| Weight (lbs.) | 0.13 |
3V315
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 31.51 |
| Effective Length (mm) | 800 |
| Notched | false |
| Outside Circumference (in) | 31.5 |
| Outside Circumference (mm) | 800 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.15 |
3V335
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 33.51 |
| Effective Length (mm) | 851 |
| Notched | false |
| Outside Circumference (in) | 33.5 |
| Outside Circumference (mm) | 851 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 150 |
| Weight (lbs.) | 0.16 |
3V355
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 35.49 |
| Effective Length (mm) | 901 |
| Notched | false |
| Outside Circumference (in) | 35.5 |
| Outside Circumference (mm) | 902 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 80 |
| Weight (lbs.) | 0.17 |
3V375
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 37.59 |
| Effective Length (mm) | 955 |
| Notched | false |
| Outside Circumference (in) | 37.5 |
| Outside Circumference (mm) | 953 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 38 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 80 |
| Weight (lbs.) | 0.175 |
3V450
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 44.9 |
| Effective Length (mm) | 1.14 |
| Notched | false |
| Outside Circumference (in) | 45 |
| Outside Circumference (mm) | 1143 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 1380 |
| Weight (lbs.) | 0.21 |
3V500
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 49.99 |
| Effective Length (mm) | 1.27 |
| Notched | false |
| Outside Circumference (in) | 50 |
| Outside Circumference (mm) | 1270 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 60 |
| Weight (lbs.) | 0.24 |
3V530
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 52.98 |
| Effective Length (mm) | 1.346 |
| Notched | false |
| Outside Circumference (in) | 53 |
| Outside Circumference (mm) | 1346 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 125 |
| Weight (lbs.) | 0.25 |
3V560
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 55.95 |
| Effective Length (mm) | 1.421 |
| Notched | false |
| Outside Circumference (in) | 56 |
| Outside Circumference (mm) | 1422 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.26 |
3V600
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 60.03 |
| Effective Length (mm) | 1.525 |
| Notched | false |
| Outside Circumference (in) | 60 |
| Outside Circumference (mm) | 1524 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 50 |
| Weight (lbs.) | 0.28 |
3V630
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 63.01 |
| Effective Length (mm) | 1.6 |
| Notched | false |
| Outside Circumference (in) | 63 |
| Outside Circumference (mm) | 1600 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.3 |
3V670
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 66.99 |
| Effective Length (mm) | 1.702 |
| Notched | false |
| Outside Circumference (in) | 67 |
| Outside Circumference (mm) | 1702 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.32 |
3V710
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 70.97 |
| Effective Length (mm) | 1.803 |
| Notched | false |
| Outside Circumference (in) | 71 |
| Outside Circumference (mm) | 1803 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.335 |
3V750
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 74.95 |
| Effective Length (mm) | 1.904 |
| Notched | false |
| Outside Circumference (in) | 75 |
| Outside Circumference (mm) | 1905 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.35 |
3V800
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 79.92 |
| Effective Length (mm) | 2.03 |
| Notched | false |
| Outside Circumference (in) | 80 |
| Outside Circumference (mm) | 2032 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.38 |
3V850
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 84.89 |
| Effective Length (mm) | 2.156 |
| Notched | false |
| Outside Circumference (in) | 85 |
| Outside Circumference (mm) | 2159 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 70 |
| Weight (lbs.) | 0.4 |
3V900
| Cross Section | 3V |
|---|---|
| Effective Length (in) | 90.02 |
| Effective Length (mm) | 2.287 |
| Notched | false |
| Outside Circumference (in) | 90 |
| Outside Circumference (mm) | 2286 |
| Strand | 1 |
| Top Width (in) | 0.38 |
| Top Width (mm) | 10 |
| Angle. | 39 |
| Thickness (in) | 0.31 |
| Thickness (mm) | 8 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.43 |
5V1000
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 99.85 |
| Effective Length (mm) | 2.536 |
| Notched | false |
| Outside Circumference (in) | 100 |
| Outside Circumference (mm) | 2540 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.32 |
5V1060
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 106.02 |
| Effective Length (mm) | 2.693 |
| Notched | false |
| Outside Circumference (in) | 106 |
| Outside Circumference (mm) | 2692 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 15 |
| Weight (lbs.) | 1.4 |
5V1120
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 111.97 |
| Effective Length (mm) | 2.844 |
| Notched | false |
| Outside Circumference (in) | 112 |
| Outside Circumference (mm) | 2845 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 15 |
| Weight (lbs.) | 1.5 |
5V1180
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 117.96 |
| Effective Length (mm) | 2.996 |
| Notched | false |
| Outside Circumference (in) | 118 |
| Outside Circumference (mm) | 2997 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 15 |
| Weight (lbs.) | 1.55 |
5V1250
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 124.92 |
| Effective Length (mm) | 3.173 |
| Notched | false |
| Outside Circumference (in) | 125 |
| Outside Circumference (mm) | 3175 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 15 |
| Weight (lbs.) | 1.64 |
5V1320
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 132 |
| Effective Length (mm) | 3.353 |
| Notched | false |
| Outside Circumference (in) | 132 |
| Outside Circumference (mm) | 3353 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.74 |
5V1400
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 140 |
| Effective Length (mm) | 3.556 |
| Notched | false |
| Outside Circumference (in) | 140 |
| Outside Circumference (mm) | 3556 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.82 |
5V1500
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 150 |
| Effective Length (mm) | 3.81 |
| Notched | false |
| Outside Circumference (in) | 150 |
| Outside Circumference (mm) | 3810 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 40 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 2.0 |
5V500
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 50.07 |
| Effective Length (mm) | 1.272 |
| Notched | false |
| Outside Circumference (in) | 50 |
| Outside Circumference (mm) | 1270 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 38 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.65 |
5V530
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 53.04 |
| Effective Length (mm) | 1.347 |
| Notched | false |
| Outside Circumference (in) | 53 |
| Outside Circumference (mm) | 1346 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 38 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.73 |
5V560
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 56.11 |
| Effective Length (mm) | 1.425 |
| Notched | false |
| Outside Circumference (in) | 56 |
| Outside Circumference (mm) | 1422 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 38 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.77 |
5V630
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 62.91 |
| Effective Length (mm) | 1.598 |
| Notched | false |
| Outside Circumference (in) | 63 |
| Outside Circumference (mm) | 1600 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 38 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 30 |
| Weight (lbs.) | 0.82 |
5V710
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 71.01 |
| Effective Length (mm) | 1.804 |
| Notched | false |
| Outside Circumference (in) | 71 |
| Outside Circumference (mm) | 1803 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 40 |
| Weight (lbs.) | 0.93 |
5V750
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 75.13 |
| Effective Length (mm) | 1.908 |
| Notched | false |
| Outside Circumference (in) | 75 |
| Outside Circumference (mm) | 1905 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.0 |
5V800
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 80.11 |
| Effective Length (mm) | 2.035 |
| Notched | false |
| Outside Circumference (in) | 80 |
| Outside Circumference (mm) | 2032 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.05 |
5V850
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 84.94 |
| Effective Length (mm) | 2.157 |
| Notched | false |
| Outside Circumference (in) | 85 |
| Outside Circumference (mm) | 2159 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.1 |
5V900
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 90.07 |
| Effective Length (mm) | 2.288 |
| Notched | false |
| Outside Circumference (in) | 90 |
| Outside Circumference (mm) | 2286 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.2 |
5V950
| Cross Section | 5V |
|---|---|
| Effective Length (in) | 95.06 |
| Effective Length (mm) | 2.415 |
| Notched | false |
| Outside Circumference (in) | 95 |
| Outside Circumference (mm) | 2413 |
| Strand | 1 |
| Top Width (in) | 0.62 |
| Top Width (mm) | 16 |
| Angle. | 39 |
| Thickness (in) | 0.53 |
| Thickness (mm) | 14 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Material | Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections. |
| Customer Pack | 20 |
| Weight (lbs.) | 1.25 |
Specifications
| Cross Section | 3V, 5V, 5VX, 8V |
|---|---|
| Effective Length (in) | 24.7 – 553.36 |
| Effective Length (mm) | 1.14 – 14055 |
| Notched | false, true |
| Outside Circumference (in) | 25 – 560 |
| Outside Circumference (mm) | 635 – 14224 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.38 – 1 |
| Top Width (mm) | 10 – 25 |
| Angle. | 38 – 41 |
| Thickness (in) | 0.31 – 0.87 |
| Thickness (mm) | 8 – 22 |
| Markets/Applications | Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical. |
| Color | Black |
| Construction | Banded, Bandless |
| Material | Belt Material is Polychloroprene (Neoprene). Cord Material is Polyester, Belt Material is Ethylene Elastomeric. Cord Material is Polyester, Gates Neoprene Compound |
| Recommended For | Super HC® Sheaves |
| Belt Notes | Gates Super HC® belts are available in 3V, 5V, and 8V cross-sections., Gates Super HC® Molded Notch belts are available in 3VX and 5VX cross-sections. |
| Customer Pack | 1 – 1380 |
| Weight (lbs.) | 0.12 – 19.1 |
PDF Documents
No PDF documents.
