Attributes
| Part Number | 4651-000000-000017 |
|---|
Description

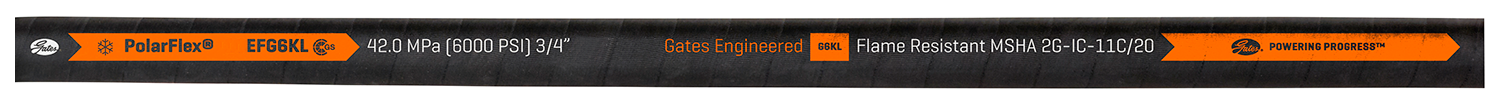

EFG6KL Spiral Wire Hose - 420 Bar - PolarFlex™ Low Temp -57°C EFG6K Low-Temp hose is recommended for extremely high pressure, low temperature hydraulic applications. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluid. For use with GlobalSpiral™ Couplings [G20 Series]. Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of SAE 100R15 bend radii. Resistant to cover cracking at low temperature and tight bends.
Features and Benefits Resistant to cover cracking at low temperature and tight bend radius. Meets or exceeds performance requirements of EN 856 4SP / 4SH. 40% of EN 856 4SP/4SH bend radius at rated working pressure. Standards: Exceeds ISO 3862 R15. SAE 100R15. Validated with GlobalSpiral. Cover: MSHA approved. Temperature Range: -57°C to +100°C -70°F to +212°F Size: 1/2" to 1".
Variations (4)
70250
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -70°F to +212°F |
| Minimum Bend Radius (in) | 3.9 |
| Minimum Bend Radius (mm) | 100 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 1.09 |
| Hose Outside Diameter (mm) | 27.7 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 6000 |
| Length (m) | 30 |
| Outside Diameter (in) | 1.09 |
| Outside Diameter (mm) | 27.7 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Recommended For | Extremely high-pressure hydraulic applications in low-temperature environments. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluid. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.79 |
| Packaging | A |
70257
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -70°F to +212°F |
| Minimum Bend Radius (in) | 4.8 |
| Minimum Bend Radius (mm) | 121.9 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.24 |
| Hose Outside Diameter (mm) | 31.5 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 6000 |
| Length (m) | 30 |
| Outside Diameter (in) | 1.24 |
| Outside Diameter (mm) | 31.5 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Recommended For | Extremely high-pressure hydraulic applications in low-temperature environments. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluid. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.97 |
| Packaging | A |
70259
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -70°F to +212°F |
| Minimum Bend Radius (in) | 5.9 |
| Minimum Bend Radius (mm) | 150 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.53 |
| Hose Outside Diameter (mm) | 38.9 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 6000 |
| Length (m) | 30 |
| Outside Diameter (in) | 1.53 |
| Outside Diameter (mm) | 38.9 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Recommended For | Extremely high-pressure hydraulic applications in low-temperature environments. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluid. |
| Customer Pack | 100 |
| Weight (lbs.) | 1.48 |
| Packaging | A |
70175
No variation attributes.
Specifications
| Dynamic WP (Max.psi) (1) | 6000 |
|---|---|
| Continuous Operating Temperature Range | -70°F to +212°F |
| Minimum Bend Radius (in) | 3.9 – 5.9 |
| Minimum Bend Radius (mm) | 100 – 150 |
| Min. Burst Pressure (psi) | 24000 |
| Hose Inside Diameter (in). | 0.63 – 1 |
| Hose Inside Diameter (mm) | 15.9 – 25.4 |
| Hose Outside Diameter (in) | 1.09 – 1.53 |
| Hose Outside Diameter (mm) | 27.7 – 38.9 |
| Inside Diameter (in) | 0.625 – 1 |
| Inside Diameter (mm) | 15.9 – 25.4 |
| Working Pressure (psi) | 6000 |
| Length (m) | 30 |
| Outside Diameter (in) | 1.09 – 1.53 |
| Outside Diameter (mm) | 27.7 – 38.9 |
| Use | Spiral Wire |
| Color | Black |
| Reinforcement | 4-spiral, wire |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Polychloroprene (Neoprene) - Type A |
| Recommended For | Extremely high-pressure hydraulic applications in low-temperature environments. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluid. |
| Customer Pack | 100 |
| Weight (lbs.) | 0.79 – 1.48 |
| Packaging | A |
