Attributes
| Part Number | 3284-000000-000000 |
|---|
Description

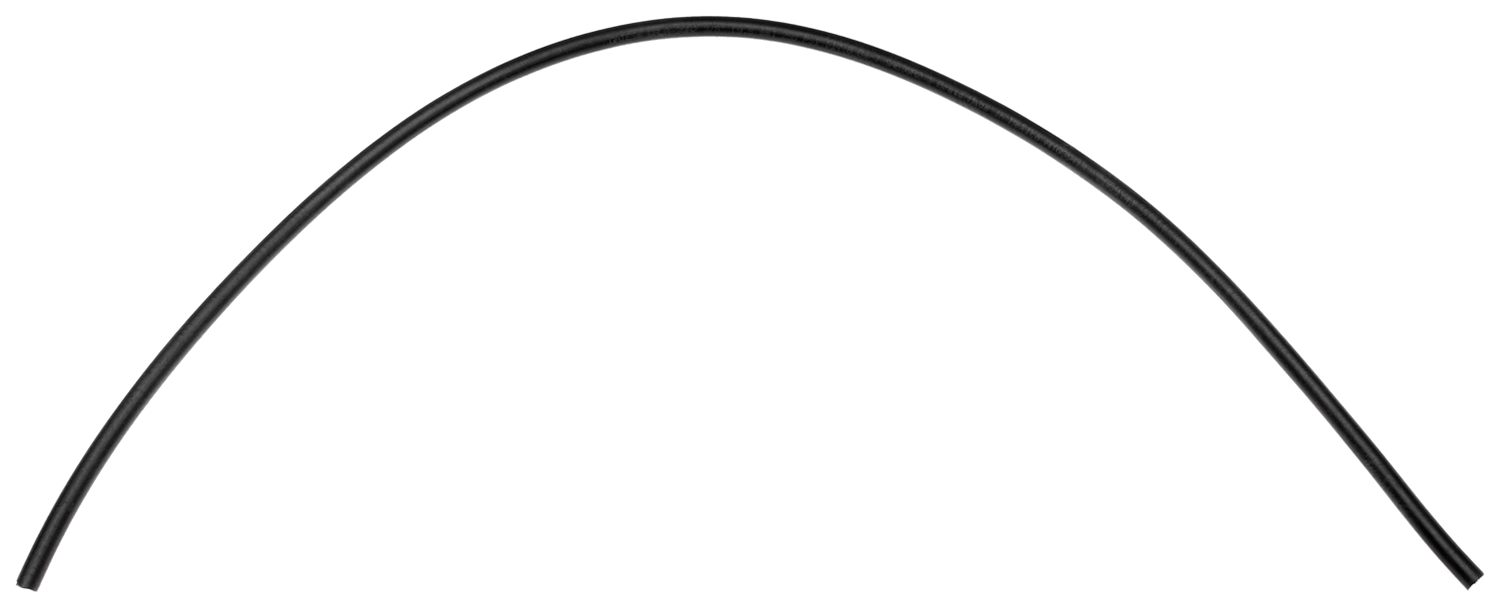

RLA Return Line and Low Pressure Hose RLA hose is recommended for low-pressure hydraulic oil return, general purpose water, glycol antifreeze solutions, diesel fuel, gasoline or air. Recommended For: Low-pressure hydraulic oil return, general purpose water, glycol antifreeze solutions, diesel fuel, gasoline or air. For use with MegaCrimp™ Couplings [G25 Series] and Power Crimp™ Couplings (-3 only), GLP Couplings [G42 Series] (RLA -4 through -12 only), and GLX™ Couplings [G44 Series] (-12 and -16 only). Meets SAE 30R2 Type 1 requirements (except wall thickness for RLA) including B20 (up to 20%) biodiesel for constant contact up to +125°F (51°C). Also meets SAE 30R2 Type 2 performance requirements. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features and Benefits Temperature Range: -40°C to +100°C -40°F to +212°F Air Only: +71°C +160°F Design factor: 4:1. Size: 3/16" to 1".
Variations (31)
85085
| Dynamic WP (Max.psi) (1) | 200 |
|---|---|
| Vacuum (In. Hg) | 15 |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 800 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 0.94 |
| Hose Outside Diameter (mm) | 23.9 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.94 |
| Outside Diameter (mm) | 23.9 |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
| Customer Pack | 1 |
85946
| Dynamic WP (Max.psi) (1) | 200 |
|---|---|
| Vacuum (In. Hg) | 10 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 6 |
| Minimum Bend Radius (mm) | 152.4 |
| Min. Burst Pressure (psi) | 800 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.09 |
| Hose Outside Diameter (mm) | 27.7 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 200 |
| Length (m) | 8 |
| Outside Diameter (in) | 1.09 |
| Outside Diameter (mm) | 27.7 |
| Use | Return |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standard Industry Specification | SAE 30R2 1 & 2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
| Recommended For | Low-pressure hydraulic oil return lines for general purpose water, glycol antifreeze solutions, conveying diesel fuel, gasoline or air. Meets SAE 30R2 performance requirements of both Type 1 and Type 2 for fuel and B20 constant contact up to +125°F biodiesel fuel transfer applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 8.1 |
| Packaging | T |
70046
| Dynamic WP (Max.psi) (1) | 200 |
|---|---|
| Vacuum (In. Hg) | 10 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 5.9 |
| Minimum Bend Radius (mm) | 150 |
| Min. Burst Pressure (psi) | 800 |
| Hose Inside Diameter (in). | 1.09 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.09 |
| Hose Outside Diameter (mm) | 27.7 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Working Pressure (psi) | 200 |
| Length (m) | 198 |
| Outside Diameter (in) | 1.09 |
| Outside Diameter (mm) | 27.7 |
| Use | Return |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standard Industry Specification | SAE 30R2 1 & 2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
| Recommended For | Low-pressure hydraulic oil return lines for general purpose water, glycol antifreeze solutions, conveying diesel fuel, gasoline or air. Meets SAE 30R2 performance requirements of both Type 1 and Type 2 for fuel and B20 constant contact up to +125°F biodiesel fuel transfer applications. |
| Customer Pack | 650 |
| Weight (lbs.) | 0.32 |
| Packaging | A |
85947
| Dynamic WP (Max.psi) (1) | 160 |
|---|---|
| Vacuum (In. Hg) | 10 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203.2 |
| Min. Burst Pressure (psi) | 640 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.34 |
| Hose Outside Diameter (mm) | 34 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 160 |
| Length (m) | 8 |
| Outside Diameter (in) | 1.34 |
| Outside Diameter (mm) | 34 |
| Use | Return |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standard Industry Specification | SAE 30R2 1 & 2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
| Recommended For | Low-pressure hydraulic oil return lines for general purpose water, glycol antifreeze solutions, conveying diesel fuel, gasoline or air. Meets SAE 30R2 performance requirements of both Type 1 and Type 2 for fuel and B20 constant contact up to +125°F biodiesel fuel transfer applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 10.31 |
| Packaging | T |
70047
| Dynamic WP (Max.psi) (1) | 160 |
|---|---|
| Vacuum (In. Hg) | 10 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Minimum Bend Radius (in) | 8 |
| Minimum Bend Radius (mm) | 203.2 |
| Min. Burst Pressure (psi) | 640 |
| Hose Inside Diameter (in). | 1 |
| Hose Inside Diameter (mm) | 25.4 |
| Hose Outside Diameter (in) | 1.34 |
| Hose Outside Diameter (mm) | 34 |
| Inside Diameter (in) | 1 |
| Inside Diameter (mm) | 25.4 |
| Working Pressure (psi) | 160 |
| Length (m) | 122 |
| Outside Diameter (in) | 1.34 |
| Outside Diameter (mm) | 34 |
| Use | Return |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standard Industry Specification | SAE 30R2 1 & 2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
| Recommended For | Low-pressure hydraulic oil return lines for general purpose water, glycol antifreeze solutions, conveying diesel fuel, gasoline or air. Meets SAE 30R2 performance requirements of both Type 1 and Type 2 for fuel and B20 constant contact up to +125°F biodiesel fuel transfer applications. |
| Customer Pack | 400 |
| Weight (lbs.) | 0.41 |
| Packaging | A |
85080
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1000 |
| Hose Inside Diameter (in). | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Hose Outside Diameter (in) | 0.41 |
| Hose Outside Diameter (mm) | 10.4 |
| Inside Diameter (in) | 0.1875 |
| Inside Diameter (mm) | 4.8 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.41 |
| Outside Diameter (mm) | 10.4 |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
| Customer Pack | 1 |
70882
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1000 |
| Hose Inside Diameter (in). | 0.19 |
| Hose Inside Diameter (mm) | 4.8 |
| Hose Outside Diameter (in) | 0.41 |
| Hose Outside Diameter (mm) | 10.4 |
| Inside Diameter (in) | 0.1875 |
| Inside Diameter (mm) | 4.8 |
| Working Pressure (psi) | 250 |
| Length (m) | 168 |
| Outside Diameter (in) | 0.41 |
| Outside Diameter (mm) | 10.4 |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
| Customer Pack | 550 |
| Weight (lbs.) | 0.03 |
70041
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 250 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 168 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 12.7 |
| Coupling Recommendation | GLP Couplings [G42 Series]; MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Modified Nitrile - Type C2. Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | 1-braid, textile |
| Construction: Tube | Nitrile - Type C |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
85081
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1000 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 12.7 |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
| Customer Pack | 1 |
70089
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Minimum Bend Radius (in) | 3 |
| Minimum Bend Radius (mm) | 76.2 |
| Min. Burst Pressure (psi) | 1000 |
| Hose Inside Diameter (in). | 0.25 |
| Hose Inside Diameter (mm) | 6.4 |
| Hose Outside Diameter (in) | 0.5 |
| Hose Outside Diameter (mm) | 12.7 |
| Inside Diameter (in) | 0.25 |
| Inside Diameter (mm) | 6.4 |
| Working Pressure (psi) | 250 |
| Length (m) | 168 |
| Outside Diameter (in) | 0.5 |
| Outside Diameter (mm) | 12.7 |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
| Customer Pack | 550 |
| Weight (lbs.) | 0.288 |
85082
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 1000 |
| Hose Inside Diameter (in). | 0.31 |
| Hose Inside Diameter (mm) | 7.9 |
| Hose Outside Diameter (in) | 0.56 |
| Hose Outside Diameter (mm) | 14.2 |
| Inside Diameter (in) | 0.3125 |
| Inside Diameter (mm) | 7.9 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.56 |
| Outside Diameter (mm) | 14.2 |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
| Customer Pack | 1 |
70056
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 250 |
| Inside Diameter (in) | .3125 |
| Inside Diameter (mm) | 7.9 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 168 |
| Outside Diameter (in) | .56 |
| Outside Diameter (mm) | 14.2 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Modified Nitrile - Type C2. Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | 1-braid, textile |
| Construction: Tube | Nitrile - Type C |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
85083
| Dynamic WP (Max.psi) (1) | 250 |
|---|---|
| Vacuum (In. Hg) | 28 |
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 1000 |
| Hose Inside Diameter (in). | 0.38 |
| Hose Inside Diameter (mm) | 9.5 |
| Hose Outside Diameter (in) | 0.66 |
| Hose Outside Diameter (mm) | 16.8 |
| Inside Diameter (in) | 0.375 |
| Inside Diameter (mm) | 9.5 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.66 |
| Outside Diameter (mm) | 16.8 |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
| Customer Pack | 1 |
| Weight (lbs.) | 0.84 |
70071
| Vacuum (In. Hg) | 28 |
|---|---|
| Minimum Bend Radius (in) | 4 |
| Minimum Bend Radius (mm) | 101.6 |
| Min. Burst Pressure (psi) | 250 |
| Inside Diameter (in) | .375 |
| Inside Diameter (mm) | 9.5 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 250 |
| Length (m) | 168 |
| Outside Diameter (in) | .66 |
| Outside Diameter (mm) | 16.8 |
| Coupling Recommendation | GLP Couplings [G42 Series]; MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Modified Nitrile - Type C2. Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | 1-braid, textile |
| Construction: Tube | Nitrile - Type C |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
70044
| Vacuum (In. Hg) | 20 |
|---|---|
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 200 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 200 |
| Length (m) | 168 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 20.6 |
| Coupling Recommendation | GLP Couplings [G42 Series]; MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Modified Nitrile - Type C2. Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | 1-braid, textile |
| Construction: Tube | Nitrile - Type C |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
85084
| Dynamic WP (Max.psi) (1) | 200 |
|---|---|
| Vacuum (In. Hg) | 20 |
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 800 |
| Hose Inside Diameter (in). | 0.5 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Outside Diameter (in) | 0.81 |
| Hose Outside Diameter (mm) | 20.6 |
| Inside Diameter (in) | 0.5 |
| Inside Diameter (mm) | 12.7 |
| Length (m) | 8 |
| Outside Diameter (in) | 0.81 |
| Outside Diameter (mm) | 20.6 |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
| Customer Pack | 1 |
70090
| Vacuum (In. Hg) | 20 |
|---|---|
| Minimum Bend Radius (in) | 5 |
| Minimum Bend Radius (mm) | 127 |
| Min. Burst Pressure (psi) | 200 |
| Inside Diameter (in) | .5 |
| Inside Diameter (mm) | 12.7 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Working Pressure (psi) | 200 |
| Length (m) | 168 |
| Outside Diameter (in) | .81 |
| Outside Diameter (mm) | 20.6 |
| Coupling Recommendation | MegaCrimp® Couplings [G25 Series] |
| Color | Black |
| Cover | Modified Nitrile - Type C2. Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Construction: Cover | Modified Nitrile - Type C2 |
| Construction: Reinforcement | 1-braid, textile |
| Construction: Tube | Nitrile - Type C |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
3RLA 3/16
No variation attributes.
70089
No variation attributes.
70882
No variation attributes.
70942
No variation attributes.
85080
No variation attributes.
85081
No variation attributes.
85082
No variation attributes.
85083
No variation attributes.
85084
No variation attributes.
85085
No variation attributes.
328401407
No variation attributes.
328401507
No variation attributes.
328401607
No variation attributes.
328401707
No variation attributes.
Specifications
| Dynamic WP (Max.psi) (1) | 160 – 250 |
|---|---|
| Vacuum (In. Hg) | 10 – 28 |
| Minimum Bend Radius (in) | 3 – 8 |
| Minimum Bend Radius (mm) | 76.2 – 203.2 |
| Min. Burst Pressure (psi) | 200 – 1000 |
| Hose Inside Diameter (in). | 0.19 – 1.09 |
| Hose Inside Diameter (mm) | 4.8 – 25.4 |
| Hose Outside Diameter (in) | 0.41 – 1.34 |
| Hose Outside Diameter (mm) | 10.4 – 34 |
| Inside Diameter (in) | 0.1875 – 1 |
| Inside Diameter (mm) | 4.8 – 25.4 |
| Length (m) | 8 – 198 |
| Outside Diameter (in) | 0.41 – 1.34 |
| Outside Diameter (mm) | 10.4 – 34 |
| Color | Black |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile - Type C; Black; Oil Resistant |
| Notes | 30R2 Type 1. 30R2 Type 2Meets MSHA 2G. Air to +160°F. |
| Customer Pack | 1 – 650 |
| Continuous Operating Temperature Range | -40°F to +212°F |
| Working Pressure (psi) | 160 – 250 |
| Use | Return |
| Construction: Cover | Modified Nitrile - Type C2 |
| Standard Industry Specification | SAE 30R2 1 & 2 |
| Meets These Agency Specifications | MSHA 2G - Mine Safety & Health Admin. USA, SAE - Society of Automotive Engineers |
| Recommended For | Low-pressure hydraulic oil return lines for general purpose water, glycol antifreeze solutions, conveying diesel fuel, gasoline or air. Meets SAE 30R2 performance requirements of both Type 1 and Type 2 for fuel and B20 constant contact up to +125°F biodiesel fuel transfer applications. |
| Weight (lbs.) | 0.03 – 10.31 |
| Packaging | T, A |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Coupling Recommendation | GLP Couplings [G42 Series]; MegaCrimp® Couplings [G25 Series], MegaCrimp® Couplings [G25 Series] |
| Cover | Modified Nitrile - Type C2. Black |
| Construction: Reinforcement | 1-braid, textile |
| Construction: Tube | Nitrile - Type C |
PDF Documents
Hydraulics Catalog
Open PDF
